#803 Camera preview time out

Description

This article will explain how to troubleshoot Error Code #803.

Step 1

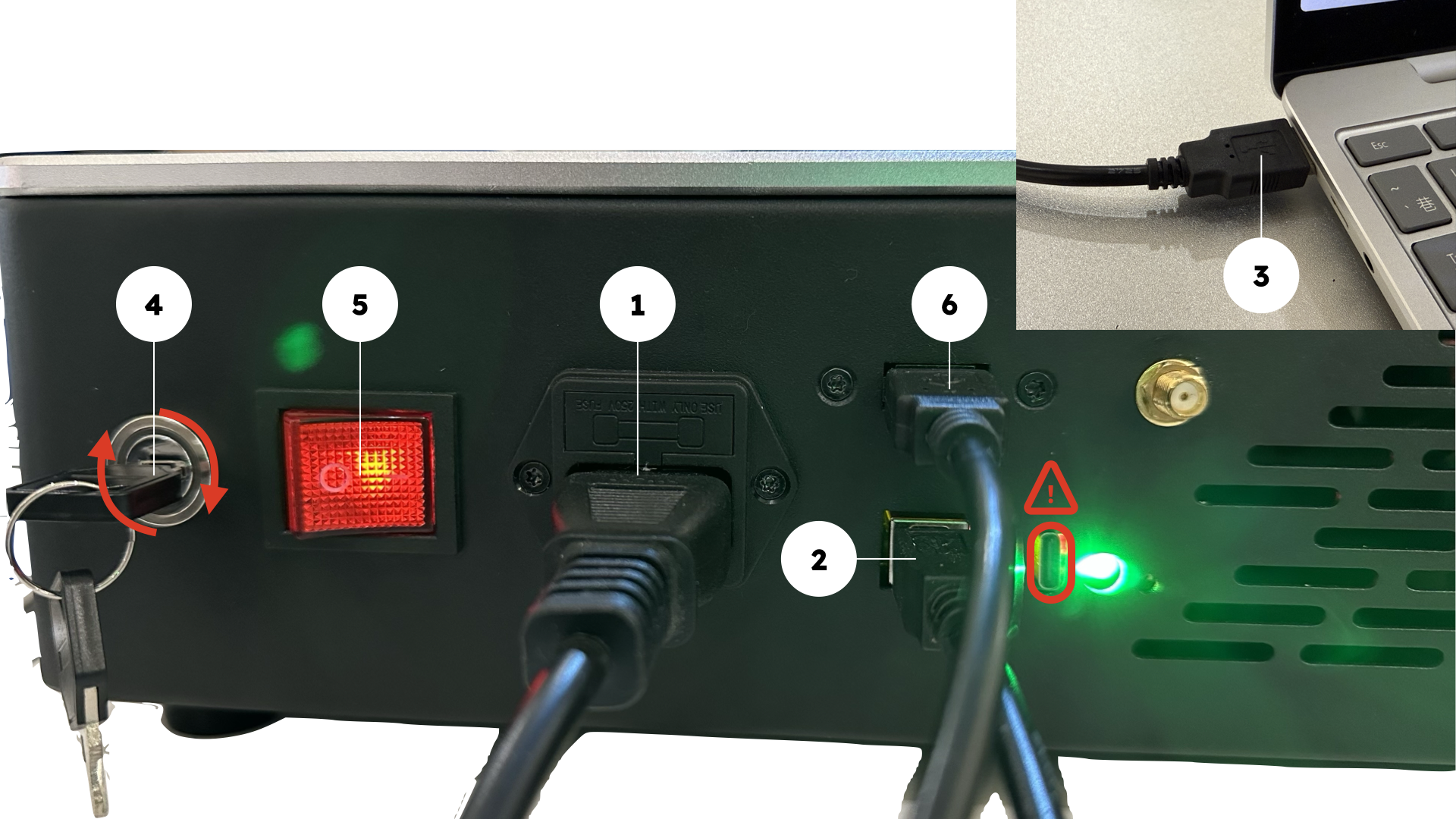

Check whether the No. 6 cable in the image below (USB-A to USB-A) is properly connected between the camera and the computer.

Step 2

Check if the camera is functioning properly.

Open the camera application on your computer, switch to the USB camera, and confirm whether the video is displayed normally.

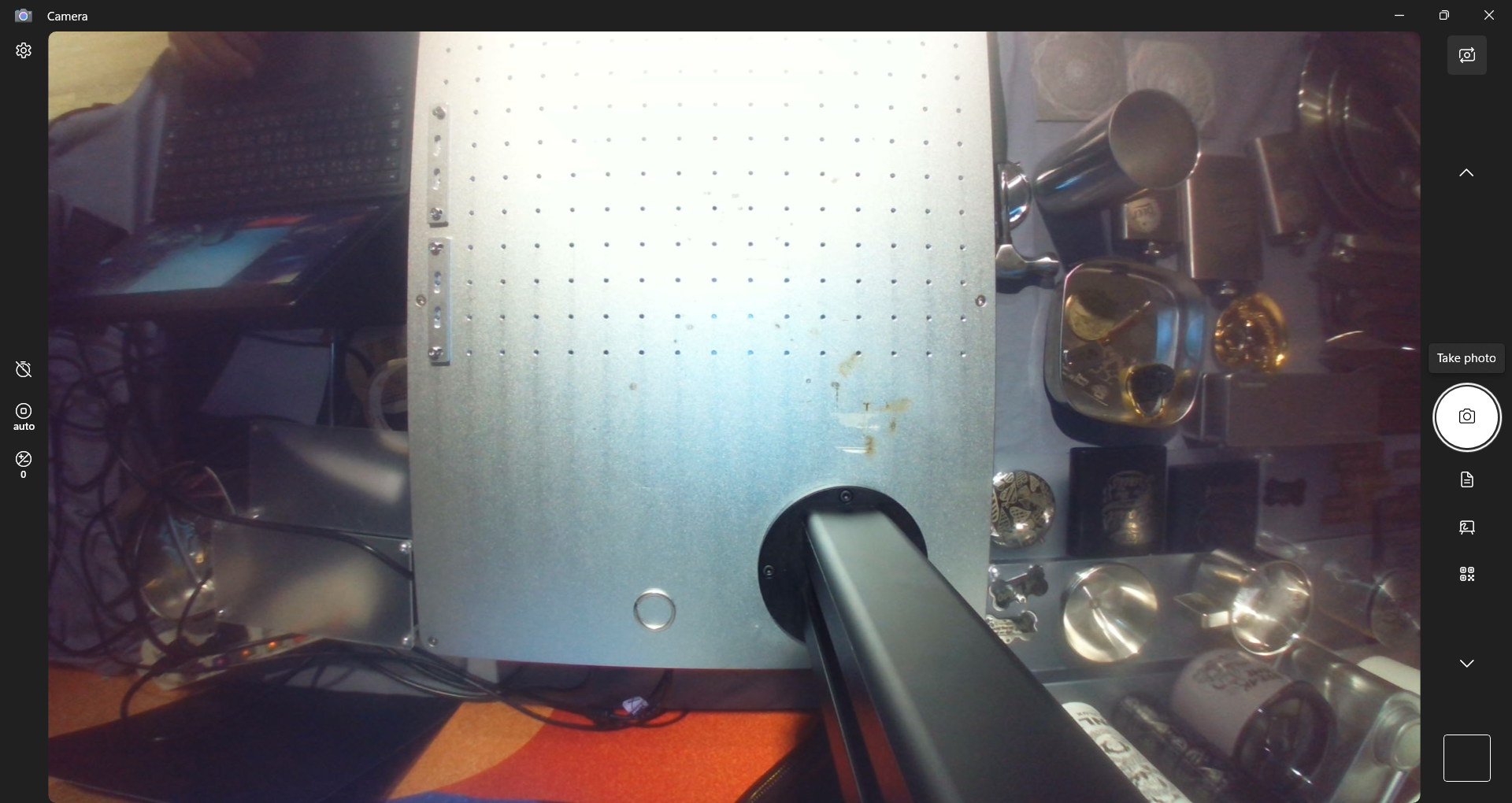

Windows - "Camera"

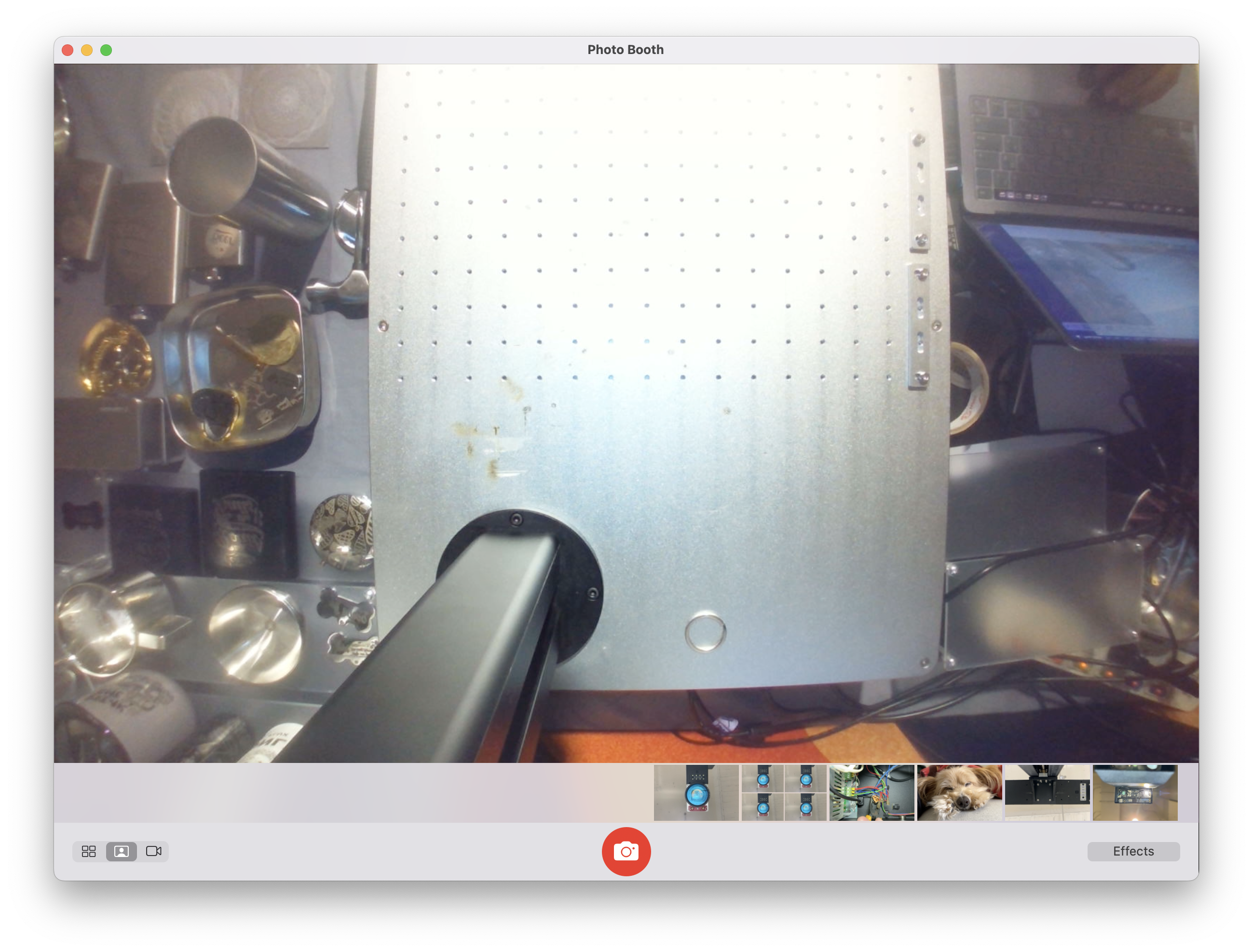

Mac - "Photo Booth"

Step 3

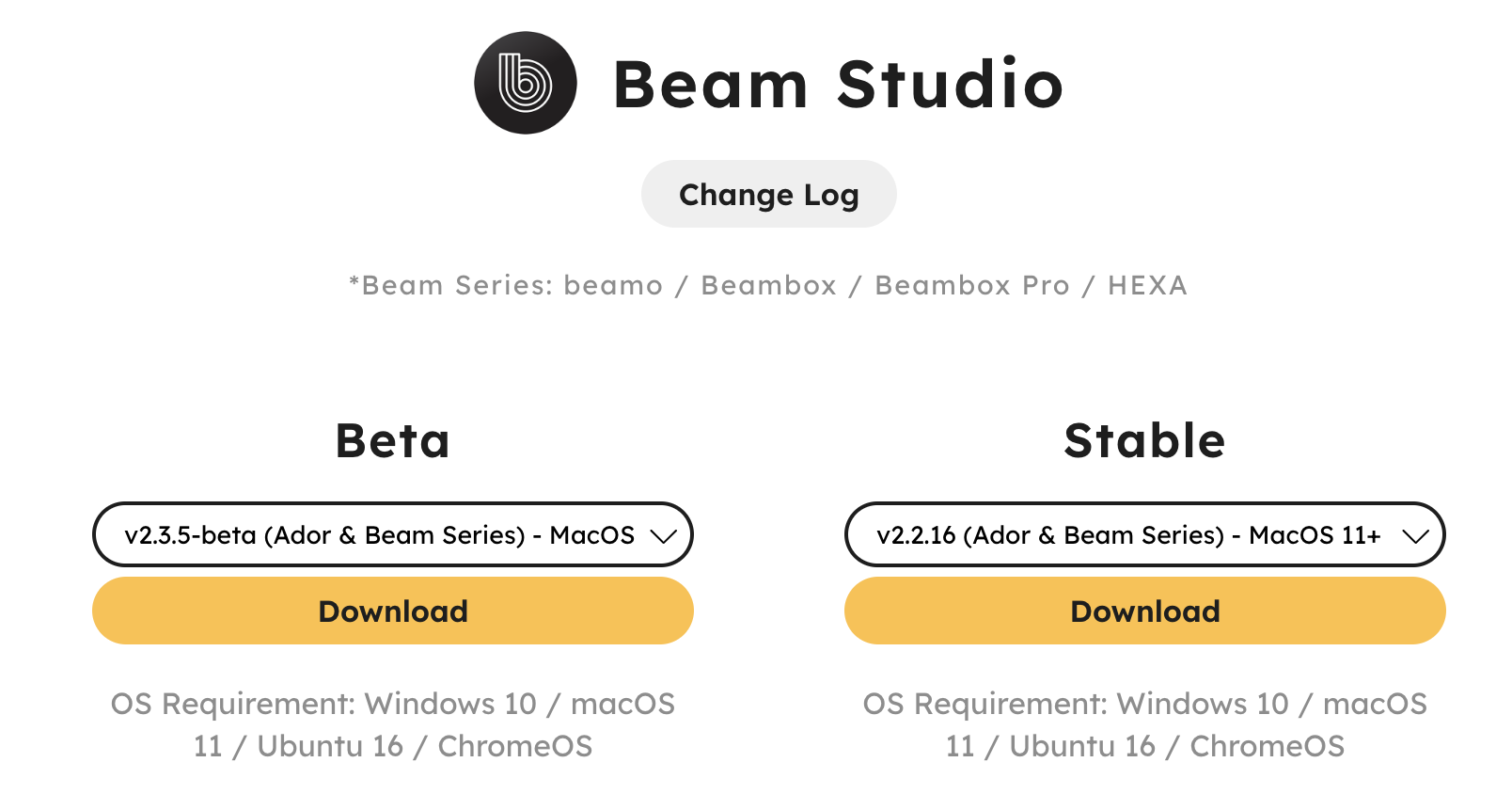

Open Beam Studio and confirm that the version is 2.4.3 or later.

Step 4

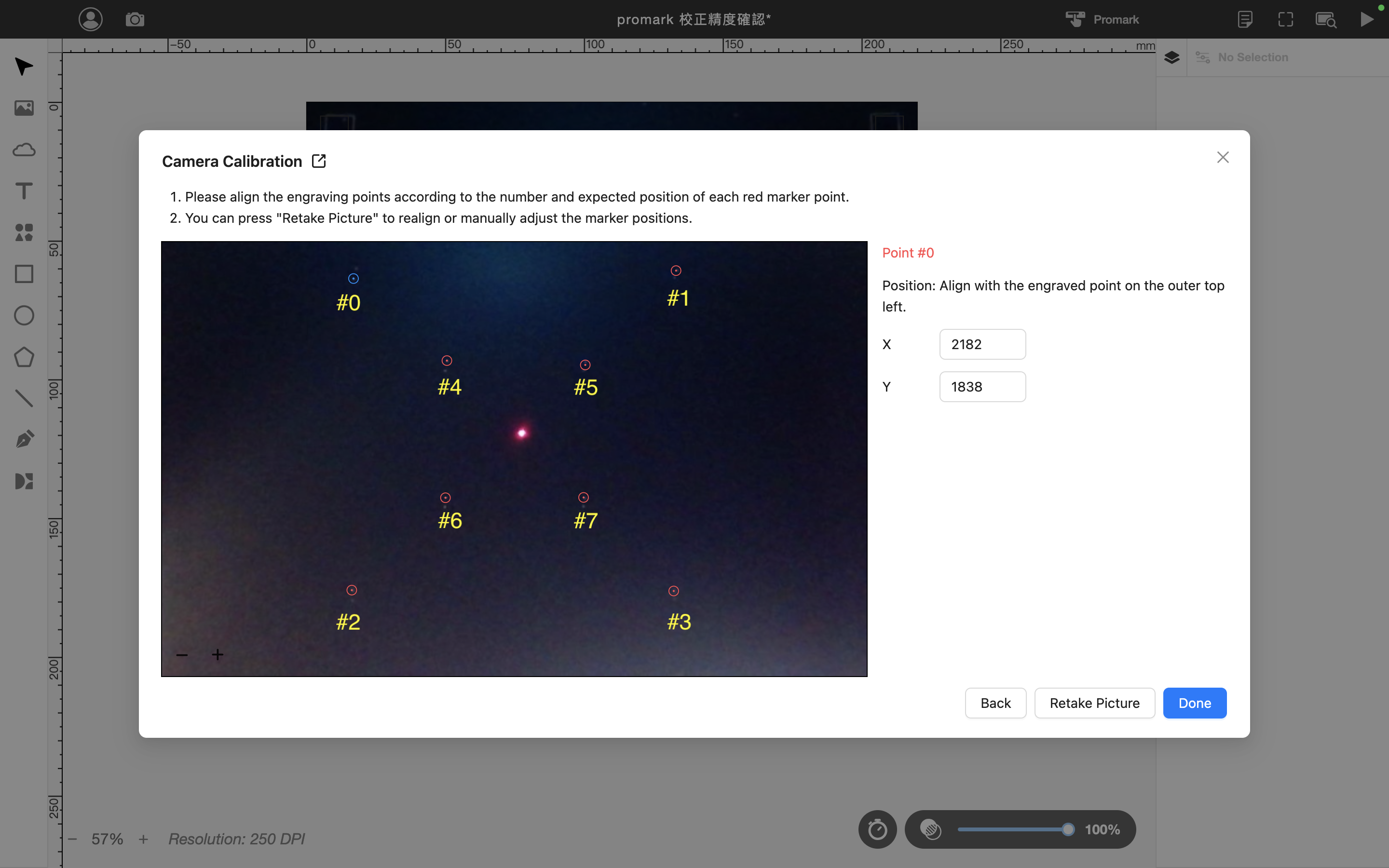

Perform camera calibration

#END
