3-5 How to Enable Door Protection

Description

This article explains how to enable the Door Protect function of Promark (Safety+).
Once enabled, the laser will not emit when the door is open.

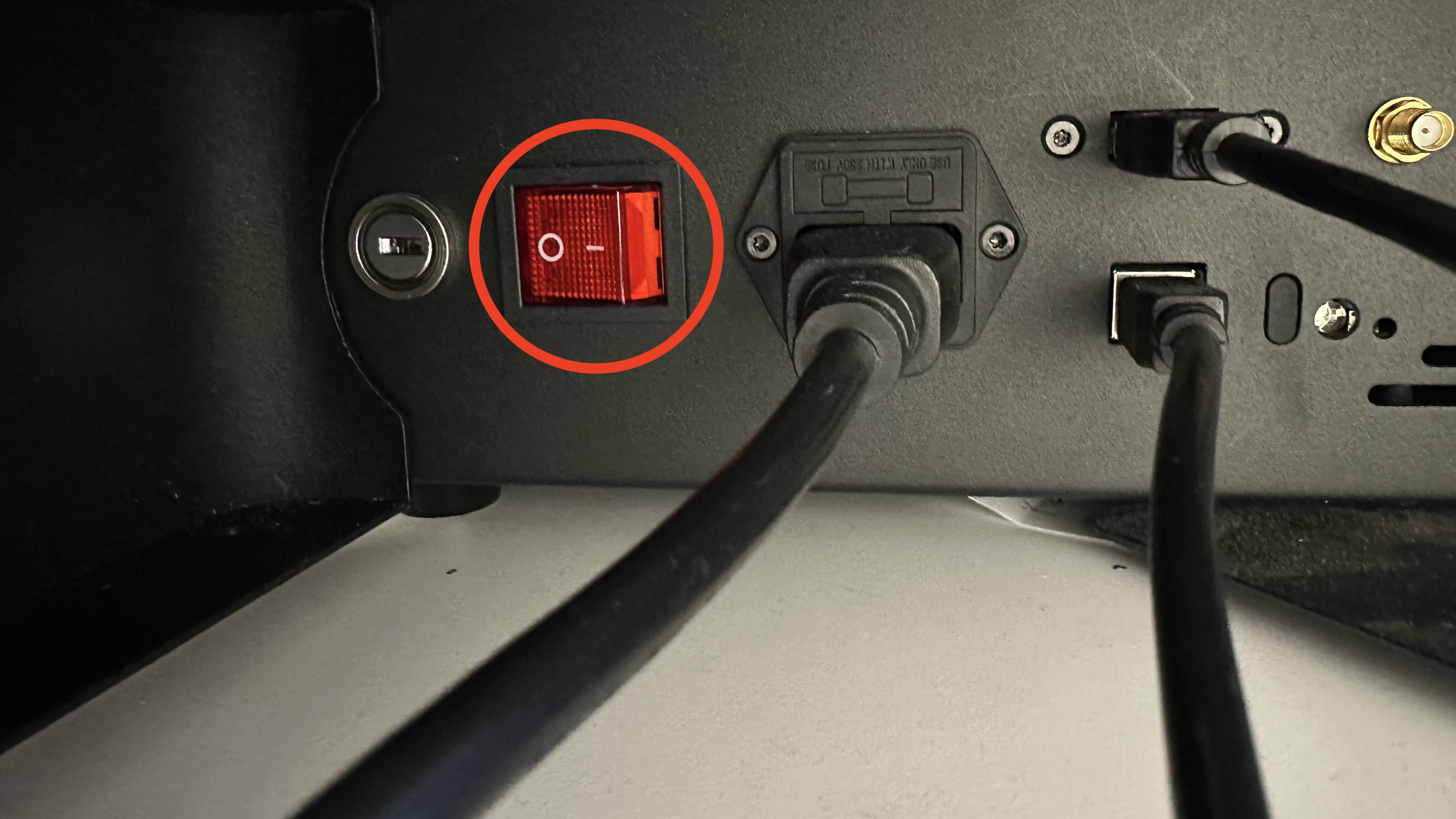

Step 1

Turn off the machine power.

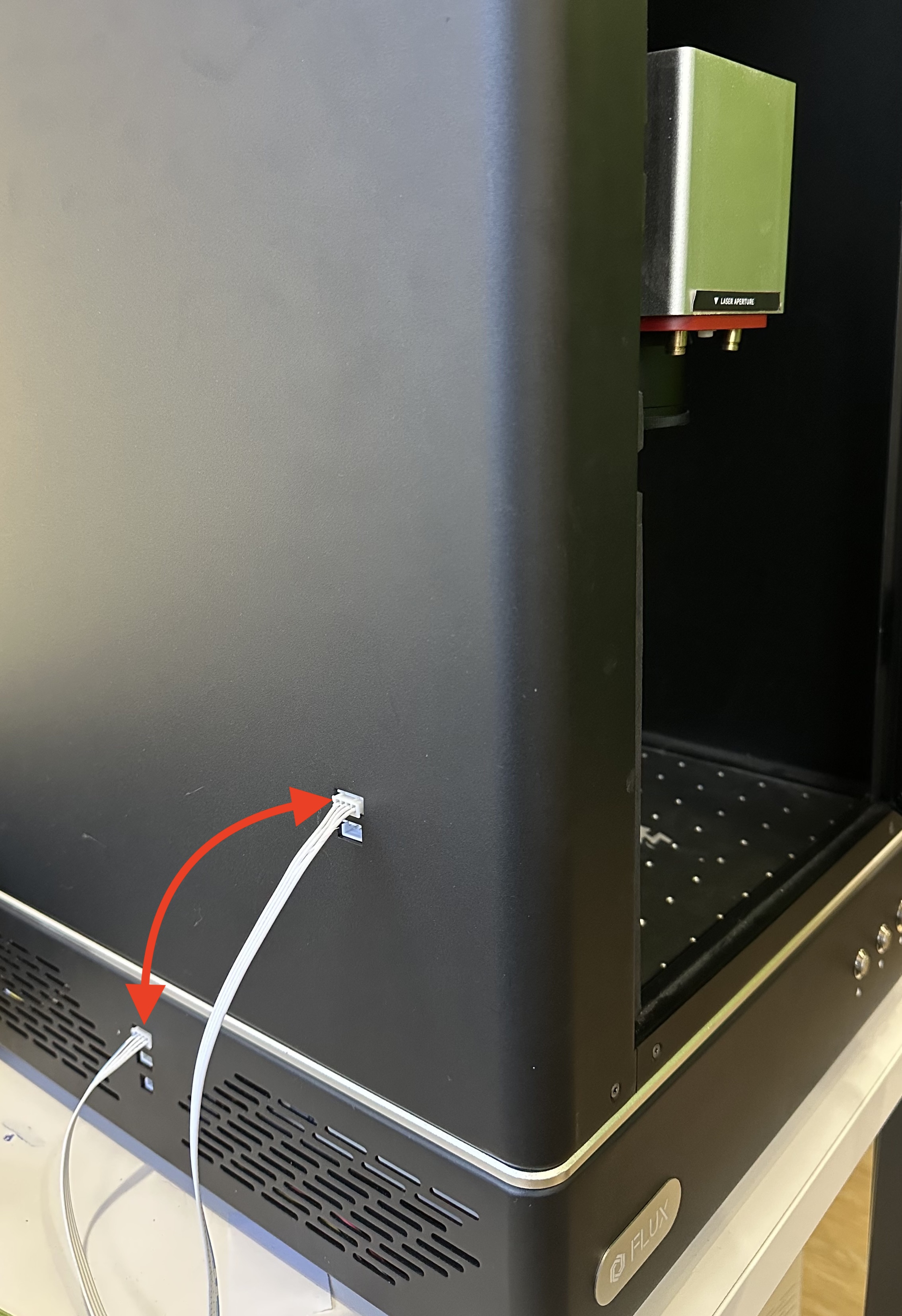

Step 2

Make sure the wiring on the left side of the machine is correctly connected, then turn on the power.

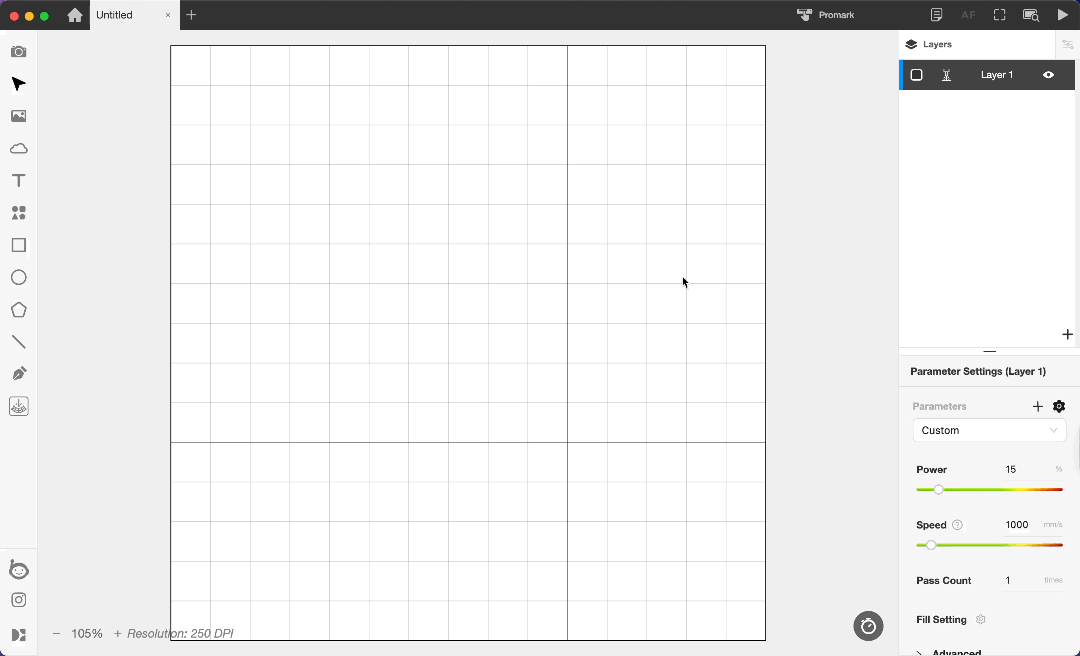

Step 3

Enable the "Door Protect" option in the document settings of Beam Studio.

⚠︎ Please download and install the latest version of Beam Studio
