If you are used to using Inkscape to design graphics and willing to export SVG files for use in Beam Studio, please refer to the following steps to export files to avoid incompatibility or unsupported problems when importing into Beam Studio :
I. Check the version of Inkscape: "Inkscape" > "About Inkscape." It should be version 1.0 or above.

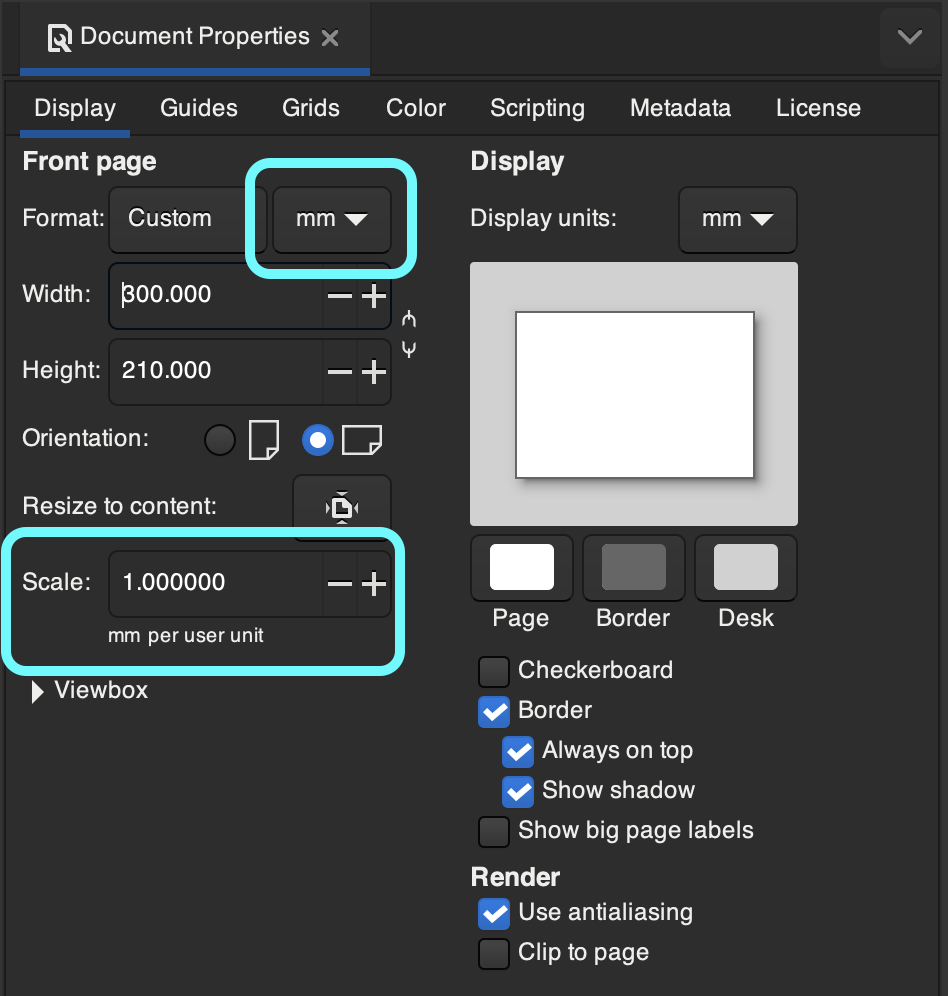

II. Set the document properties before sketching: "File" > "Document Properties," set the Scale to 1.0 and the Units to mm.

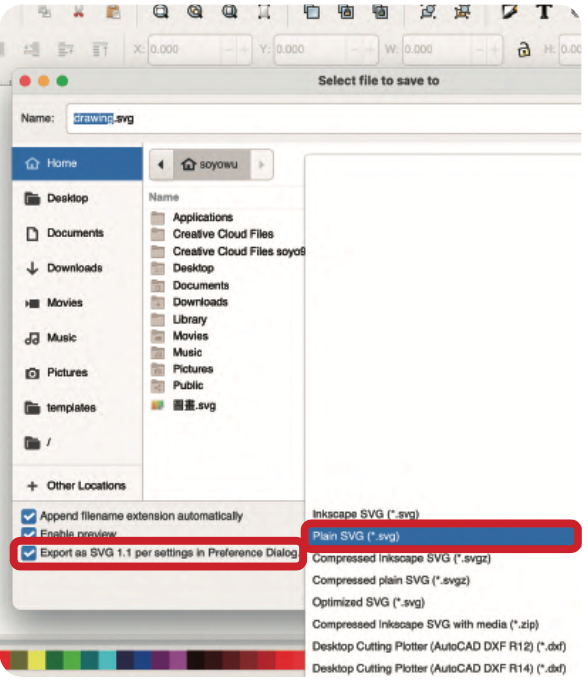

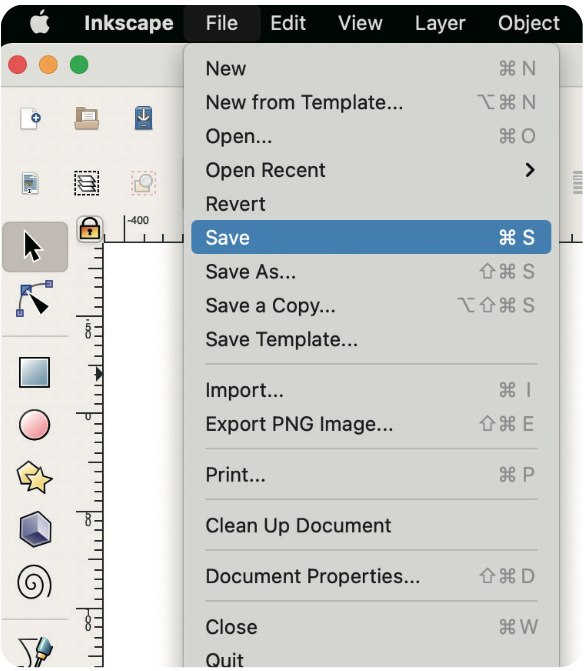

III. Save the file : Click "File" > "Save As..." > Select "Plain SVG (*.svg)" > Check the box to export as SVG 1.1 > "Save".
IV. Importing files into the software: Drag and drop files into the Beam Studio window or click the "Image" button on the left side of the Beam Studio toolbar to import SVG files. If you import SVG 1.1, a reminder window will pop up. Click "OK" to continue using the software.
