Thank you for choosing FLUX products.
This article will help you set up your FLUX Beam Air Pro for first-time use.

Beam Air Pro features a slim design optimizing depth for essential functions. It ensures optimal airflow, high filter capacity, and low noise. It fits under desks and is ideal for different studio types.
ⓘ Please retain all packages for warranty purposes.

1. What's in the box?

1-1 Unseal the box and take out the accessories pack.

1. Remove the top carton cover.
2. Take away the cushioning material on the top of the Beam Air Pro.
3. Open the plastic bag and pull it down completely to fully expose the Beam Air Pro.

1-2 Cooperatively lift the Beam Air Pro with two people.

The Beam Air Pro weighs 49 kilograms. It is recommended to have two people lift it cooperatively to avoid injury.

1-3 Check the items inside.

A: Thank You Card

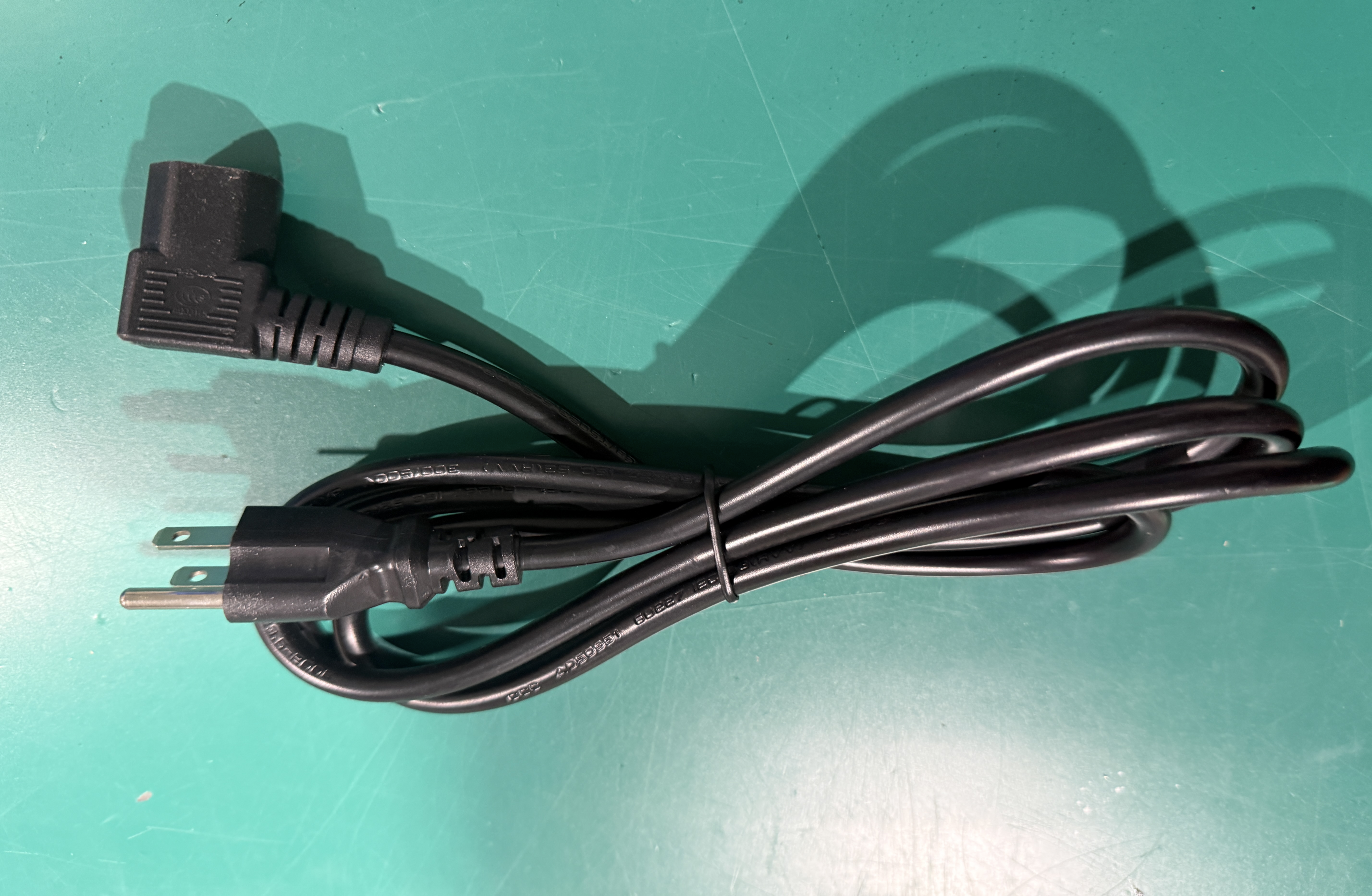

B: Power Cord
C: USB-B Cable
D: Pre-filter x4
E: Quick Start Guide

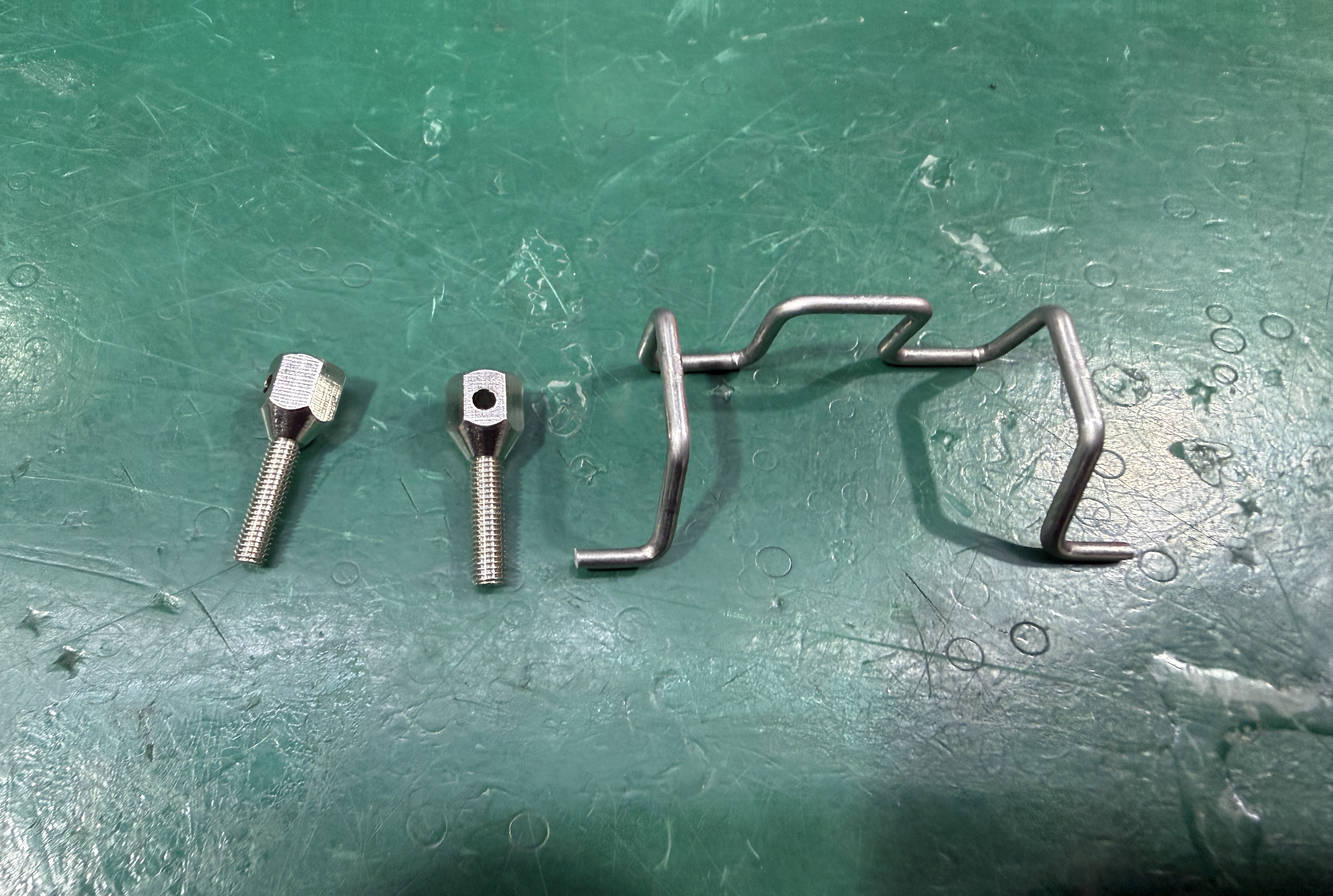

F: Clamp

2. Assembly

2-1 Install the vent hose.

1. Insert the clamp on the small end of the vent hose hole and attach it to the air inlet at the rear of Beam Air Pro.
2. Adjust the clamp tightness and fasten it onto the air inlet.

2-2 Activate

1. Connect Beam Air Pro and a FLUX laser cutter with the USB-B cable.

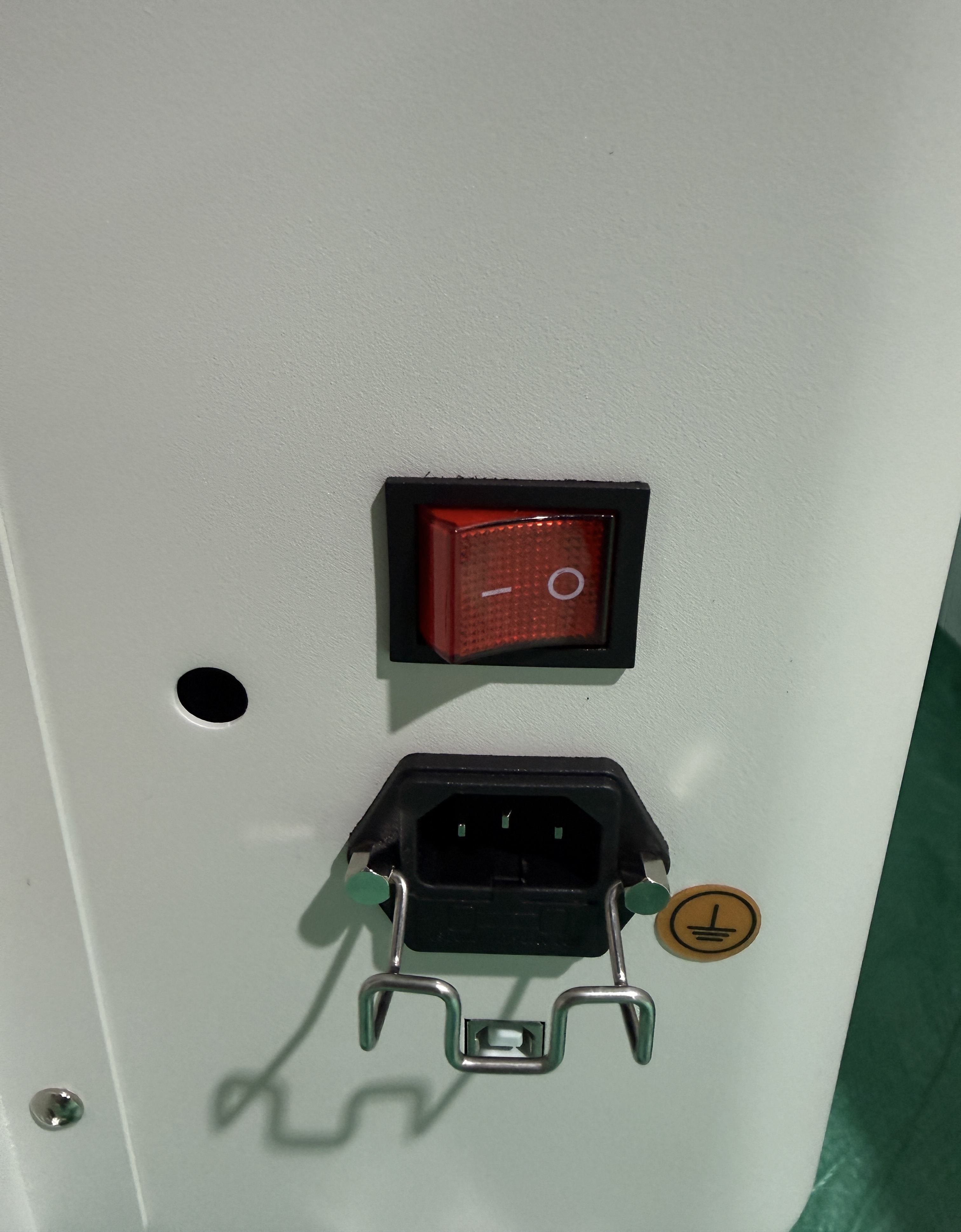

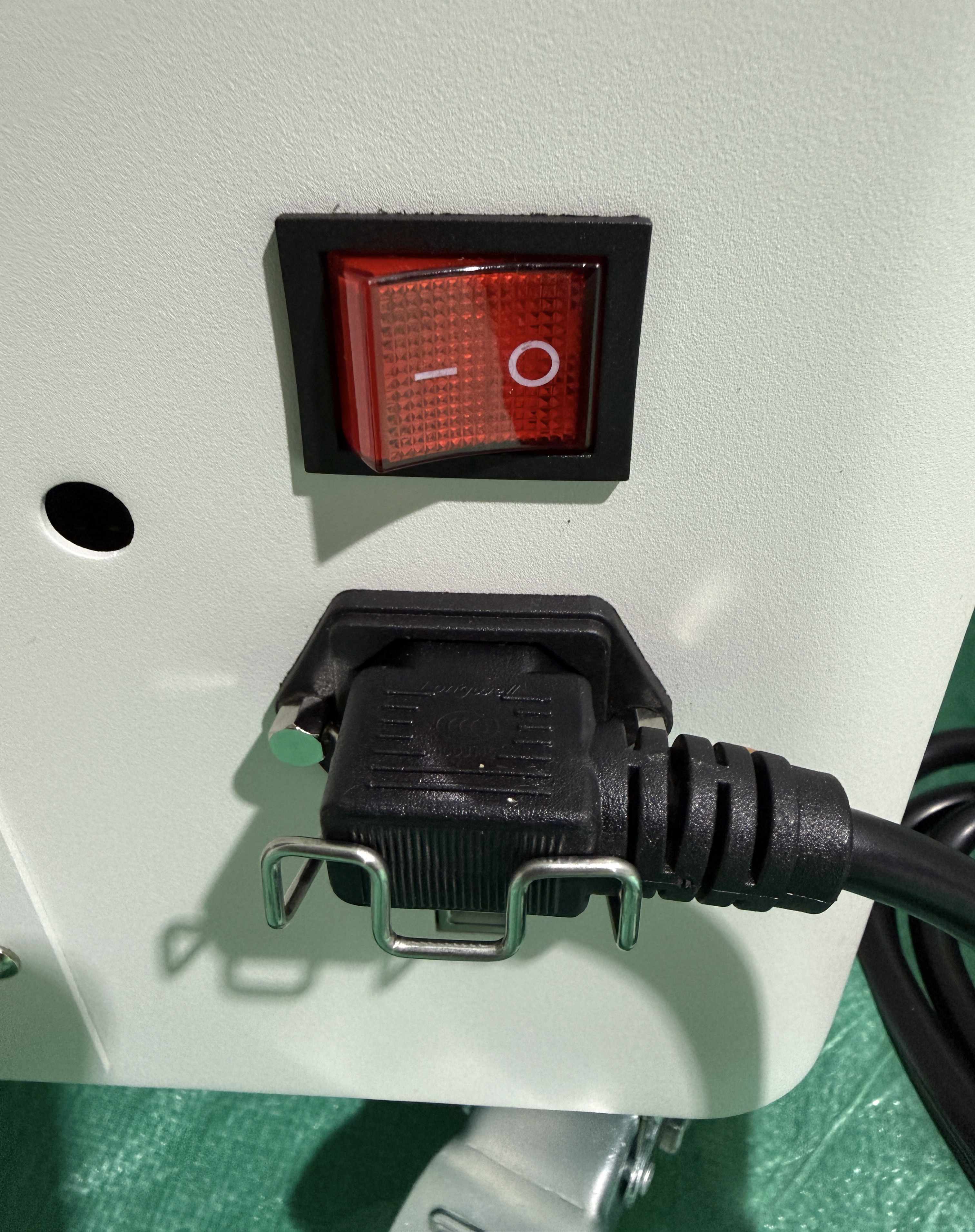

2. Insert the power cord into the AC inlet, and turn on the power.

⚠︎ Before turning on the power, please ensure all four buckles are locked to prevent abnormal filter performance.

3. Activate

3-1 Update the Firmware

Required firmware versions：
Beam Series (beamo、Beambox、Beambox Pro) / HEXA: V4.3.0 or above.
Ador: V5.3.0 or above.

Please refer to the instructions below to update the firmware:

• Beam Series (beamo、Beambox、Beambox Pro) / HEXA
• Ador

3-2 Check the icon on the panel

When Beam Air Pro is connected successfully, the panel will show the icons as in the image below.

4. How it works?

The Beam Air Pro has two activation control modes: 'Activate by Machine' and 'Continuous.' The device defaults to 'Activate by Machine' mode upon powering on. Users can switch between control modes by pressing the button on the front of the machine. The light indicator on the button determines the current control mode.
The status can also be confirmed on the machine's panel.

Auto-Trigger Mode

Light indicates white breathing.

In this mode, ensure the USB-B cable is connected to the FLUX Laser Machine and Beam Air Pro for the system to function. The machine will automatically activate Beam Air Pro and start the filtration process when your laser-cutting task begins. Conversely, after completing your laser cutting task, it will automatically stop Beam Air Pro's operation.
٭It is typical for the machine not to operate when adjusting the airflow knob without initiating a job while in this mode.

Continuous Mode

Light indicates white steady.

After switching to this mode, Beam Air Pro will continuously operate and filter air based on the airflow level set by the knob position instead of activating with the FLUX Laser.

Button Light Indicates

ⓘThis article is about the basic settings of Beam Air Pro. For instructions on filter replacement, please refer to Beam Air Pro Filter Replacement.
