HEXA RF - 1.5 inch Focus Lens Add-on Installation Guide

Step 1

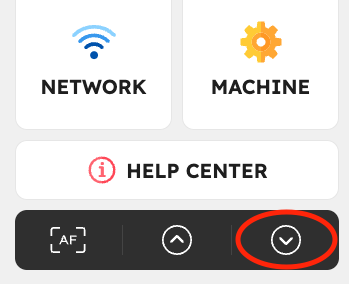

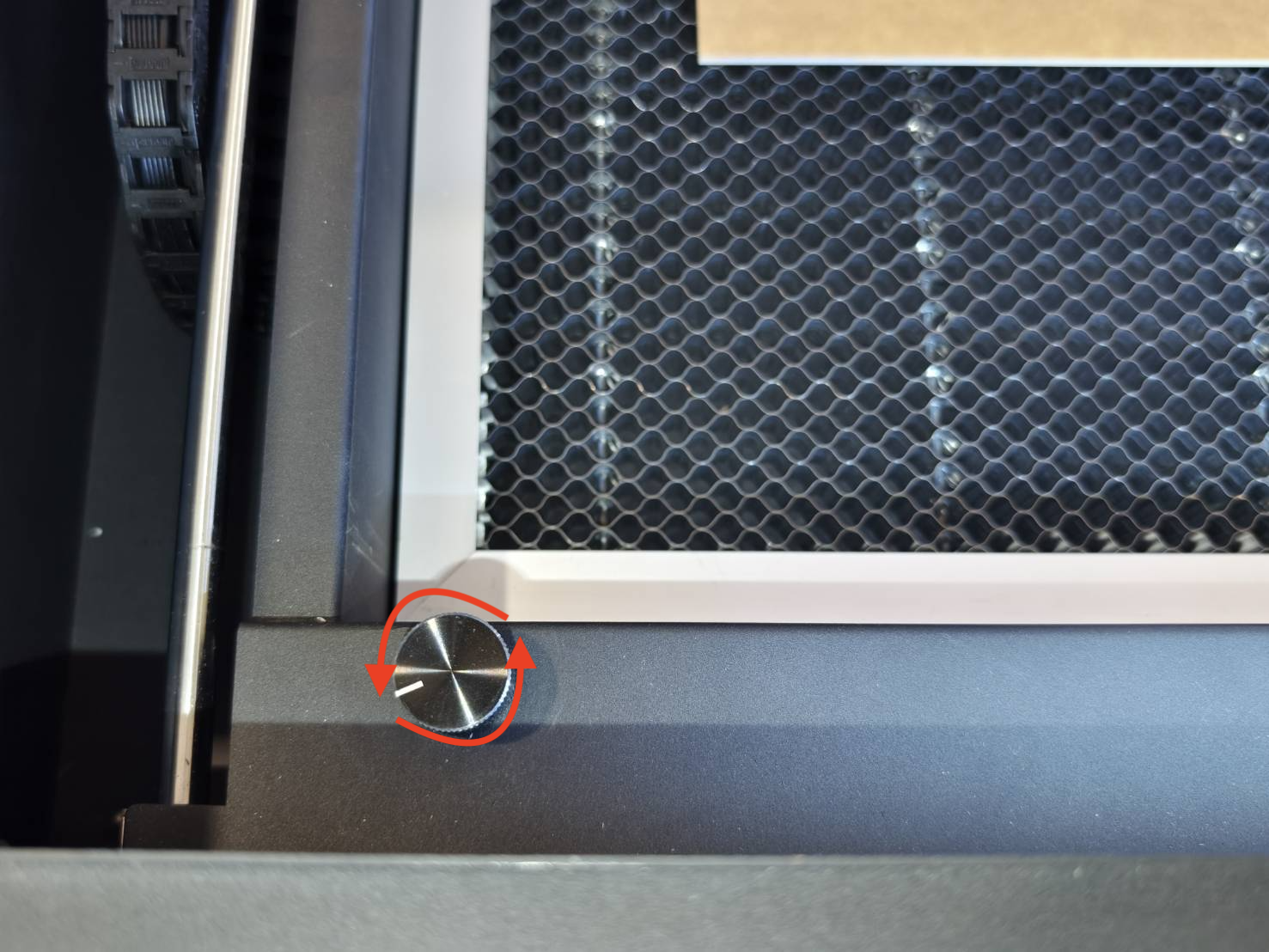

Lower the bed to the bottom by pressing the lowering button on the panel or turning the knob counterclockwise manually.

Panel	Knob

Step 2

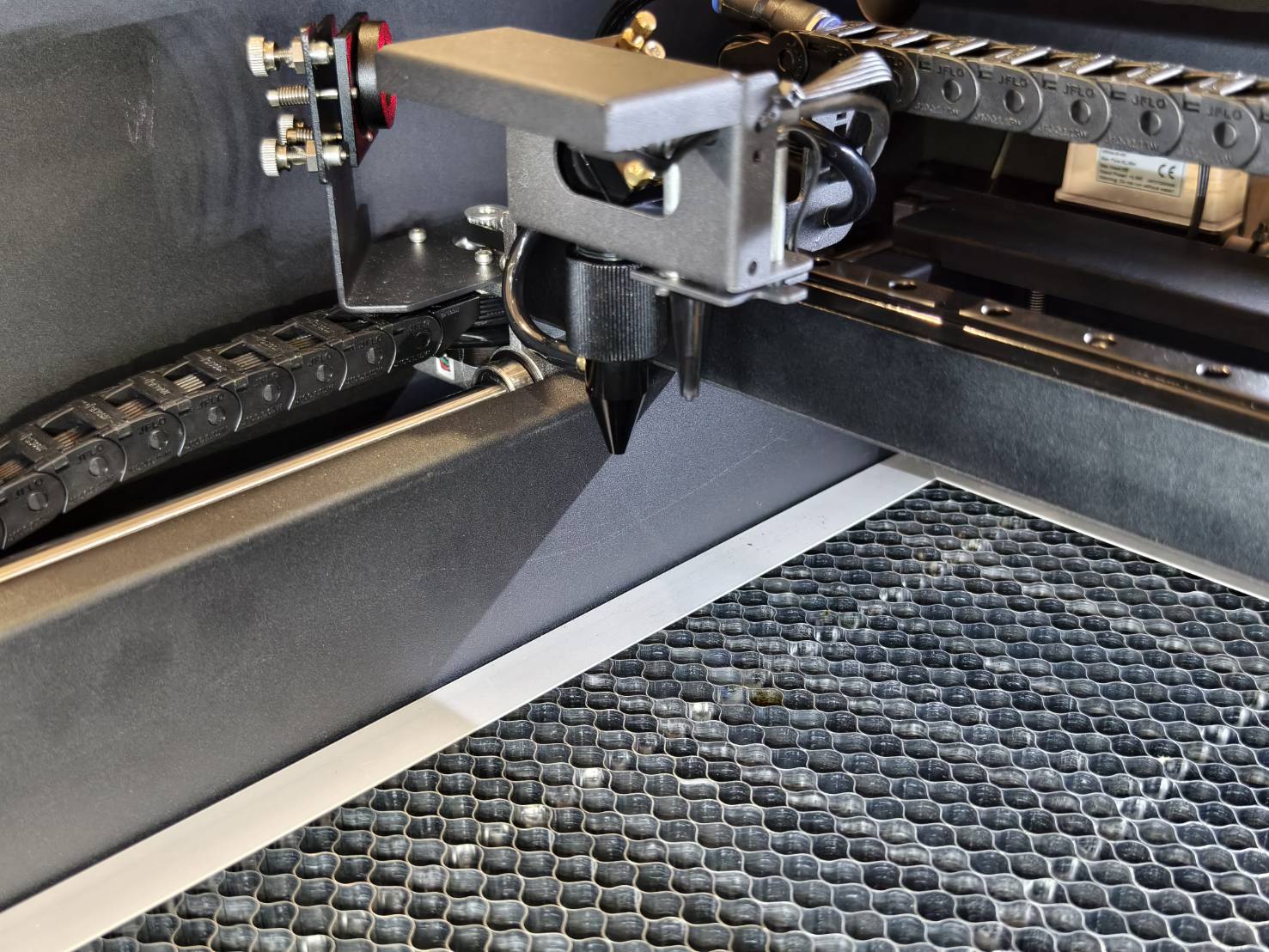

Disassemble the laser nozzle and remove the current lens.

Step 3

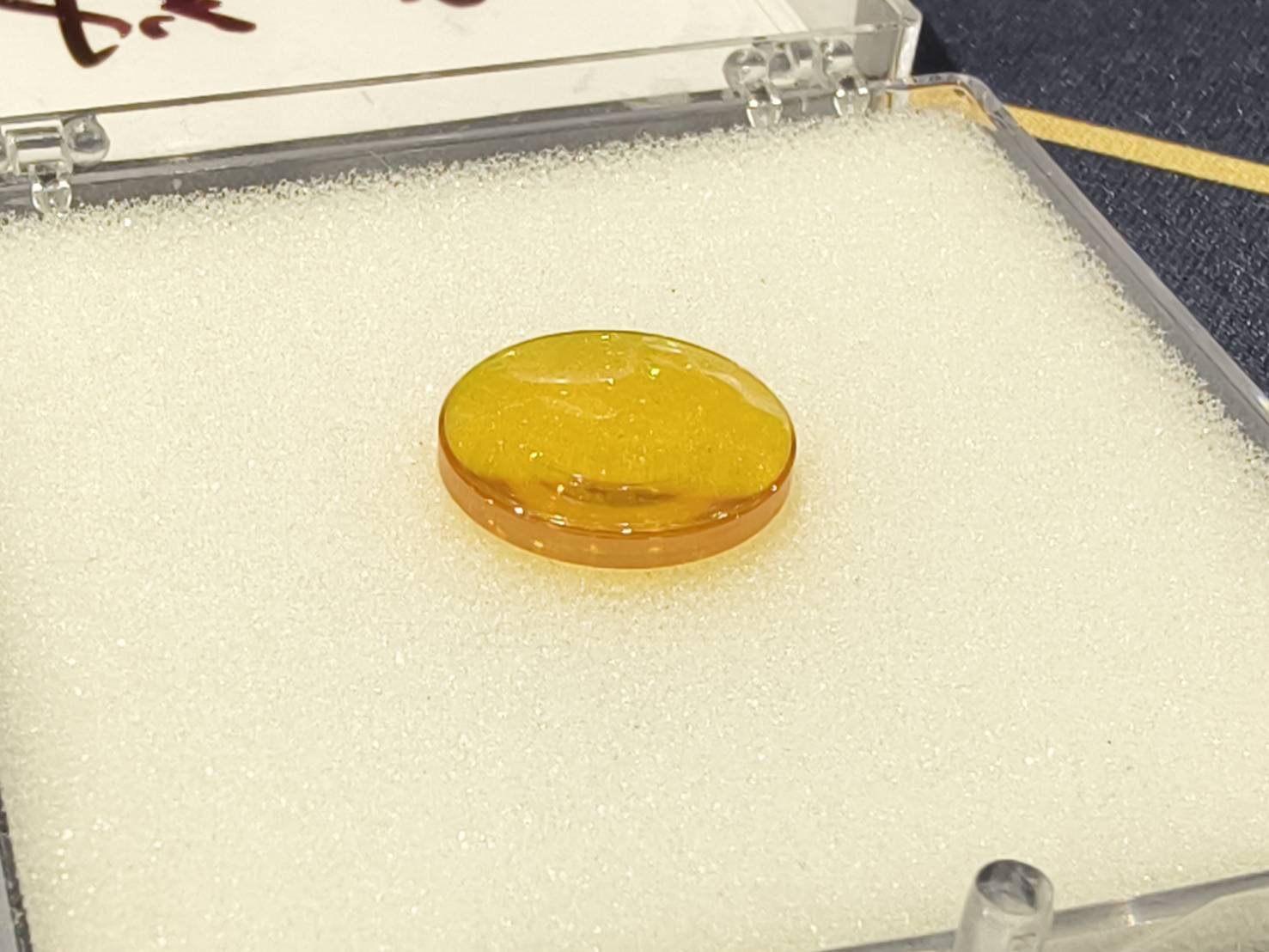

Prepare the 1.5-inch lens add-on.

Step 4

Reassemble the nozzle with the 1.5-inch lens.

• Ensure the lens is in the default order.
• Ensure that the curved/convex side of the lens is facing up.
  (A tip to quickly determine the curved side is that it should reflect your whole face when you look at it.)
• Ensure that the air hose is not bent.

Explanation

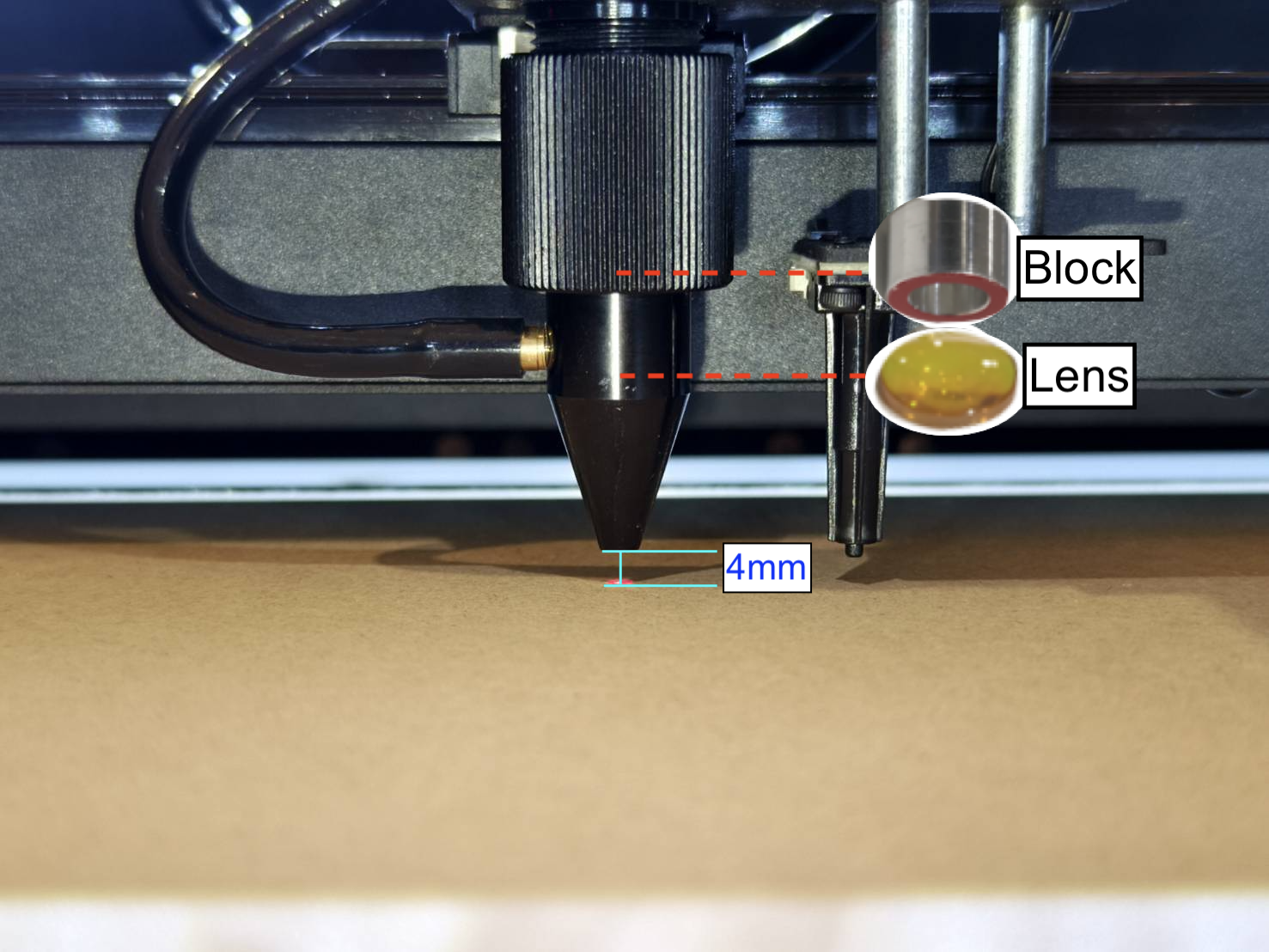

• By default, the focus lens will be at the top, and the focus lens will be 4mm, meaning the distance between the nozzle tip and the surface of the material will have a distance of 4mm.

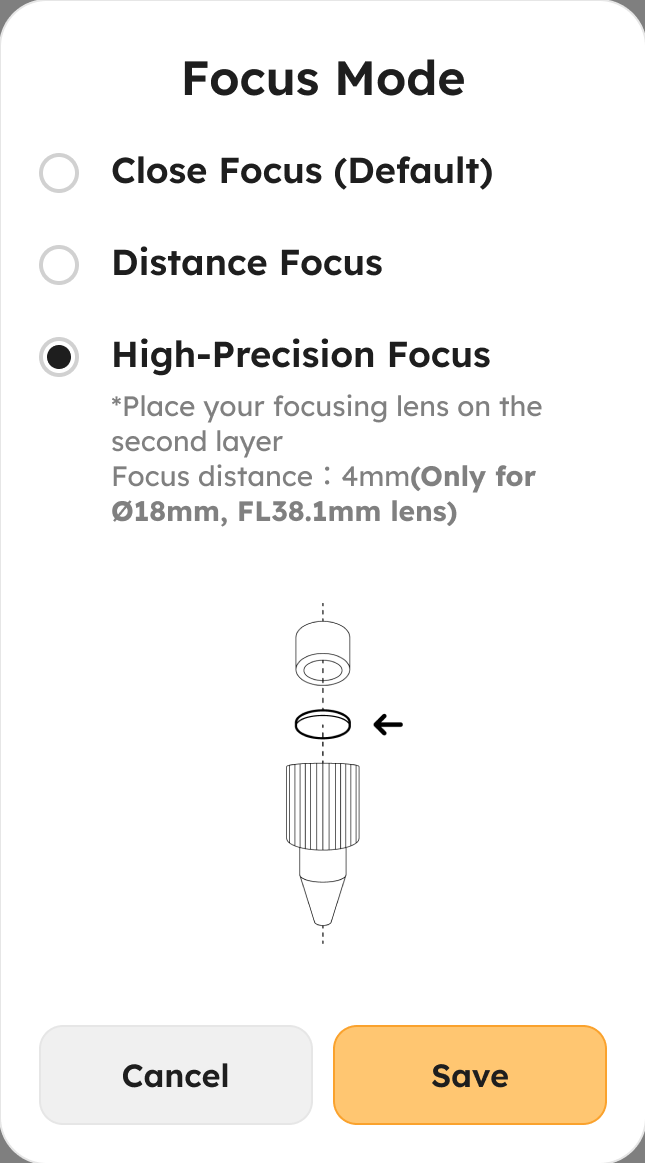

• Determine the Order of the Focus Mode
  Focus Mode: High-Precision Focus

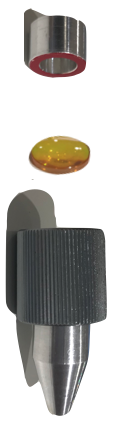

  Block
  Lens
  Ring
  Nozzle

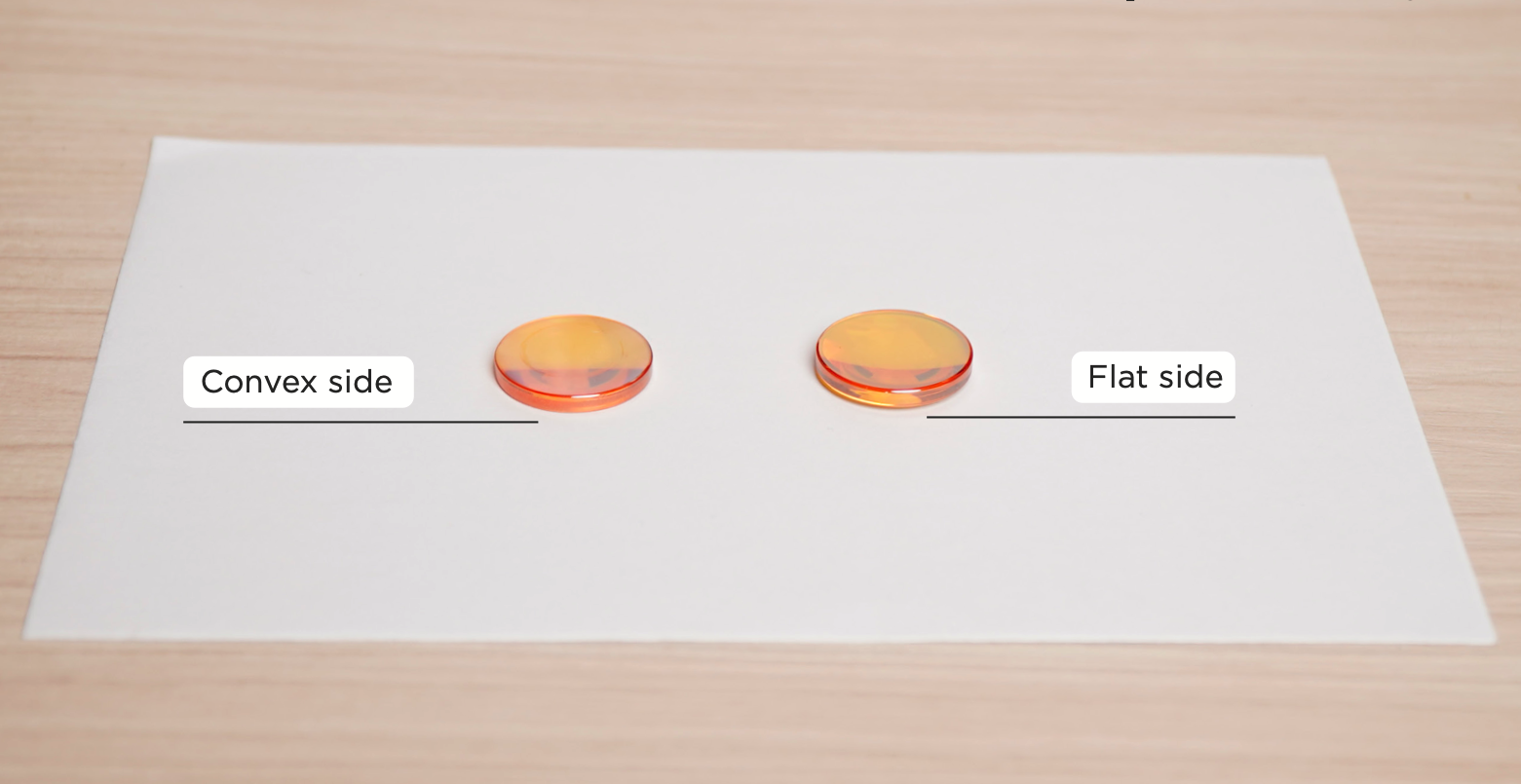

• There will be two sides on the lens. The curved/convex side will be facing up when installing.


Demonstration

Step 5

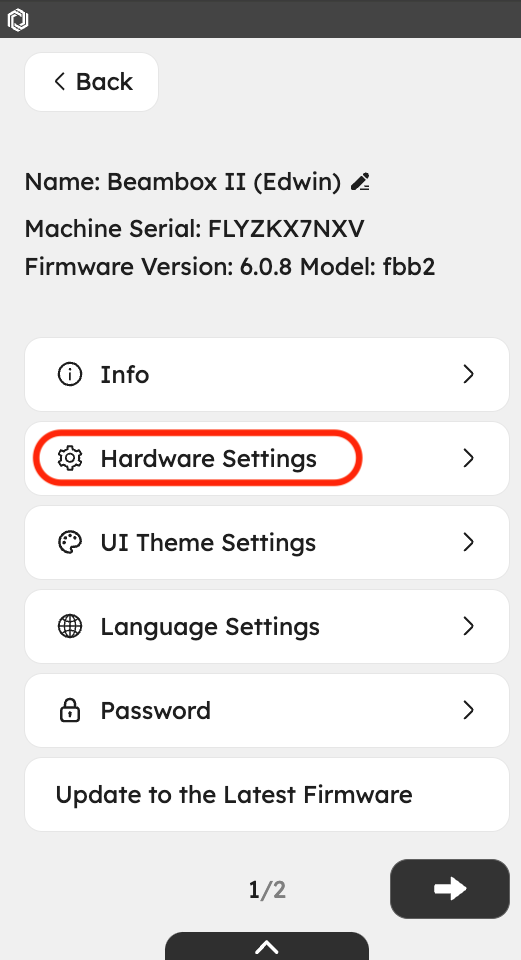

Go to "Hardware Settings" to choose the default focus mode.

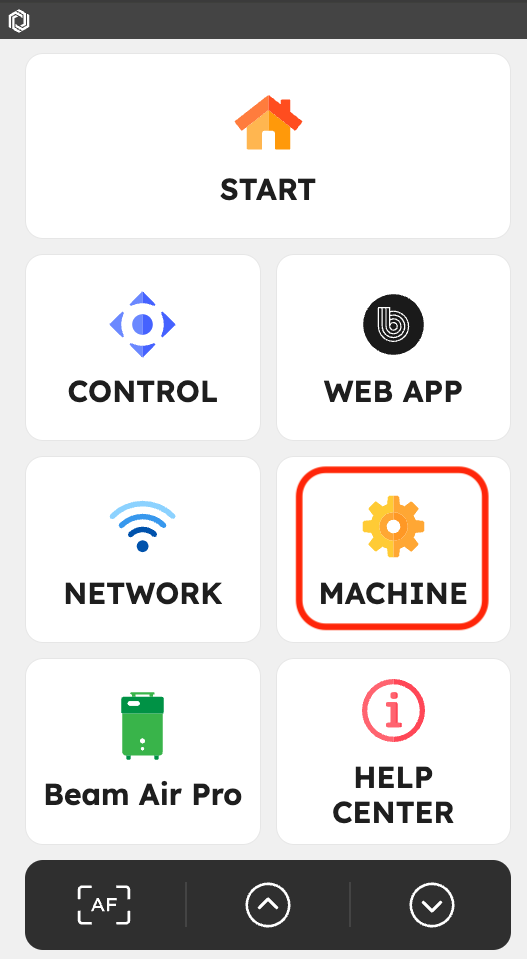

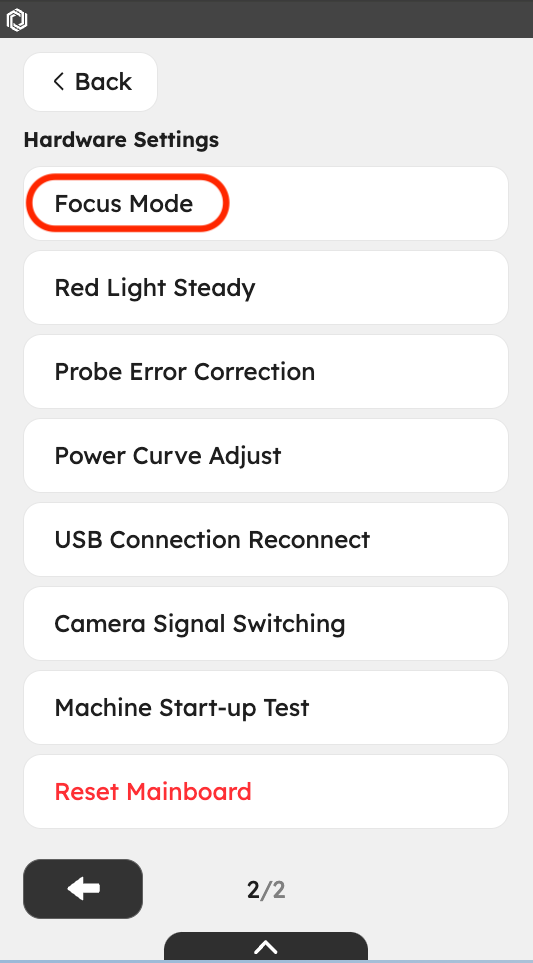

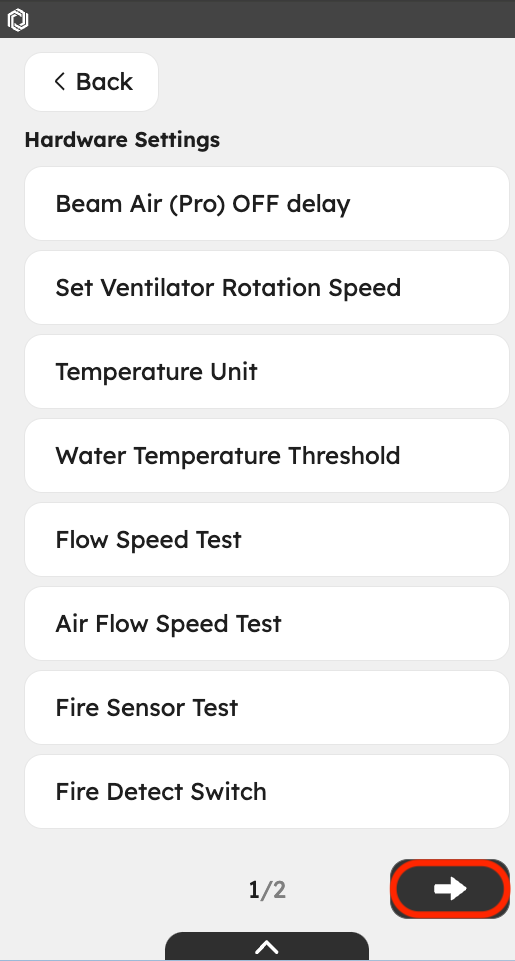

Machine >> Hardware Settings >> Next page >> Focus Mode >> Choose the "Close Focus" (Default)
