5-7 Material cannot be cut through

When materials cannot be cut through, there are many possibilities that may cause the issue such as focus distance being incorrect, the optical path being misaligned, laser tube decline...etc.
However, based on our experience, it is USUALLY caused by the optical path being misaligned.

Please follow the steps below to determine what causes the issue.

Step 1 - Clean all the mirrors and the focus lens

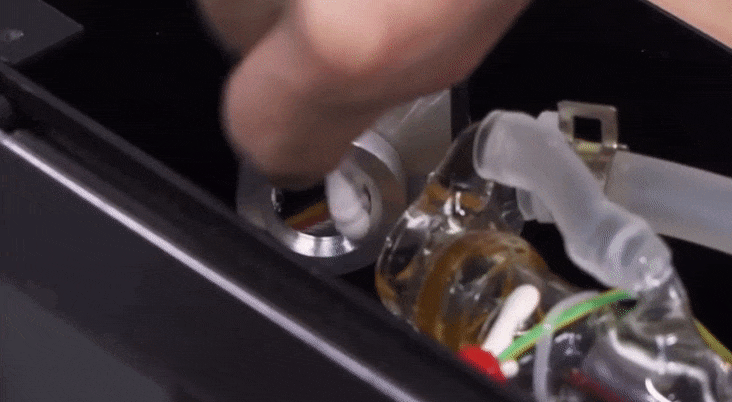

Dirty mirrors and a focus lens will cause the laser output to be weaker.

• Please follow the instructions in the link below to clean all the mirrors and lenses.
  Mirrors and Lens Cleaning


Step 1.1 - Make sure the parameters are correctly set

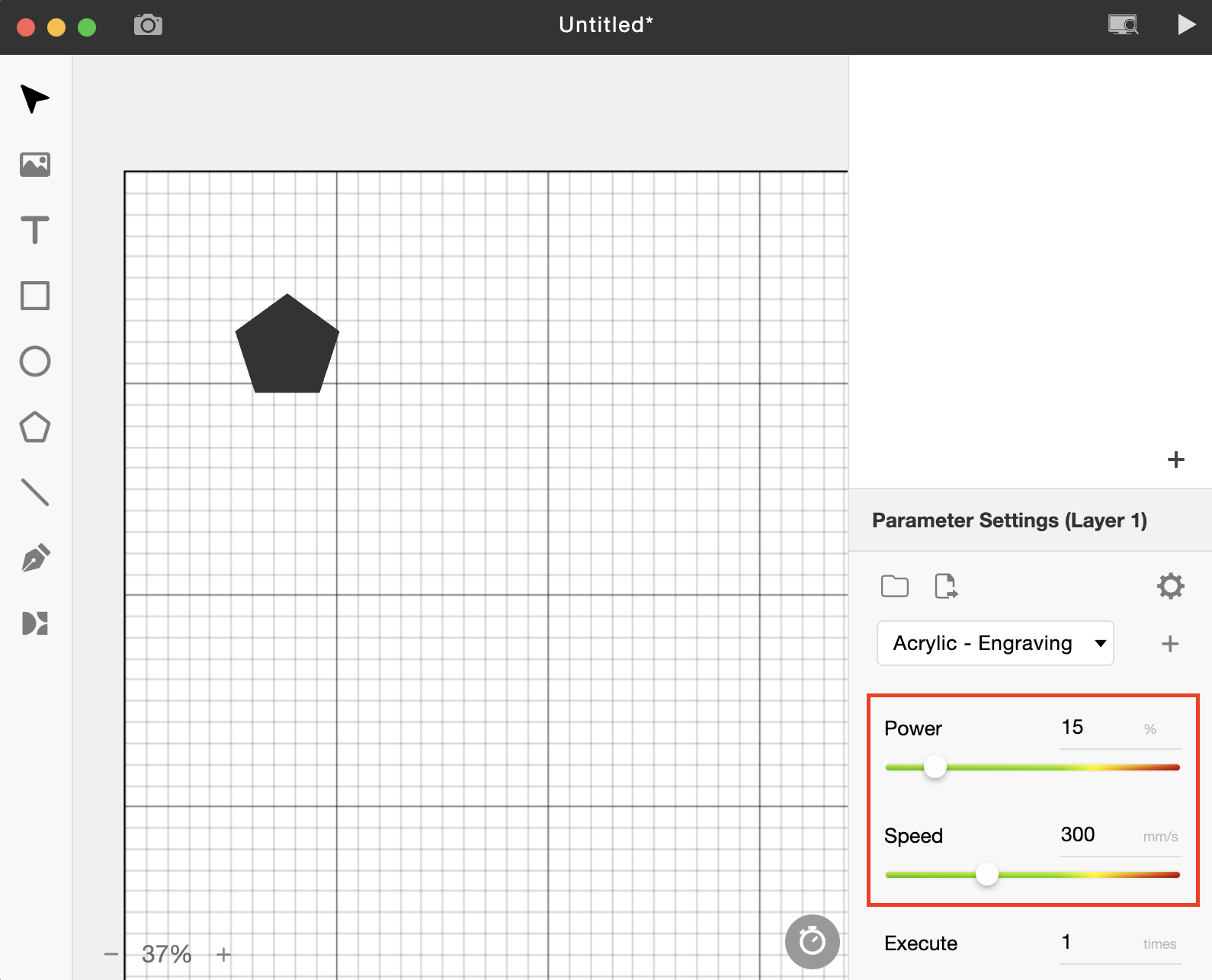

Sometimes, people forget to change the parameters on the panel or in Beam Studio.

• Beam Studio:

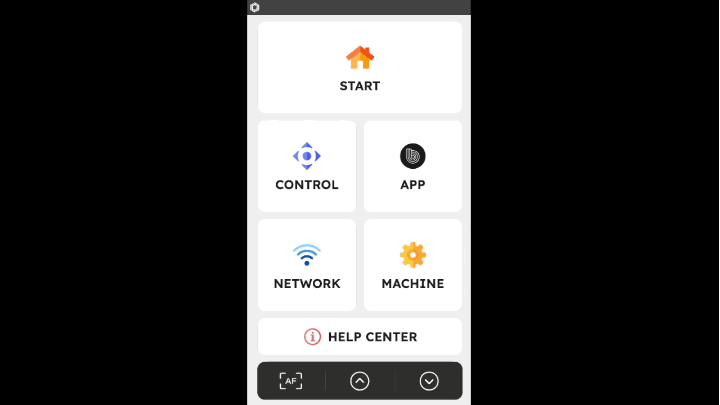

• Panel:

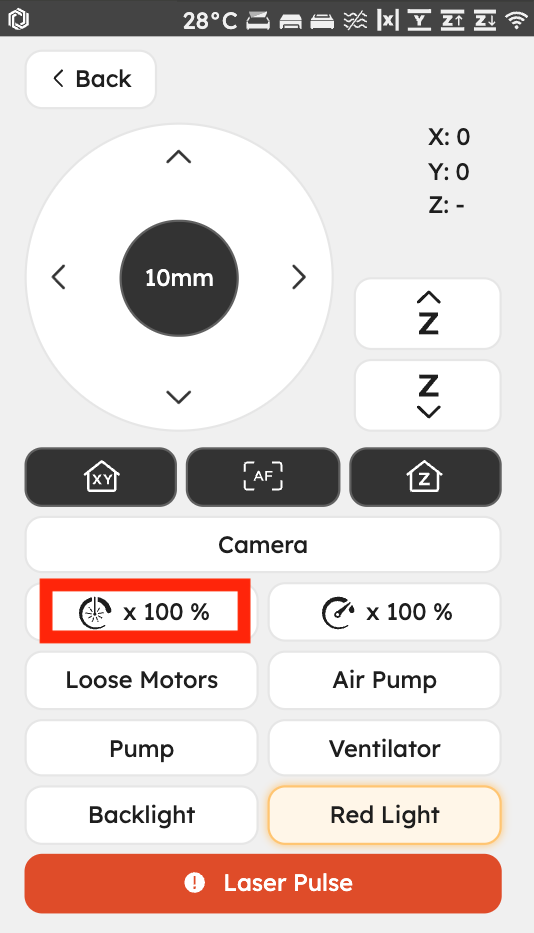

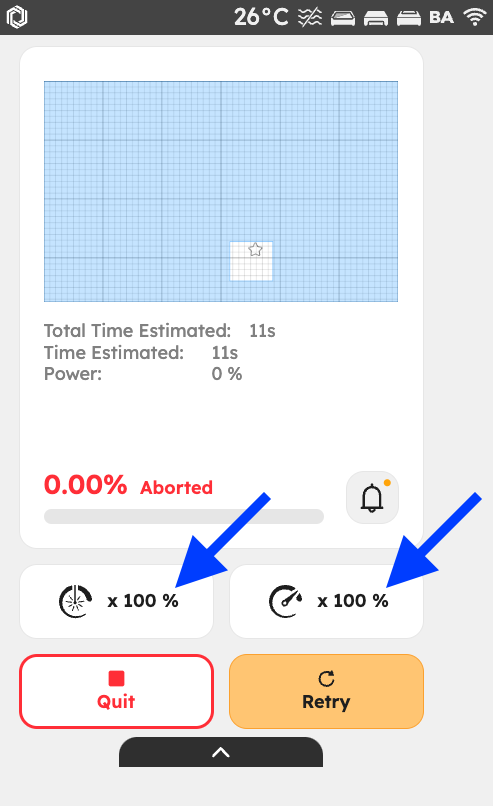

  (Ensure the speed and power rate is 100%)

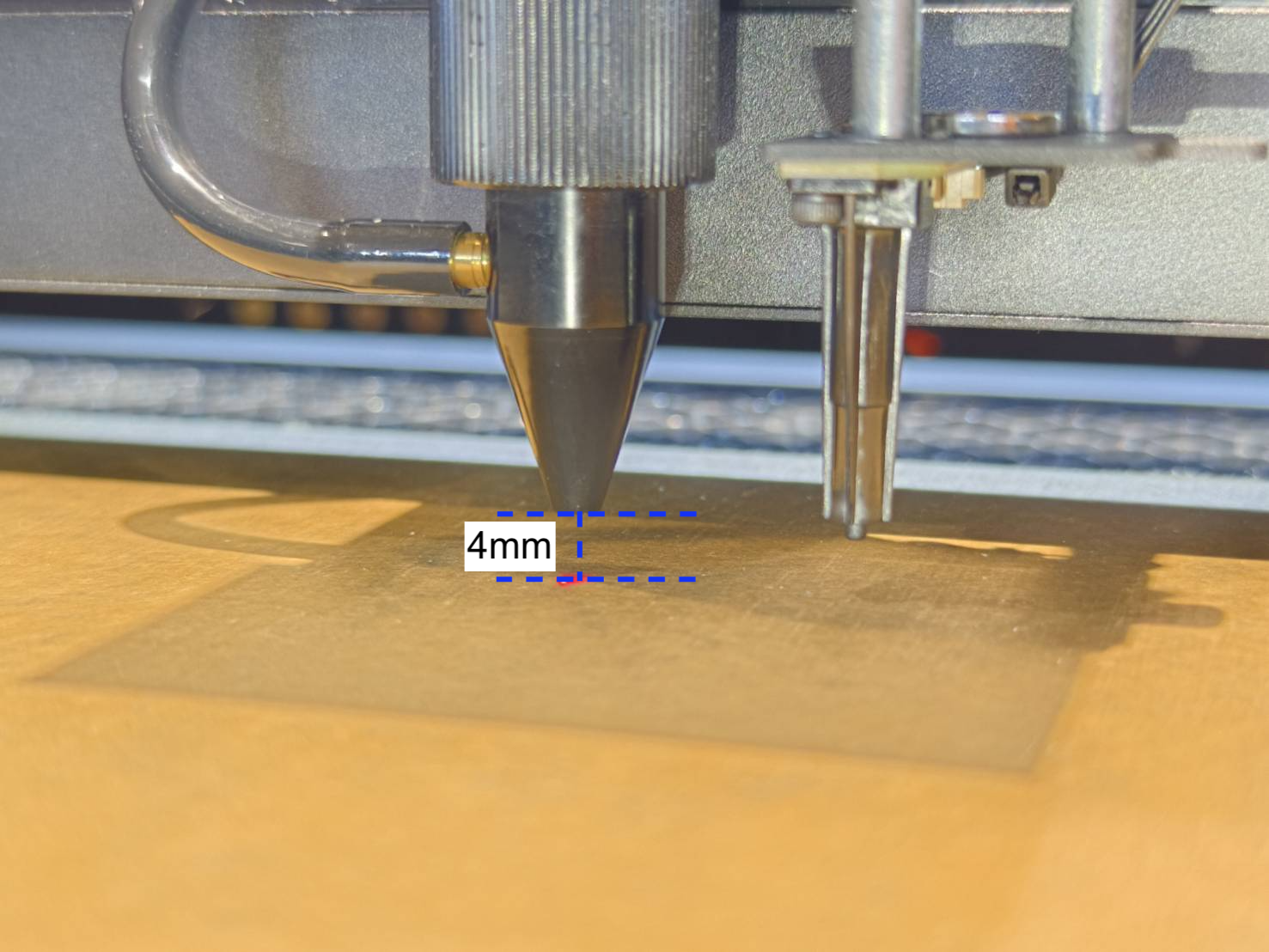

Step 1.2 - Check the focus distance

An incorrect focus distance will affect the cutting or engraving results to be unacceptable.
Also, in Beambox 2, two different focus modes can be set. You must check if your focus's lens position and the chosen focus mode match.

• Please refer to the article below to check your focus distance and readjust it if necessary.
  [Focus Distance Adjustment]



Step 1.3 - Check the optical path

Based on our experience, when materials cannot be cut through, it is USUALLY caused by the optical path being misaligned.

• Please carefully follow the instructions in the link below and realign the optical path if necessary.
  [Optical Path Inspection]


• Please keep the collection of tapes after finishing the inspection.


Step 1.4 - Run the same task

• Run the same task of yours with the same material and see if it can now be cut.




Determine your result and the next action to take:

Step 1.5 - Testing material preparation

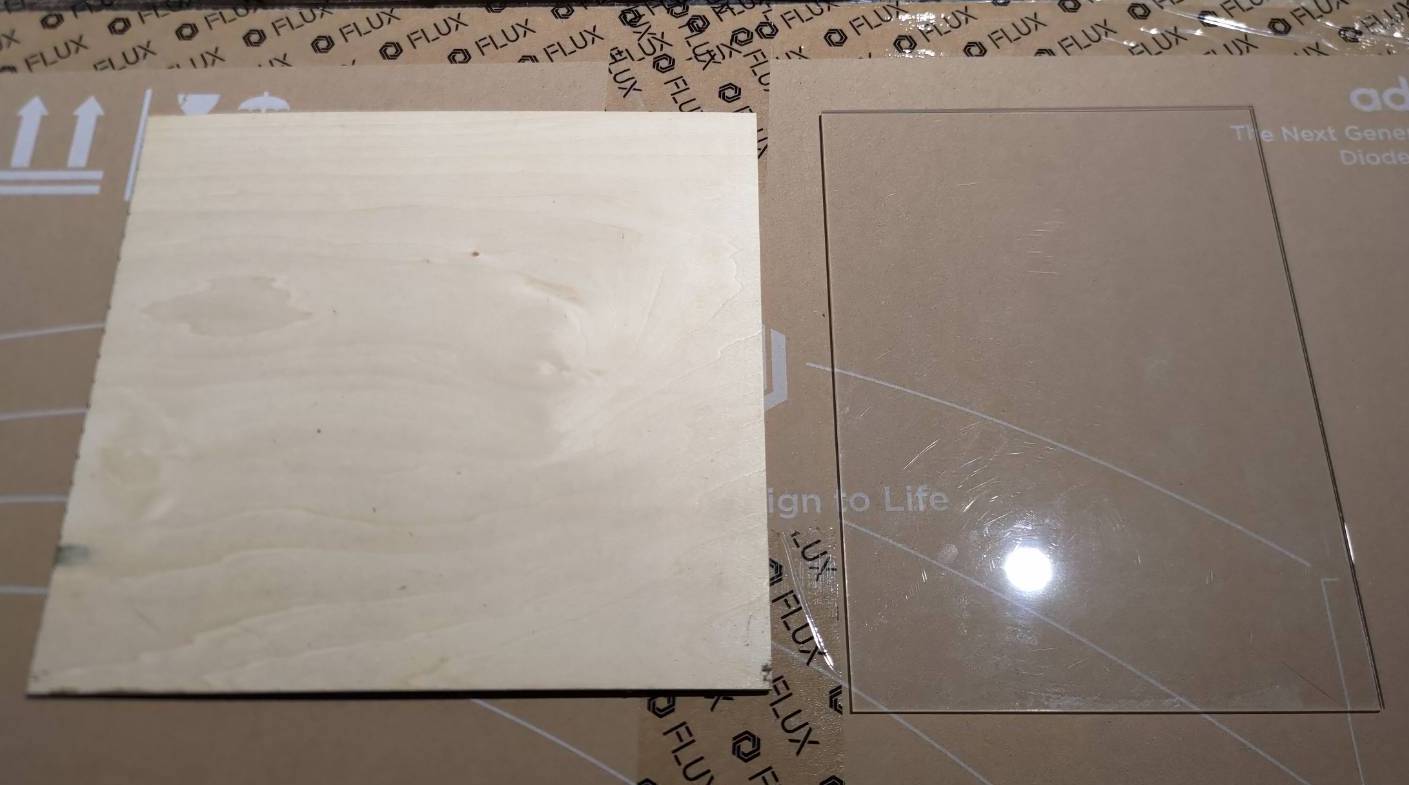

In order to do further testing, please prepare either one of these two materials as listed below.

• 3mm transparent acrylic (Recommended)
  or
  3mm MDF wood


Step 2 - Center Cutting Test

We are going to test the cutting ability in the center of the bed.

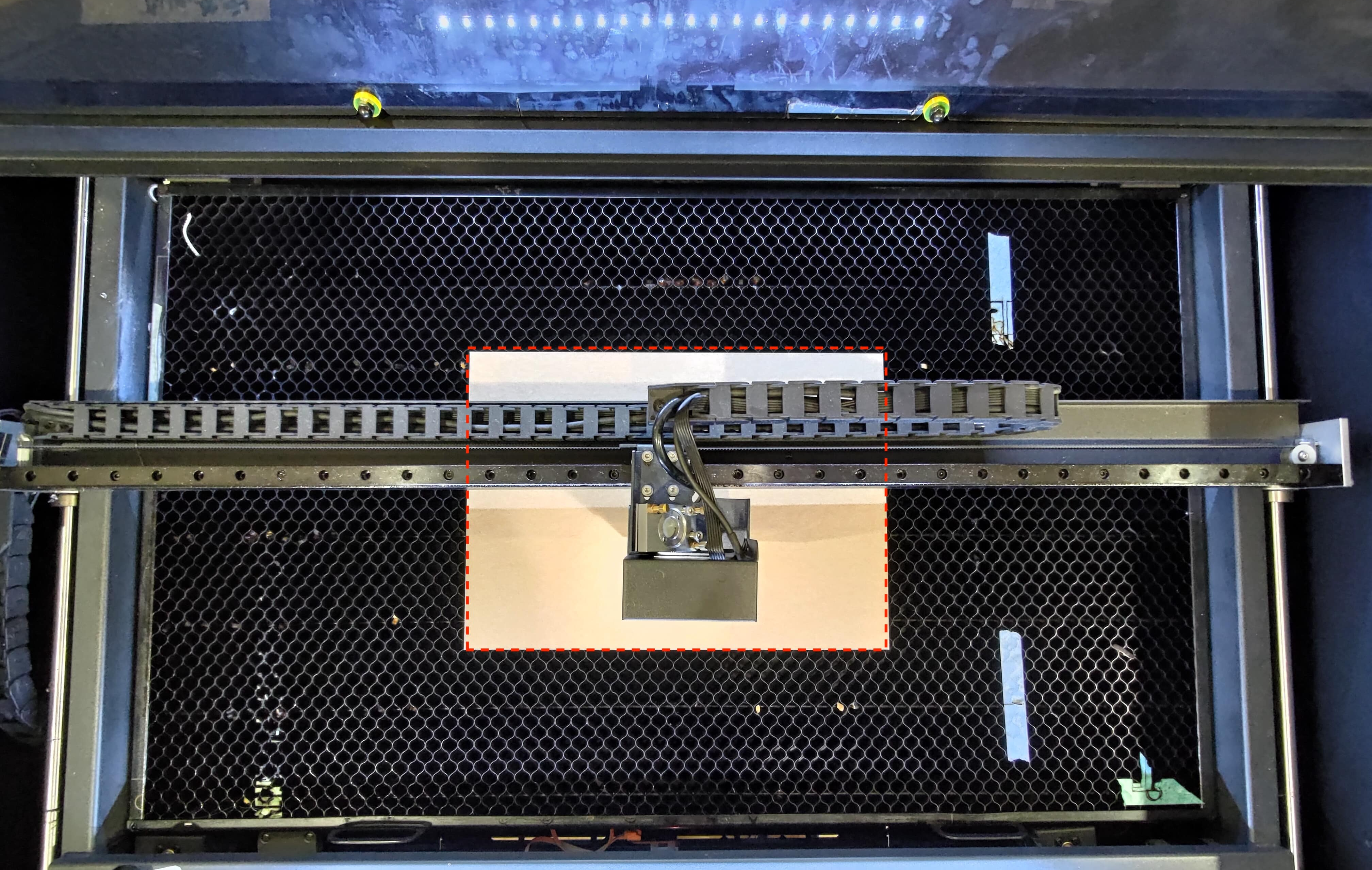

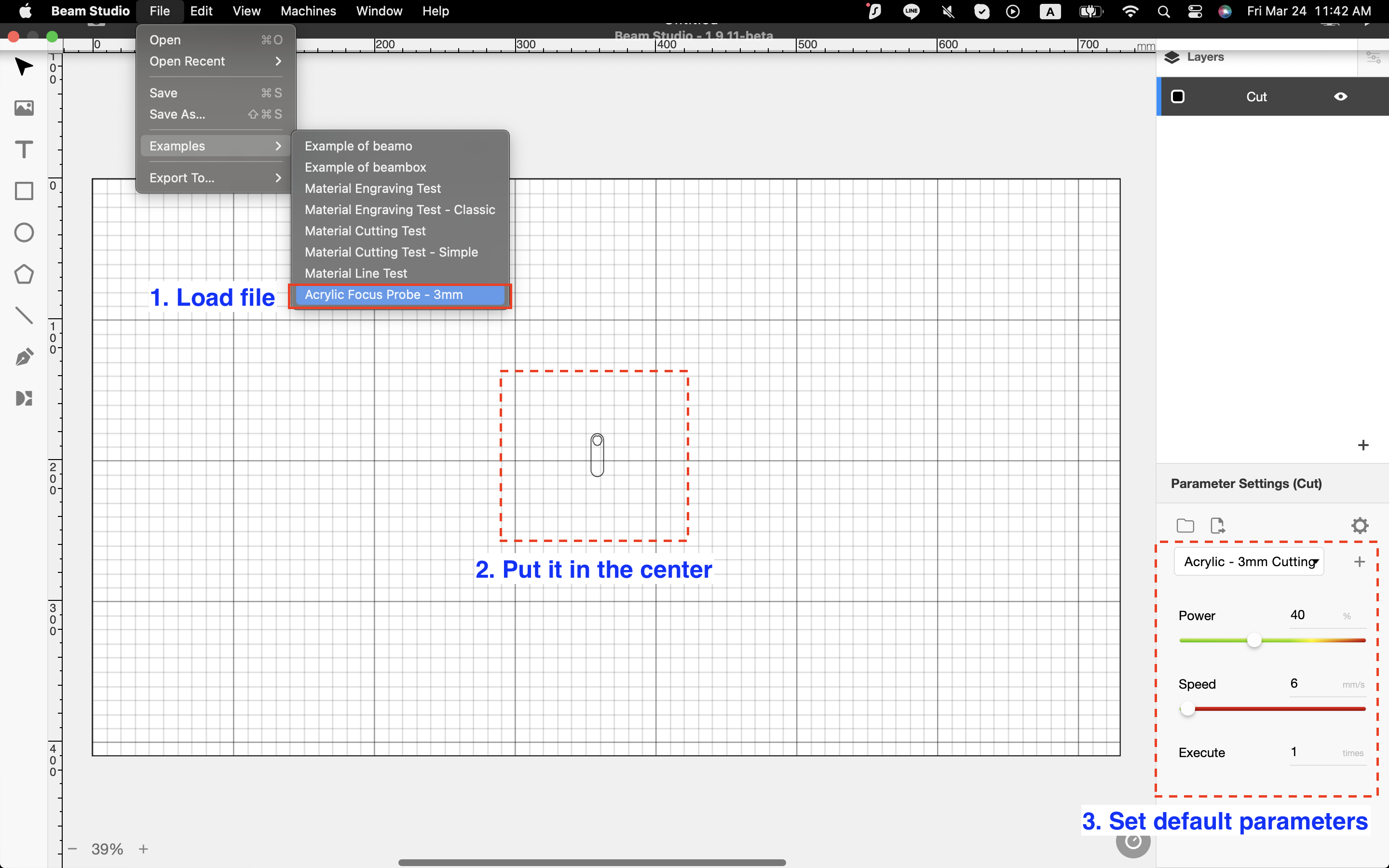

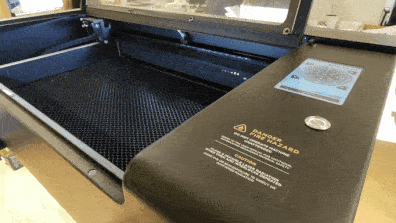

• Place the prepared material (3mm acrylic or wood) in the center of the bed and make sure to focus.

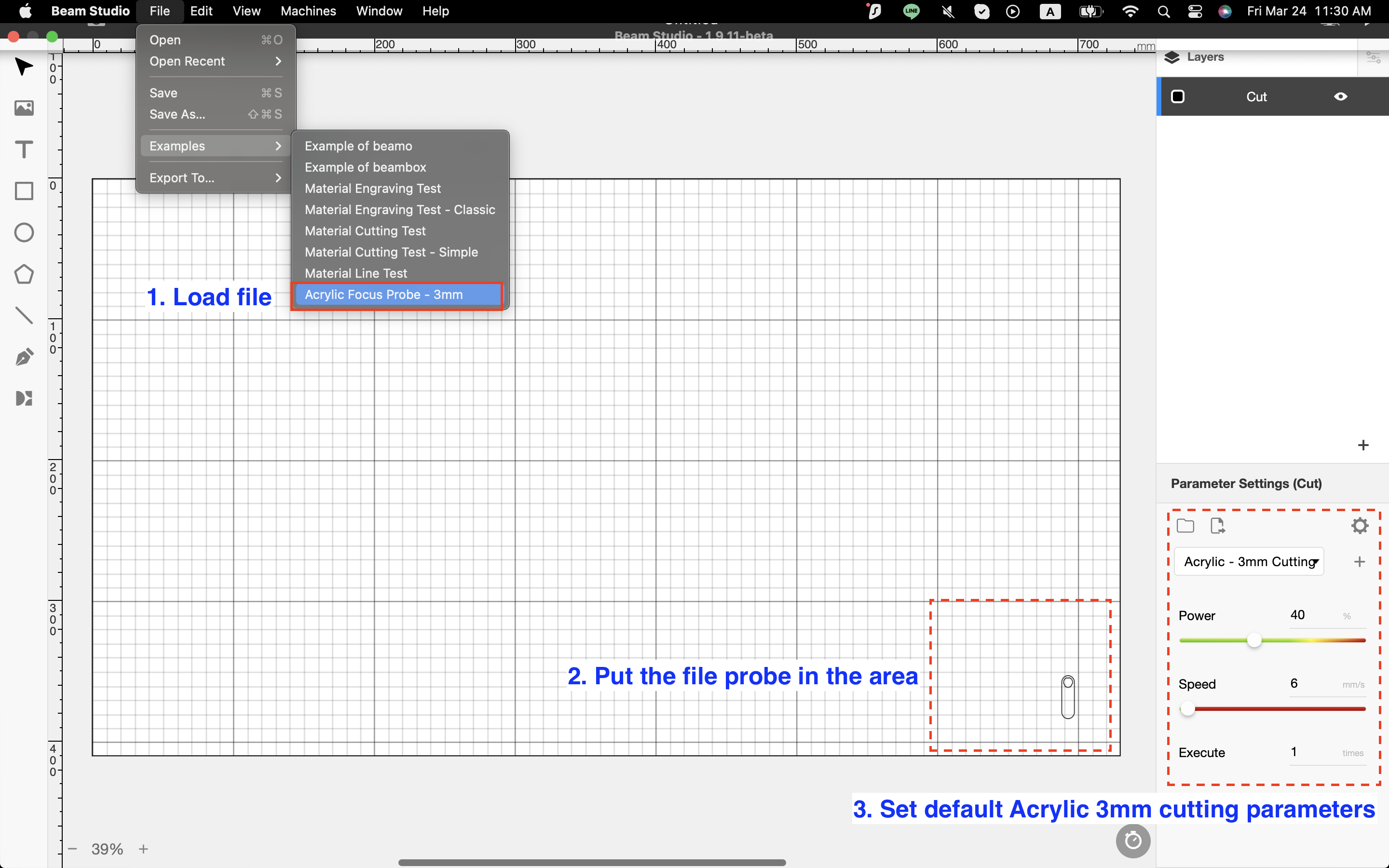

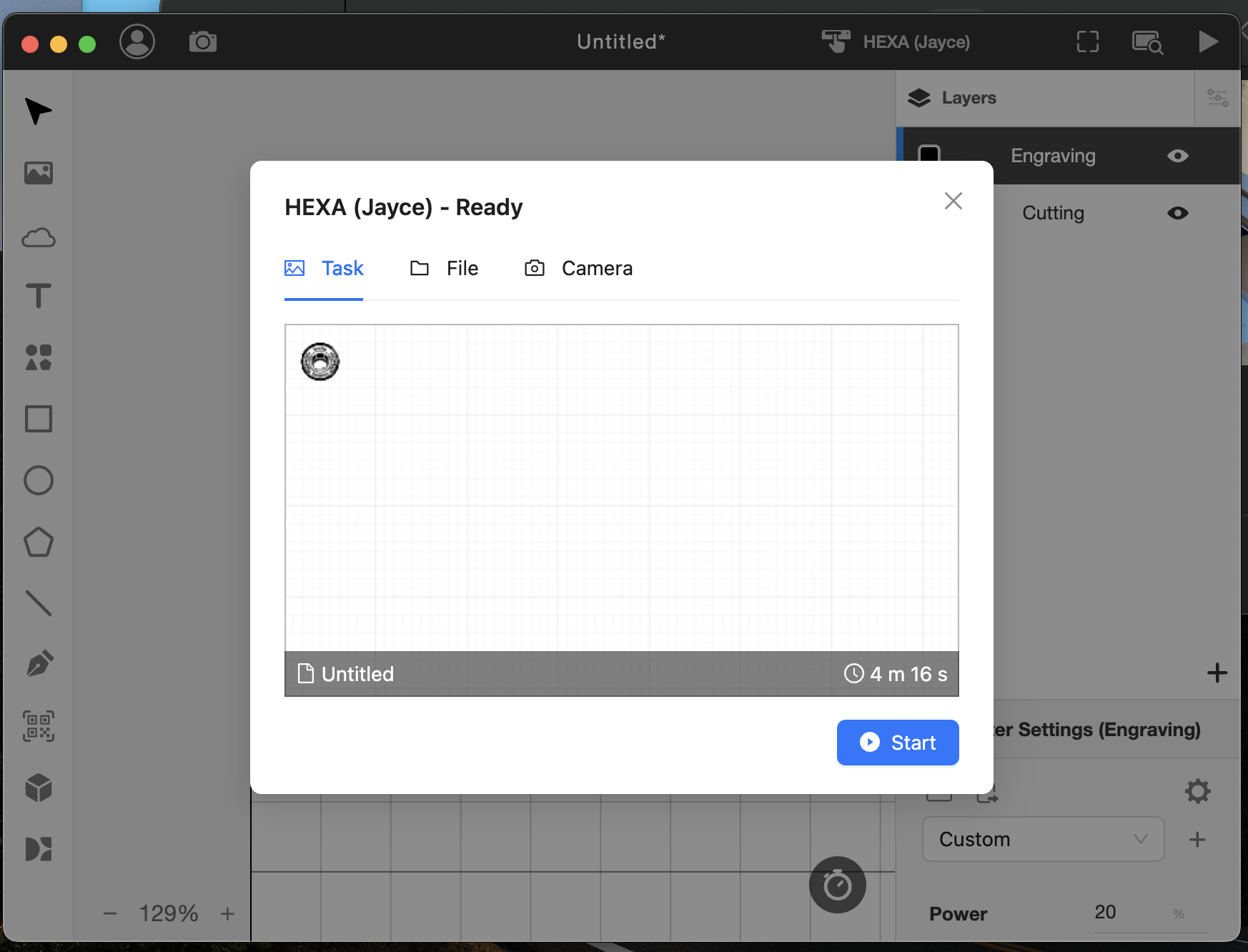

• Cut the example file in Beam Studio.


Determine your result and the next action to take:

Determine your result and the next action to take:

Step 3 - Bottom-right cutting test

In this step, we are going to test the cutting ability in the bottom-right area of the bed.

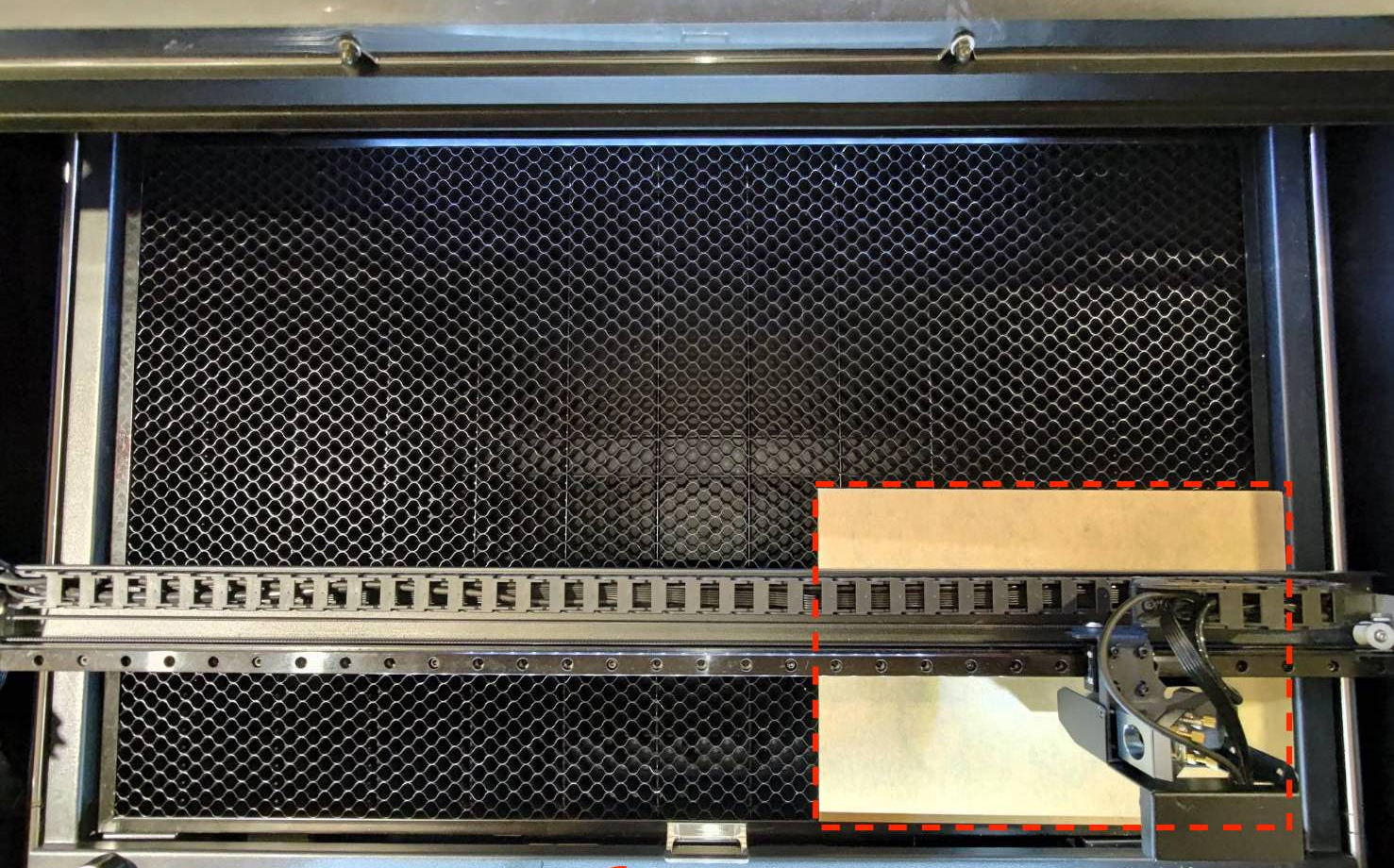

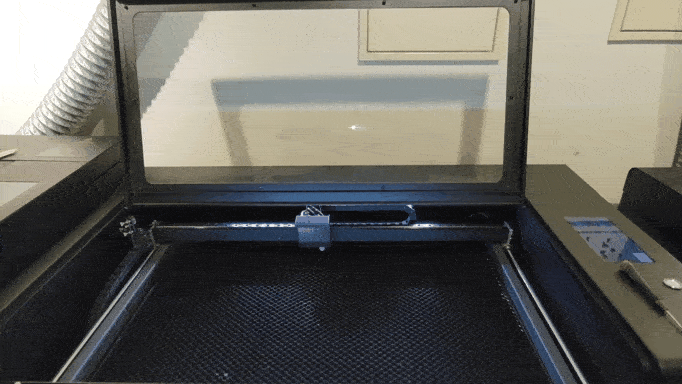

• Place the prepared material (3mm acrylic or wood) in the bottom right area of the bed and make sure to focus.



• Cut the example file in Beam Studio.


Determine your result and the next action to take:

Step 4 - Door sensor test

If a door sensor is not sensitive or the magnets are not strong enough to fully trigger the door sensor, the laser output will be affected to be weaker. In this step, we will use two magnets to put on the sensors of the door to make sure the sensors are fully triggered.

• For safety reasons, please set the power rate to x0.01 to ensure no pulses during your testing.

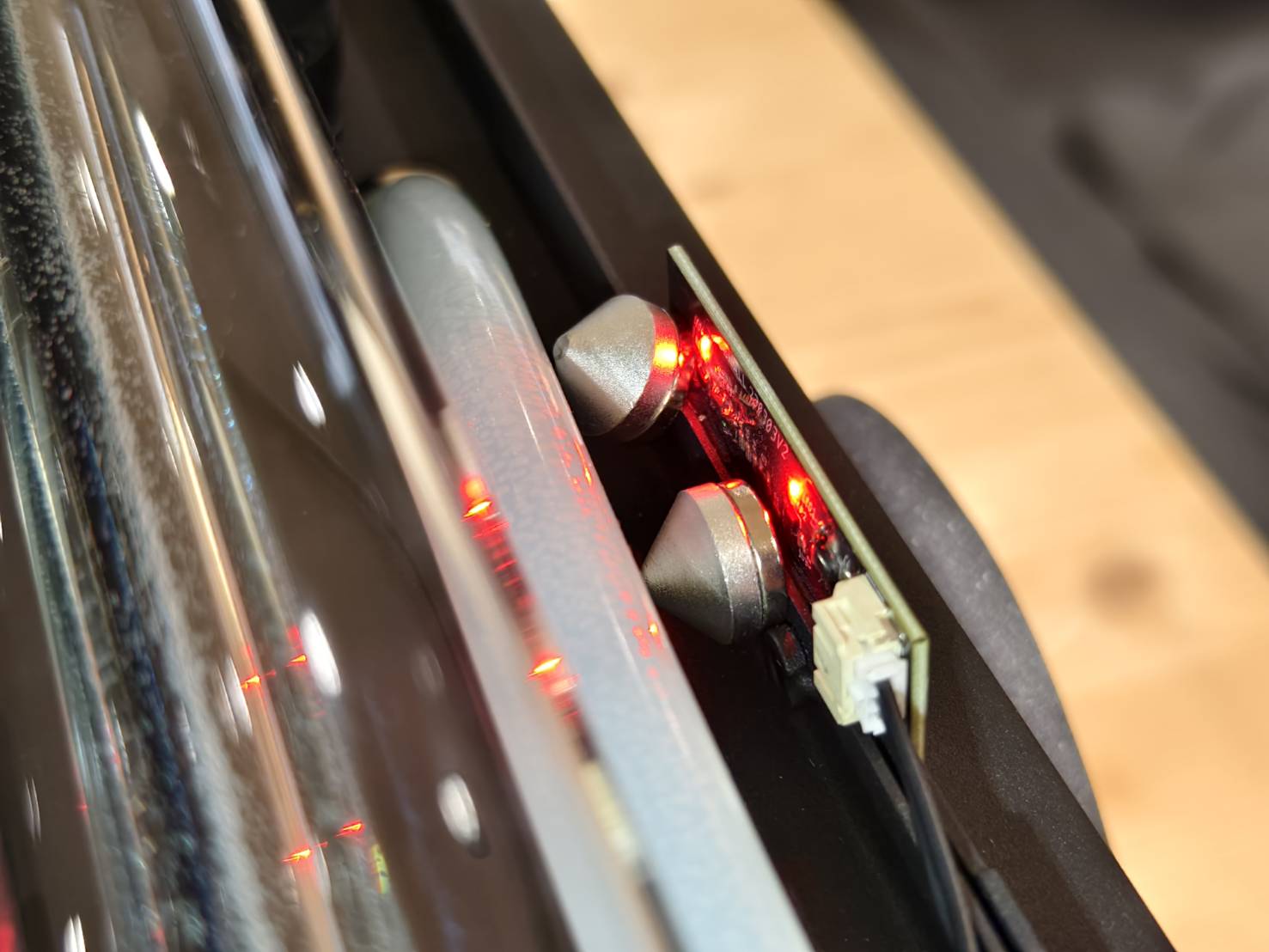

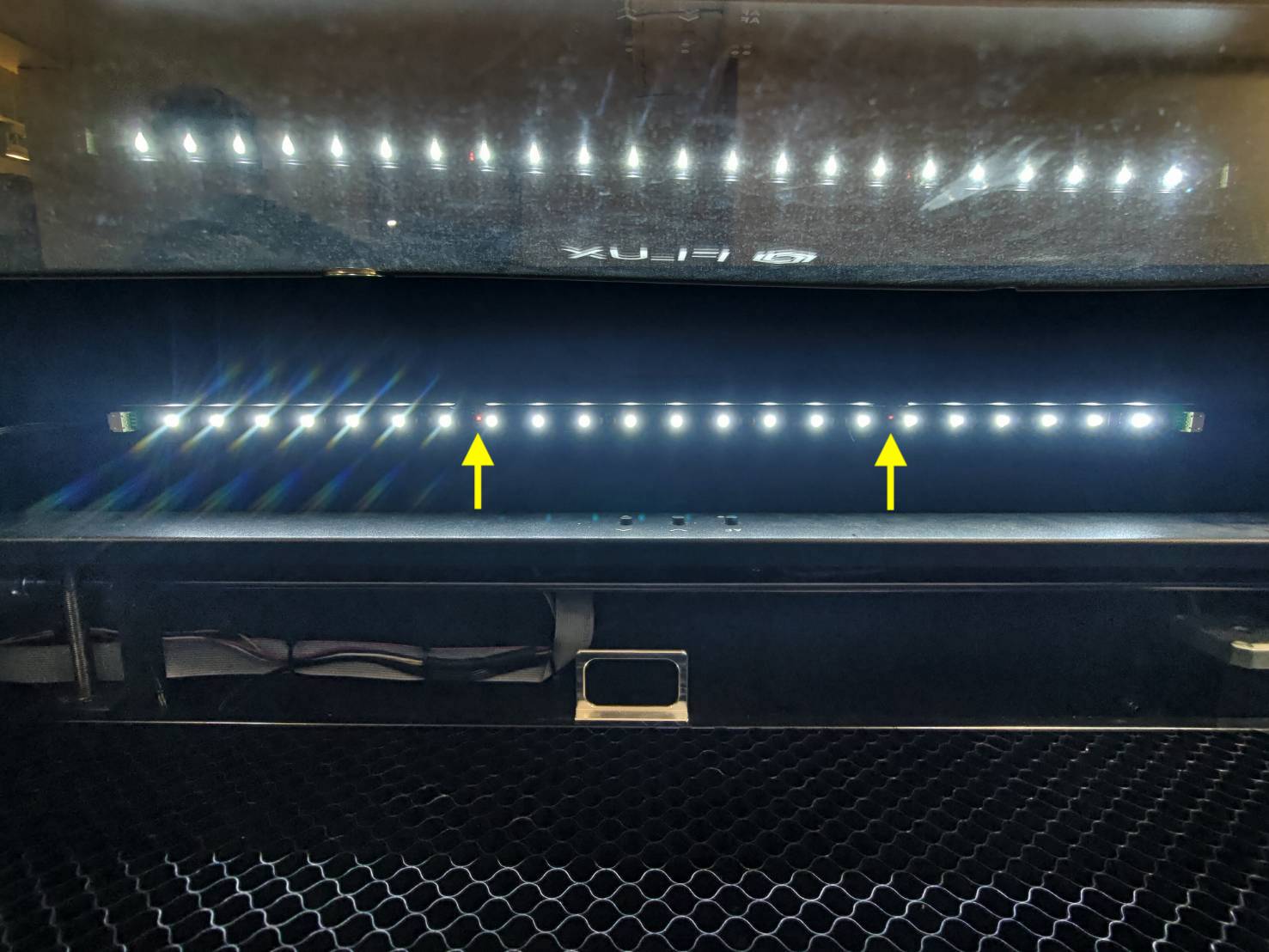

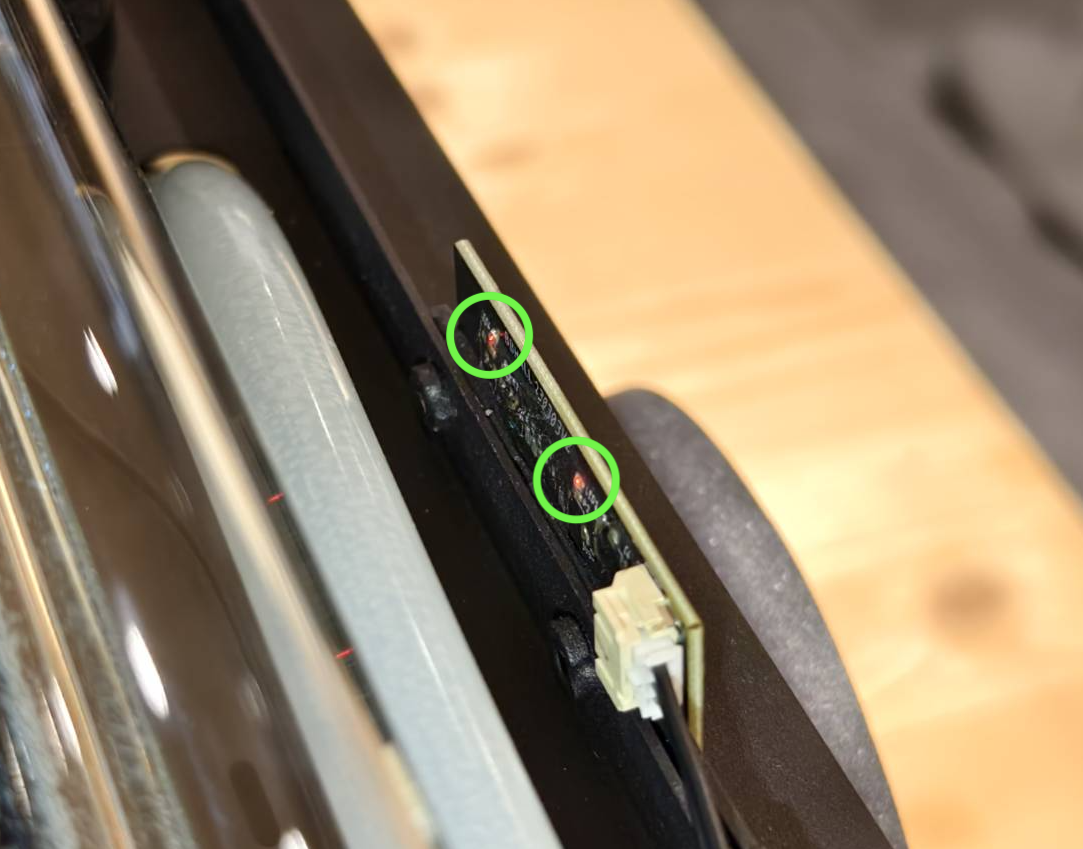

• The door sensor is embedded in the chassis LED lights. Please see the video below to find it.

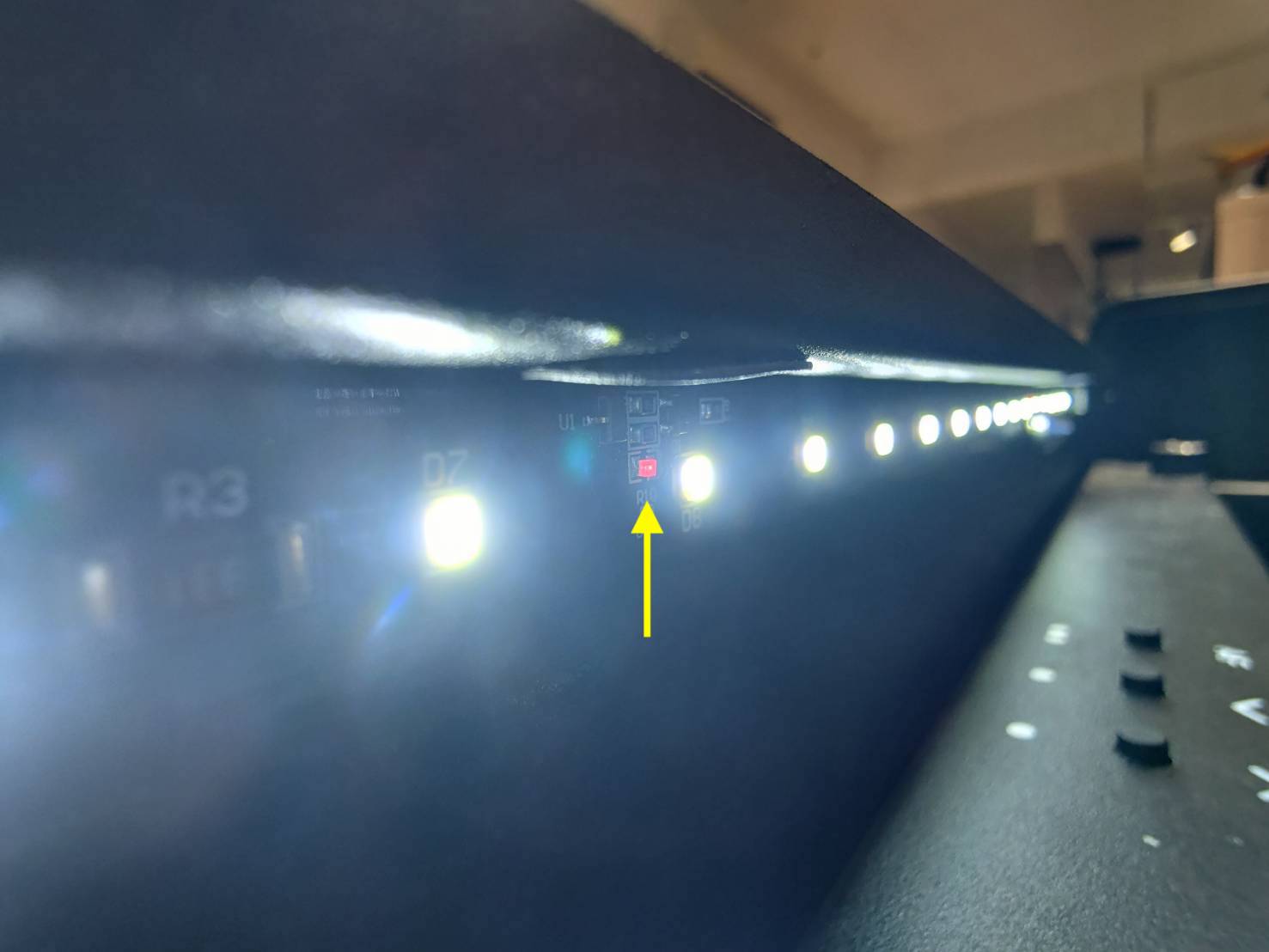

• The door sensor will have two LED lights in red and they will be always ON.

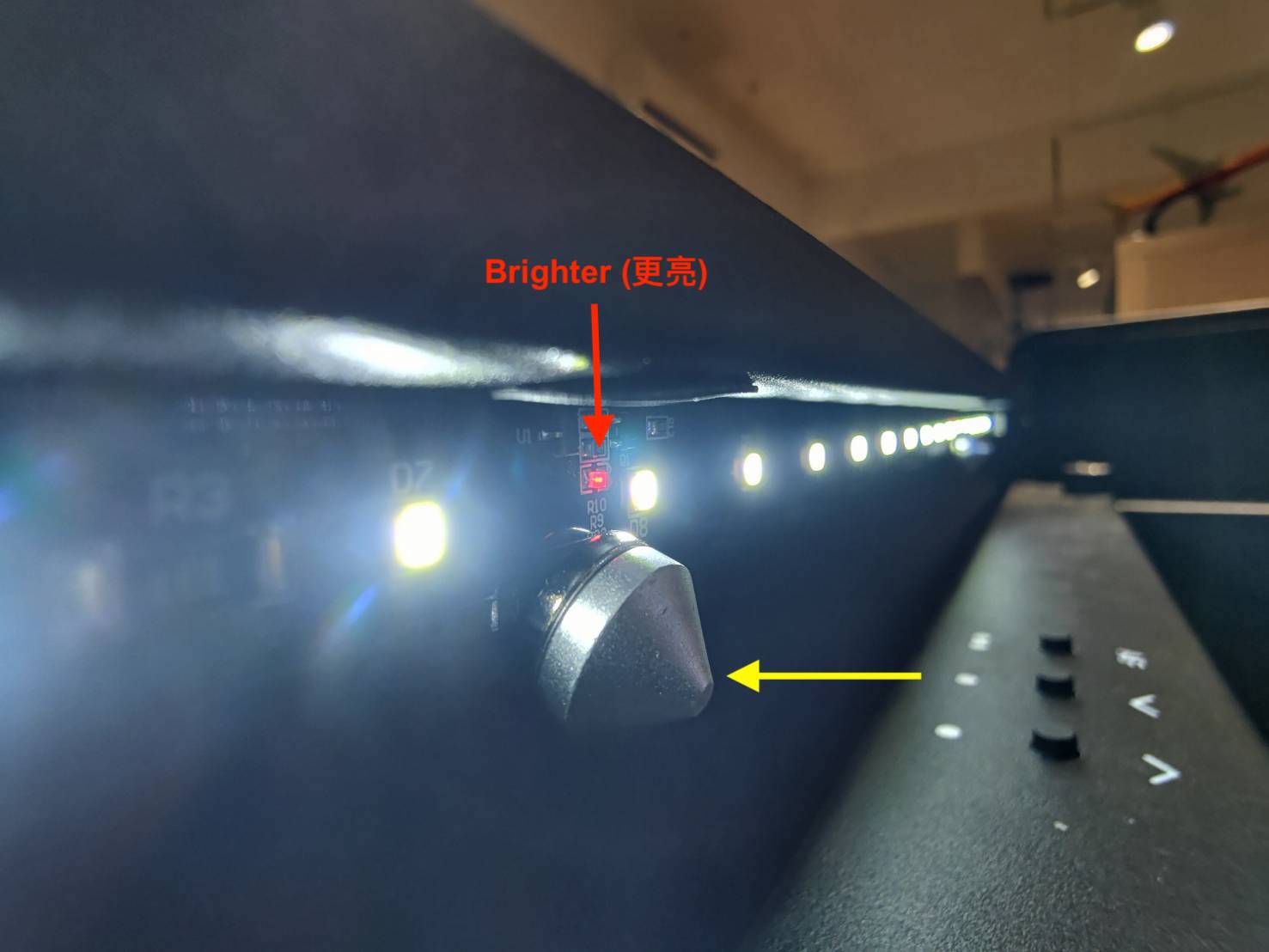

• Place the magnets close to both LED lights. The light should be "brighter" when it detects a magnet. When both LEDs detect magnets at the same time, a door-closed signal will be delivered to the system and the icon on the panel will be changed.




• Once you have put the magnets in place, please close the door.



• Change the power rate setting back to %100.



• Run the same task and see how it goes.
  • If it failed in the center last time, re-test the center.
  • If it failed at the bottom-right area last time, re-test the bottom-right area.


• After running the task, turn off the machine and remove the magnets.


Determine your result and the next action to take:

Step 4.1 - Back Cover Sensor Check

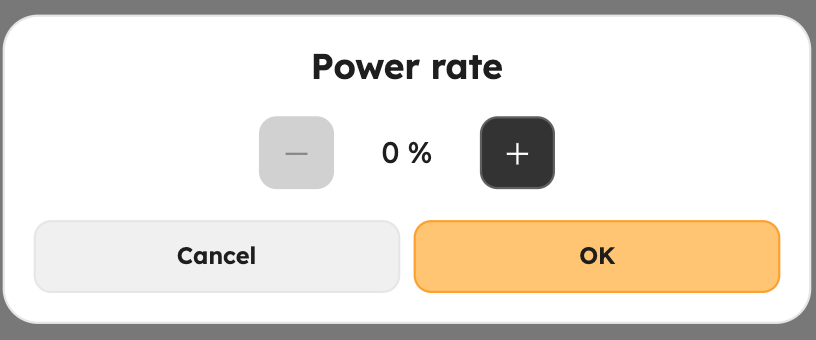

• Please set the power rate to 0% for safety purposes to ensure no pulses during your testing.

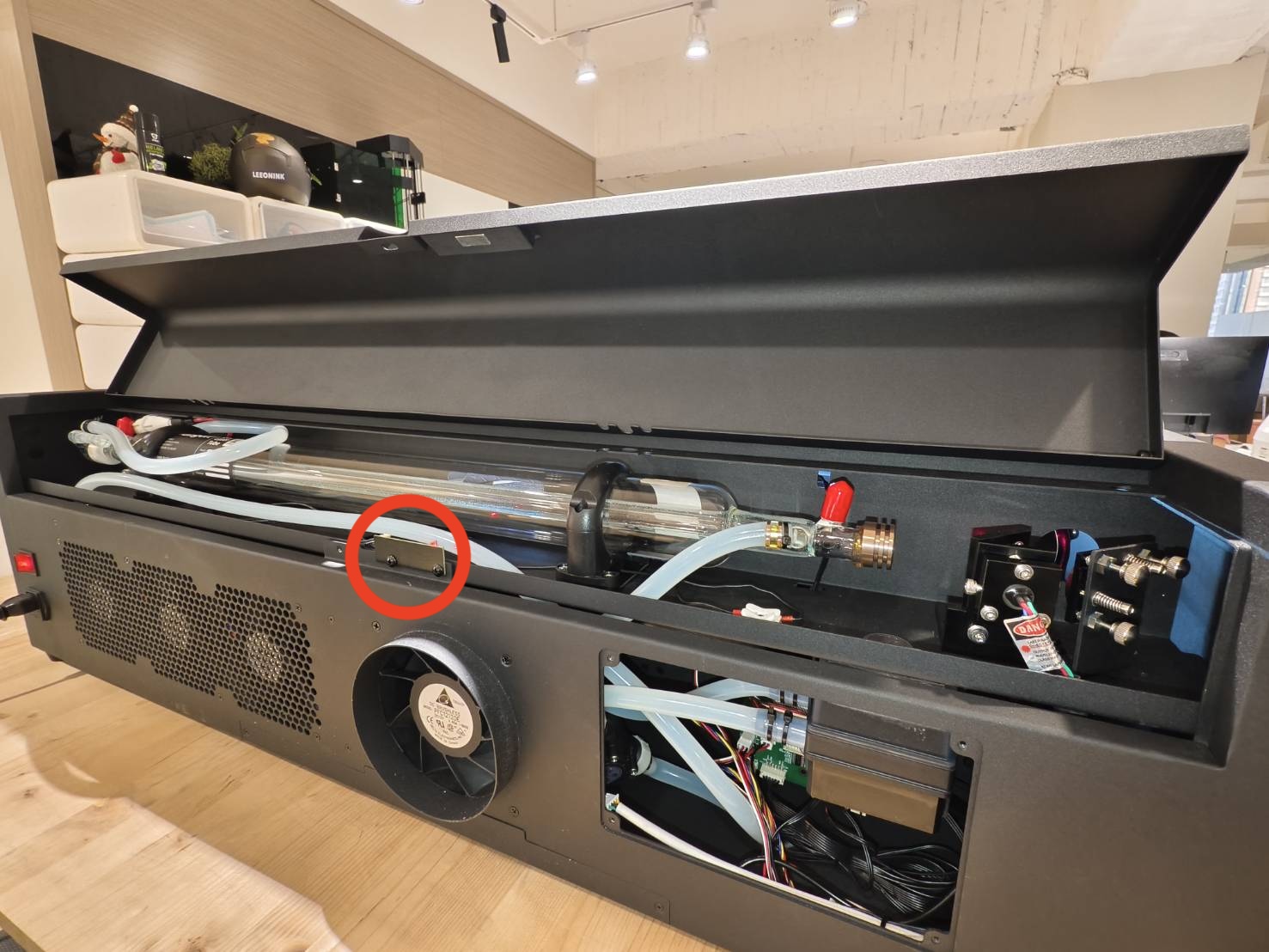

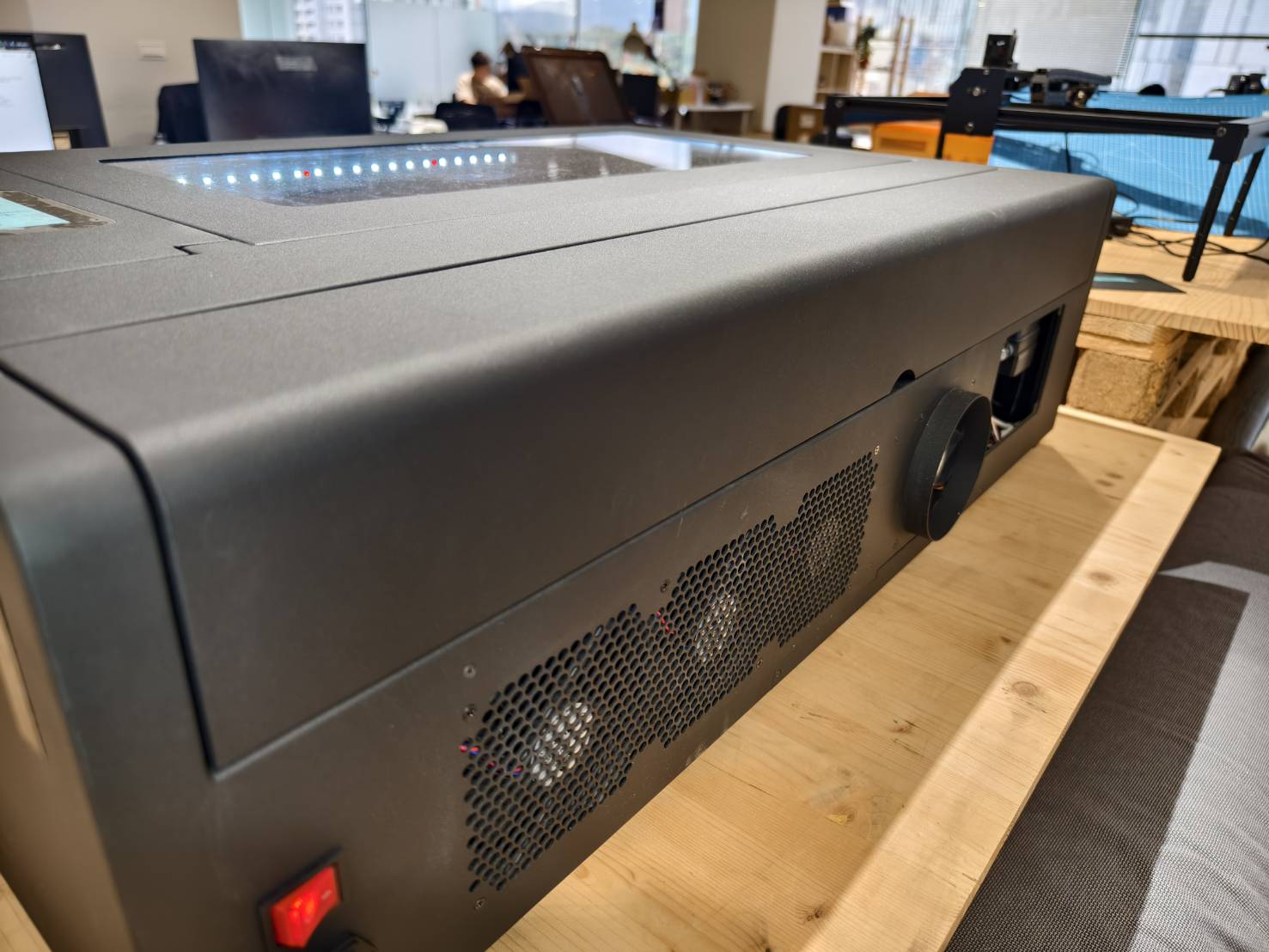

• Open the back cover to find the back cover sensor.


• The back cover sensor will have two LED lights in red, and they will always be ON.



• Place two external magnets close to both LED lights. The light should be "brighter" when it detects a magnet. When both LEDs detect magnets simultaneously, a door-closed signal will be delivered to the system, and the icon on the panel will be changed.




• After placing the magnets, close the back cover.


• Change the power rate setting back to %100.


• Run the same task and see how it goes.
  • If it failed in the center last time, re-test the center.
  • If it failed at the bottom-right area last time, re-test the bottom-right area.


• After running the task, turn off the machine and remove the magnets.


Determine your result and the next action to take:

Step 5 - Check the power curve value

The laser output may be affected by the setting of the power curve.

•  Please refer to the link below to set the power curve to 25/100.
  (The low/left value does not have to be changed.)
  Power Curve Adjustment


• Skip this step to Step 6 if the high/right value is already 25/100.


• Run the same task and see how it goes.
  • If it failed in the center last time, re-test the center.
  • If it failed at the bottom-right area last time, re-test the bottom-right area.

Determine your result and the next action to take:

Step 6 - Increase the power rate and lower the speed

In order to narrow down the issue, we are going to check if raising the power rate and lowering the speed can improve the cutting result.

• Beam Studio:


• Raise the default power rate by 20%.
  (If the default is 15%, then 15% + 20% = 35% will be set)


• Lower the default speed by half.
  (If the default is 300mm/s, then 300mm/s *0.5 = 150mm/s will be set)


• Run the same task and see how it goes.
  • If it failed in the center last time, re-test the center.
  • If it failed at the bottom-right area last time, re-test the bottom-right area.

Determine your result and the next action to take:
