5-15 Manual Fcous

FLUX Support Team

Description

If your auto-focus function is down, you can continue your work using manual focus while waiting for the FLUX support.

This guide will show you how to make a manual focus tool without the auto-focus function.

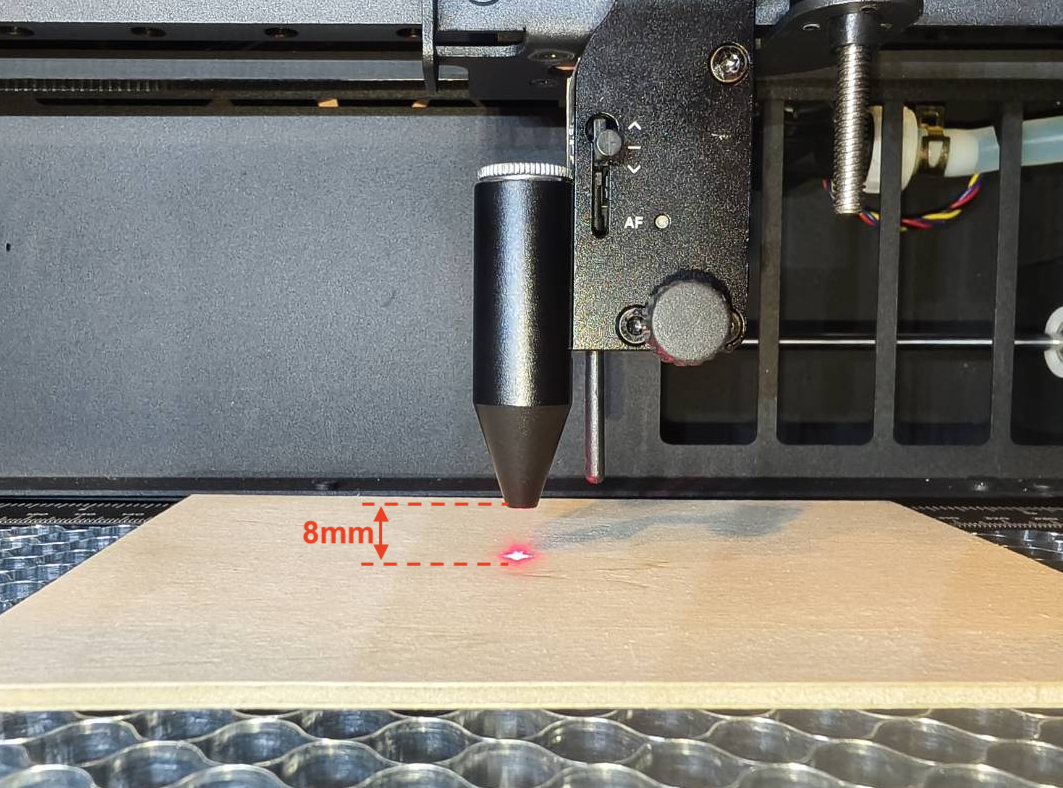

The purpose here is to manually make a distance of 8mm between the nozzle tip and the surface of the material.

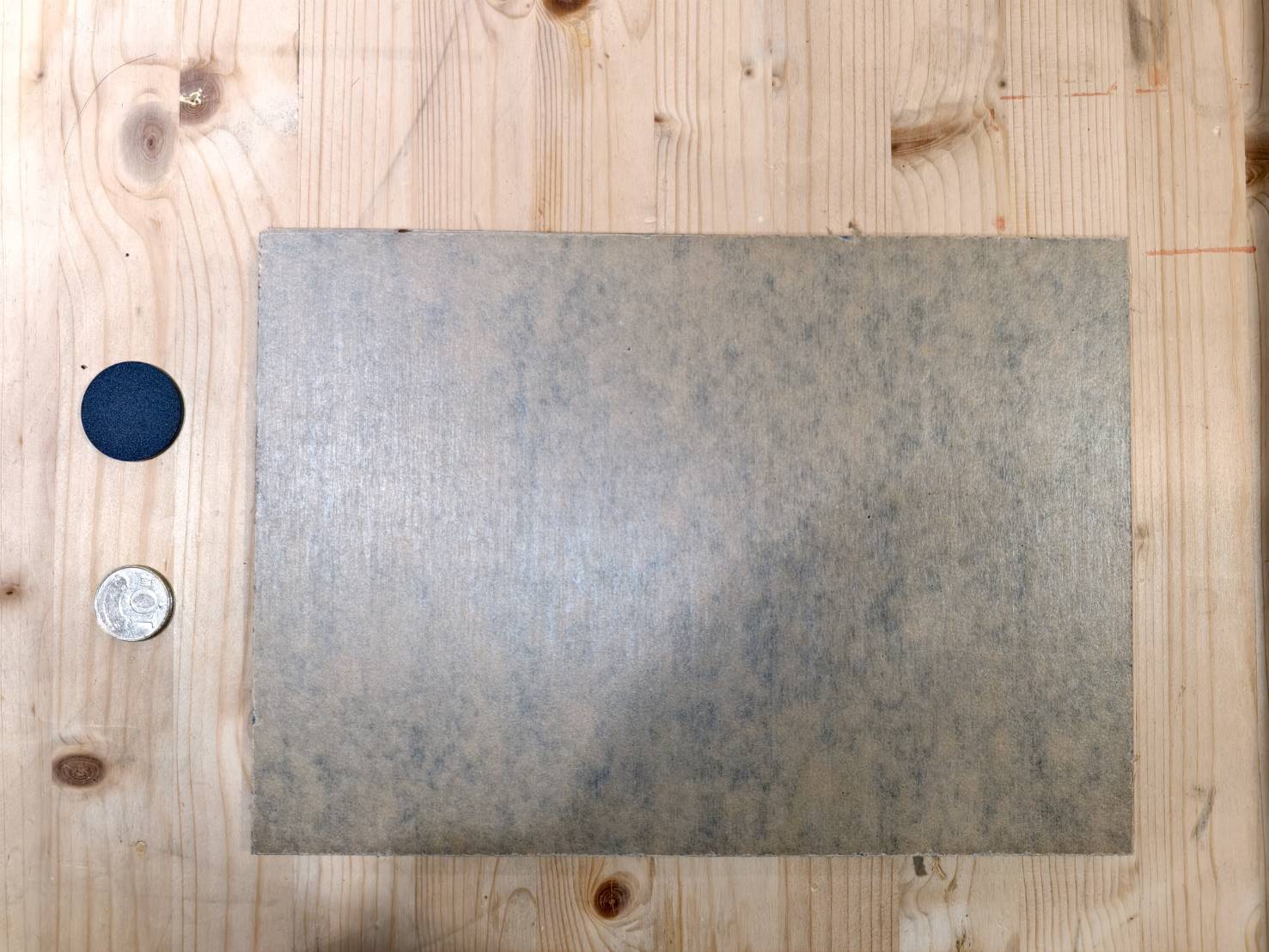

Please prepare the following materials:

A piece of solid material such as acrylic or wood..etc. (3mm thickness is recommended)
Coins or materials that have a thickness of 3mm - 4mm.

The coins will be used to measure the focus distance and are easier to get.

USD >> US quarters (25¢) x 5 pcs
(1.75mm x 5 = 8.75mm)

EUR >> 50 cents x 3 pcs
(2.4mm x 3 = 7.2mm)

TWD >> $10 coins x 4 pcs
(1.9mm x 4 = 7.6mm)

...etc. (You can search or measure the thickness of the coins you have)

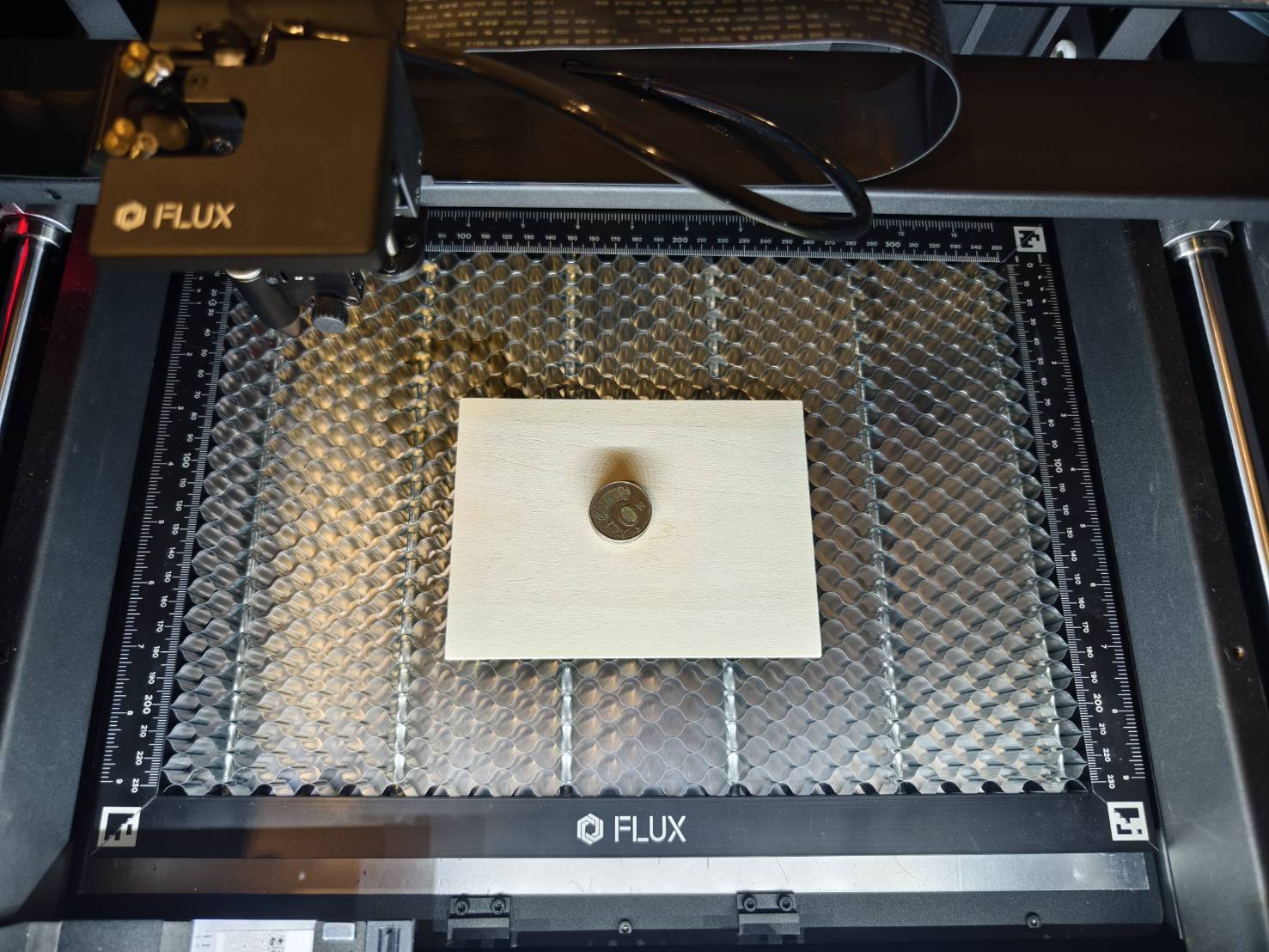

Put the material and the coins in the work area.

Use the panel to focus manually.
