5-10 Reflash the System / Reflash the RK board (beamo II)

Note：

Reflashing the system is a way to solve system bootup failure, blank screen, etc.
Reflashing the system requires a Windows computer or laptop.
It is recommended that you contact your local reseller first before doing so.

Tools：

1. A computer with the Windows OS.

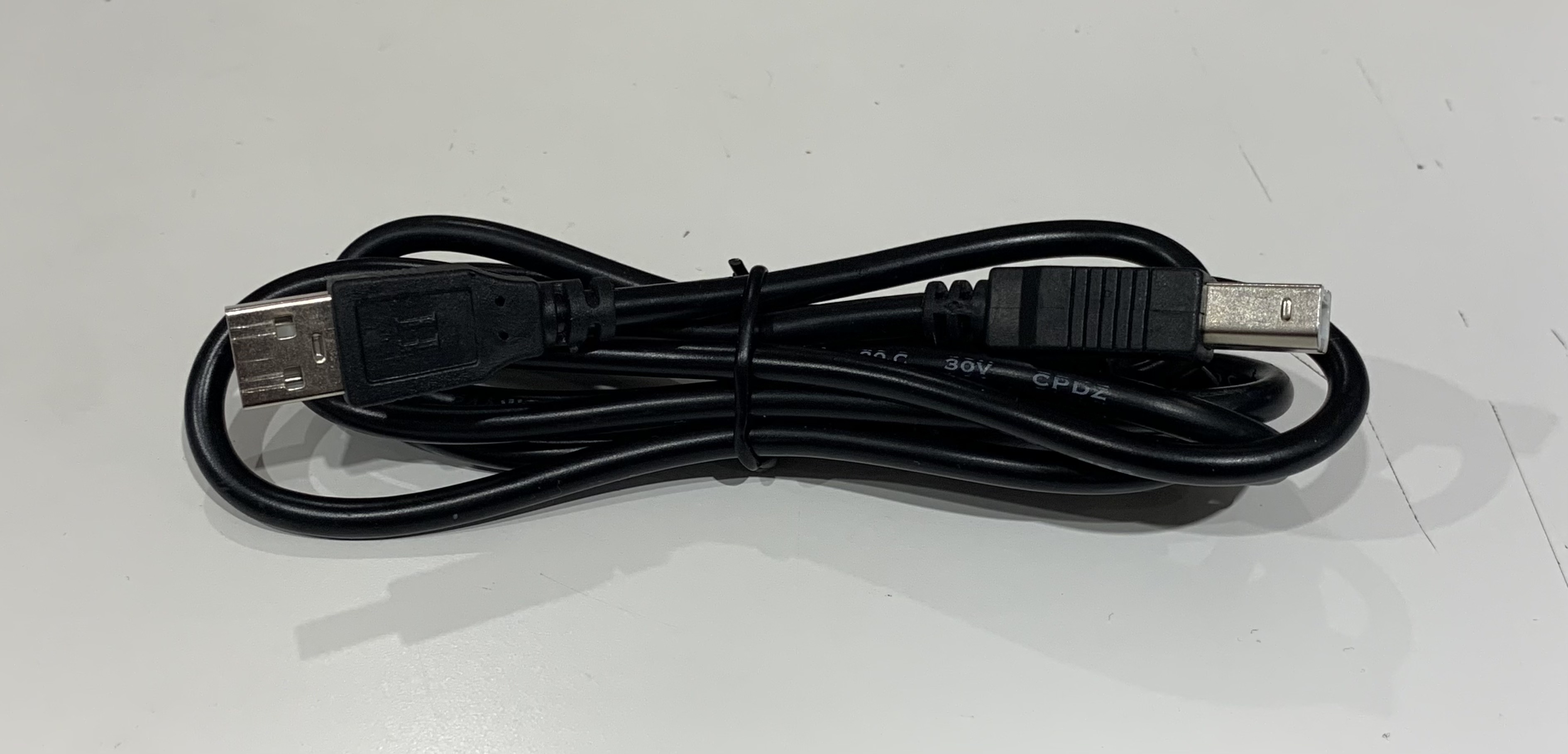

2. USB cable (Within Accessory Box).


3. Micro-USB cable (Data transferring) (Optional)


Download links：

（Only suitable for Windows OS）


• Reflash Software
• Driver
• beamo II System File

Step 1 - Download the data from the beamo II

⚠︎ If your machine cannot power on or connect to your computer, please skip this step. After completing the reflash, simply perform the advanced camera calibration again.

1. Update the firmware to version 6.1.1 or above.
2. Update Beam Studio to version 2.5.11 or above.
3. Selecting the "Machine→Machine's Name→Camera Calibration Data→Download Data."

The file downloaded will be in .zip format and named after your machine's name.
For example, beamo II (Timothy) .zip.

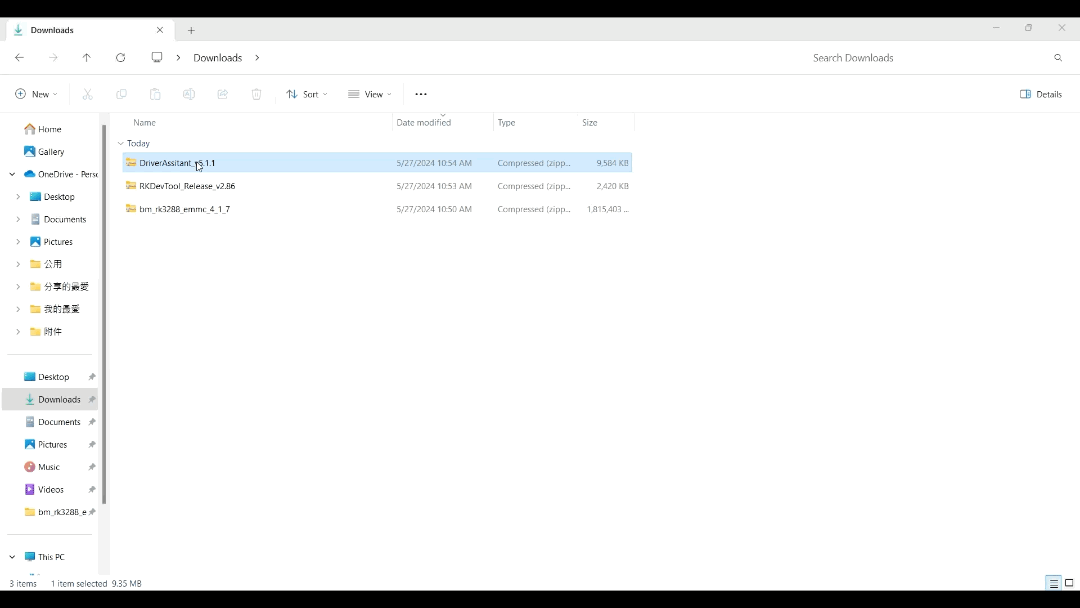

Step 2 - Install the driver and launch the reflash software

Install the driver and launch the reflash software after downloading it.

• Driver
• Reflash Software

Step 3 - Remove the front cover and connect the USB cable

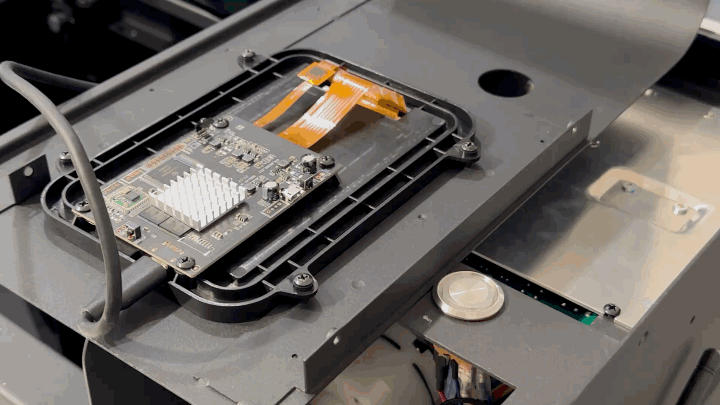

Turn off the machine and remove the front cover.

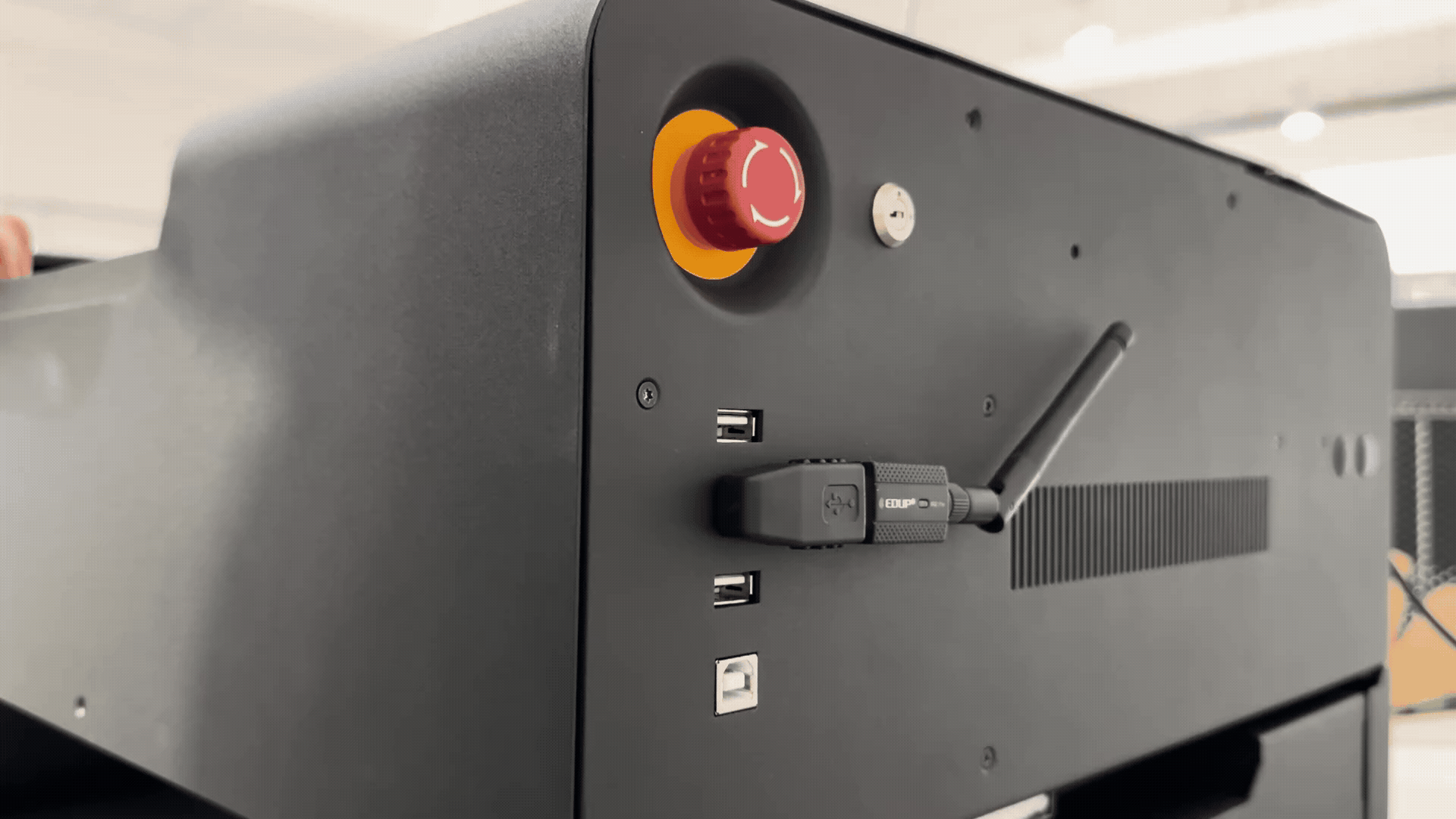

Connect the USB cable to the machine and the computer.

Step 4 - Turn on the machine

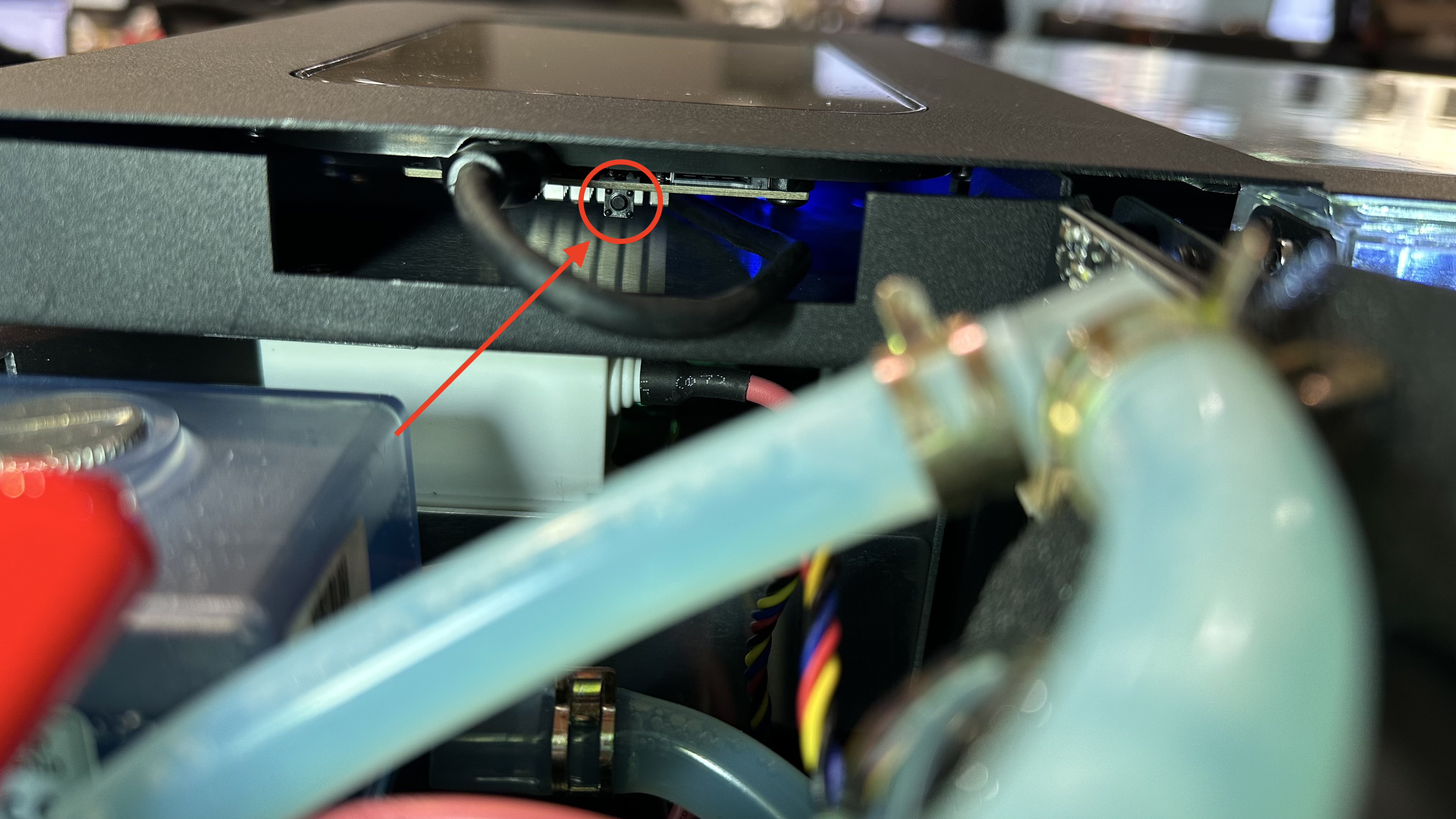

Find a button on the RK board located under the screen.

Once the button is found, press and hold it, and then turn on the machine.
⚠︎ Please do not release the button before the machine is detected on the computer.

Step 5 - Confirm the connection

⚠︎ Please do not release the button before the machine is detected.

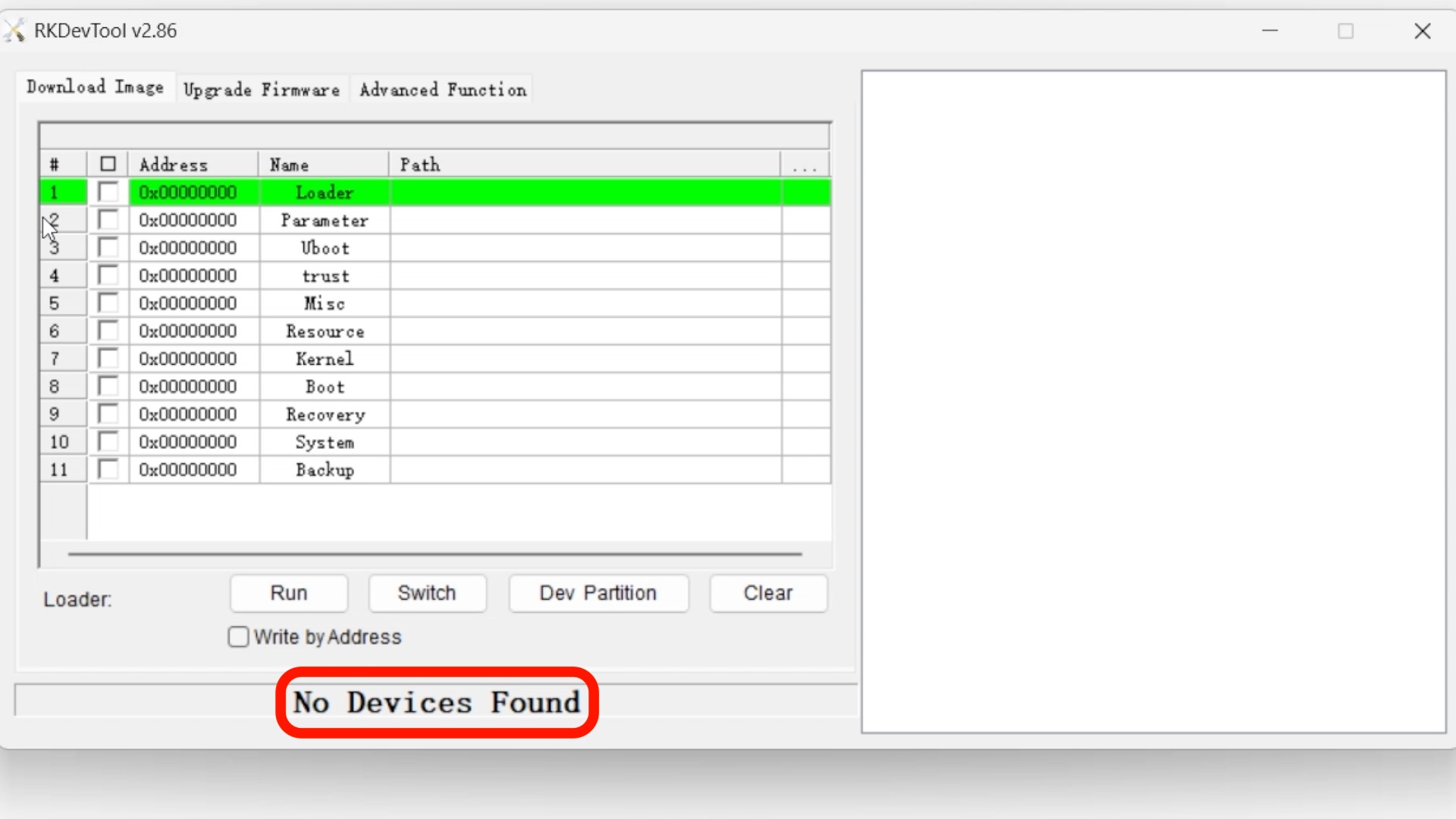

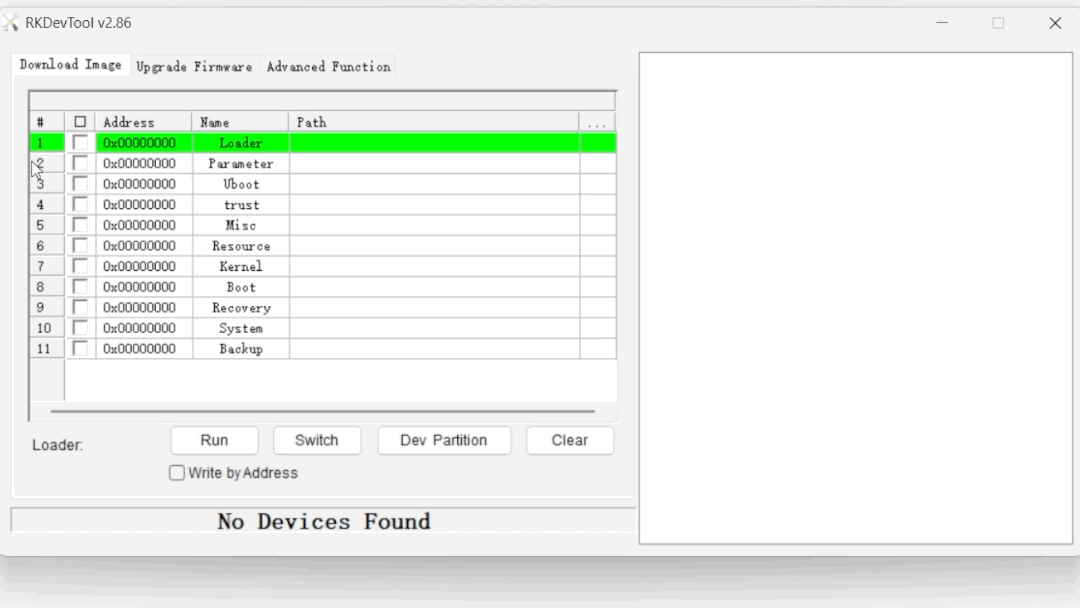

Check the software. The words at the bottom should be changed from "No Devices Found" to
"Found One LOADER Device."
This indicates the machine has entered "Burning Mode," and the button can be released.

If the words at the bottom remain "No Devices Found," this indicates the software does not detect the RK board. In this case, there will be two options to consider.

1. Restart your computer once.
   Repeat Step 4 and Step 5 until the RK board is detected.
   (If, after trying several times, this still can't get it to work, please try the other method with a Micro-USB cable.)


2. Restart your computer once.

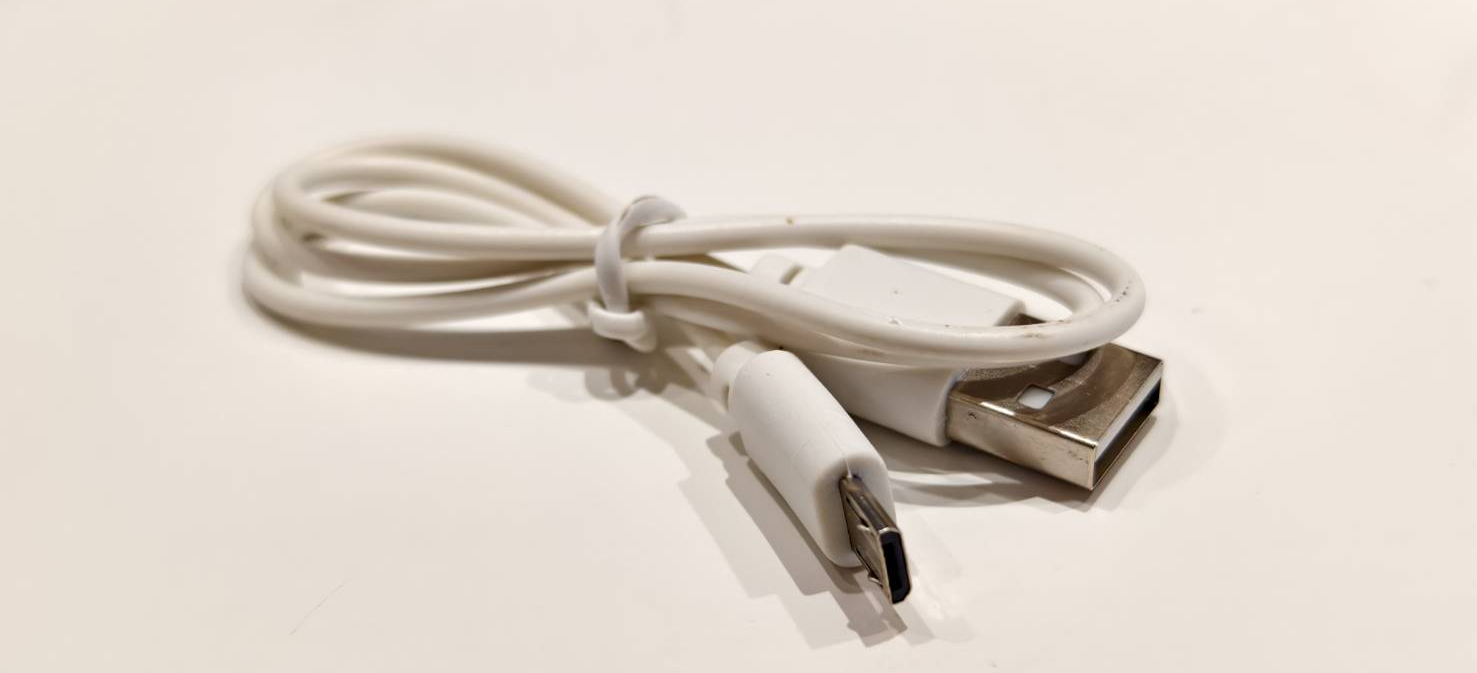

   Use a Micro-USB to connect the RK board. Please refer to the video below.
   (Please ensure that the cable can transfer data; otherwise, it won't work.)

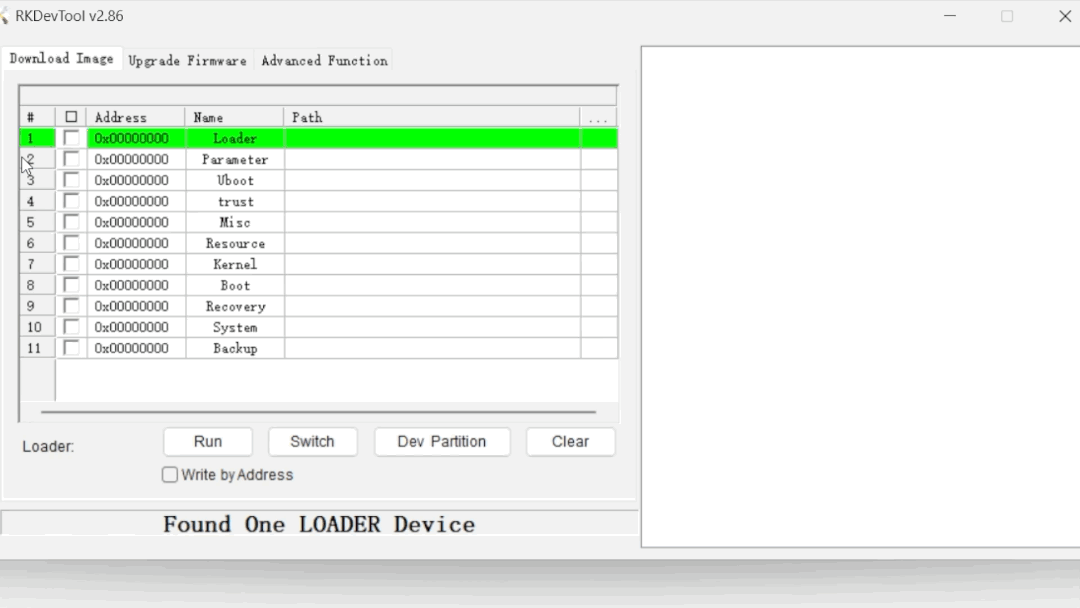

Step 6 - Start reflash

• beamo II System File

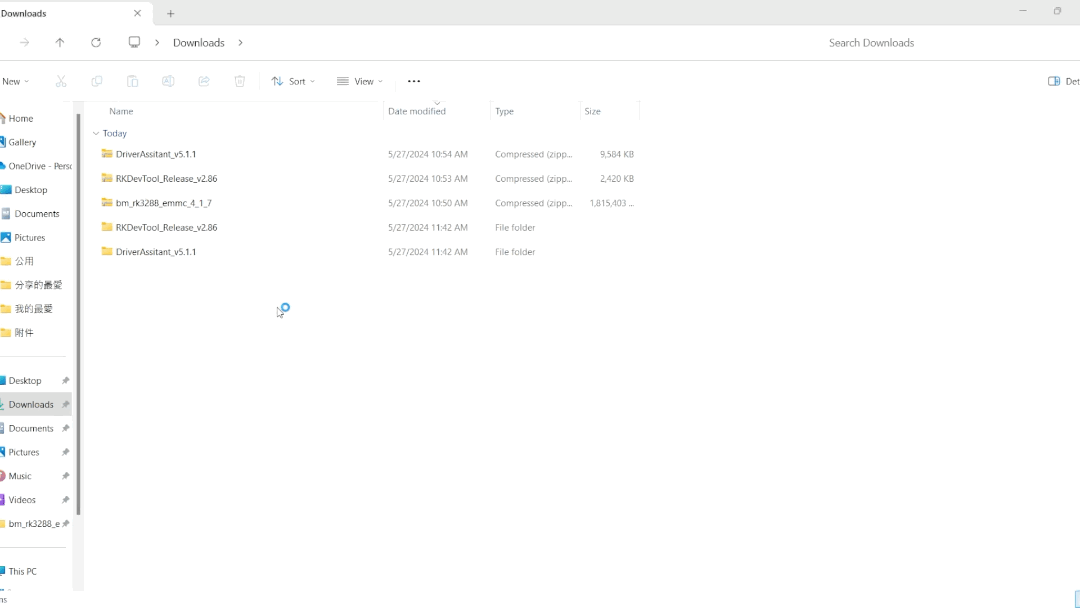

Extract the downloaded system file.

Select the firmware and start the process.

Step 7 - Check the Reflashing Status

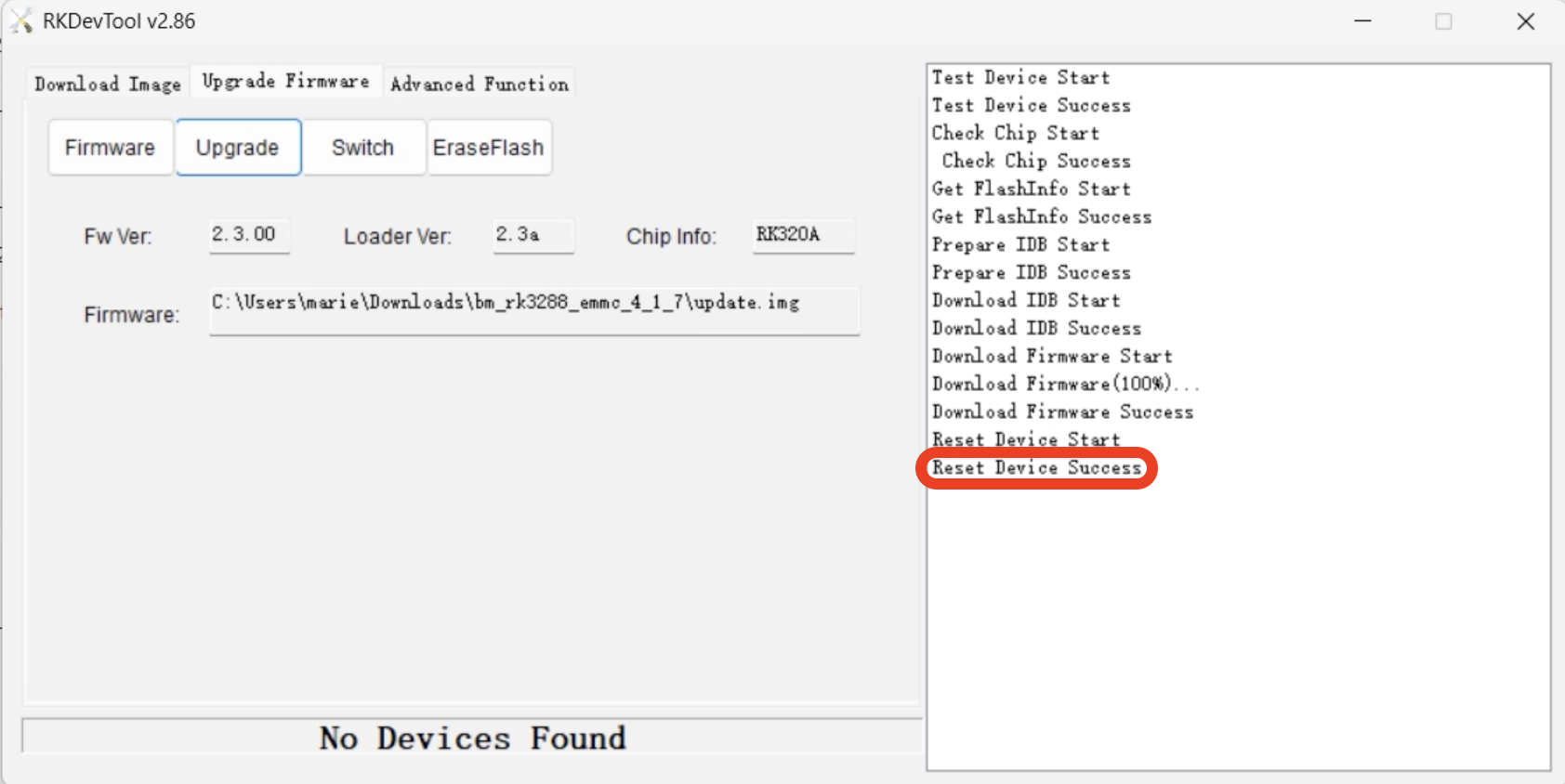

When it shows "reset device success" on the right side status, then the reflashing is successful.
If it doesn't show "reset device success" on the right side status, it could fail on reflash.
Please contact customer service and attach a screenshot of the software.

Step 8 - Reflash successfully

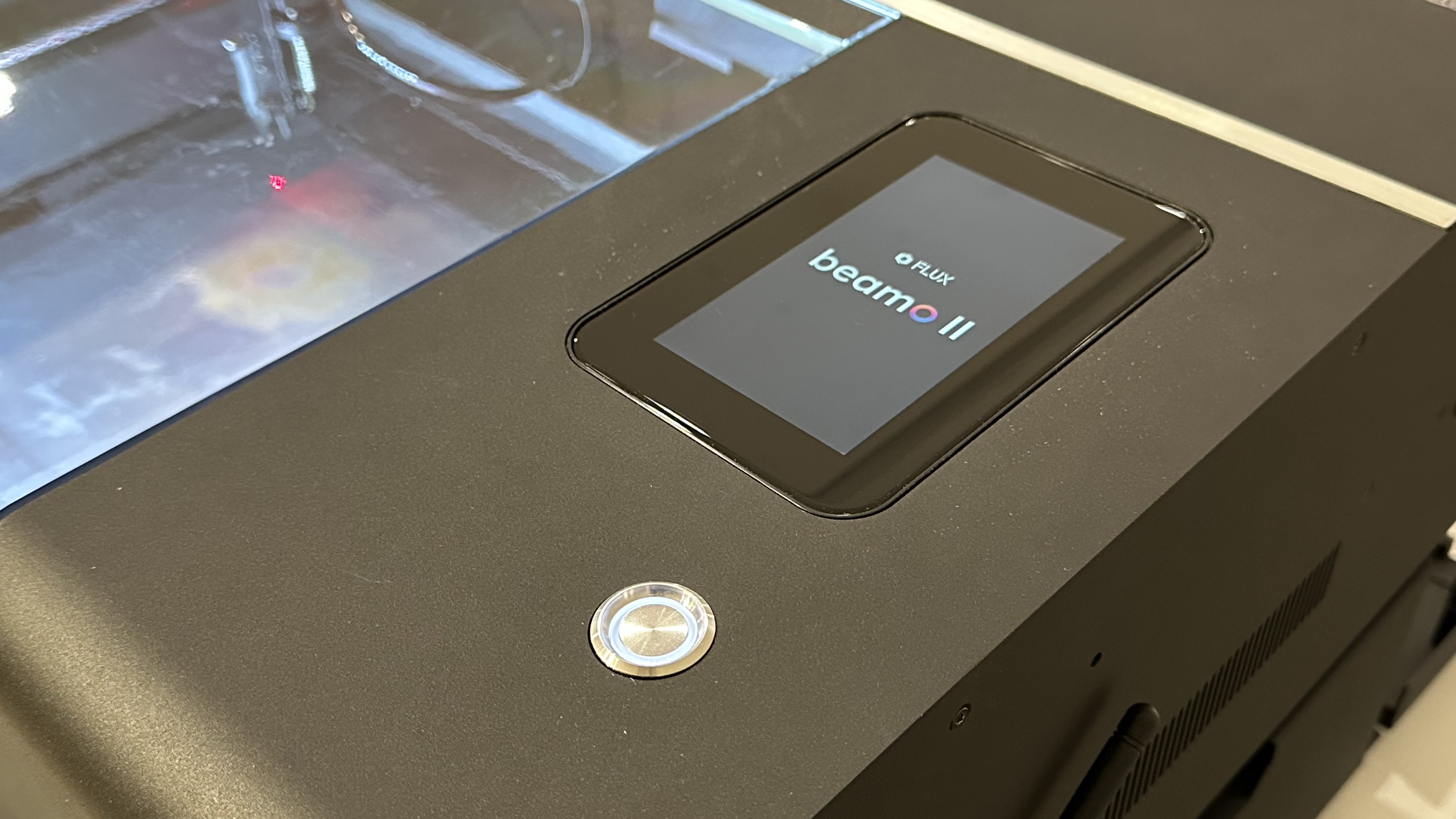

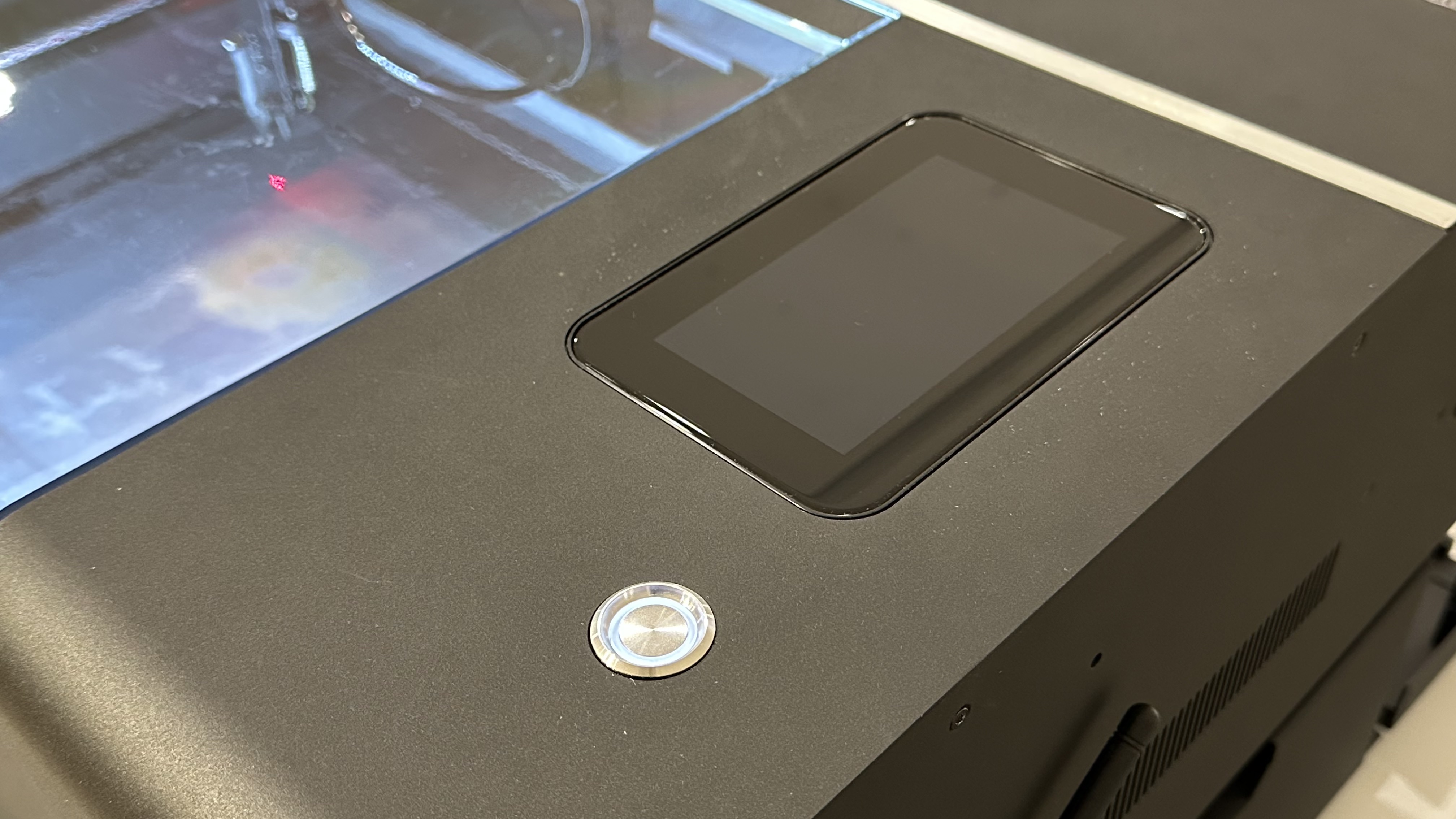

Once the process is finished, the machine will restart. The light and screen will be off first.

After a few minutes, the light and screen will be on again.
The screen will be "Initializing" for about 3 to 5 minutes before entering the main page.

Step 9 - Reinstall the front metal cover

Step 10 - Reset Mainboard ＆Reset to Factory & Update the firmware

After entering the main page, the process of reflashing is done.
Please refer to the guidance below to reset the machine, connect to the WiFi, and update the firmware to the latest version.

• “Machine” → “Hardware Settings” → “Reset Mainboard.”
• Reset to Factory
• Connection Settings
• Firmware Update

Step 11 - Upload the data

Run the Beam Studio version 2.5.11 or above and select the "Machine→Machine's Name→Camera Calibration Data→Upload Data→Choose the file downloaded in Step 1."

Step 12 - Calibrate the camera

Please calibrate the camera again to attain the correct preview.

#END
