Promark - Foot Pedal Installation Guide

Step 1 - Connect the Foot Pedal

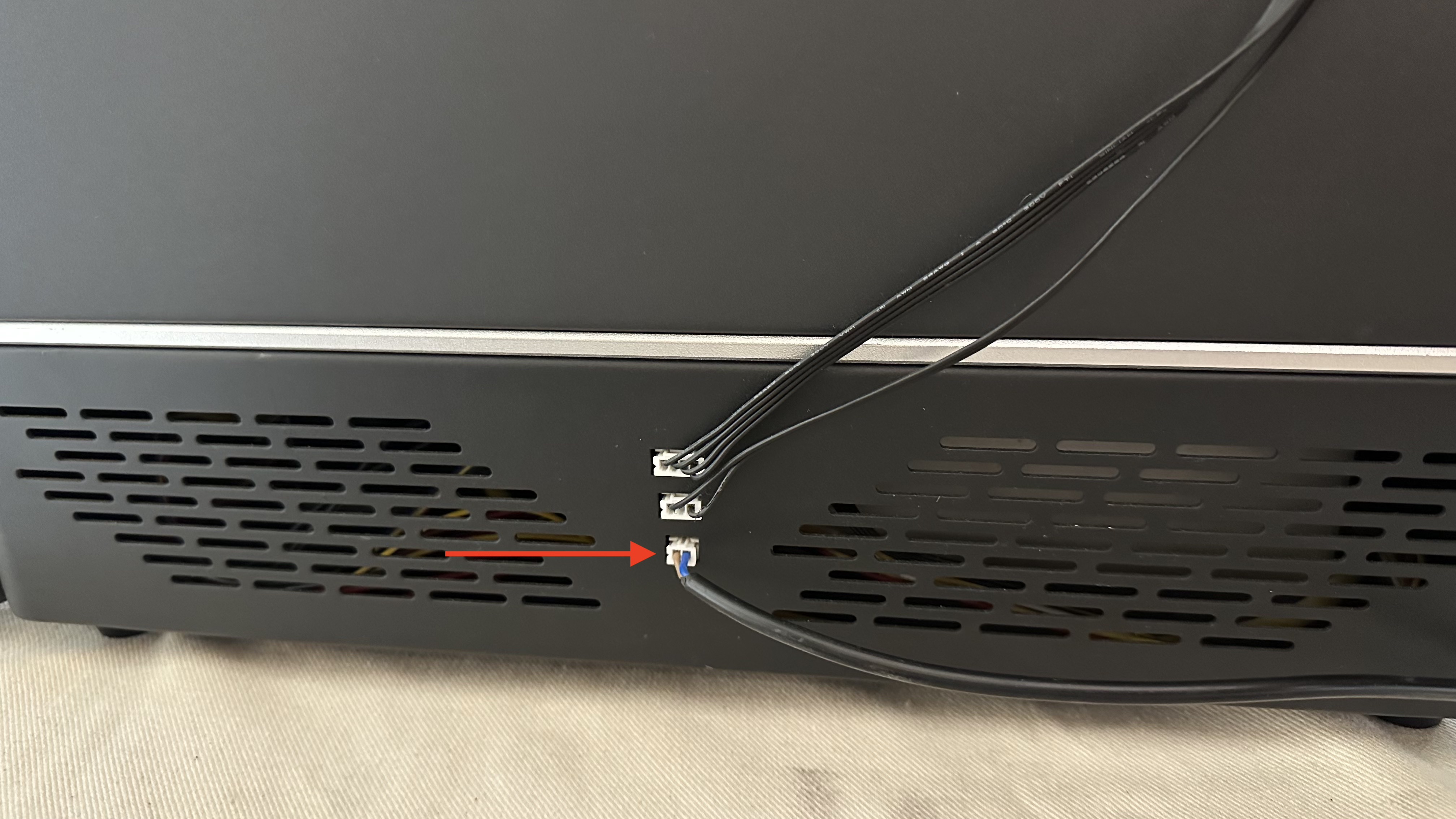

Connect the foot pedal cable to the bottom-most port on the left side of the machine.

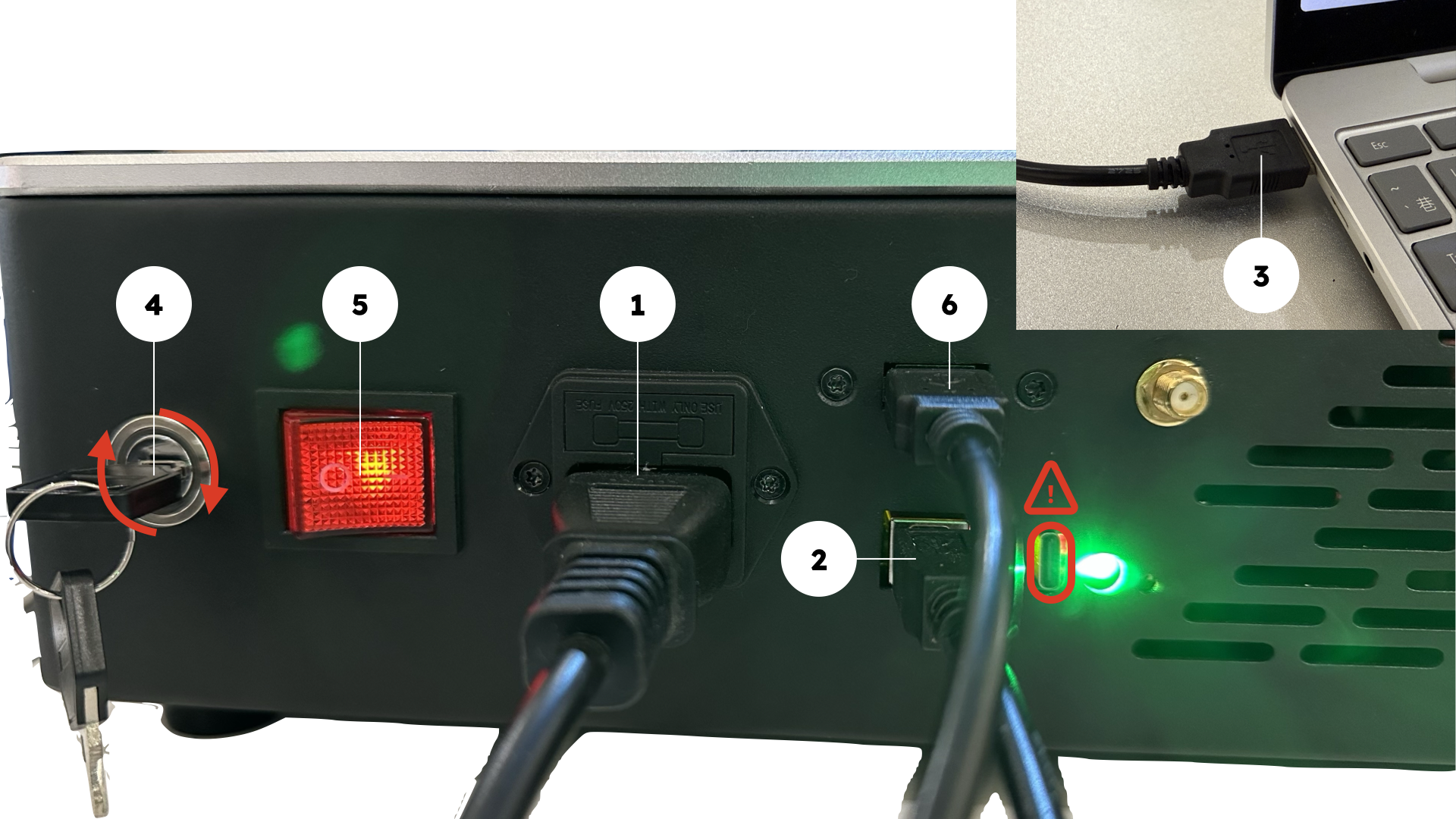

Step 2 - Turn on the Machine

1. Plug in the power cord.
2. Connect the USB-B cable to the machine.
3. Connect the USB-A cable to the computer.
4. Use the key from the accessory box and turn it clockwise to unlock.
5. Press the red power button to turn it on.
6. Camera cable (If you wish to use the camera function, please connect this USB-A port to the computer).

Step 3 - Enable the Start Button Function

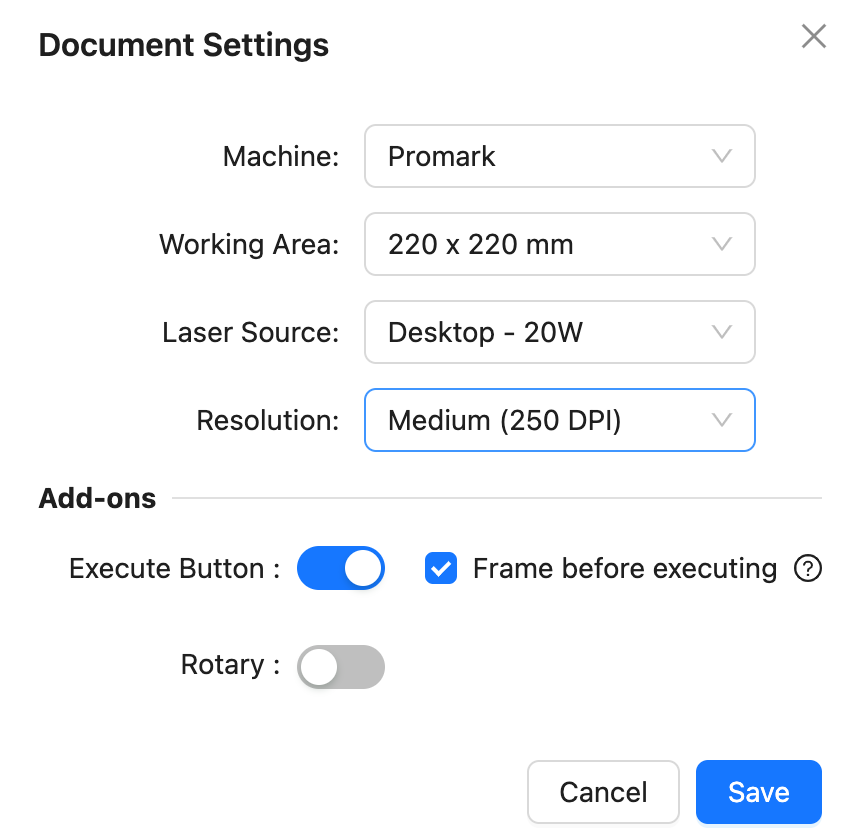

After opening the Beam Studio, click "Edit→Document Settings" on the top menu bar to enable the "Start Button" function.

ⓘ Please decide whether to check "Frame before executing" based on your preference.

Step 4 - Start Engraving

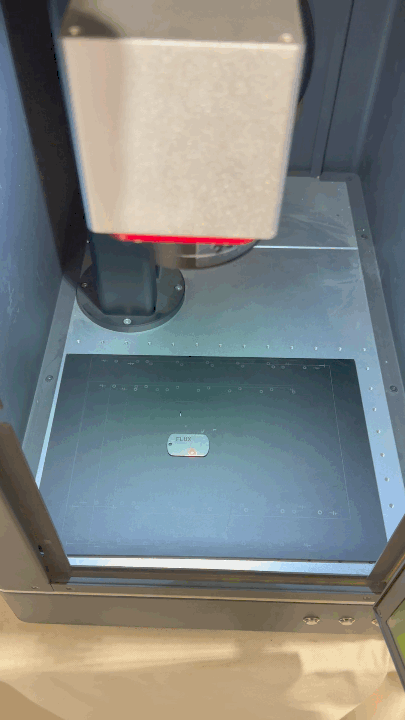

Scenario 1: If "Frame before executing" is not checked, press the foot pedal to start working immediately.

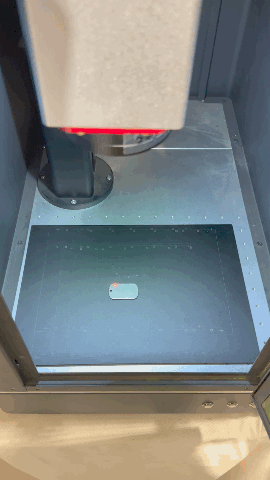

Scenario 2: If "Frame before executing" is checked, press the foot pedal to run the red light framing first, and then long-press the foot pedal to start working.
