HEXA - Rotary 2.0 Mainboard Replacement

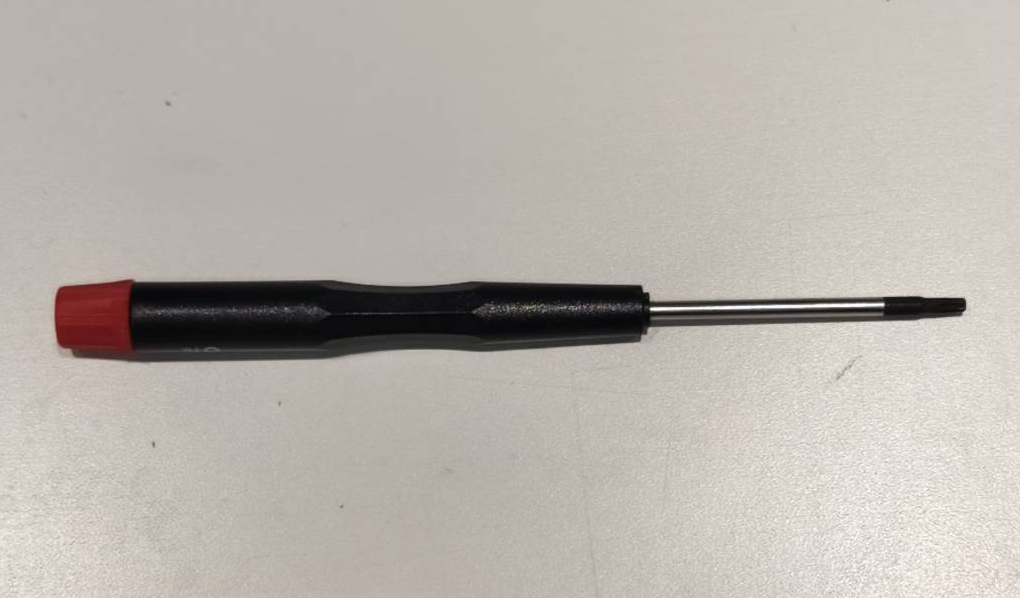

Tool

• 2.5mm hex wrench

Step 1 - Remove the bottom cover

Unscrew the three T8 screws of the bottom cover to remove it.

Step 2 - Remove the mainboard

Unscrew the two T8 screws of the mainboard.

Unplug the motor cable to remove the mainboard.

Step 3 - Install the mainboard

Plug the motor cable on the mainboard.

Screw the two T8 screws back to fix the mainboard.

Step 4 - Install the bottom cover

Put the bottom cover back and screw the three screws to fix it.
