HEXA - Round Switch (Silver Color) Replacement

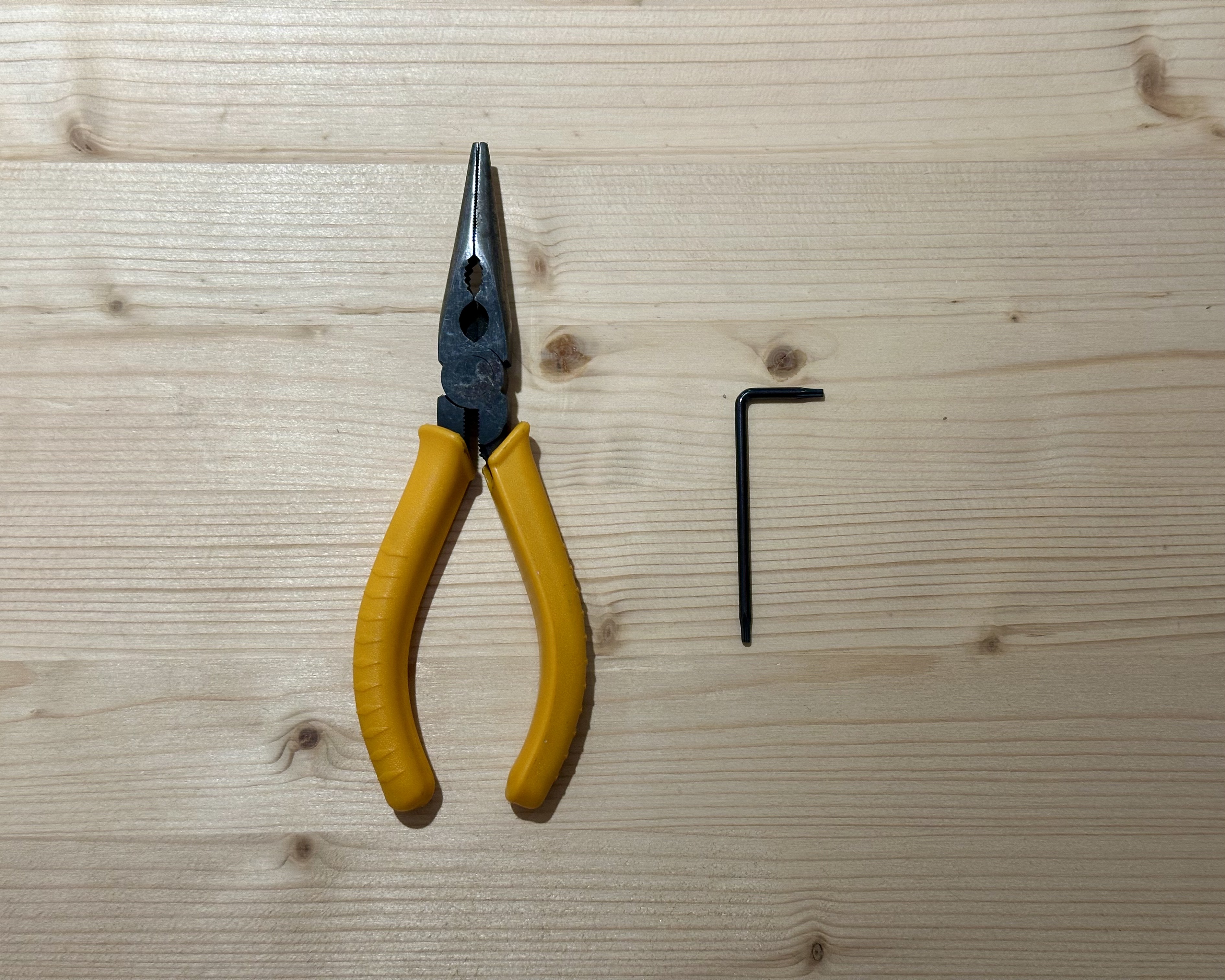

Tools

Step 1

Turn off the machine, and remove the eight screws on the side cover.

Step 2

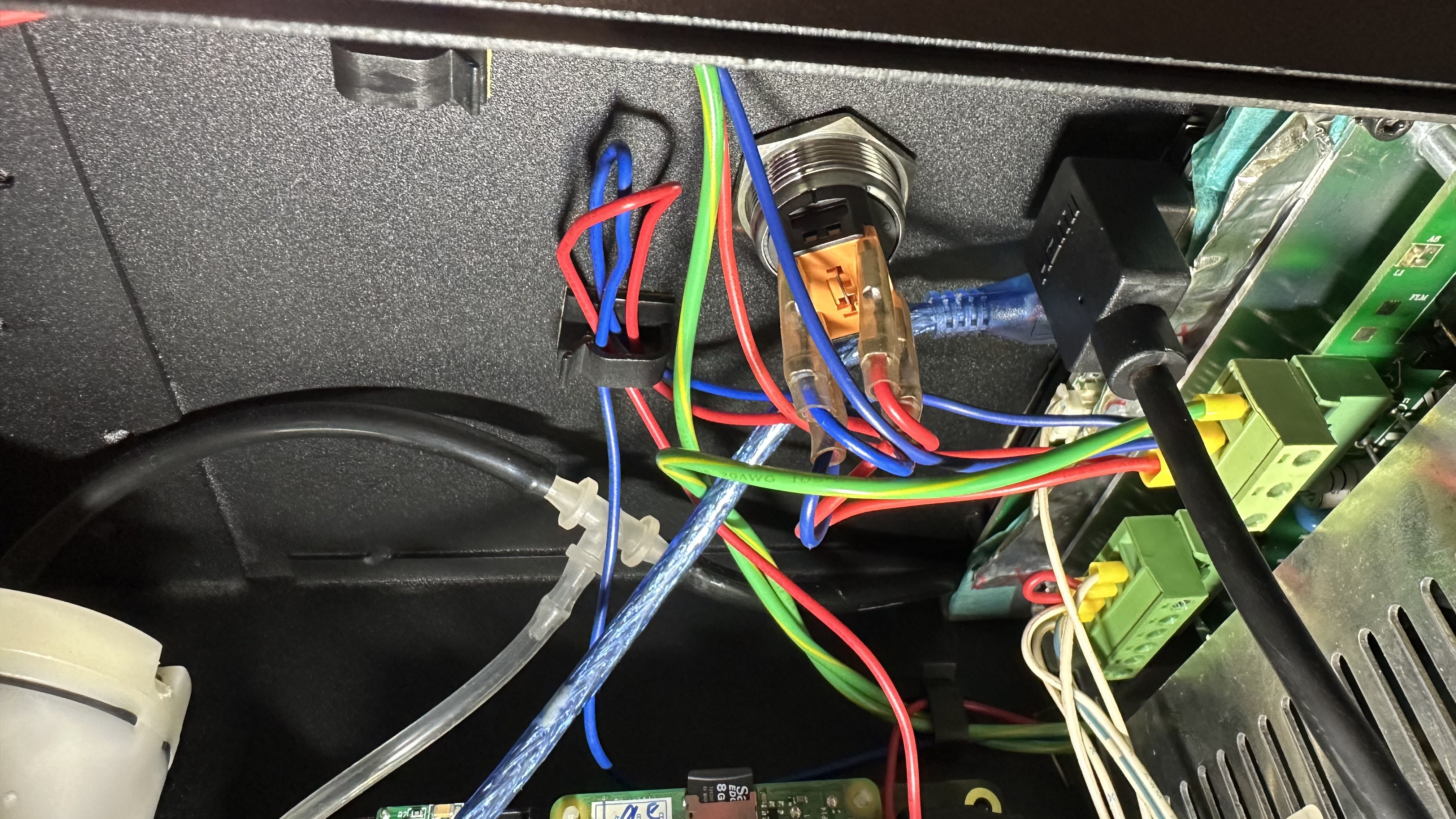

Take a picture of the wires on the switch to check the position later.

Step 3

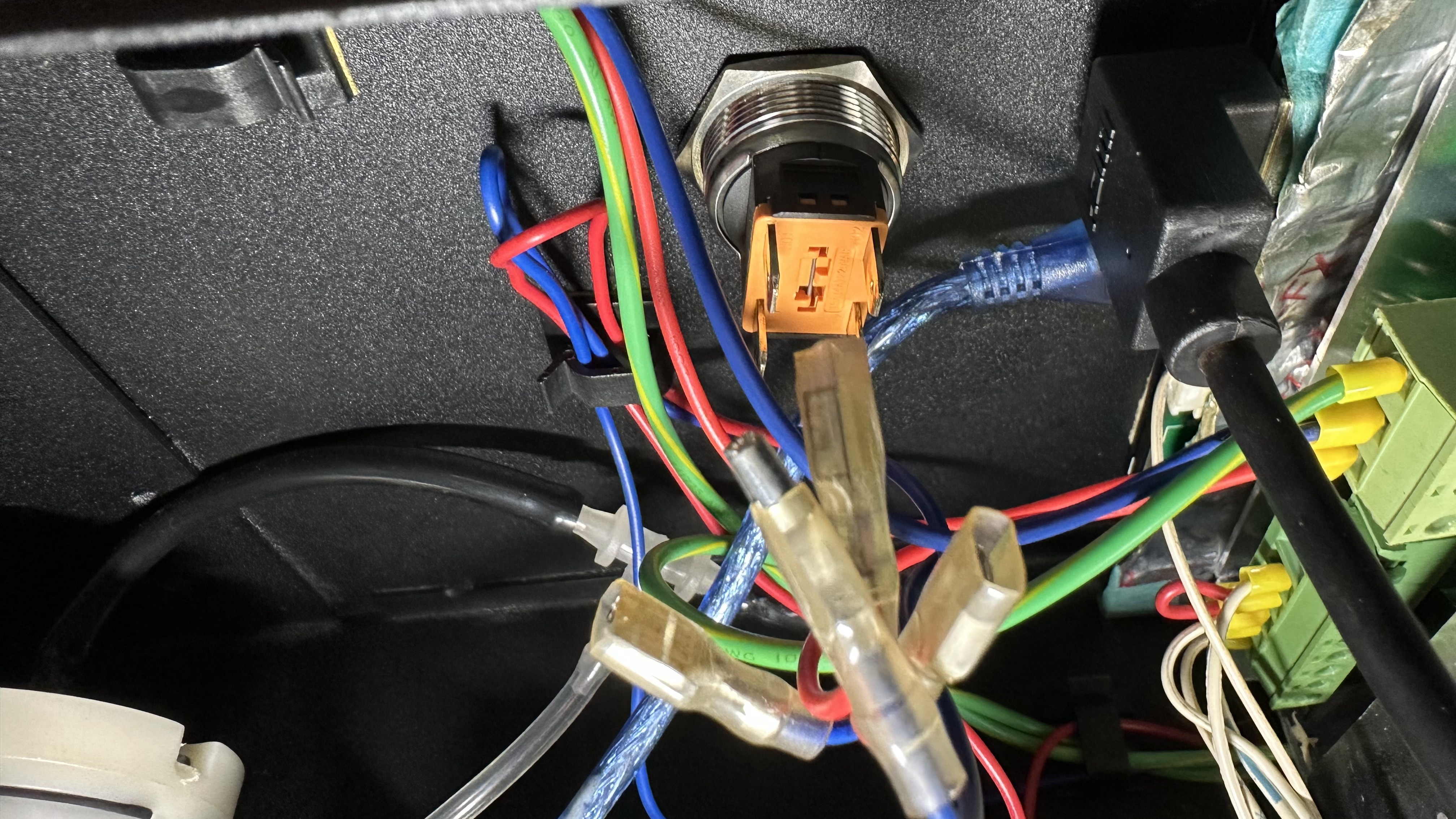

Remove the wires.

Step 4

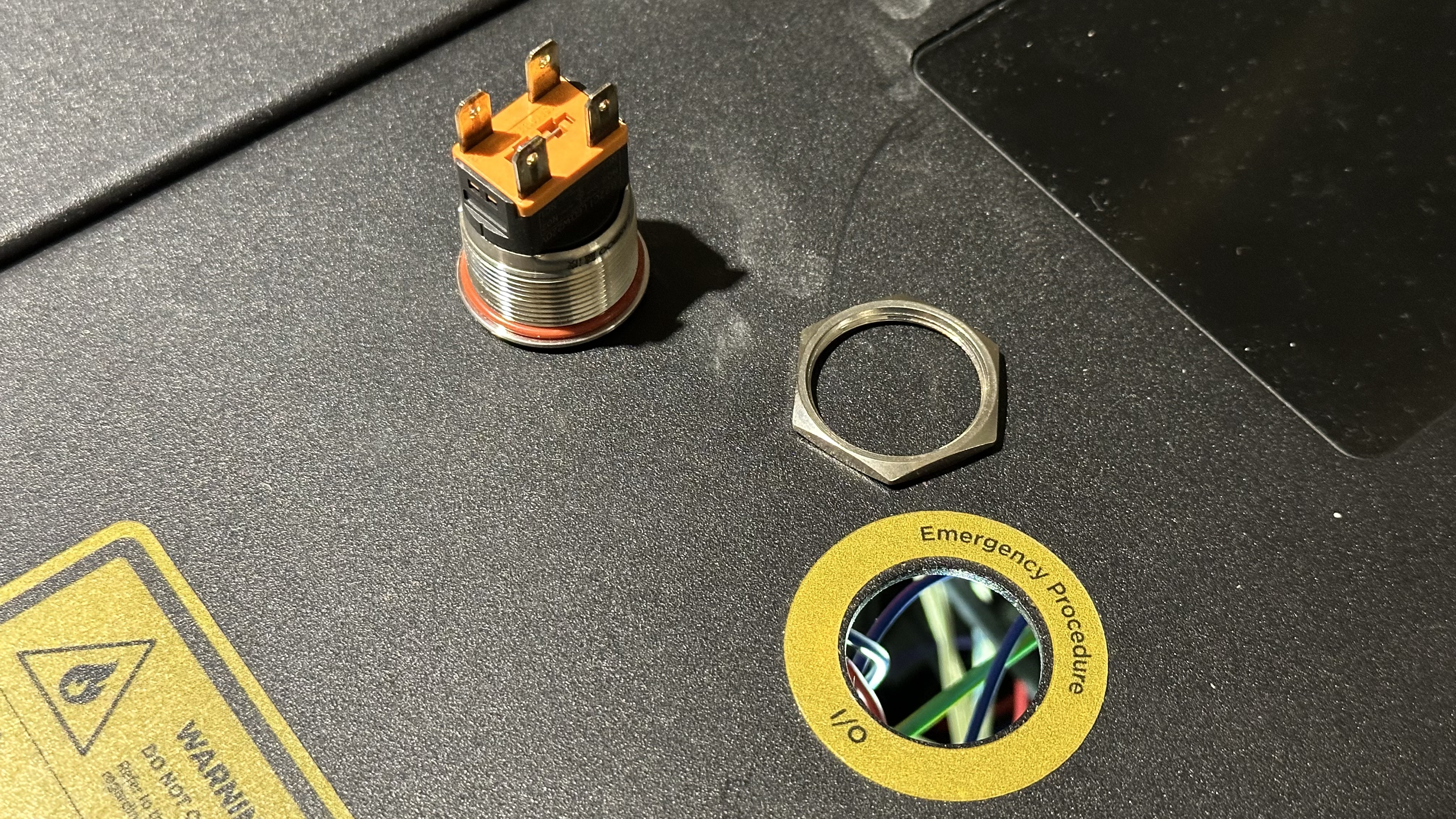

Remove the round switch by unscrewing the nut that holds the switch.

Step 5

Install the new round switch by screwing the nut that holds the switch.

Step 6

Connect the wires to the pins of the switch.

Please ensure that the same colors will be on the same sides (left and right only).

Good Example	Bad Examples

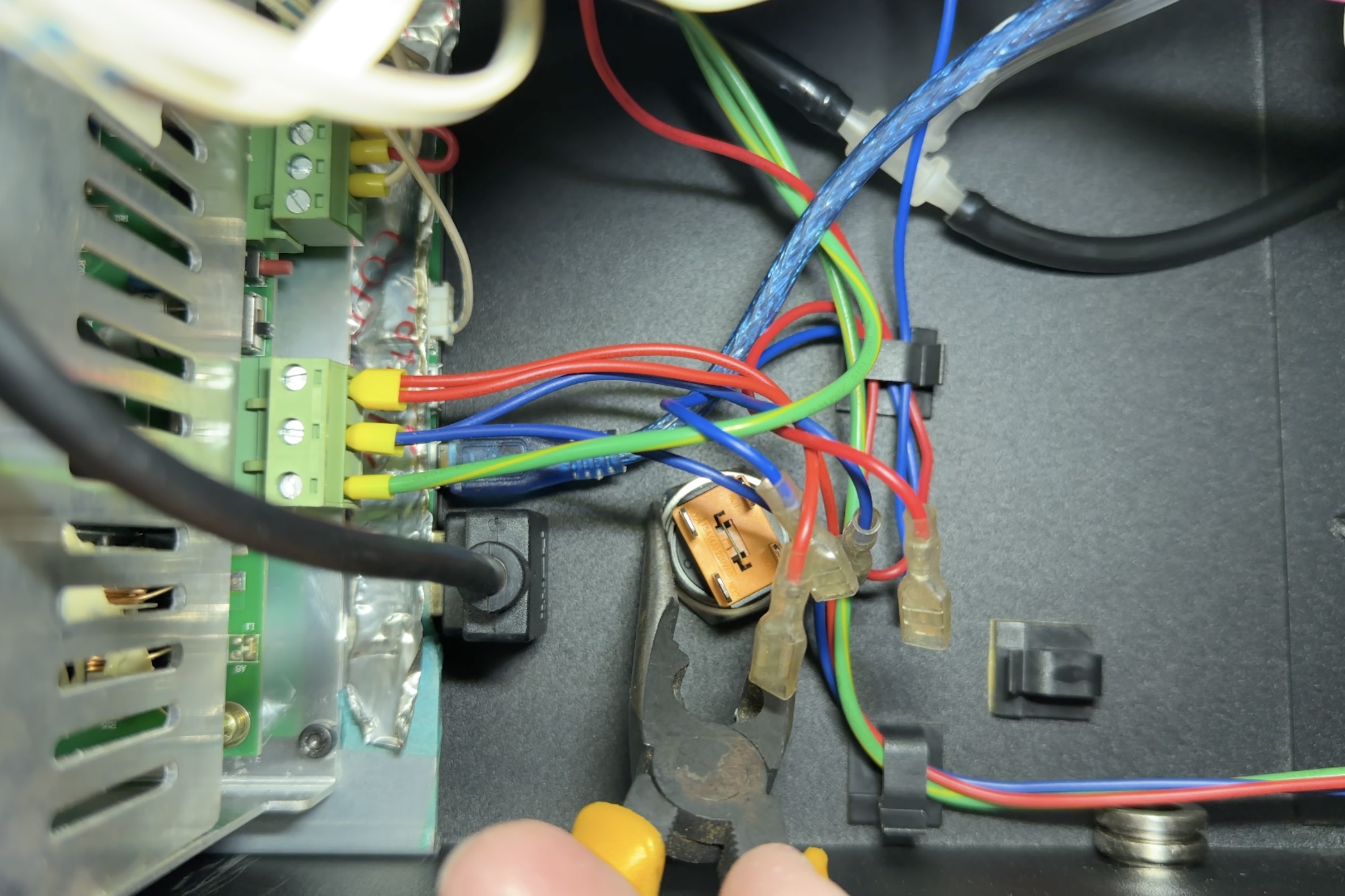

After connecting and ensuring the colors' positions are correct, please use the plier to fix the wires securely.

Step 7

Close the side cover and tighten the screw.

#END
