Beambox II - Extension Pocket Add-on

Description

This article provides a step-by-step guide to installing the Beambox II Extension Pocket Add-on.
Please follow the instructions below for the installation process.

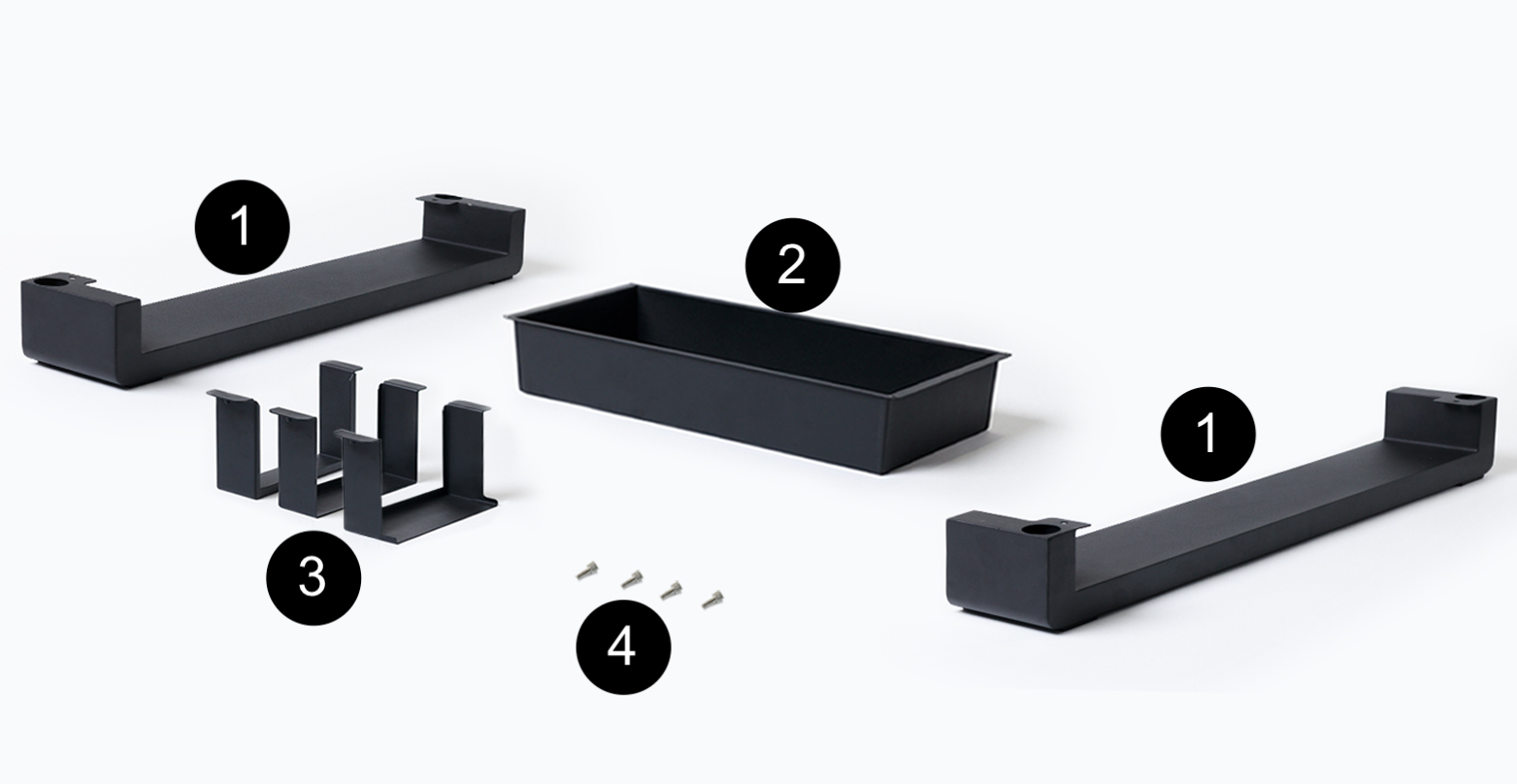

Unboxing:

Step 1

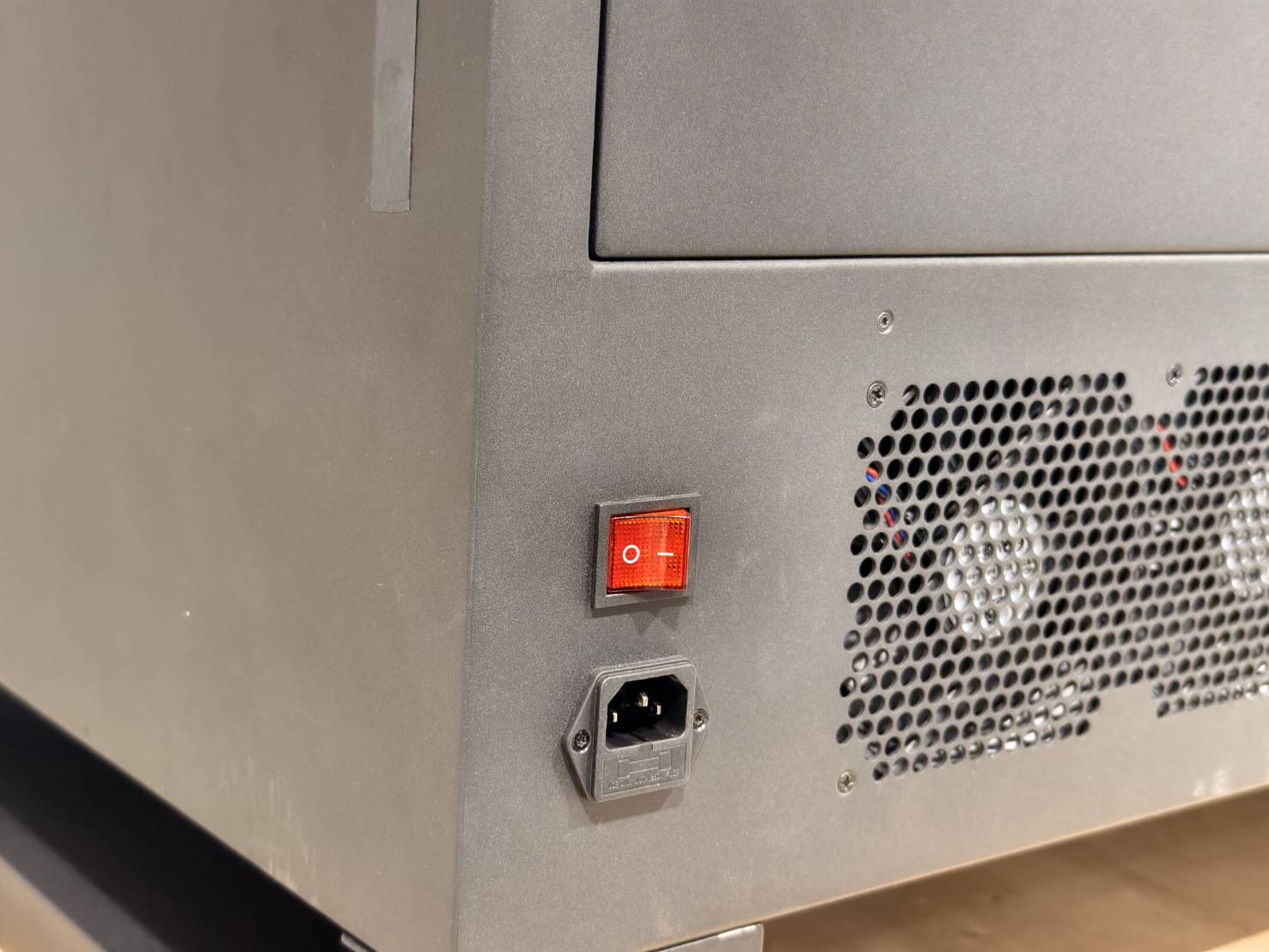

Turn off the machine, and remove the power cord.

Step 2

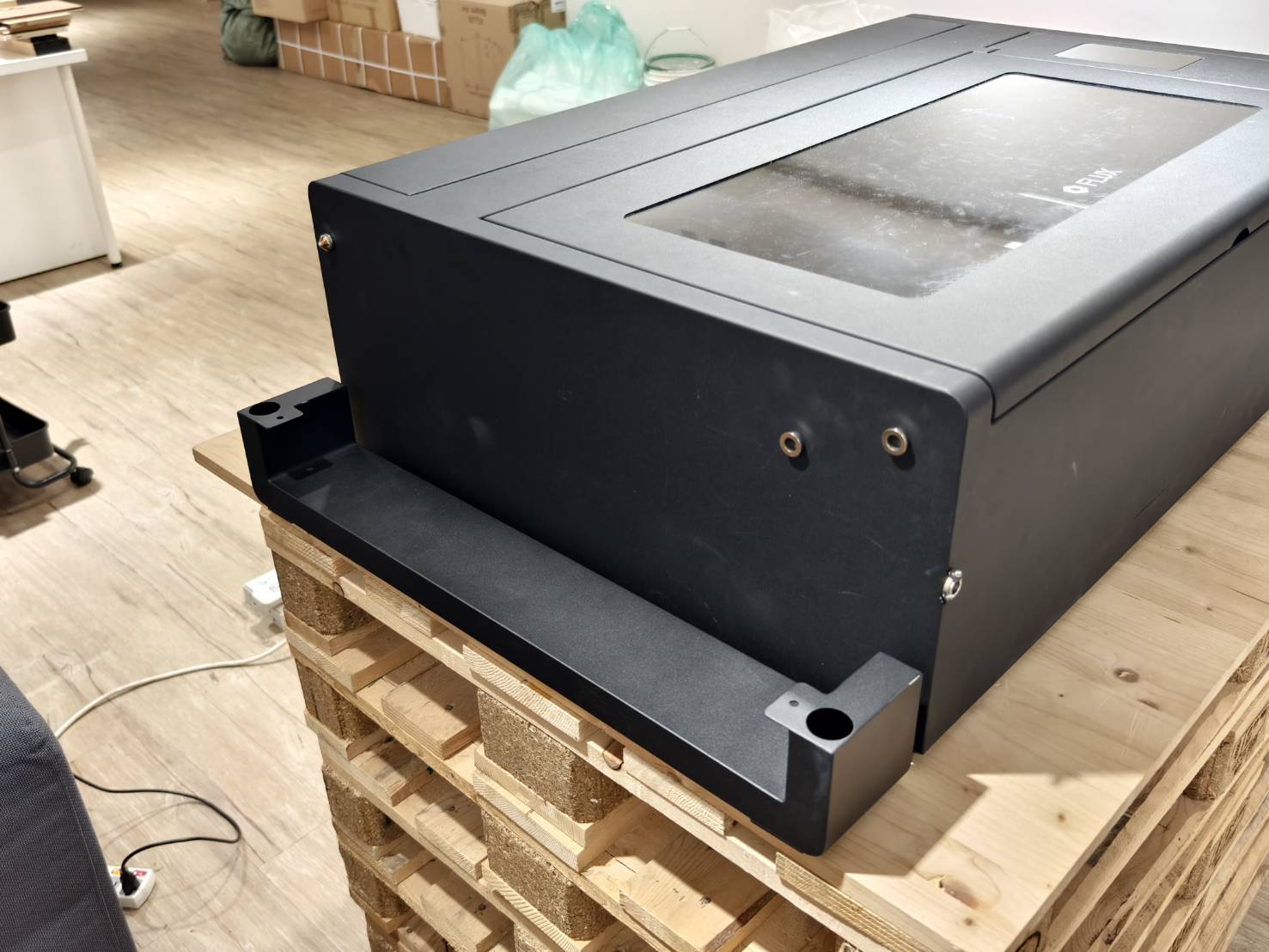

• Place both feet on the sides of the machine. The holes will be facing out.

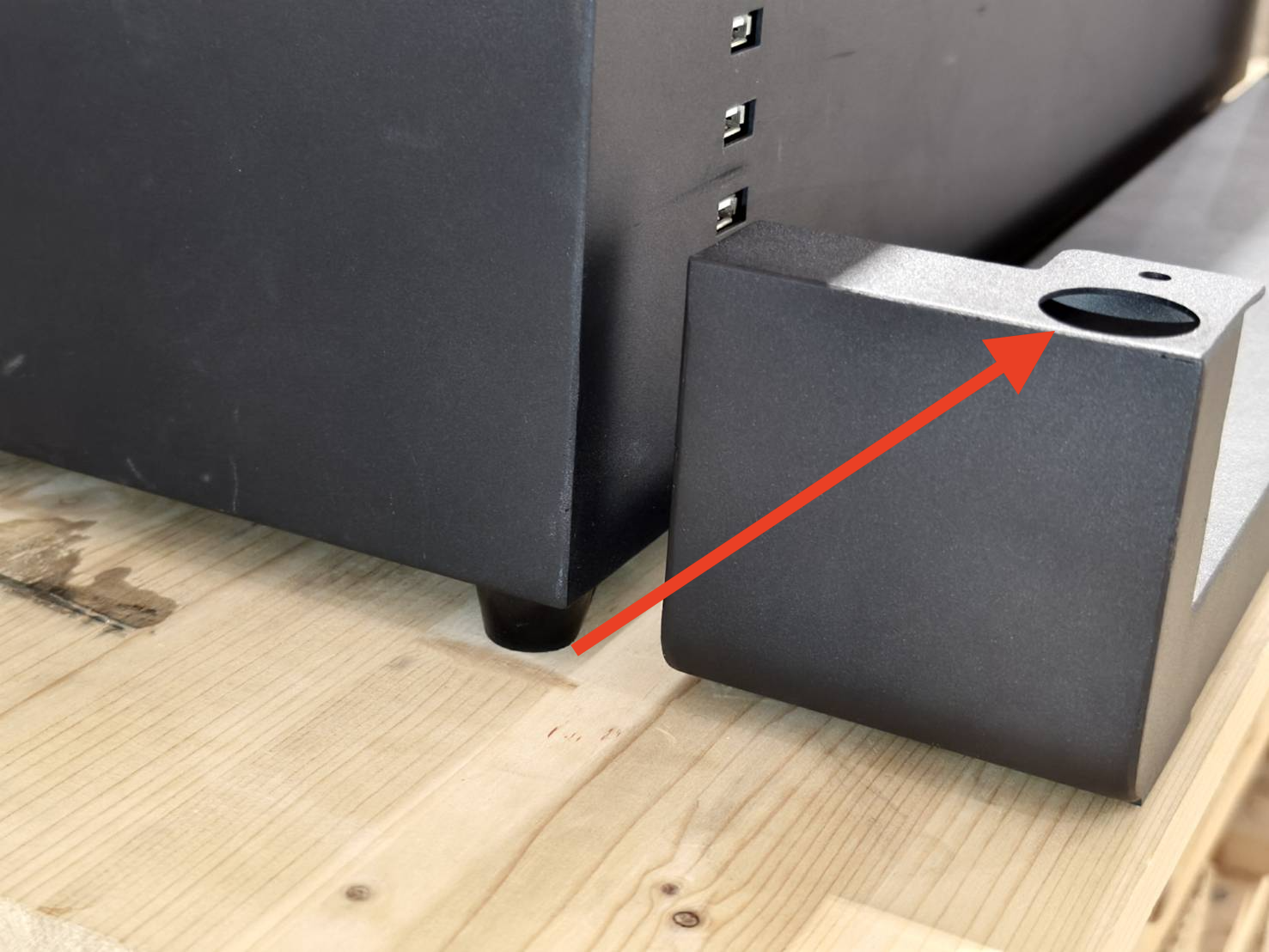

• The holes are for the rubber feet of the machines to be placed in.


Step 3

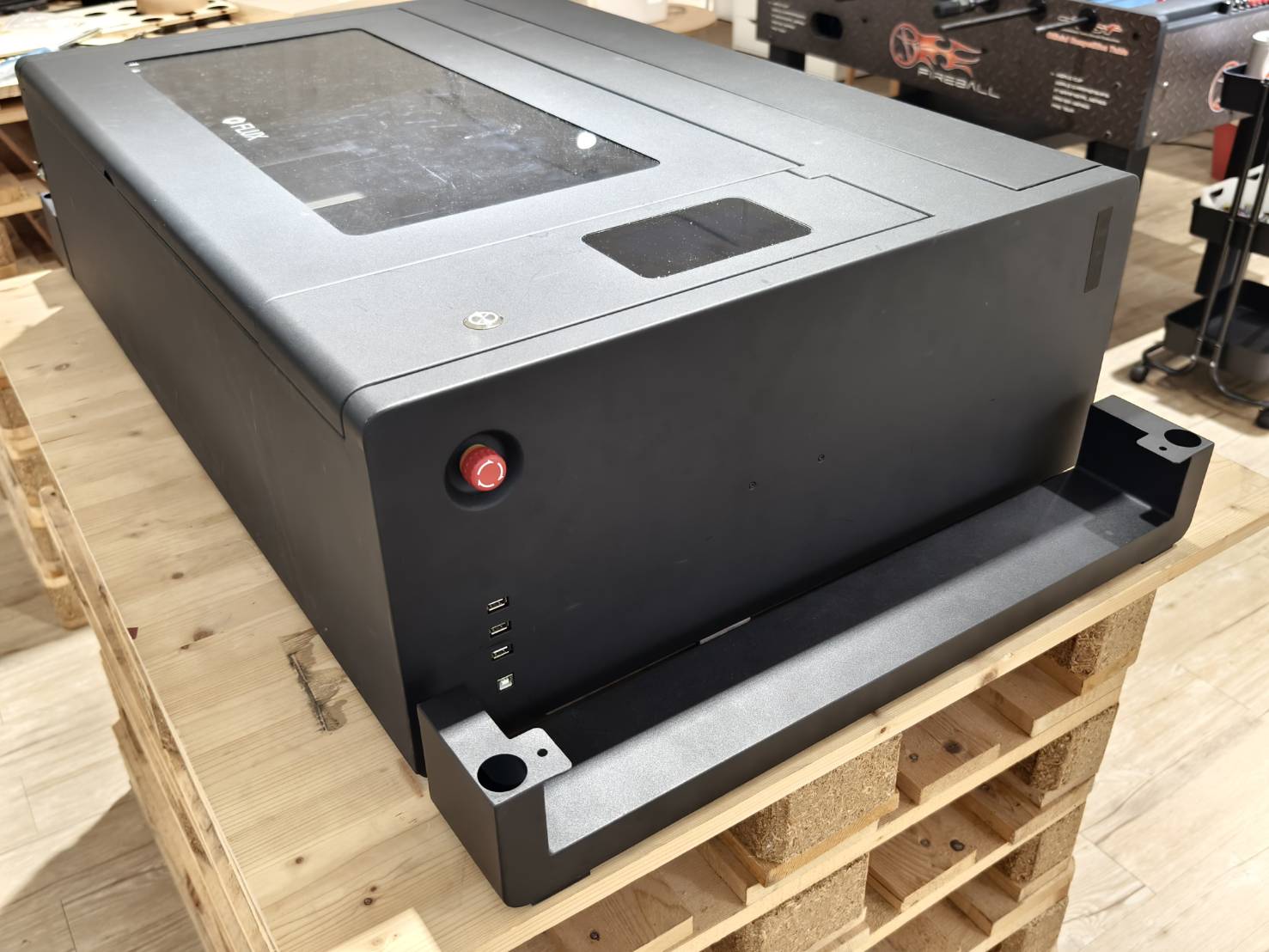

Place the machine on the extension feet.

Step 4

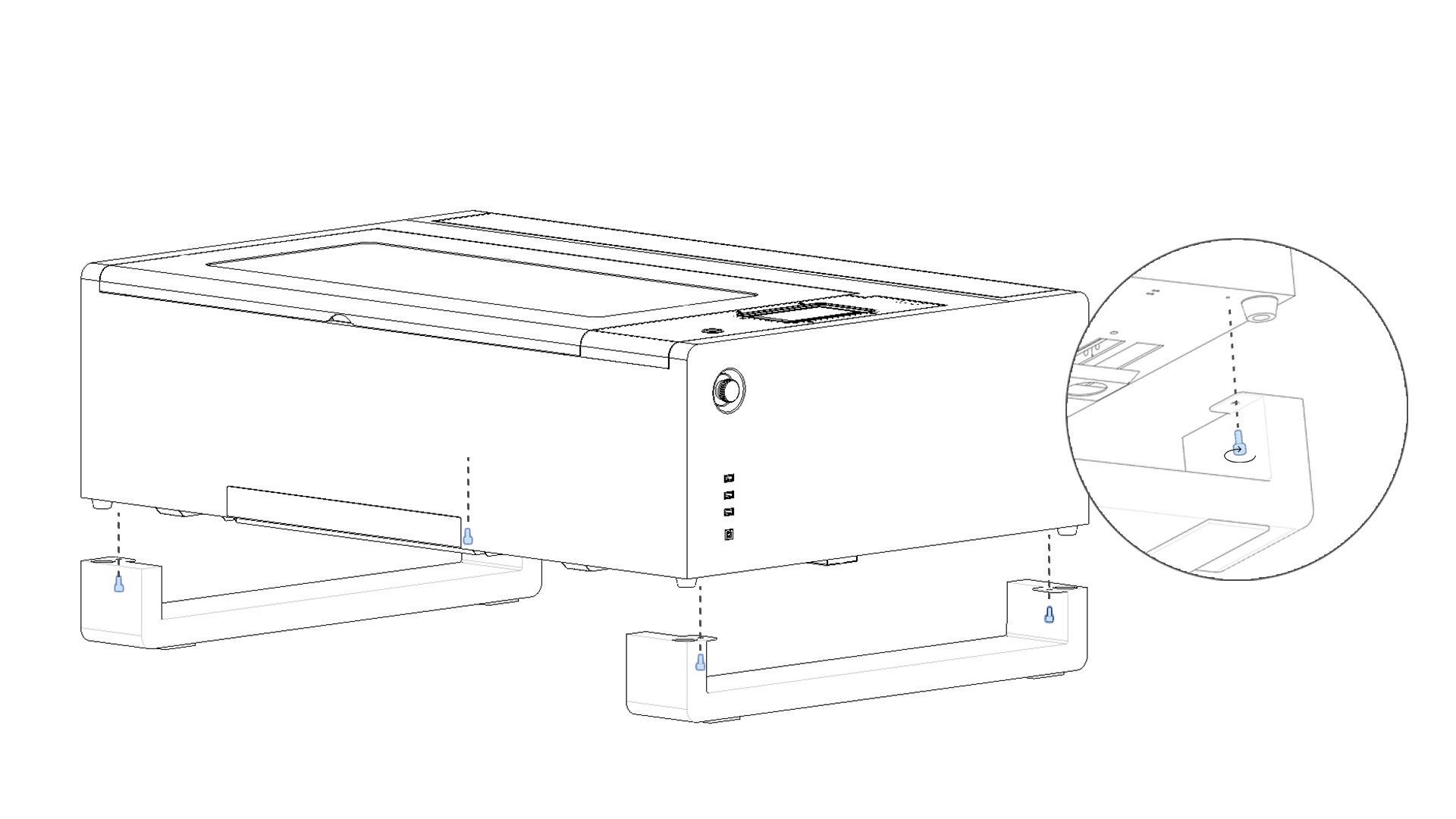

Screw the screws. The holes are underneath the machine but above the feet.

Step 5

Remove the honeycomb and the platform bracket.

Step 6

Install the pocket.

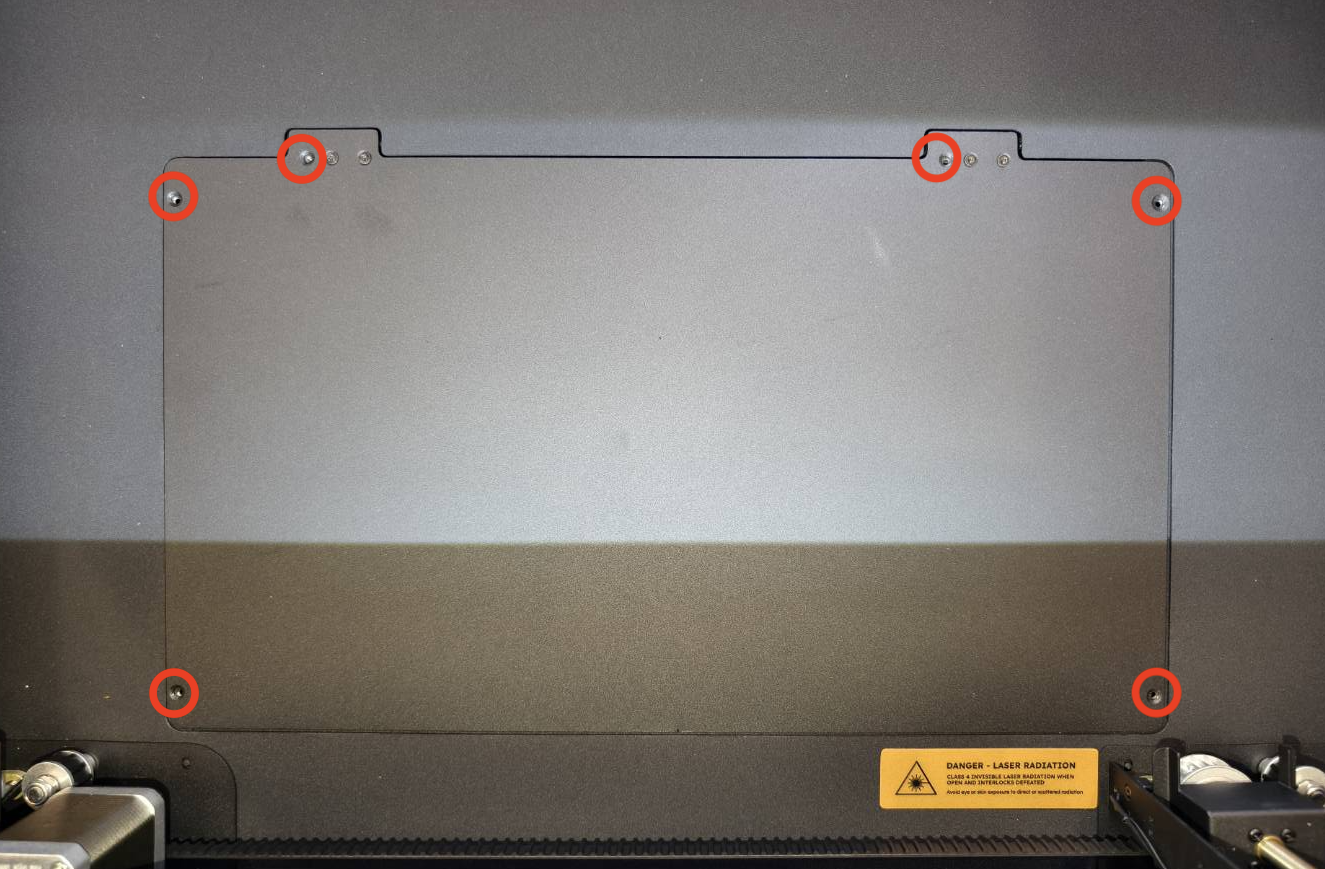

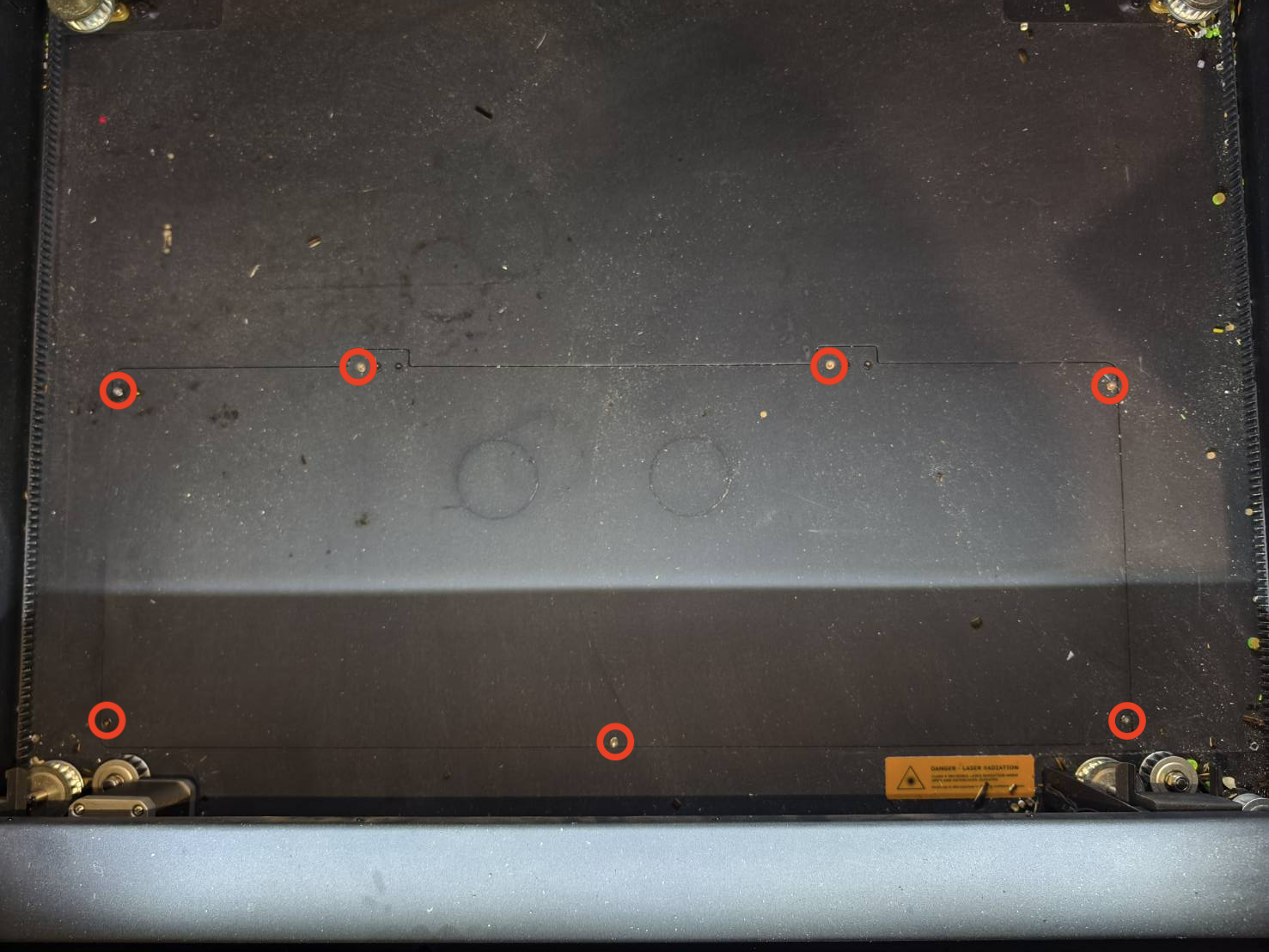

• Remove the T8 screws at the bottom of the machine. (T8 x 6 pcs)

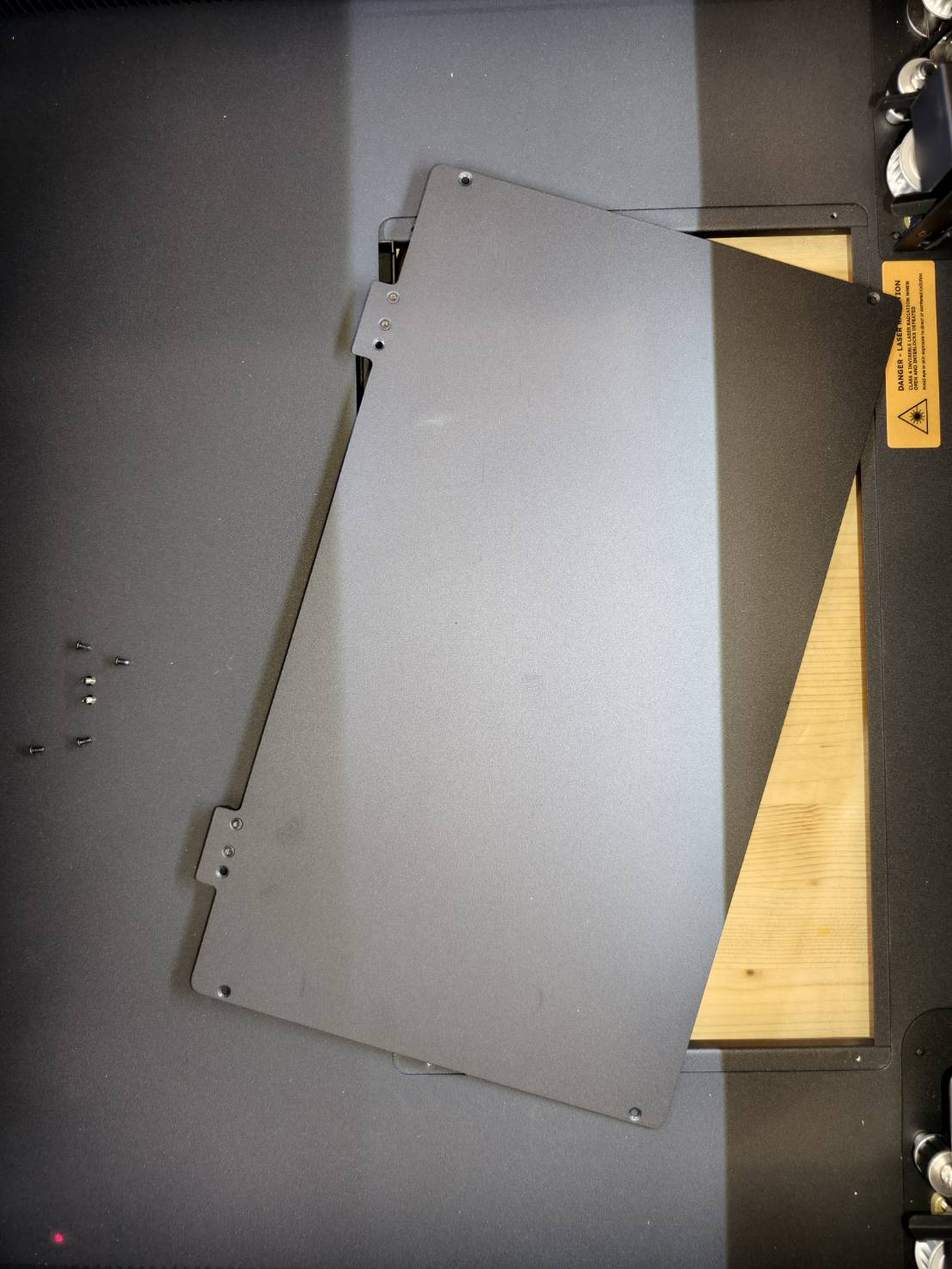

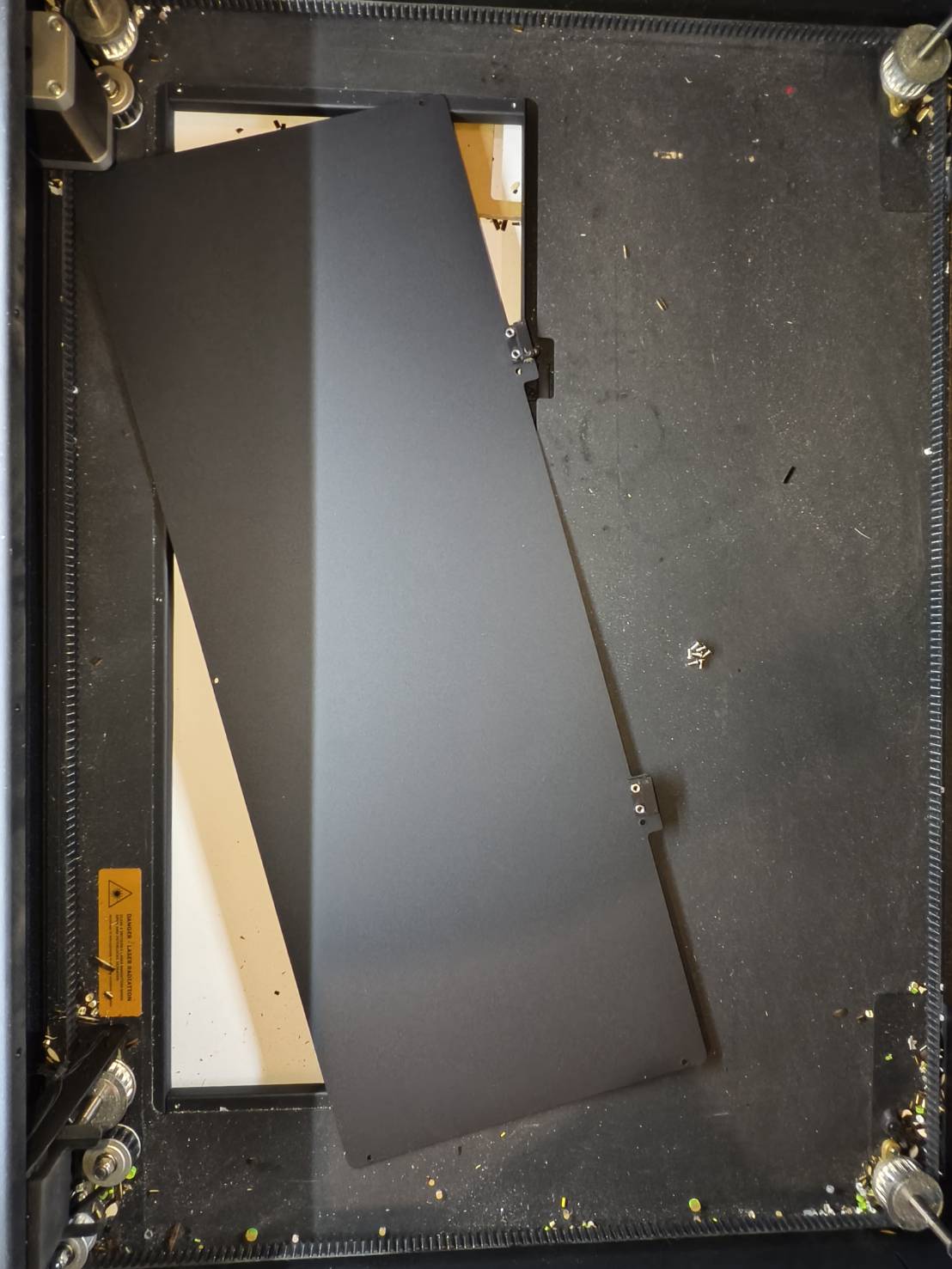

• Push the plate from the bottom of the machine to remove the plate.
• Place the pocket into the machine and screw the screws.

Demonstration

(Note: The machine in the video only has four screws to remove. Please make sure you remove six, as in the photo above.)

Step 7

Re-install the platform bracket.
