2-1 Assembly and Start-up

FLUX Support Team
  • Updated

Thank you for choosing FLUX. Before unboxing, please make sure to read the Safety Guidelines. The following sections 2-1 to 2-5 will guide you through assembling and using your machine.



Full Unboxing Video:

This video is a complete unboxing. The following article content breaks down the steps in the video; you can refer to either one.

(Please turn on YouTube subtitles)



Step 1 - Unseal



Step 2 - Machine Handling

The weight of the HEXA RF varies depending on the laser tube and power configuration.
• 30W: 72 kg
• 60W: 74 kg
• 80W: 77 kg

For safety reasons, it is recommended that the machine be lifted by two people when moving.



Step 3 - Accessories & Components

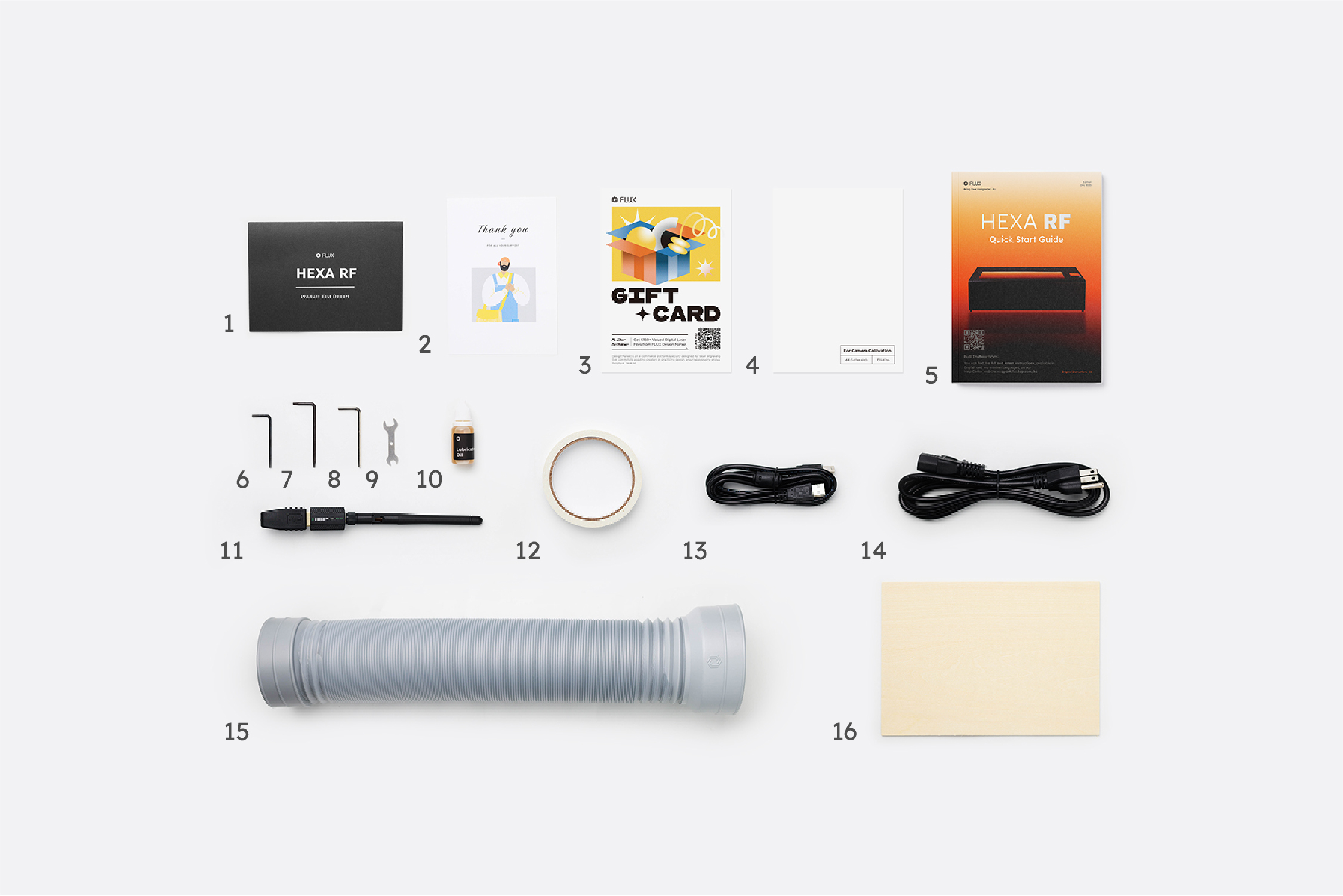

The accessory box contains:
  1. Factory test card
  2. Thank you card
  3. Gift card
  4. A4 paper
  5. Quick start guide
  6. 2.5mm Hex wrench
  7. T8 Torx wrench
  8. 3mm Hex wrench
  9. Double-ended wrench
  10. Lubricating oil
  11. Wi-Fi receiver & 90° USB adapter
  12. Double-sided tape
  13. USB cable
  14. Power cord
  15. Vent Hose
  16. Test engraving wood board

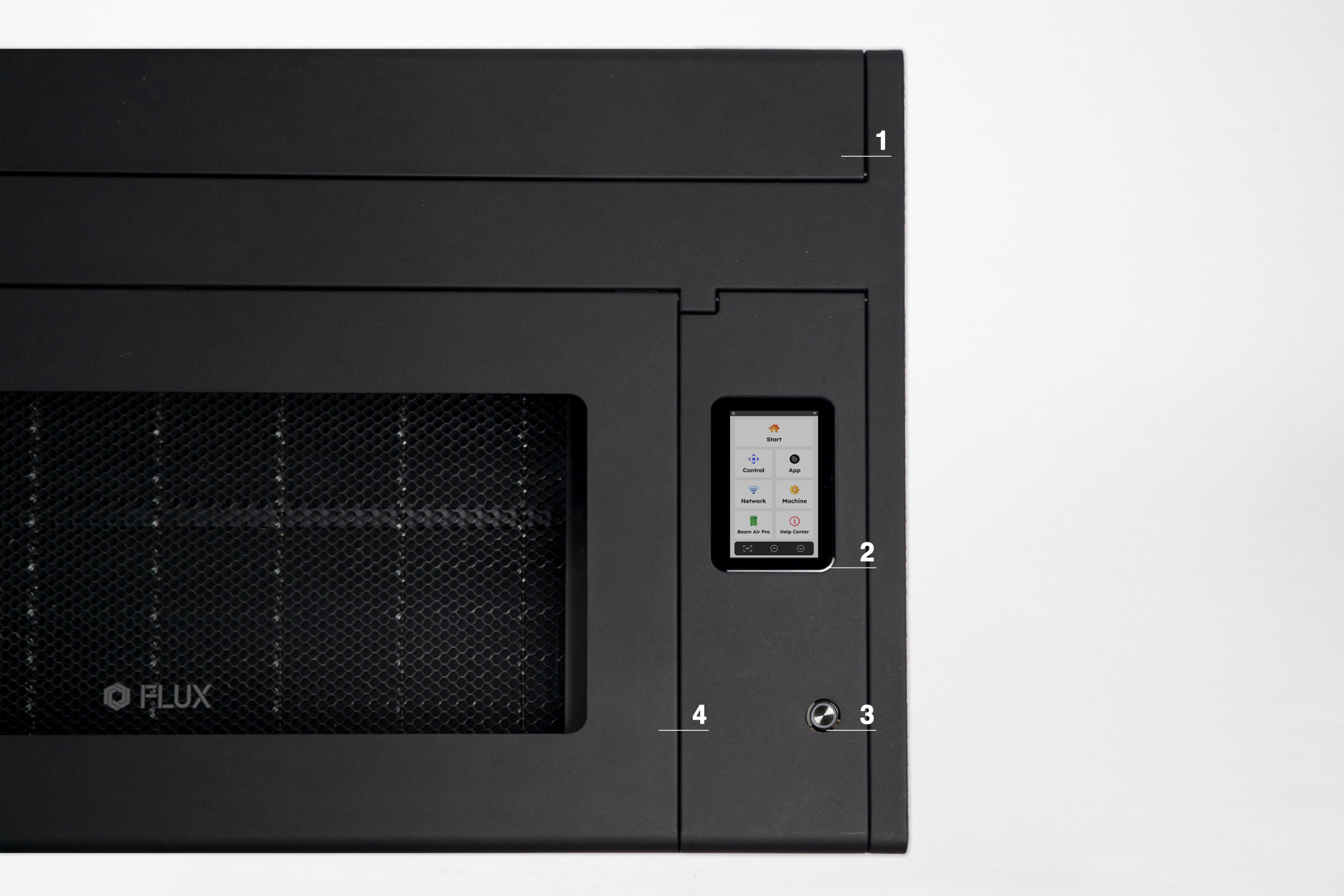

Front of the Machine:
  1. Back cover
  2. Touch panel
  3. Power button
  4. Acrylic door

Machine components

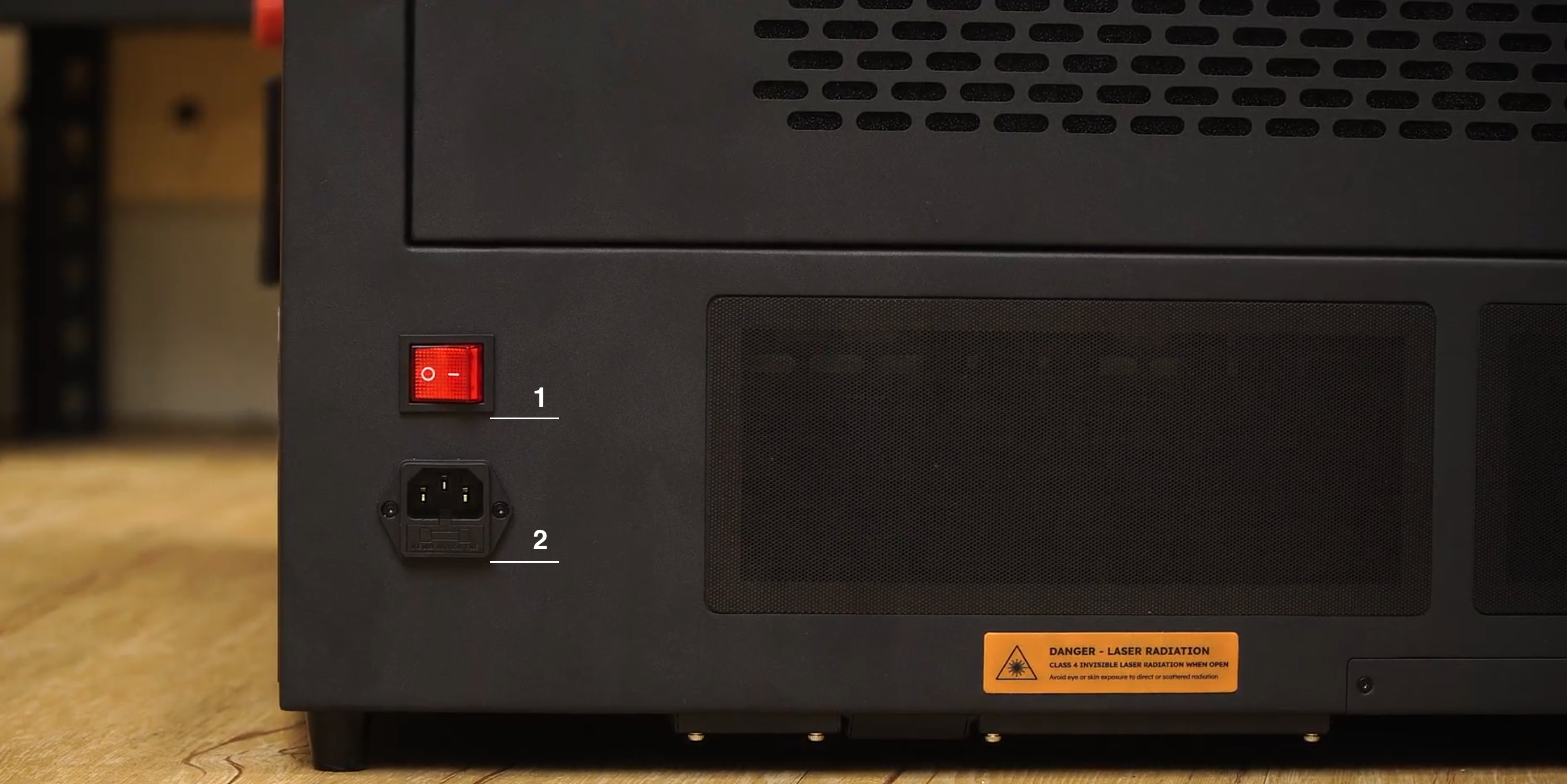

Back of the Machine:

  1. Main Switch
  2. Power Socket

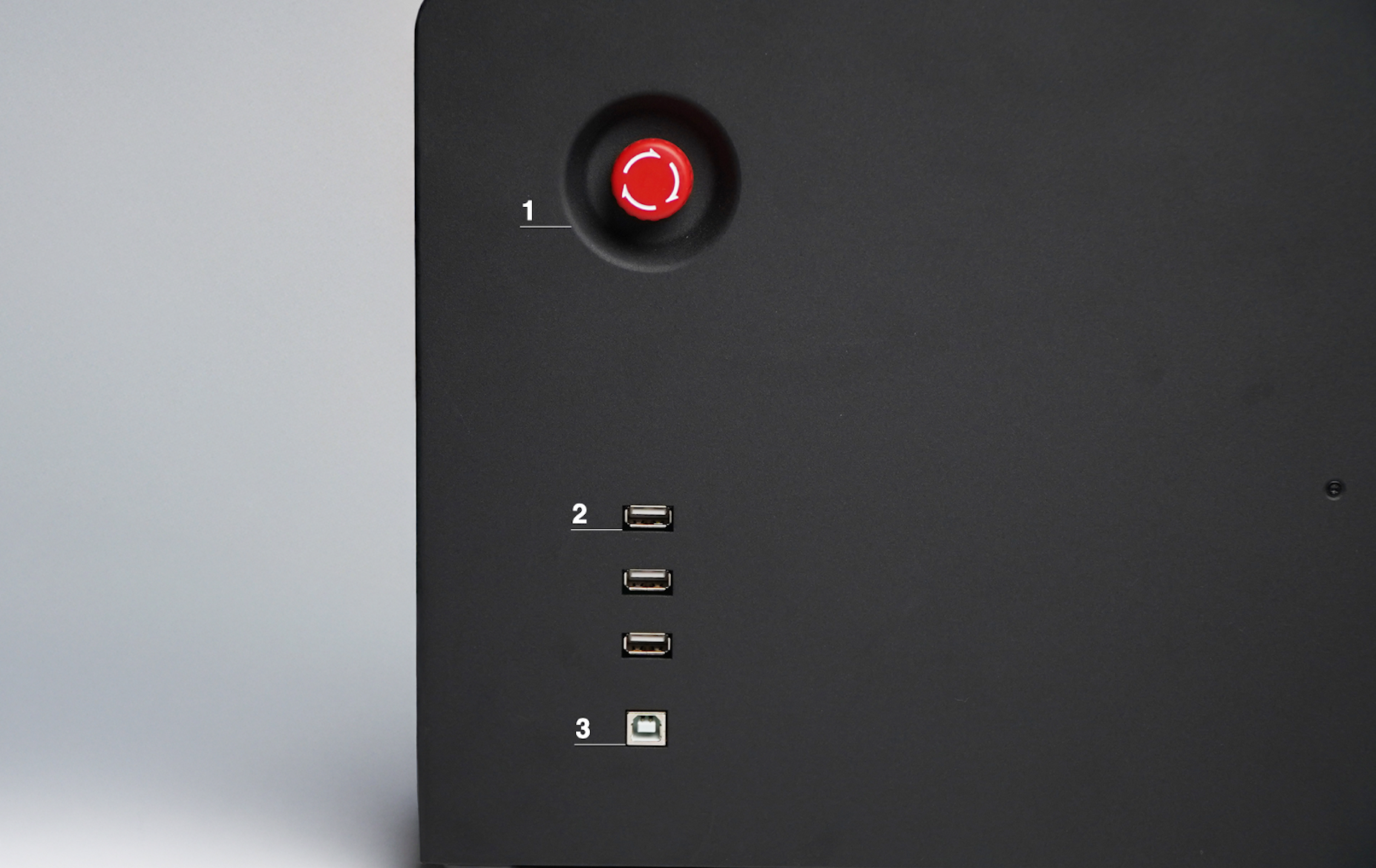

Side of the Machine:

  1. Emergency stop switch
  2. USB-A port
  3. USB-B port



Step 4 - Remove Fan Silicone Cover and Clamp

Use the double-ended wrench or Phillips screwdriver provided in the accessory box to loosen the clamp at the exhaust port and remove the exhaust cover.



Step 5 - Install vent hose

Insert the clamp onto the large end of the vent hose hole and attach it to the exhaust fan outlet at the rear of the machine. Adjust the clamp tightness and fasten it onto the exhaust fan outlet.
Position the open end of the vent hose outside a window or attach it to an air purifier.



Step 6 - Connect Wi-Fi dongle



Step 7 - Power On

Insert both ends of the power cord securely into the machine and the power outlet. Press the power button to turn on. First-time boot may take 2–5 minutes.

⚠︎ If the power button does not respond when turned on, please check if the emergency stop switch on the right side of the machine is activated.

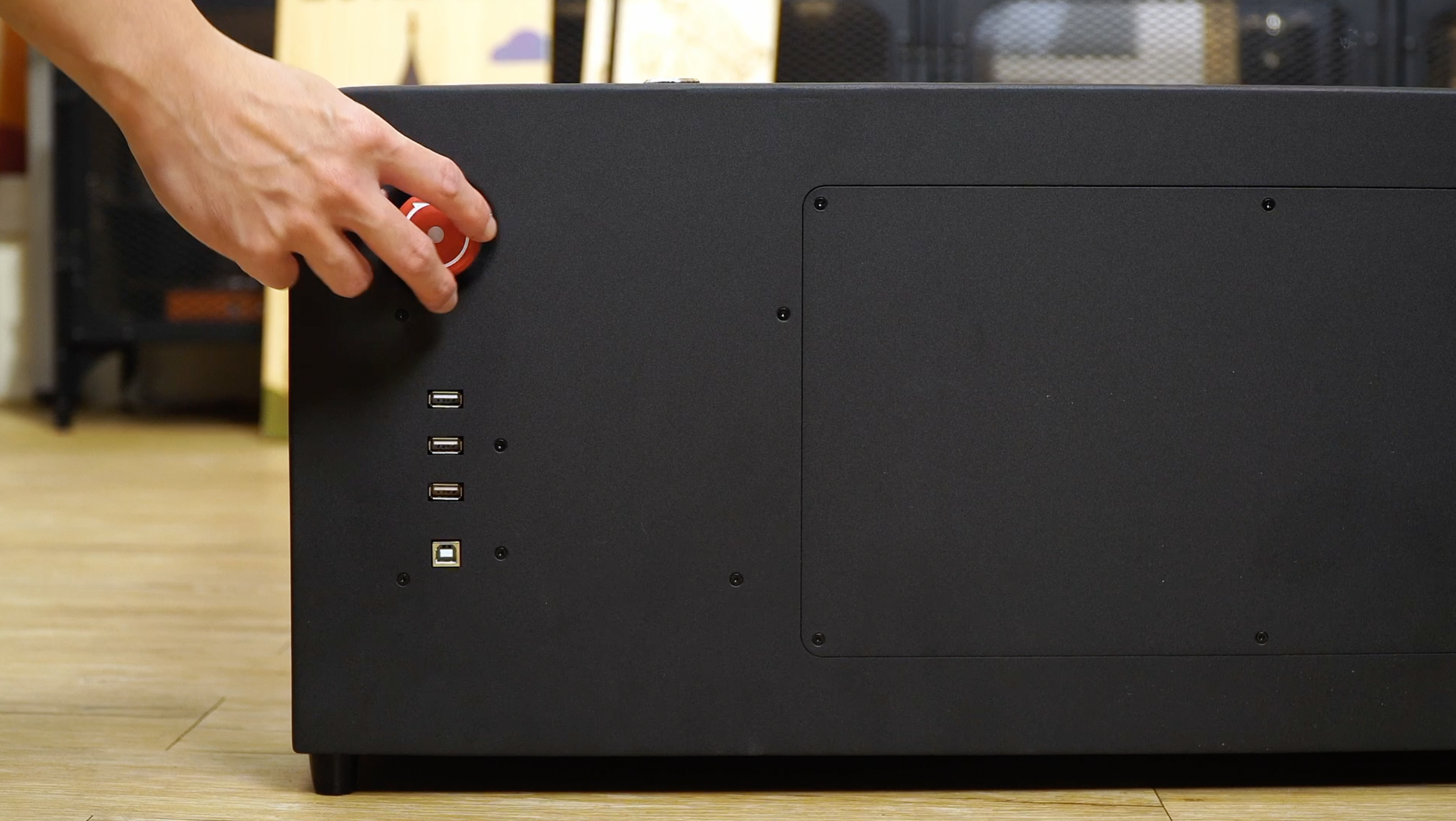

Suppose the emergency stop switch is activated. Rotate it clockwise toward the white arrow to release it.



Step 8 - Setup for the First Use

  1. Choose the interface language according to the machine’s test guide.
  2. Carefully read the fire safety warning instructions.
  3. Follow the instructions and run the Start-up Test.

⚠︎ Do not skip the Start-up Test if this is the first time using the machine.
