4-13 Red Light Alignment

Description

This article will guide you on how to adjust the red dot pointer's path to align with the laser beam path.

When to Calibrate the Red Dot Pointer?

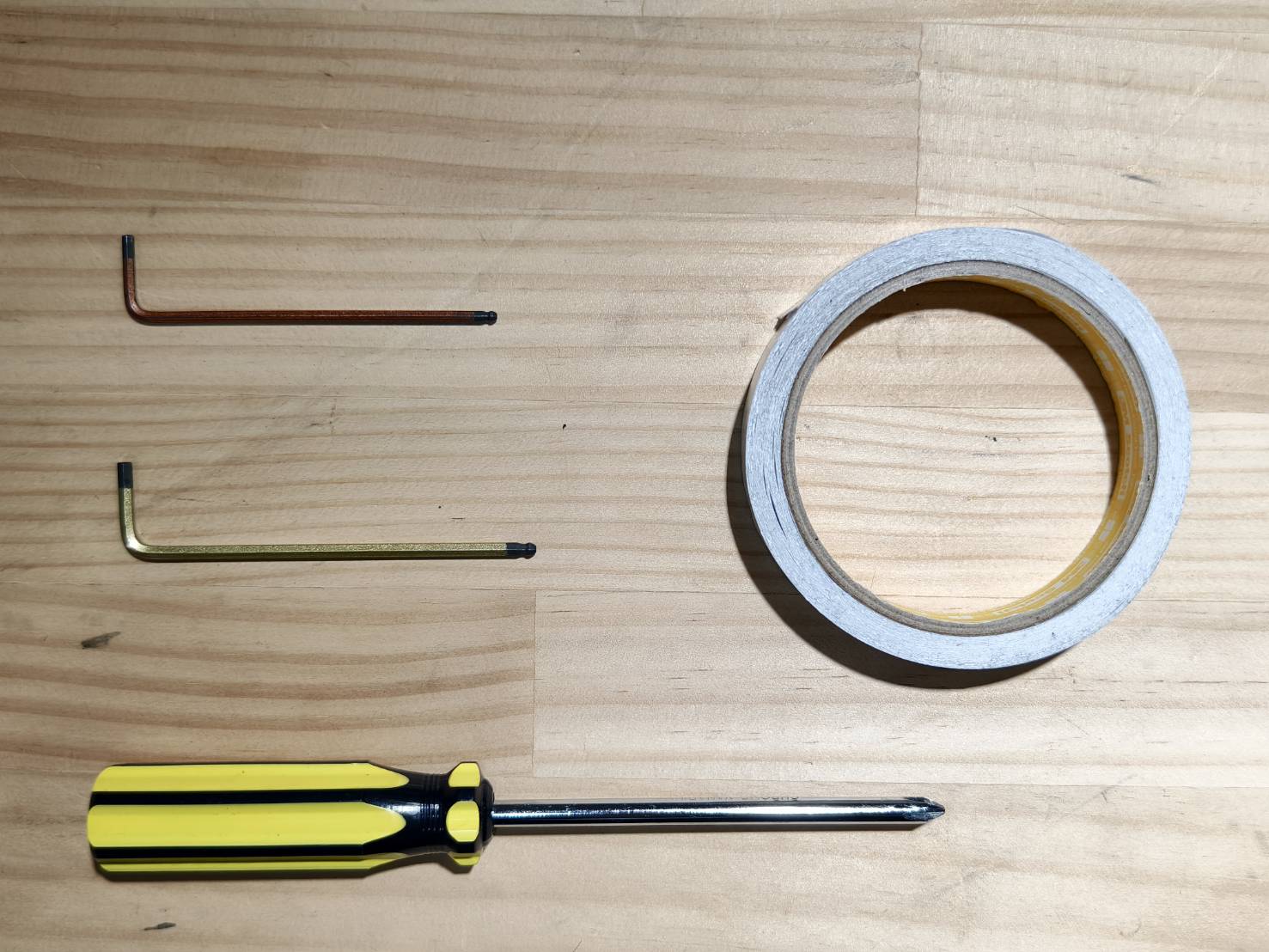

Tools

Please prepare the following tools:

Step 1

Please familiarize yourself with how to perform a laser pulse safely.

A. Turn on the machine. B. Close the door cover. C. Go to Action and wait for the homing process to complete. (Ensure the door cover, back cover, and bottom icons are all showing as closed; otherwise, the pulse operation cannot be performed.) D. Locate the pulse button. E. Click once = one pulse, click twice = two pulses, and so on. ⚠︎ Always ensure the door cover and back cover are closed when pulsing.

Step 2

Use a screwdriver to loosen the screws on the back of the machine, then open the back cover.

Step 3

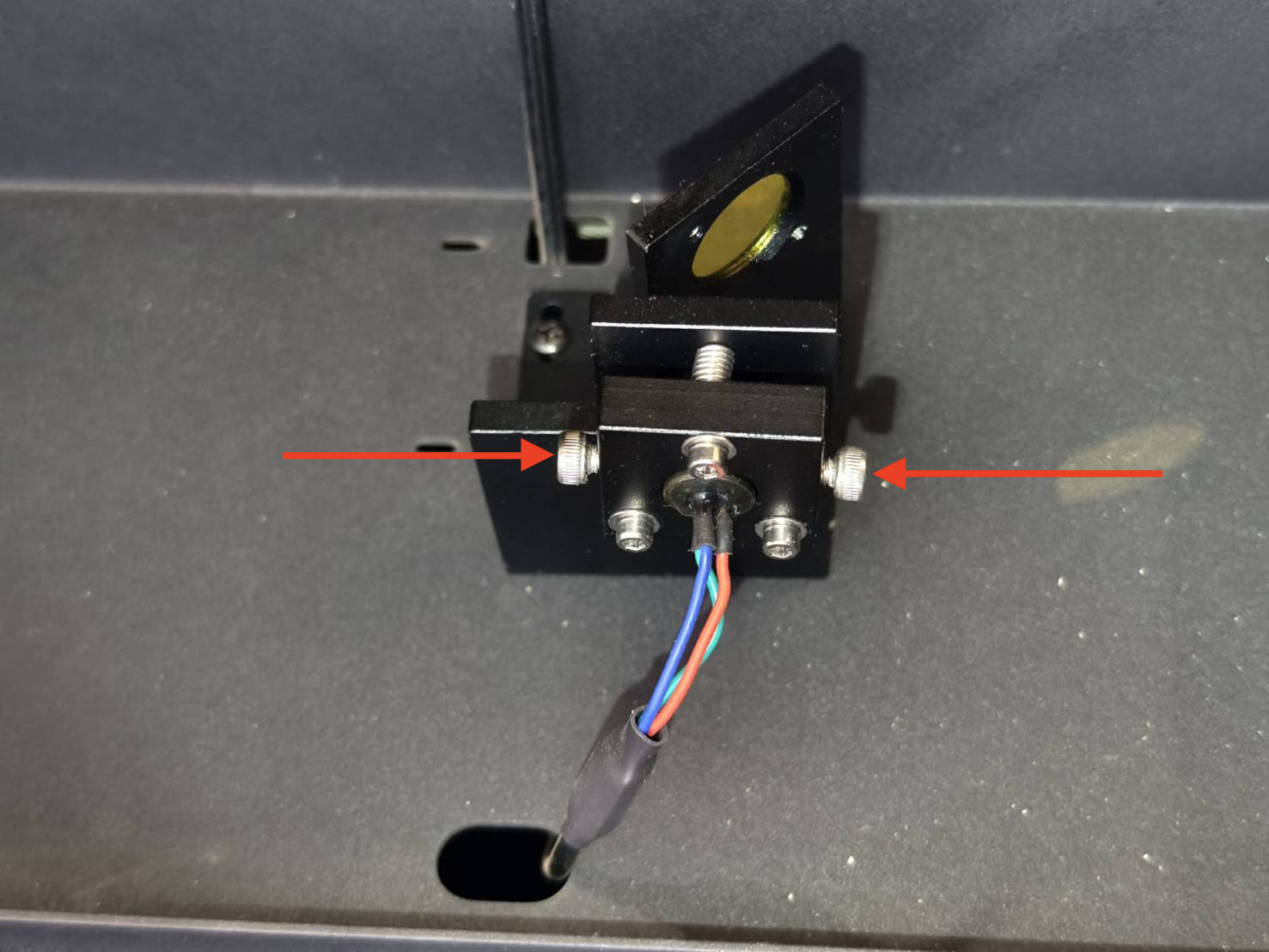

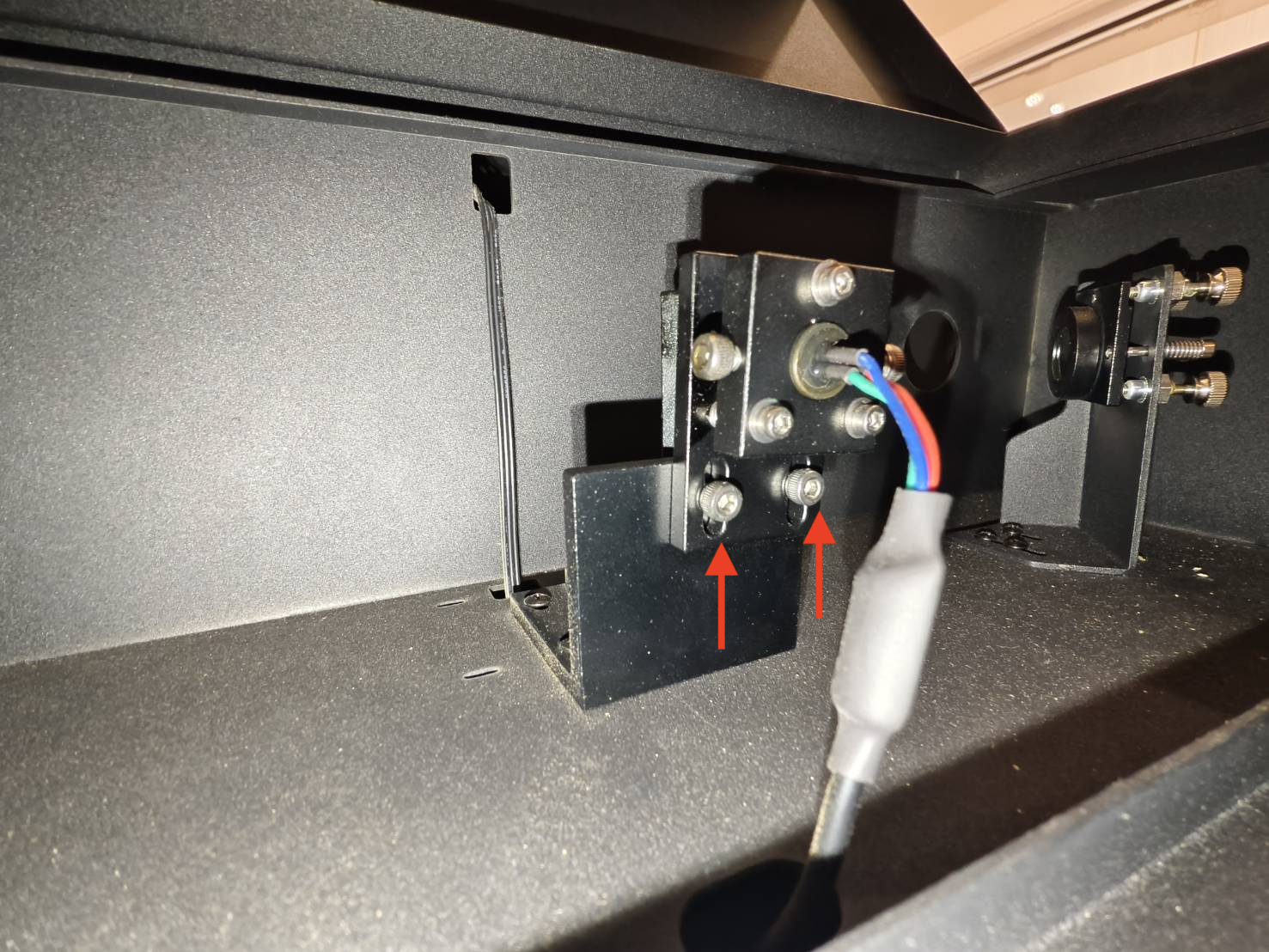

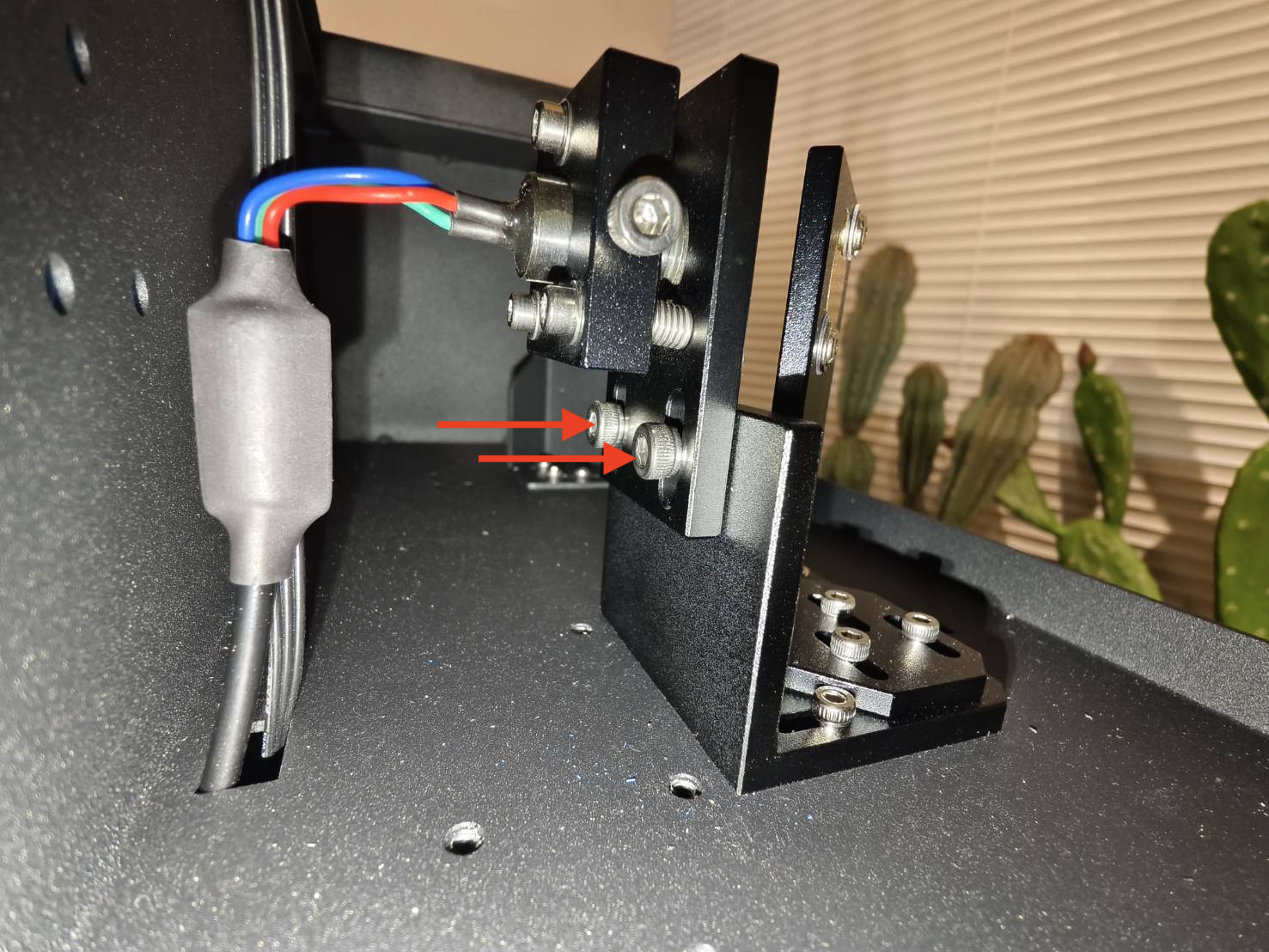

Make sure the two screws on both sides of the red dot module are tightened. (3mm Hex Wrench)
(Due to the different sizes of the laser tube mechanisms, the installation direction of the red dot module for the 30W and 60W/80W models will be different.)

HEXA RF 30W	HEXA RF 60W / HEXA RF 80W

Step 4

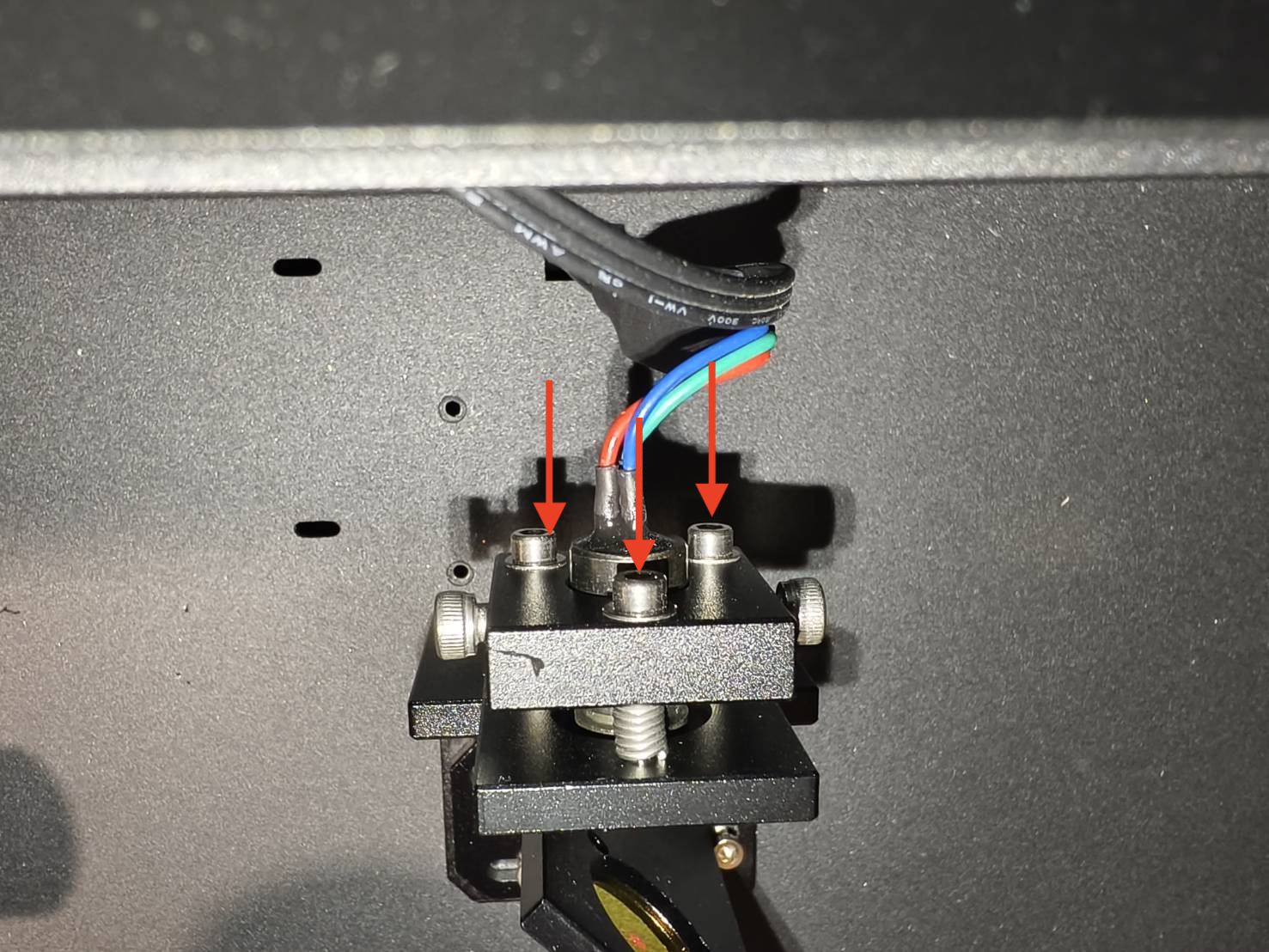

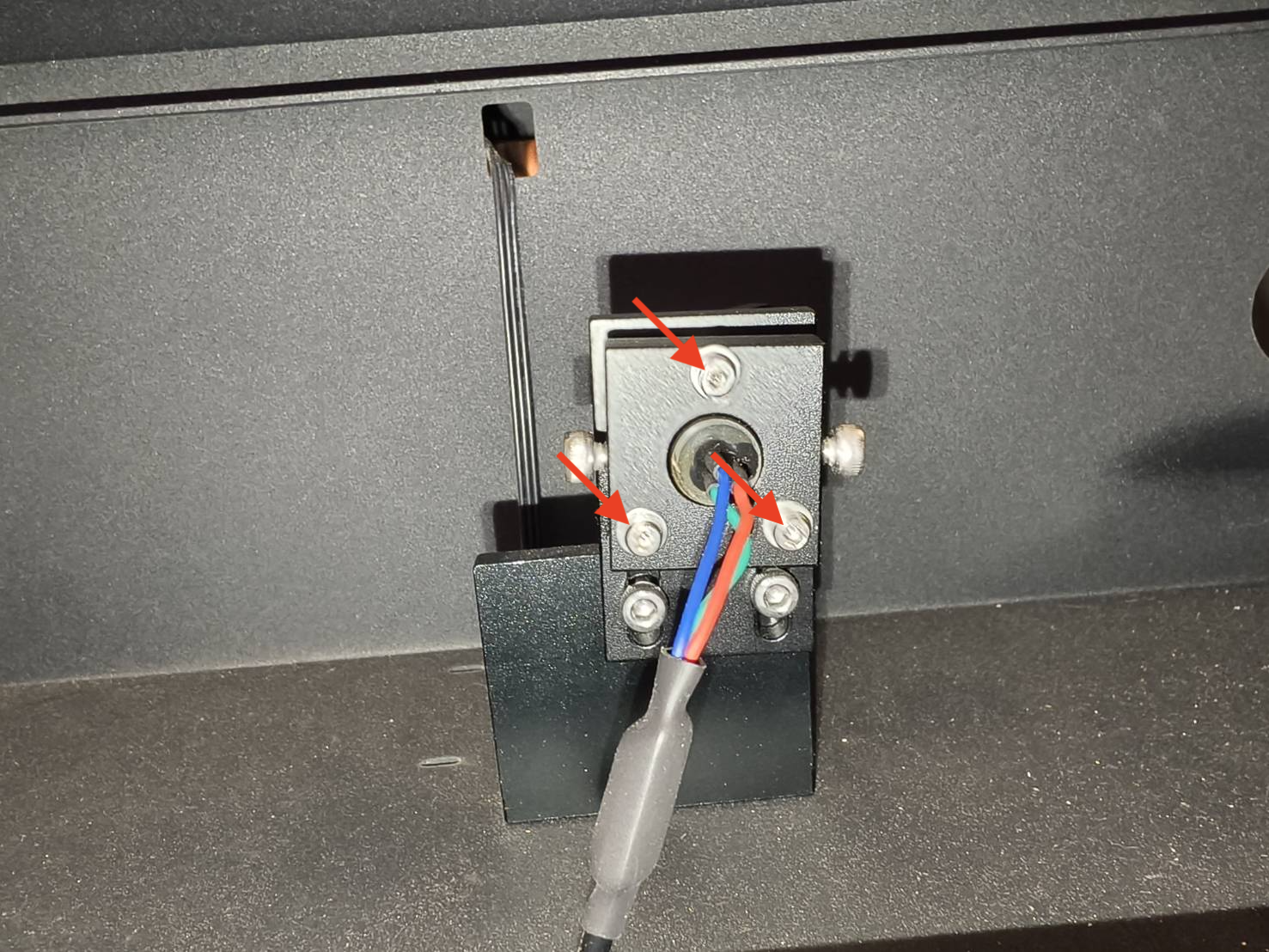

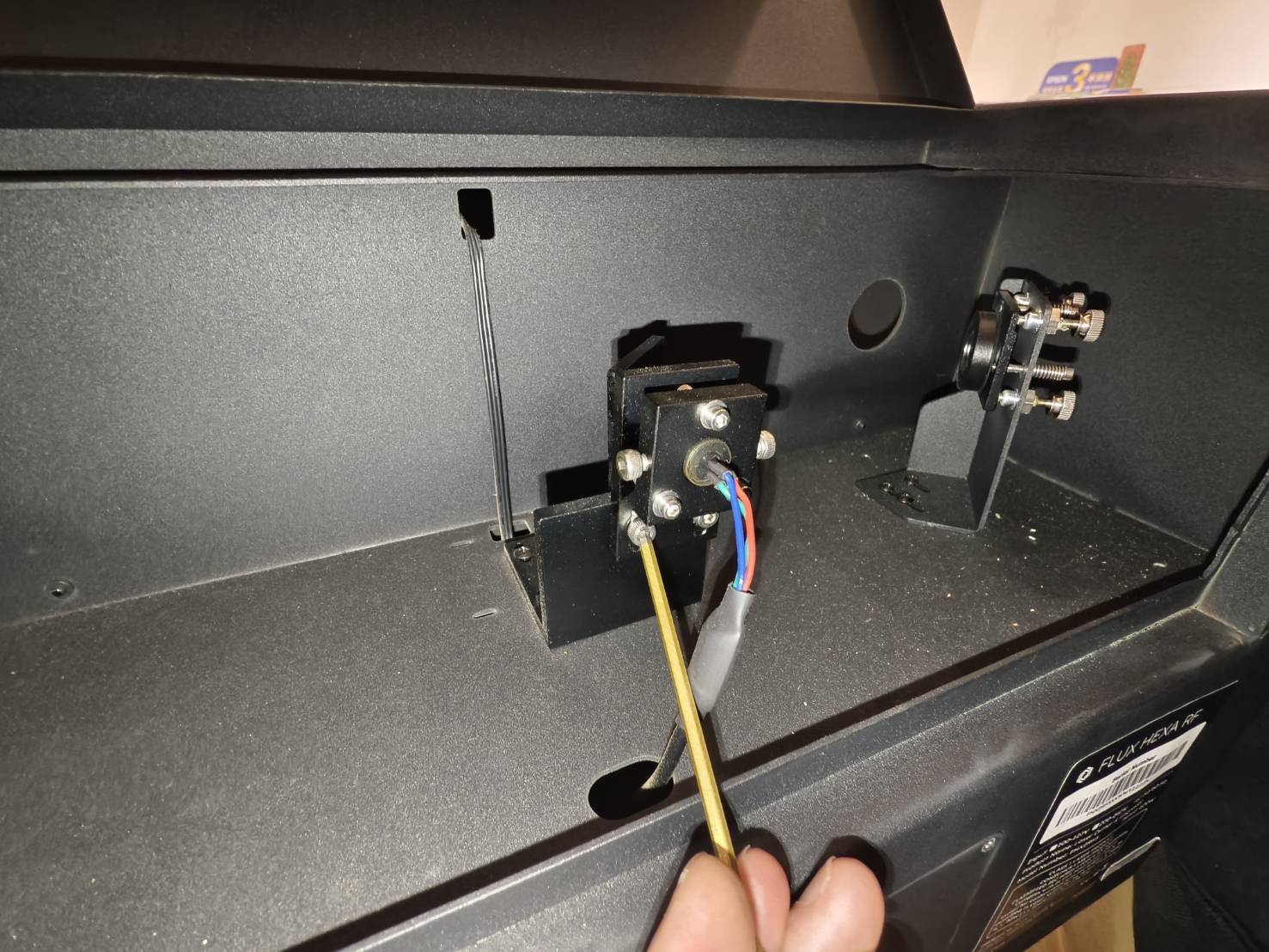

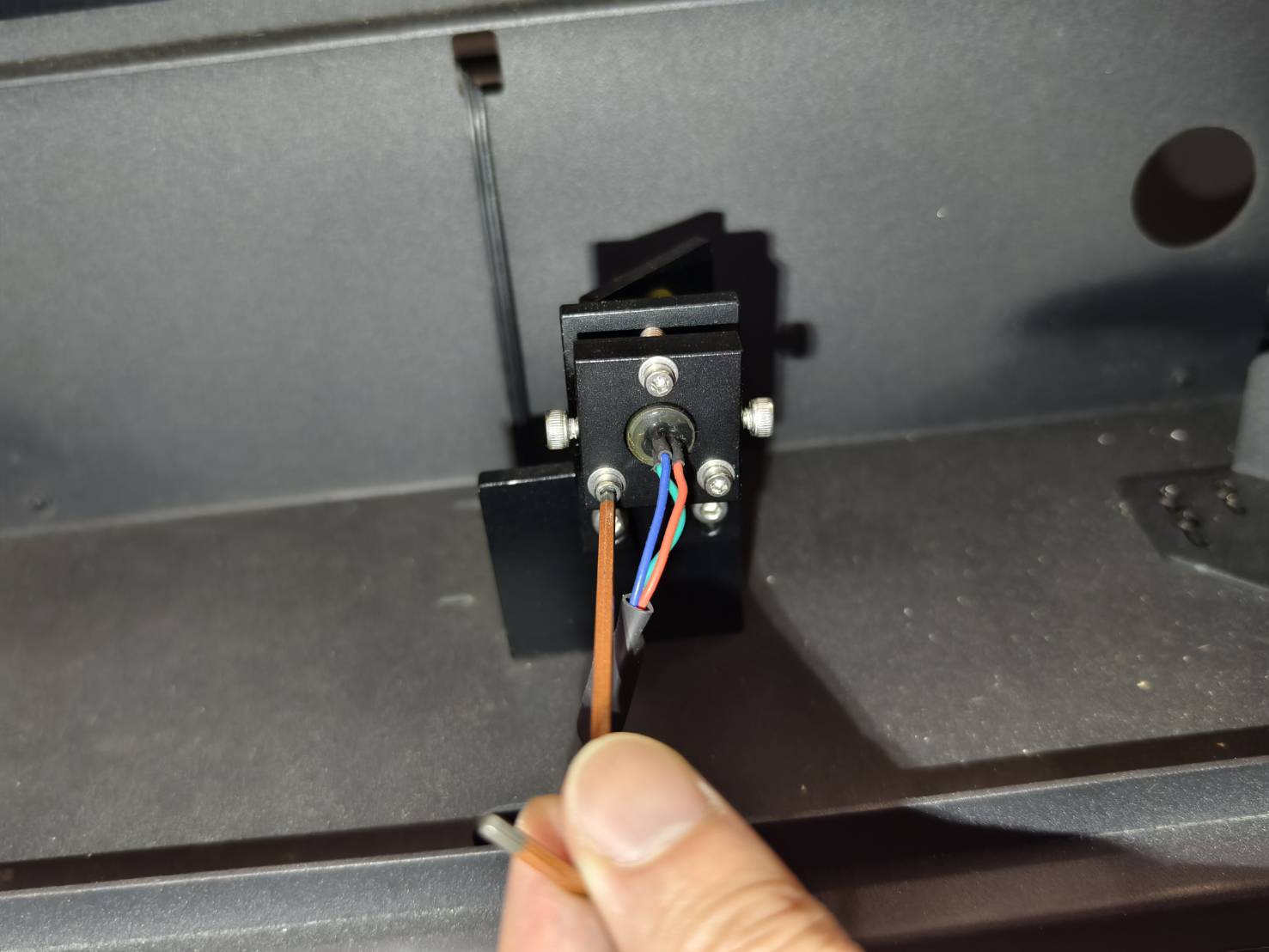

Tighten the three adjustment screws on the red dot laser mount.

HEXA RF 30W	HEXA RF 60W / HEXA RF 80W

Step 5

Apply a piece of "double-layered" tape to the first mirror, then close the back cover and perform 2 pulses.
(Do not remove the tape; leave it on the mirror.)

Step 6

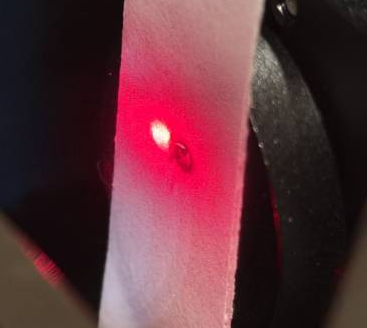

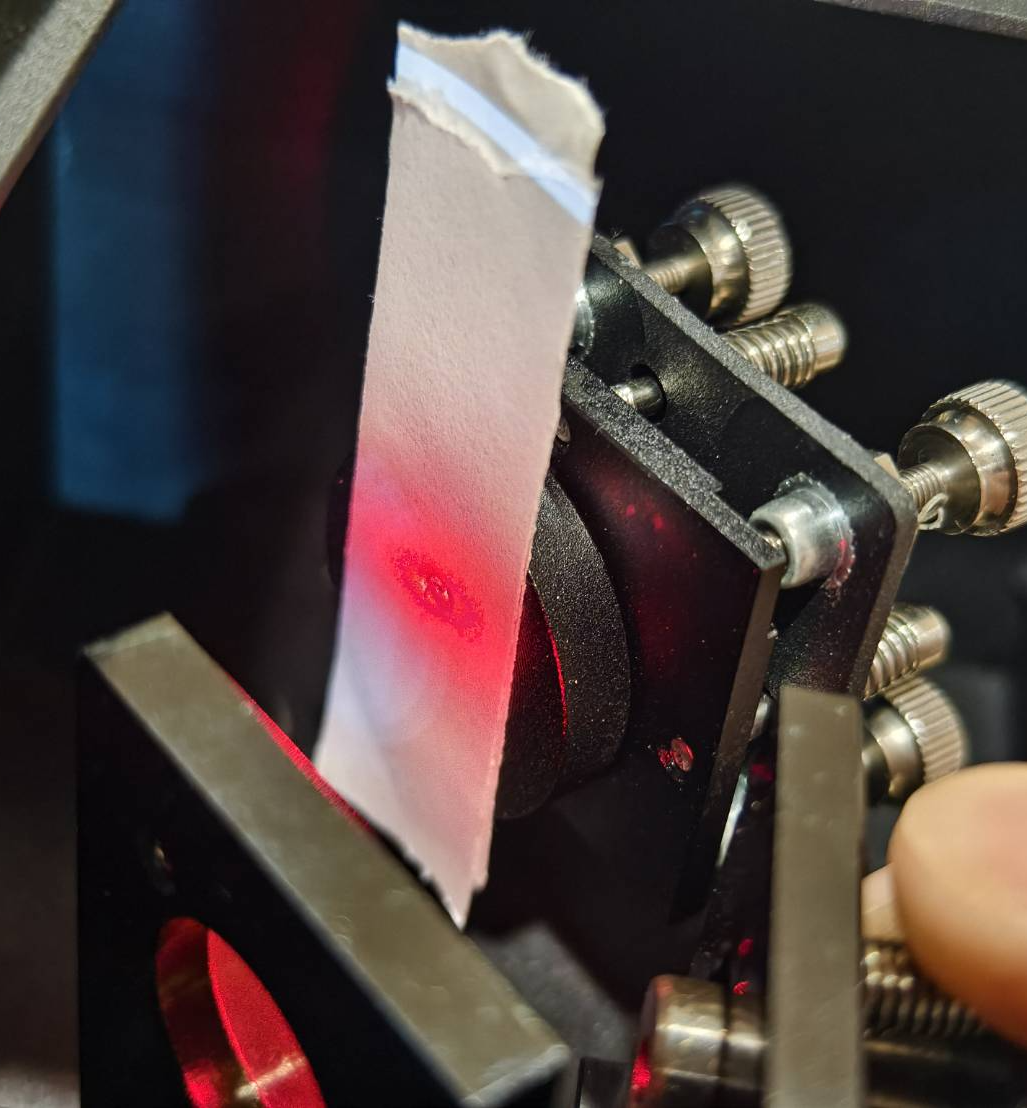

Open the back cover and check if the burn mark overlaps with the red dot.

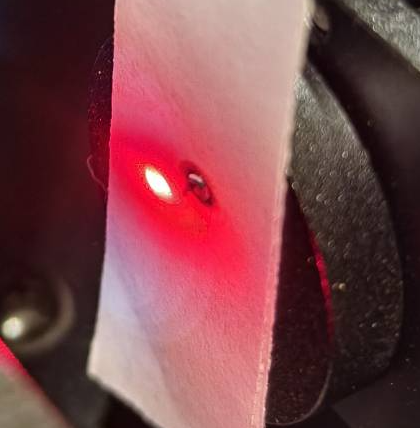

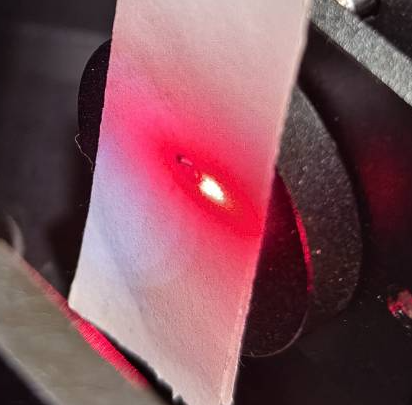

Correct Example - Overlapping	Incorrect Example - Not Overlapping

Evaluate your results and take the next step:

Step 7

This step will adjust the horizontal position of the red dot.

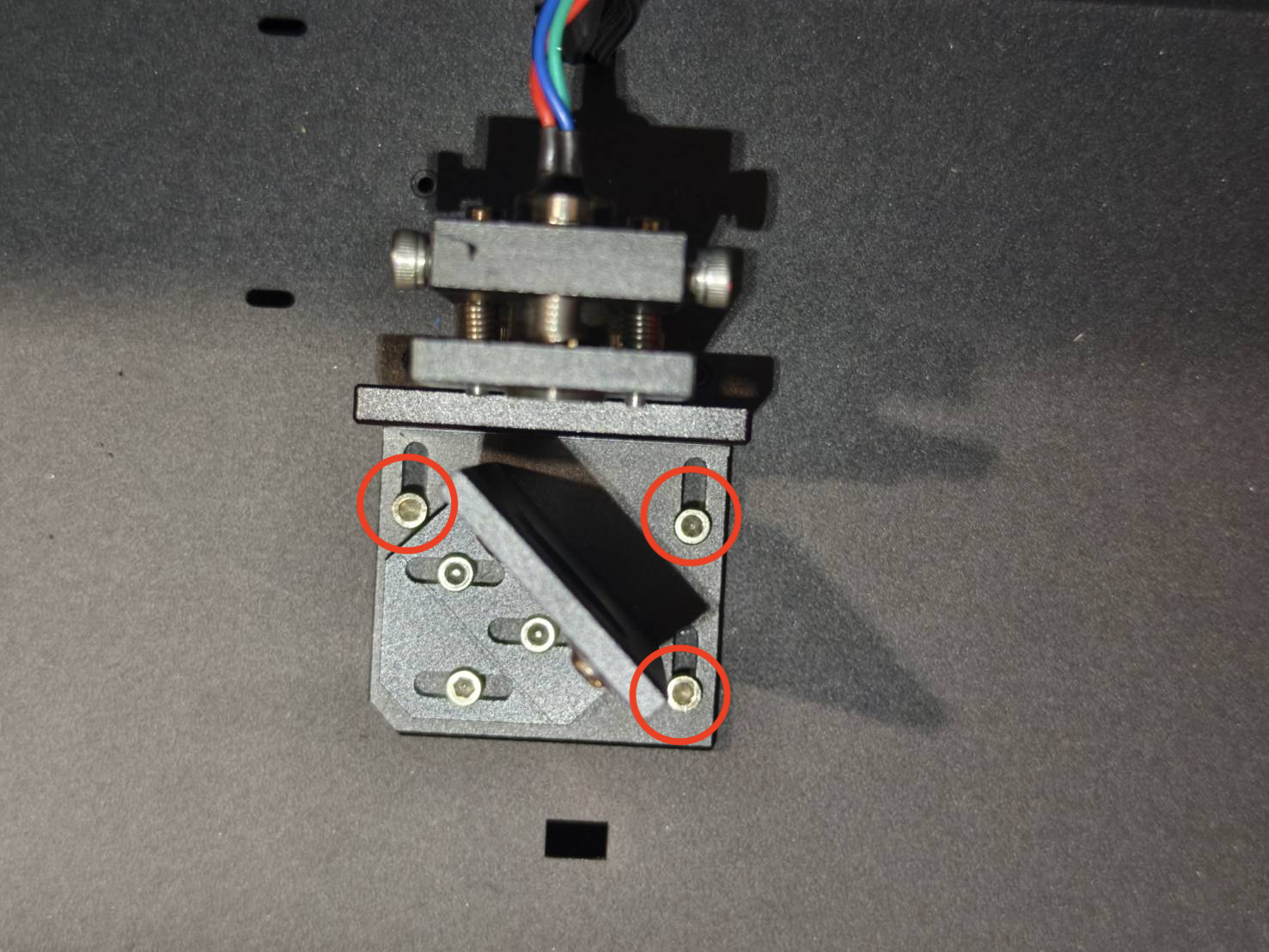

• Loosen the three screws at the bottom of the red dot mount. (Use a 2.5mm hex wrench or a Phillips screwdriver)
• Move the mount to overlap the burn mark and the red dot horizontally.
• Tighten the screws.

HEXA RF 30W	HEXA RF 60W / HEXA RF 80W

Step 8

This step will adjust the vertical position of the red dot.

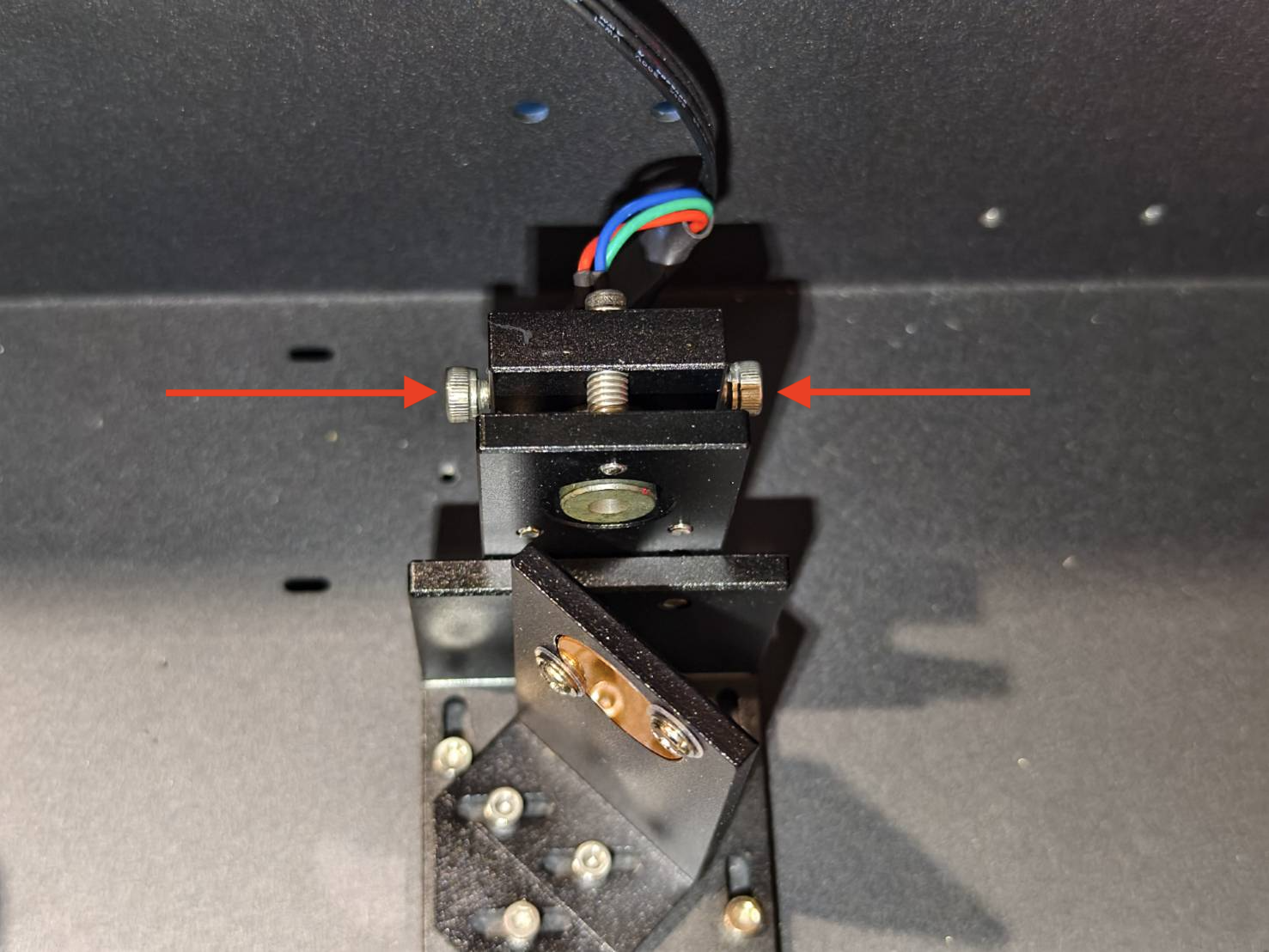

• Loosen the two screws on the red dot mount. (3mm Hex Wrench)
• Move the mount to overlap the burn mark and the red dot vertically.
• Tighten the screws.

HEXA RF 30W	HEXA RF 60W / HEXA RF 80W

Step 9

Place a new piece of double-layered tape on the first mirror and perform two pulses to recheck the optical path.

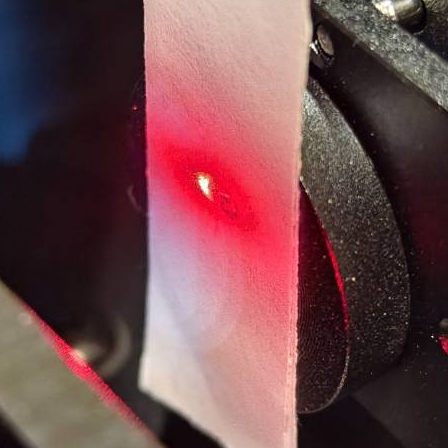

Correct Example - Overlapping	Incorrect Example - Not Overlapping

Evaluate your results and take the next step:

Step 10

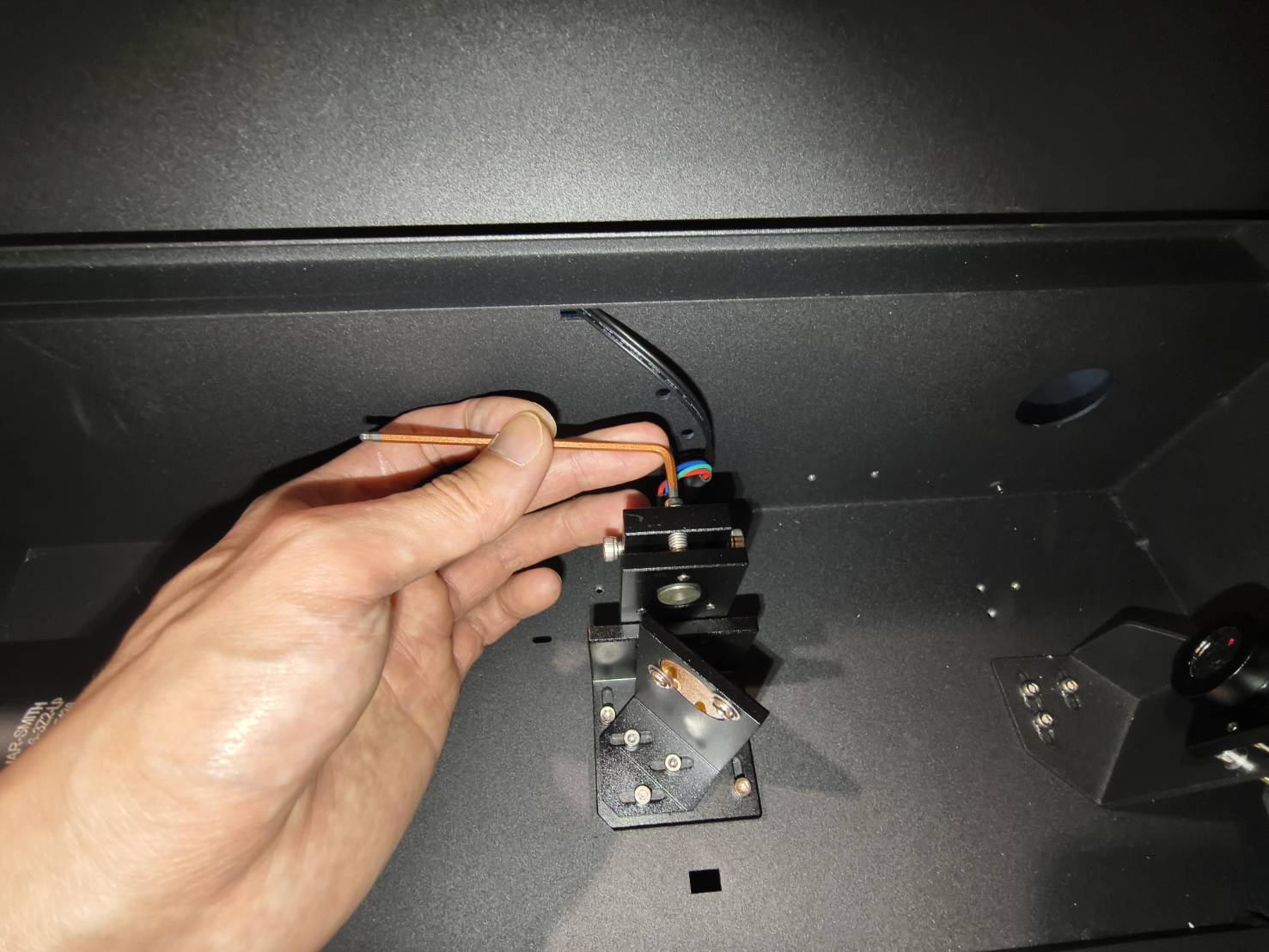

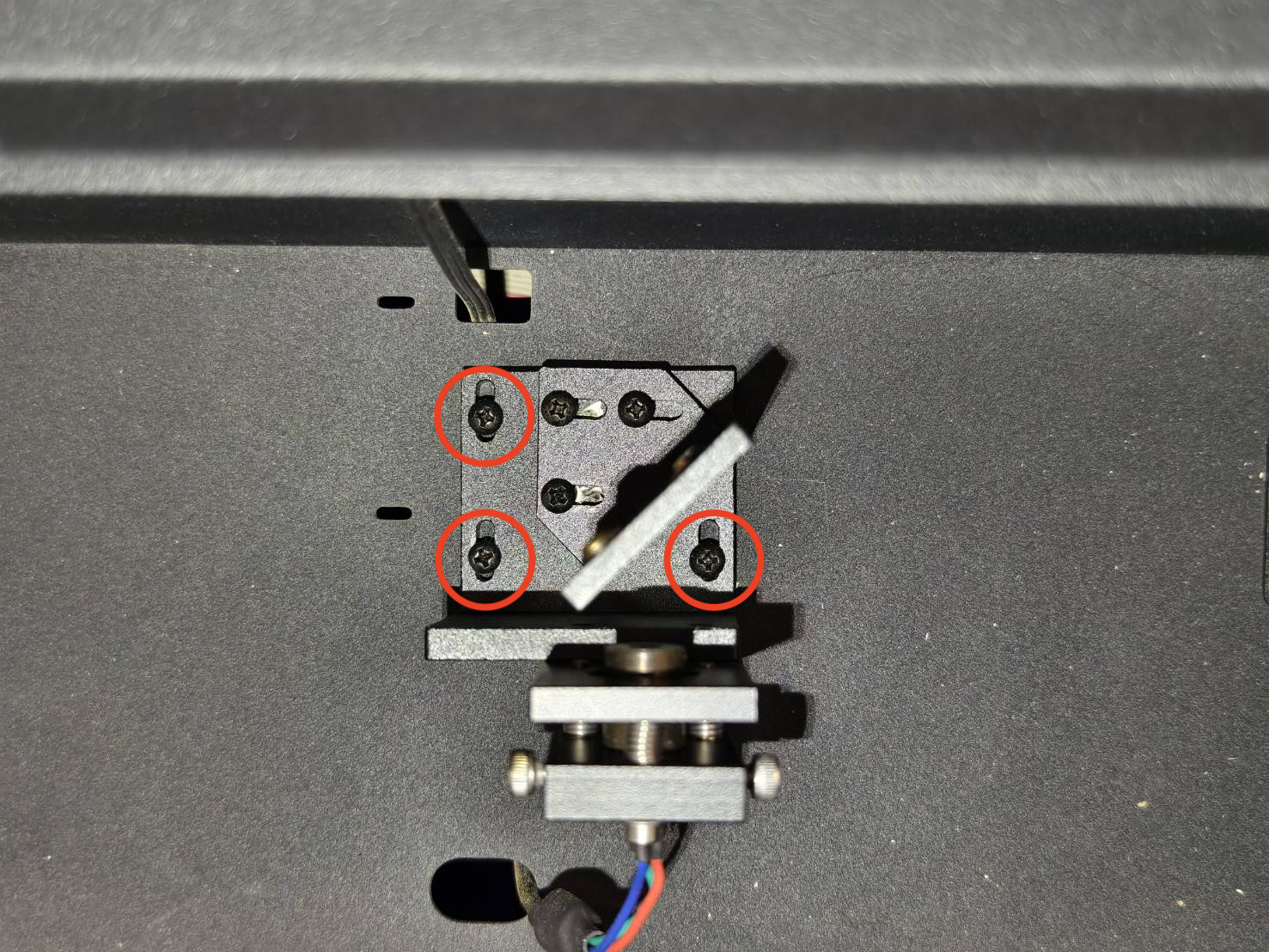

Loosen the three screws to make it adjustable.

Step 11

This step checks if the optical path of the red dot and the actual CO2 laser are aligned and overlapping.

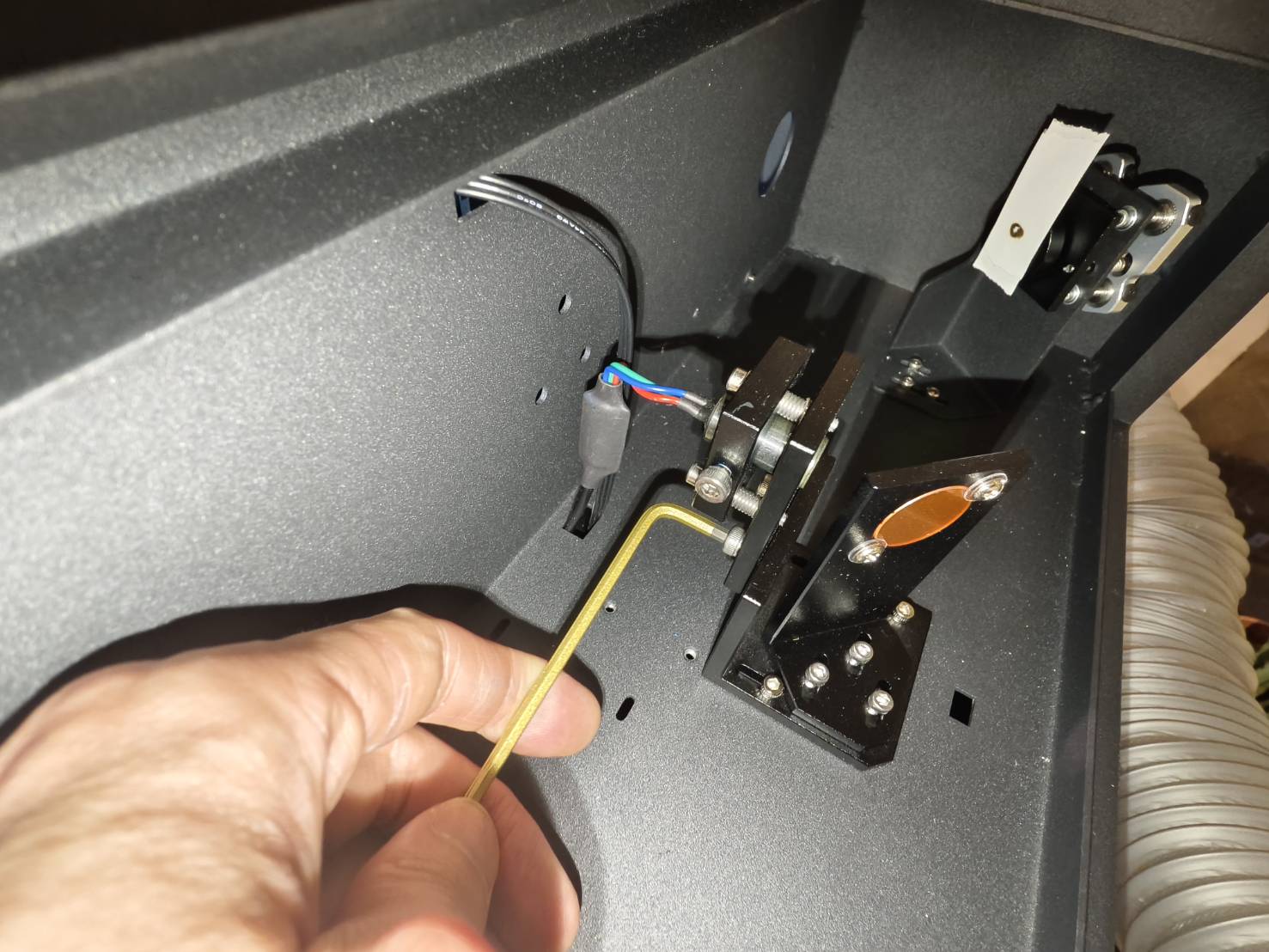

If they are not aligned, use a 2.5mm hex wrench to adjust the red dot module.

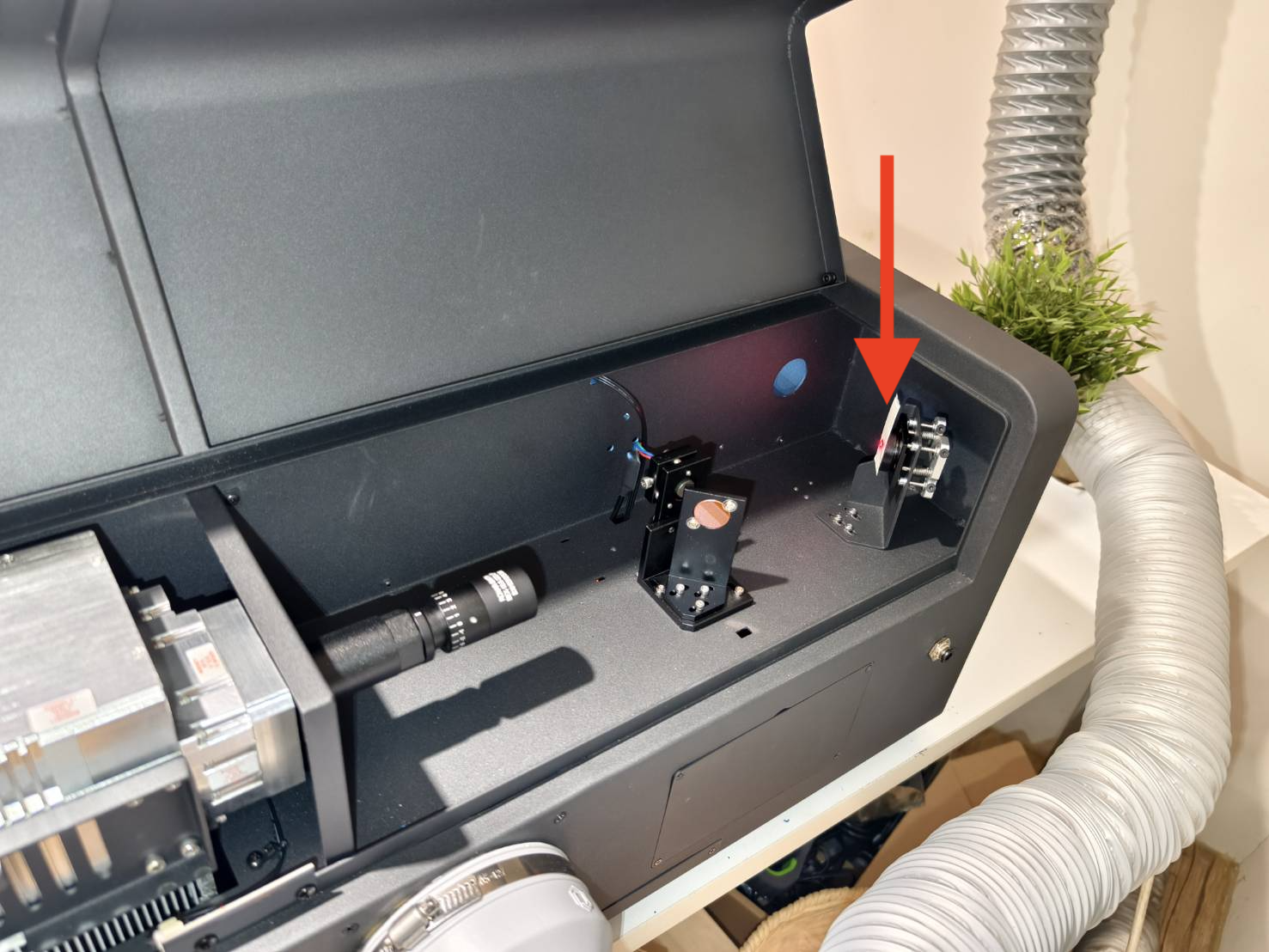

Open the door cover. Place a piece of double-layered double-sided tape at the entrance of the third mirror. Go to Action and press 'Unlock Motors'. Move the laser head to the bottom right corner. Ensure the red dot is on. Close the door cover. Perform 3 pulses. Check if the red laser dot and the burn mark overlap. Adjust the red laser if necessary.

Correct Example - Overlapping Incorrect Example - Not Overlapping Screws and Beam Path of the Red Dot Module HEXA RF 30W HEXA RF 60W / HEXA RF 80W Note: If the red dot does not fall on the tape, it means your red dot path is deviated too much. You might find it on the second mirror; please move the red dot to the reflective area of the mirror.

Step 12

Please use the following link to check the laser optical path.
4-8 Optical Path Checking

Evaluate your results and take the next step:
