Panel Function Test
Recommended Frequency
Once a month
Preparation
None
Maintenance Steps

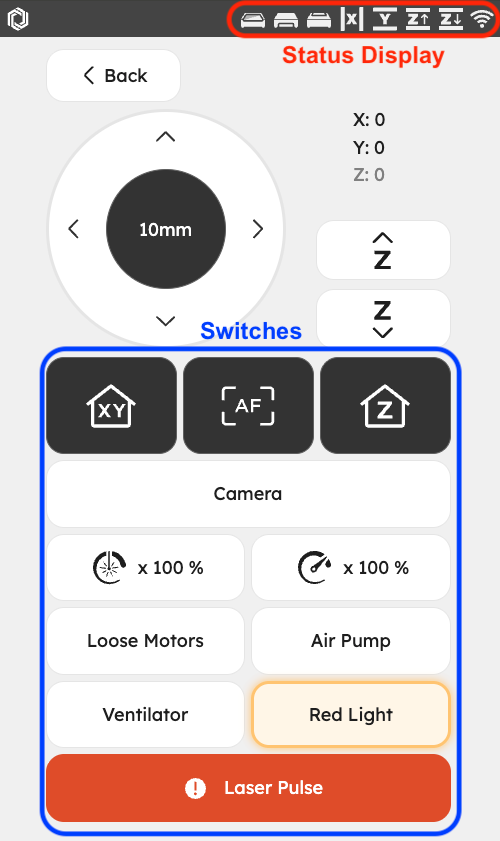

After successful homing, check the status displays and switches except for "Laser Pulse". The criteria are as follows:
| Status Display | Testing Method | Icon |
|---|---|---|
| Door Cover | Open and close the door cover |
|
| Drawer | Open and close the drawer |
|
| Back Cover | Open and close the back cover |
|
|
X-Axis Limit Switch |
After tapping "Motors" to release the motors, move the laser head to the far left of the machine until you hear a click. (Trigger the switch) |
|
|
Y-Axis Limit Switch |
After tapping "Motors" to release the motors, move the laser head to the back of the machine until you hear a click. (Trigger the switch) |
|
|
Z-Axis Top Limit Switch |
Manually press the top limit switch in the bottom right corner until you hear a click. (Trigger the switch) |
|
|
Z-Axis Bottom Limit Switch |
Manually press the bottom limit switch in the bottom right corner until you hear a click. (Trigger the switch) |
|
Switches:
-
Homing: Check if the laser head can correctly return to the origin.
-
Autofocus: Check if the autofocus function is working properly.
-
Z-Axis Homing: Check if the work platform can correctly lower to the bottom.
- Camera: Check if the camera feed appears on the screen, and move the laser head to observe if the screen updates as the camera moves. (The camera feed updates every 3 seconds.)
- Motors: Check if the laser head can move smoothly along the X-axis linear rail and Y-axis guiding rods.
- Air Pump: As shown in the image below, use a piece of paper to check if air is blowing out from the laser nozzle.
- Exhaust Fan: After tapping it, you will hear an accelerating rotation sound, similar to an airplane taking off.
- Red Light: Assists in adjusting the optical path and confirming the working area of the job.
If you find any abnormalities, please refer to the [Troubleshooting Chapter] for solutions.
Screen Cleaning
Recommended Frequency
Once every two weeks
Maintenance Steps
If the screen is dirty, spray a small amount of alcohol onto a cleaning cloth and gently wipe the screen.
Preparation

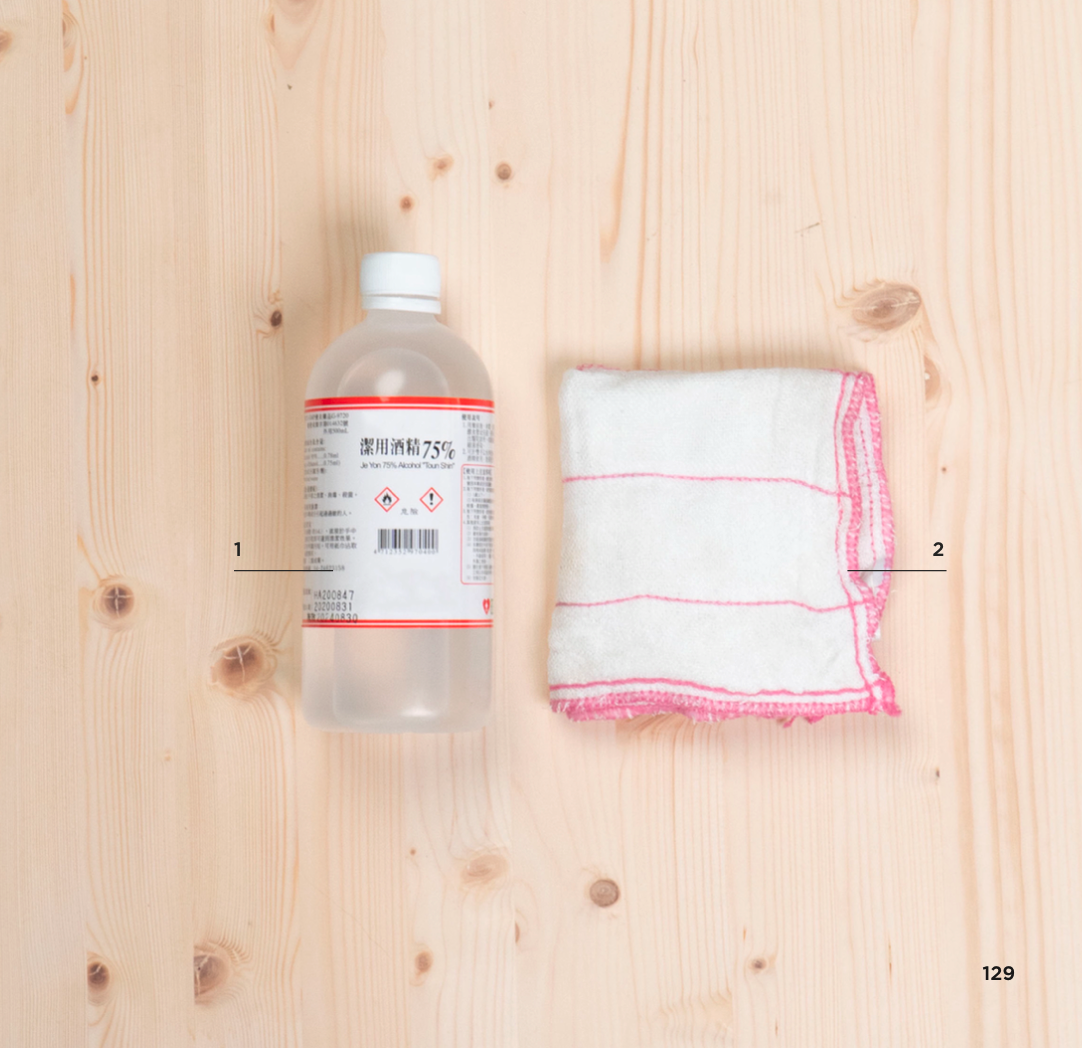

User-supplied items: 75%~99% alcohol, cleaning cloth
