#913 Abnormal Air Flow Detection

FLUX Support Team
  • Updated

Possible Causes:

  1. System anomaly (Update firmware, restore factory settings, or re-flash the SD card).
  2. Air tube bent or damaged.
  3. The transparent T-junction (T-fitting) on the sensor is bent or damaged.
  4. Mainboard failure.
  5. Air pump adapter board failure.
  6. Air pump is too weak.
  7. Air pump is too strong (Low probability).

Step 1

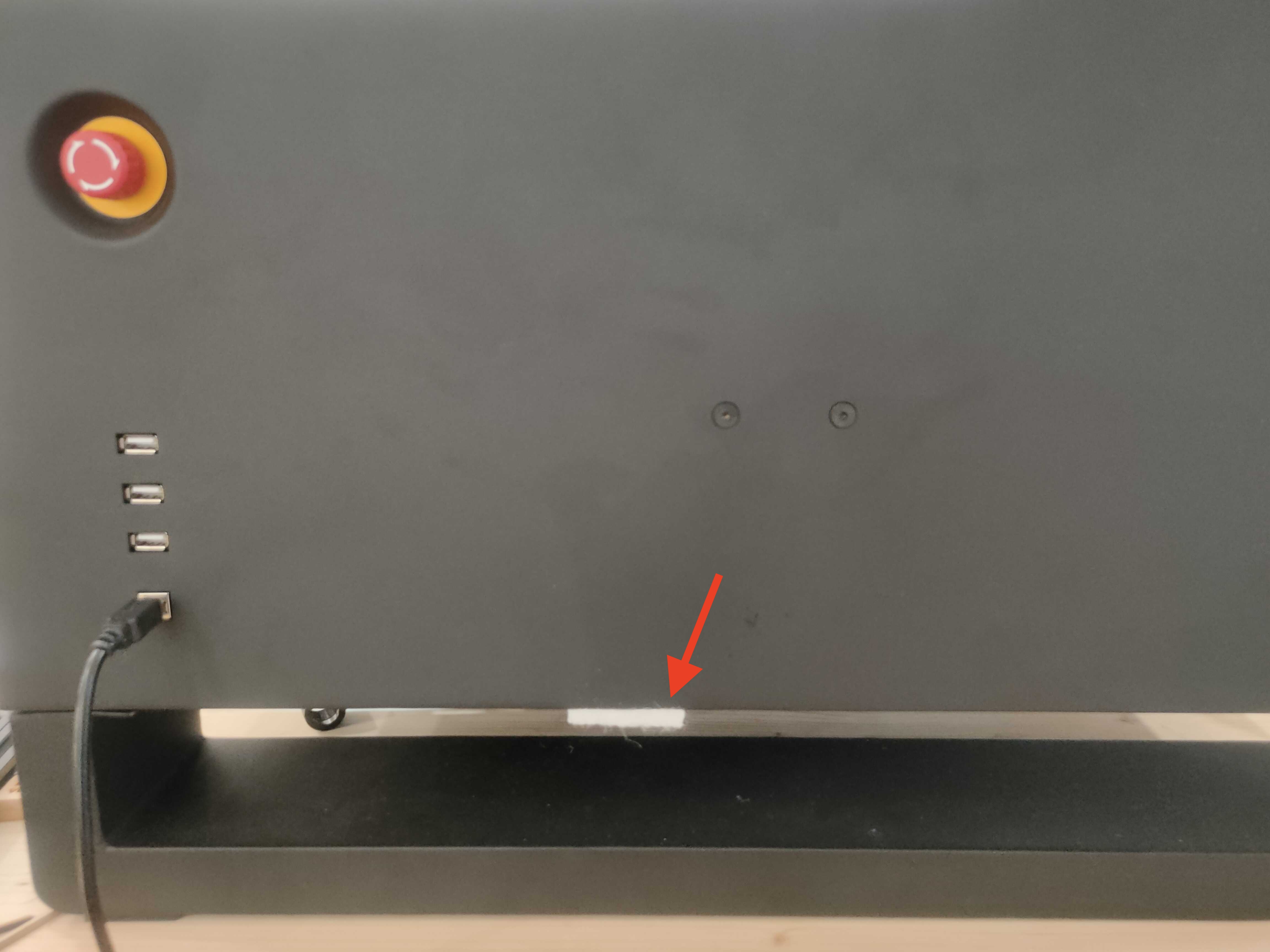

  • Replace the air pump filter on the side of the machine.IMG20250508171210.jpg

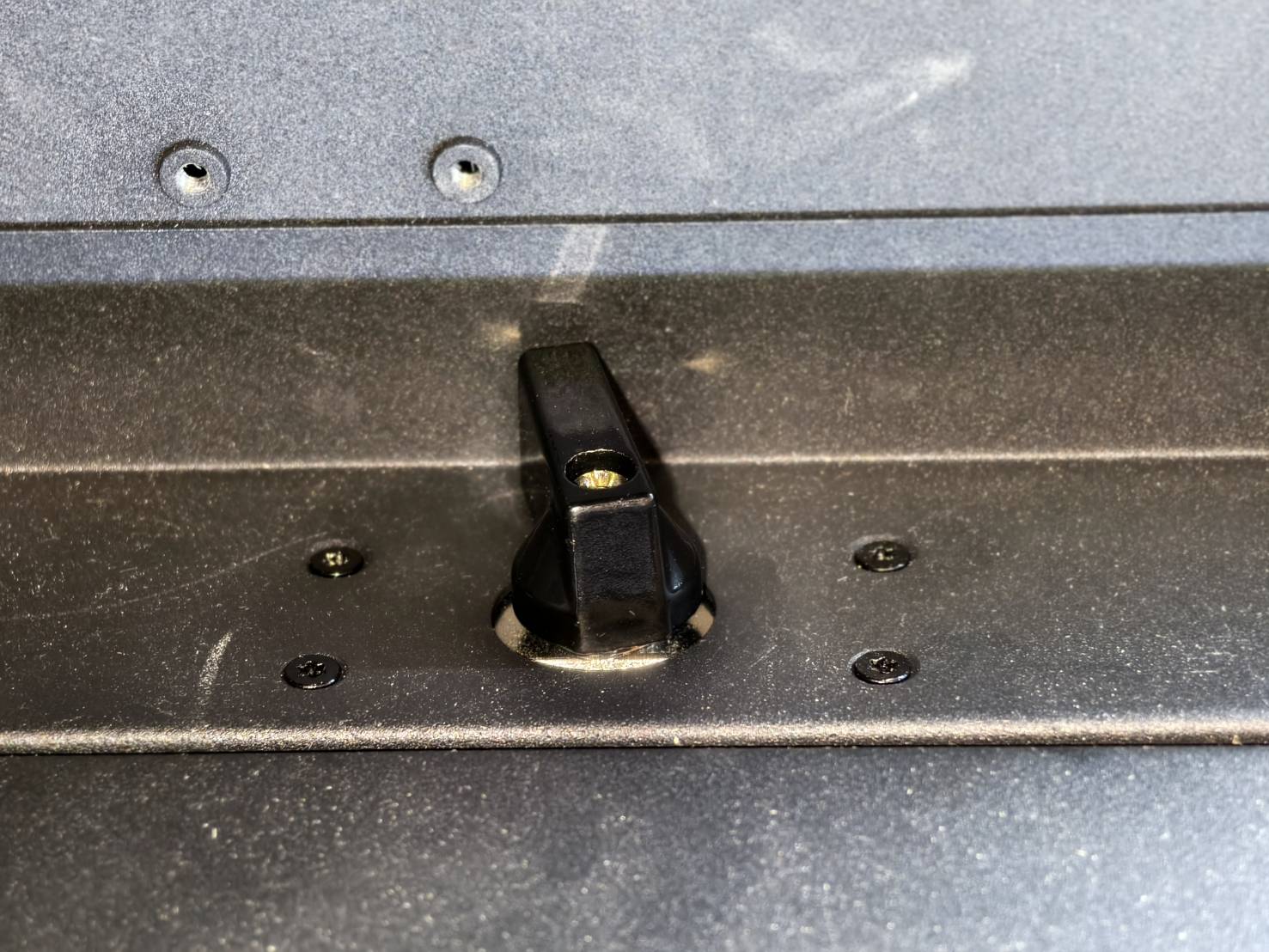

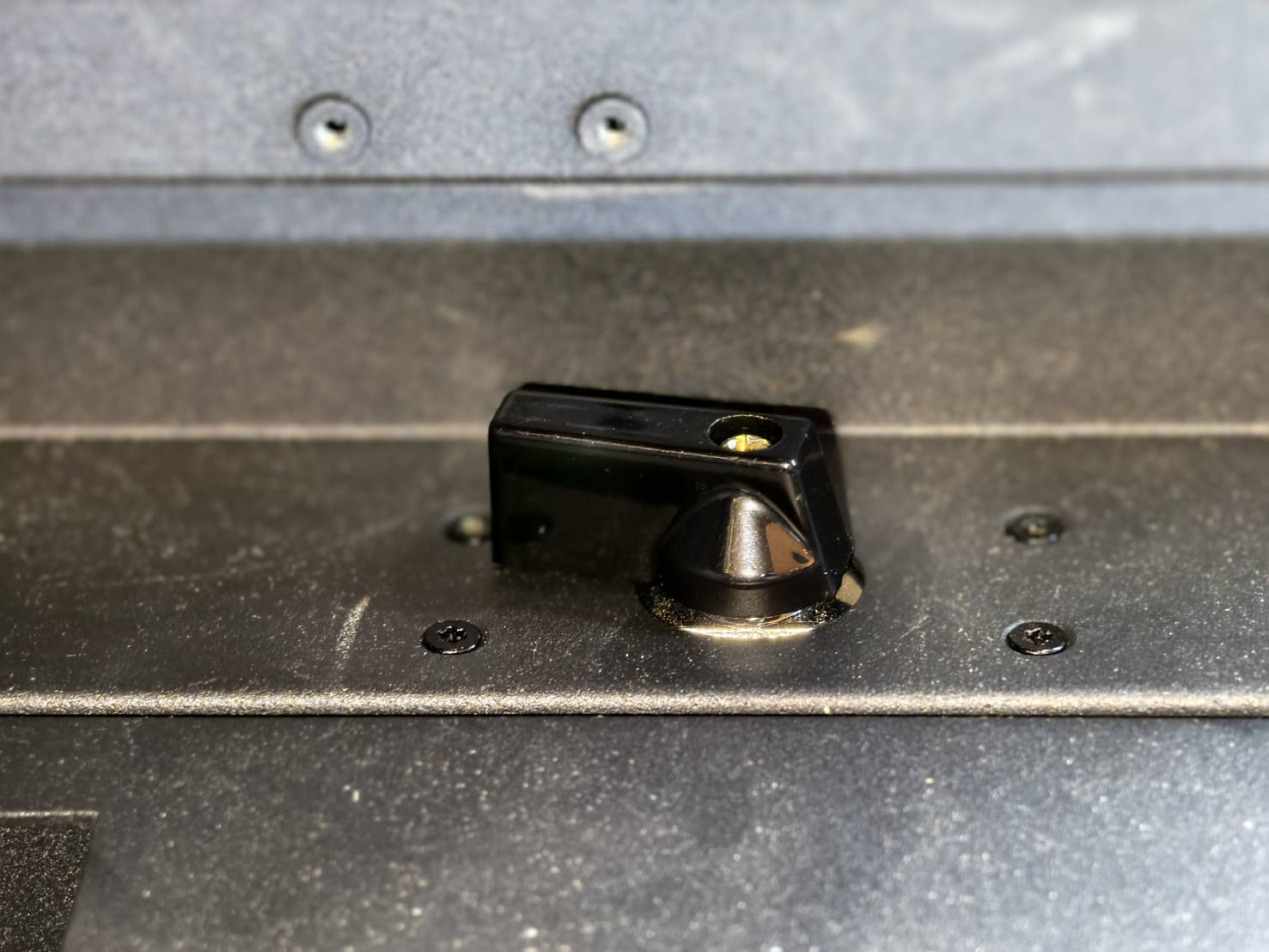

  • Ensure the air valve is in the OPEN position.

    Open

    Closed
  • Perform an airflow test.



Evaluate the test result and determine the next step:

  • Value is within normal range >> Step 3.1
  • Value is NOT within normal range >> Step 2

Step 2

Check if the air blowing from the laser head nozzle is normal.

  • Click "Action ➜ Air Pump" on the machine panel.
  • Place your hand or a piece of tissue paper under the laser head nozzle to feel if the air blowing is normal.

Evaluate the test result and determine the next step:

  • Yes, air is blowing out >> Step 3
  • No, NO air is blowing out >> Step 2.1

Step 2.1

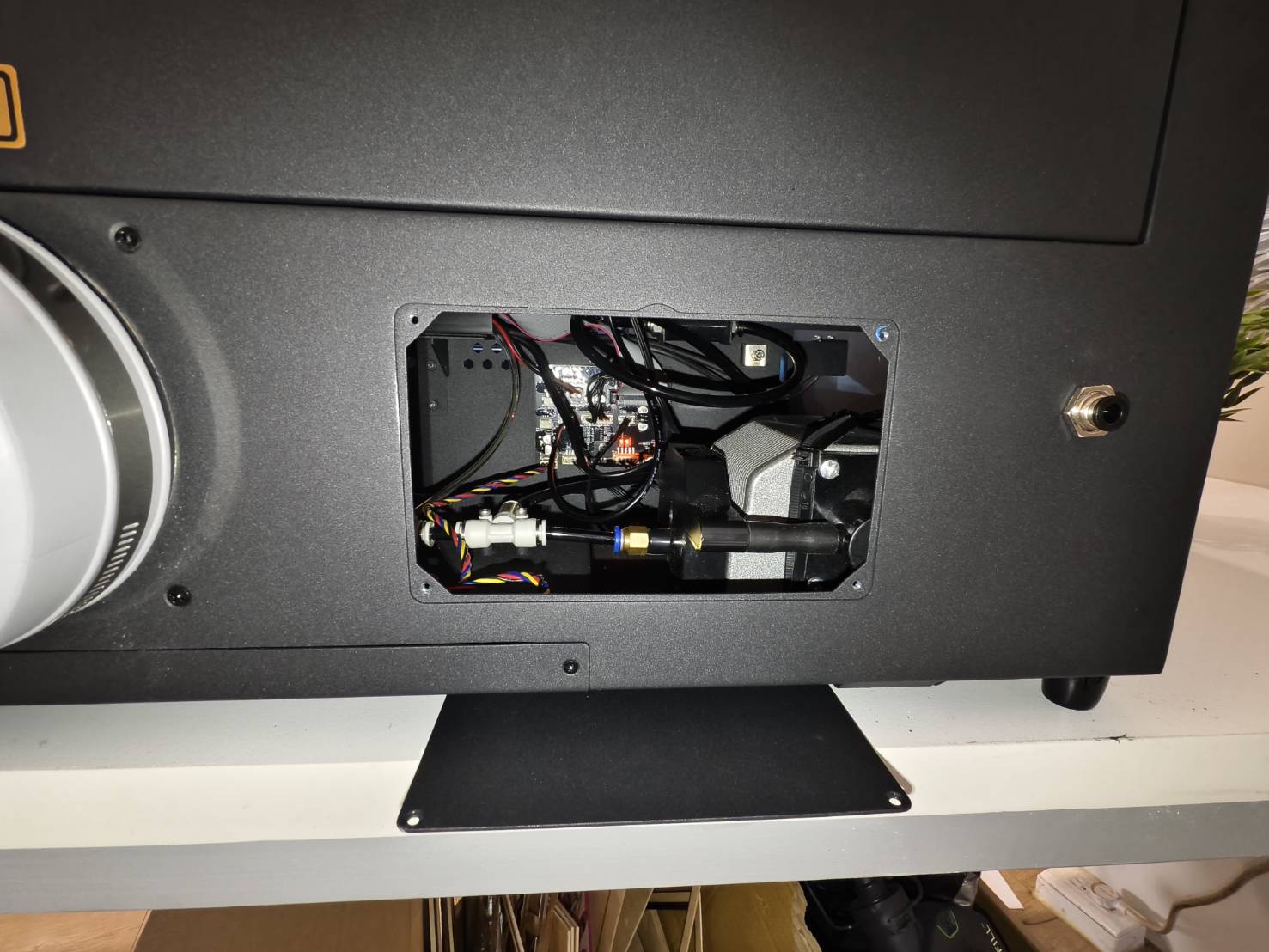

Remove the machine side cover and check if the wiring and the T-junction are connected correctly.

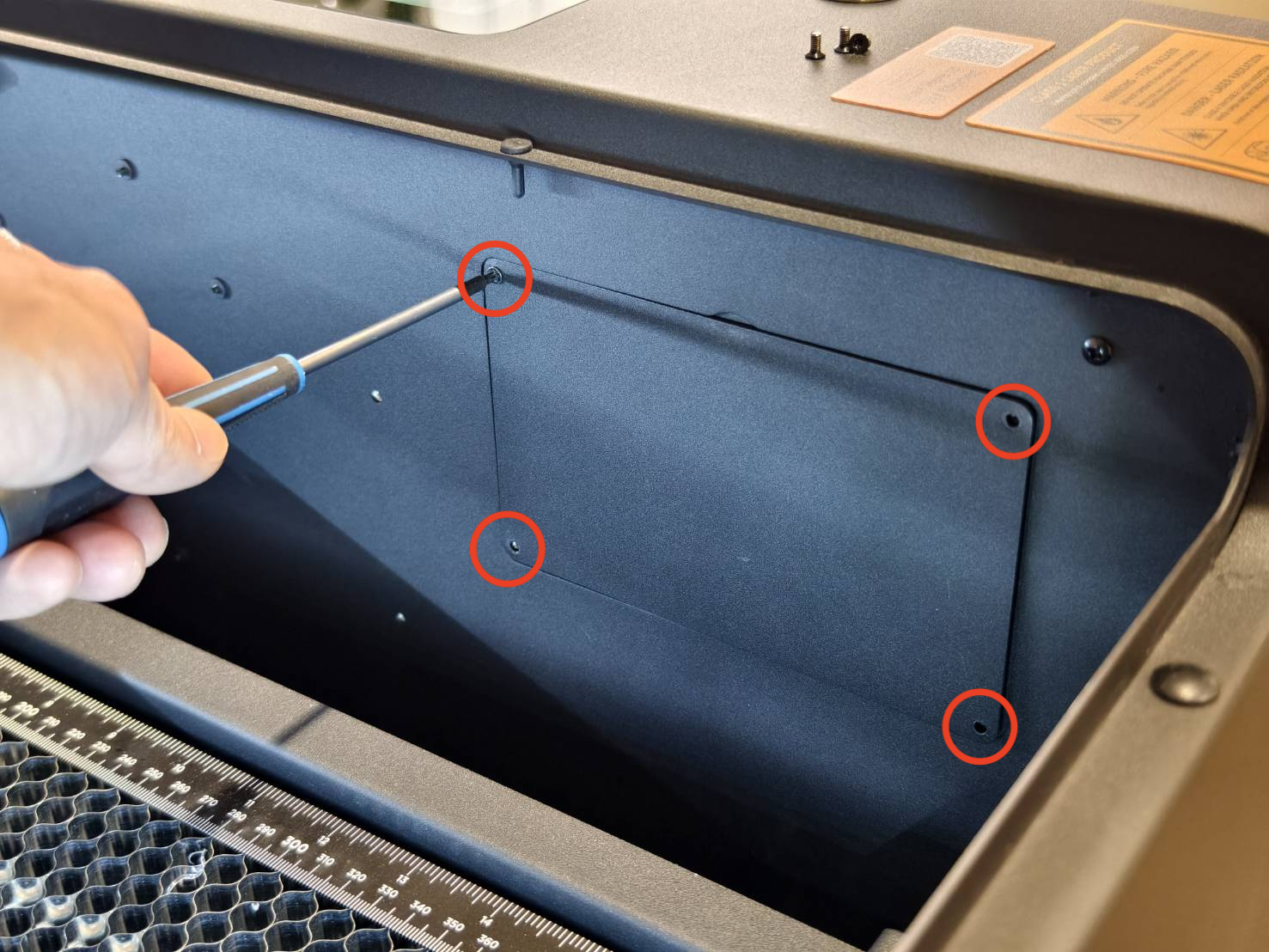

  • Loosen the Phillips screws on the side to open the side cover.

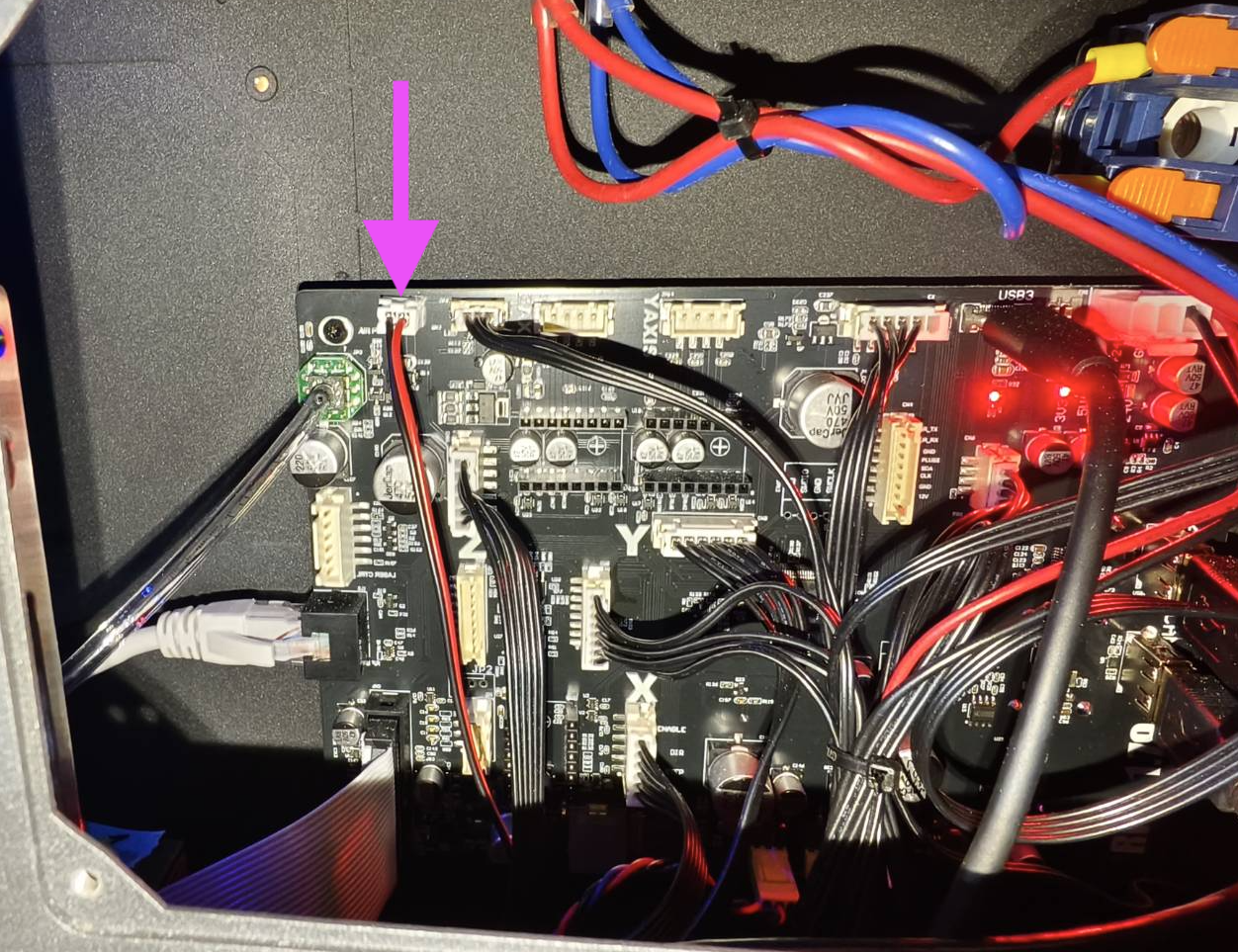

  • Check or reconnect the air pump wires on the mainboard (Please turn off the machine first).

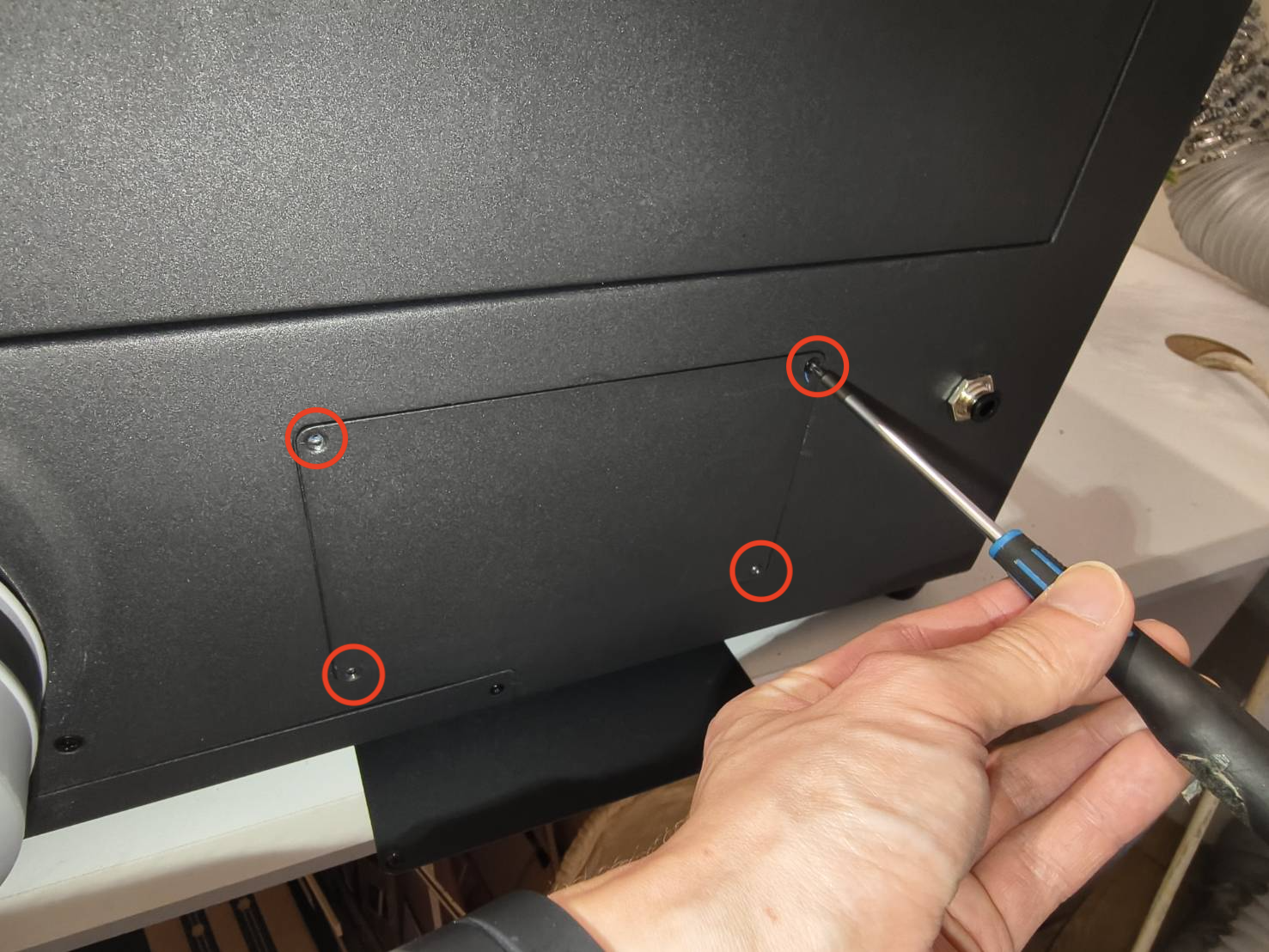

  • Disassemble the back cover and check if the air tube connections are loose or bent.

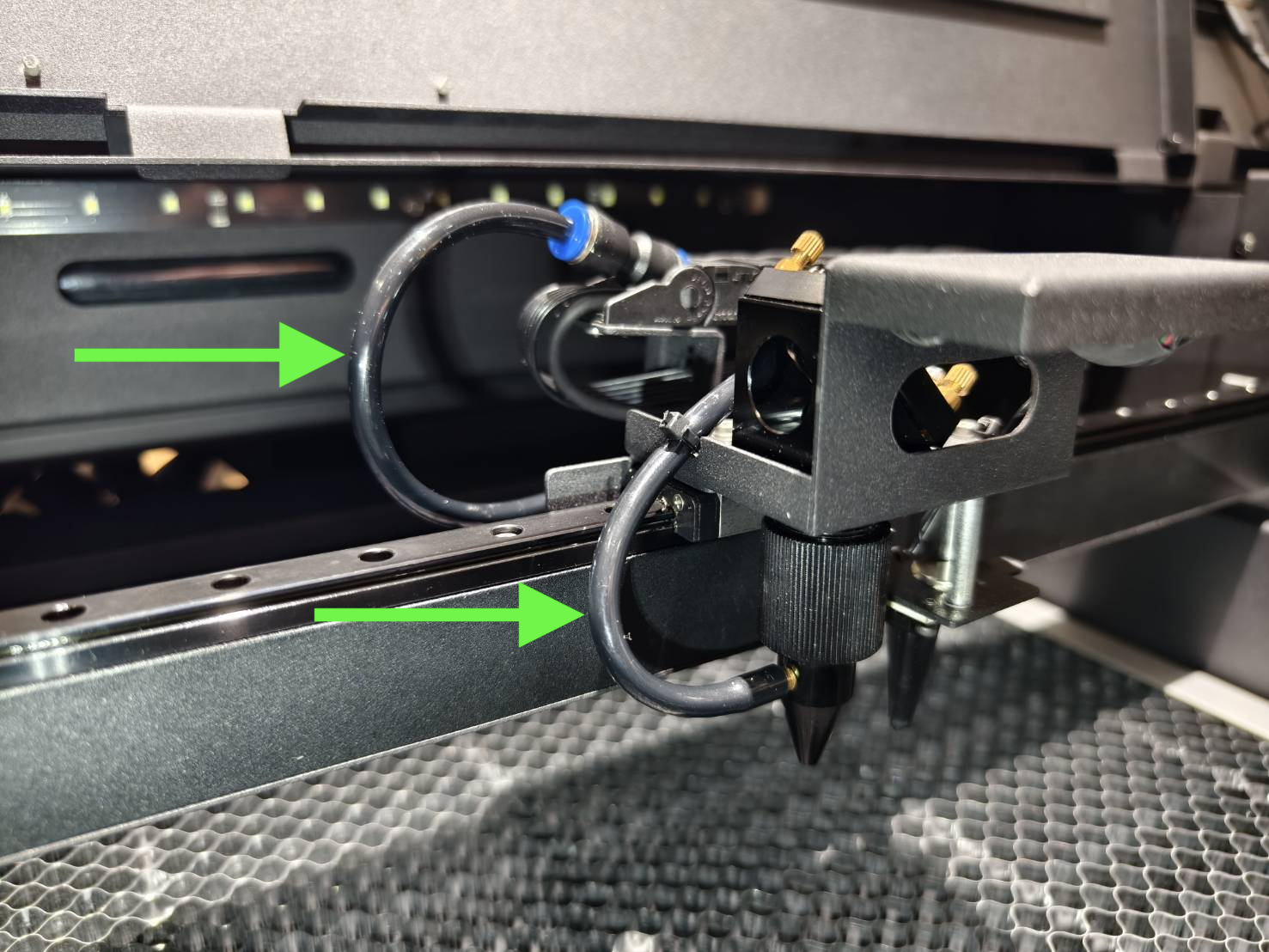

  • Check the air tube on the laser head.

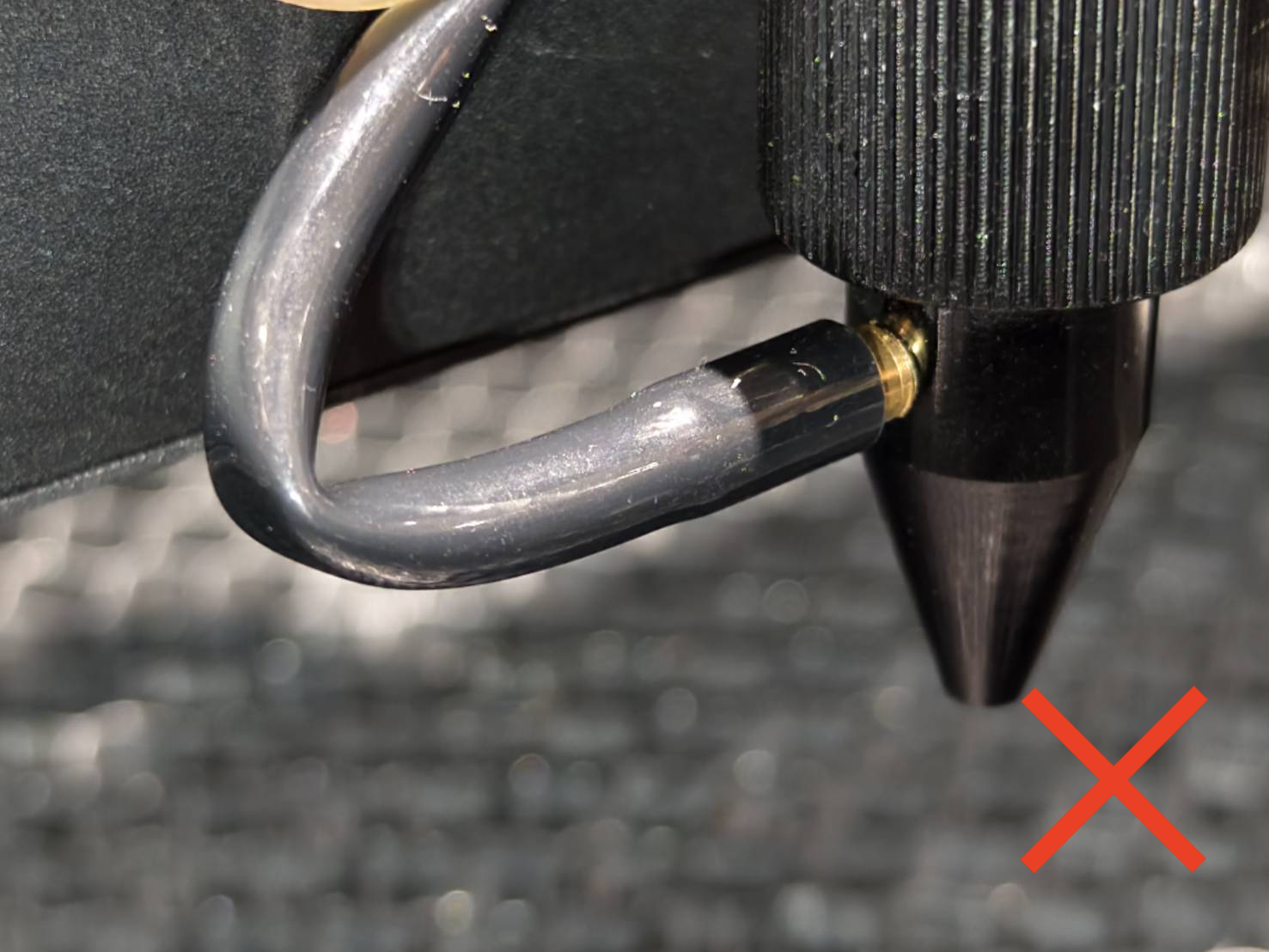

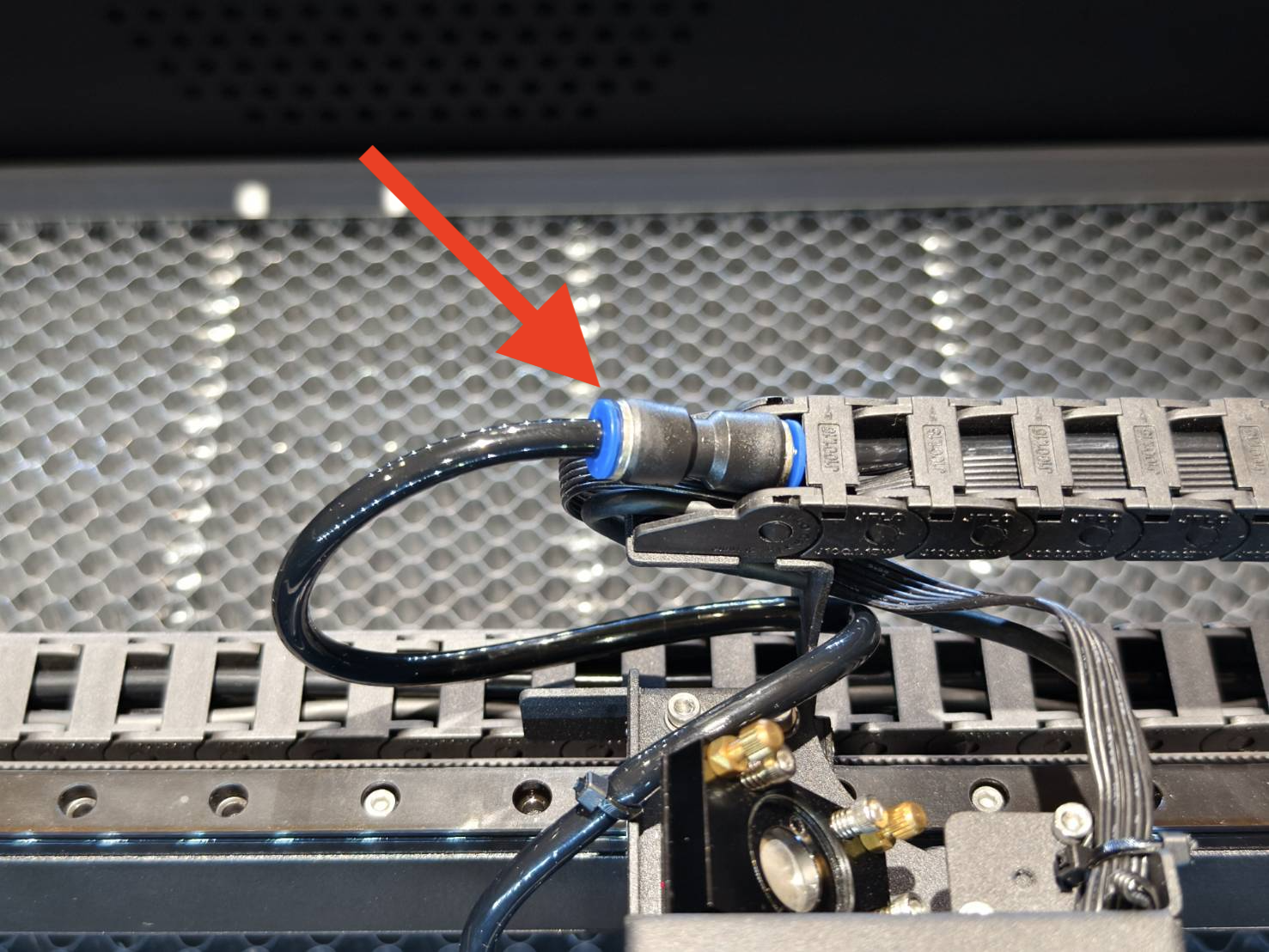

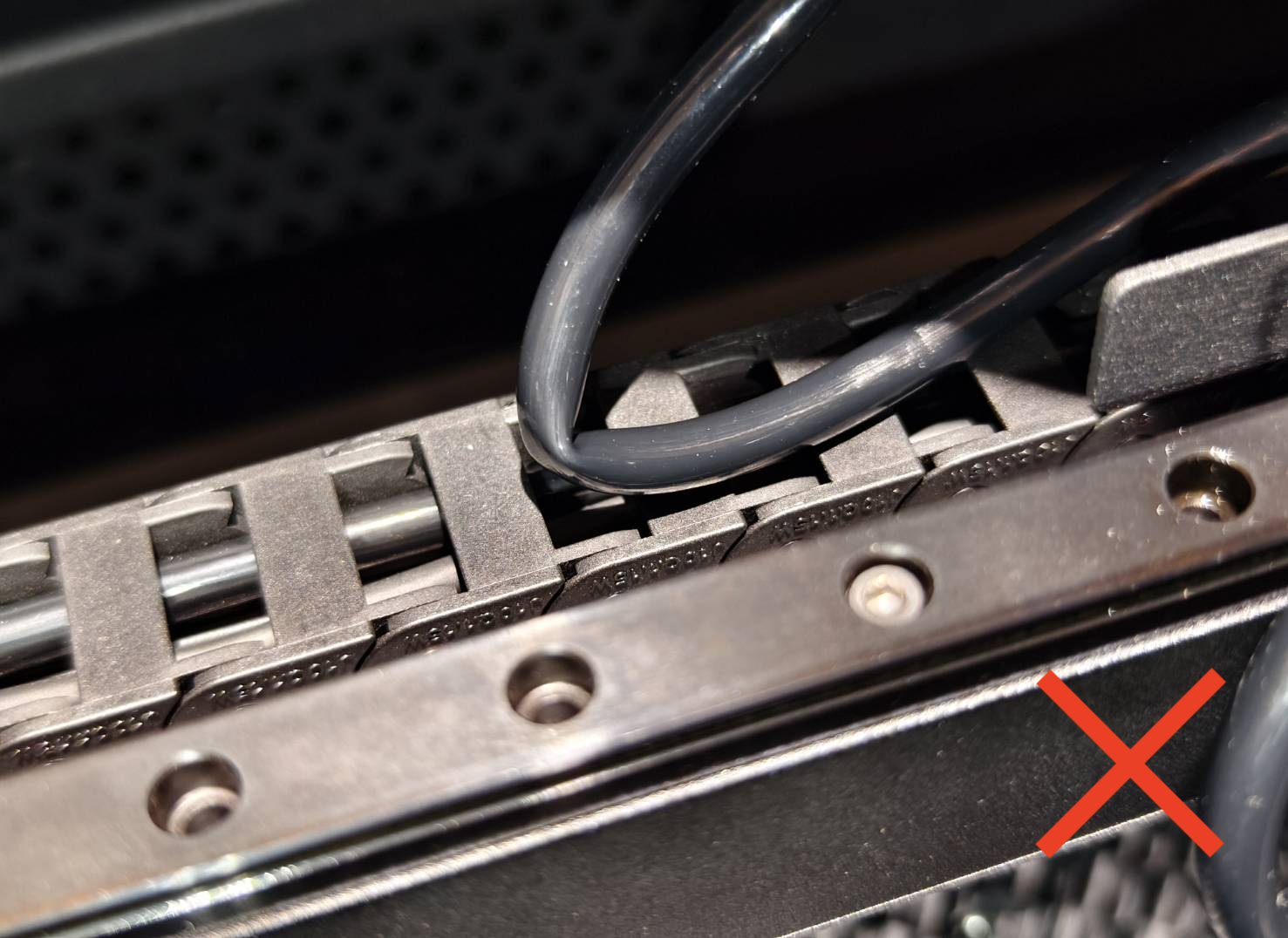

    Air tube on nozzle is bent Air tube on chain is bent



  • Turn on the machine power and click "Action ➜ Air Pump" to check if the air blowing function is normal.

Evaluate the test result and determine the next step:

  • Yes, air is blowing out >> Step 3
  • No, NO air is blowing out >> Step 2.2

Step 2.2

Restore the machine to factory settings and test if air blows from the laser nozzle.

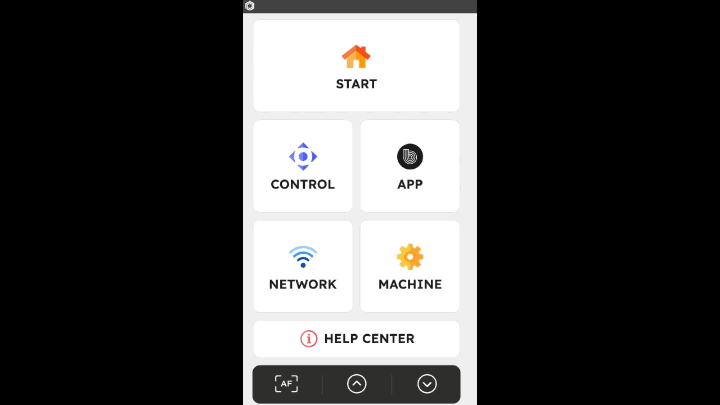

(Home Machine Next Page Factory Reset Yes)


Evaluate the test result and determine the next step:

  • Yes, air is blowing out >> Step 3
  • No, NO air is blowing out >> Step 2.3

Step 2.3

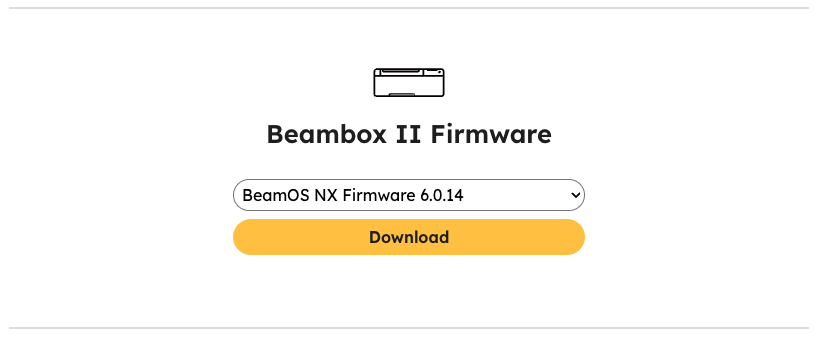

Update firmware to the latest version and test if air blows from the laser nozzle.
4-7 Firmware Update




Evaluate the test result and determine the next step:

  • No, NO air is blowing out >> Contact Customer Service
    • Possible Causes:
      1. Air pump failure, needs replacement.
      2. Mainboard failure, needs replacement.
      3. Air pump adapter board failure, needs replacement.

Step 2.4

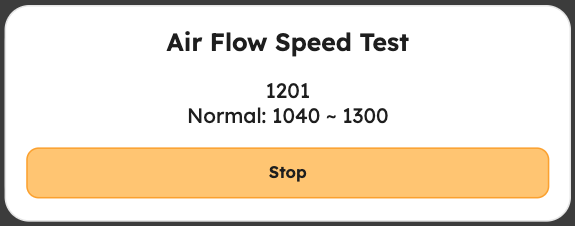

Enable the "Airflow Speed Test" on the machine panel and move the laser head to the four corners of the work area to verify if the value changes with the movement.

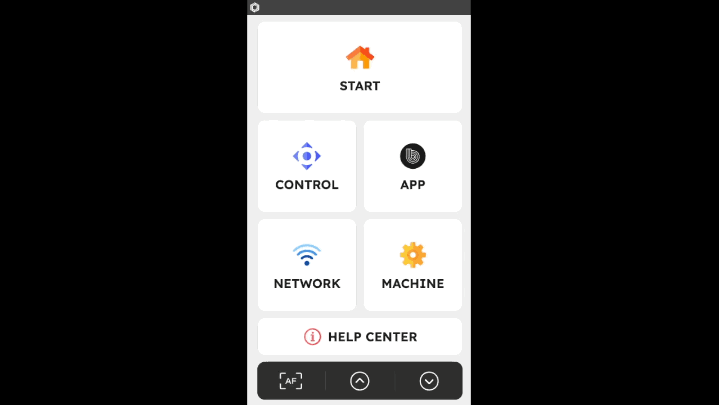

To enable the test: Click "Machine ➜ Hardware Settings ➜ Airflow Speed Test"

How to Enable Airflow Speed Test



Demonstration:



Evaluate the test result and determine the next step:

  • Value is always within normal range >> Step 2.5
  • Value is always below the minimum >> Step 4
  • Value is always above the maximum range >> Step 5
  • Value fluctuates between normal and maximum >> Step 5

Step 2.5

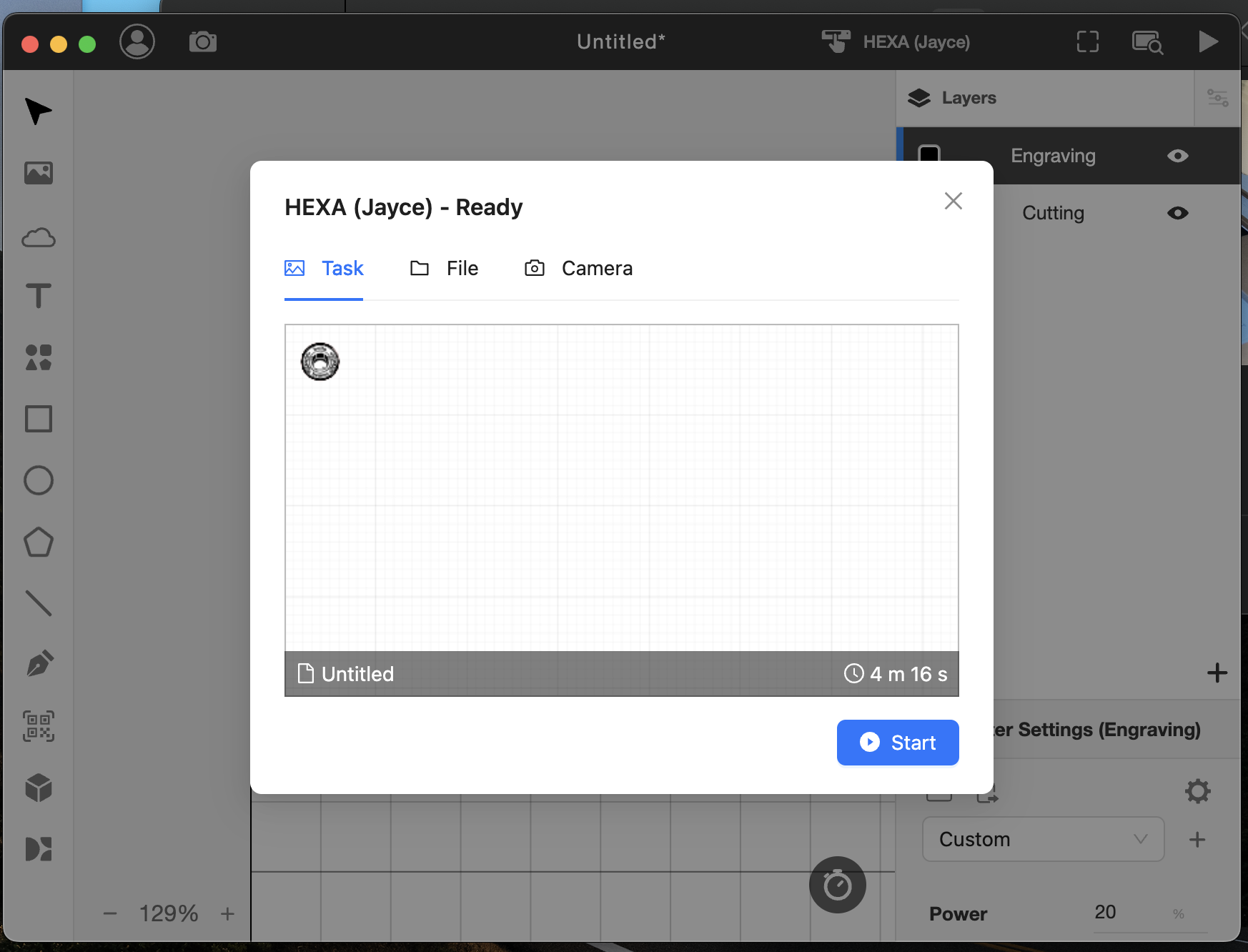

Execute a task and observe if the error appears.

Screenshot 2024-05-31 at 3.16.46 PM.png



Evaluate the test result and determine the next step:

  • No, error does not appear >> Problem Solved
    • Possible Cause:
      1. System failure occurred.
  • Yes, error still appears >> Contact Customer Service
    • Possible Causes:
      • System corrupted, needs to re-flash the RK mainboard.
      • Mainboard failure, needs replacement.

Step 3

Enable the airflow value on the panel and move the laser head around the work area to see if the value changes while moving the laser head.

How to enable the Air Flow Speed Test.



Demonstration:



Determine the test result and the next action to take.

  • The value is always within the normal range >> Step 3.1
  • The value is always smaller than the Min. value>> Step 4
  • The value is always bigger than the Max. range >> Step 5
  • The value changes within normal and the Max. value >> Step 5

Step 3.1

Execute a task and observe if the error appears.

Screenshot 2024-05-31 at 3.16.46 PM.png



Evaluate the test result and determine the next step:

  • No, error does not appear >> Machine is operating normally.

Step 3.2

Reconnect the transparent T-junction (T-fitting) on the sensor, then execute a task to verify if the error persists.

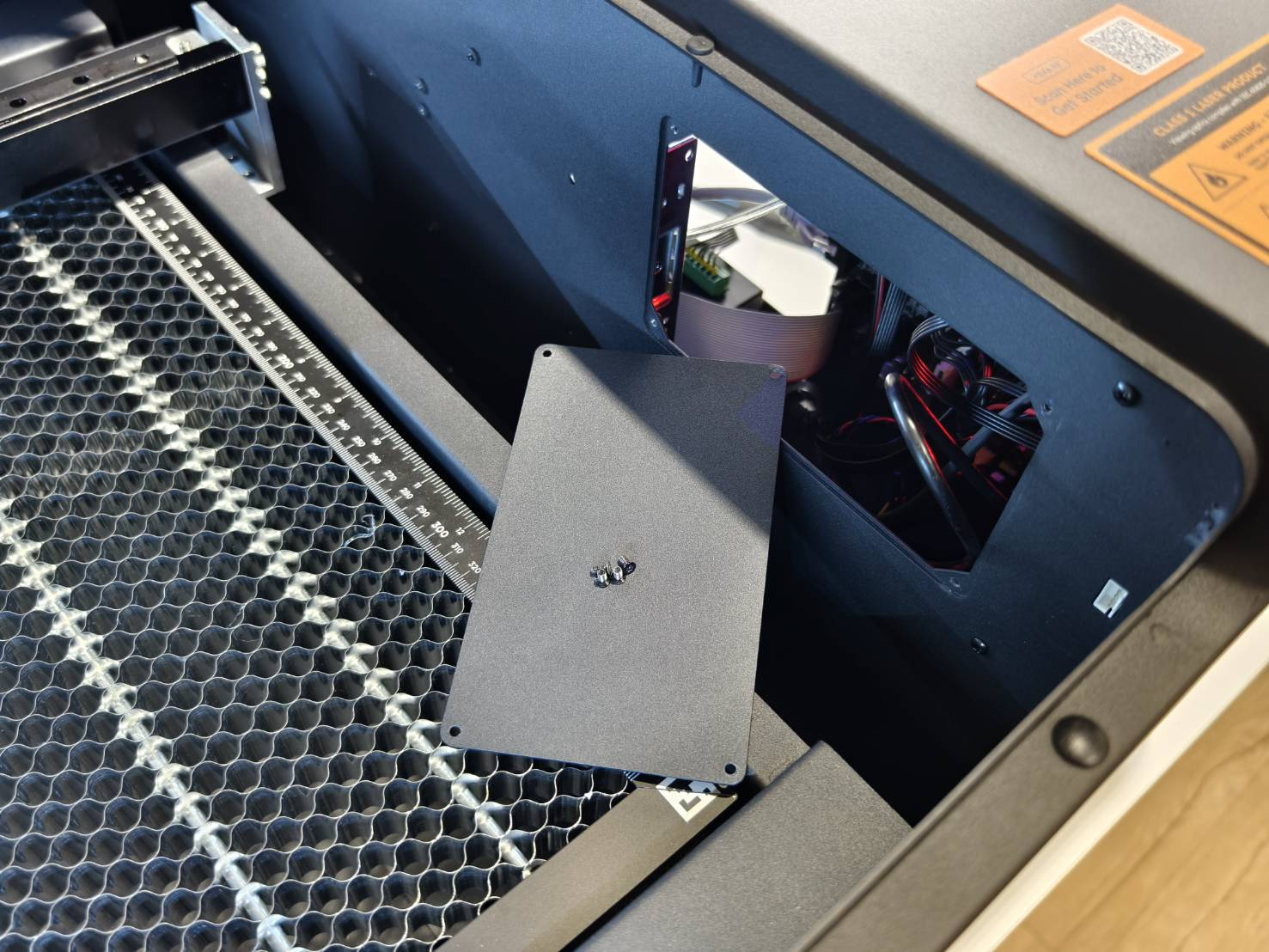

  • Open the side cover to inspect the machine's interior.

  • Reconnect the transparent T-junction (T-fitting).



  • Execute a task and observe if the error appears.

    Screenshot 2024-05-31 at 3.16.46 PM.png



Evaluate the test result and determine the next step:

  • No, error does not appear >> Problem Solved

    • Possible Cause:
      1. Poor connection of the transparent T-junction.

Step 3.3

Restore the machine to factory settings and execute a task to see if the error occurs.

(Home Machine Next Page Factory Reset Yes)



Evaluate the test result and determine the next step:

  • No, error does not appear >> Problem Solved

    • Possible Cause:
      1. System failure.
  • Yes, error still appears >> Contact Customer Service
    • Possible Causes:
      1. System corrupted, needs to re-flash the RK mainboard.
      2. Mainboard failure, needs replacement.

Step 4

Reconnect the transparent T-junction (T-fitting) and check the airflow value.

  • Open the side cover to inspect the machine interior.

  • Reconnect the transparent T-junction.



  • Enable the "Airflow Speed Test" and move the laser head to check the values.

Evaluate the test result and determine the next step:

  • Value is always within normal range >> Step 4.3
  • Value is always below minimum >> Step 4.1
  • Value is always above maximum range >> Step 5
  • Value fluctuates between normal and maximum >> Step 5

Step 4.1

Check the air tubes and the transparent T-junction for any leaks or damage.

  • Check the air tube on the laser head.

    Air tube on nozzle is bent Air tube on chain is bent
  • Check if the air tube connectors are leaking. Reconnect if necessary.


  • Check the rest of the air tube path.

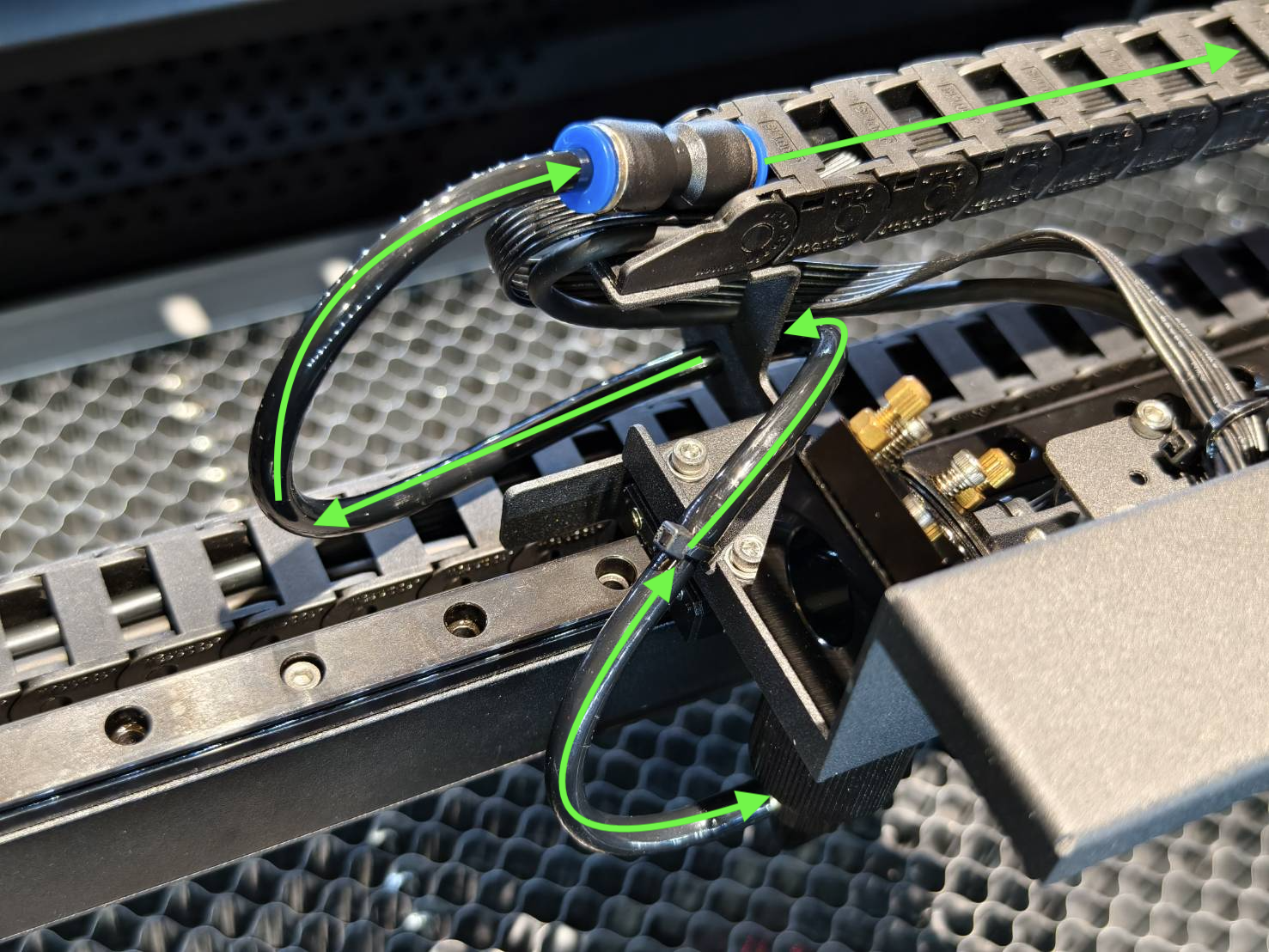

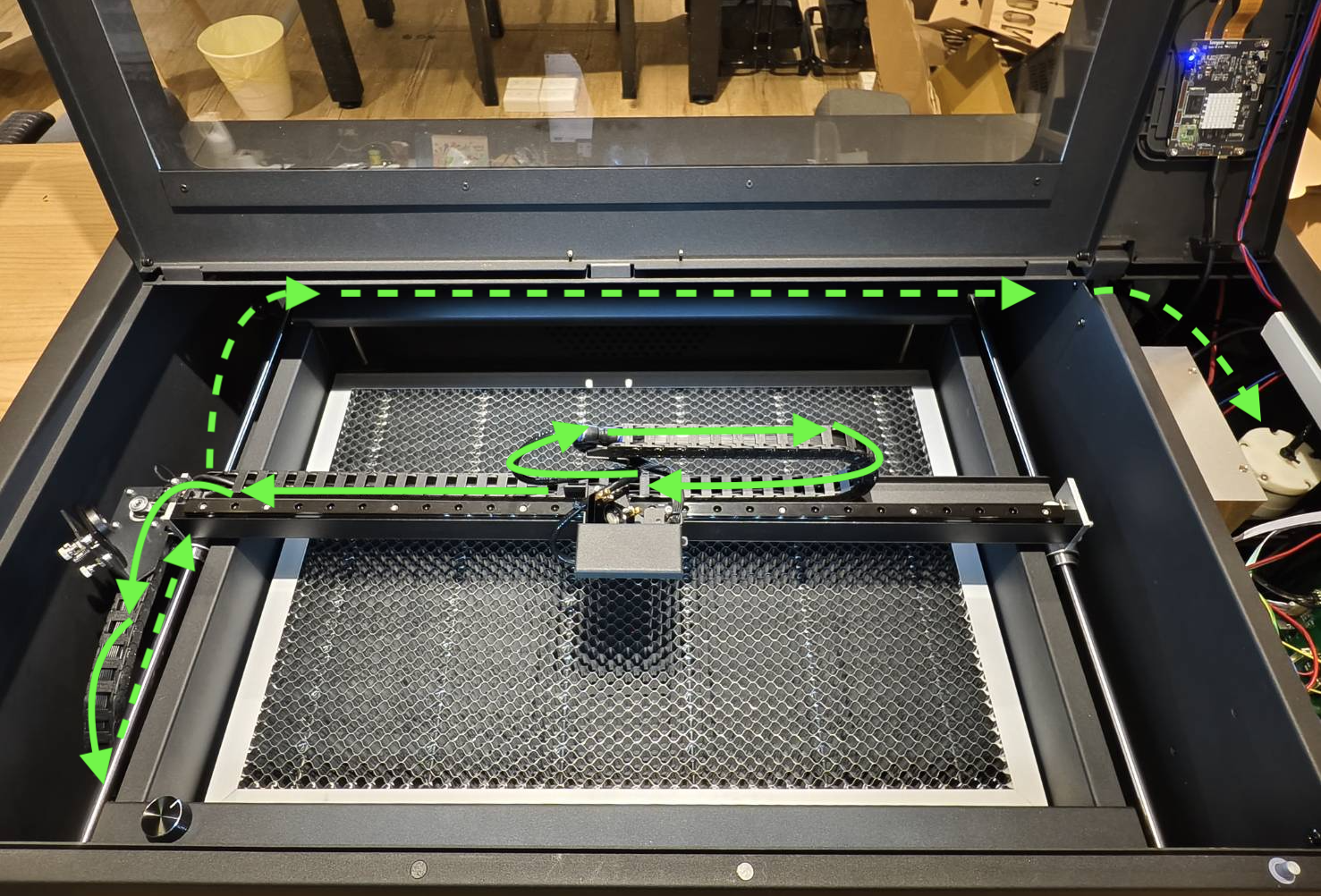

    Air Tube Layout Overview

Evaluate the test result and determine the next step:

  • Air tubes and T-junction are normal >> Step 4.2
  • There is an issue with air tubes or T-junction >> Contact Customer Service
    • Possible Causes:
      1. Air tube failure, needs replacement.
      2. T-junction failure, needs replacement.

Step 4.2

Restore the machine to factory settings and check if the airflow value returns to normal.

(Home Machine Next Page Factory Reset Yes)



Evaluate the test result and determine the next step:

  • Value is always within normal range >> Step 4.3
  • Value is persistently below minimum >> Contact Customer Service
    • Possible Causes:
      1. Air pump failure, needs replacement.
      2. Mainboard failure, needs replacement.
      3. T-junction failure, needs replacement.
  • Value is always above maximum range >> Step 5
  • Value fluctuates between normal and maximum >> Step 5

Step 4.3

Execute a task and observe if the error appears.

Screenshot 2024-05-31 at 3.16.46 PM.png



Evaluate the test result and determine the next step:

  • No, error does not appear >> Problem Solved
    • Possible Causes:
      1. System failure.
      2. Poor connection of the T-junction.
  • Yes, error still appears >> Contact Customer Service
    • Possible Causes:
      1. Mainboard failure, needs replacement.
      2. System corrupted, needs to re-flash the RK mainboard.

Step 5

Open the side cover and check the black air tubes for any bends or kinks.

  • Open the side cover to inspect the machine interior.

  • Check the T-junction.


  • Check the air tube connectors for leaks. Reconnect if necessary.

  • Check the rest of the air tube path.

    Air Tube Layout Overview

Evaluate the test result and determine the next step:

  • No bends in air tubes >> Step 6

Step 5.1

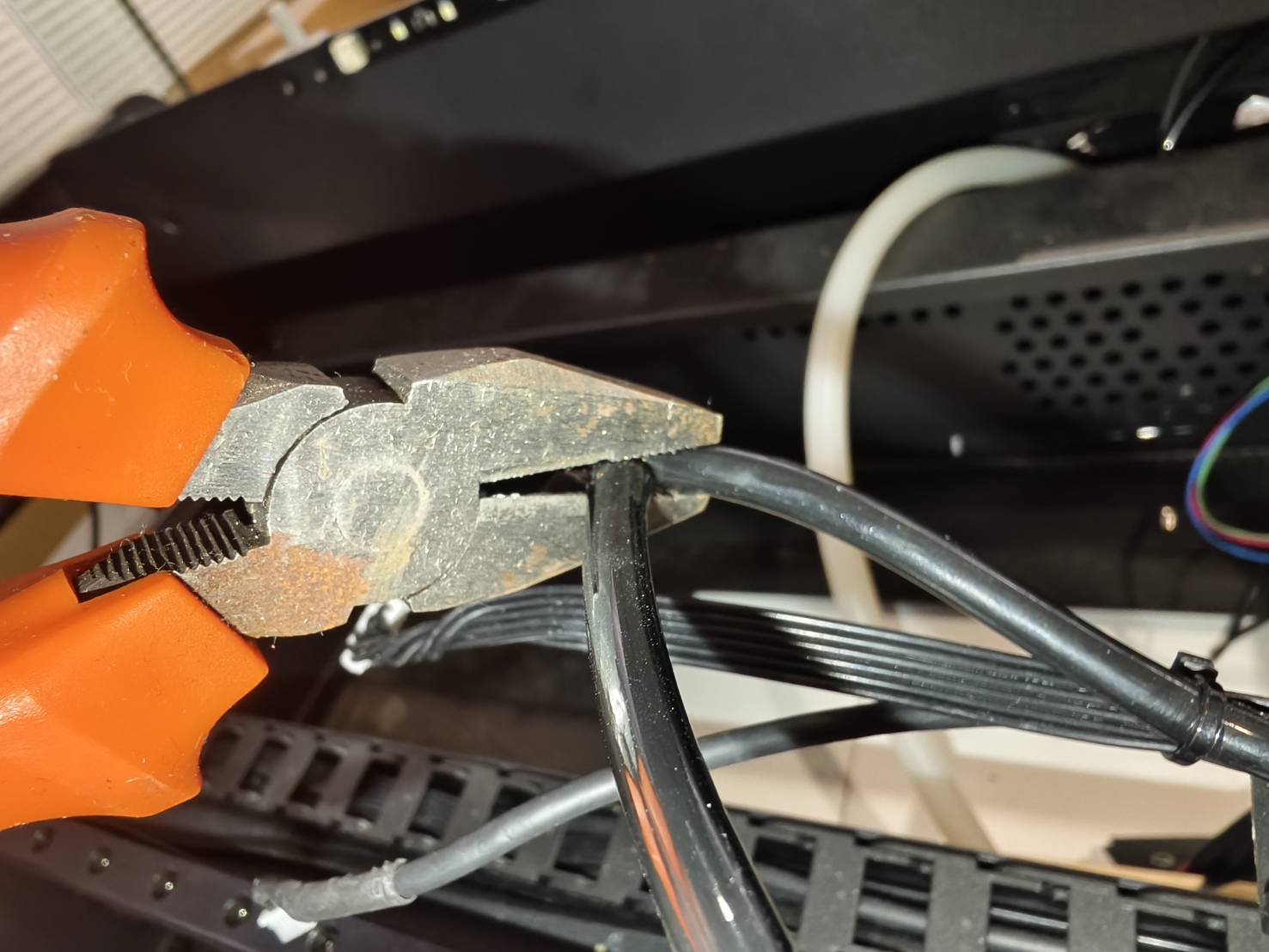

Try to straighten the bent part of the air tube and test the airflow value.
Do NOT cut the air tube. This step is only to apply force to straighten it.



Evaluate the test result and determine the next step:

  • Value is always within normal range >> Step 5.2
  • Value is persistently below minimum >> Step 4
  • Value fluctuates between normal and maximum >> Contact Customer Service
    • Possible Cause:
      1. Air tube damaged, needs replacement.

Step 5.2

Execute a task and observe if the error appears.

Screenshot 2024-05-31 at 3.16.46 PM.png



Evaluate the test result and determine the next step:

  • No, error does not appear >> Problem Solved
    • Possible Cause:
      1. The air tube was previously bent, but has been successfully straightened and fixed.

Step 5.3

Restore the machine to factory settings and observe if the error occurs again.

(Home Machine Next Page Factory Reset Yes)



Evaluate the test result and determine the next step:

  • No, error does not appear >> Problem Solved

    • Possible Cause:
      1. System failure.

Step 6

Restore the machine to factory settings and check the airflow value.

(Home Machine Next Page Factory Reset Yes)



Evaluate the test result and determine the next step:

  • Value is always within normal range >> Step 4.3
  • Value is persistently below minimum >> Step 4
  • Value is always above maximum range >> Step 6.1
  • Value fluctuates between normal and maximum >> Step 6.1

Step 6.1

Unplug the transparent T-junction from the mainboard and observe if the value decreases.






Evaluate the test result and determine the next step:

  • Value decreases and stays below normal range >> Contact Customer Service
    • Air pump failure, needs replacement.
    • Air tube is bent somewhere and cannot be seen.
    • Mainboard failure, needs replacement (Low probability).
    • T-junction failure, needs replacement (Low probability).
  • Value fluctuates between normal and abnormal ranges >> Contact Customer Service
    • Possible Cause:
      1. Mainboard failure, needs replacement.

Contact Customer Service

  • Please follow the instructions in the linked article to report your issue to FLUX official customer support. [Contact Customer Service]

*Information collected in this article, such as photos or videos showing machine problems, will need to be shared with your distributor or FLUX technical support.



#END
