Beambox - Air Hose Replacement

Step 1

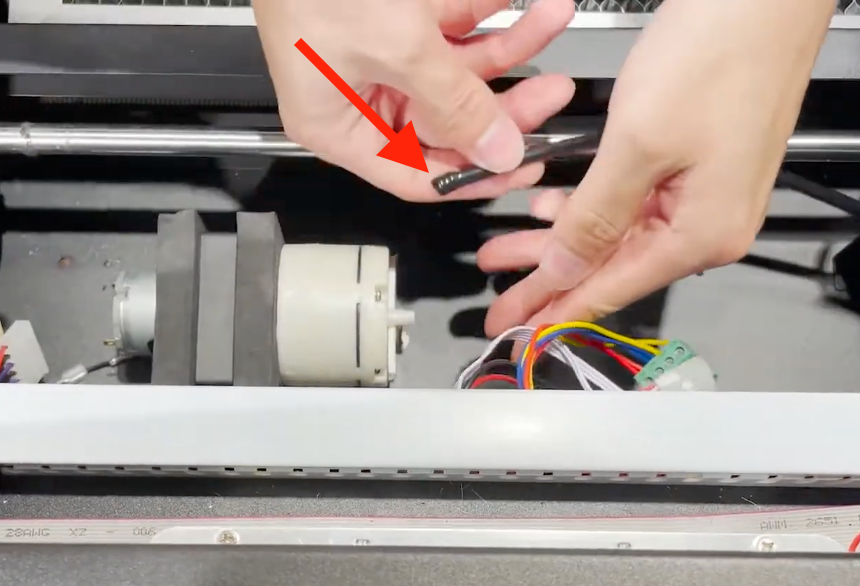

Detach the air hose from the air pump.
Please see the video from 0:00 to 1:50.

Step 2

Detach the air hose from the laser head. (If your air hose is burnt down or not attached, please skip this step.)

Step 3

Extract the air hose from the system. Please note that the video below shows how to extract a camera cable; the concept for extracting the air hose is the same.

Please refer to the video from 2:22 to 5:55.

Step 4

Attach the new air hose to the laser head and position/arrange the other end closer to the air pump.
Please refer to the video from 5:56 to 11:53.

Please make sure to attach the air hose to the laser head along with the focus probe.

Step 5

Attach the new air hose to the air pump, secure it with the screws, and place the side plate back in position.

Please refer to the video from 2:10 to 5:28(End).

Step 6

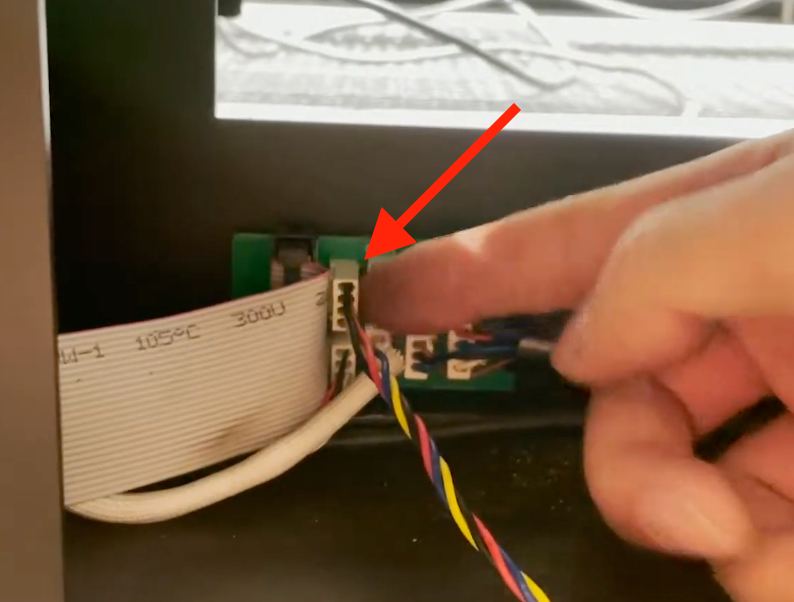

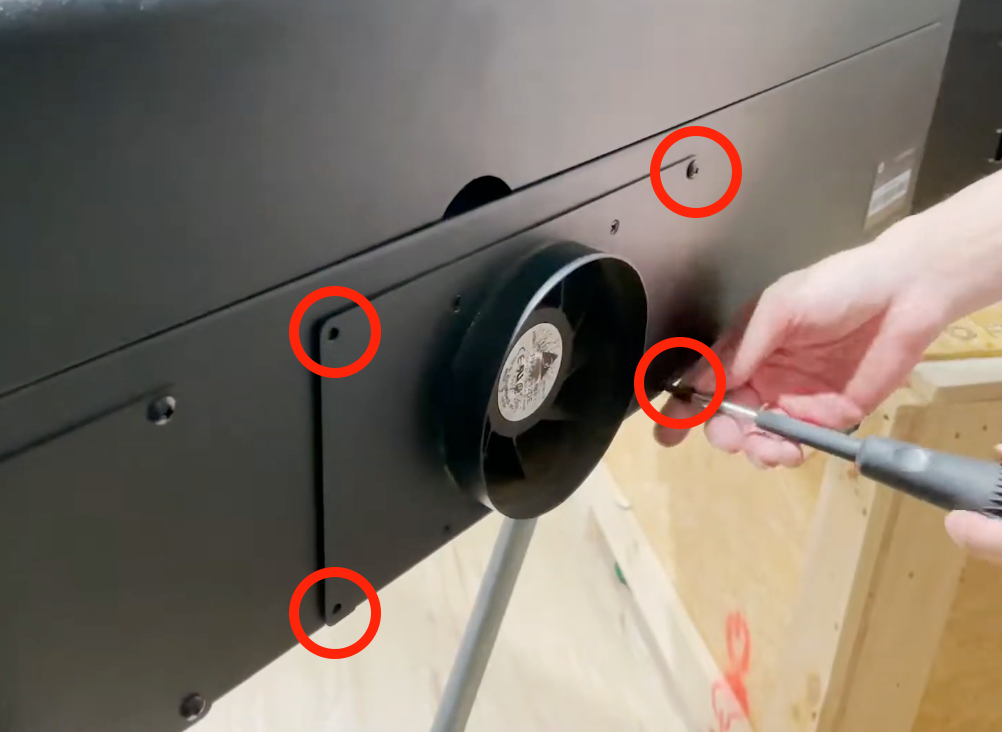

Replug the main fan's cable and fix it with the screws.

#END
