This article is only suitable for the EMMC version RK board. Please confirm the mainboard version.
How to check the mainboard:

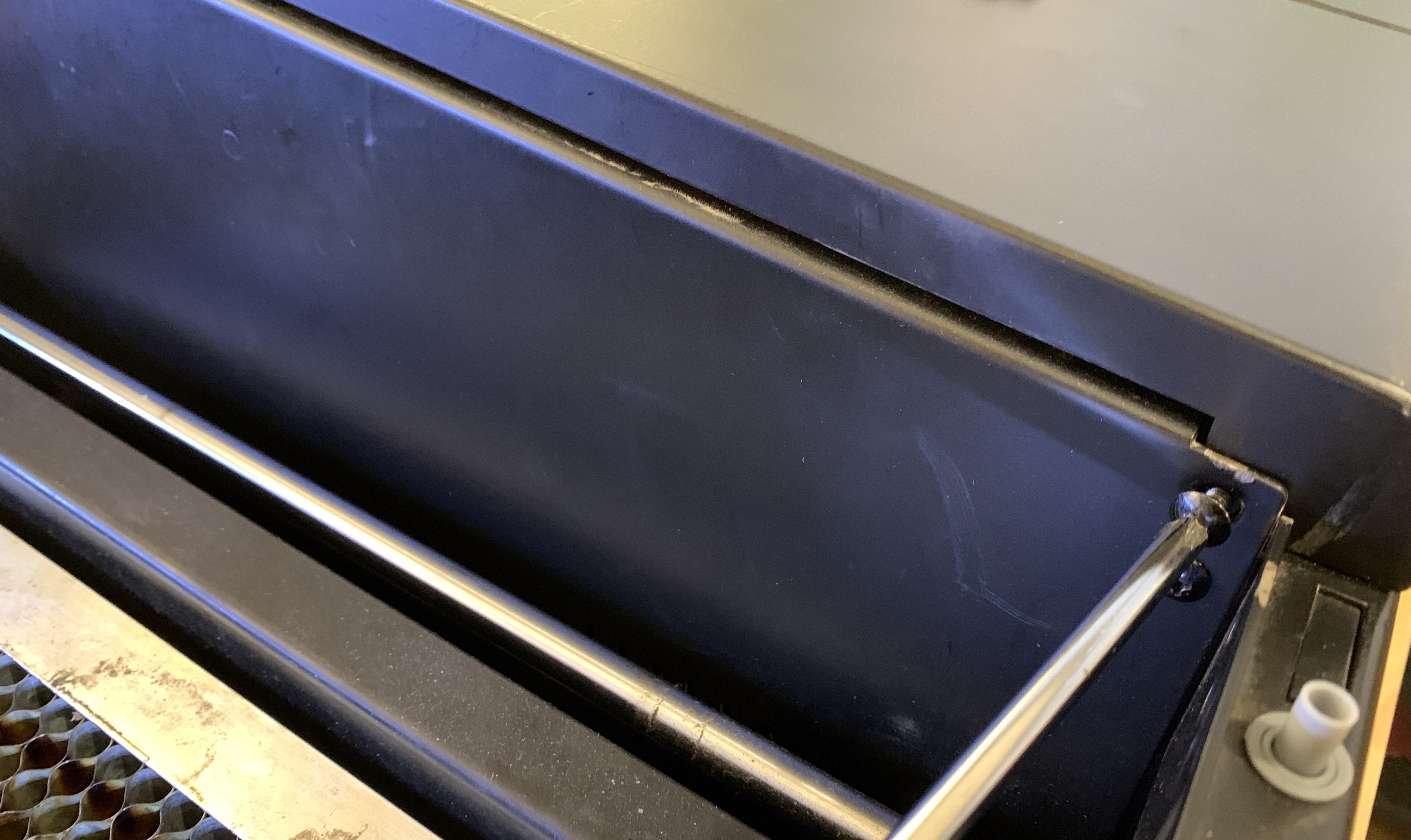

- Remove the screw and open the right cover when the machine is off.

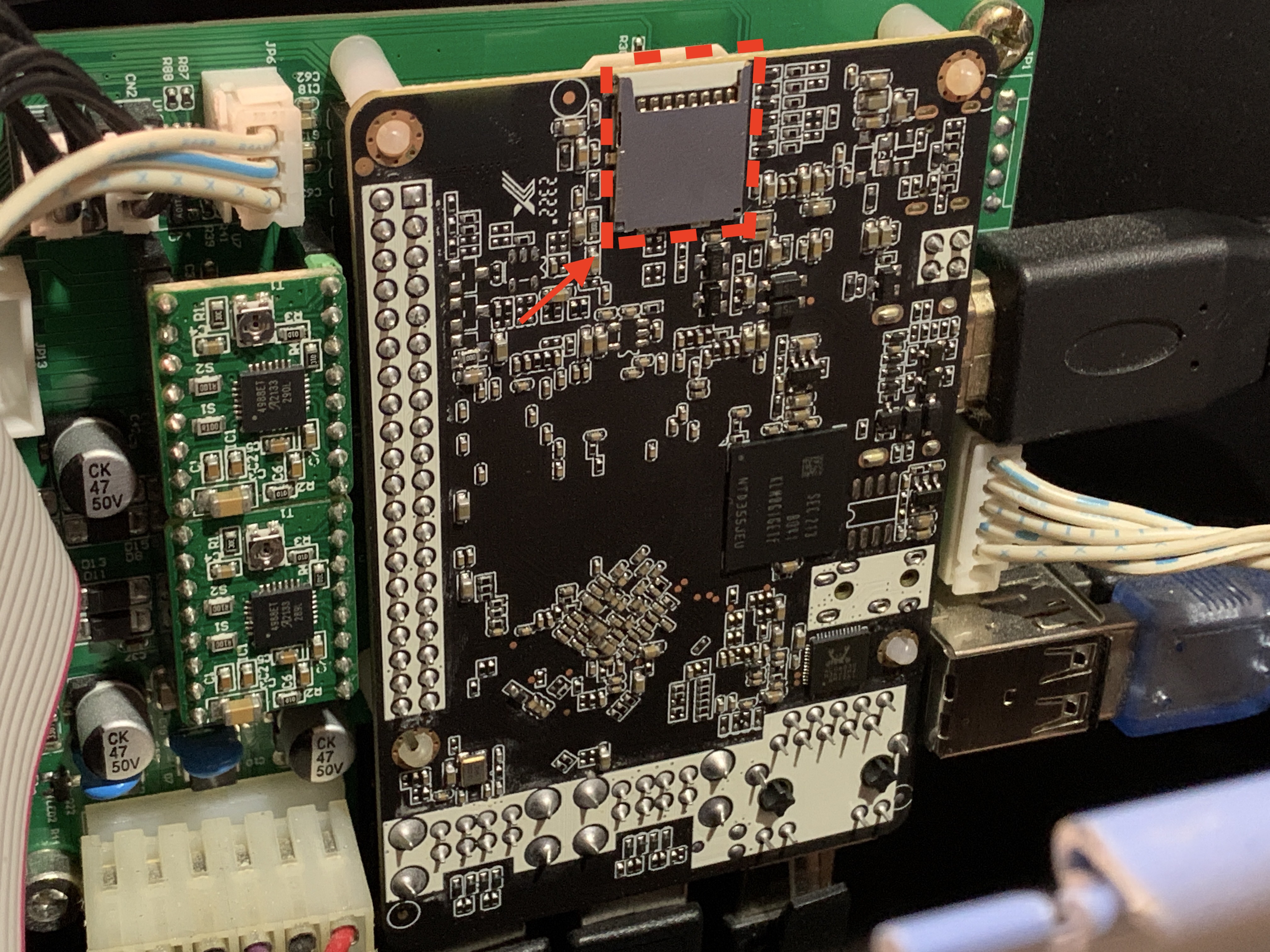

- Lift the plate, find the micro SD card on the mainboard, and identify the mainboard version.
⚠︎ If your mainboard has an SD card, please refer to this article for reflashing the SD card.
7-5-1 Beambox / Beambox Pro Reflashing SD card
Tools:
- A computer with the Windows OS.

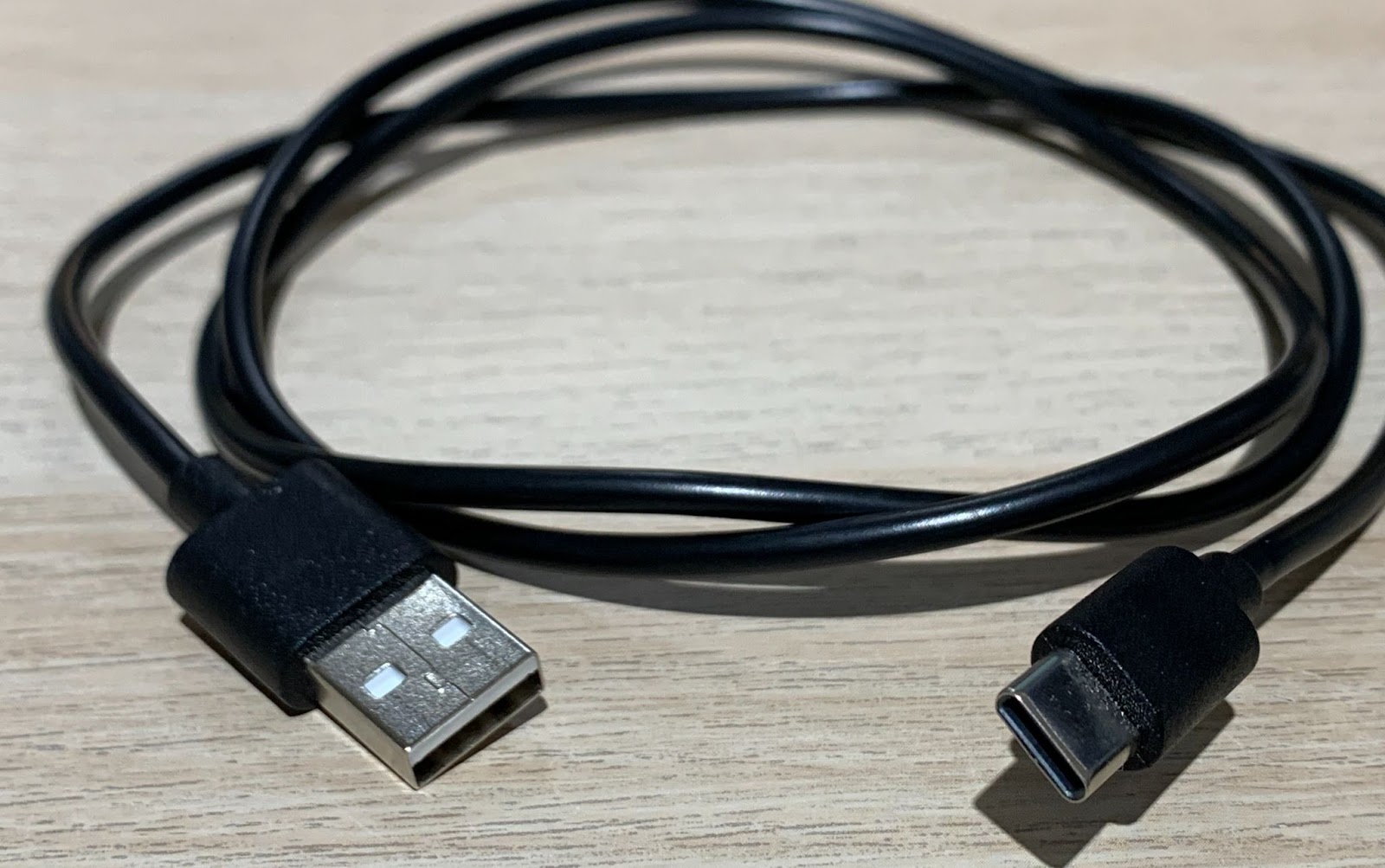

- A cable of USB-A to USB-C.
Download Links:
Reflashing Software & Driver Links:(Only suitable for Windows OS)
Firmware Link: V4.1.7
Step 1 - Remove the RK Board From the Machine
Please refer to the video to remove the RK board.
Step 2 - Start reflashing the RK board
Please refer to the video to reflash the RK board, and note the important information below.

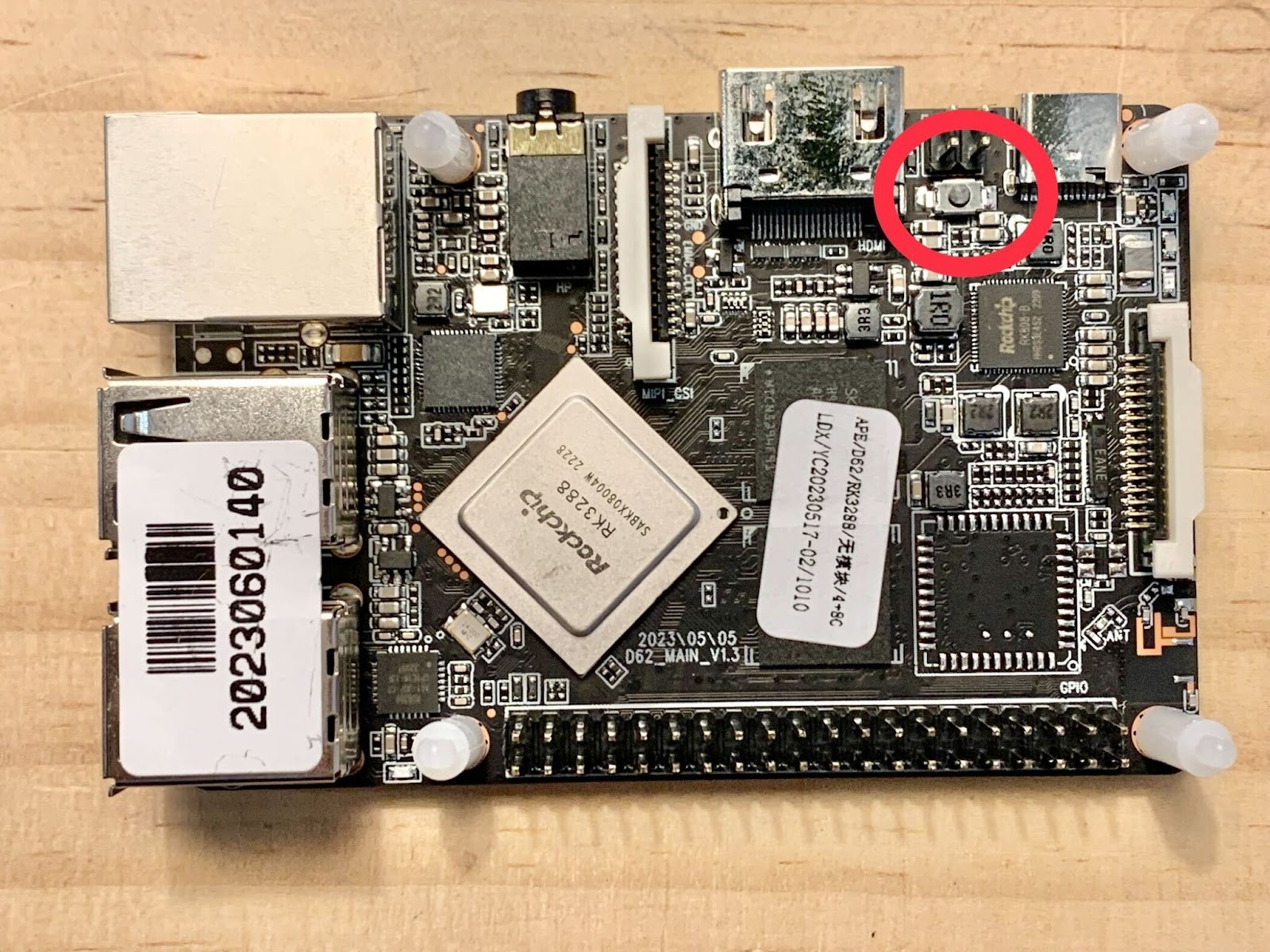

Round button position on the RK board:

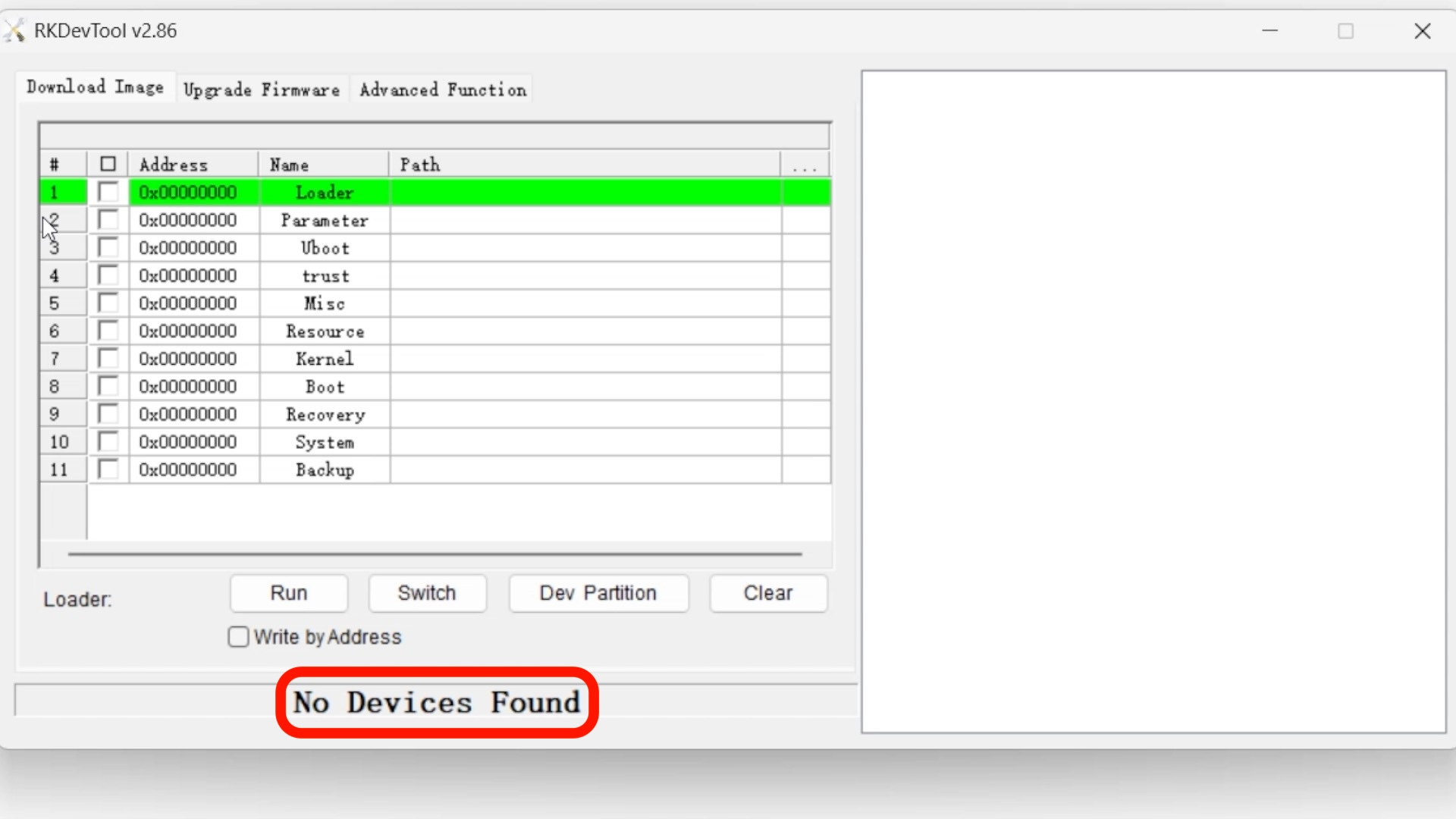

Check the software. The words at the bottom should be changed from "No Devices Found" to
"Found One LOADER Device."
This indicates the machine has entered "Burning Mode," and the button can be released.

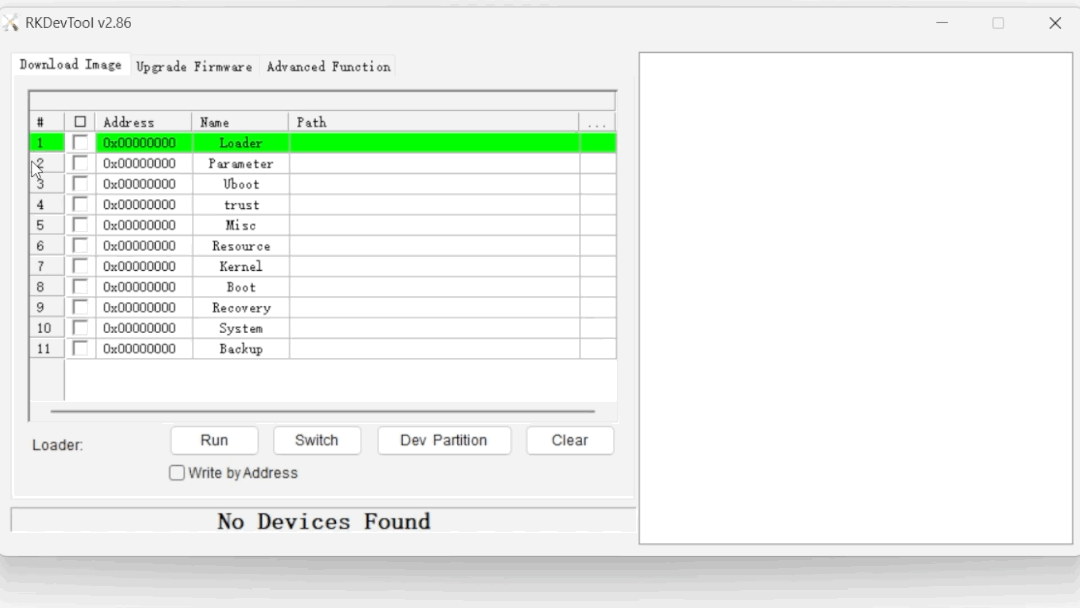

If the words at the bottom remain "No Devices Found."
Please reconnect the USB cable.
Step 3 - Check the Reflashing Status

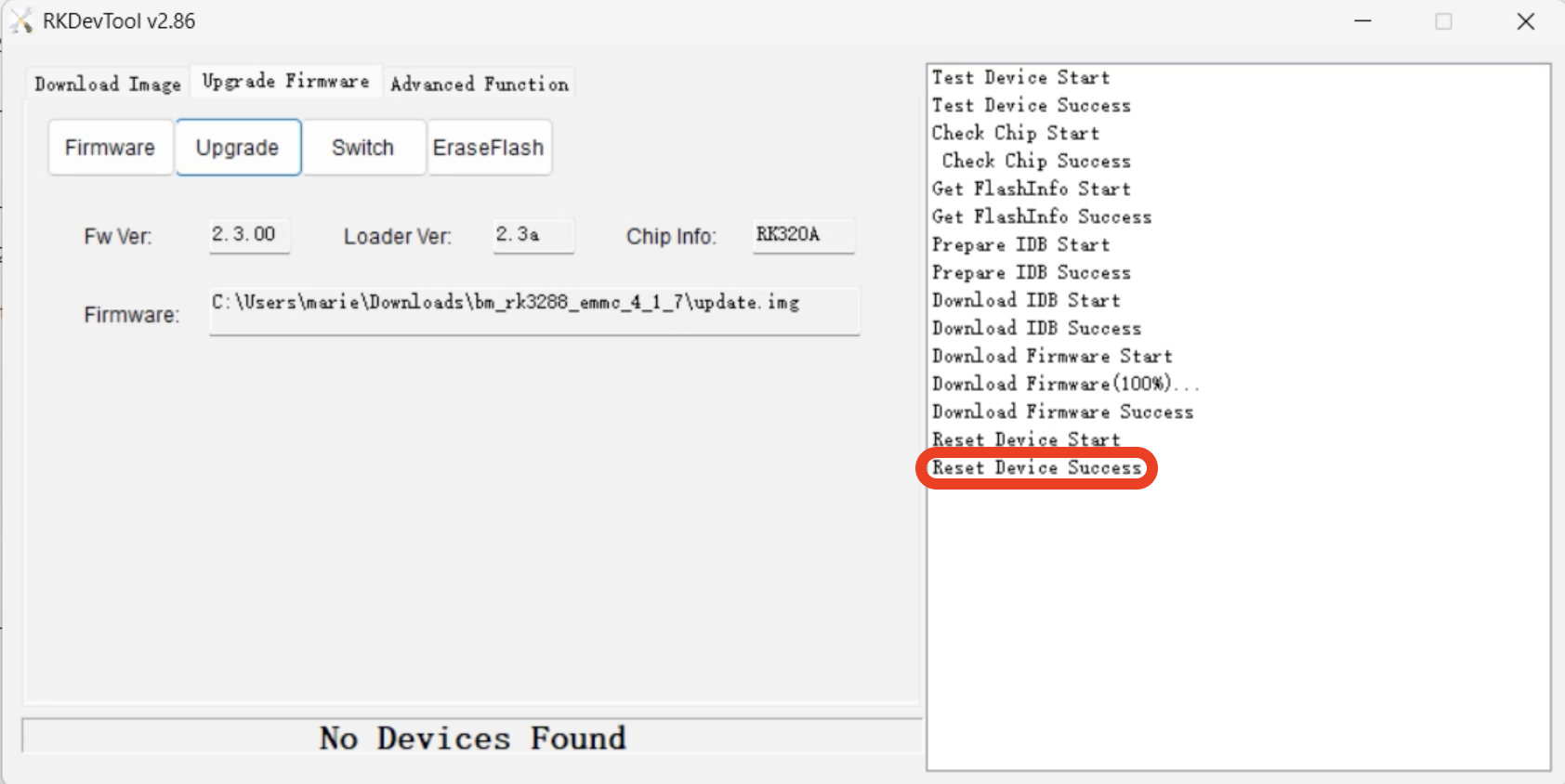

When it shows "reset device success" on the right side status, then the reflashing is successful.
If it doesn't show "reset device success" on the right side status, it could fail on reflash. Please contact customer service and attach a screenshot of the software.
