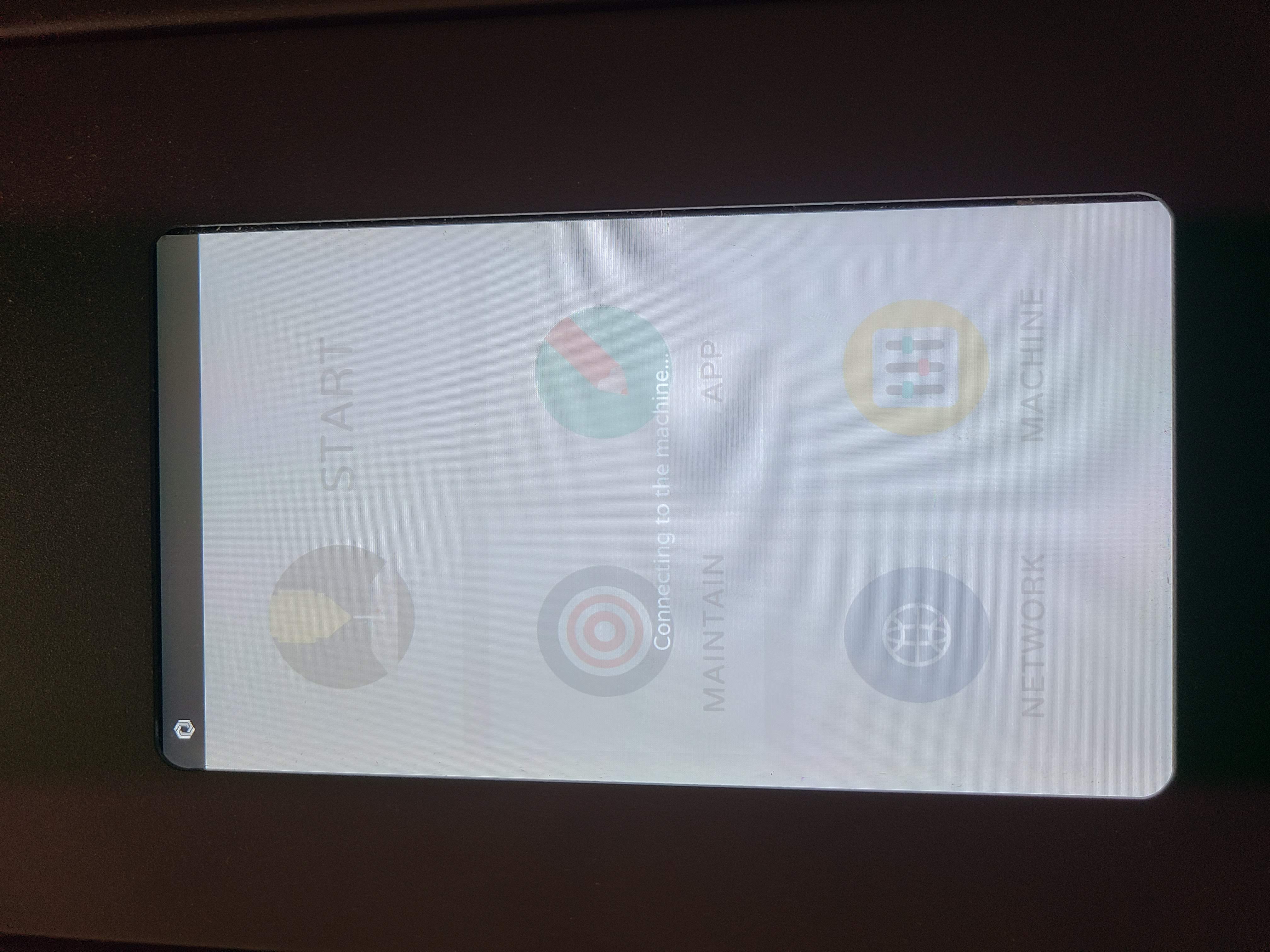

If the machine's screen keeps showing "connecting" and does not respond, please try rebooting it and see if it helps.

If the issue persists, turn off the machine and reflash the SD card.

1. Open the right cover

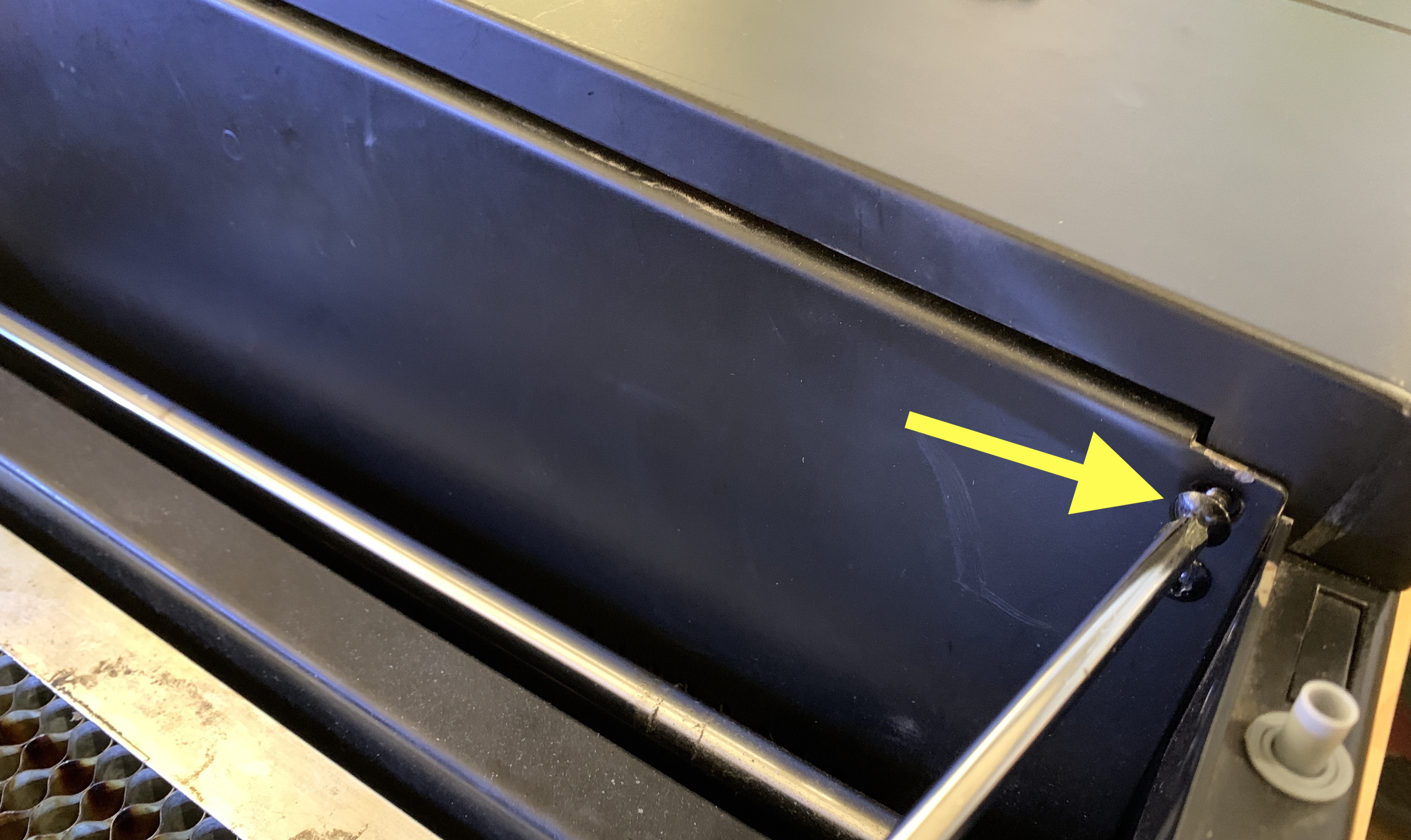

Remove the screw and open the right cover when the machine is off.

2. Identify the Mainboard Version

Lift the plate, find the micro SD card on the mainboard, and identify the mainboard version. (black version or green version)

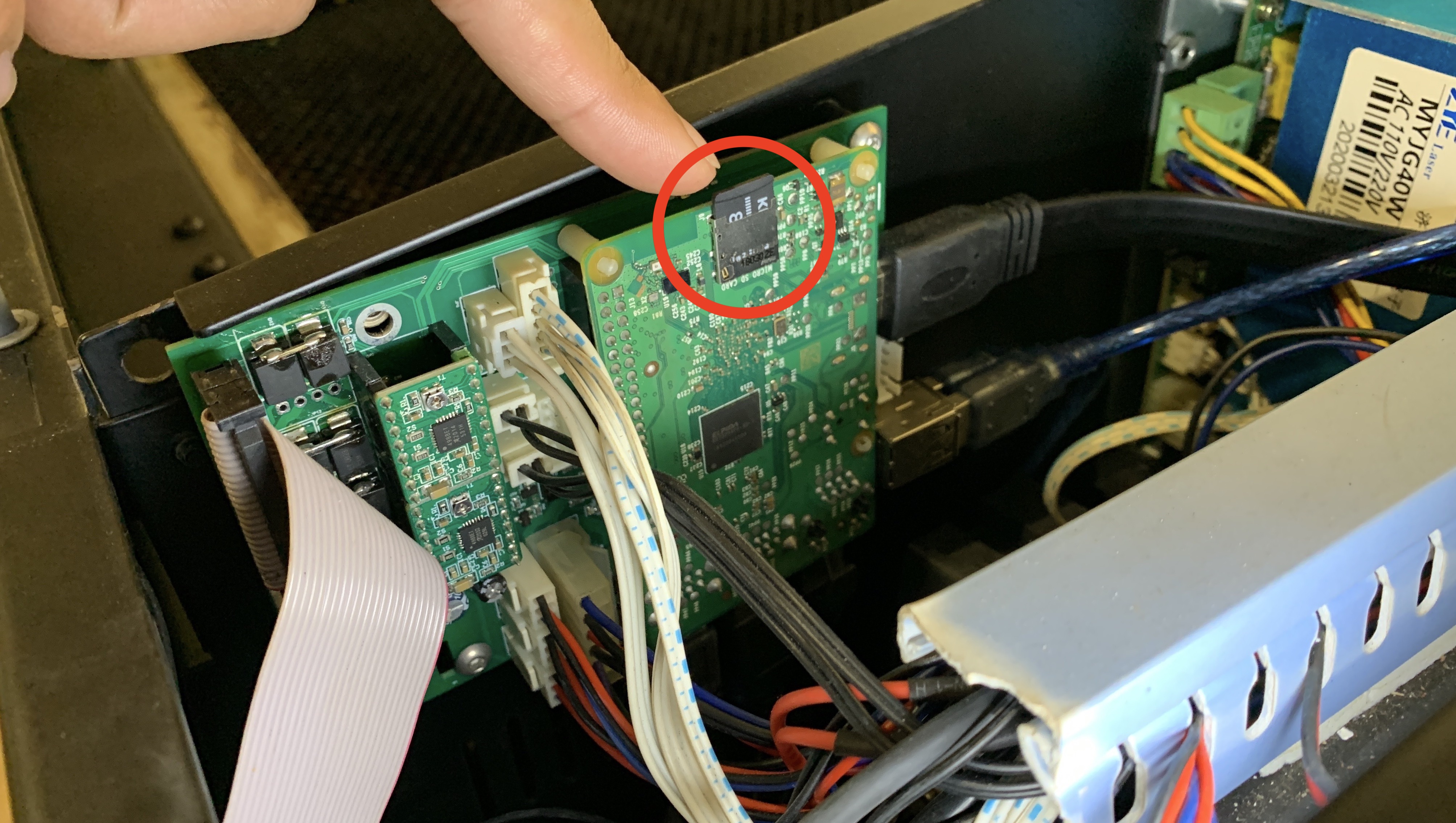

Green version:

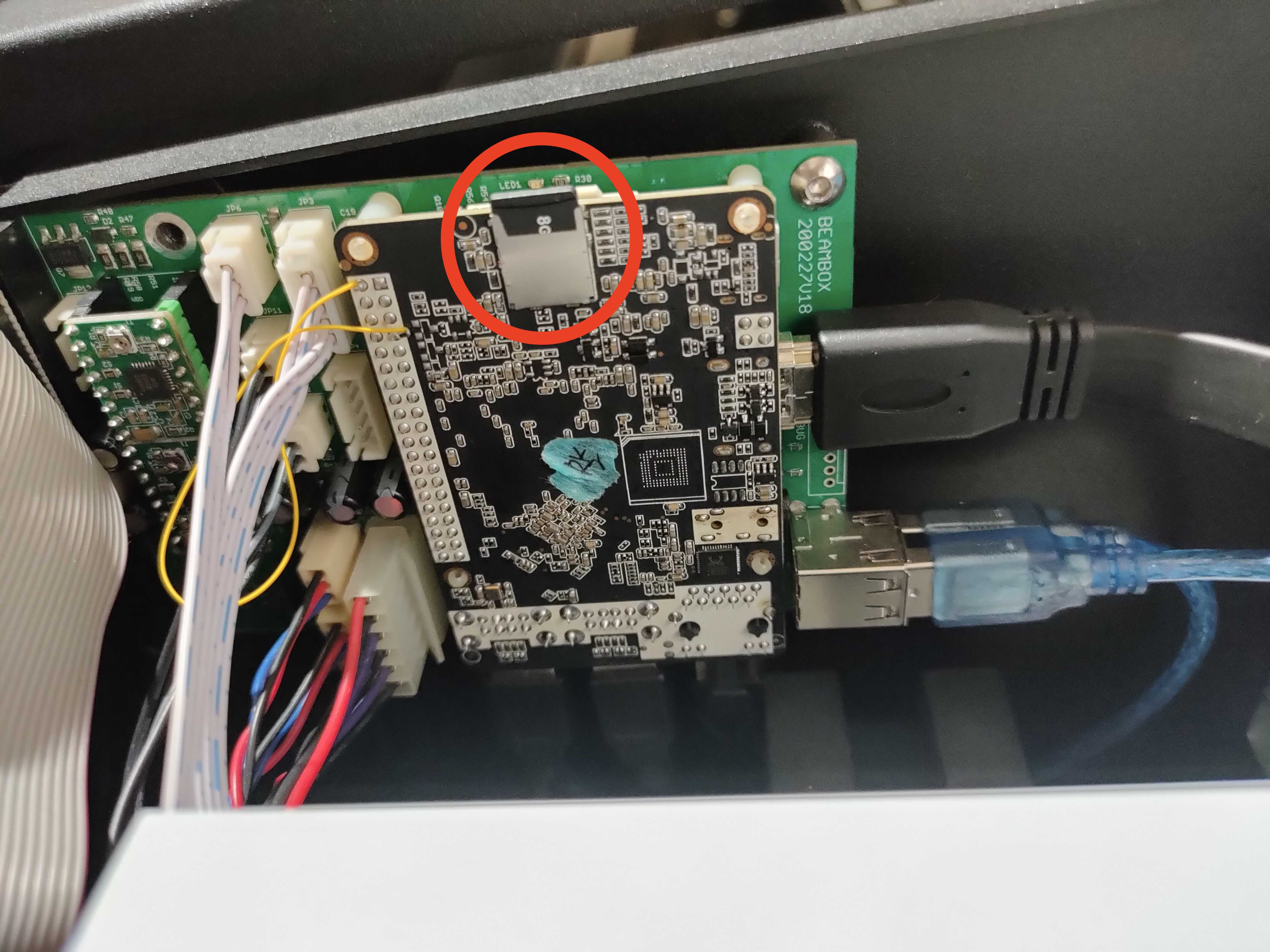

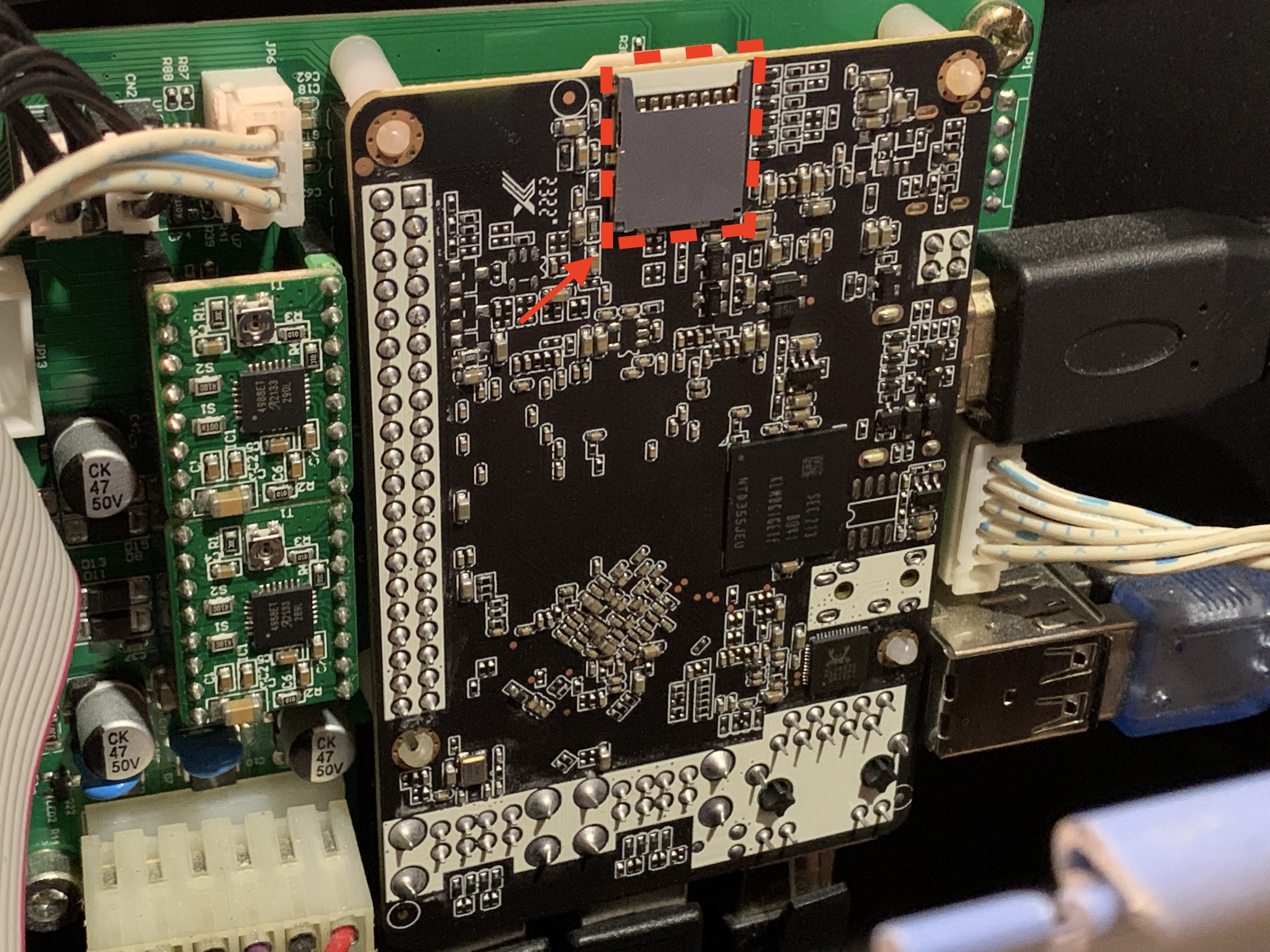

Black version: Beambox

⚠︎ If your mainboard is a black version with no SD card, it means you have the EMMC version RK board.

Please refer to this article for reflashing the system: 7-5-2 Beambox/Beambox Pro - Reflashing the EMMC Version RK board (without SD card)

3. Download the System Image

Download the system ISO file that needs to reflash into the SD card from the link below:

Click here for the green version. (Firmware 4.1.7, use zip file directly)

Click here for the black version (Firmware 4.1.7, use zip file directly)

4. Download the software for the burn process

The burning processes on the Windows/macOS system are similar. Please select the software that best fits your operating system. The link is as follows –

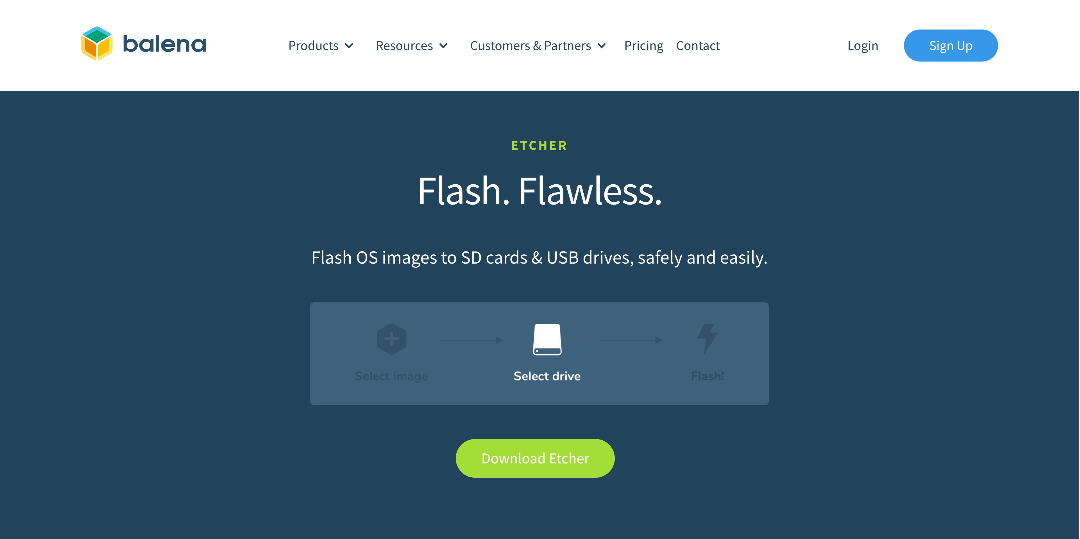

https://www.balena.io/etcher/ 下載燒錄程式.gif

5. Burn the Image

Connect a card reader to your computer and plug in the SD card to the reader.
There is no need to format the SD card before the burning process.
Activate the burn process software, and select your operating system to begin.
This process will take around 20-30 minutes.

6. Insert the SD Card back into the machine

After completing the burn process, please insert the SD card back into the machine, power it on, and let it run for a while. The burning process will be completed during this time.

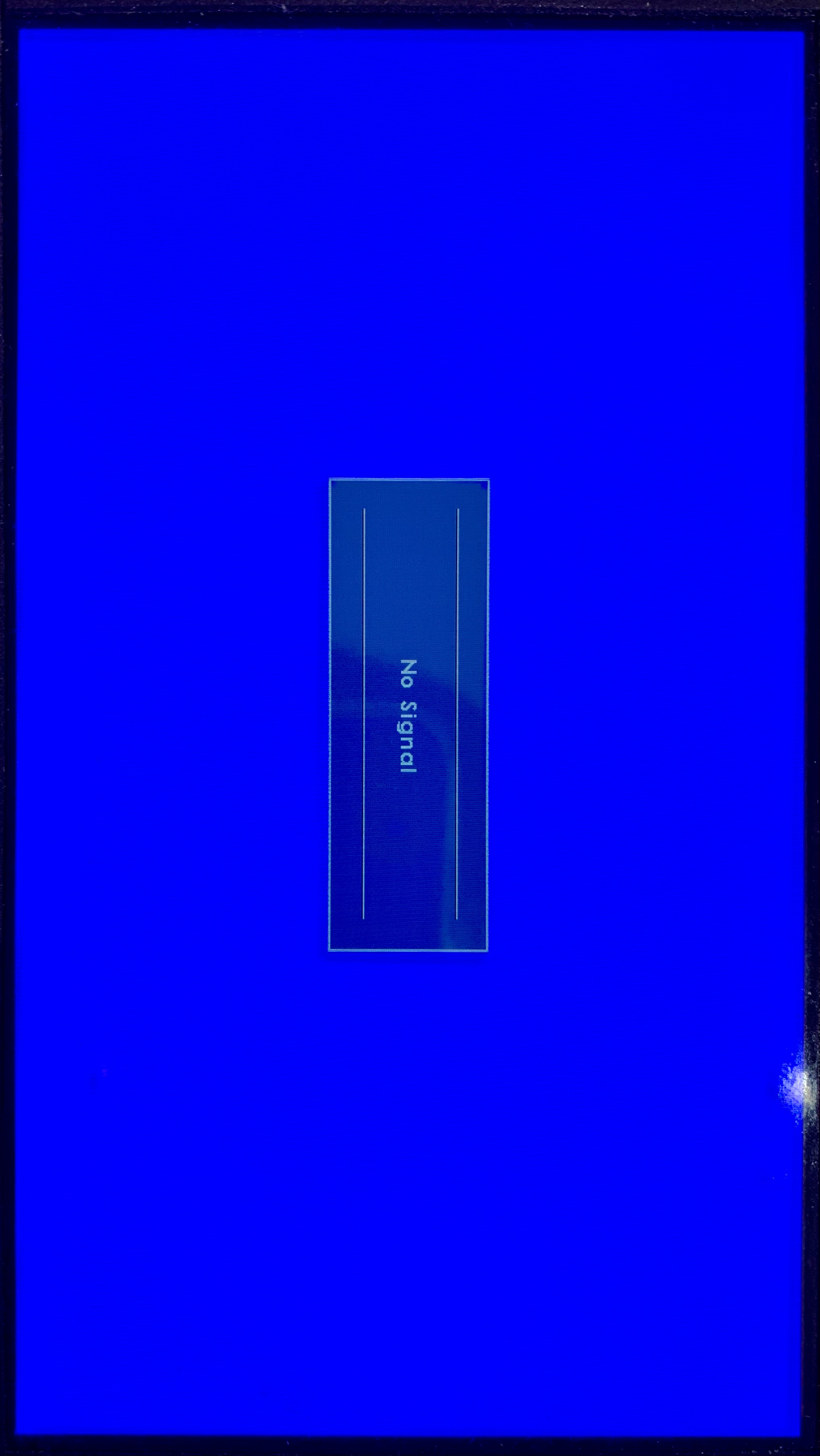

If you encounter a blue screen after inserting the SD card and powering the machine, as mentioned below, it signifies a failed burning process or an incorrect file version. In this case, please proceed again with reflashing the firmware.

*NOTE: When the burning process is completed, do NOT cut off the power supply before the first activation. This process might damage the system files previously burnt or cause the SD card to malfunction.

IMG_6138 2.jpeg

7. Working Area (Option)

If your machine model is the Beambox Pro, please send a task (try at least engrave one object).

The workspace will then change to the Pro version.
