5-6 Camera Issues Troubleshooting (Camera Preview Timeout, Failed to Connect, Blank Photos)

FLUX Support Team
  • Updated

Description

The reasons for not being able to use the camera function are complex and may be caused by hardware, software, poor connection environment, network speed, etc. This article will show you how to determine a hardware or software issue.

The applicable models of this article are HEXA, Beambox Pro, Beambox, and beamo.



If your camera displays the images but the image shifts, blurs, or the previewing process is way too slow, etc., please check the following articles.


Possible Causes:

  1. The system fails (Re-update the firmware, reset to factory, or reflash SD card.)
  2. The internet speed is too slow.
  3. The network environment is not healthy.
  4. The software, Beam Studio is having a problem.
  5. The physical connection of the camera cable is improperly connected.
  6. The camera cable is having a problem.
  7. The camera module is having a problem. (Less likely)
  8. The RPi/RK board is having a problem. (Less likely)



Step 1

Please refer to the following video to test whether the camera image on the screen is normal when the laser head moves in control mode.
Please place a board or paper in the middle of the bed to facilitate observation of the camera's image.
"Control" panel > "Camera" > Open door cover > Click "D" > Click "B" > Click "C" > Click "A"
(Note that the camera updates the image every 3 seconds)



Determine the result and the next action to take:

  • The image is normal, as in the video. >> Step 2
  • It has an image, but when moving, it freezes. >> Step 3
  • It has an image, but when moving, it becomes blank. >> Step 3
  • It is always blank >> Step 3



Step 2

Please refer to the link below to reconnect or change the connection method.
2-5 Connection Settings

Determine the result and the next action to take:

  • In Beam Studio, the camera is working. >> Problem solved
  • In Beam Studio, the camera is NOT working. >> Step 2.1


Step 2.1

Please download from this link and try different versions of Beam Studio.

  • Reinstall the existing version of Beam Studio
  • Update to the latest beta version of Beam Studio
  • Downgrade to the latest stable version of Beam Studio

Determine the result and the next action to take:

  • In Beam Studio, the camera is working. >> SW version bug >> Problem solved
  • In Beam Studio, the camera is NOT working. >> Step 2.2



Step 2.2

Use the mobile's hotspot and ensure the frequency supports 2.4GHz.
Then test the camera preview again.
Note: The machine and your computer must be connected to this hotspot to communicate.

  • For iOS, enable "Maximize Compatibility" in your personal hotspot settings.
  • For Android, adjust the “AP frequency” in your personal hotspot settings.

  • If the hotspot name and password contain special characters or non-English or non-numeric characters, it may be a problem with the machine connection.
    Change the Wi-Fi name to all English characters and the password to all numbers.

    Recommended changes:
    - Name: ABCDEFG
    - Password: 12345678

Determine the result and the next action to take:

  • In Beam Studio, the camera is working. >> Network environment >> Check router, internet speed, signal strength, etc.
  • In Beam Studio, the camera is NOT working. >> Step 2.3



Step 2.3

Please refer to the following article to reset the machine factory and then try the camera preview again.
5-30 Reset to Factory



Determine the result and the next action to take:

  • In Beam Studio, the camera is working. >>  Firmware bug >> Problem solved
  • In Beam Studio, the camera is NOT working. >> Step 2.4



Step 2.4

Please download from this link and try different versions of the firmware.

  • Reinstall the existing version of the firmware
  • Update to the latest beta version of the firmware
  • Downgrade to the latest stable version of the firmware

Determine the result and the next action to take:

  • In Beam Studio, the camera is working. >> Firmware bug >> Problem solved



Step 3

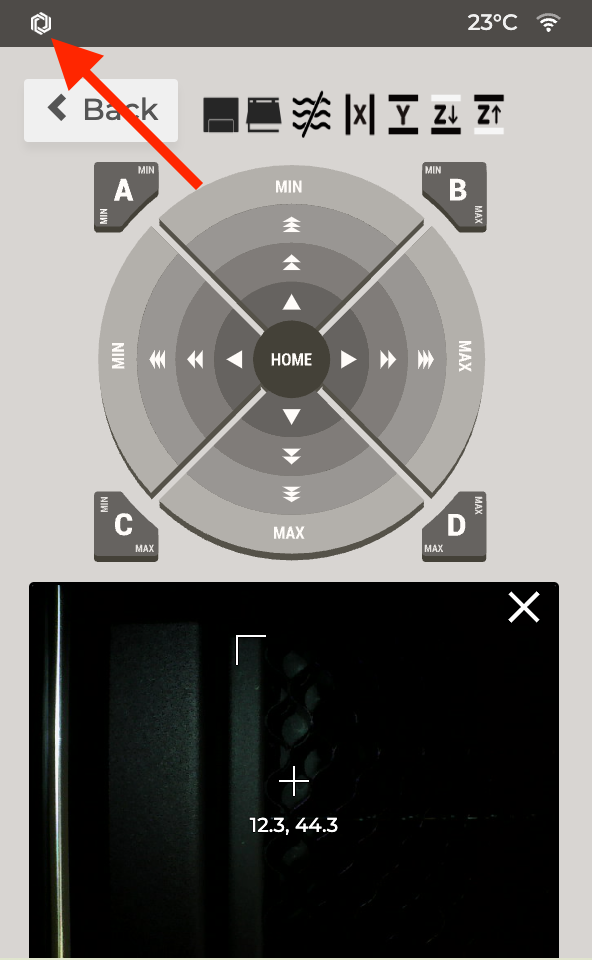

Click the icon in the upper left corner to update the screen, and then do the test in Step 1 again.



Determine the result and the next action to take:

  • The image is normal, as in the video. >> Problem solved
  • It has an image, but when moving, it freezes. >> Step 6
  • It has an image, but when moving, it becomes blank. >> Step 6
  • It is always blank >> Step 4



Step 4

Please refer to the following article to reset the machine factory and then try the camera preview on the touch panel again.
5-30 Reset to Factory



Determine the result and the next action to take:

  • The image is normal, as in the video. >> Firmware Issue >> Problem solved
  • It has an image, but when moving, it freezes. >> Step 6
  • It has an image, but when moving, it becomes blank. >> Step 6
  • It is always blank >> Step 5



Step 5

Please download from this link and try different versions of the firmware. After installation, try the camera preview on the touch panel again.

  • Reinstall the existing version of the firmware
  • Update to the latest beta version of the firmware
  • Downgrade to the latest stable version of the firmware
Determine the result and the next action to take:
  • The image is normal, as in the video. >> Firmware Issue >> Problem solved
  • It has an image, but when moving, it freezes. >> Step 6
  • It has an image, but when moving, it becomes blank. >> Step 6
  • It is always blank >> Step 6


Step 6

Go to the laser head to replug the camera cable and try the camera preview on the touch panel again.

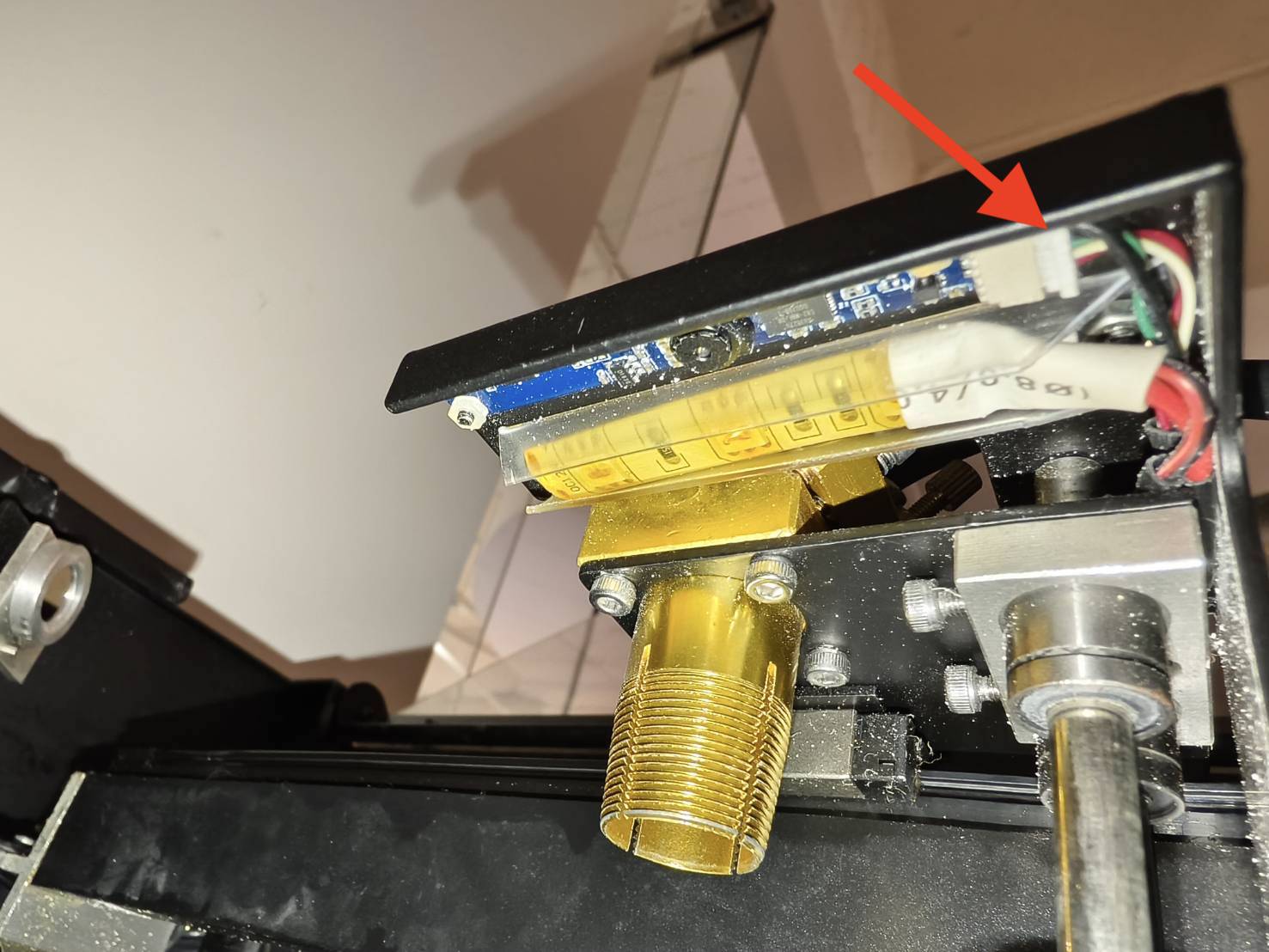

Camera Cable Locations

  • HEXA

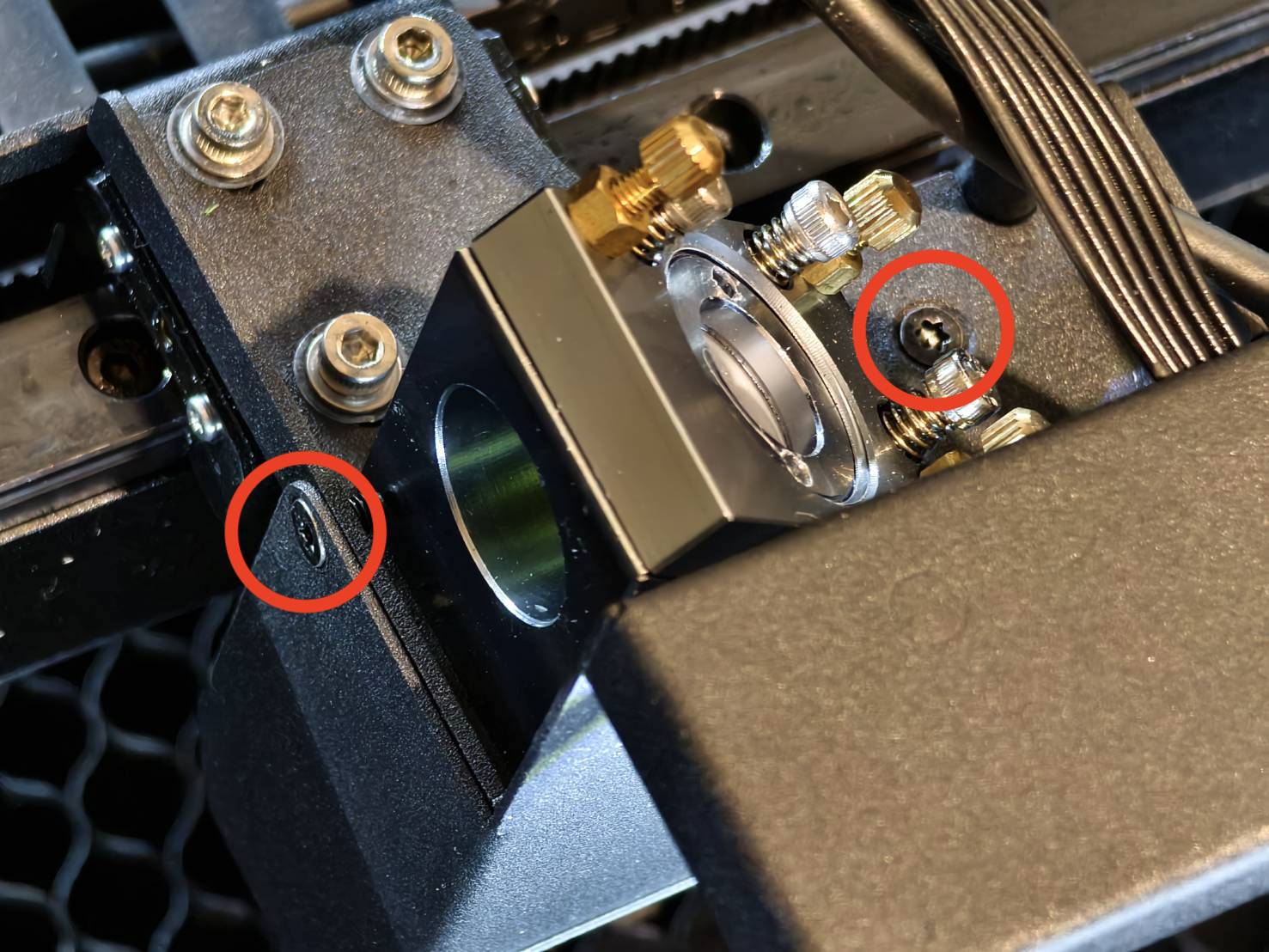

    Remove the screws and flip the shield to find the camera cable.

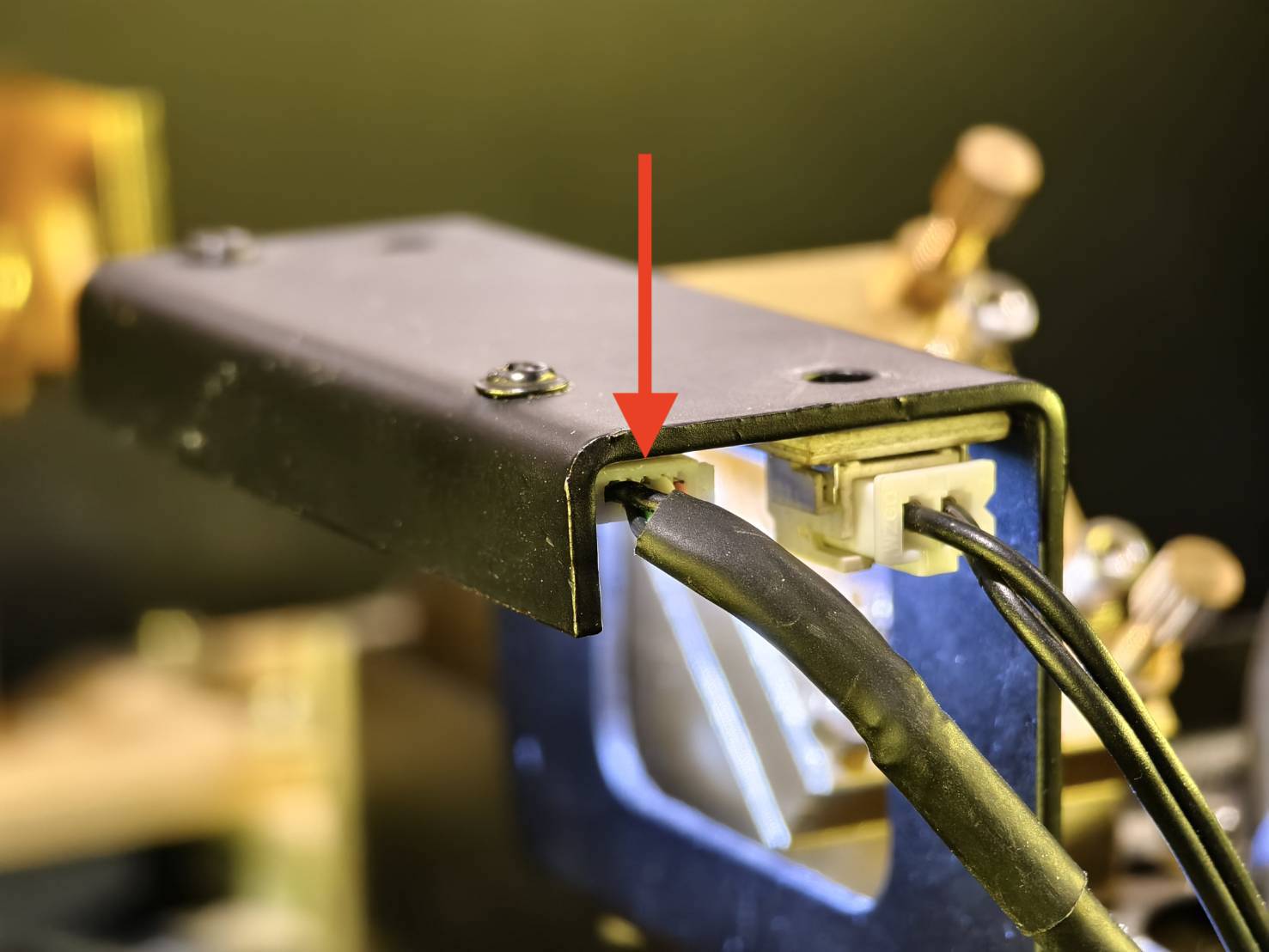

  • Beambox and Beambox Pro

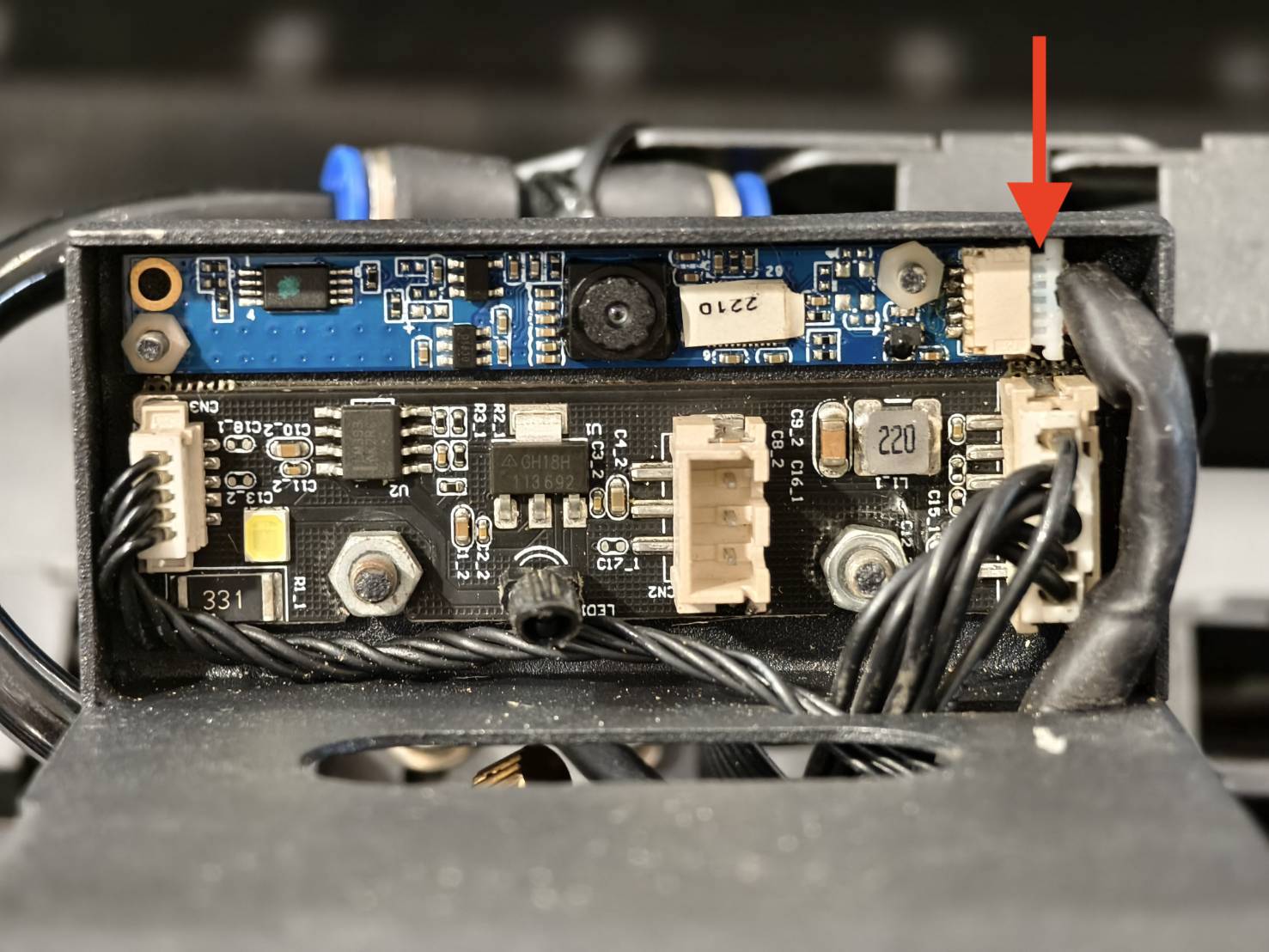

  • beamo (Manual focus)

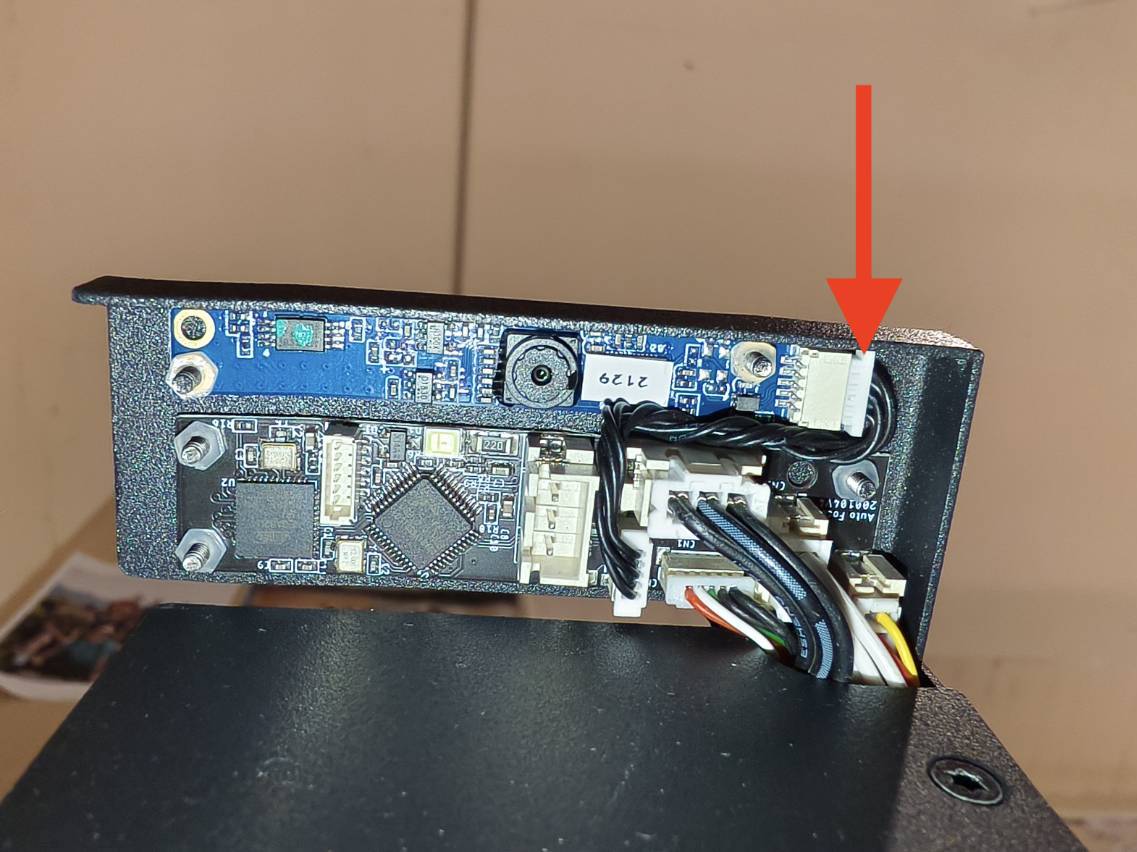

  • beamo (Auto-focus)

Determine the result and the next action to take:

  • The image is normal, as in the video. >> Improper Physical Connection >> Problem solved
  • Other symptoms >> Hardware Issue: Camera cable, Camera module, Mainboard/RPi/RK >> Record a video(Example) >> Contact us


Step 7

  • Please make sure you've captured a bug report or recorded a video.
  • Please follow the instructions in the link below to properly report an issue to your local reseller or FLUX support. [Contact Customer Service]

*The collected information, such as photos or videos showing your machine's problem in this article, will be necessary to be shared with the reseller or FLUX Support.
