Recommended Frequency
Once every 1-2 weeks.
Maintenance Steps

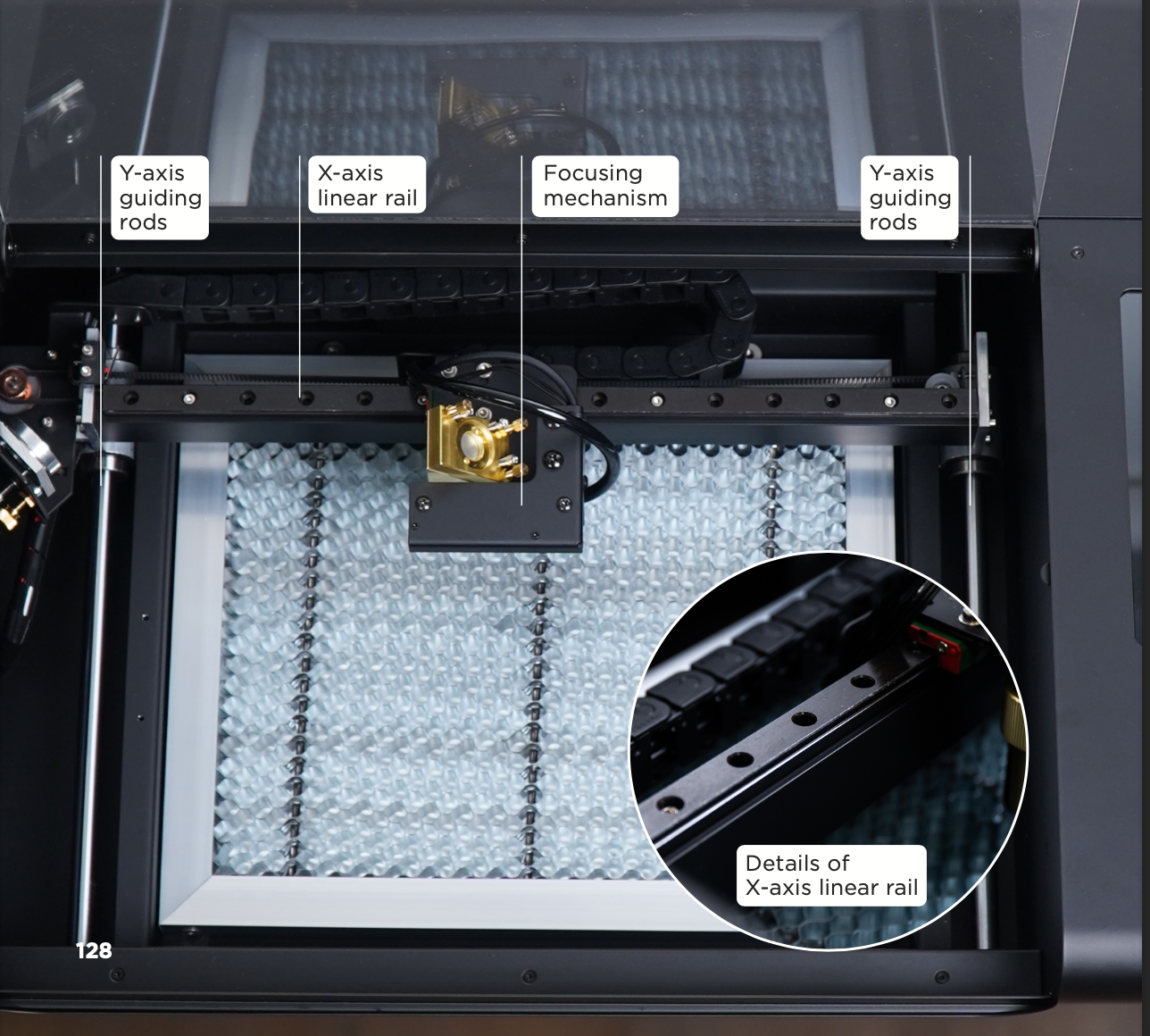

Clean the Y-axis guiding rods, X-axis linear rail, and the focusing mechanism regularly to extend the service life of the parts.

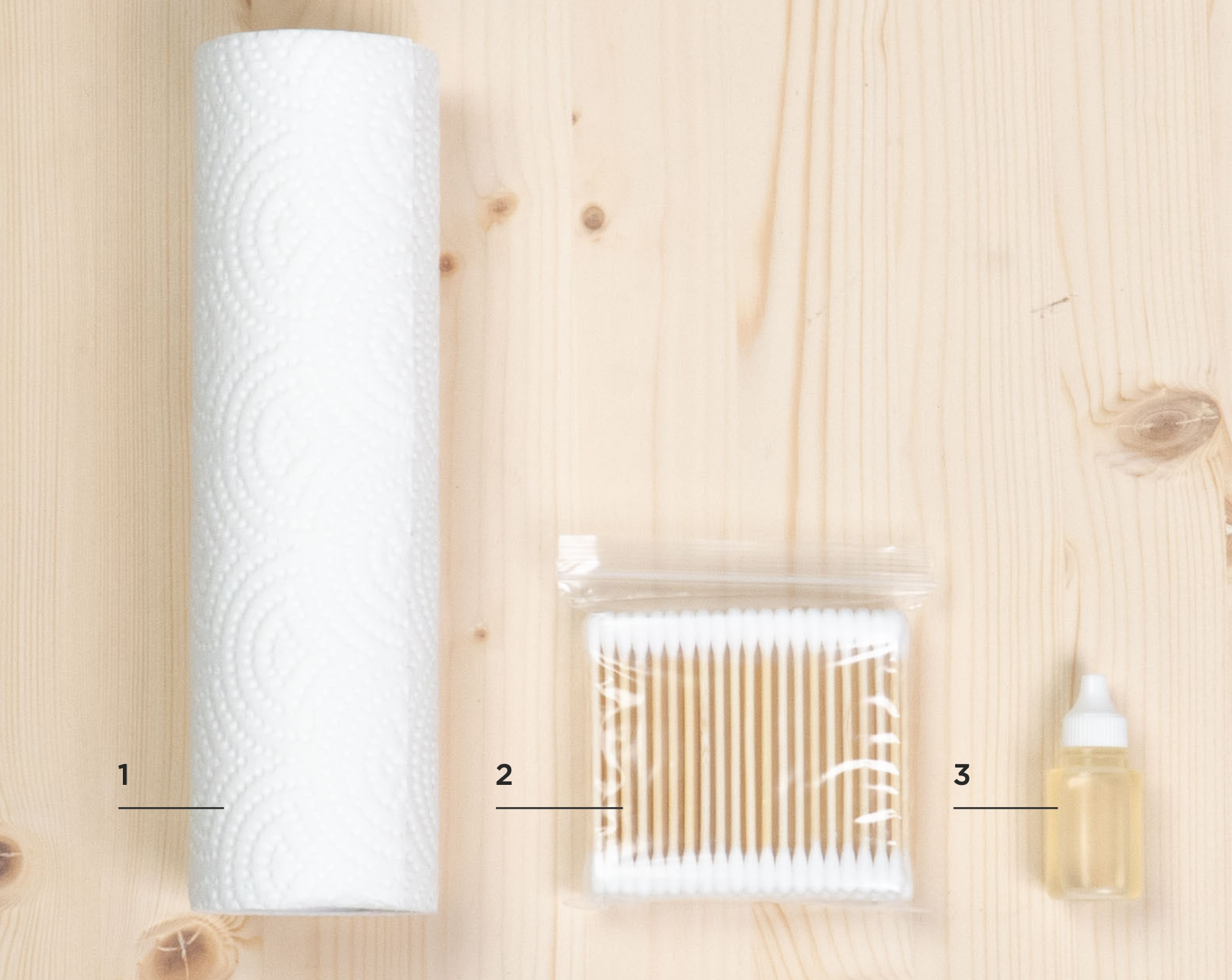

Preparation Items
Self-Preparation: (1) Paper towel or tissue paper (2) Cotton swab or brush
Included in the accessory box: (3) Lubricating oil
Cleaning
Use a paper towel or tissue paper to wipe the oil and dust on the Y-axis guiding rods, X-axis linear rail, and the focusing mechanism.
Oiling
Dip a cotton swab or brush in the lubricating oil.
1. Y-axis guiding rods and X-axis linear rail
- Apply on the Y-axis guiding rods on both sides of the working range
- Apply evenly above and on both sides of the X-axis linear rail
- Manually move the laser head left and right and forward and backward 3 - 5 times to distribute the lubricating oil evenly.

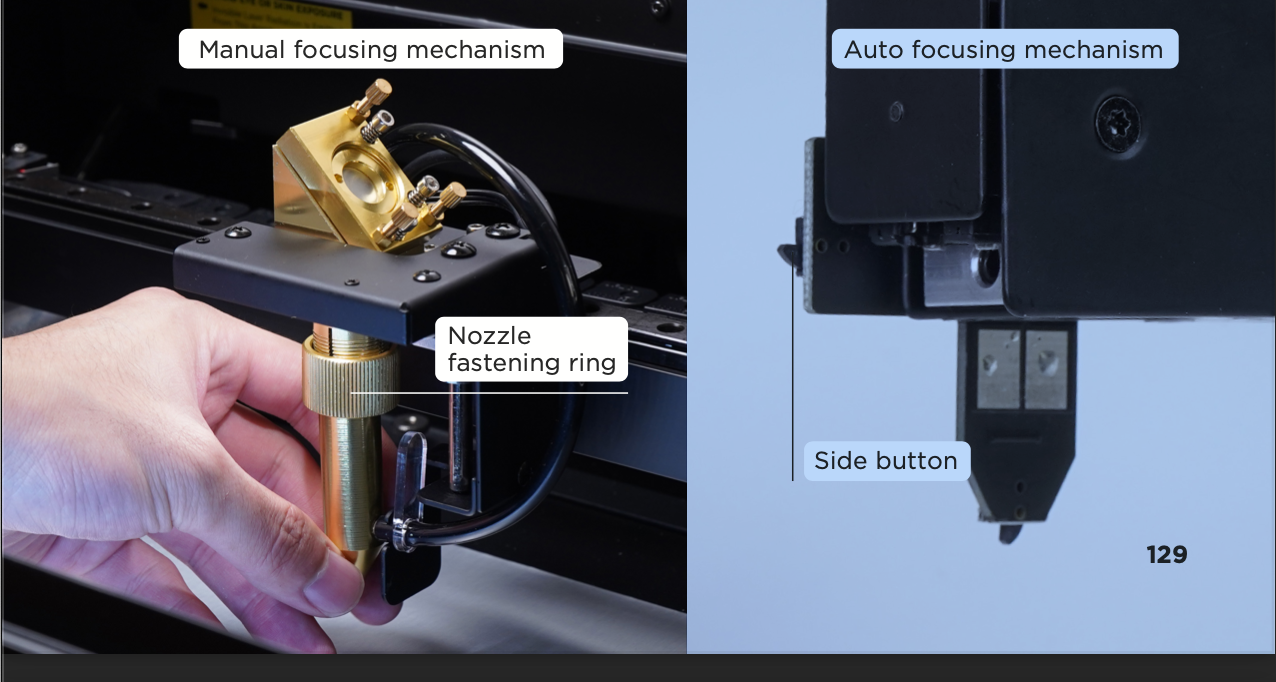

2. Focusing mechanism
- Manual focusing: Turn the nozzle fastening ring clockwise > Move the CO2 laser module bracket up and down 3 - 5 times and tighten the nozzle fastening ring counterclockwise.
- Autofocus: Press and hold the side button to raise and lower the mechanism 3 - 5 times.
