Notes
The optical path will be changed due to transportation and vibration of the working, so regular inspection is necessary to ensure the correct laser optical path so that the machine can engrave evenly and cut normally.
Necessary inspection conditions
1. The first-time unboxing after long-distance transportation.
2. After the replacement of the laser tube.
3. For regular maintenance, it is recommended to check once a month.
1 | Double-sided tape
2. After the replacement of the laser tube.
3. For regular maintenance, it is recommended to check once a month.
⚠️ Do not put your finger near the first reflective mirror and the aperture (circle outlet) to avoid skin exposure to laser hazards.
Preparation Items

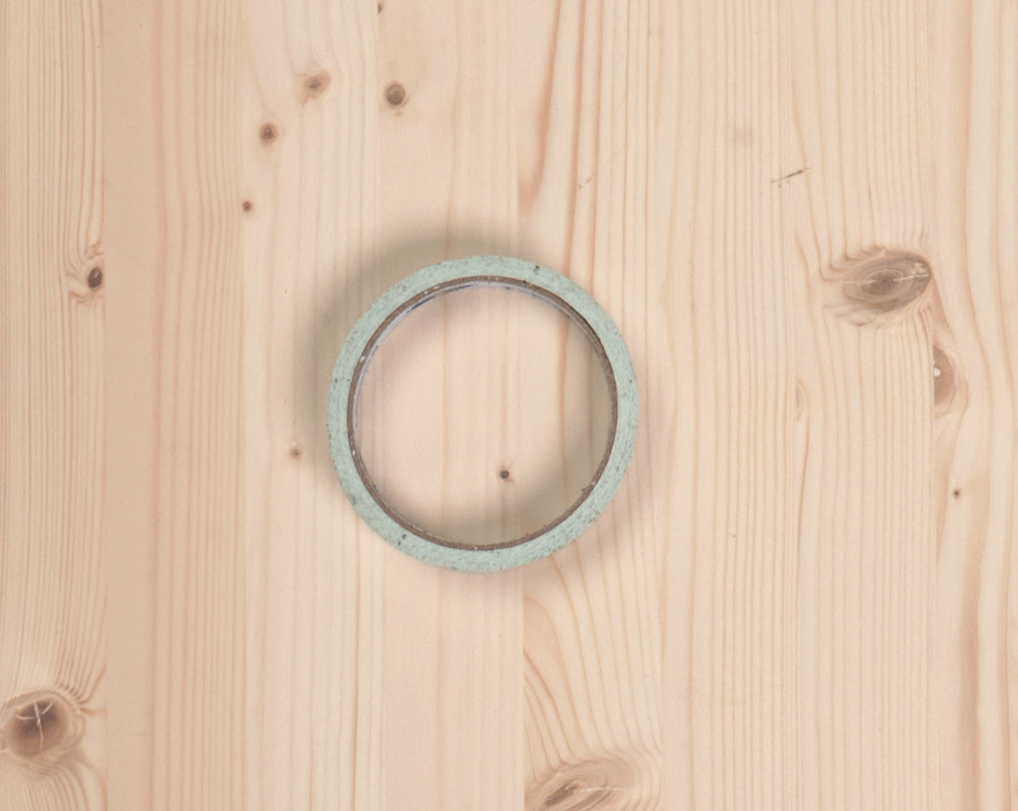

Included in the accessory box1 | Double-sided tape
Inspection Steps

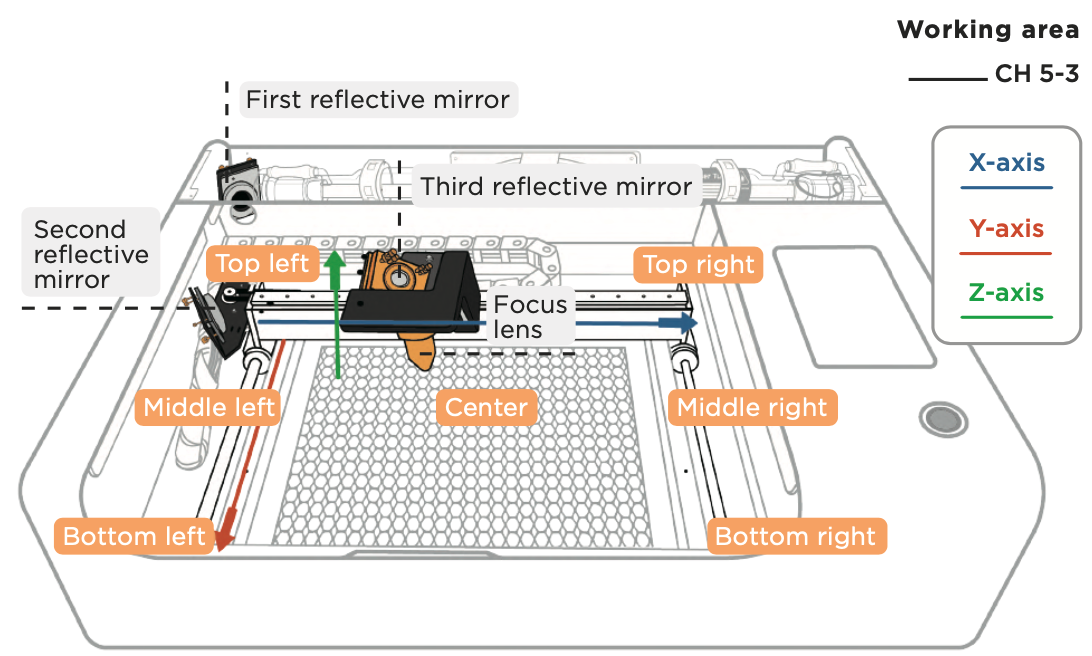

1. Get the laser spots in the two corners
- Hit the “MAINTAIN” of the machine > Select “Motors”

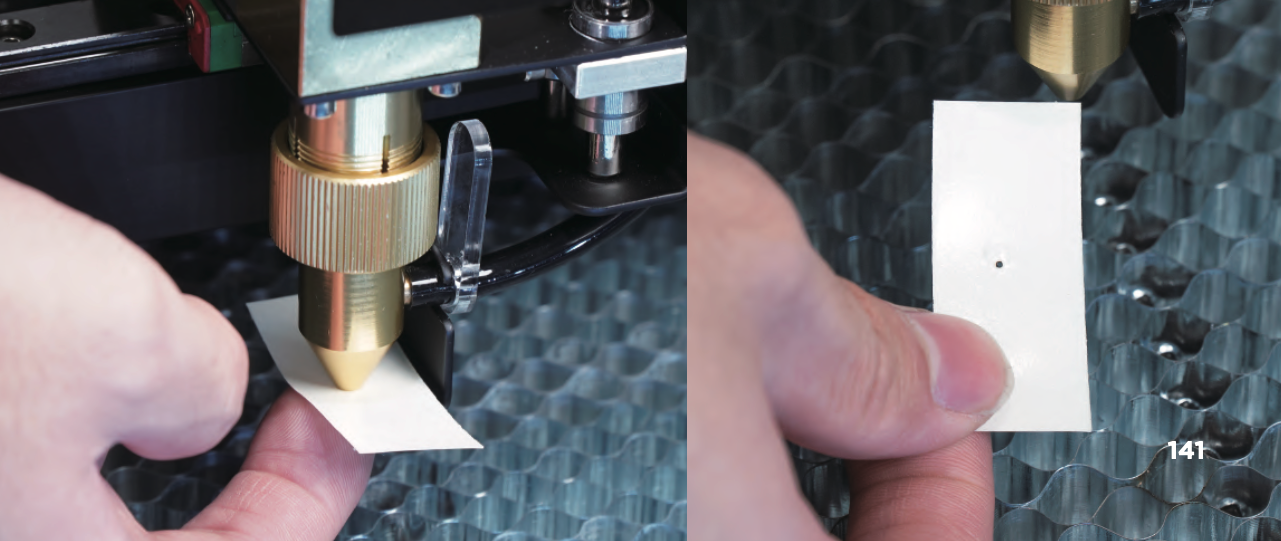

- Move the laser head to the top left position > Put the double-sided tape on the laser head outlet > Close the door cover > Make sure the laser “Power” is the default x 1.00
- Click “Laser Pulse” > Open the door cover > Make sure the laser spot is a full circle > Move the laser head to the bottom right > Put the double-sided tape on the laser head outlet > Close the door cover
- Click “Laser Pulse” > Open the door cover > Make sure the laser spot is a full circle. Get a total of 2 laser spots on the top left and bottom right.
If you can't get a full circle at both corners, please go through the【Maintenance】 Optical Path Alignment.
