#913 Abnormal Air Flow Detection

FLUX Support Team
  • Updated



Possible causes:

  1. The system fails (Re-update the firmware, reset to factory, or reflash SD card.)
  2. The air hose is bent or damaged.
  3. The 3-way transparent tube (T-joint) on the sensor is bent or damaged.
  4. The mainboard/MB/motherboard is malfunctioning.
  5. The air pump is too weak.
  6. The air pump is too strong. (Less likely)



Step 1

Test if there's air blowing out from the laser nozzle.

  • Enter the Maintain mode on the panel and enable the air pump.

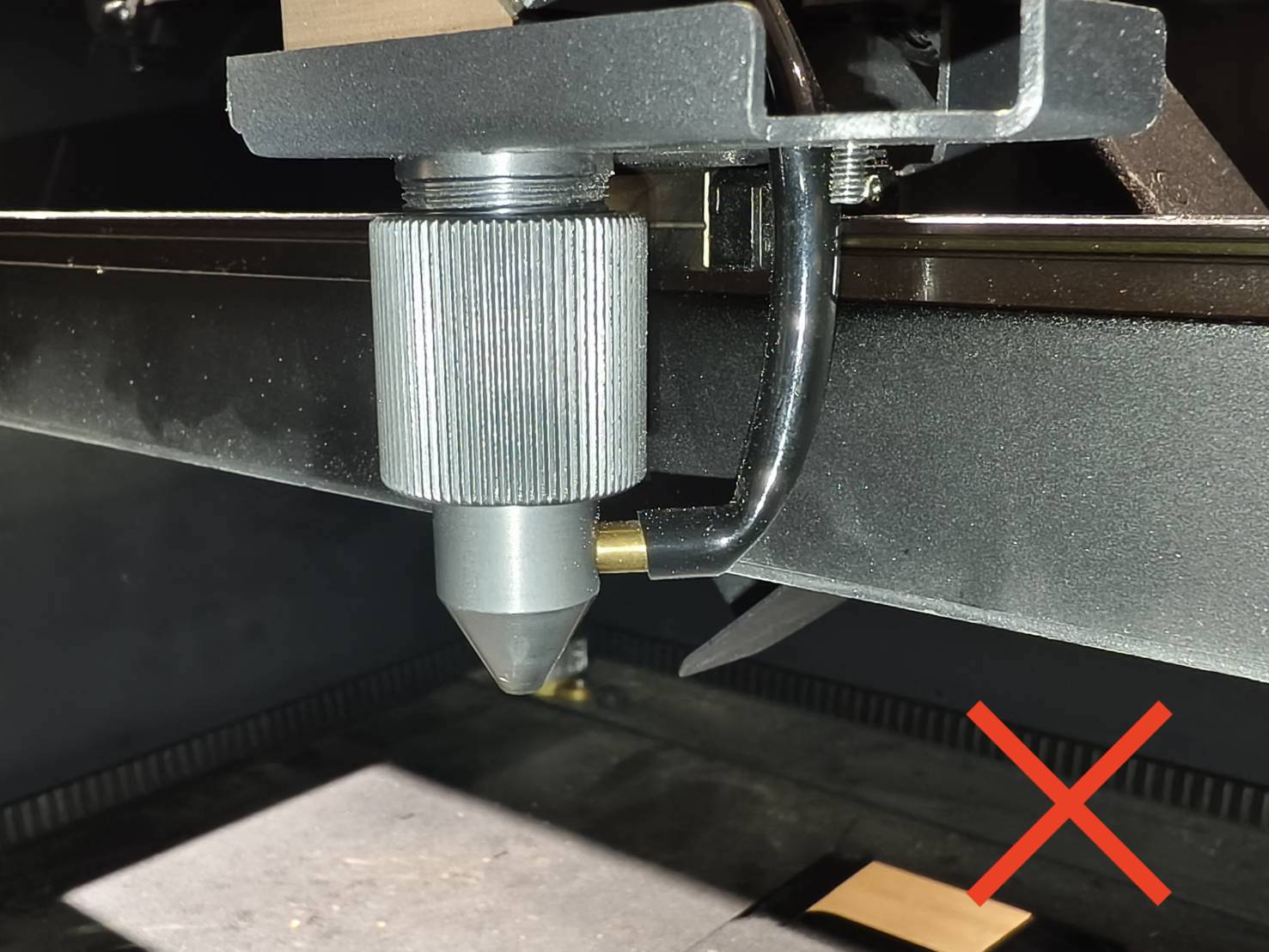

  • Use your hand or a piece of paper to test if there's air blowing out from the laser nozzle.



Determine the test result and the next action to take.

  • Yes, there's air blowing out >> Step 2



Step 1.1

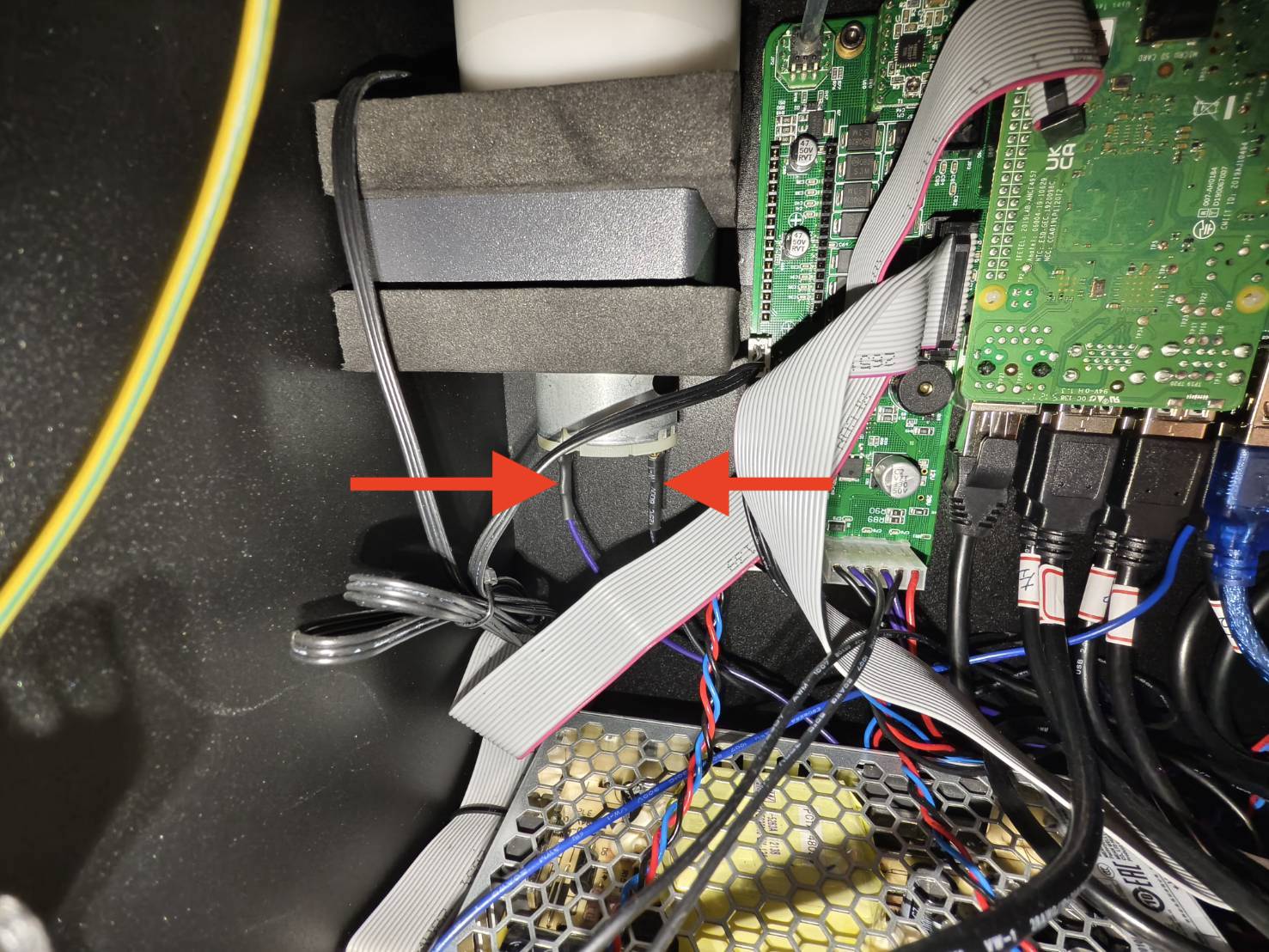

Remove the side cover to check or re-connect the two air pump wire pins and the air hose connected to the top of the air pump.

  • Turn off the machine. Remove the side cover by unscrewing these T8 screws and unplug the two USB extensions. (Refer to the diagram if your PCB board is not the same as the photo.)



  • Check or re-connect the two air pump wire pins.



  • Check the air hose on the air pump.

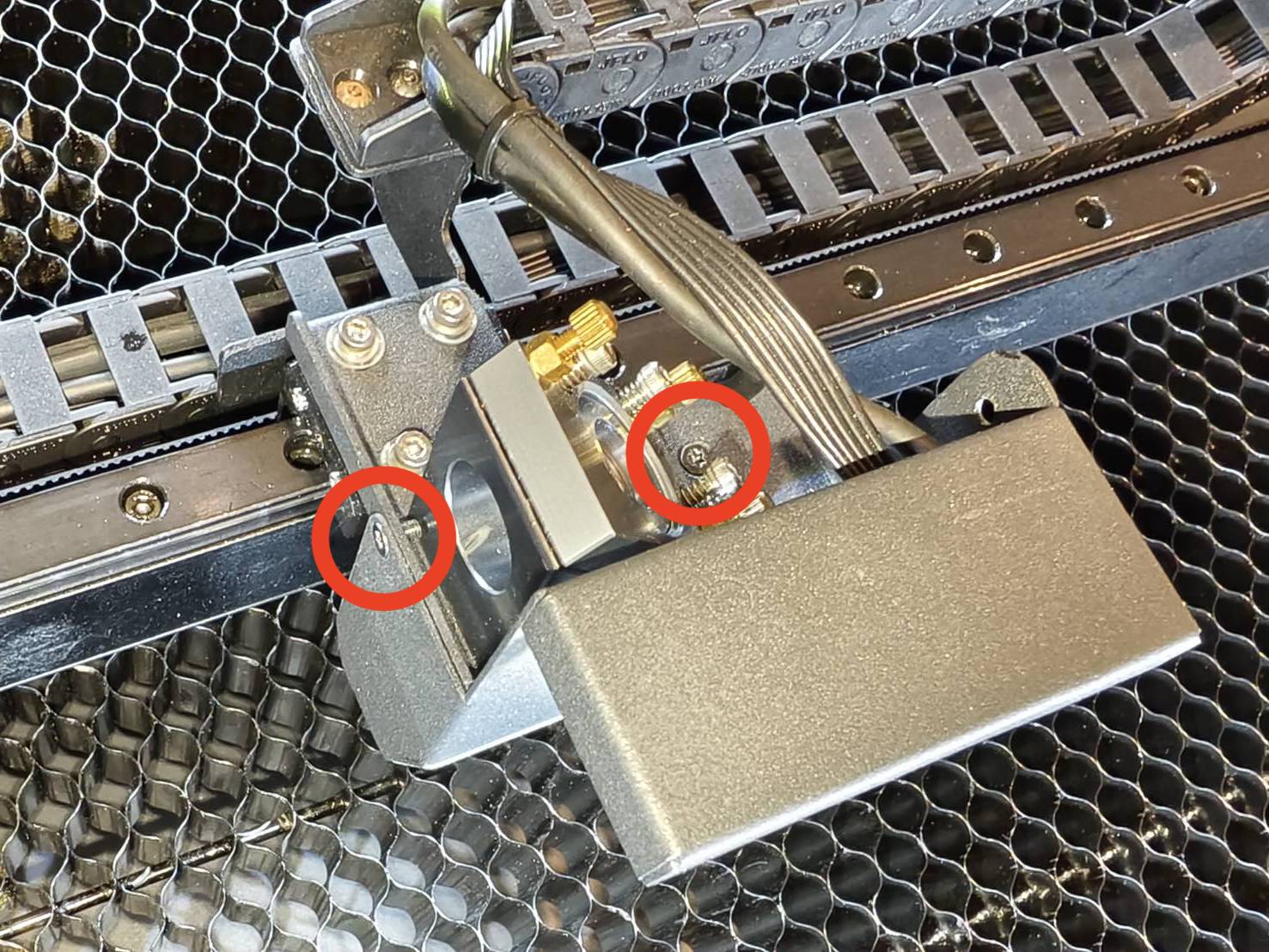

  • Check the air hose on the laser nozzle. (The shield has to be removed.)




  • Turn on the machine and enable the air pump to test whether air is blowing out from the laser nozzle.


Determine the test result and the next action to take.

  • Yes, there's air blowing out >> Step 2
  • No, there's no air blowing out >> Step 1.2



Step 1.2

Reset the machine to the factory and test if there's air blowing out from the laser nozzle.

5-30 Reset to Factory



Determine the test result and the next action to take.

  • Yes, there's air blowing out >> Step 2
  • No, there's no air blowing out >> Step 1.3



Step 1.3

Reflash the SD card and test if there's air blowing out from the laser nozzle.

5-24 HEXA - Reflashing SD Card



Determine the test result and the next action to take.

  • Yes, there's air blowing out >> Step 1.4
  • No, there's no air blowing out >> Contact Customer Support
    • Possible cause:
      1. The air pump is faulty and needs to be replaced
      2. The mainboard is faulty and needs to be replaced



Step 1.4

Enable the airflow value on the panel and move the laser head around the work area to see if the value changes while moving the laser head.



Determine the test result and the next action to take.

  • The value is always within the normal range >> Step 1.5
  • The value is always smaller than the Min. value>> Step 3
  • The value is always bigger than the Max. range >> Step 4
  • The value changes within normal and the Max. value >> Step 4



Step 1.5

Run a task and see if the error pops up.

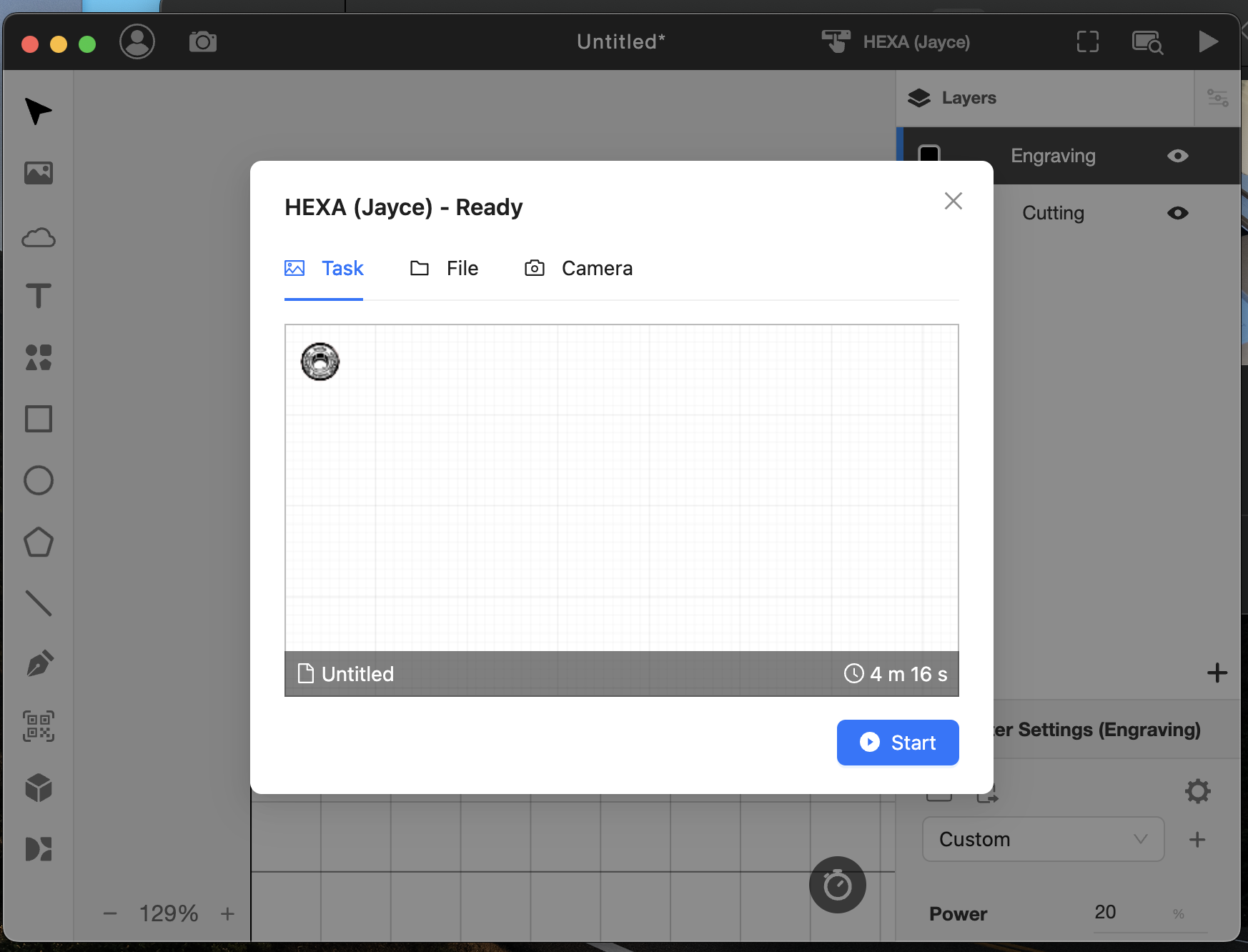

Screenshot 2024-05-31 at 3.16.46 PM.png



Determine the test result and the next action to take.

  • No, the error does not pop up >> Problem solved
    • Possible cause:
      1. The system failed
  • Yes, the error still pops up >> Contact Customer Support
    • Possible cause:
    • The mainboard is faulty and needs to be replaced



Step 2

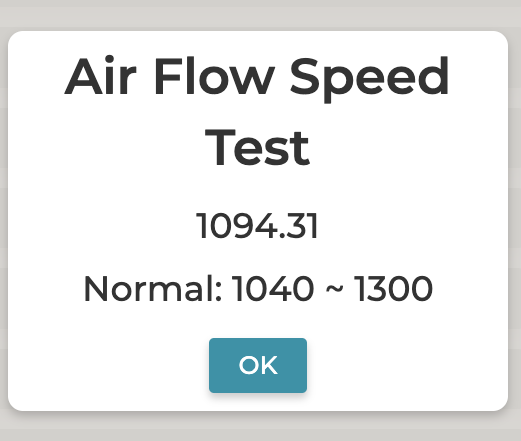

Enable the airflow value on the panel and move the laser head around the work area to see if the value changes while moving the laser head.



Determine the test result and the next action to take.

  • The value is always within the normal range >> Step 2.1
  • The value is always smaller than the Min. value>> Step 3
  • The value is always bigger than the Max. range >> Step 4
  • The value changes within normal and the Max. value >> Step 4



Step 2.1

Run a task and see if the error pops up.

Screenshot 2024-05-31 at 3.16.46 PM.png



Determine the test result and the next action to take.

  • No, the error does not pop up >> The machine has no problem
  • Yes, the error still pops up >> Step 2.2



Step 2.2

Reconnect the 3-way transparent tube (T-joint). Run a task and see if the error pops up.

  • Turn off the machine. Remove the side cover by unscrewing these T8 screws and unplug the two USB extensions. (Refer to the diagram if your PCB board is not the same as the photo.)



  • Reconnect the 3-way transparent tube (T-joint).



  • Run a task and see if the error pops up.

    Screenshot 2024-05-31 at 3.16.46 PM.png



Determine the test result and the next action to take.

  • No, the error does not pop up >> Problem solved
    • Possible cause:
      1. The connection of the 3-way transparent tube (T-joint) was bad
  • Yes, the error still pops up >> Step 2.3



Step 2.3

Reflash the SD card and run a task to see if the error pops up.

5-24 HEXA - Reflashing SD Card



Determine the test result and the next action to take.

  • No, the error does not pop up >> Problem solved
    • Possible cause:
      1. The system failed
  • Yes, the error still pops up >> Contact Customer Support
    • Possible cause:
      1. The mainboard is faulty and needs to be replaced



Step 3

Reconnect the 3-way transparent tube (T-joint) and check the airflow value.

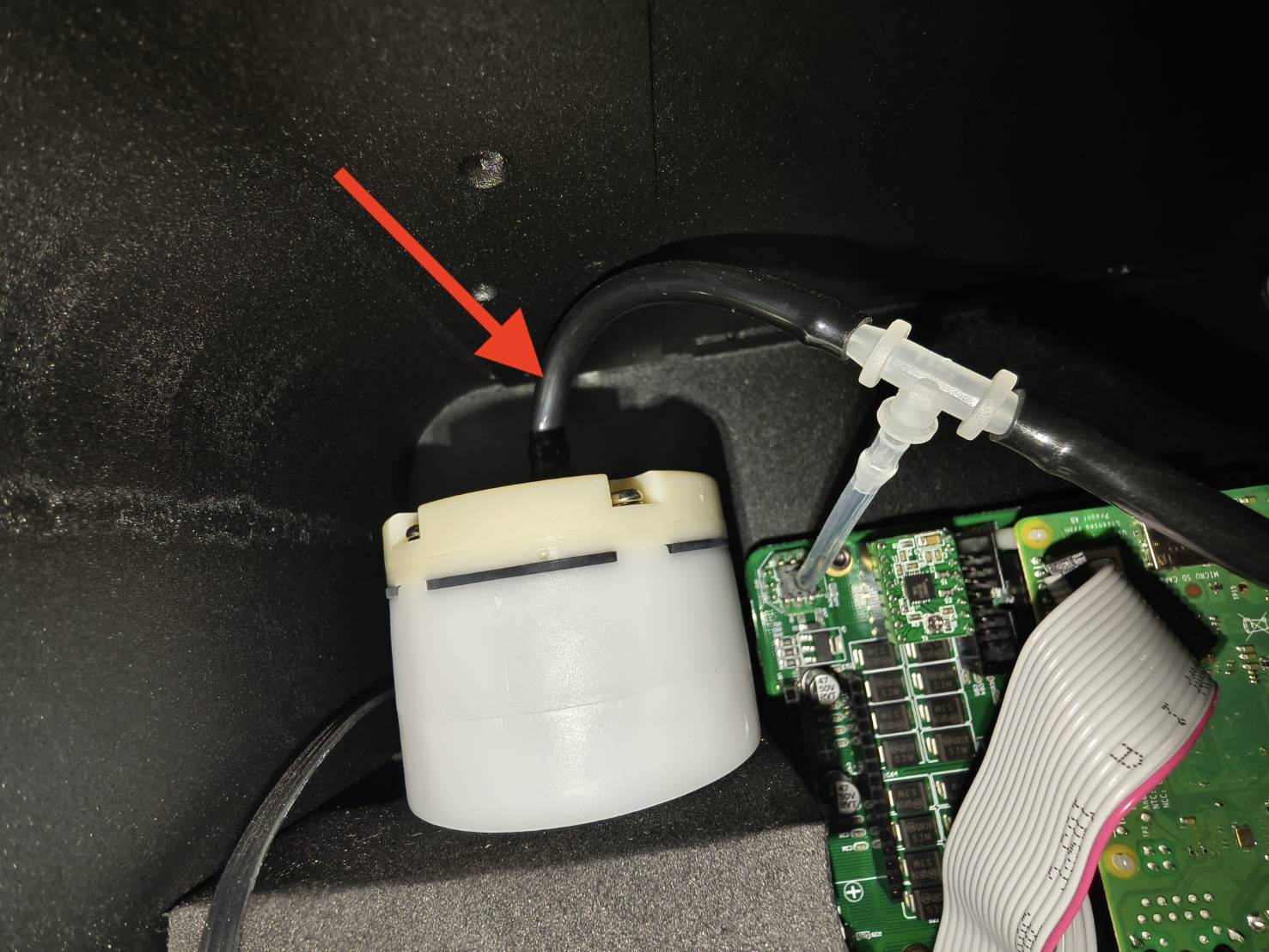

  • Turn off the machine. Remove the side cover by unscrewing these T8 screws and unplug the two USB extensions. (Refer to the diagram if your PCB board is not the same as the photo.)

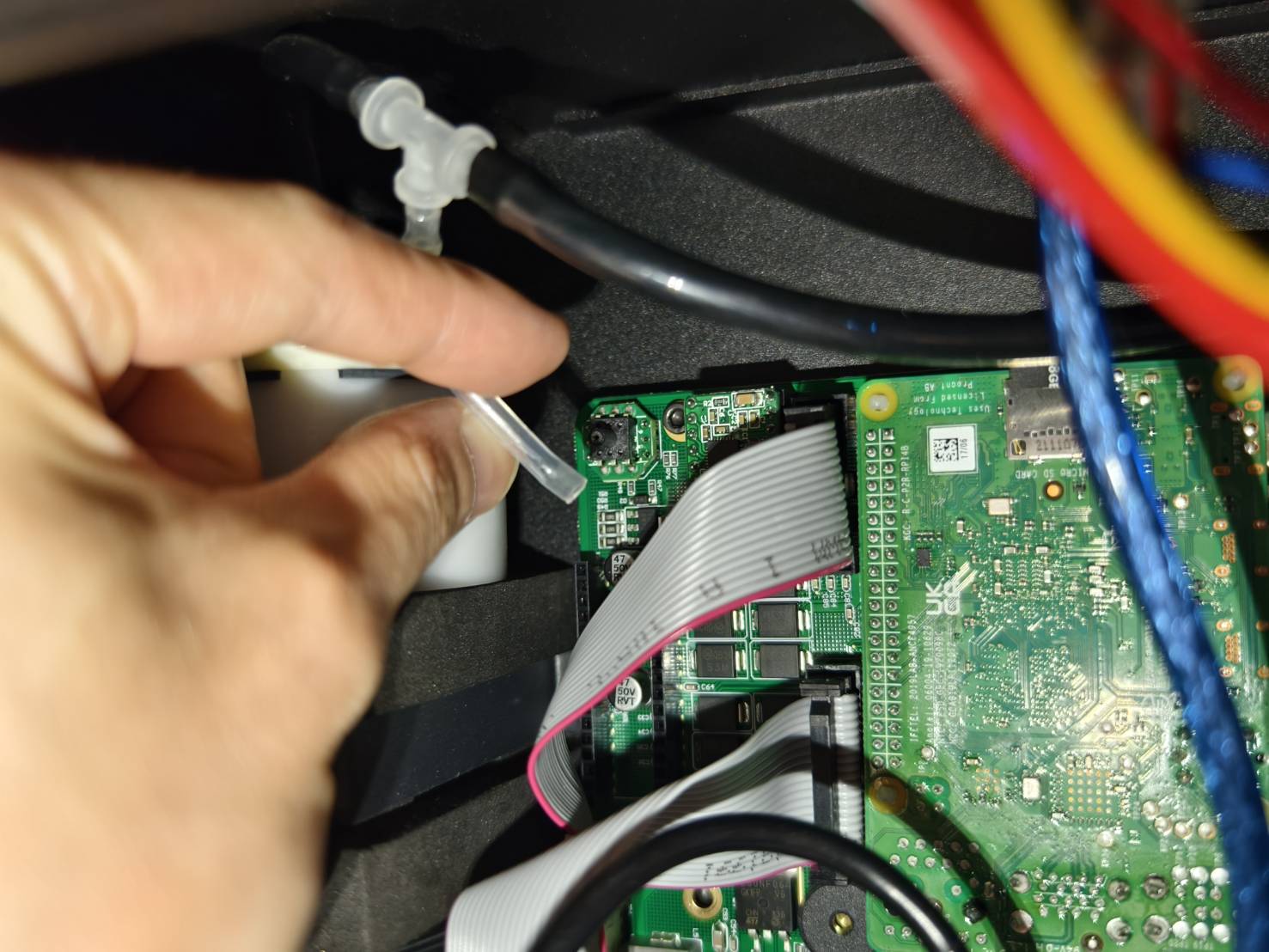

  • Reconnect the 3-way transparent tube (T-joint).



  • Move the laser head around and check the airflow value.



Determine the test result and the next action to take.

  • The value is always within the normal range >> Step 3.3
  • The value is always smaller than the Min. value>> Step 3.1
  • The value is always bigger than the Max. range >> Step 4
  • The value changes within normal and the Max. value >> Step 4



Step 3.1

Check if there's any leakage or damage to the air hose and the 3-way transparent tube.

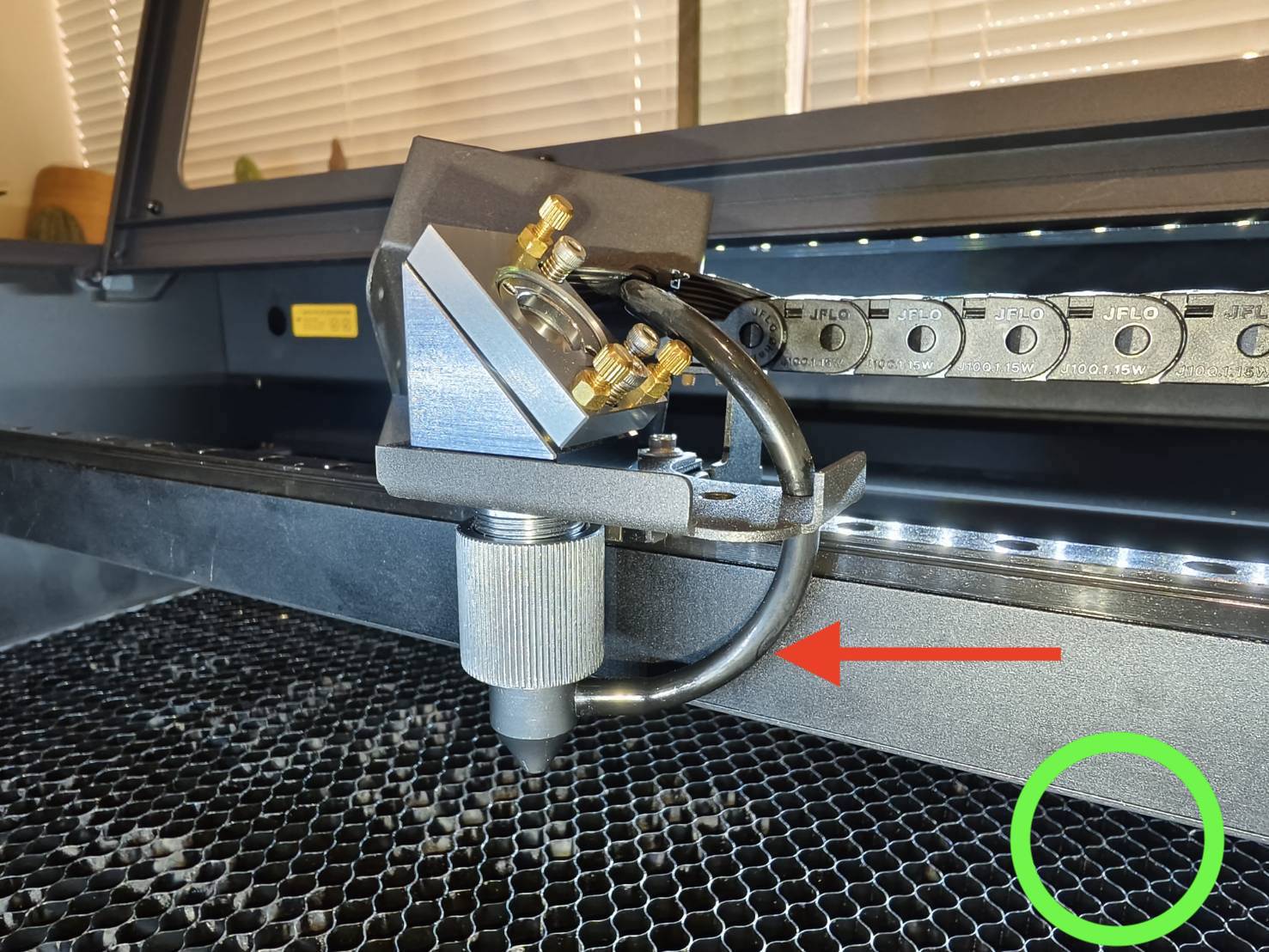

  • Check the air hose on the laser nozzle. (The shield has to be removed.)


  • Check the air hose on the air pump.



  • Check the 3-way transparent tube.



  • Check other the path of the air hose.

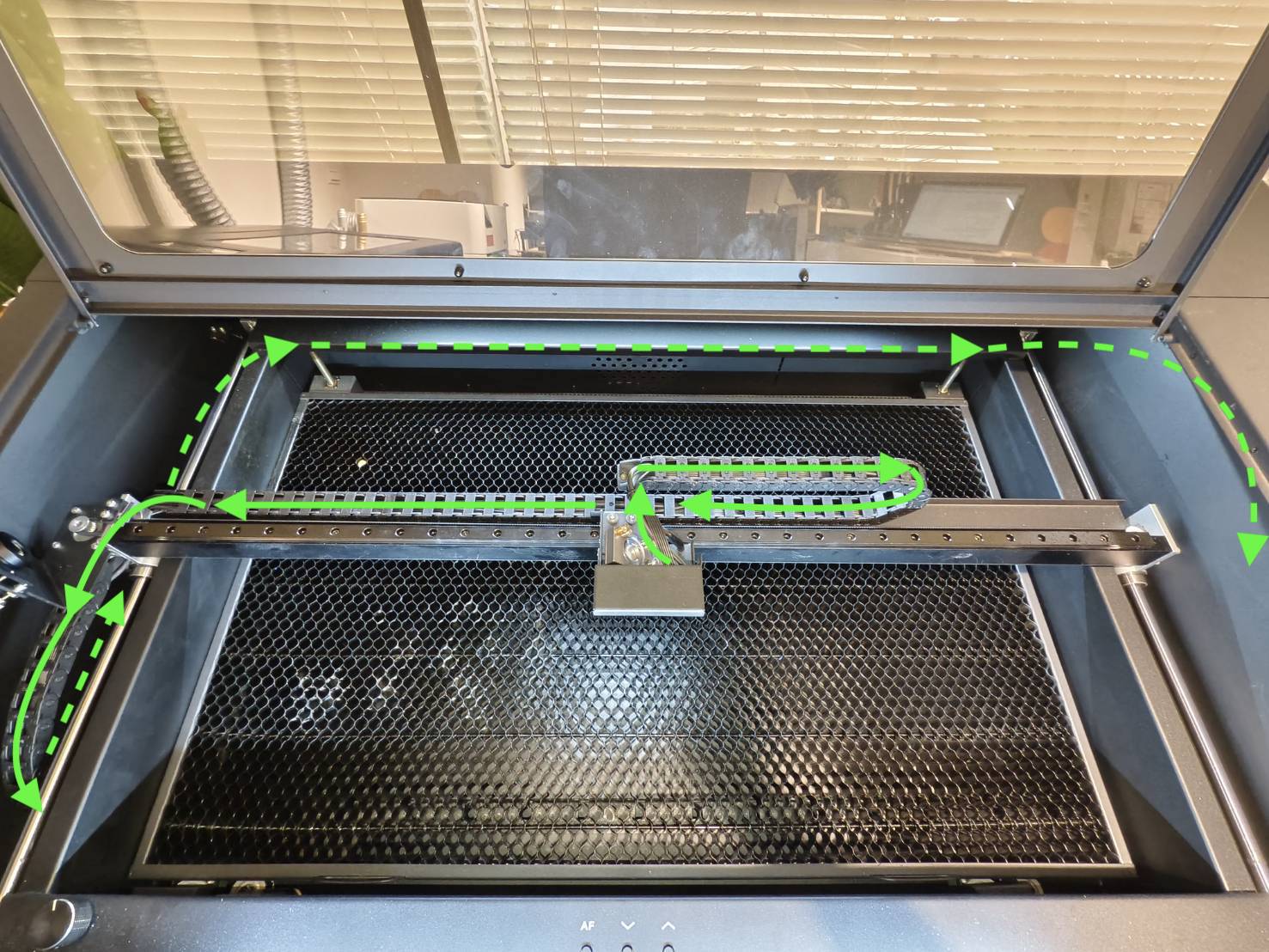

    The arrangement of the air hose overview

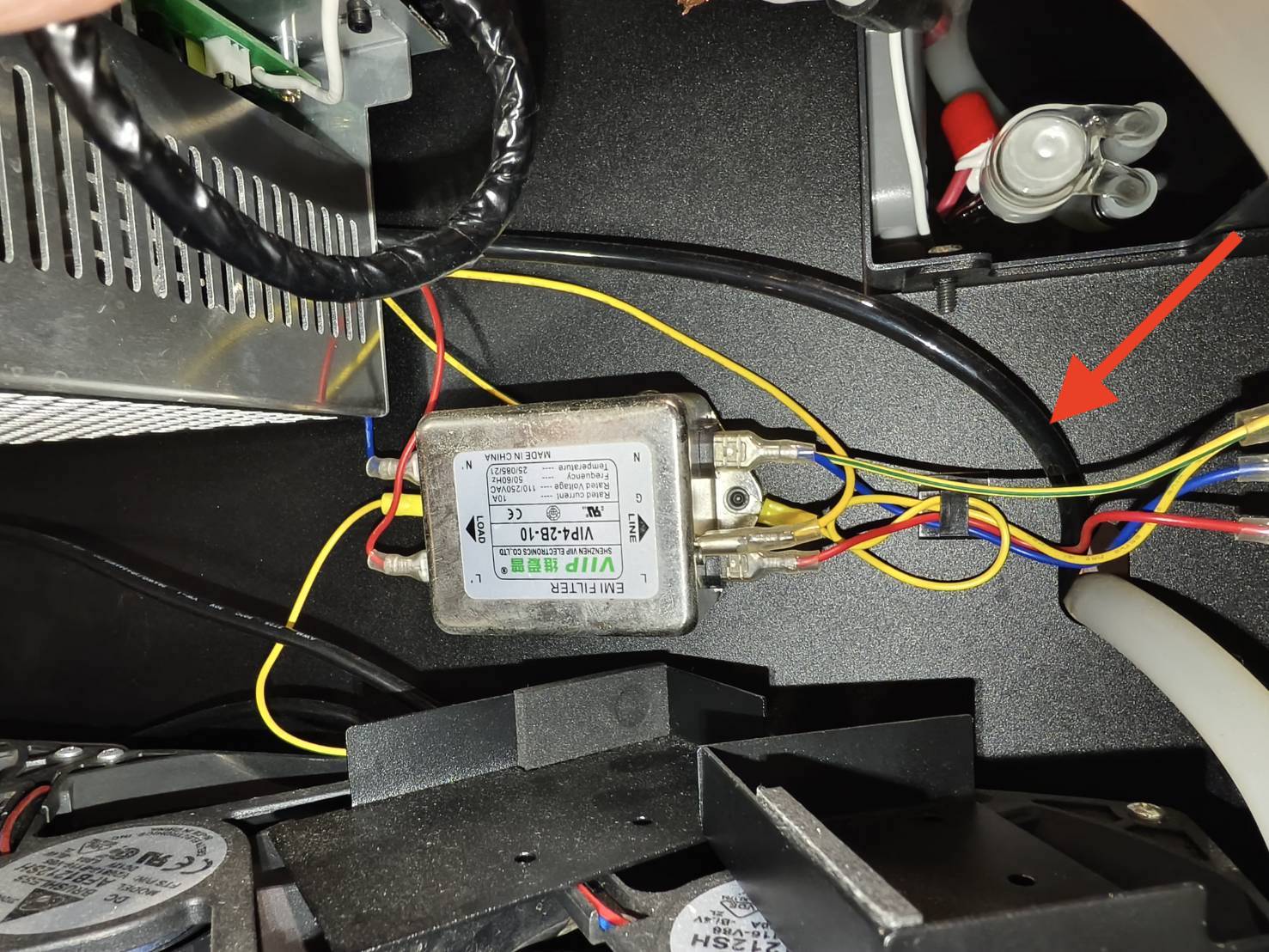

    The back of the machine can check a section of the air hose

    At the air pump side, a section of the air hose can be checked



Determine the test result and the next action to take.

  • The air hose and the 3-way transparent tube are good >> Step 3.2
  • The air hose or the 3-way transparent tube is bad >> Contact Customer Support
    • Possible cause:
      1. The air hose is faulty and needs to be replaced
      2. The 3-way transparent tube is faulty and needs to be replaced



Step 3.2

Reflash the SD card and see if the airflow value becomes normal.

5-24 HEXA - Reflashing SD Card



Determine the test result and the next action to take.

  • The value is always within the normal range >> Step 3.3
  • The value is always smaller than the Min. value >> Contact Customer Support
    • Possible cause:
      1. The air pump is faulty and needs to be replaced
      2. The mainboard is faulty and needs to be replaced
      3. The 3-way transparent tube is faulty and needs to be replaced
  • The value is always bigger than the Max. range >> Step 4
  • The value changes within normal and the Max. value >> Step 4



Step 3.3

Run a task and see if the error pops up.

Screenshot 2024-05-31 at 3.16.46 PM.png



Determine the test result and the next action to take.

  • No, the error does not pop up >> Problem solved
    • Possible cause:
      1. System failed
      2. The connection of the 3-way transparent tube (T-joint) was bad
  • Yes, the error still pops up >> Contact Customer Support
    • Possible cause:
      1. The mainboard is faulty and needs to be replaced



Step 4

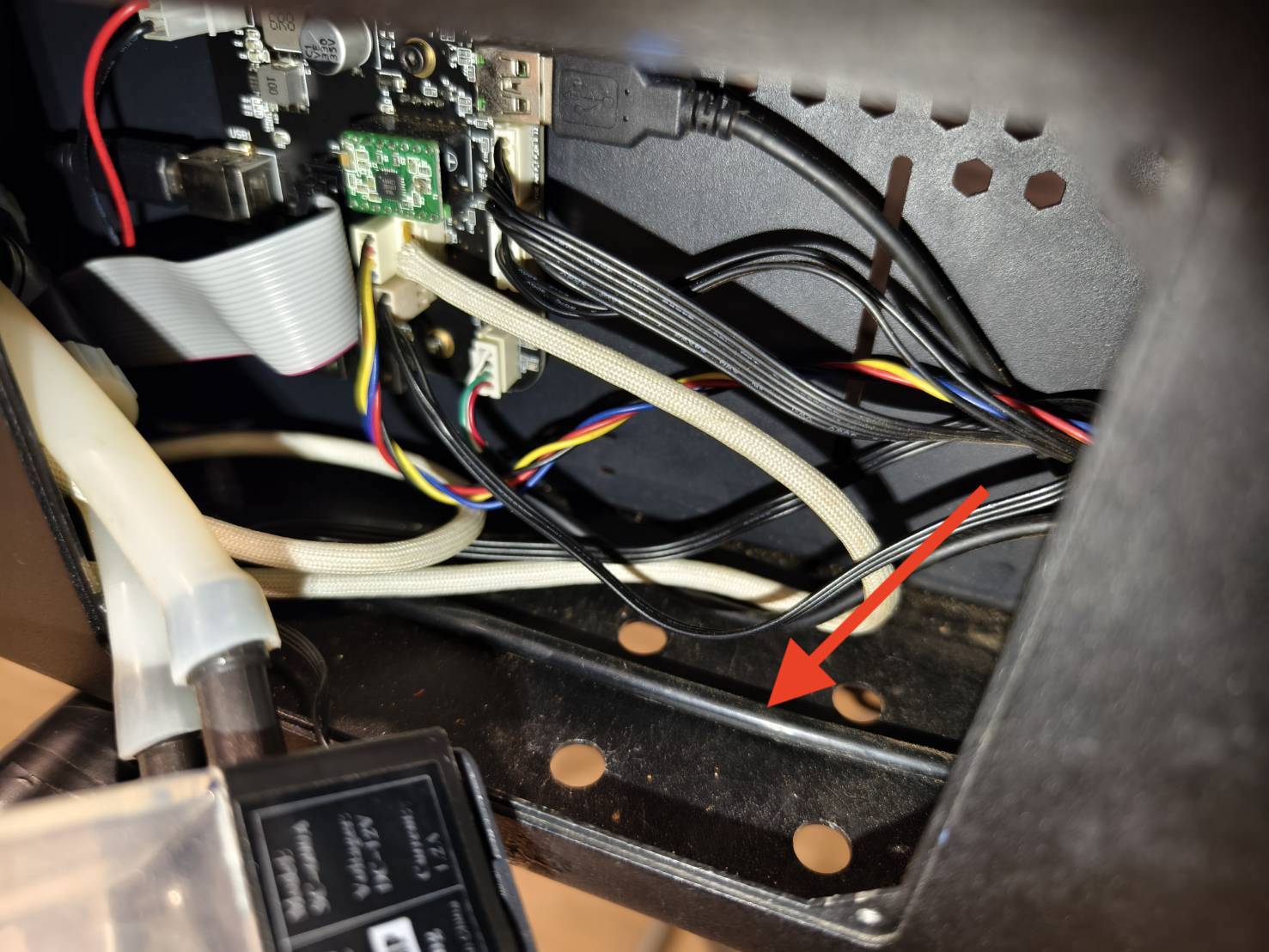

Open the side cover and check the black air hose to see if it's bent somewhere.

  • Turn off the machine. Remove the side cover by unscrewing these T8 screws and unplug the two USB extensions. (Refer to the diagram if your PCB board is not the same as the photo.)



  • Check if the air hose is bent somewhere.



Determine the test result and the next action to take.

  • The air hose is not bent >> Step 5



Step 4.1

Try to straighten the bent section of the air hose and test the airflow value.

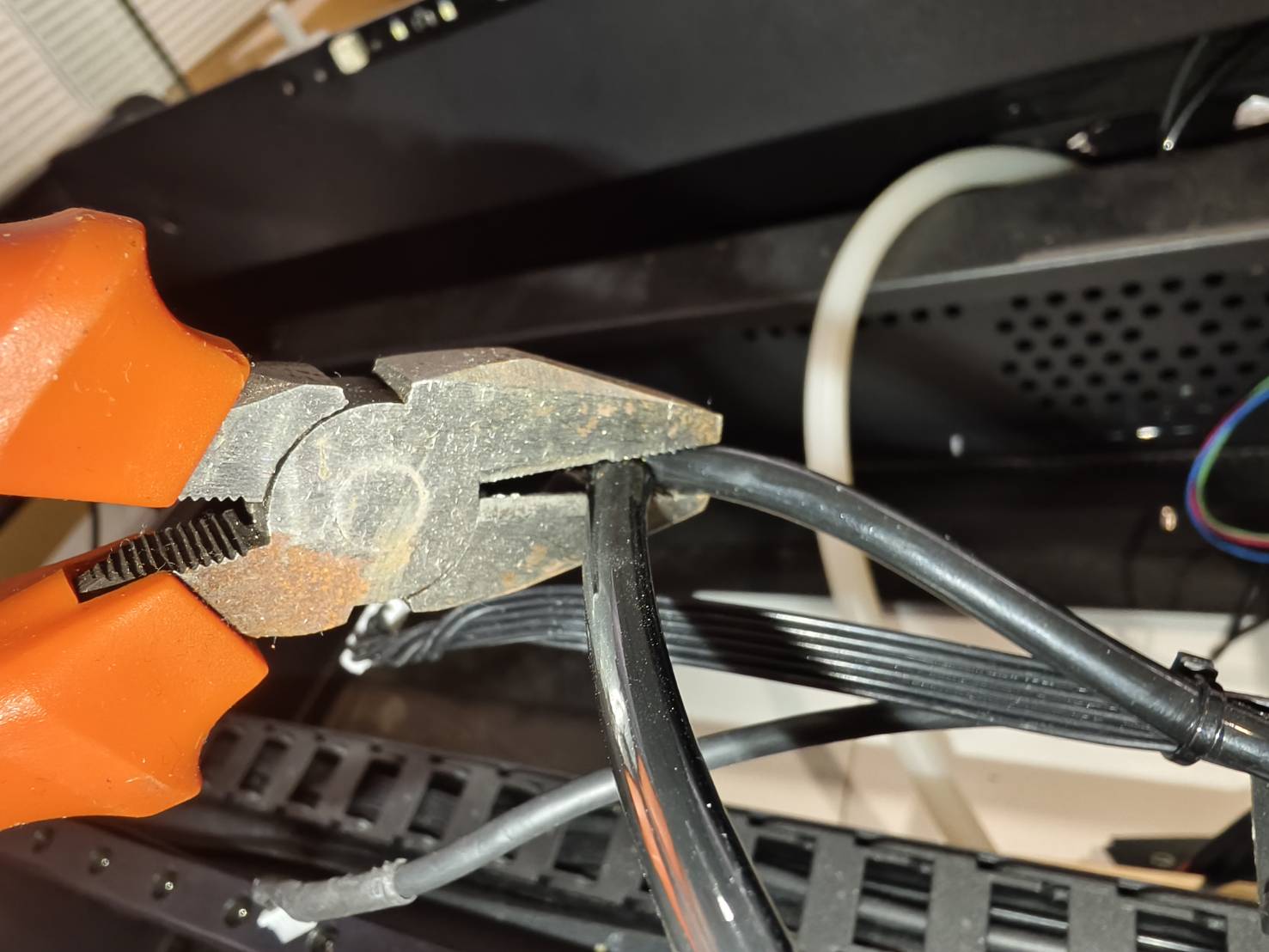

Don't cut it. The purpose here is only to apply force in order to straighten the hose.



Determine the test result and the next action to take.

  • The air hose cannot be straightened >> Contact Customer Support
    • Possible cause:
      1. The air hose is damaged and needs to be replaced.
  • The value is always within the normal range >> Step 4.2
  • The value is always smaller than the Min. value >> Step 3
  • The value is always bigger than the Max. range >> Contact Customer Support
    • Possible cause:
      1. The air hose is damaged and needs to be replaced.
  • The value changes within normal and the Max. value >> Contact Customer Support
    • Possible cause:
      1. The air hose is damaged and needs to be replaced.



Step 4.2

Run a task and see if the error pops up.

Screenshot 2024-05-31 at 3.16.46 PM.png



Determine the test result and the next action to take.

  • No, the error does not pop up >> Problem solved
    • Possible cause:
      1. The air hose was bent but can be straightened and fixed
  • Yes, the error still pops up >> Step 4.3



Step 4.3

Reflash the SD card and run a task to see if the error pops up.

5-24 HEXA - Reflashing SD Card



Determine the test result and the next action to take.

  • No, the error does not pop up >> Problem solved
    • Possible cause:
      1. The system failed
  • Yes, the error still pops up >> Contact Customer Support
    • Possible cause:
      1. The mainboard is faulty and needs to be replaced



Step 5

Reflash the SD card and check the airflow value.

5-24 HEXA - Reflashing SD Card



Determine the test result and the next action to take.

  • The value is always within the normal range >> Step 3.3
  • The value is always smaller than the Min. value >> Step 3
  • The value is always bigger than the Max. range >> Step 5.1
  • The value changes within normal and the Max. value >> Step 5.1



Step 5.1

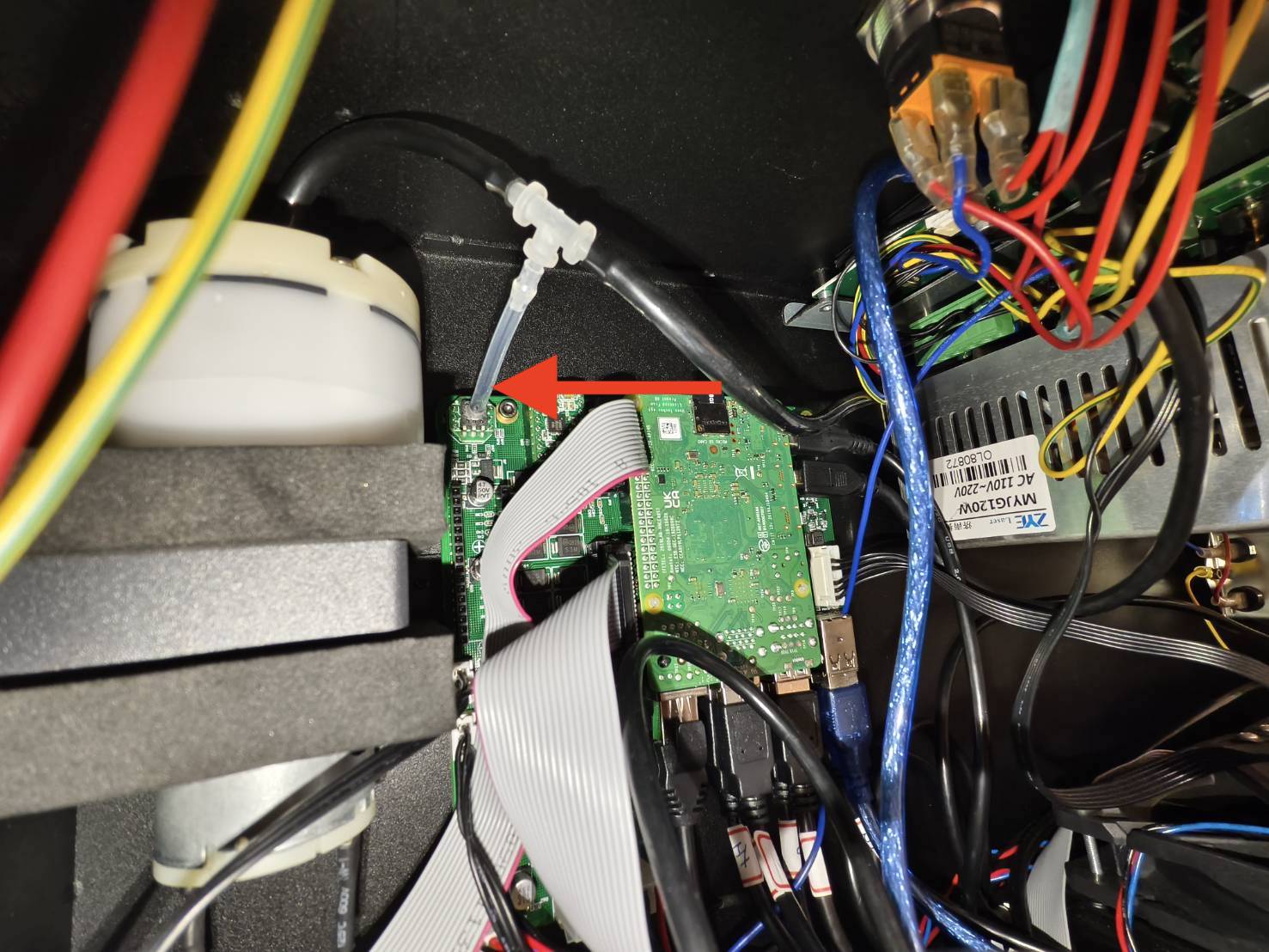

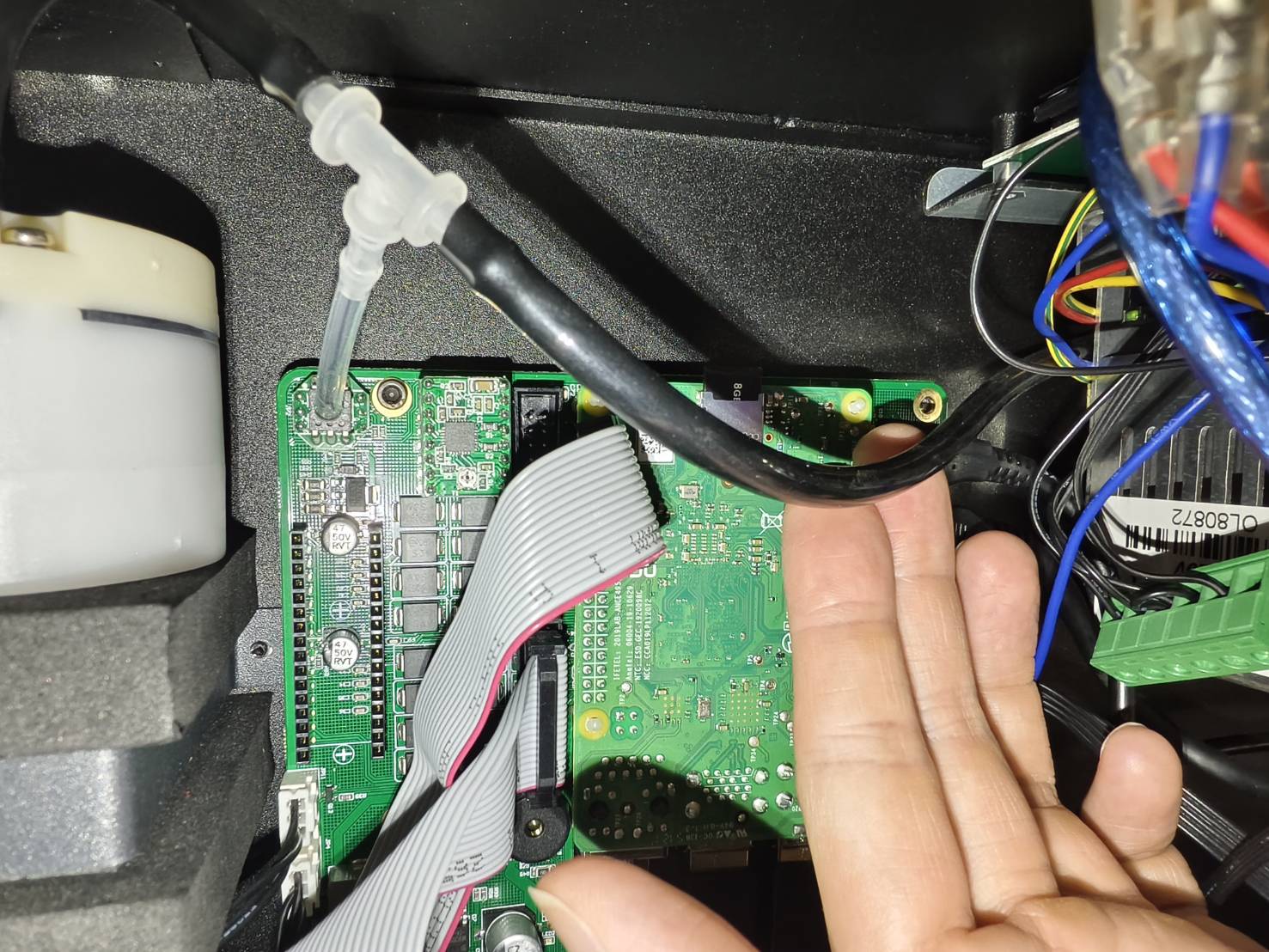

Unplug the 3-way transparent tube from the mainboard and see if the value decreases.



Determine the test result and the next action to take.

  • The value decreases and stays below the normal range >> Contact Customer Support
    • The air pump is faulty and needs to be replaced
    • The air hose is bent somewhere and can't be seen
    • The mainboard is faulty and needs to be replaced (Less likely)
    • The 3-way transparent tube is faulty and needs to be replaced (Less likely)
  • The value changes within the normal and the abnormal range >> Contact Customer Support
    • Possible cause:
      1. The mainboard is faulty and needs to be replaced
  1.



Contact Customer Support

  • Please follow the instructions in the link below to properly report an issue to your local reseller or FLUX support. [Contact Customer Service]

*The collected information, such as photos or videos that show the problem of your machine in this article, will be necessary to be shared with the reseller or FLUX Support.
