Beambox / Beambox Pro - 12V PSU Replacement

The new 12V laser power supply has two additional terminals, with the following configuration:

• Terminals 1 and 2 are -V

• Terminals 3 and 4 are +V

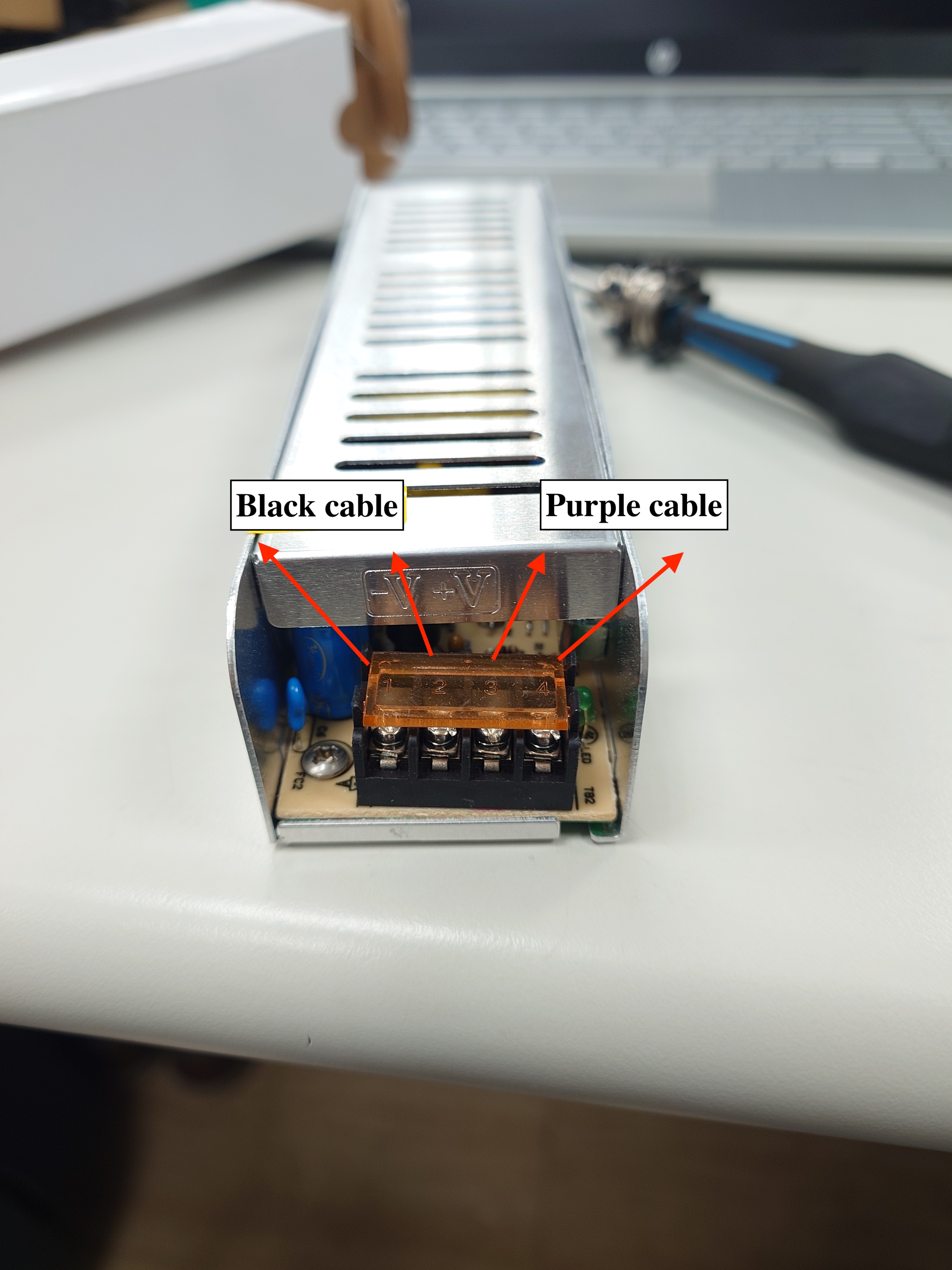

Wire connections:

• Purple wire is +V and can be connected to terminal 3 or 4

• Black wire is -V and can be connected to terminal 1 or 2

(Please turn on Youtube English subtitles)
