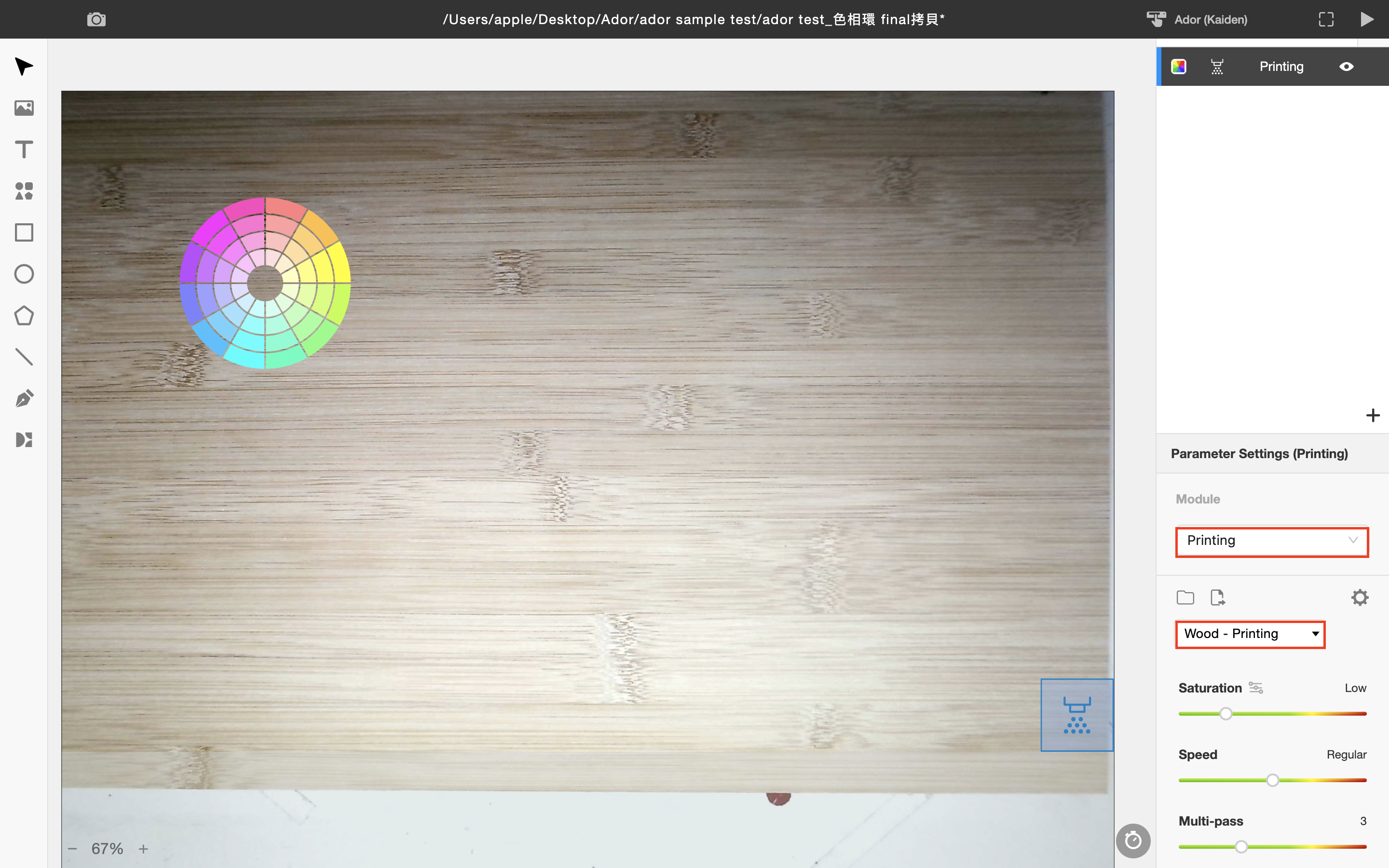

Setting the Printing Layer
1. Add a new layer in the layers panel, then switch to the 'Print' module in the "Modules" tab. The icon for the selected layer will change from single color to full color.
2. Import an object into the selected colored layer, the object will be displayed in full color.
3. Choose the printing material and adjust printing parameters if necessary.
Drawing Tool
- Infill and Stroke
Use "Infill" color to fill colors and use "Stroke" to draw border width and color when adding polygons or FLUX elements.
- Change colors for SVG objects
1. Import SVG objects.
2. Select the area where you want to replace the color, and the color swatch for this area will appear on “Color” in the tool bar.
3. Clicking on this swatch will display the color palette.
4. Choose any color on the palette, click "OK" to confirm the color replacement.
Printing Parameters
- "Saturation": The higher the "Saturation" is, the darker the printing color becomes.
-

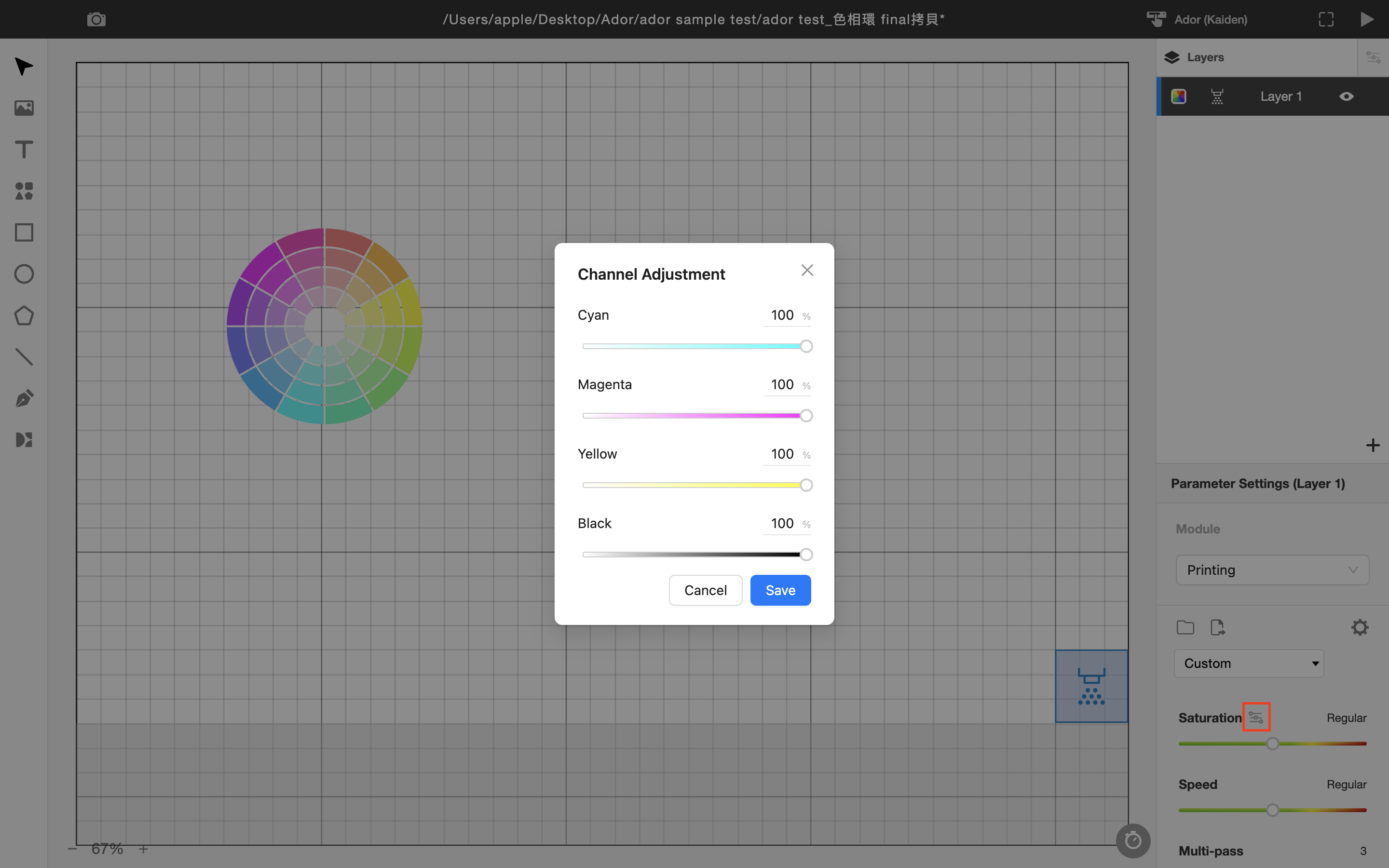

"Channel Adjustment"
In full-color layers, you could adjust the "Channel Adjustment" in the saturation settings to fine-tune the CMYK intensity. This parameter is only configurable in full-color layers.
-
"Channel Adjustment"
- ”Speed“ : The higher the "Speed" is, the faster the printing speed becomes. (Note: For smooth surfaces like stainless steel or acrylic, the speed should be reduced to avoid color overflow.)
- ”Multi-pass“:The higher "Multi-pass" will increase the same ink droplet print times, resulting in finer color details, but also leading to longer printing times.
Layer Management
After adjusting the parameters, right-click on the selected printing layer to choose "Switch to single color layer" or "Expand layer".
- If you choose ”Switch to single color layer“, the color will be changed to a single color. Click on the layer color swatch to switch to any CMYK color. You could also switch back by selecting "Switch to full-color layer".

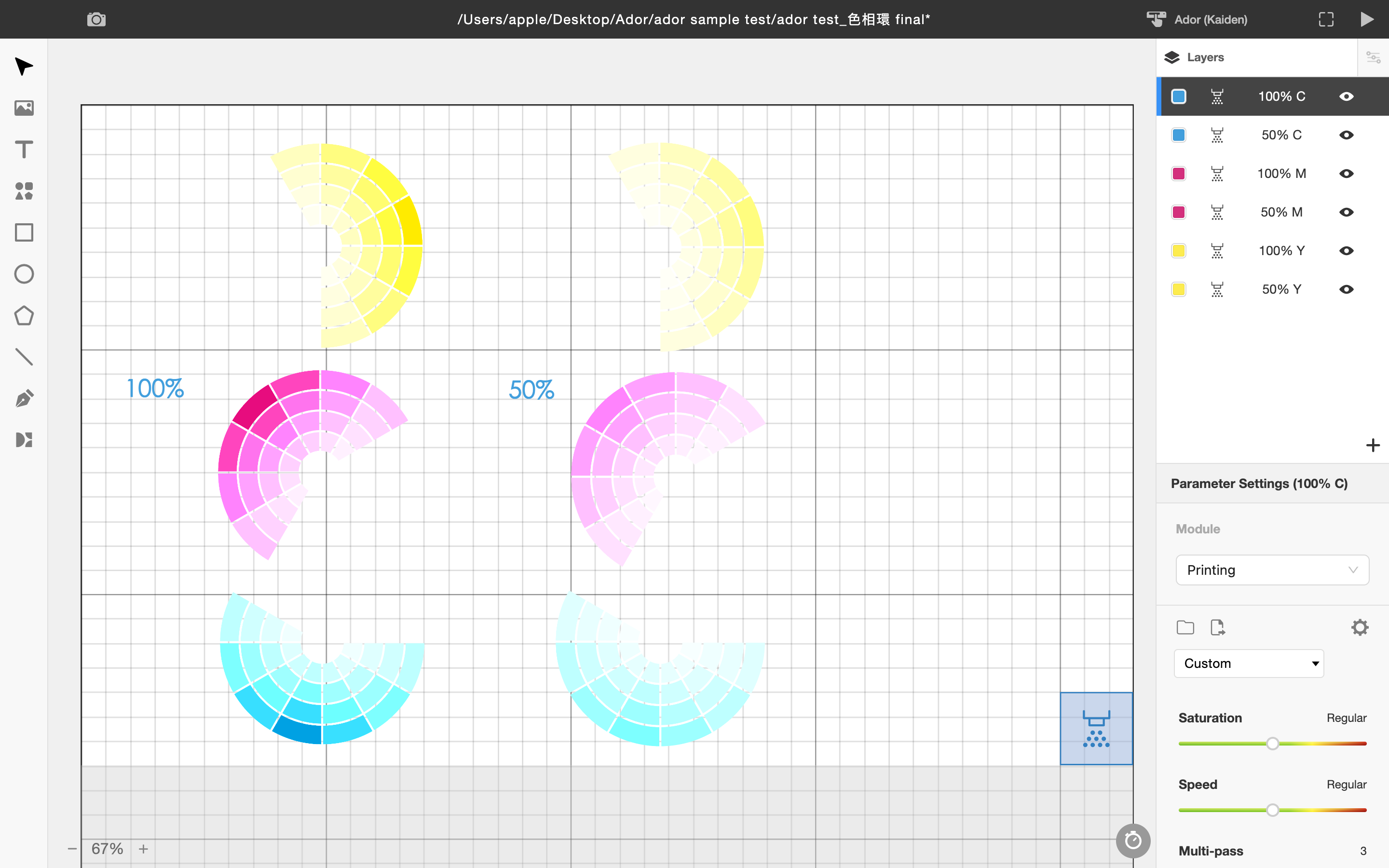

- If you choose “Expand Layer", the full-color layer will be expanded into CMYK's four layers.
- When there are several full-color objects to print, you could expand the full-color layers into CMYK layers and categorize them with the same color to save ink cartridge changes.
- The color of an object in the CMYK layer will be presented based on the Channel Adjustment setting.
Printing Order
The printing order is set as K > C > M > Y by default , please install the ink cartridge following order.
