Before Start
Please install the printing module. You can follow Printing Module Installation to ensure that you have installed it correctly.
Start Printing
1. Place the Material
Place the material inside the machine.
2. Place the Focus Block
Move the printing module above the material.
Please ensure you place the focus block under Ador’s focusing probe for autofocus operation.
*Notice: Do not perform the Autofocus operation without using the Focus block. Doing so can damage the print head.
3. Start the Focusing Process
- Click the focus button on the left side of the machine twice or long-press the "AF" button on the machine panel.
- A warning will appear on the panel to ensure that the focus block has been placed correctly. Click "Continue" to proceed.
- The focusing process is complete when the printing module touches the material and moves upward.
- Ensure that the focus distance is correct before each printing.
a. Long-press the "AF" button on the machine panel | b. Double-click the focus button on the left side of the machine |
|
|
4. Place the Priming sticker
Take one piece of priming sticker and place it on the unused work area.
5. Remove the Focus Block and Close the Door
6. Launch the Beam Studio
Launch the latest version of Beam Studio on your computer.
7. Import the file
Select the module for each layer (like print, or laser cut), and set the parameter.
If you need to adjust the saturation of different colors, refer to the video tutorial on splitting color layers below.
8. Preview the Engraving Position

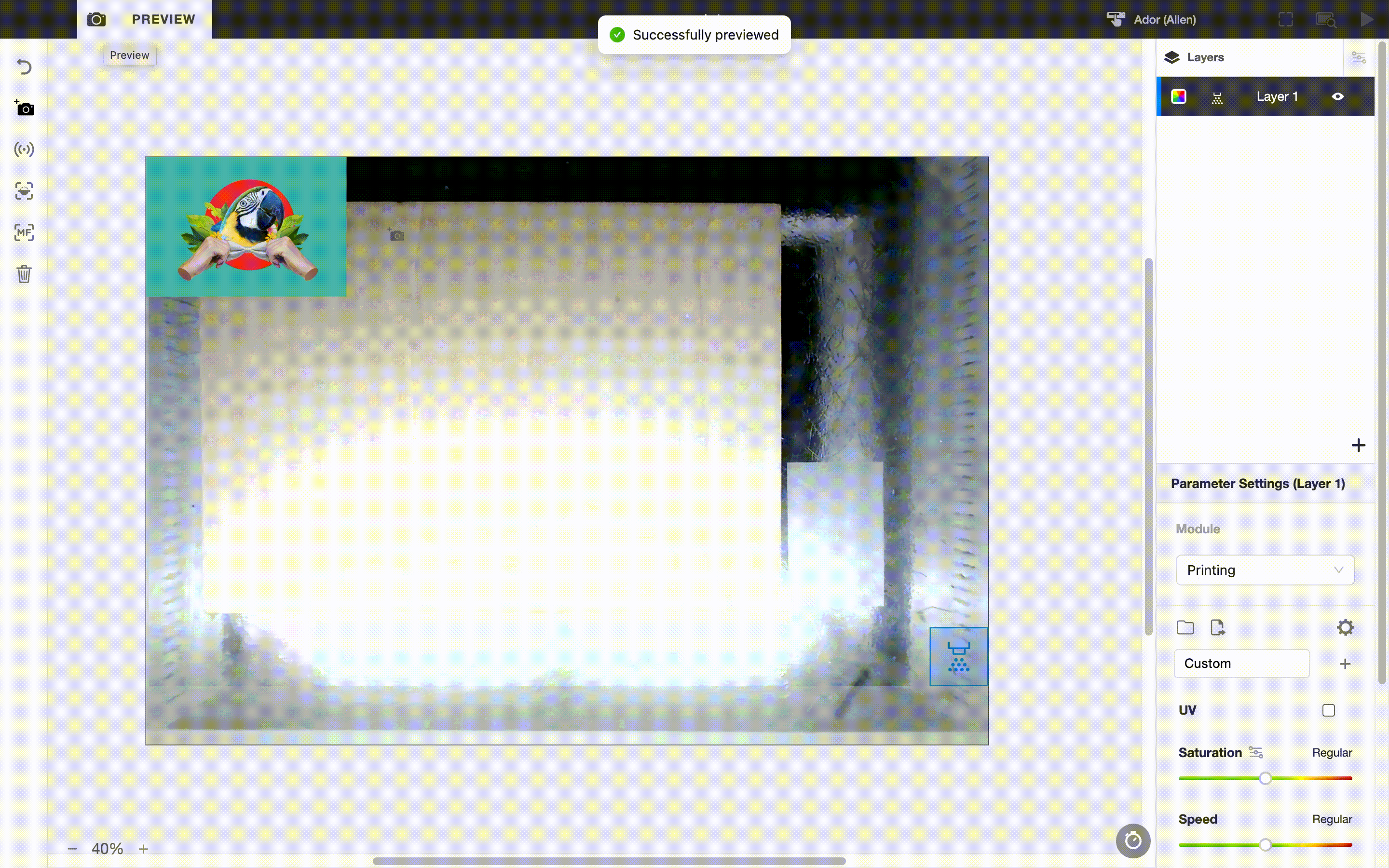

Click on the camera symbol in the top left corner, select the machine name, and you will complete the preview.
9. Move the Sample and Priming Area
Drag and drop the image to the desired printing location. The priming area should align with the priming sticker.
10. Install the Cartridge (Black)
Note: The default starting ink of color printing is "K" (black). Follow the instructions when the task is sent to the machine, replace the ink cartridges, and ensure the color matches the instructions.
a. Gently shake the ink cartridge.
b. Remove the protective clip.
c. Clean the printhead with lint-free wipes sprayed with alcohol(above 99% recommended).
Please note the cleaning direction, which should be in one direction; do not wipe back and forth.
d. Install the ink cartridge into the print module.
Please ensure the module's cover is fully closed up.
11. Close the door
12. Submit the File

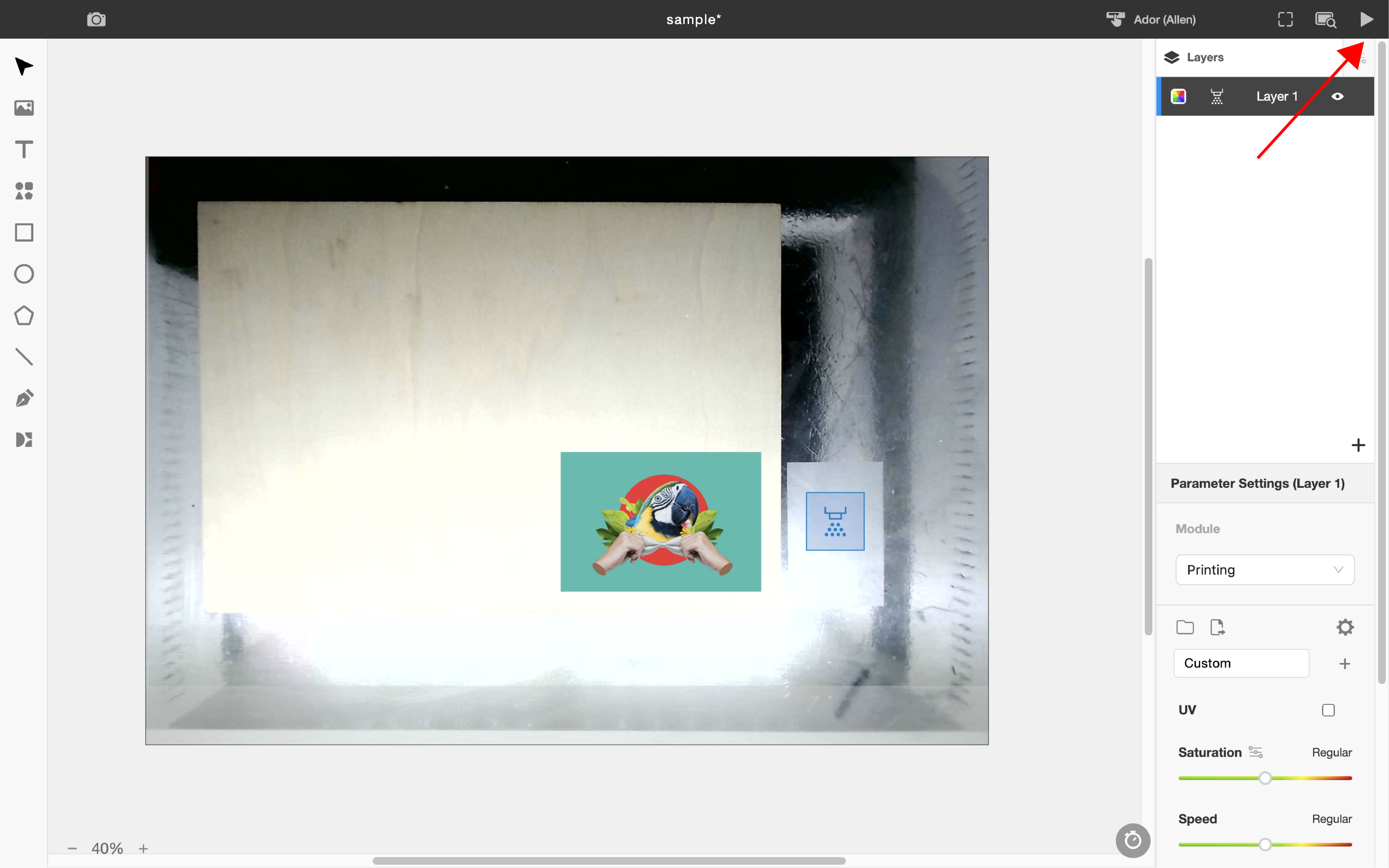

Click on the arrow button in the top right corner to send the file.
*Notice: Do not remove the printing module or ink cartridge while the machine is in operation.

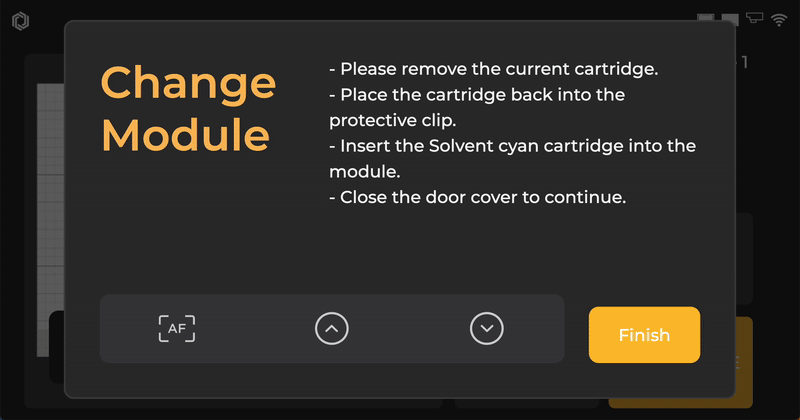

Please note that the cartridge change notice will pop in the multi-color printing process. Follow the instructions to replace the ink cartridges. Click "Finish" > "Continue" each time the replacement is completed.
13. Clean the Printhead after Printing
Clean the head again with lint-free wipes, then replace the protective clip.
If the printing result is blurry, unclear, or light in color, please check if the printhead is focused accurately, it should be relevantly close to the printing surface (2mm).
If the focus distance is correct, please check the material suitability and parameters, and find the troubleshooting guide here: Ador -Non-ideal Printing Results/Misaligned Printing result.
