4-14 Firmware Update

FLUX Support Team
  • Updated

To update your machine's firmware, you have three options:

  1. Using the Machine's Panel.
  2. Using Beam Studio.
  3. Using USB Drive.

⚠︎ If your machine cannot connect for updates, please use a USB flash drive to update.

1. Using the Machine's Panel:

Please select the "MACHINE→Settings→Update the Latest Firmware" on the machine's panel.FW update on panel.gif

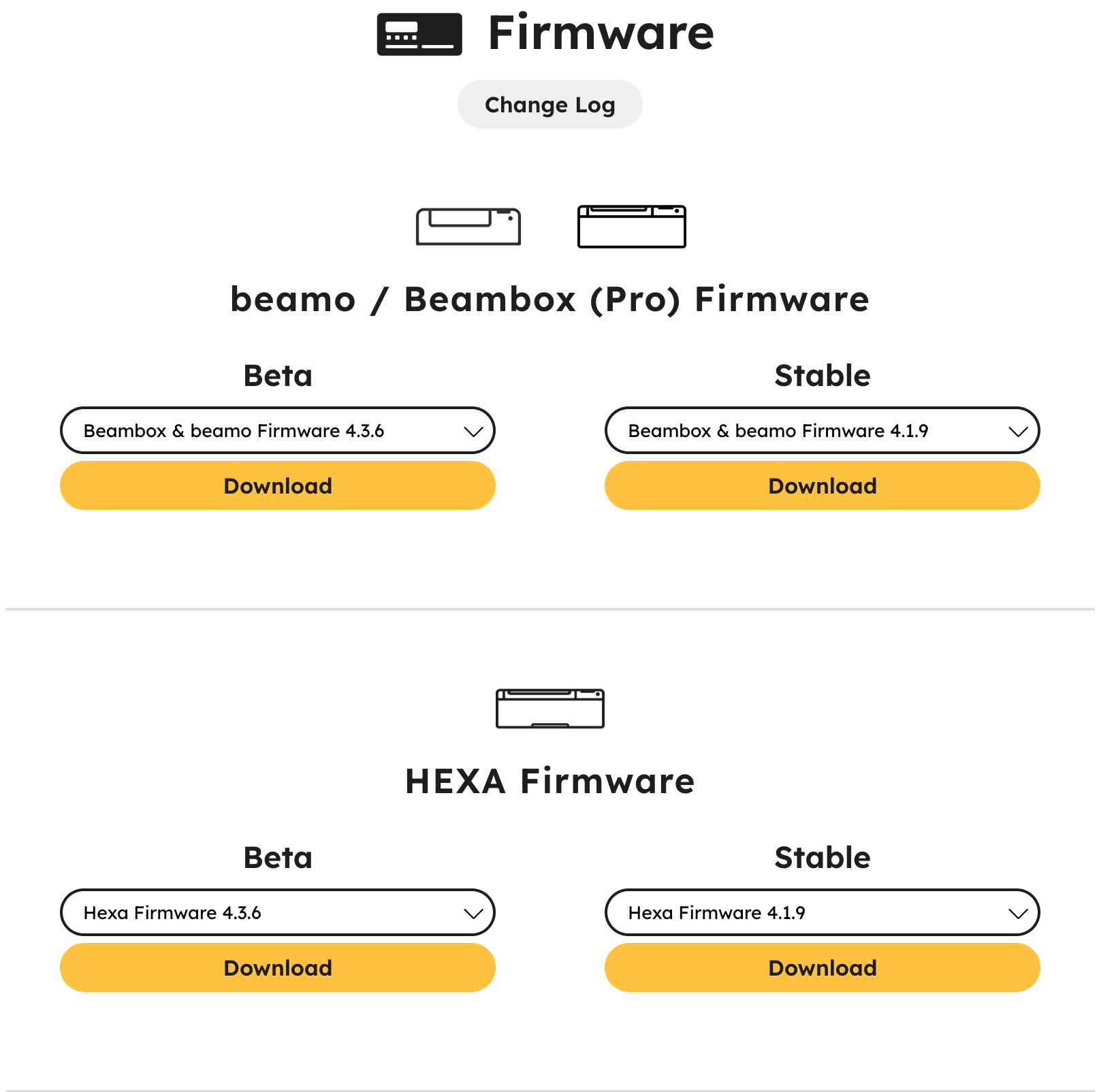

⚠︎ Suppose you would like to update by the methods below. Please go to the official FLUX website > "Support"> "Downloads" and select the latest firmware to download.

Screenshot 2024-05-03 at 2.48.08 PM.png

2. Using Beam Studio:

Please follow the video to process the update.



3. Using the USB Drive:

  1. Ensure the USB flash drive capacity is ≤ 64GB and formatted to FAT32.
  2. Rename the firmware file to "autoupdate.fxfw" and copy it to your USB drive.
  3. Plug the USB drive into the machine and reboot it. The update process will take approximately three to five minutes.
⚠︎  If the firmware version is 3.2.6 or earlier, USB updates are not possible. Please proceed with reflashing the firmware directly onto an SD card.
