HEXA - Drawer Sensor Replacement

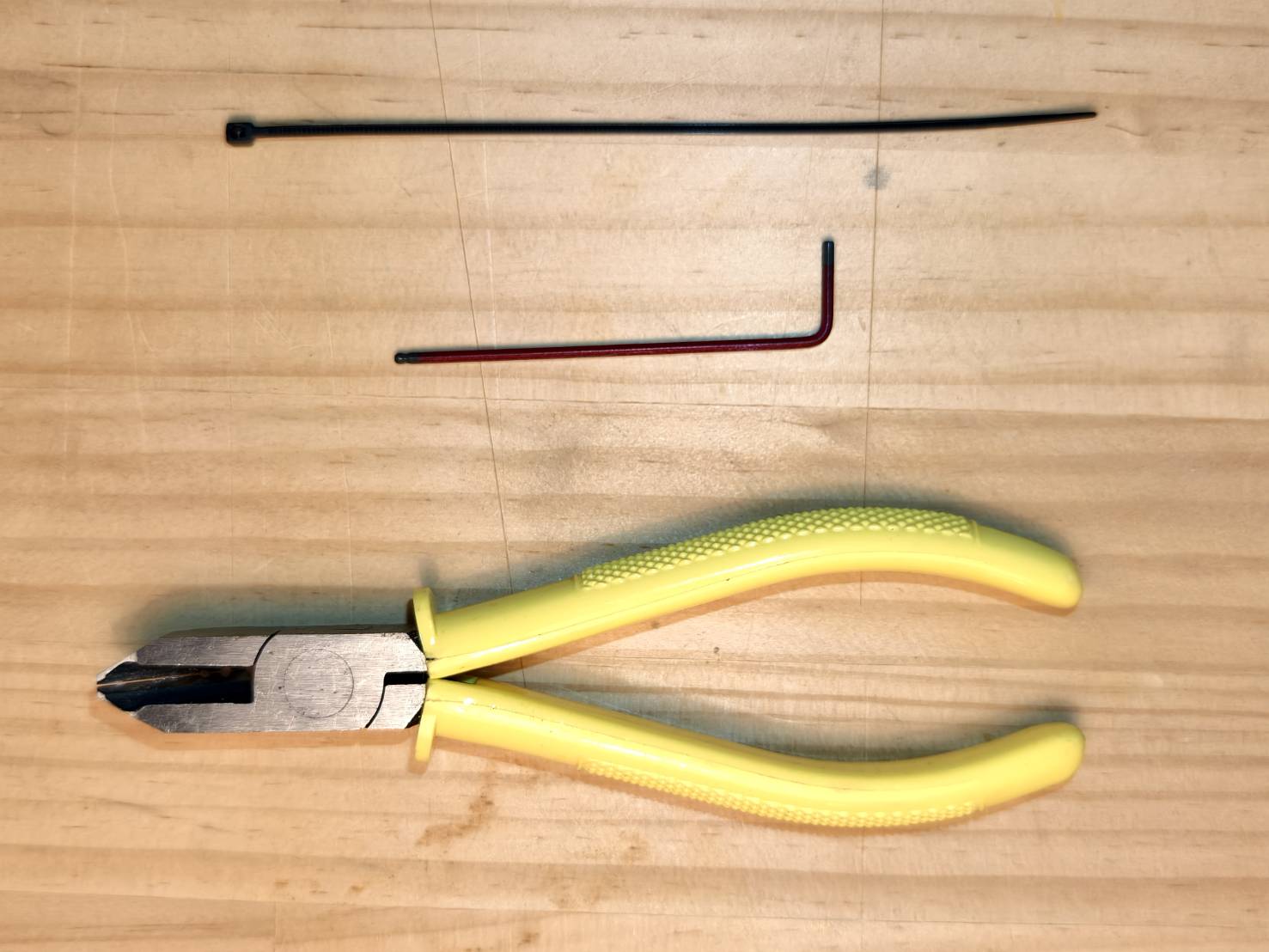

Tools

• 2mm Allen key
• diagonal pliers or scissors
• Cable tie

Step 1

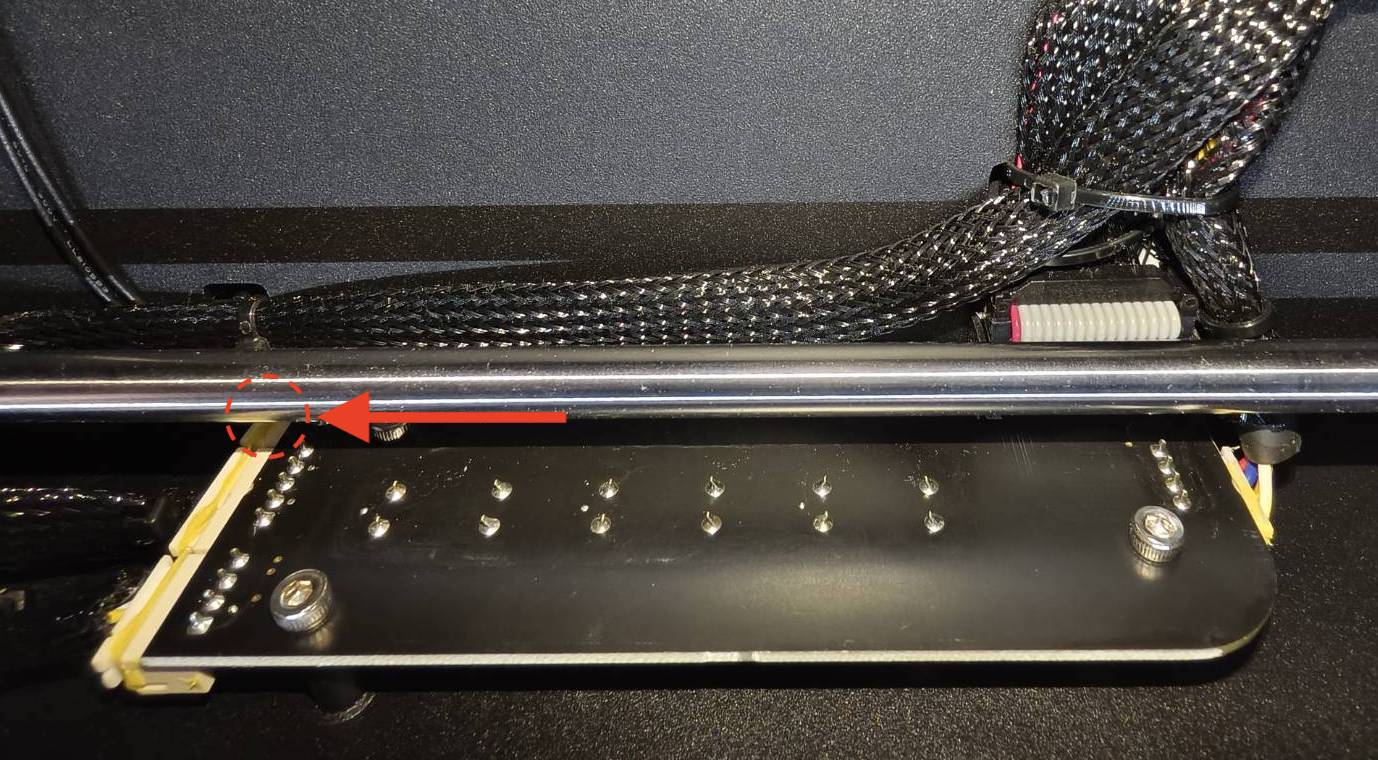

Unplug the cable of the drawer sensor from the auto-focus button board.

Step 2

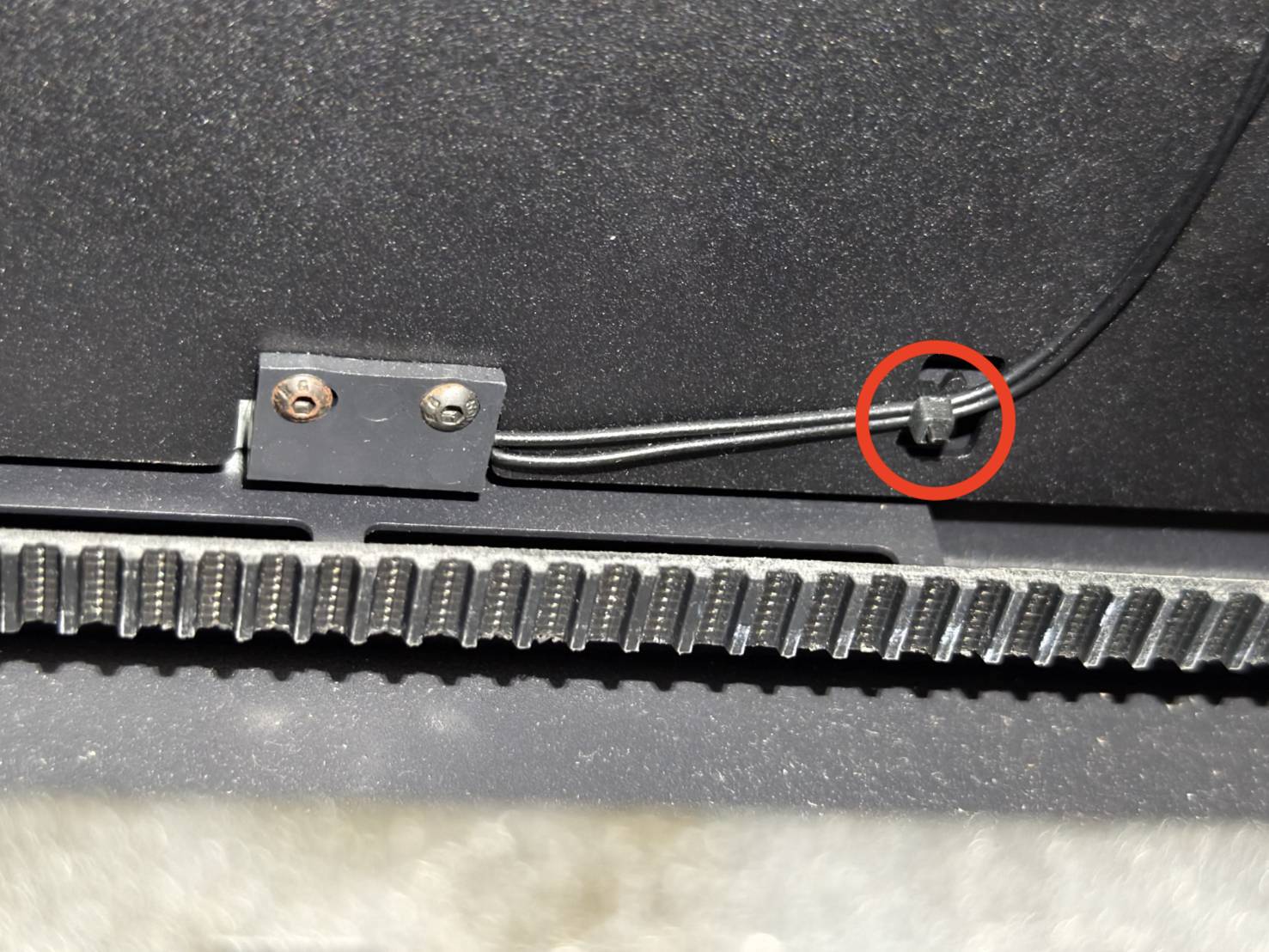

Snip off the cable tie.

Step 3

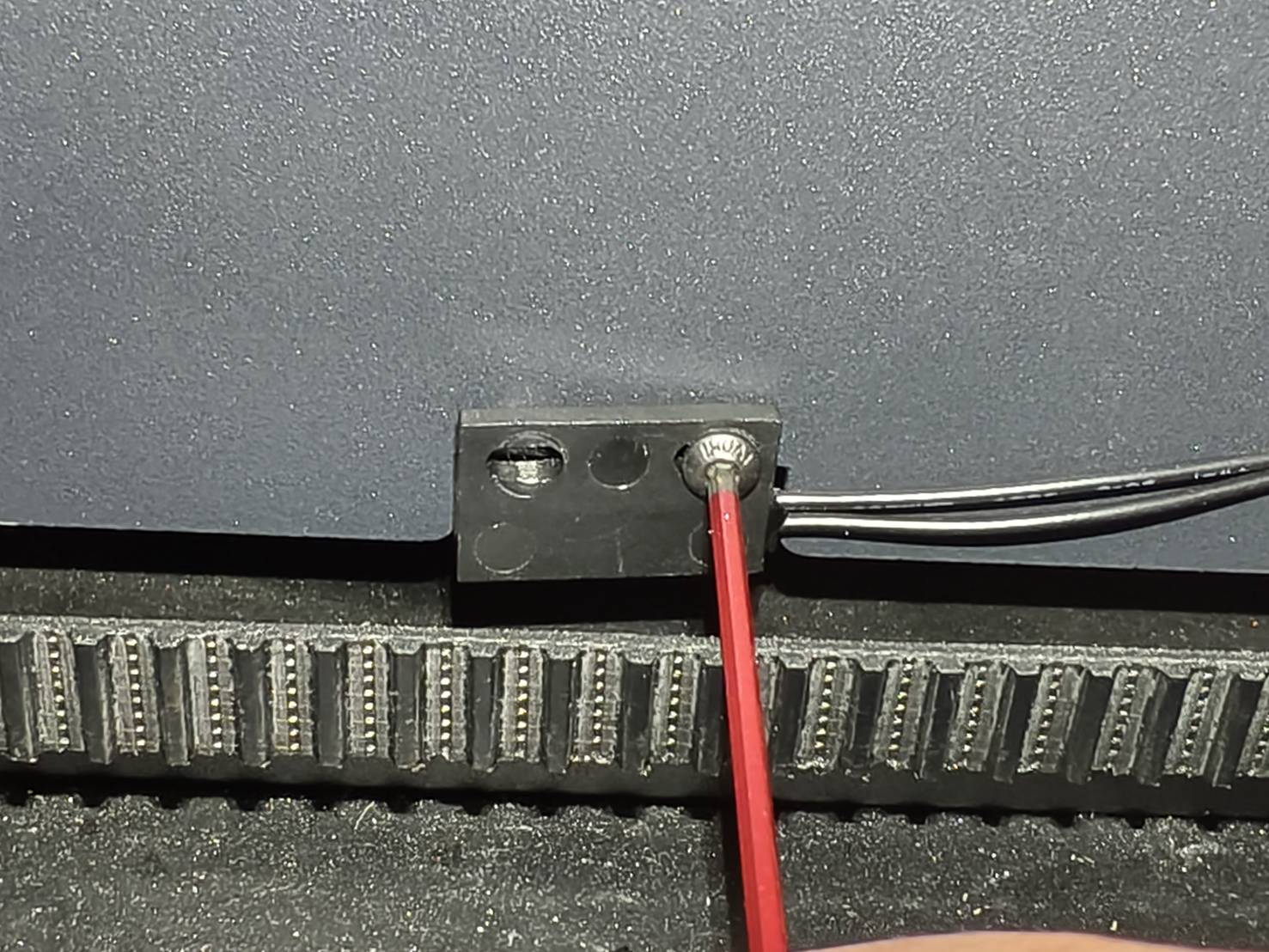

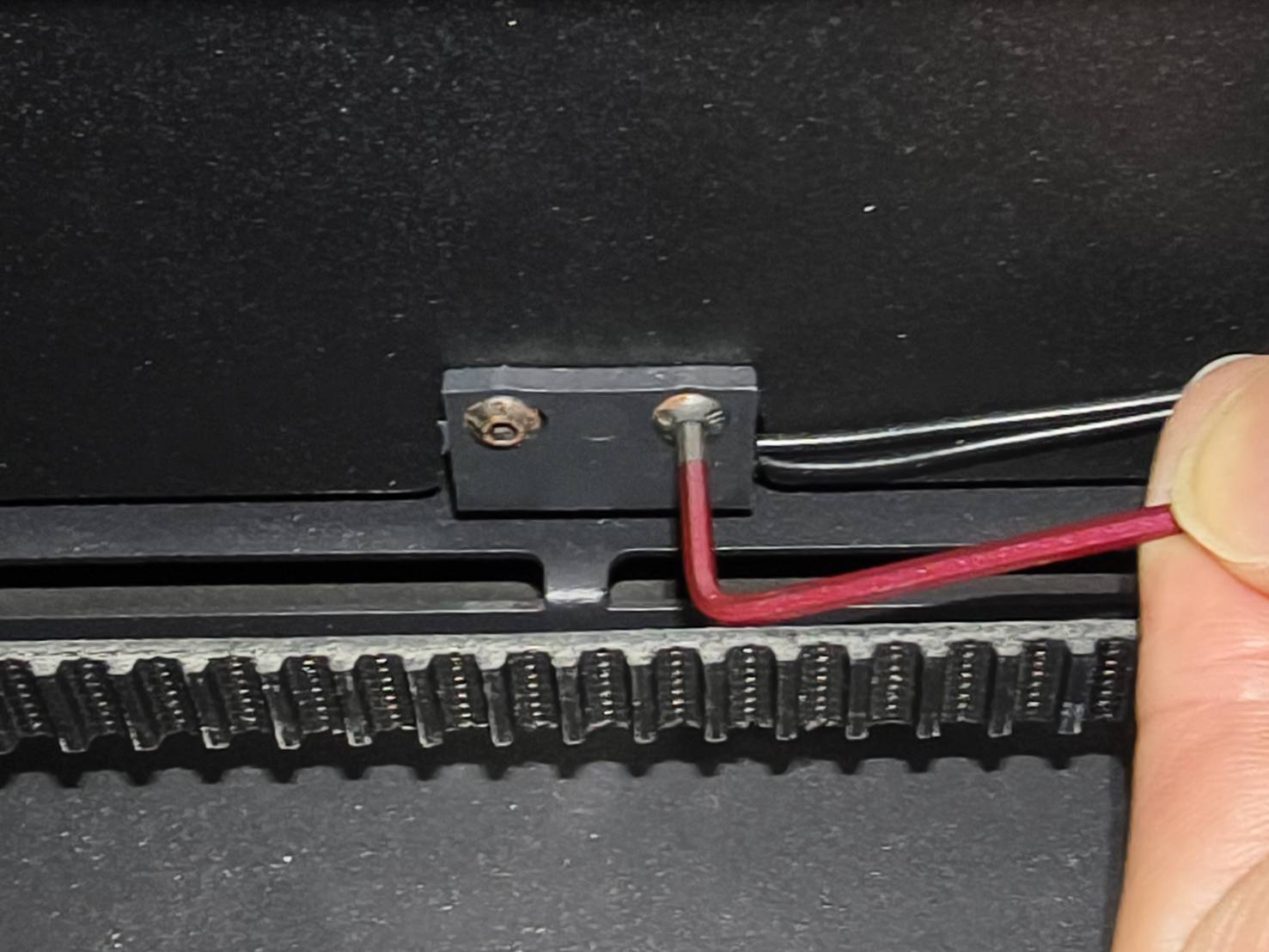

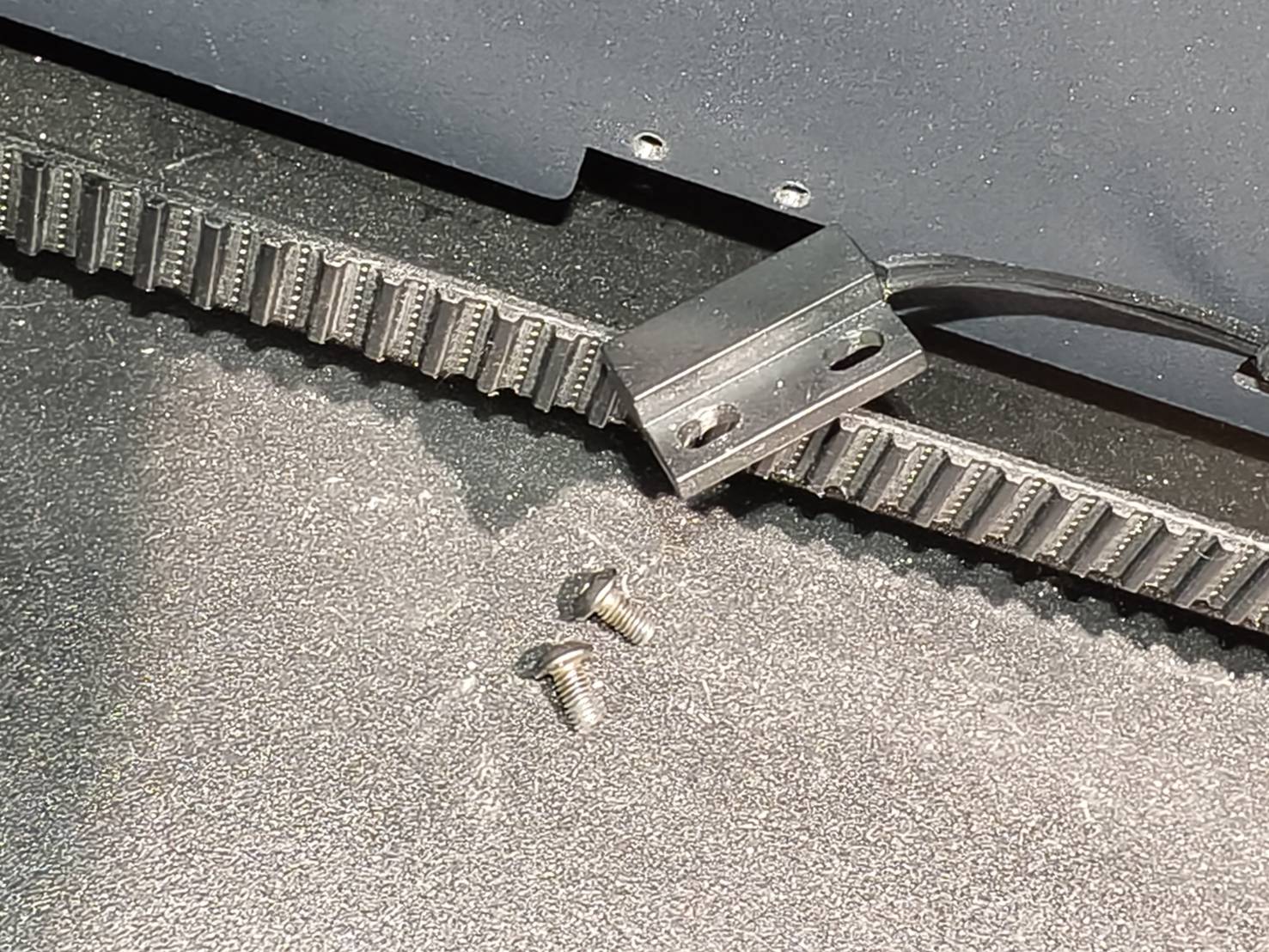

Unscrew these two screws, and the drawer sensor can be removed completely.

Step 4

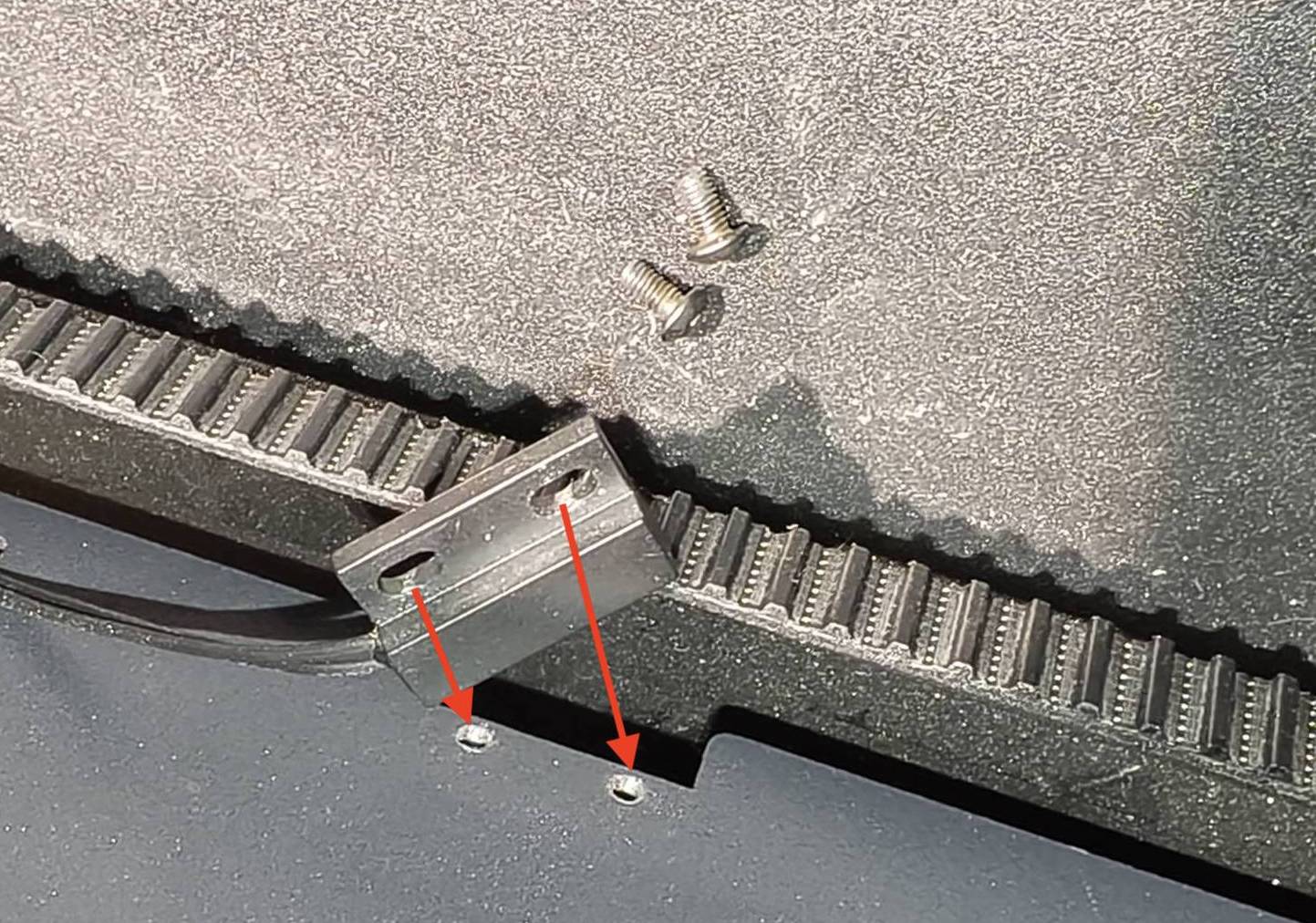

Fix the new sensor in position and make sure the direction is the same as the photo below.

Step 5

Plug the cable of the drawer sensor on the auto-focus button board.

Step 6

Use a cable tie to fix the cable.
