Description
This article provides a step-by-step guide to installing the beamo II Extension Base Add-on.
Please follow the instructions below for the installation process.
The material height information for placement on the Extension Base is as follows:
| Without Honeycomb | |
| Slot 1 | 23 ~ 50 mm |
| Slot 2 | 51 ~ 58 mm |
| Slot 3 | 81 ~ 110 mm |
| Slot 4 | 111 ~ 140 mm |
| Without Drawer | 141 ~ 155 mm |
| With Honeycomb | |
| Slot 1 | 0 ~ 27 mm |
| Slot 2 | 28 ~ 57 mm |
| Slot 3 | 58 ~ 87 mm |
| Slot 4 | 88 ~ 117 mm |
| Without Drawer | 118 ~ 132 mm |
Unboxing:

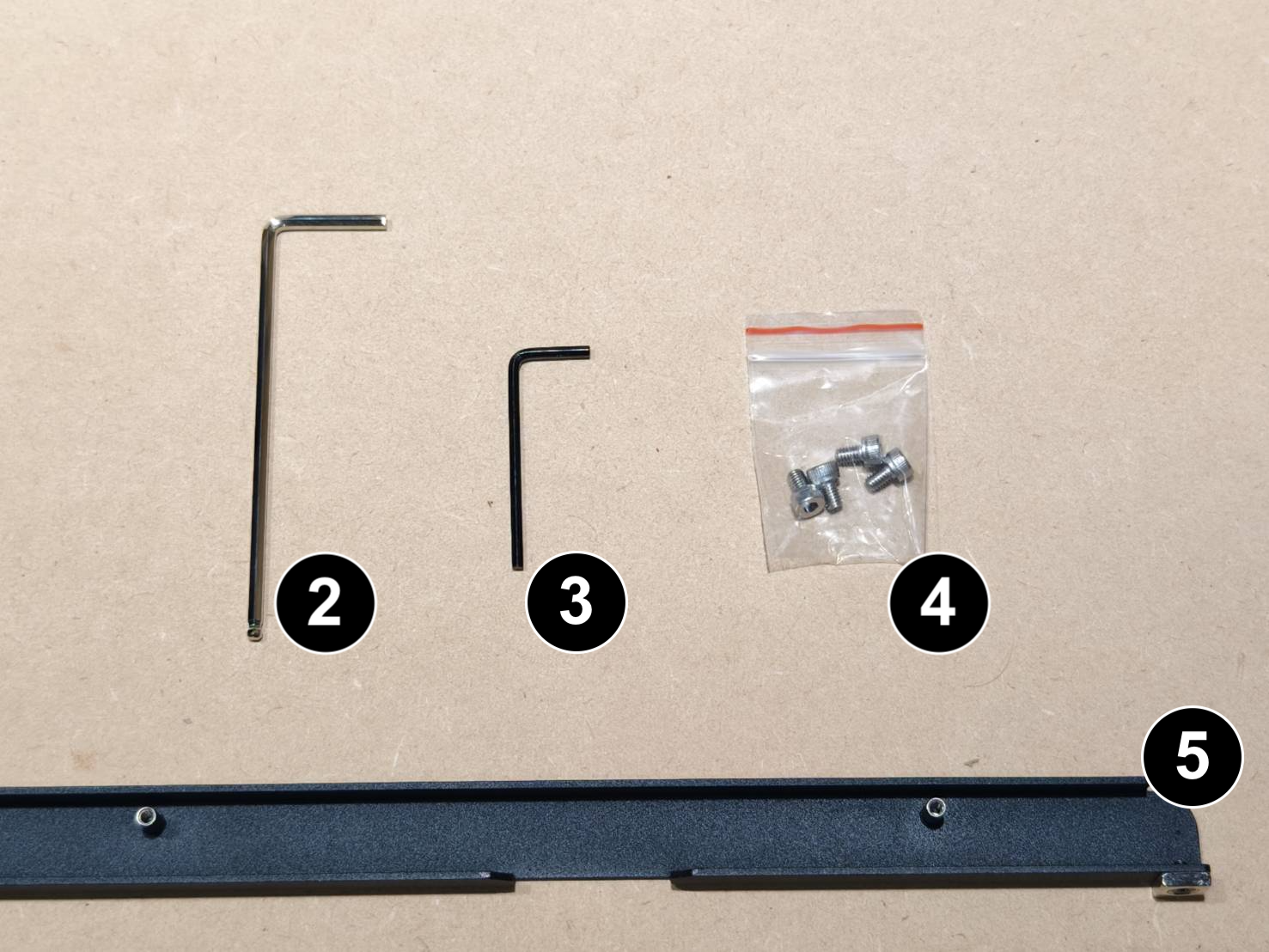

# | Item | Q'ty |
1 | Extension Base | 1pc |
2 | 3mm Allen Key | 2pcs |
3 | 2.5 mm Allen Key | 1pc |

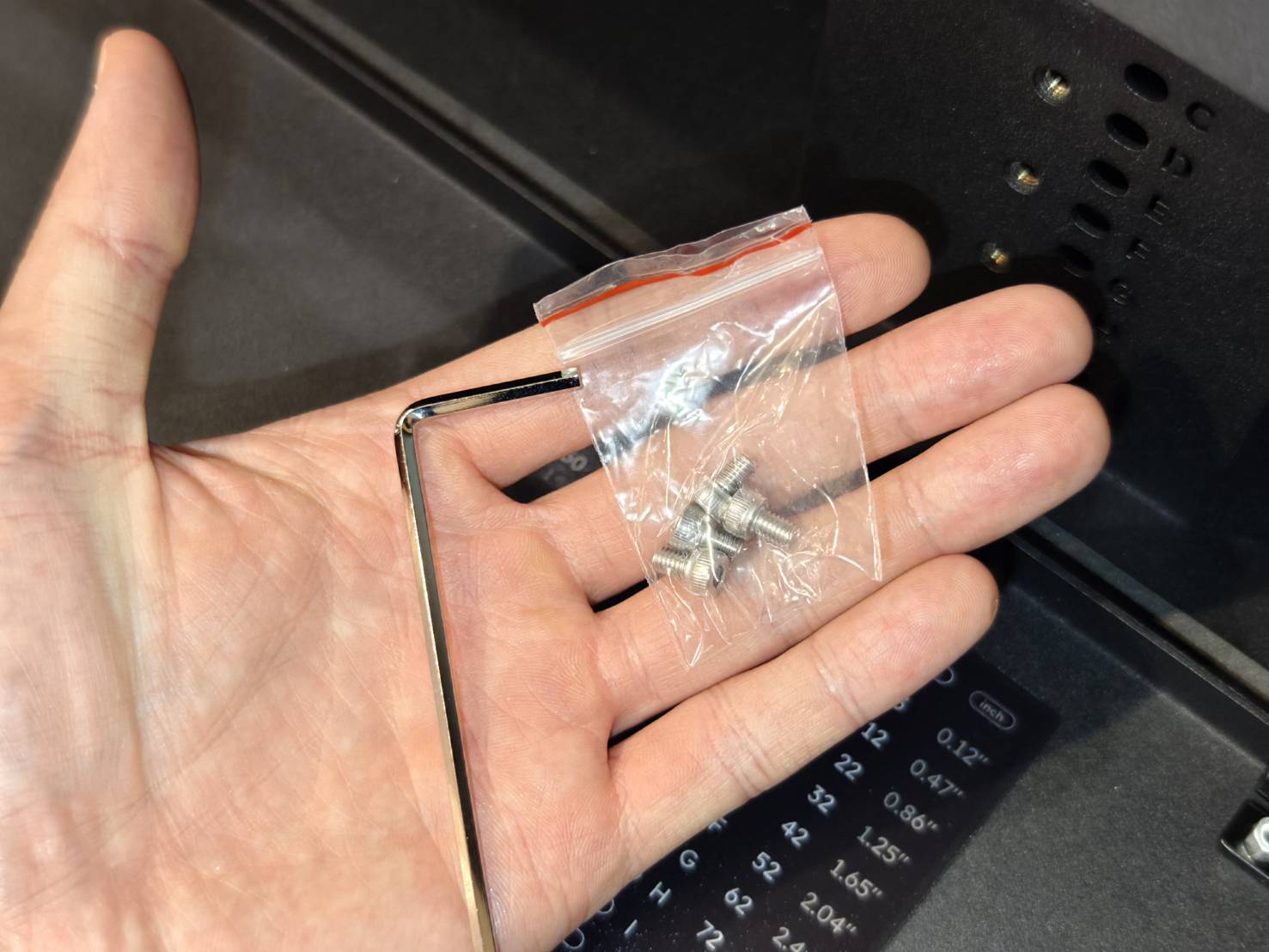

4 | Hex Screws | 4pcs |
5 | Drawer Handle | 1pc |

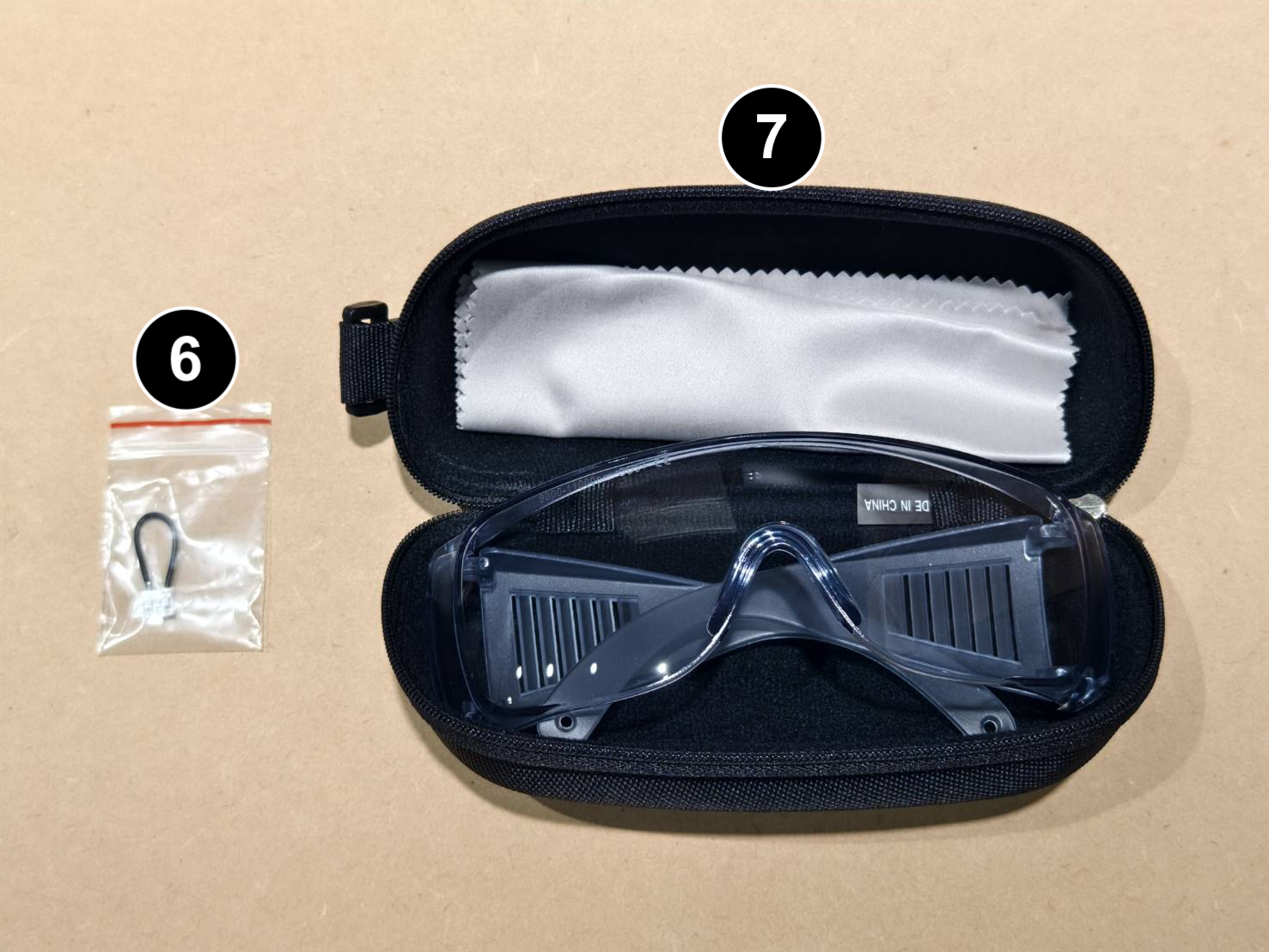

6 | Jumper (It will be used for the auto-feeder add-on or any application that requires opening the front and back covers of the extension base.) | 1pc |
7 | Safety Goggles | 1pc |

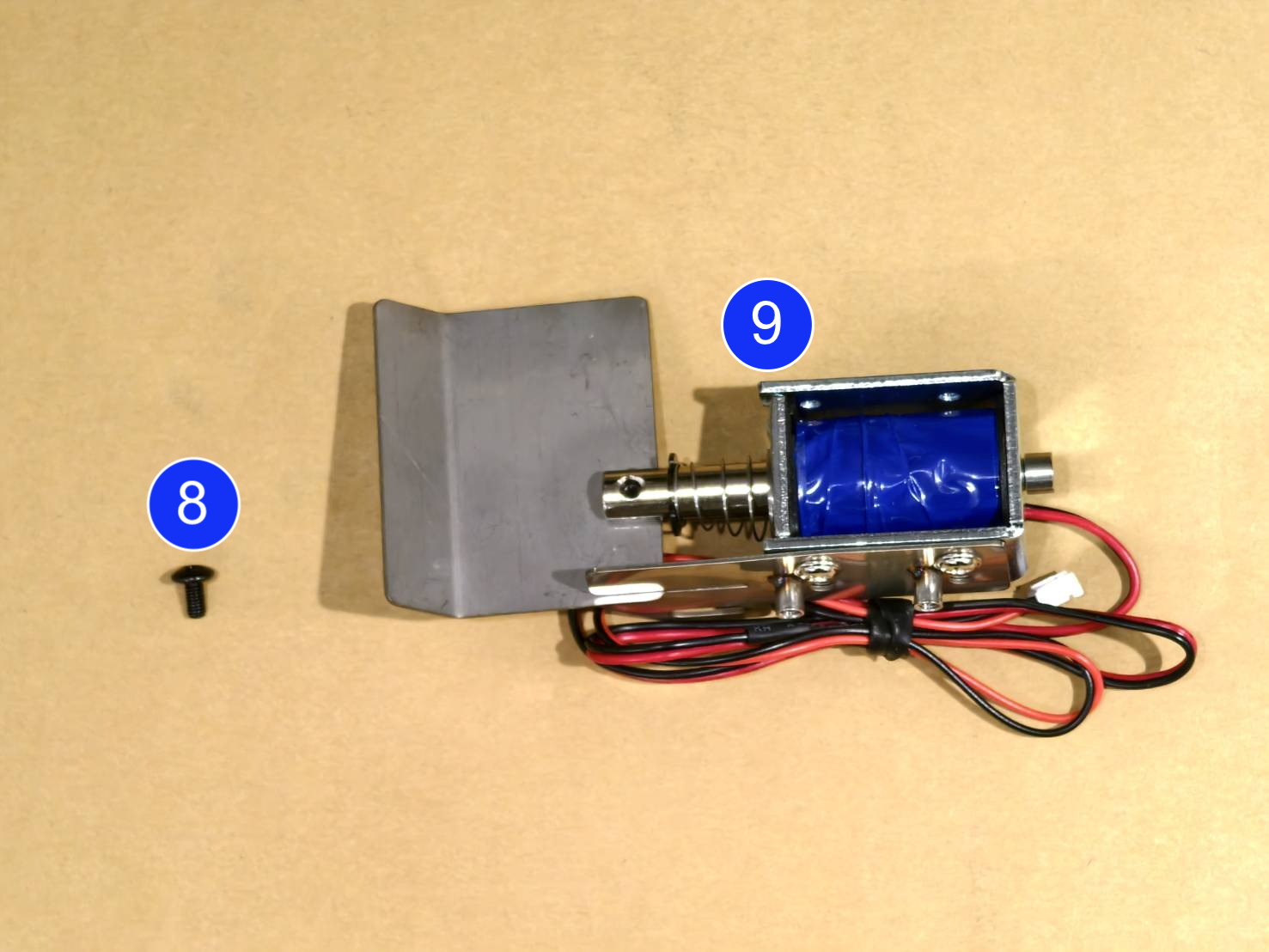

8 | Phillips Screw (For conutries/regions that require safety control for Class 4 laser) | 1pc |
9 | Laser Shutter Add-on (For conutries/regions that require safety control for Class 4 laser) | 1pc |
Tools
# | Item | Q'ty |

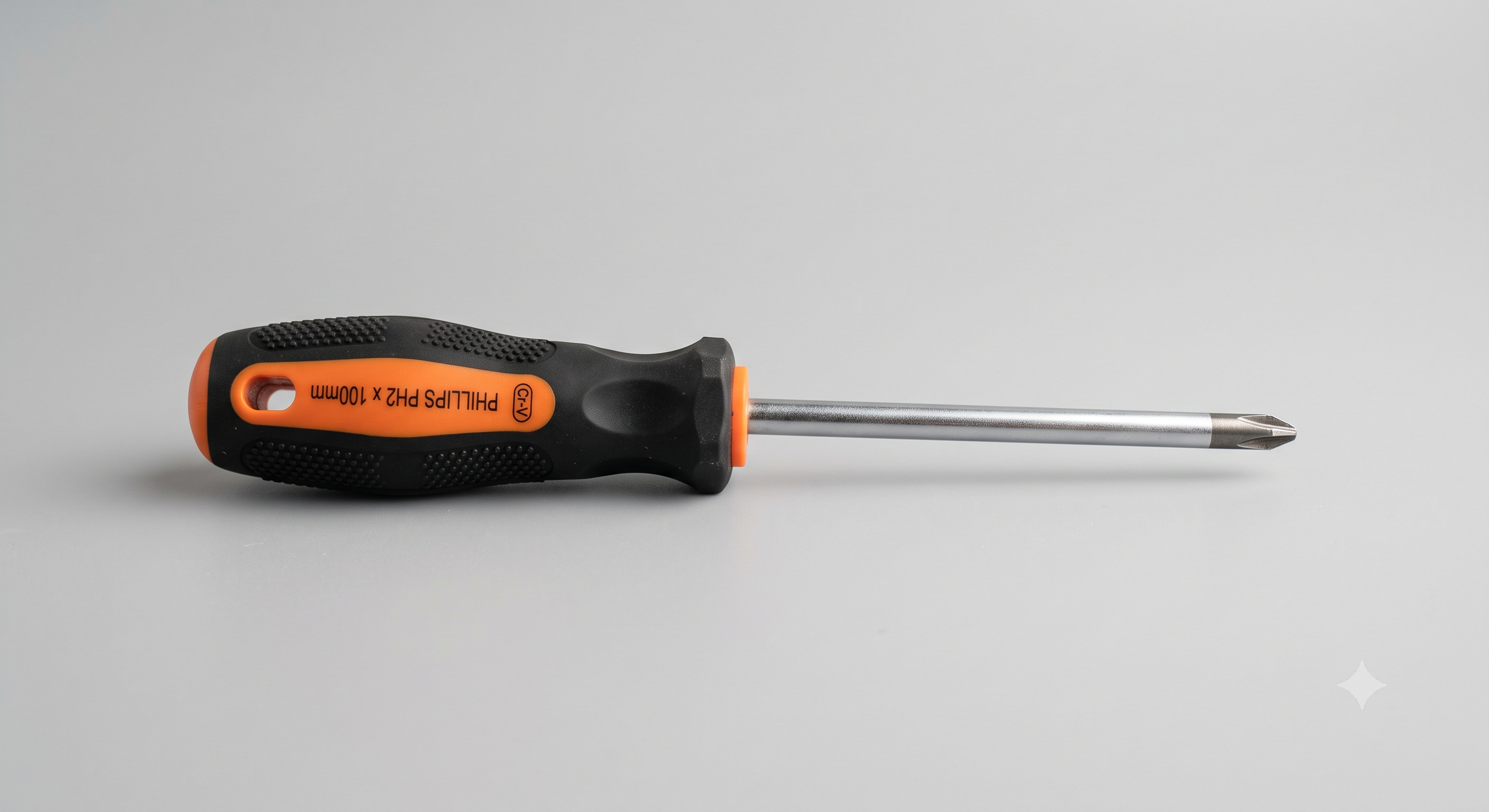

1 | Phillips screwdriver (Optional for Laser Shutter Use) | 1pc |
Step 1

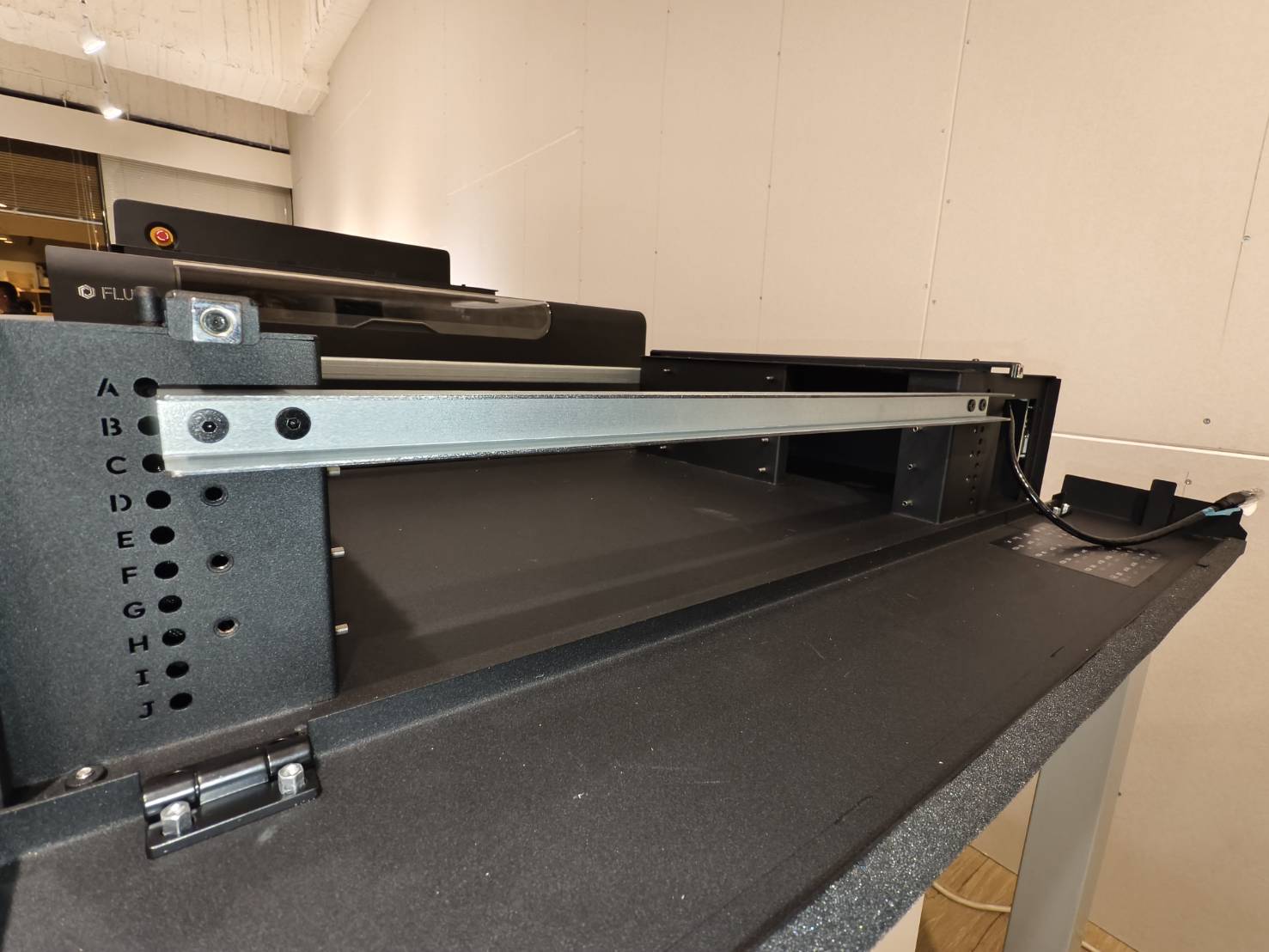

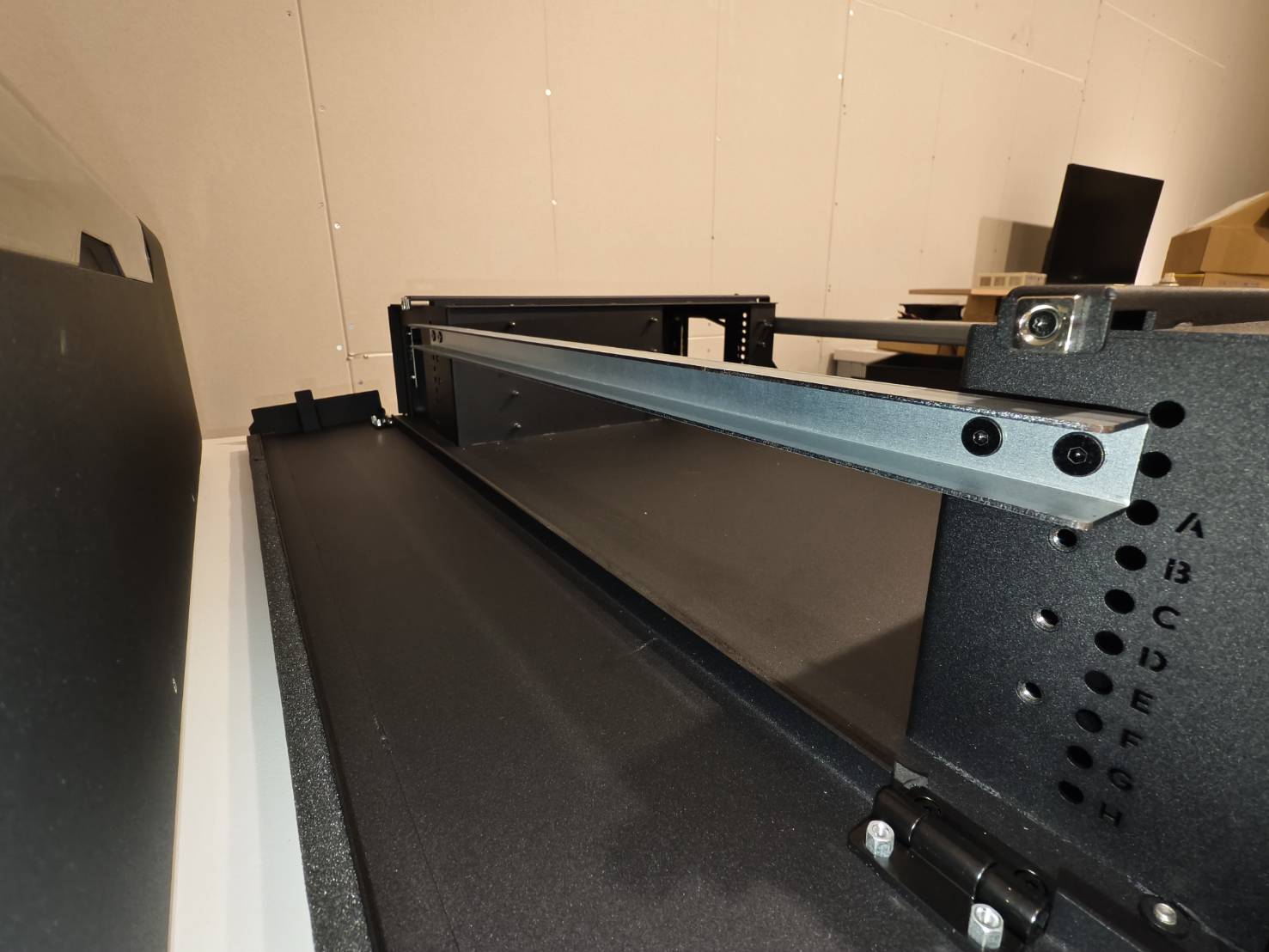

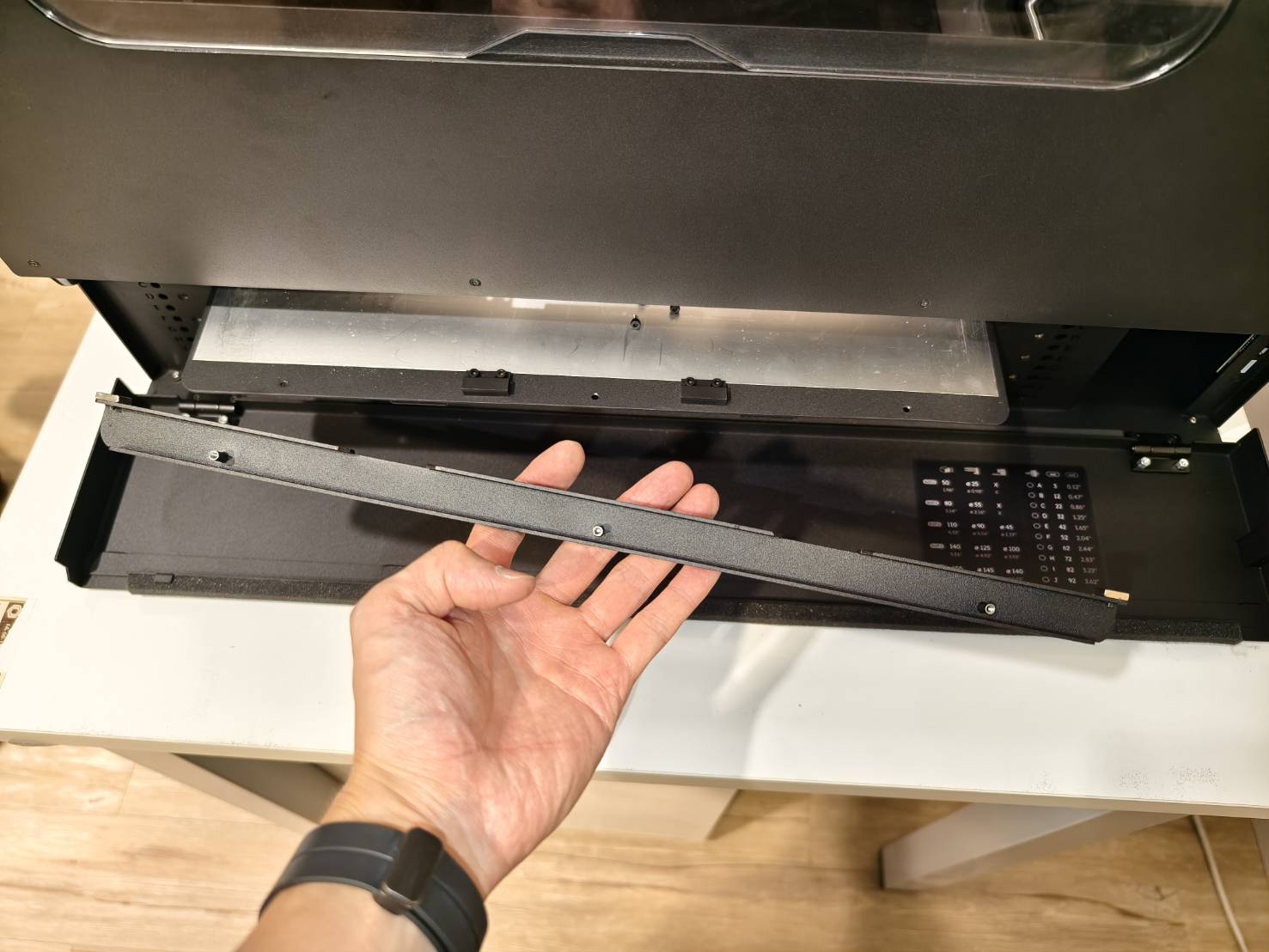

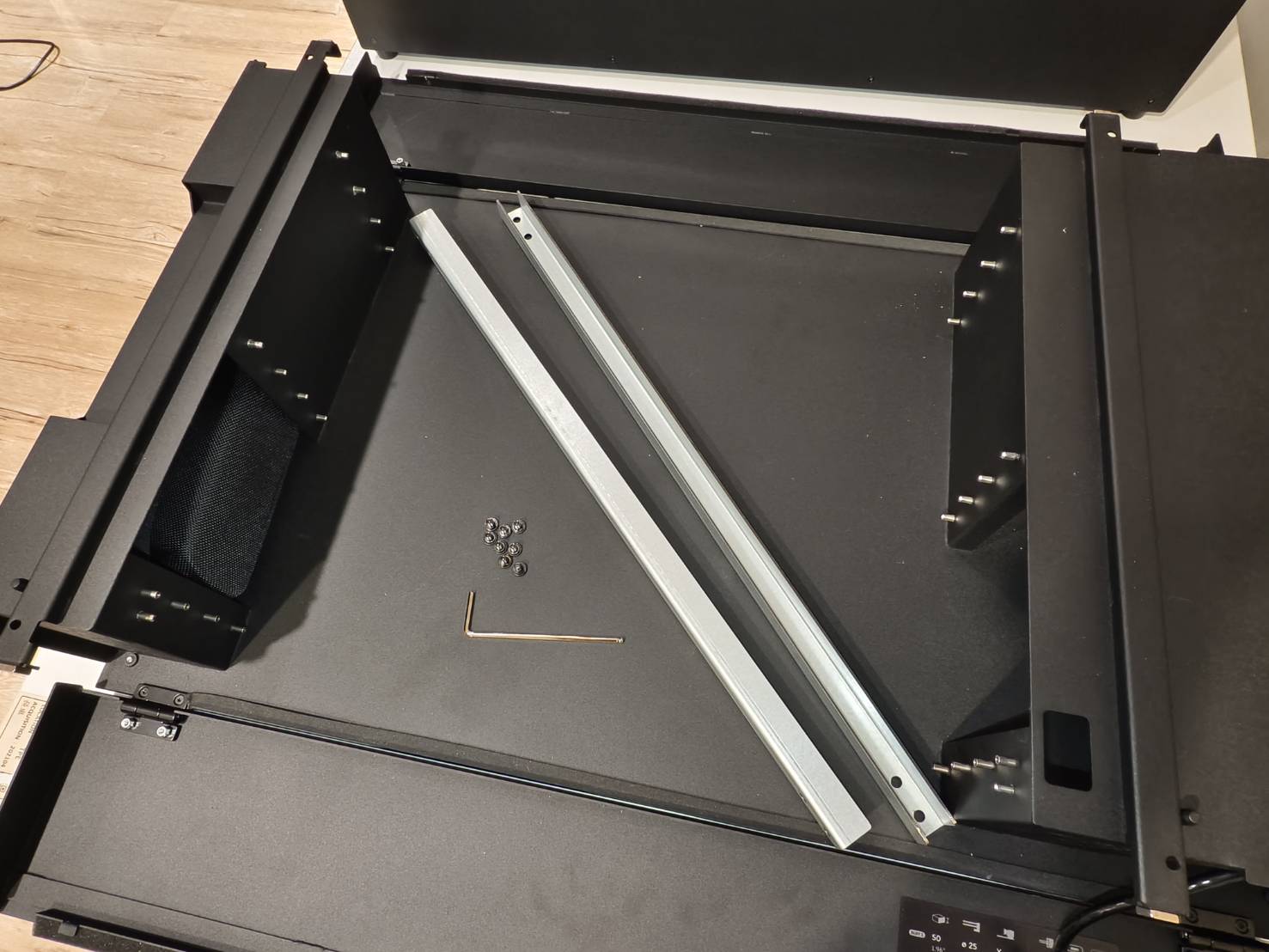

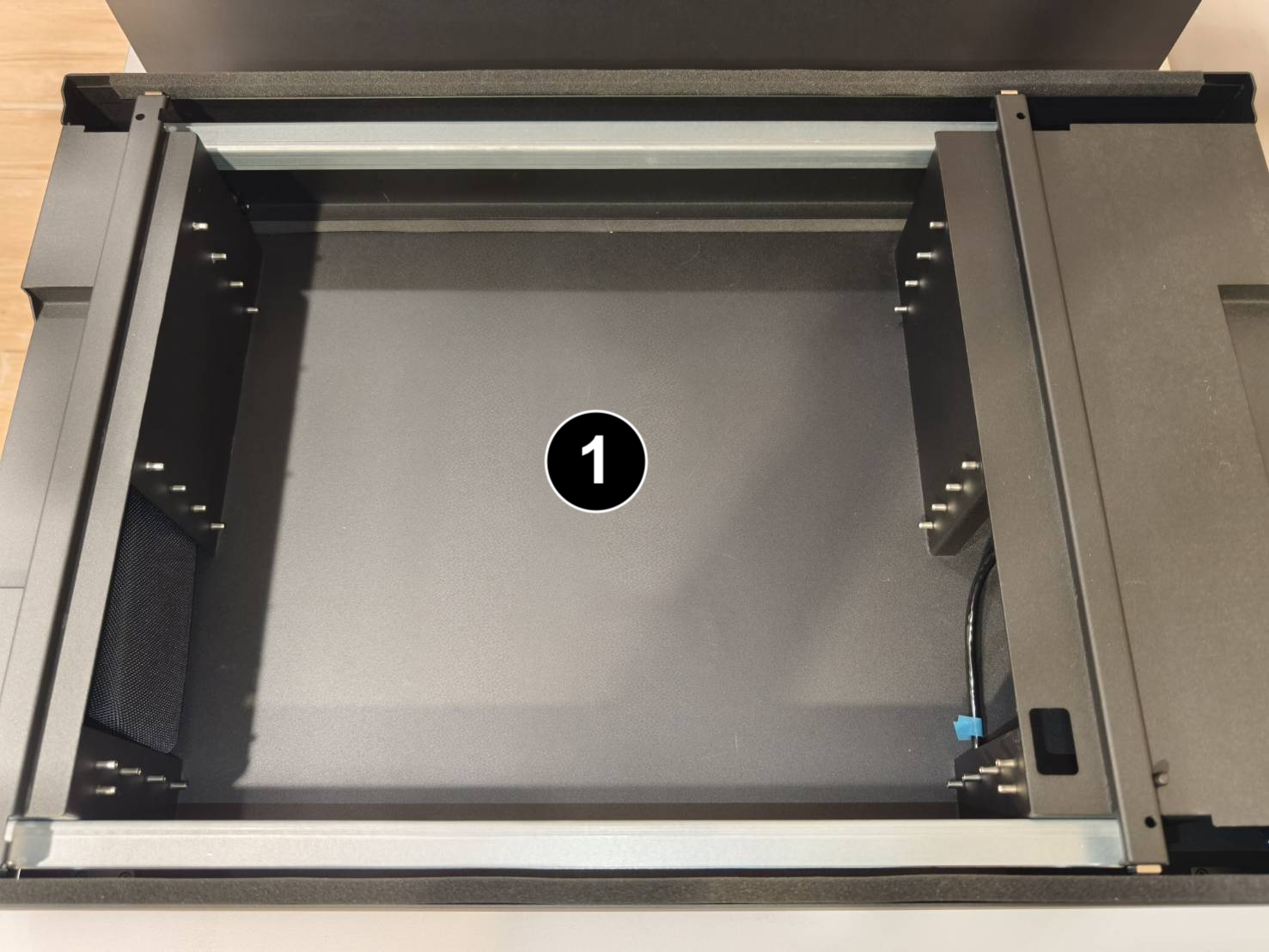

Open the front and back covers on the base itself to remove the metal retainers.
Step 2
Place the machine on the extension base. Two people will be recommended to operate.
Step 3

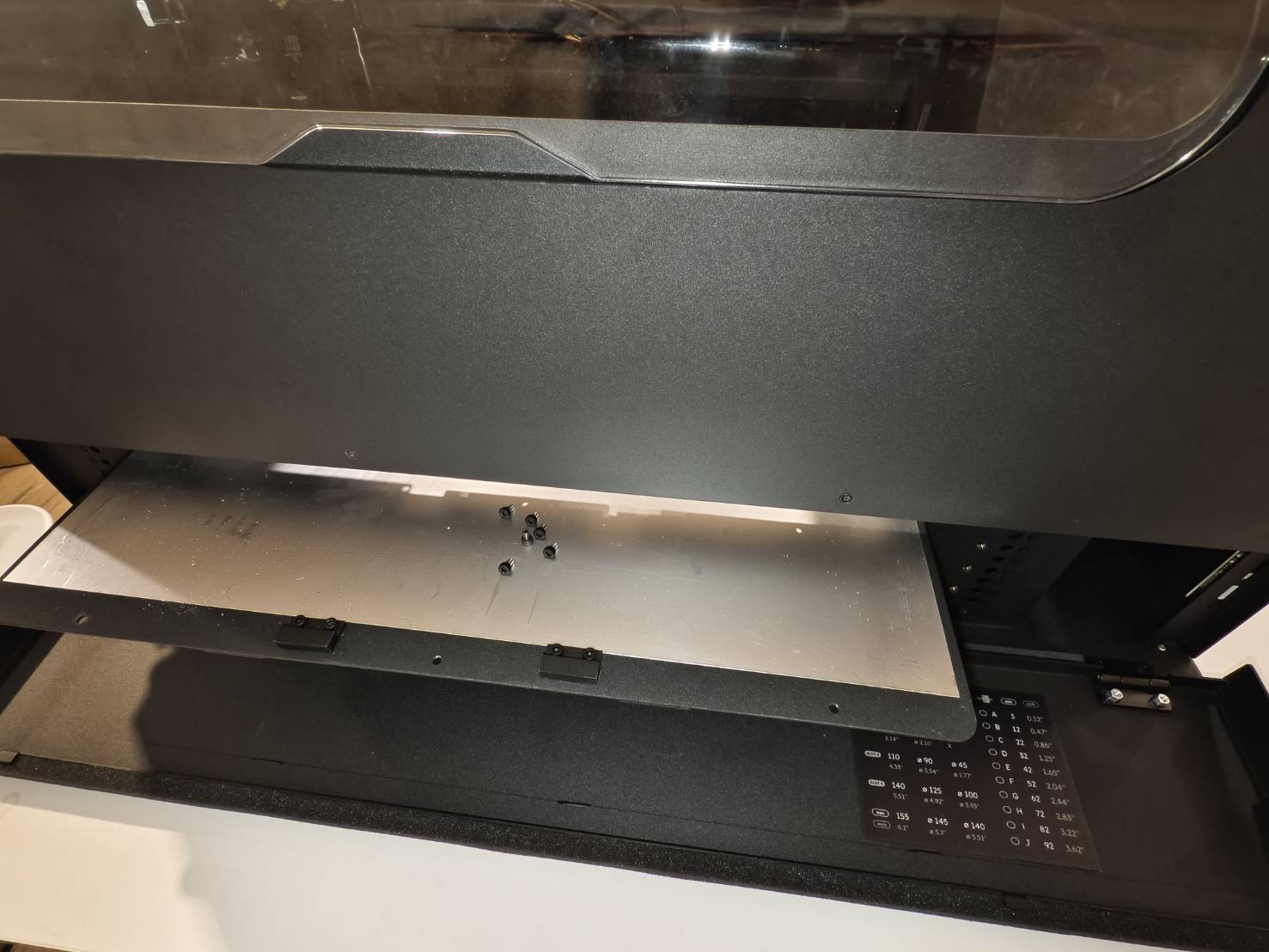

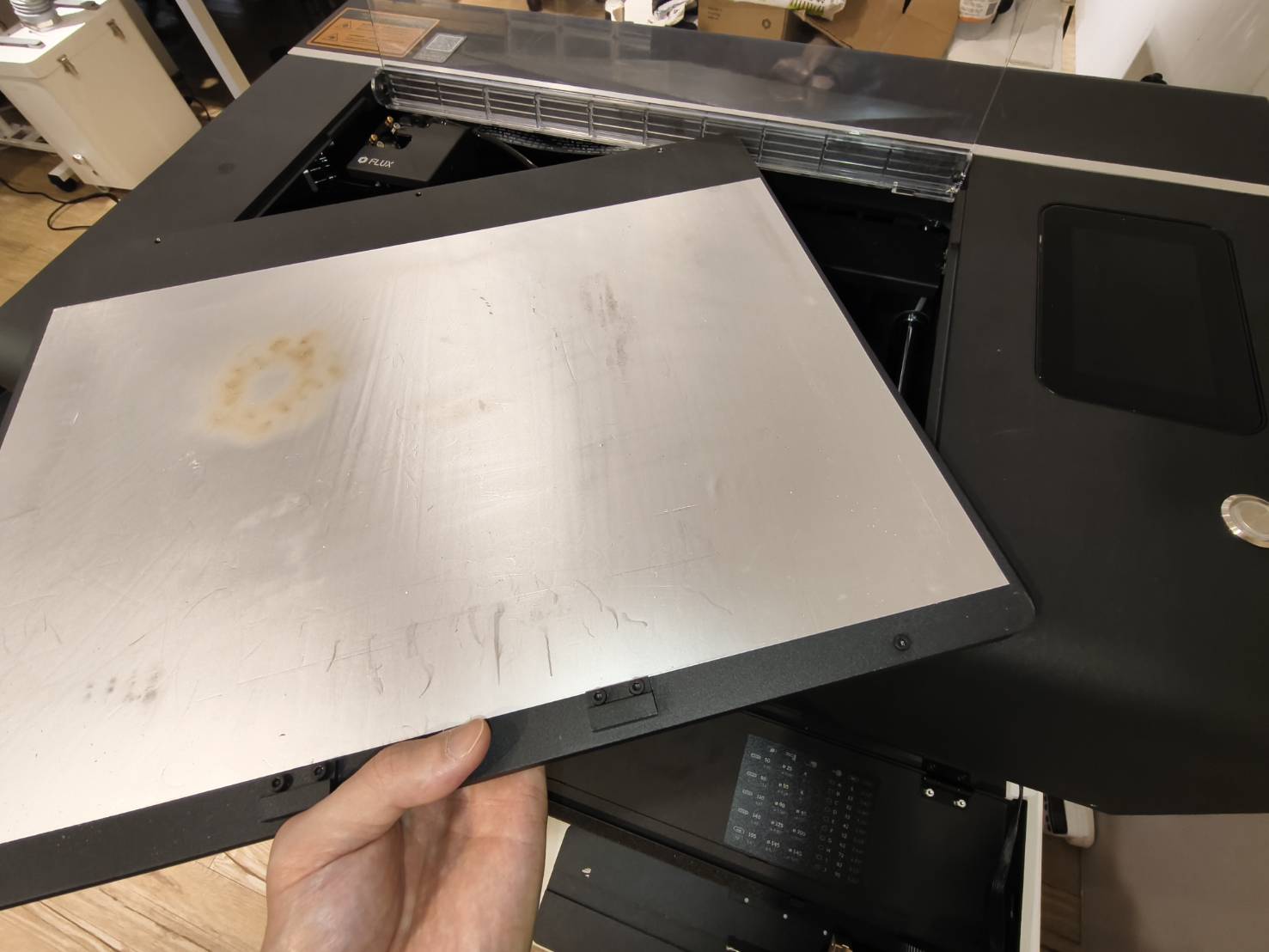

Remove the six screws of the machine's bottom plate, and the bottom plate can then be removed.
Please keep the screws secure for later action.
Step 4

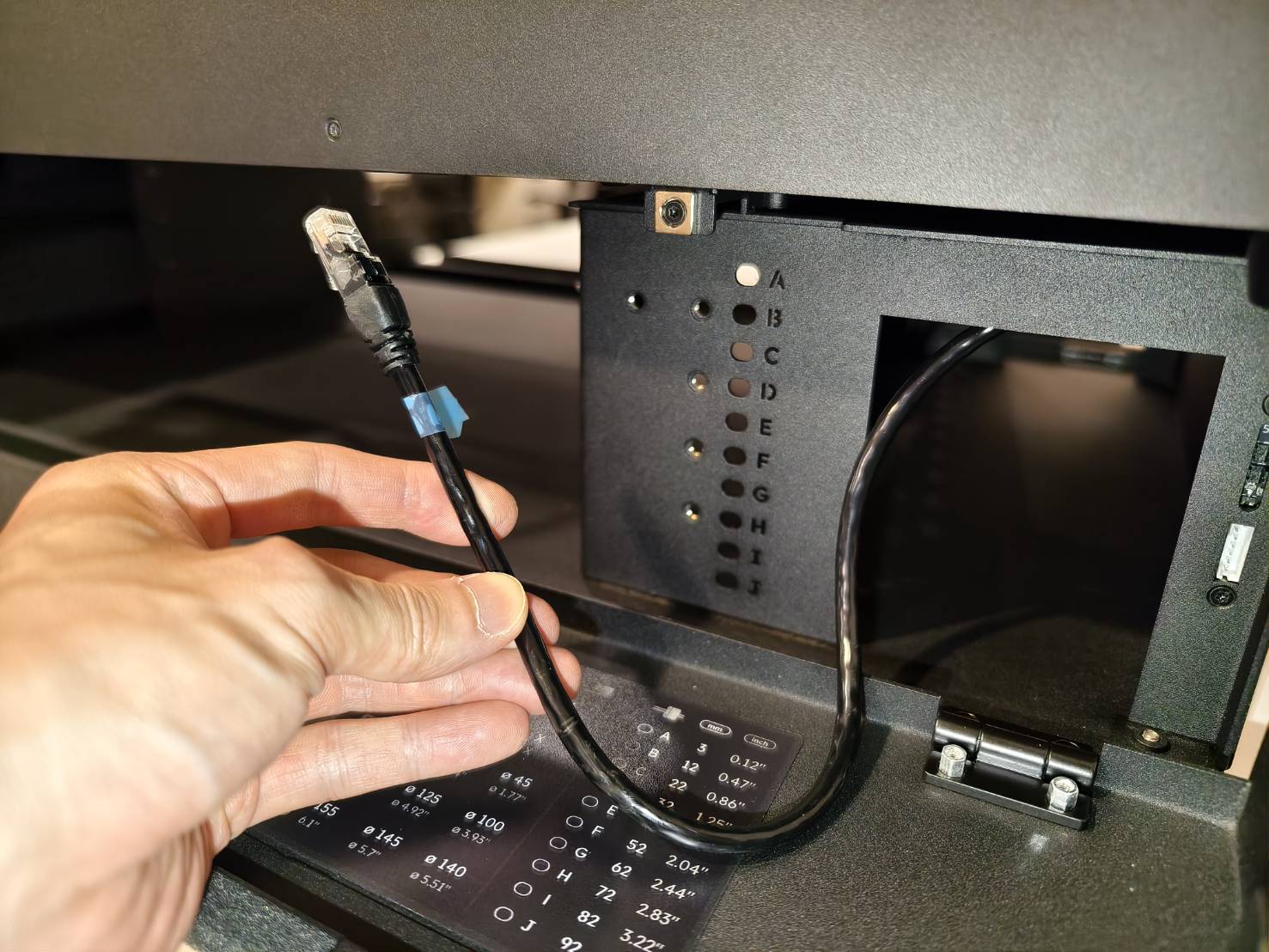

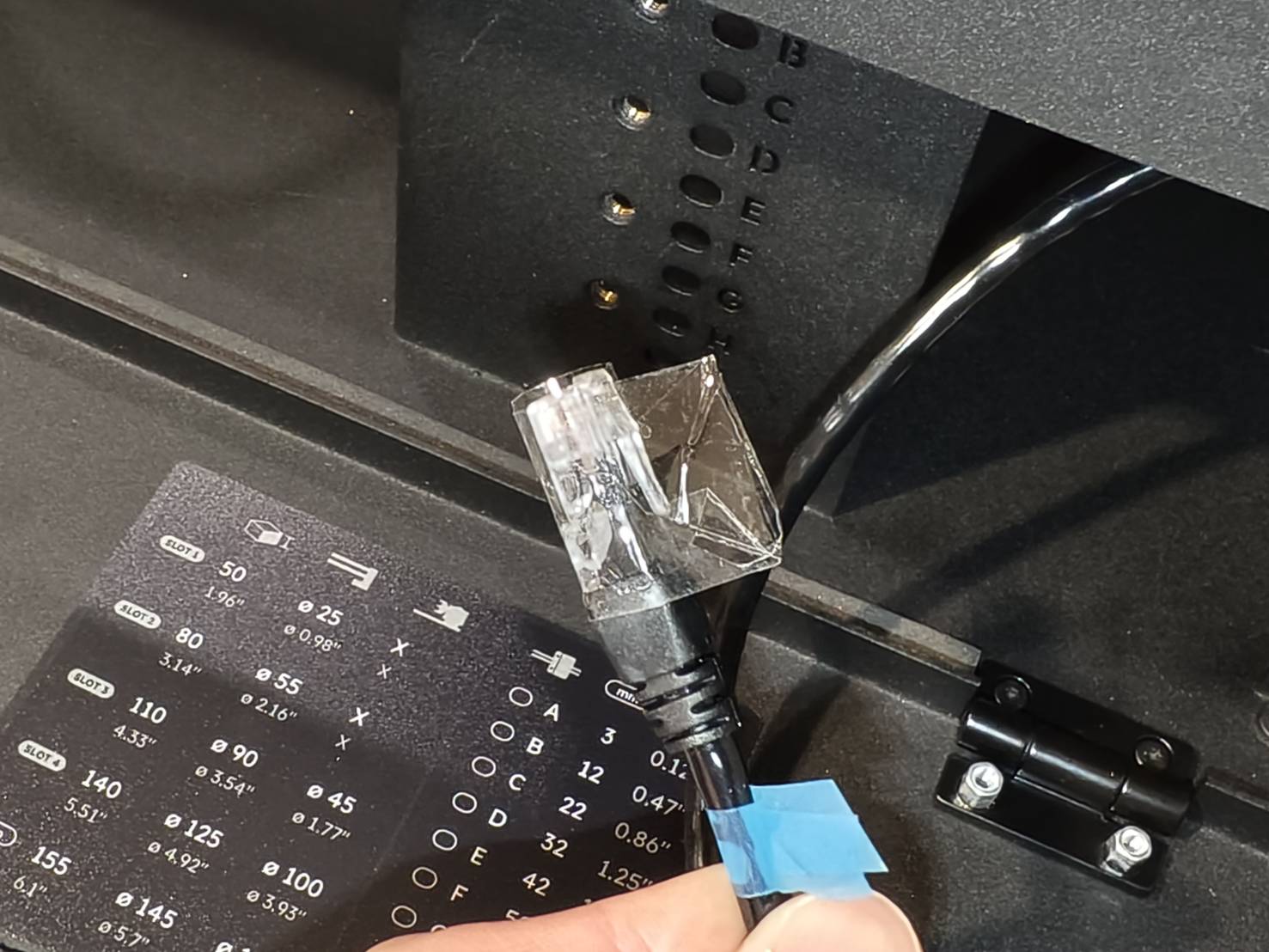

- Find the RJ45 cable in the extension base.

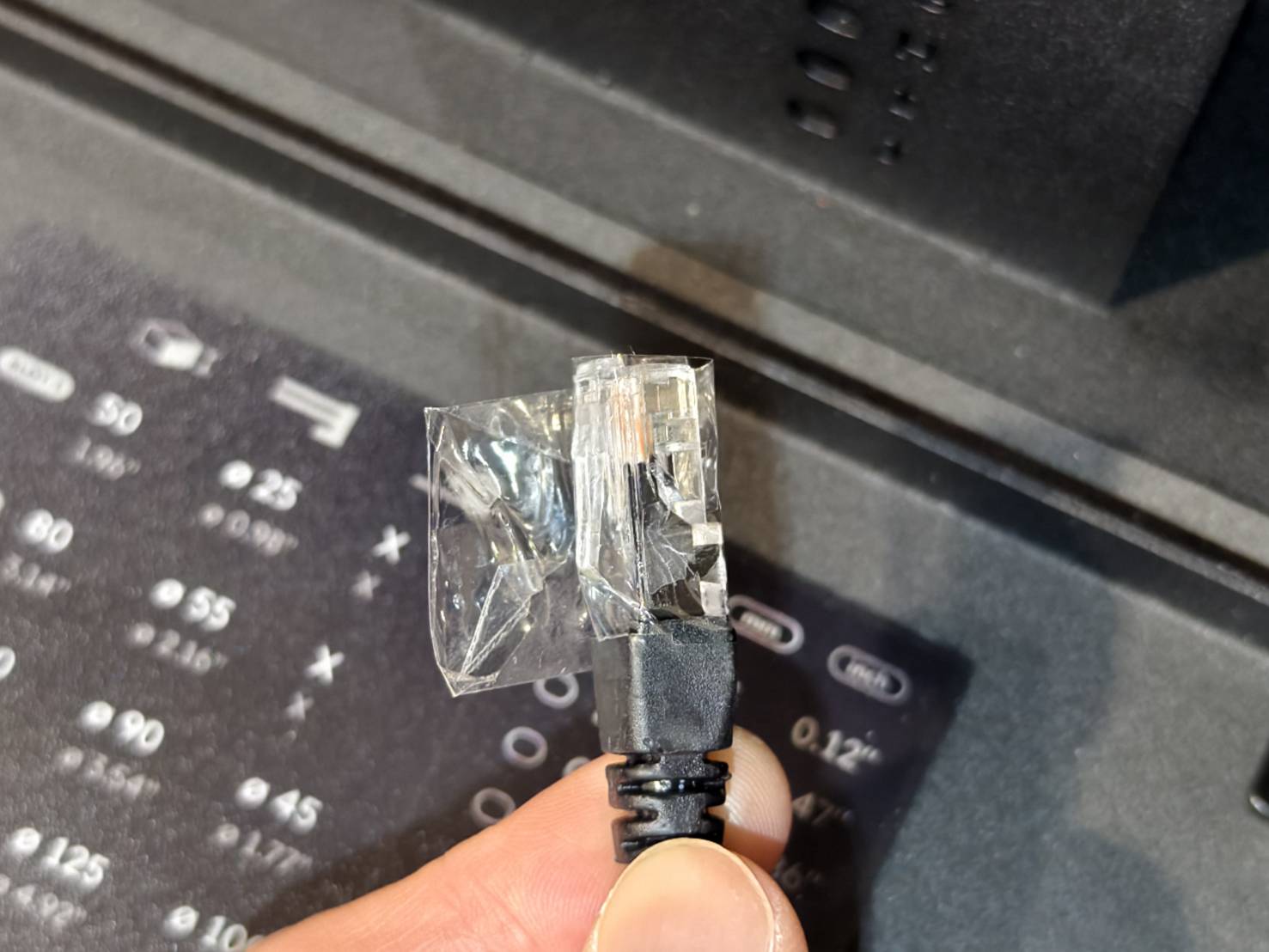

- Use tape to wrap the RJ45 cable's head. The purpose here is to hold the clip from getting damaged.
Step 5

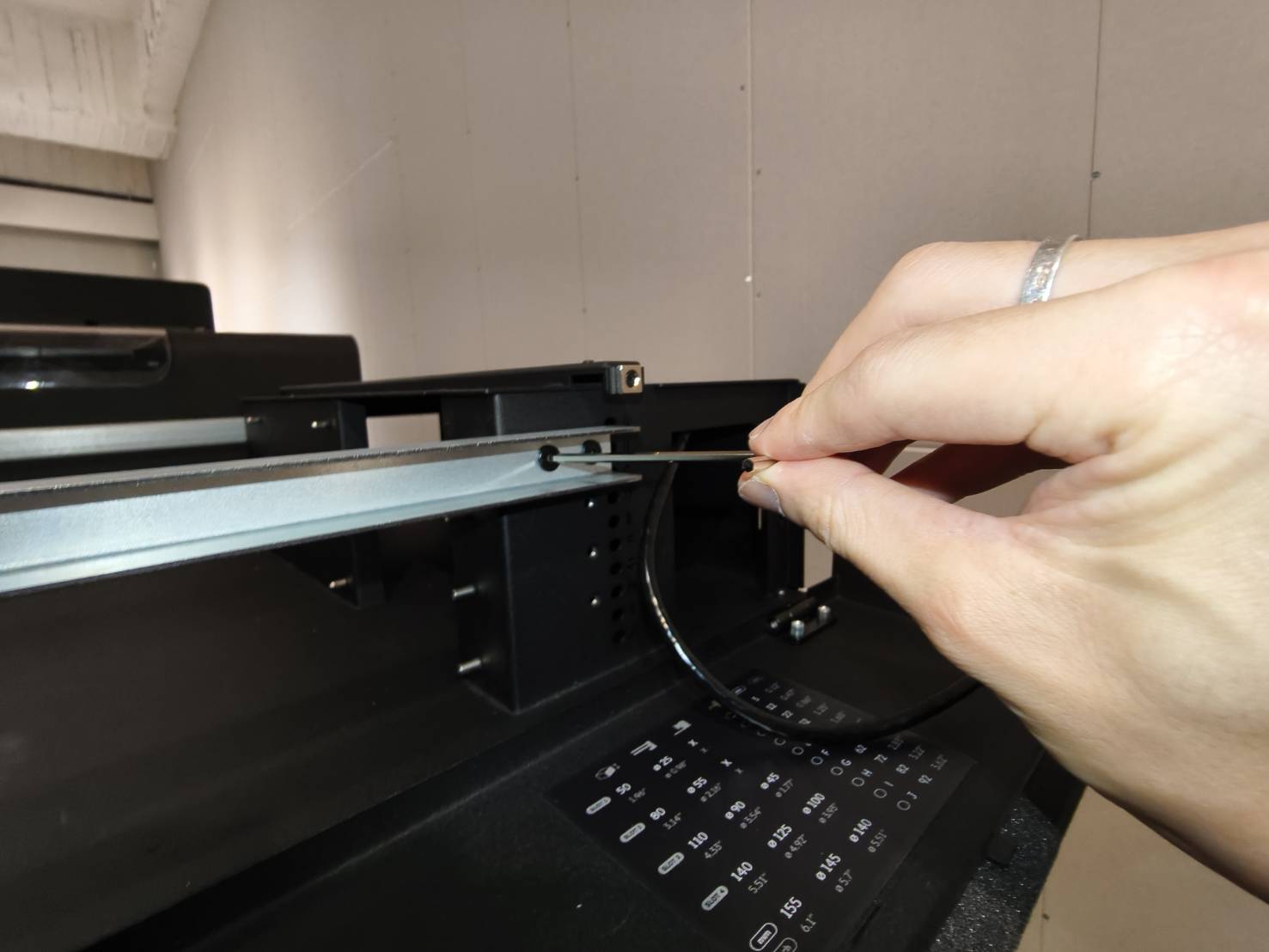

Make the RJ45 cable go through the hole inside the base and the machine.
The RJ45 cable has to be on the frame side, meaning the outside of the silver shaft.
Step 6
Remove the tape and plug the RJ45 cable into the socket inside the machine.
Step 7

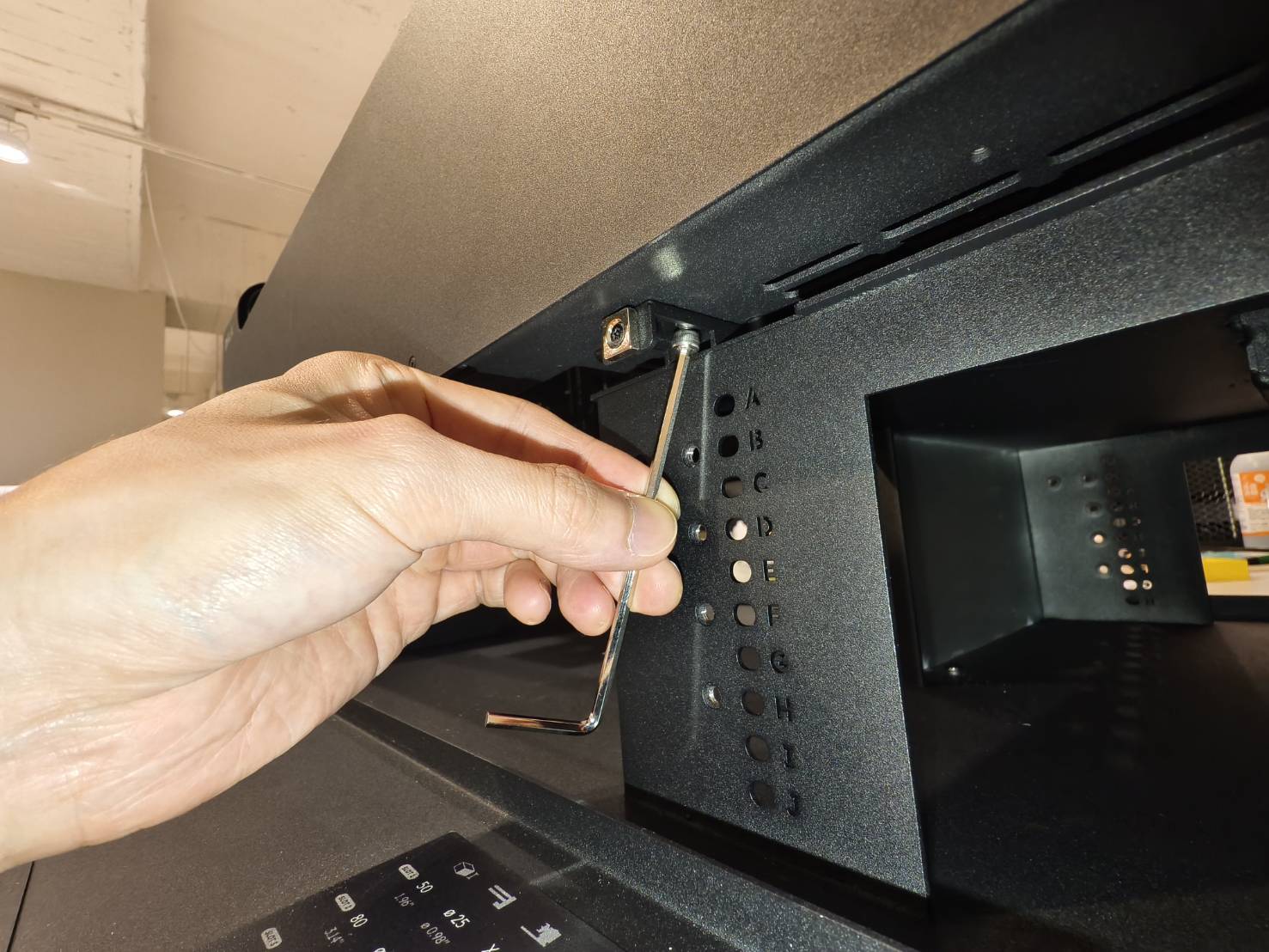

Fix the machine and the extension base using the Allen key and the screws provided with the add-on.
Step 8
Place/insert the machine's bottom plate back into the machine, and find 3 pcs of the screws that were removed from the bottom plate.
Step 9
Find the drawer's handle. Install it on the plate.

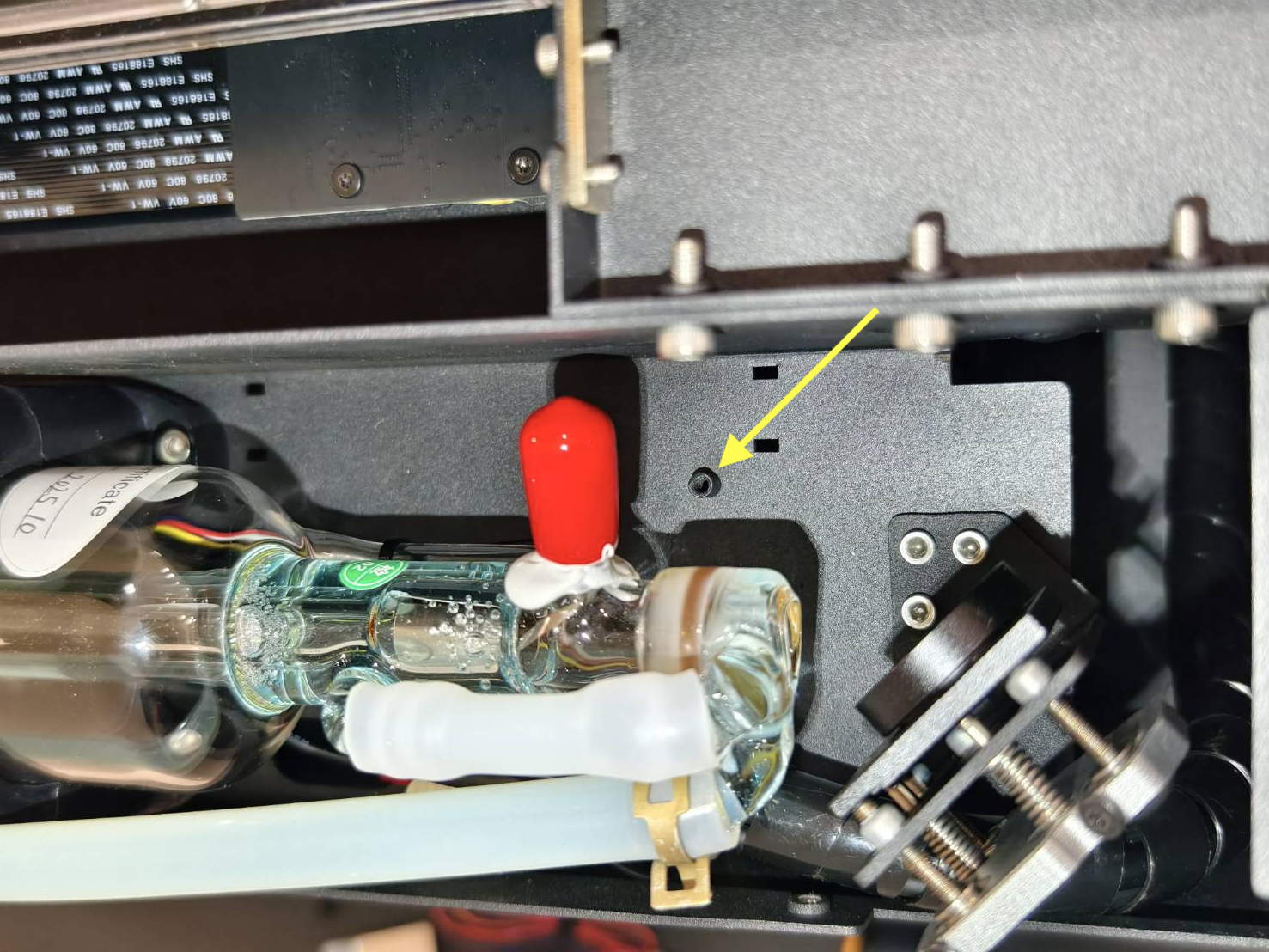

**Note** If your country or region does not have specific safety regulations for Class 4 lasers, you may stop here. If you have this laser shutter add-on in your box, it indicates you have to install it. |
| Add-on and Screw | Stud location |
Step 13
Plug the cable into the small board on the other side of the machine.
Step 14
Reinstall the back cover.
