5-14 X-axis Levelness Adjustment

If the X-axis is not level, it may prevent the laser head from contacting the limit switches, leading to homing issues. It can also affect the results of engraving and cutting.

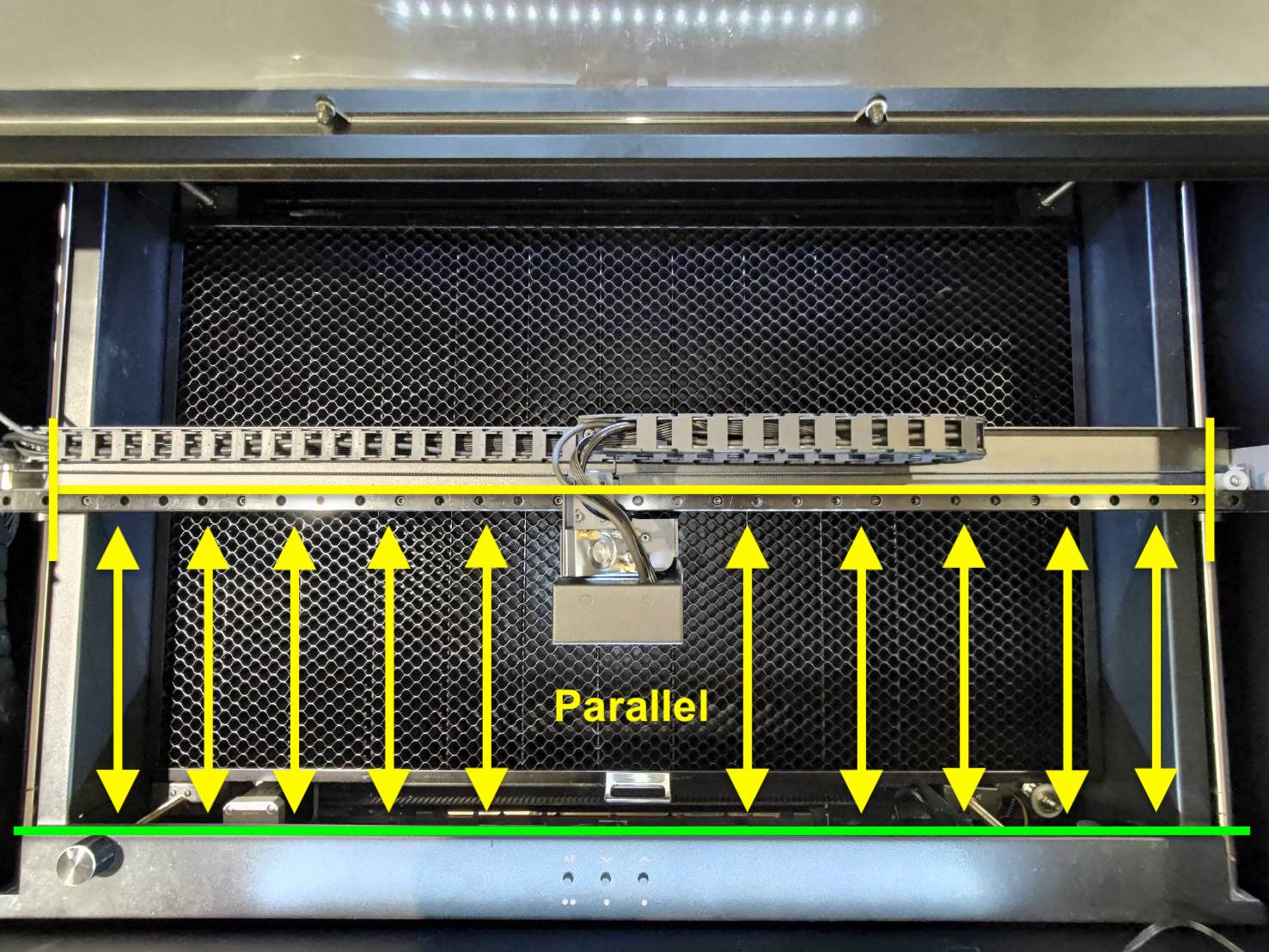

The X-axis guide rail must be parallel to the sheet metal parts at the front of the machine.

Please refer to the steps in the link below to perform the operation. (The adjustment method for HEXA RF is the same as for HEXA.)
[4-18 X-axis Leveling Adjustment]
