5-8 Camera Issues Troubleshooting (Camera Preview Timeout, Failed to Connect, Blank Photos)

FLUX Support Team
  • Updated

Description

The reasons for being unable to use the camera function can be complex, potentially caused by hardware, software, a poor connection environment, network speed, and other factors. This article will guide you on how to determine whether it is a hardware or software issue.

Possible Causes:

  1. System failure (Update firmware, restore factory settings, or re-flash the RK mainboard).
  2. The camera parameter is missing (Do advanced camera calibration.)
  3. Network speed is too slow.
  4. Unstable network environment.
  5. Issues with Beam Studio software.
  6. Abnormal hardware connection of the camera cable.
  7. Camera cable failure.
  8. Camera module failure (Low probability).
  9. Issues with RPi/RK mainboard (Low probability).

Step 1

Please refer to the video below to test whether the camera image on the screen is normal when the laser head moves in Action mode.
Place a board or a piece of paper in the center of the work platform to observe the camera image.
"Action" > "Camera" > Unlock Motor > Open door > Move to four corners.
(Note that the camera updates the image every 3 seconds)



Evaluate the result and take the next action:

  • Image is normal, as shown in the video. >> Step 1.1
  • Image is present but freezes when moving.>> Step 3
  • Image is present but turns blank when moving.>> Step 3

Step 1.1

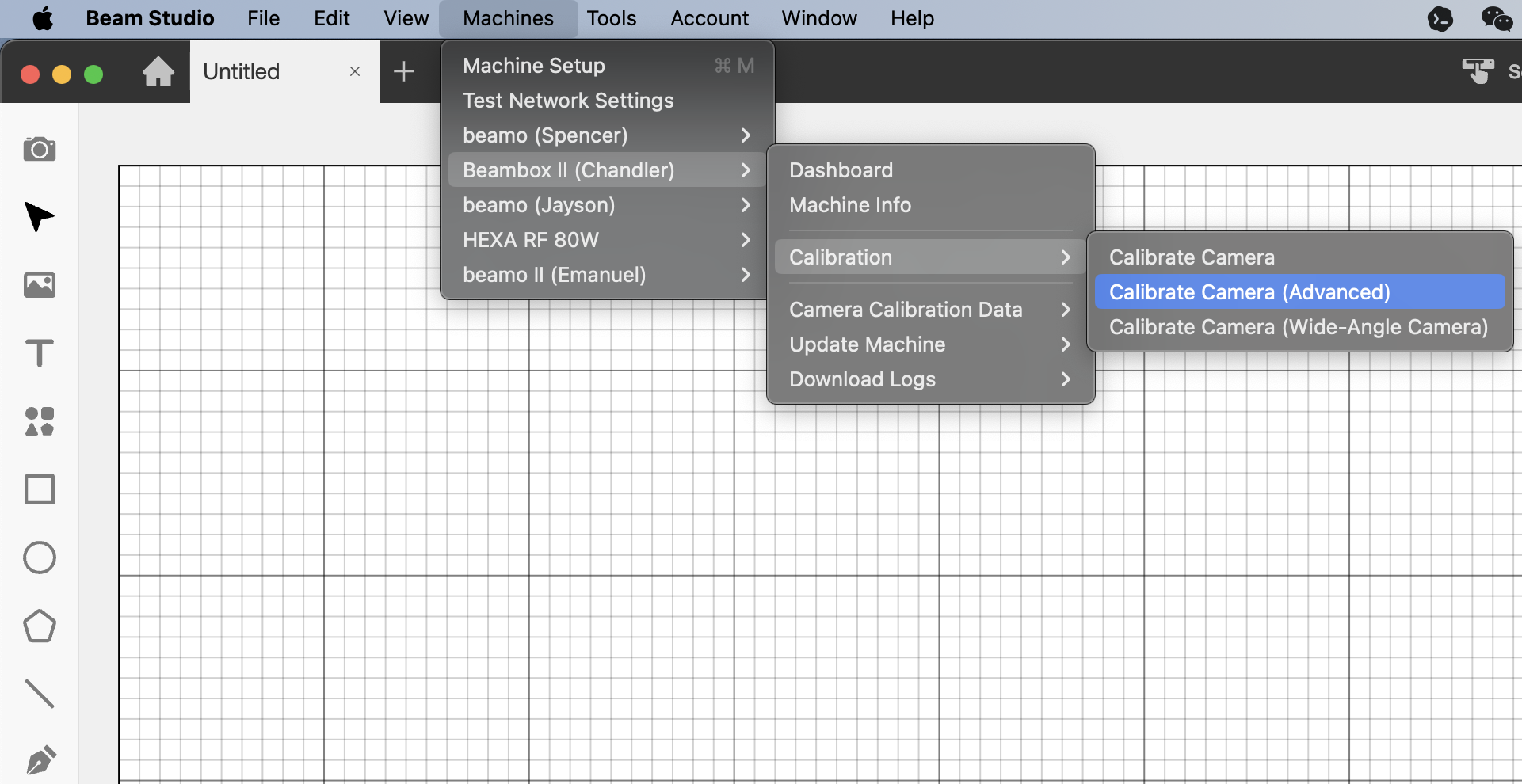

Please go to Beam Studio and do the "Advanced Camera Calibration" and see if this solves the issue.



Evaluate the result and take the next action:

  • The camera now works >> Problem Solved
  • The camera still does not work. >> Step 2

Step 2

Please refer to the link below to reconnect or change the connection method.
2-3 Connection Settings


Evaluate the result and take the next action:

  • The camera works normally in Beam Studio. >> Problem Solved
  • The camera does not work in Beam Studio. >> Step 2.1

Step 2.1

Please download and try different versions of Beam Studio from this link.

  • Reinstall the current version of Beam Studio
  • Update to the latest Beta version of Beam Studio
  • Downgrade to the latest stable version of Beam Studio

Evaluate the result and take the next action:

  • The camera works normally in Beam Studio. >> Software version error >> Problem Solved
  • The camera does not work in Beam Studio. >> Step 2.2

Step 2.2

Use your mobile phone's hotspot and ensure it supports 2.4GHz frequency.
Then test the camera preview again.
Note: The machine and your computer must be connected to this hotspot to communicate.

  • For iOS devices, enable "Maximize Compatibility" in the Personal Hotspot settings.
  • For Android devices, adjust the "AP Band" in the Personal Hotspot settings.

  • If the hotspot name or password contains special characters or non-English/non-numeric characters, it may cause connection issues.
    Please change the Wi-Fi name to English characters only and the password to numbers only.

    Recommended Modification:
    - Name: ABCDEFG
    - Password: 12345678

Evaluate the result and take the next action:

  • The camera works normally in Beam Studio. >> Network Environment >> Check router, network speed, signal strength, etc.
  • The camera does not work in Beam Studio. >> Step 2.3

Step 2.3

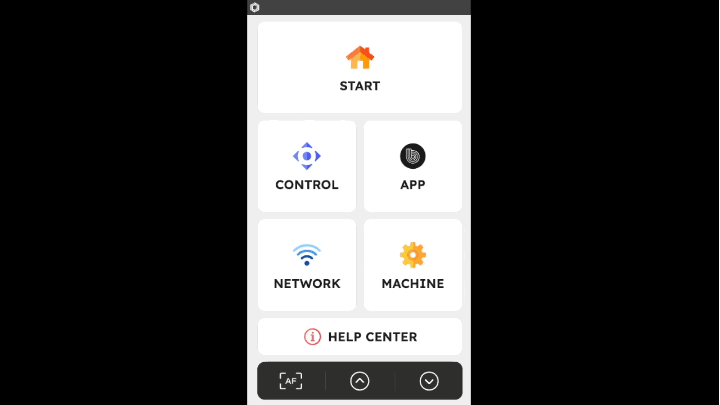

Please follow the steps below to restore the machine to factory settings, then try the camera preview again on the touch panel.

(Home > Machine > Next Page > Factory Reset > Yes)



Evaluate the result and take the next action:

  • The camera works normally in Beam Studio. >>  Firmware error >> Problem Solved
  • The camera does not work in Beam Studio. >> Step 2.4

Step 2.4

Please download and try different firmware versions from this link. After installation, try the camera preview again on the touch panel.

  • Reinstall the current version of the firmware
  • Update to the latest Beta firmware version
  • Downgrade to the latest stable firmware version

Evaluate the result and take the next action:

  • The camera works normally in Beam Studio. >> Firmware error >> Problem Solved

Step 3

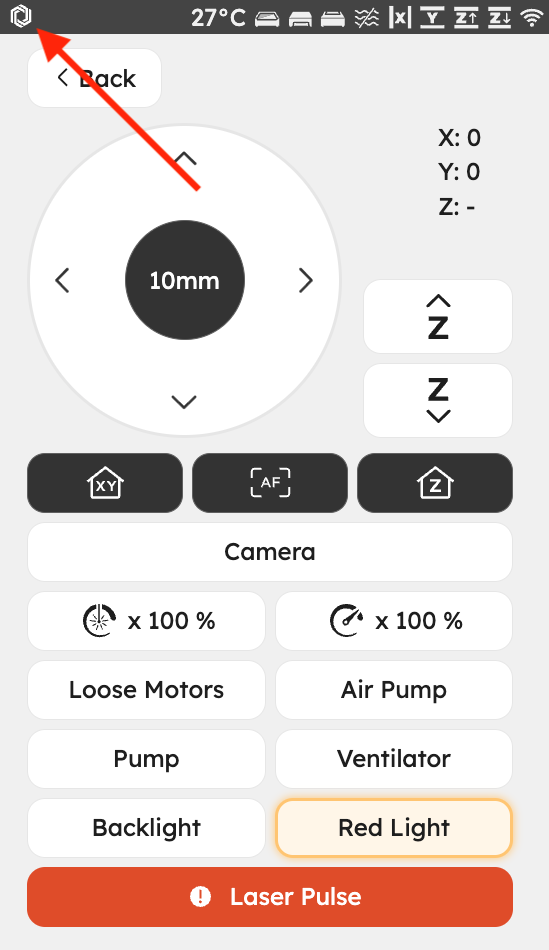

Click the icon in the top-left corner to refresh the screen, then perform the test in Step 1 again.



Evaluate the result and take the next action:

  • Image is normal, as shown in the video. >> Problem Solved
  • Image is present but freezes when moving.>> Step 4
  • Image is present but turns blank when moving.>> Step 4

Step 4

Please follow the steps below to restore the machine to factory settings, then try the camera preview again on the touch panel.
(Home > Machine > Next Page > Factory Reset > Yes)




Evaluate the result and take the next action:

  • Image is normal, as shown in the video. >> Firmware issue >> Problem Solved
  • Image is present but freezes when moving.>> Step 5
  • Image is present but turns blank when moving.>> Step 5

Step 5

Please download and try different firmware versions from this link. After installation, try the camera preview again on the touch panel.

  • Reinstall the current version of the firmware
  • Update to the latest Beta firmware version
  • Downgrade to the latest stable firmware version

Evaluate the result and take the next action:

  • Image is normal, as shown in the video. >> Firmware issue >> Problem Solved
  • Image is present but freezes when moving.>> Step 6
  • Image is present but turns blank when moving.>> Step 6

Step 6

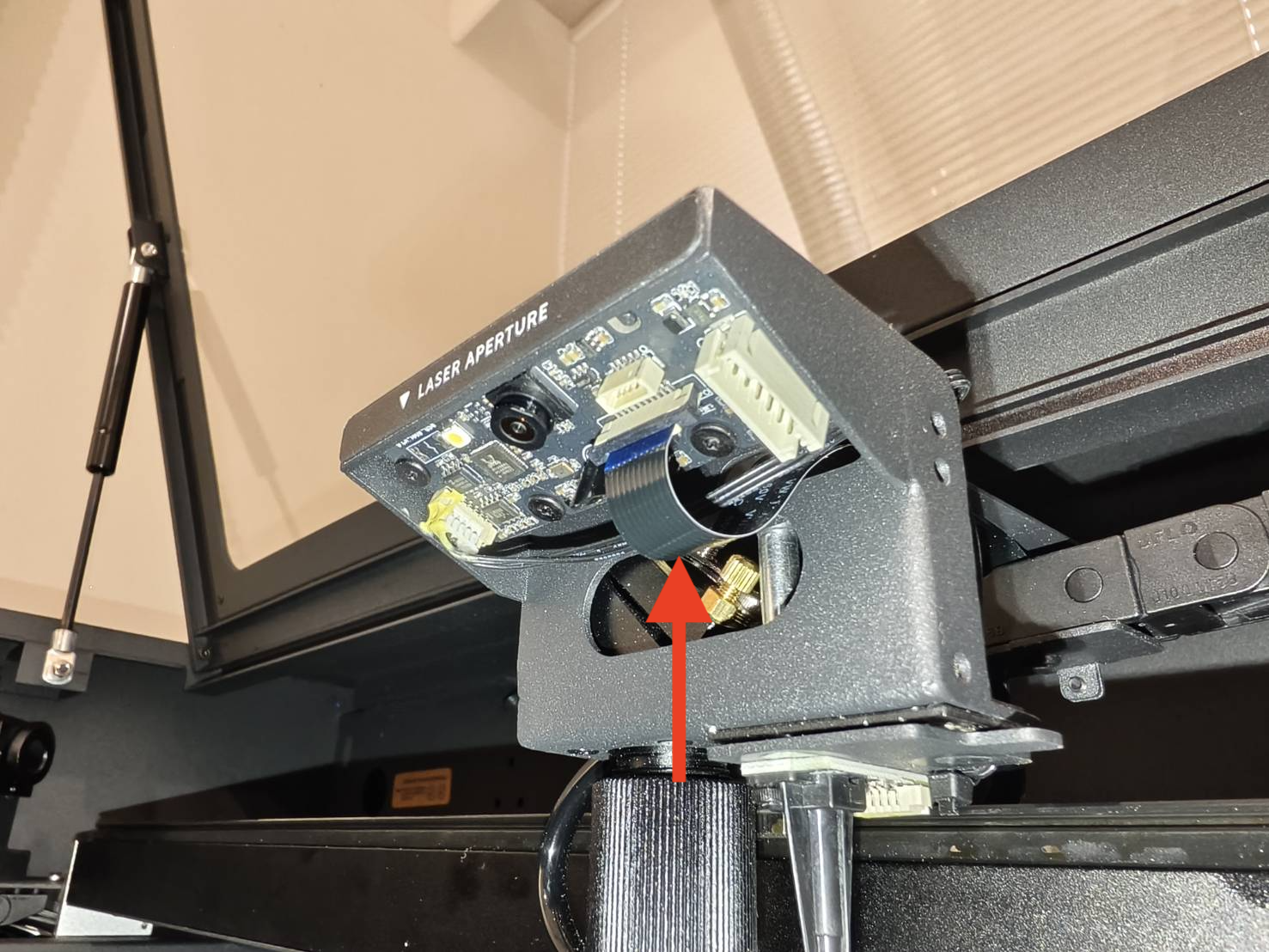

Go to the laser head and re-plug the camera connection cable, then try the camera preview again on the touch panel.


Evaluate the result and take the next action:

  • Image is normal, as shown in the video. >> Improper physical connection >> Problem Solved
  • Other symptoms >> Record a video (Example) >> Contact Us
    • Possible Causes:
      1. Camera connection cable failure
      2. Camera module failure
      3. Mainboard failure
      4. RPi/RK mainboard failure

Step 7

  • Please ensure you have captured an Error Report or recorded a Video.
  • Please follow the instructions in the link below to correctly report the issue to your local dealer or the FLUX technical support team. [Contact Customer Service]

Information collected in this article, such as photos or videos showing machine problems, will need to be shared with the dealer or FLUX technical support team.
