2-1 Assembly and Start-up For HEXA

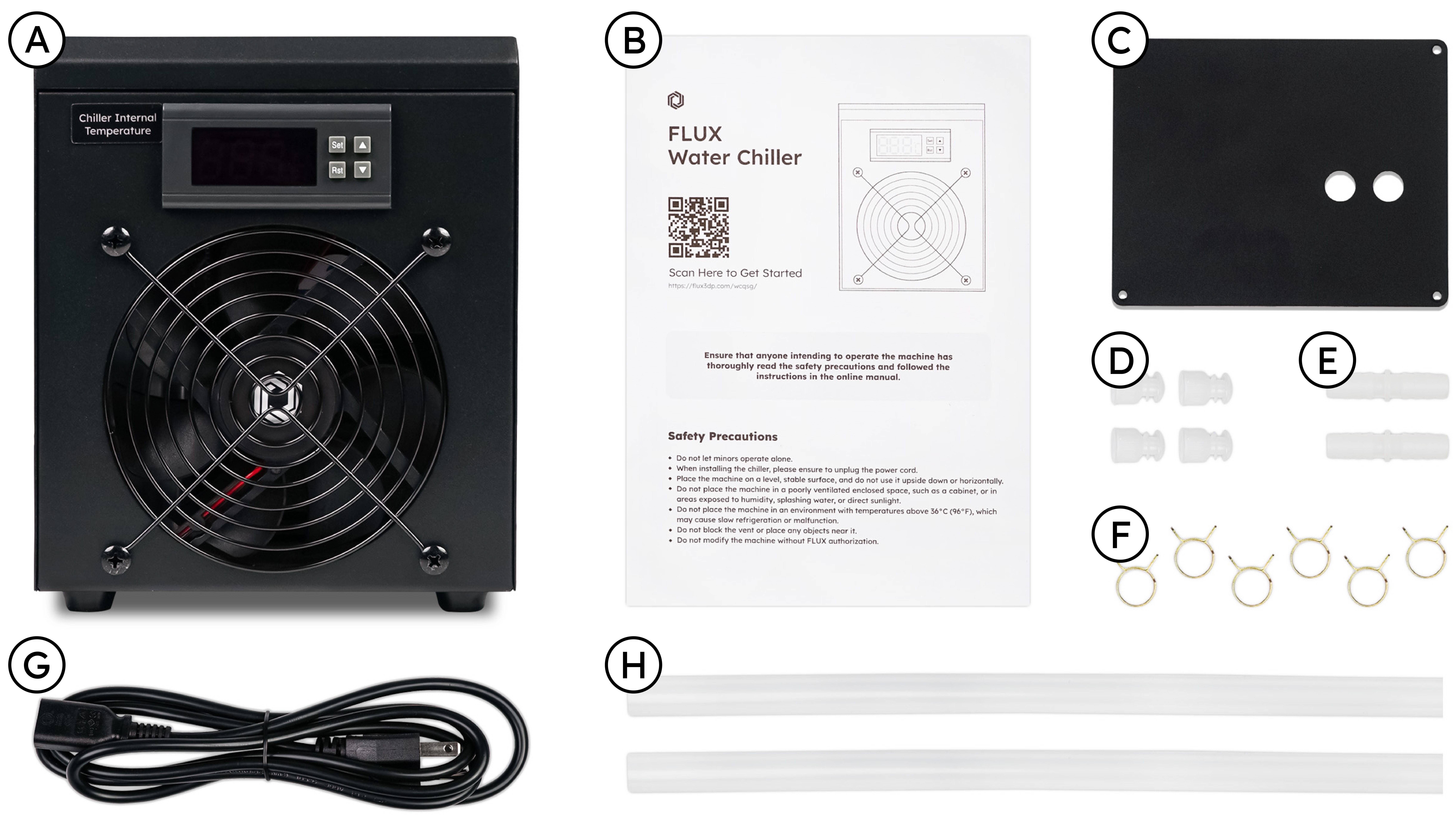

Contents

1. FLUX Water Chiller
2. Quick Guide
3. Water Pump Cover for Beambox II
4. Water Tube Plug ×4
5. Double-ended Pagoda Connector ×2
6. Water Tube Clamp ×6
7. Power Cord
8. Water Tube ×2

Installation Guide

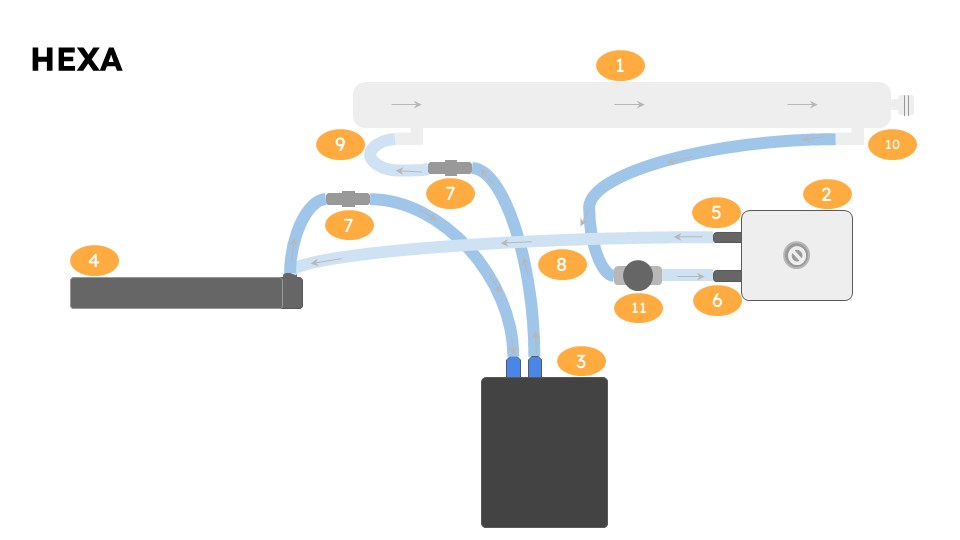

Water Flow Chart


1. Laser Tube
2. BLDC Water Pump
3. FLUX Water Chiller
4. Water Cooling Radiator
5. Water Pump Outlet
6. Water Pump Inlet
7. Double-ended Pagoda Connector
8. Water Tube
9. Laser Tube Water Inlet
10. Laser Tube Water Outlet
11. Flow Sensor
