2-2 Assembly and Start-up For Beambox(Pro)

Contents

1. FLUX Water Chiller
2. Quick Guide
3. Water Pump Cover for HEXA (Not suitable for Beambox)
4. Water Pump Cover for Beambox (Pro)
5. BLDC Water Pump
6. Double-ended Pagoda Connector ×2
7. Water Tube Plug ×4
8. Water Tube Clamp ×6
9. Power Cord
10. Water Tube ×2

Installation Guide

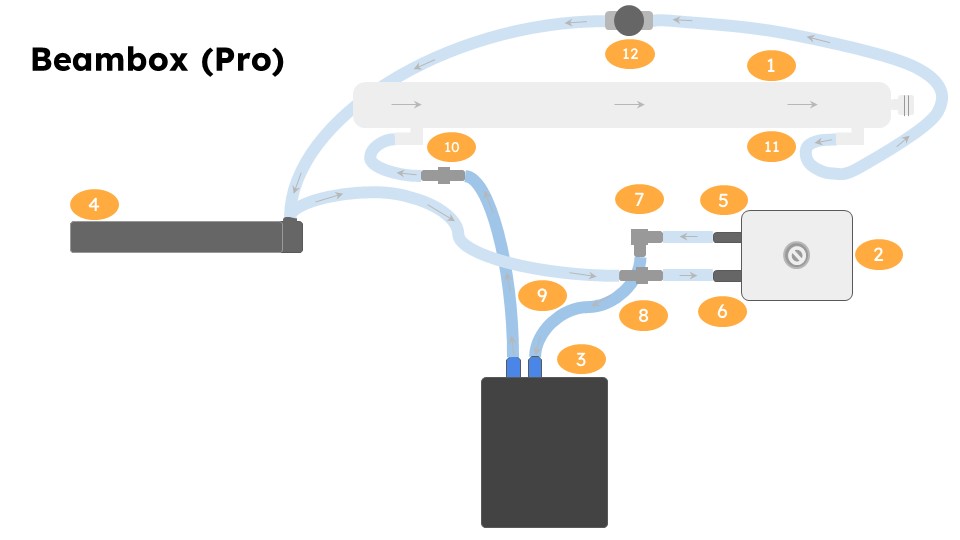

Water Flow Chart


1. Laser Tube
2. BLDC Water Pump
3. FLUX Water Chiller
4. Water Cooling Radiator
5. Water Pump Output
6. Water Pump Input
7. L-shaped Pagoda Connector
8. Double-ended Pagoda Connector
9. Water Tube
10. Laser Tube Water Inlet
11. Laser Tube Water Outlet
12. Flow Sensor
