2-1 Unboxing

We suggest lifting the machine with 2 people to avoid injury.

1. Open the Box

It contains the machine (including the vent hose), and the accessory box (including the manual).

2. Remove the Buffer Materials

Remove the four corners of the cushioning material and take out the machine from the carton to place it on a stable surface. Please preserve the original carton and cushioning material for future usage.

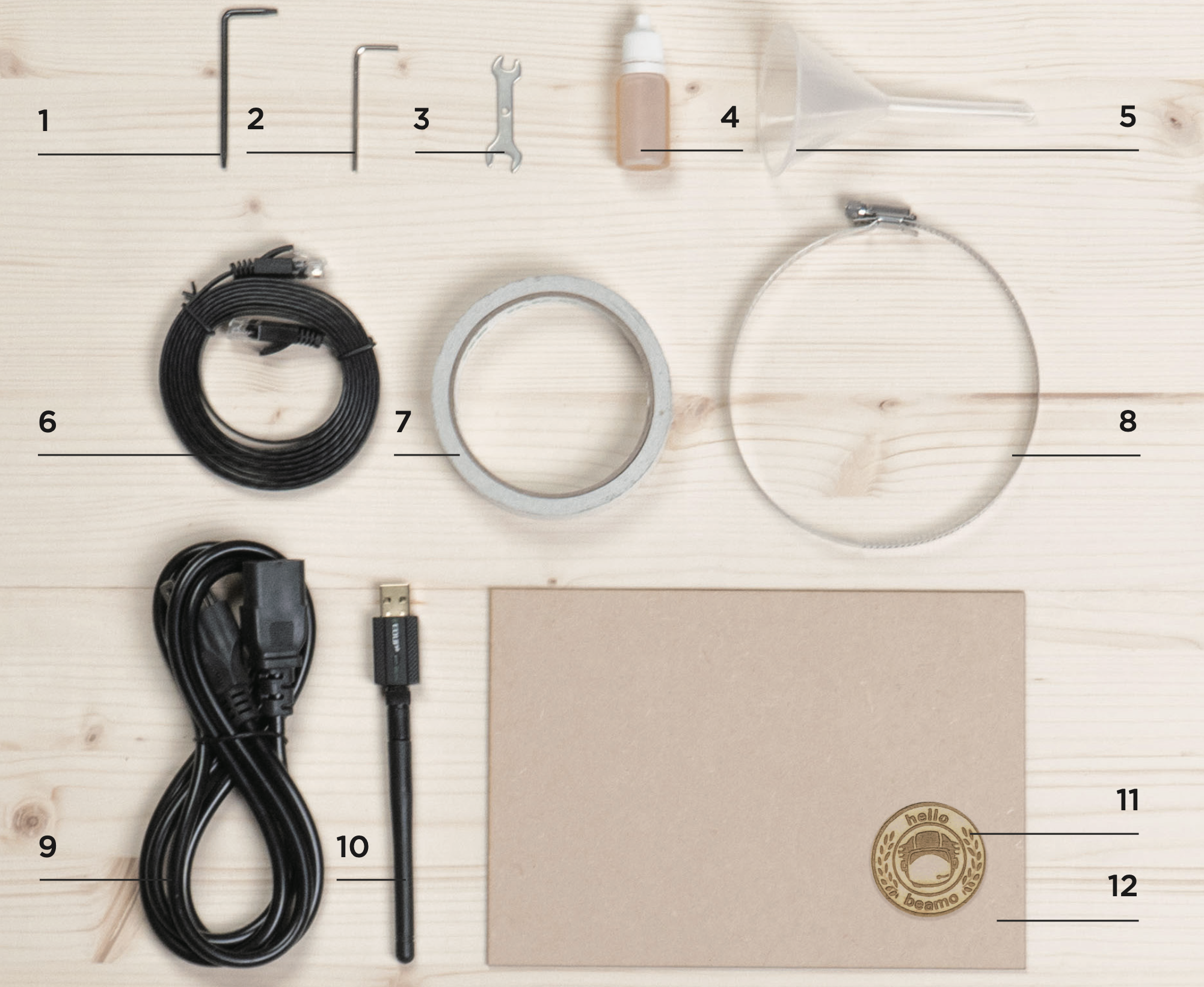

3. Examine the Accessory Box

1｜Torx screwdriver

2｜2.5mm hexagonal wrench

3｜Double head wrench

4｜Lubricating oil

5｜Funnel

6｜Ethernet cable

7｜Double-sided tape

8｜Clamp

9｜Power cord

10｜Wi-Fi dongle

11｜Engraving sample

12｜Wood piece.

4. Overview of the Machine Layout

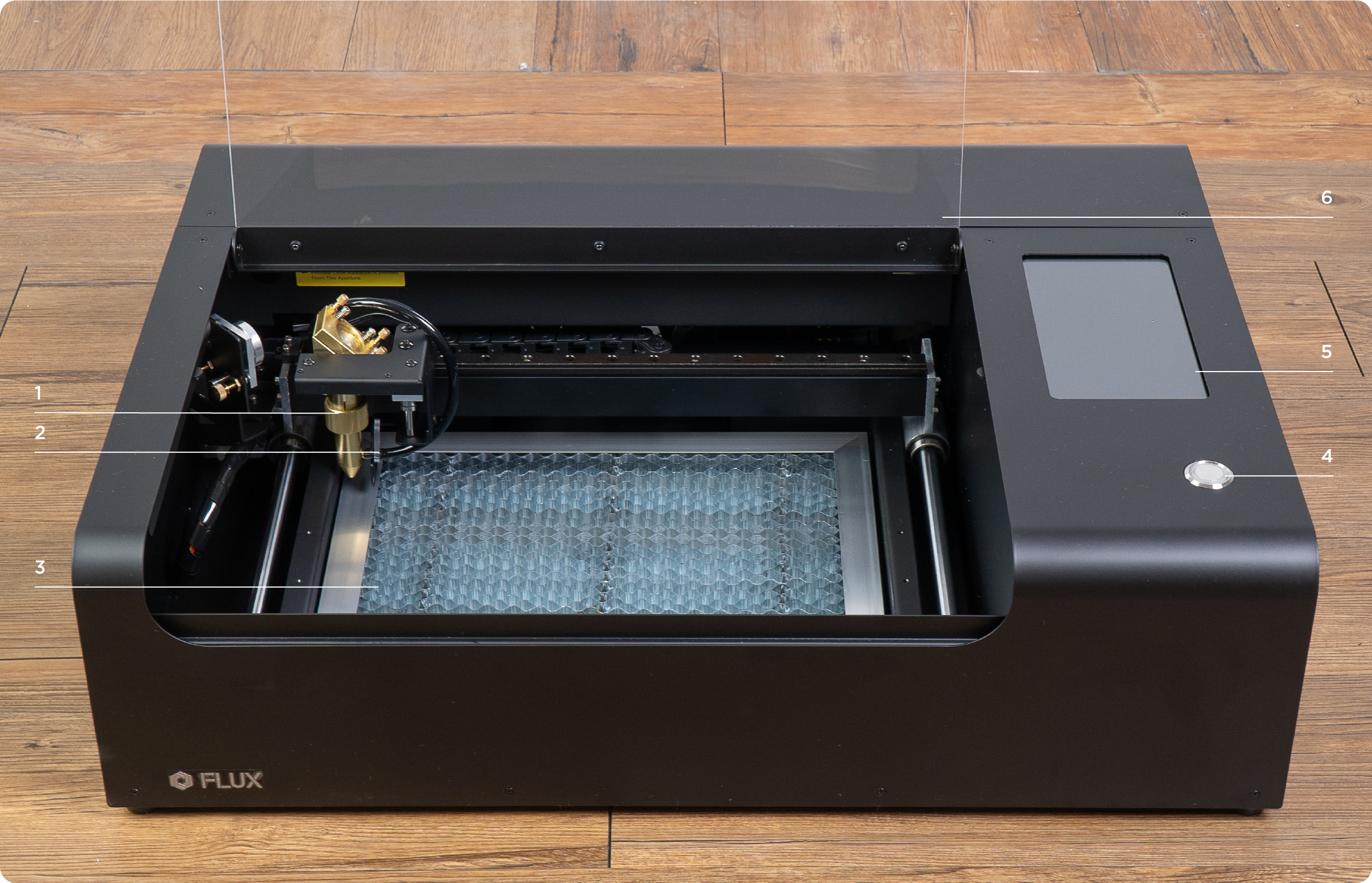

Machine front

1 ｜ Nozzle fastening ring

2 ｜ Focus probe

3 ｜ Honeycomb table

4 ｜ Power button

5 ｜ Touch panel

6 ｜ Acrylic door cover

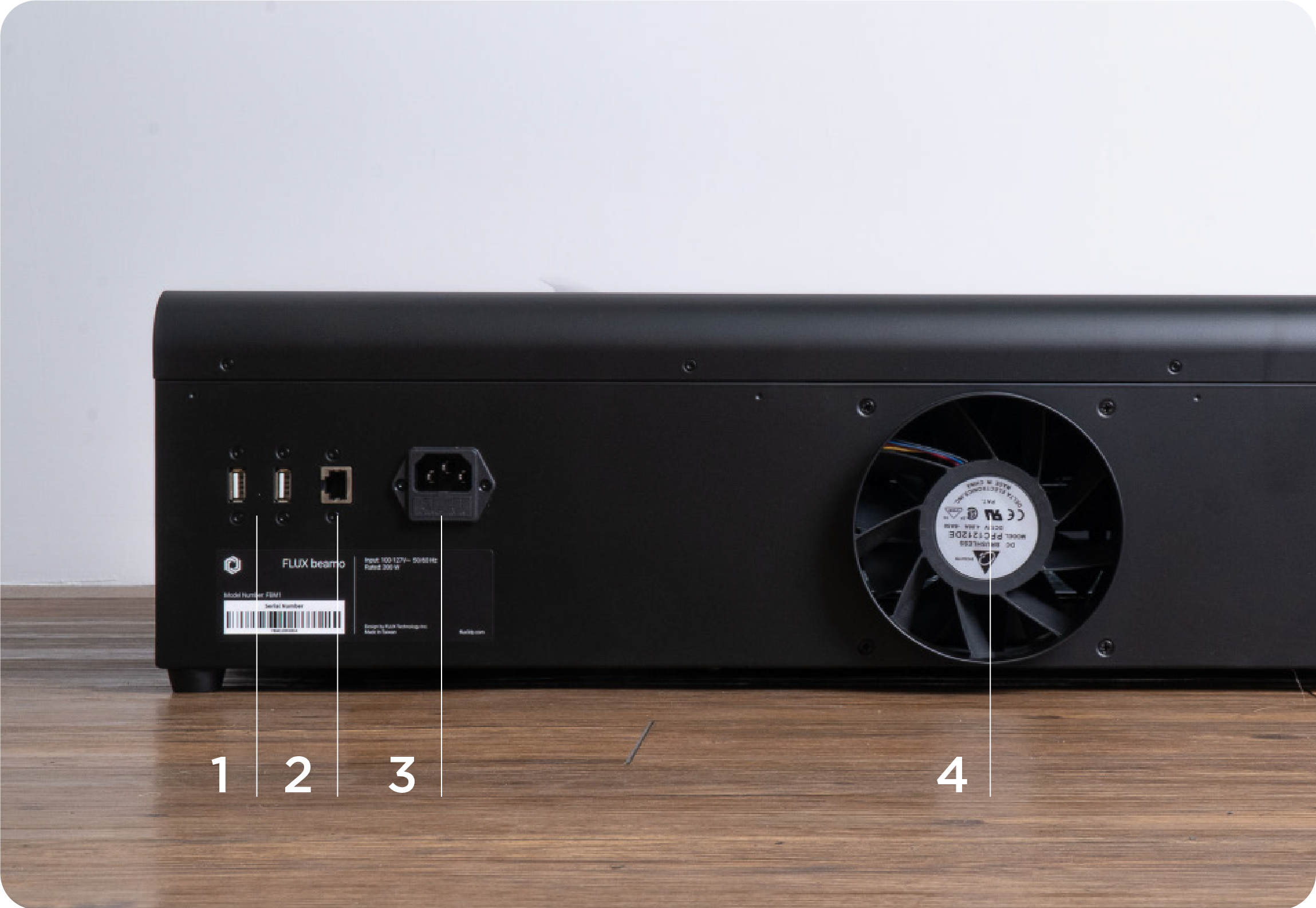

Machine back

1 ｜ USB port

2 ｜ Ethernet port

3 ｜ Power port

4 ｜ Ventilation fan
