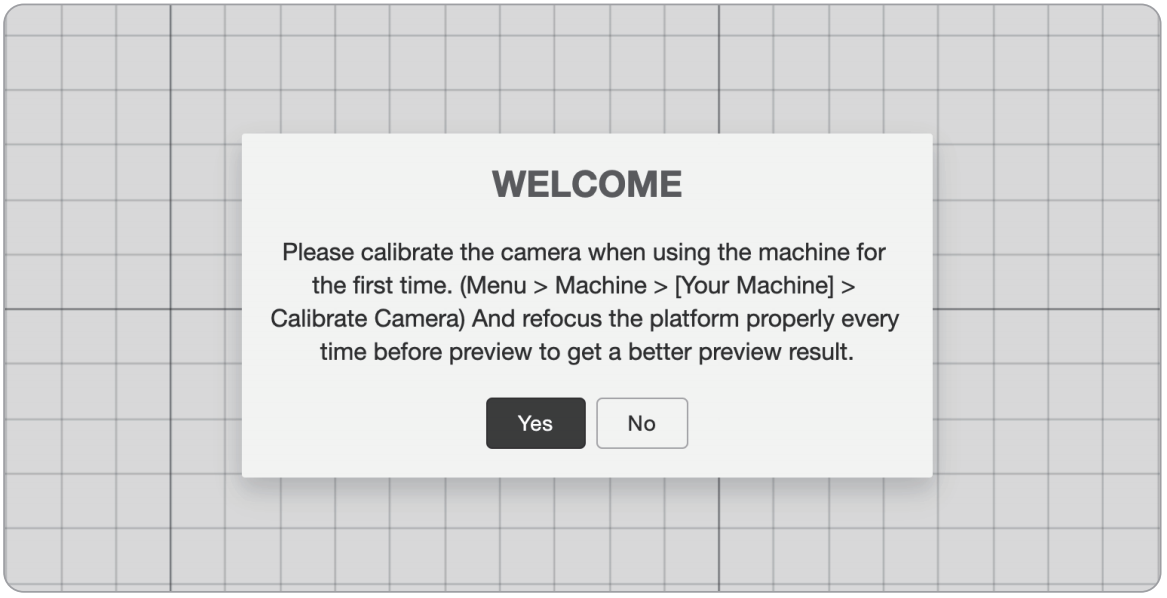

You'll be asked to run a camera calibration when you use the machine for the first time.
The process ensures the camera is aligned after shipment, and improves the previewing accuracy.
Preparation Items
A4 (Letter size) white paper (self-preparation)
1. Select Your Machine

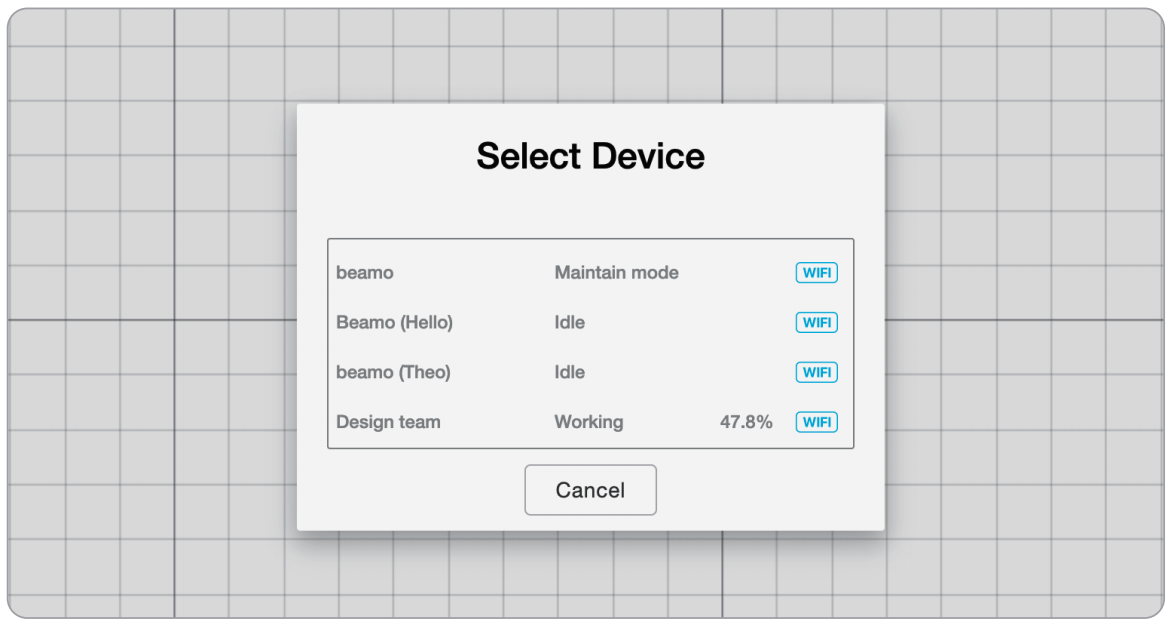

Select the name of the machine in use.
2. Place a White Paper

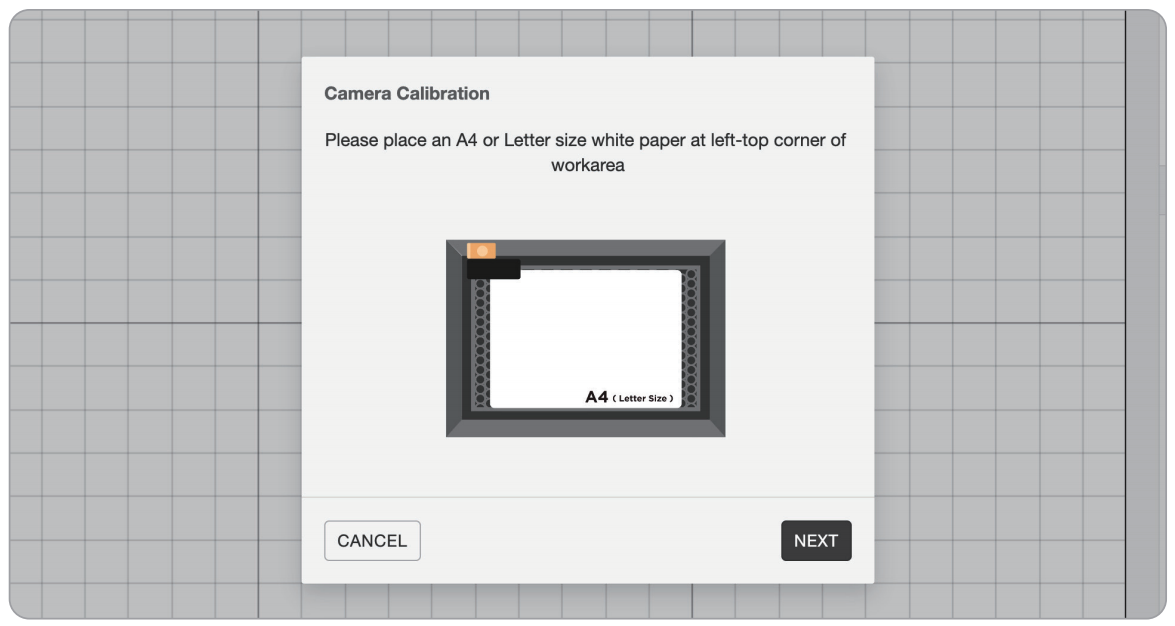

Place a clean A4 (Letter size) white paper in the upper left corner of the working area.
3. Focus on the Paper

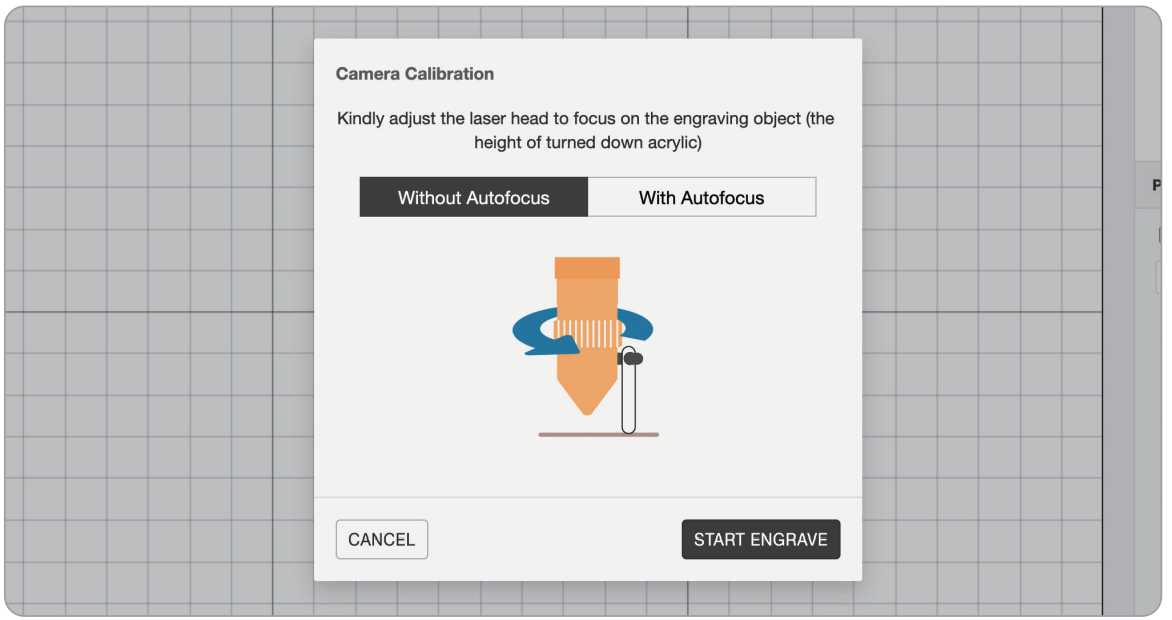

a. For manual focusing
- Loosen the nozzle fastening ring
- Make the focus probe touch the engraving material
- Tighten the ring
- Turn back the focus-probe after completing focusing.
b. For machines installed with auto-focus
Double-click the side button of the add-on to make the probe touch the engraving material.
4. Engrave the calibration image

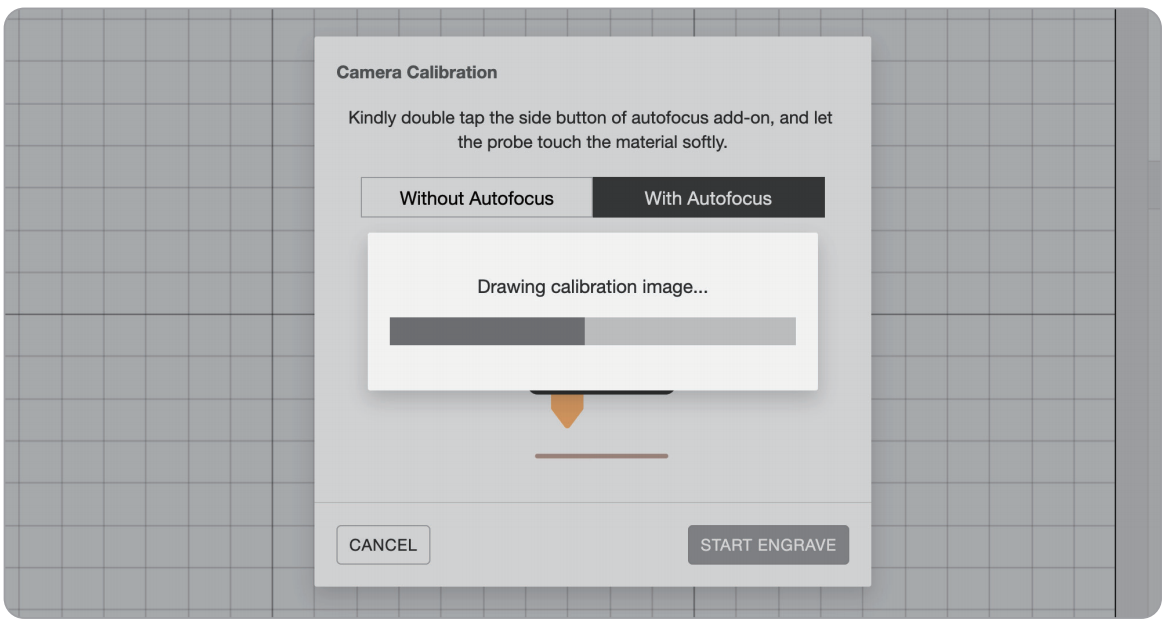

The machine will cut out grid lines on the paper.
Click anywhere to skip the drawing process and jump to the next step.
5. Align the Red Square

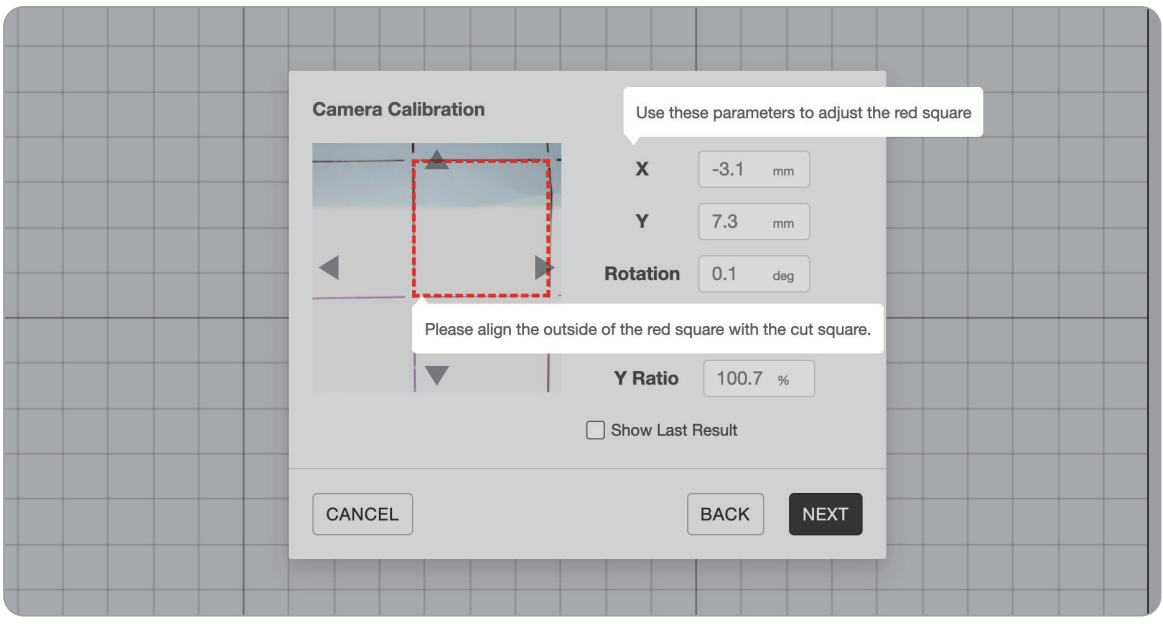

Move the grid lines to the center, and align the outside of the red square with the center square of the grid lines by adjusting the directional keys, horizontal and vertical translation, rotation angle, and size ratio (keyboard up and down keys can adjust the value).
Check the Tutorial Video here.
5. The Finishing Position of the Red Square

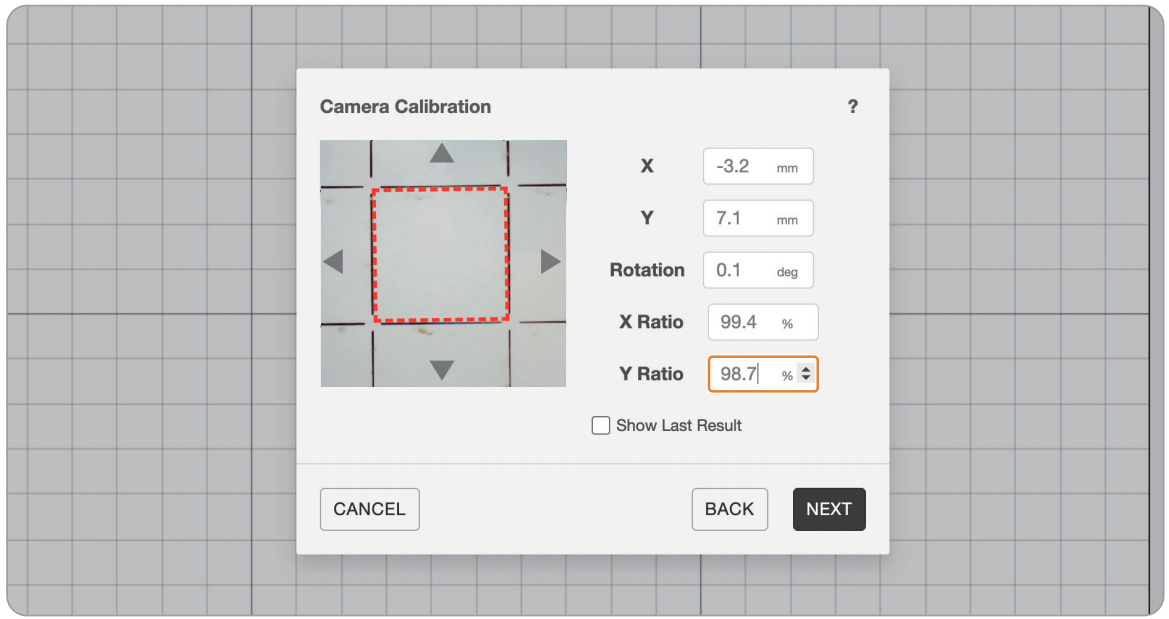

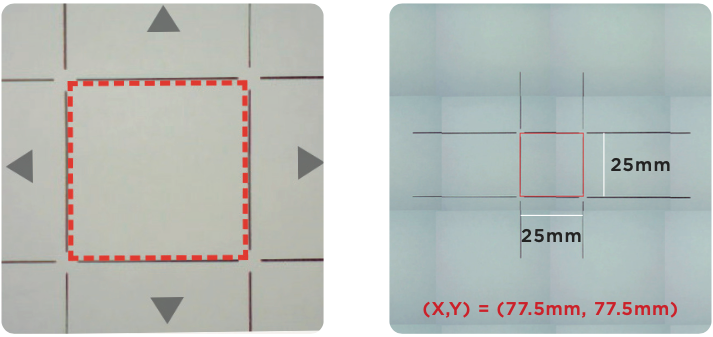

This is an example of the aligned position of the red square.
Make sure the red square and the grid lines are in the middle of the screen.
After reaching the position, click NEXT.

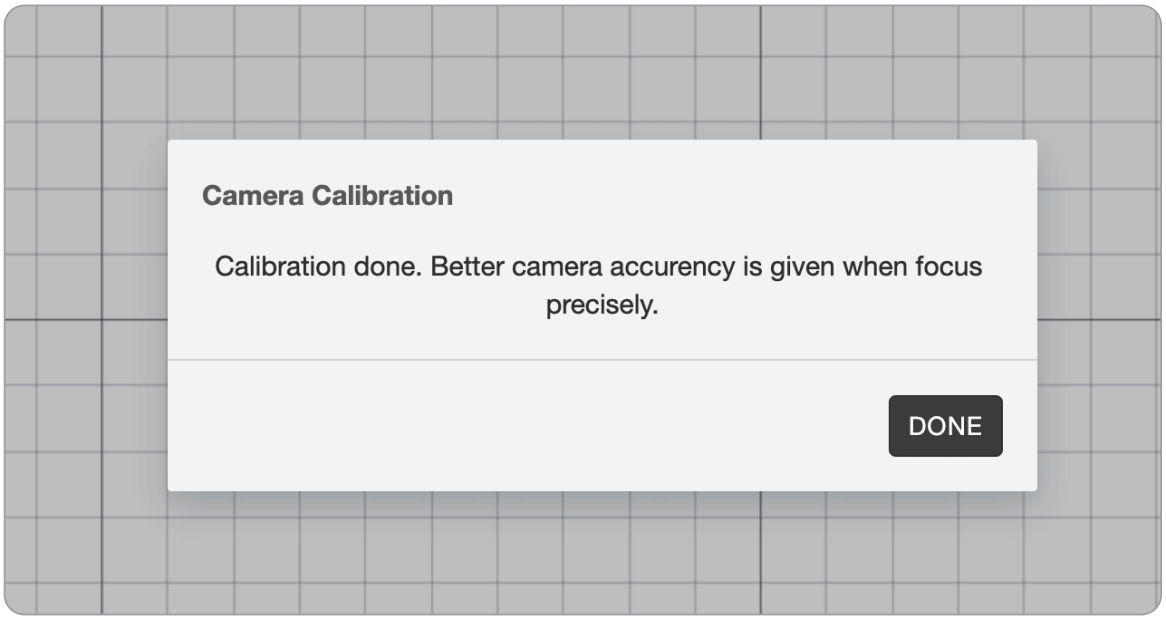

6. Good to Go!
After finishing the camera calibration, you can start the first engraving project.
