#901 Door Open / Start-up Test Failed / Door Detection Problem

Description:

The #901 Door Opened error pops up during a task when the system detects the door being opened.
The symptom is usually that the system is not able to detect a door close signal meaning the door icon is not able to be changed to close. Another symptom is that the error pops up randomly during tasks even if the door is closed securely.

No matter which symptom you have with your machine, please follow the steps below one by one.

Step 0 - Use the checklist while going through the steps:

This checklist will be used to record all your actions taken in this article.
After completing the checklist, please print it to save as PDF and send it to your reseller or FLUX Support if necessary. This will be useful information for us to troubleshoot and narrow down the issue.
Please refer to the link:
Door Detection Problem (#901 Door Open/Start-up Test Fail) Checklist (Ador)

Step 1 - Remove the module

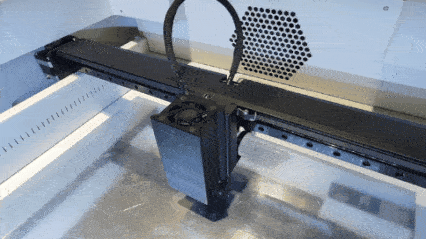

For security reasons, please remove the module in case any laser fires during testing.

Step 2 - Check the magnets on the cover

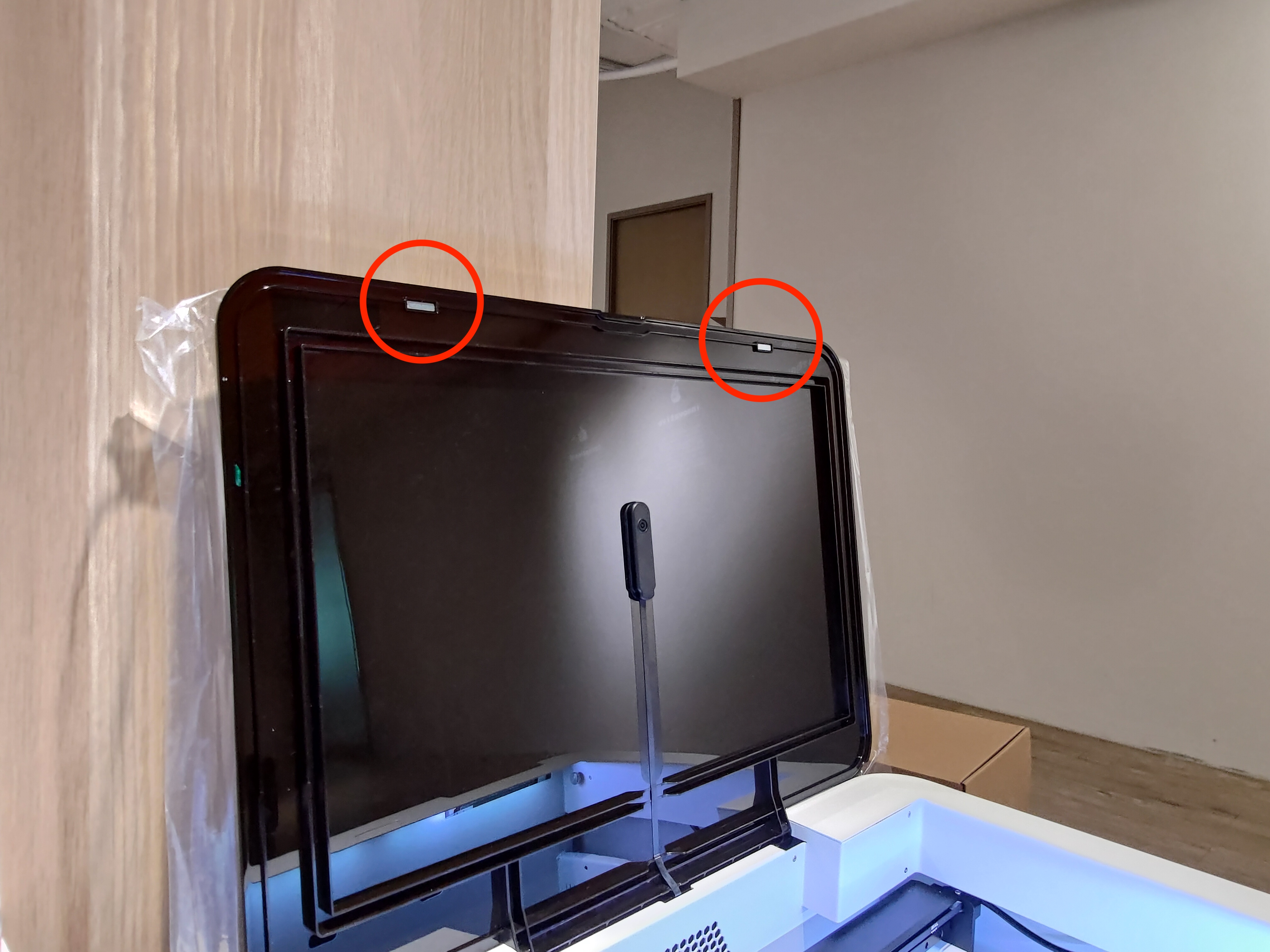

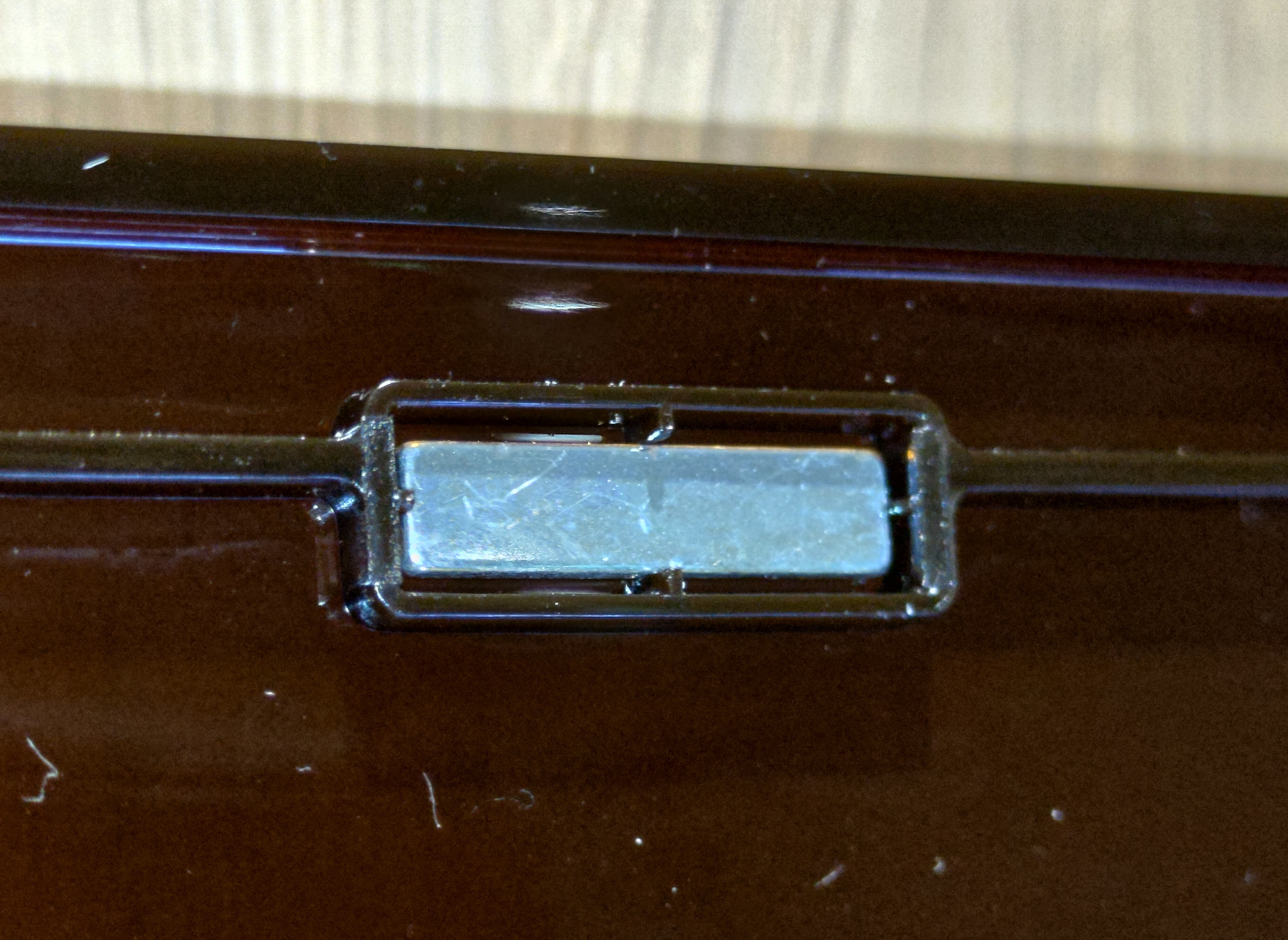

Please refer to the photo below to find the two magnets and check their conditions.

Determine your result and the next action to take:

Step 3 - Check the door sensor

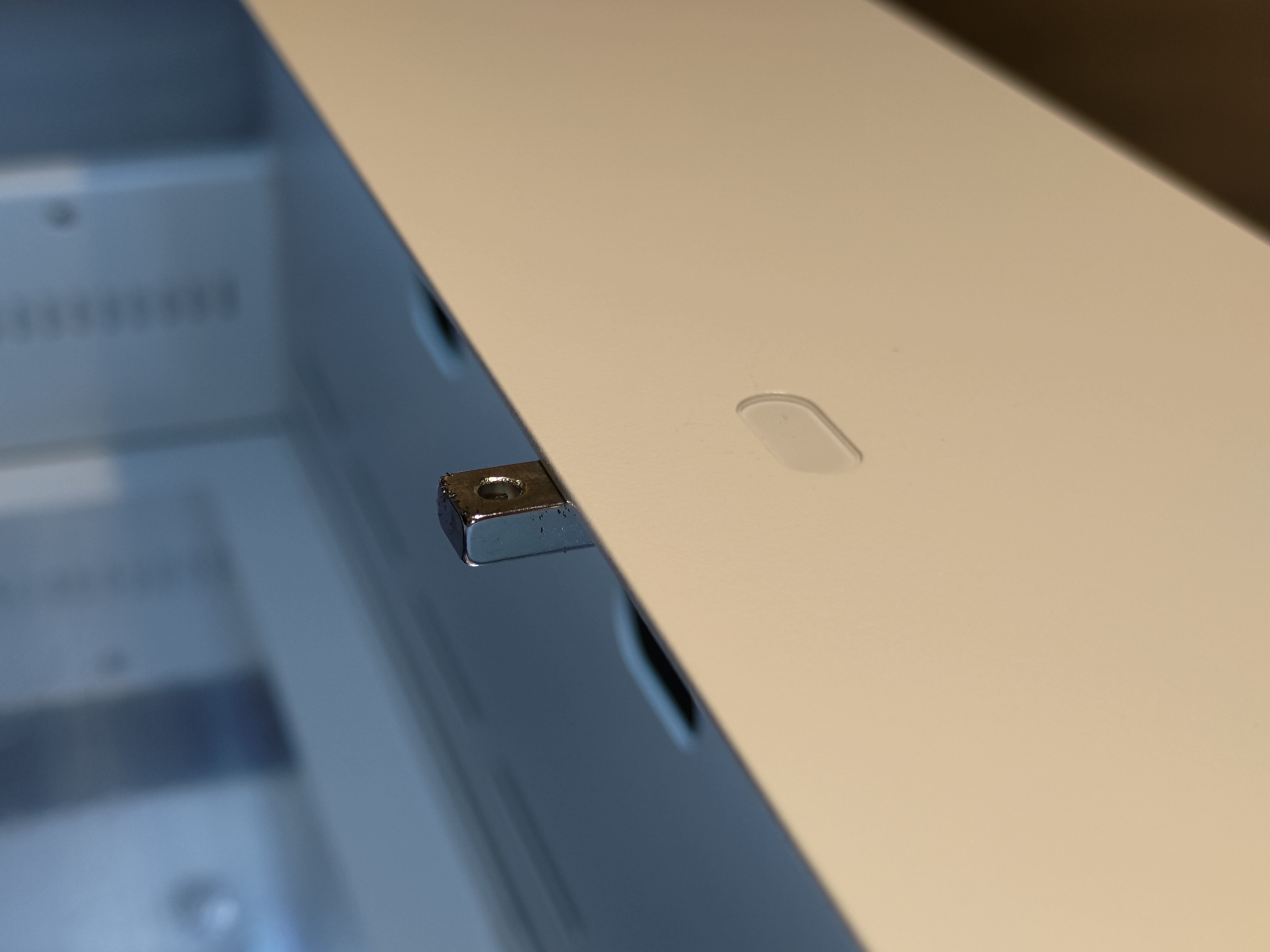

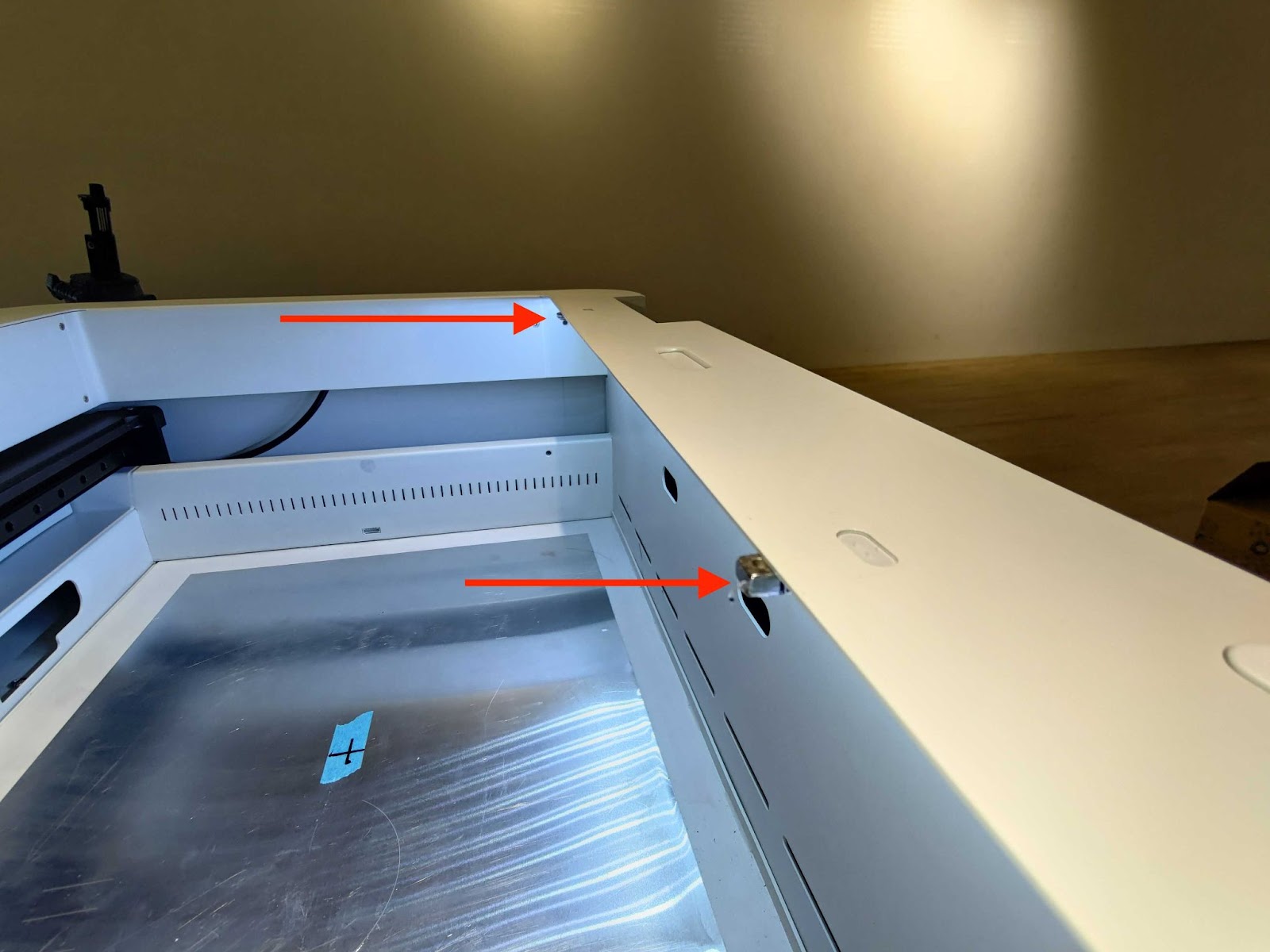

Put two external magnets underneath the frame close to the sensing areas to see if the sensors are working normally as in the photos below.

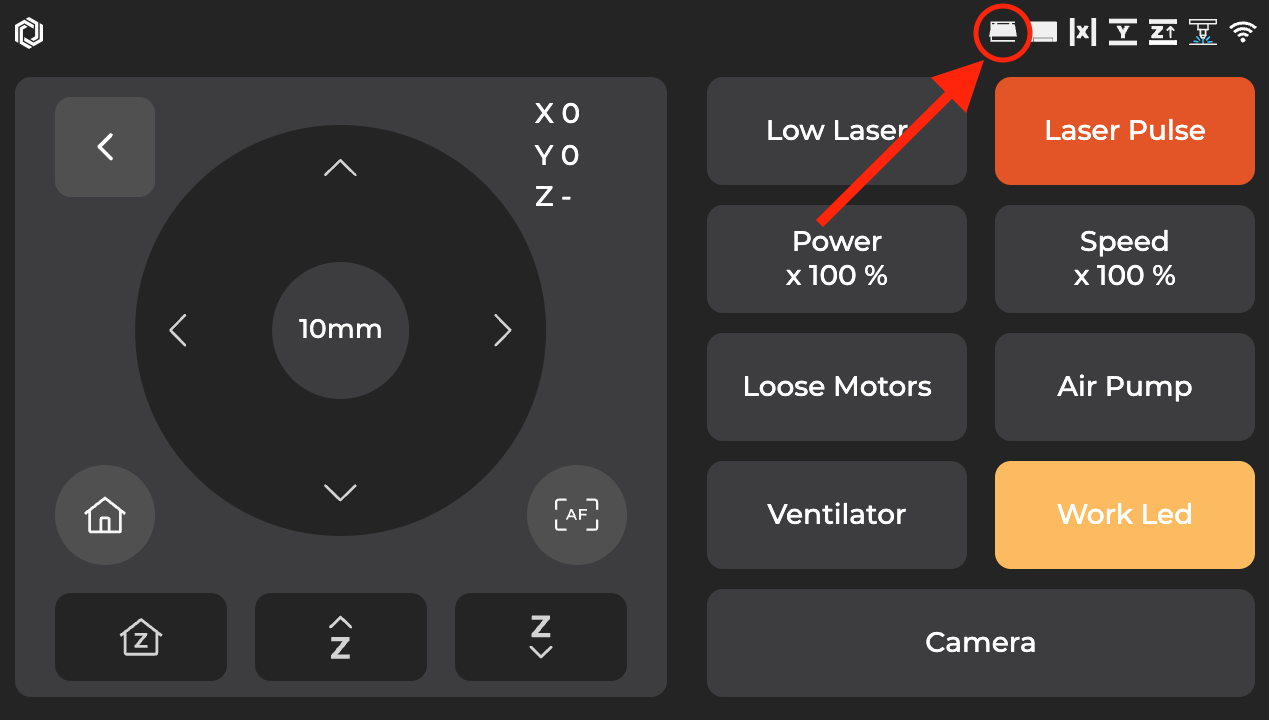

After putting the magnets, enter the control mode and check the door status icon.
(If you got this problem during the start-up test, please skip the start-up test.)

Open	Closed

Determine your result and the next action to take:

Step 4 - Check the sensor's location

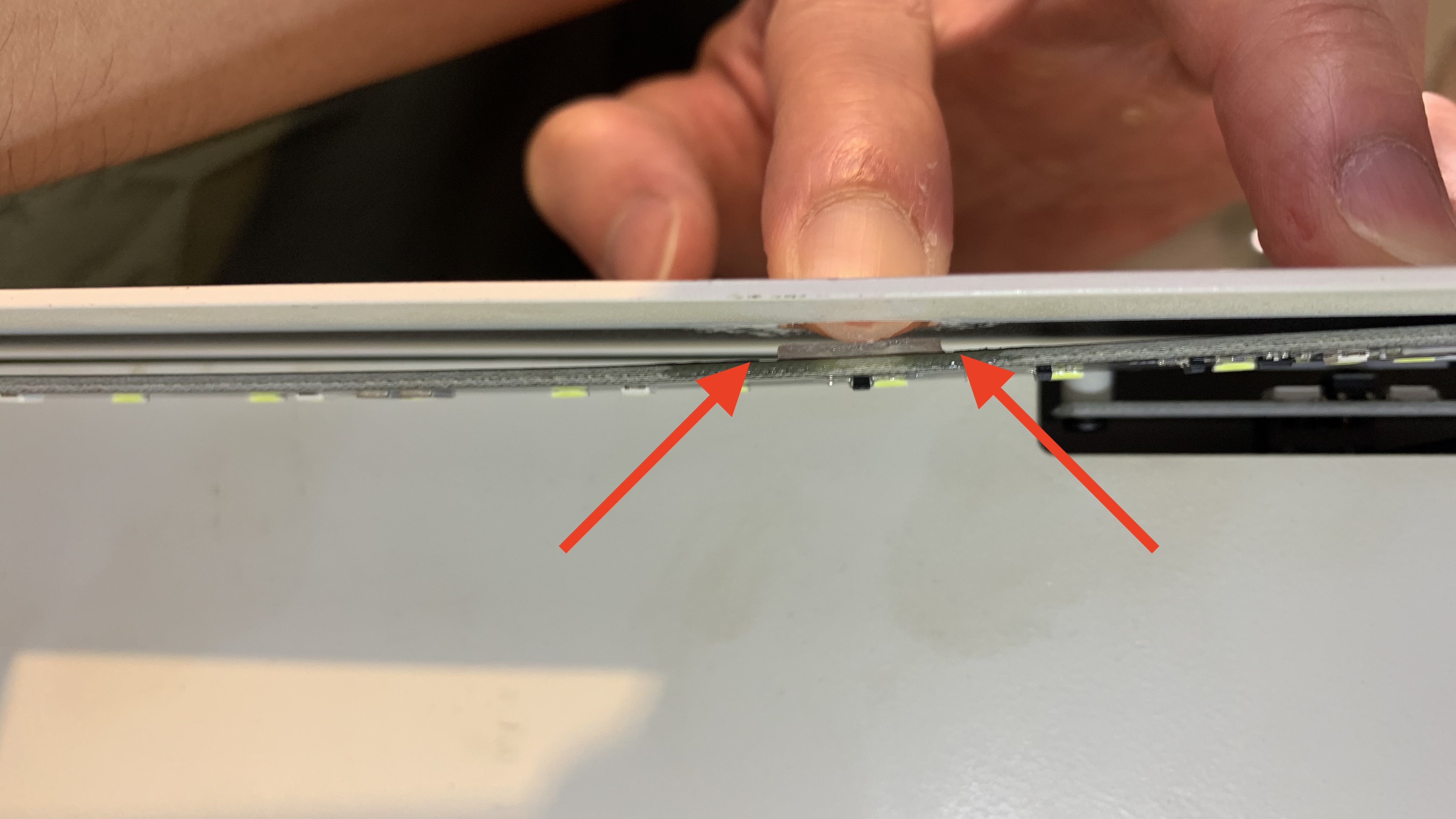

Remove the external magnets in Step 3 and gently press the sensing area in an oval shape.
See the video below.

(This video shows an example that the sensor can be pushed down)

Determine your result and the next action to take:

Step 4.1 - Apply super glue to fix the sensor

Please see the video below for applying the glue.

Make sure that the glue only goes to the sides of the oval sensor.

Determine your result and the next action to take:

Step 5 - Check the position of the door cover

Poor detection of the door may be led by the position of the door being misplaced as the magnets are mounted on the cover.
(The position of the grooves on the cover and the frame should be aligned.)

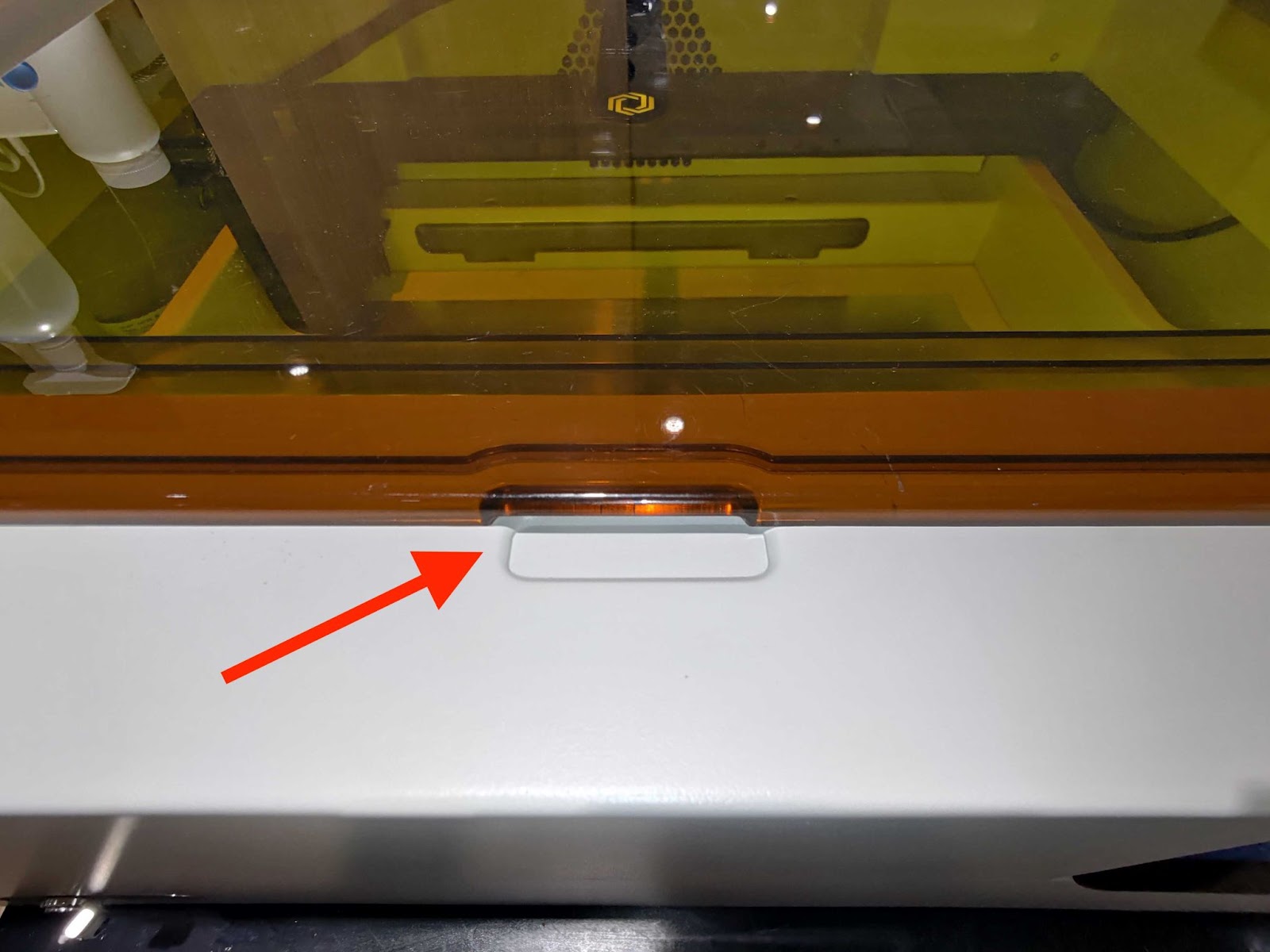

If your door cover is misplaced like the photo below, it could be because of the frame being bent or damaged.

Determine your result and the next action to take:

Step 6 -Exclude the possibility of firmware issues

An unsuccessful firmware installation might cause the detection to be unstable, and resetting to factory settings can eliminate the possibility of firmware issues effectively.

• First, reset to factory (Main Page > Machine > Settings > Reset to Factory > Yes)



• After factory reset, follow the steps in the link on How to update the machine firmware and ensure it is updated to the latest version.


• After the update, enter control mode and see if the door icon works normally (Refer to Step 3)

Determine your result and the next action to take:

Step 7 - Contact Customer Service

*The collected information, such as photos or videos showing your machine's problem in this article, will be necessary to be shared with the reseller or FLUX Support.

#END
