Description:
When the system detects that the bottom cover is opened, it triggers the #903 error message indicating that the bottom cover is open. In typical scenarios, the system fails to detect the signal indicating the bottom cover is closed, resulting in the bottom cover icon on the panel not changing to the closed state. Another situation is when the bottom cover is securely closed; the error message randomly pops up during ongoing tasks.
Regardless of the symptoms your machine is exhibiting, please follow the steps below sequentially:
Step1 - Check the Icon on the touch panel

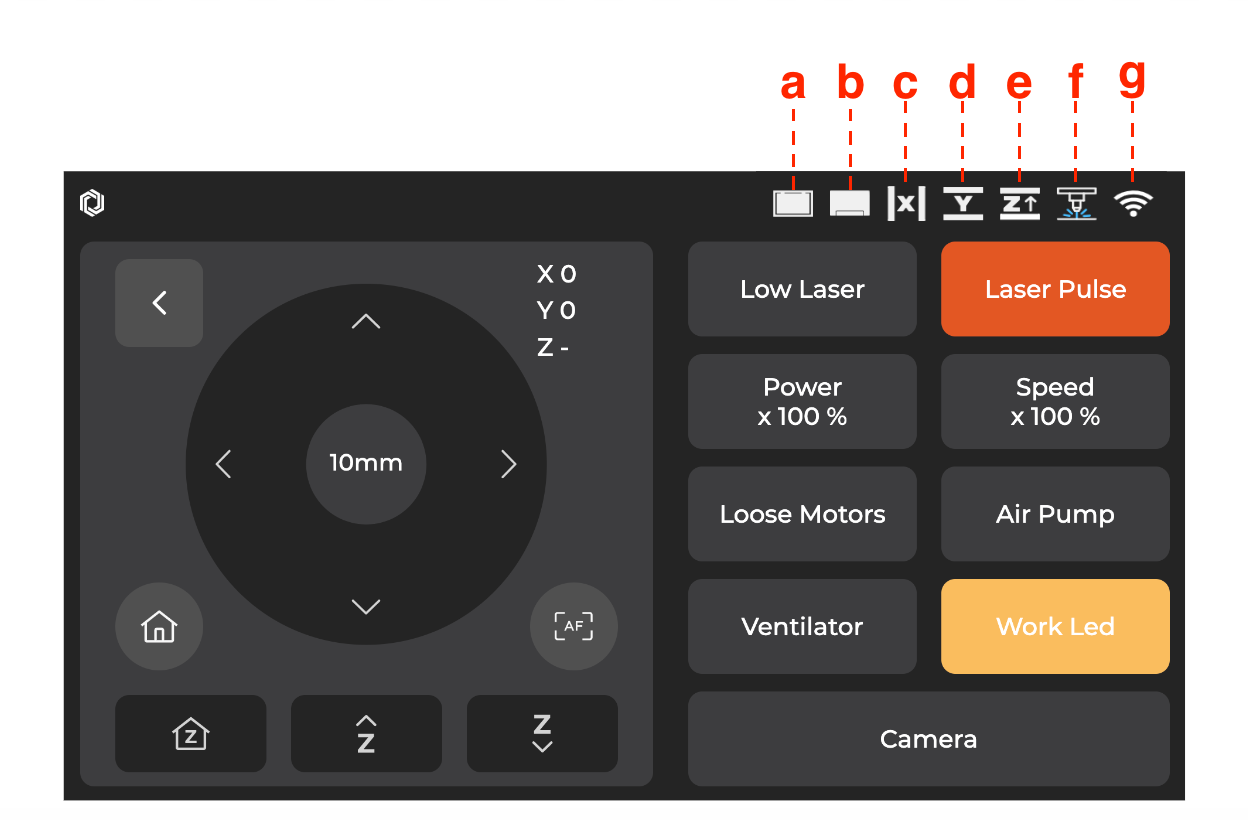

The icon located in the upper right corner of the touch panel can be used to determine whether the magnetic sensor detecting the bottom cover is recognized by the machine. Under normal circumstances, the bottom cover symbol should be in the closed state, indicating a normally closed condition.
b: Bottom Cover - Displays the machine's bottom cover status.

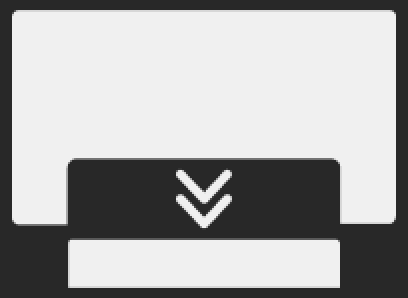

>>> Open

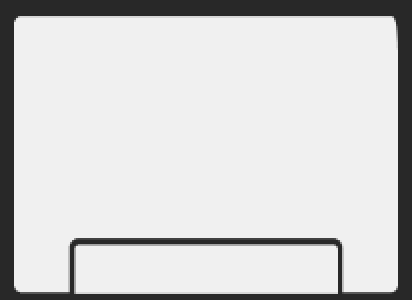

>>> close
Determine the result and the next action to take:
|
|
Step 2 - Exclude the possibility of firmware issues
An unsuccessful firmware installation might cause detection to be unstable.
Resetting to factory settings can eliminate the possibility of firmware issues effectively.
- First, Reset the machine to the factory.

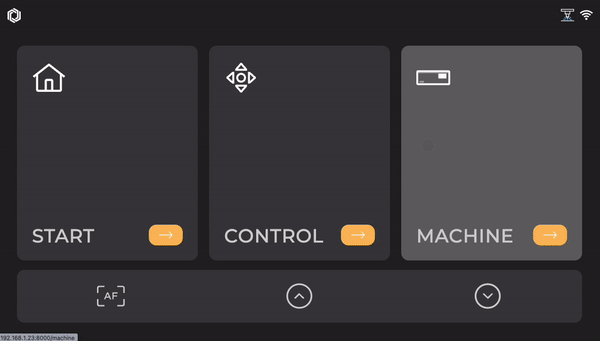

(Main Page > Machine > Settings > Reset to Factory > Yes)
- After resetting to the factory, please refer to the page below to update the firmware。
Ador - Firmware Update
- After the update, re-enter the operational mode and verify whether the bottom cover detection is functioning correctly. Please refer to Step 1.
Determine the result and the next action to take:
|
|
Step 3 - Re-secure the bottom cover

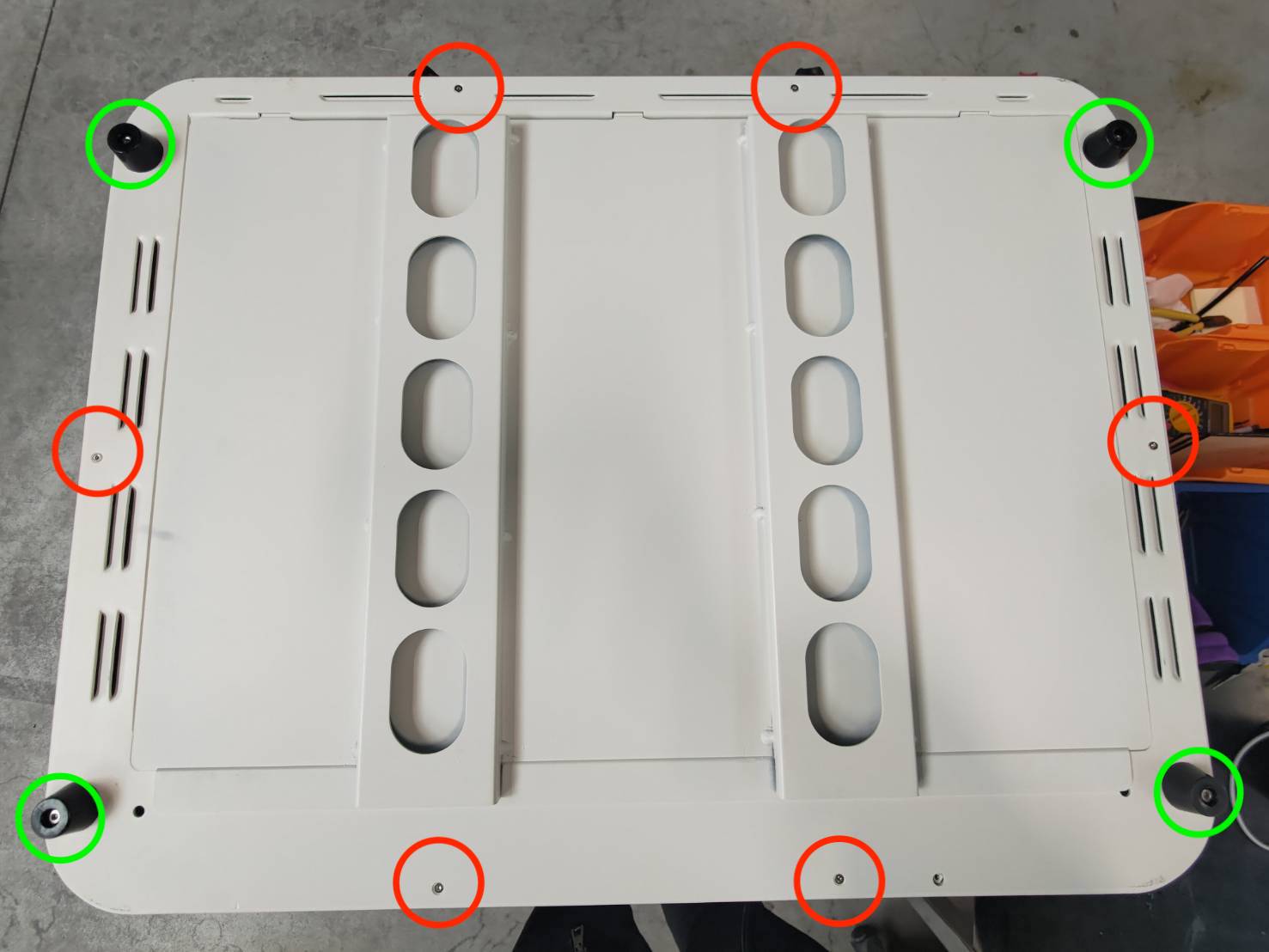

Shut down the machine and disconnect the power cord. Flip the machine to the back and ensure that all screws on the bottom cover are securely tightened. If any are found to be loose, please tighten them. (T8 screws x 6 & 3mm hex screws x 4)
Determine the result and the next action to take:
|
|
Step 4 - Contact Customer Service
- Please follow the instructions in the link below to properly report an issue to your local reseller or FLUX support. [Contact Customer Service]
*The collected information, such as photos or videos showing your machine's problem in this article, will be necessary to be shared with the reseller or FLUX Support.
#End
