4-1 Lubricating

FLUX Support Team
  • Updated

Suggested maintenance frequency:  every two weeks.

Click the title below to jump to the content you need :

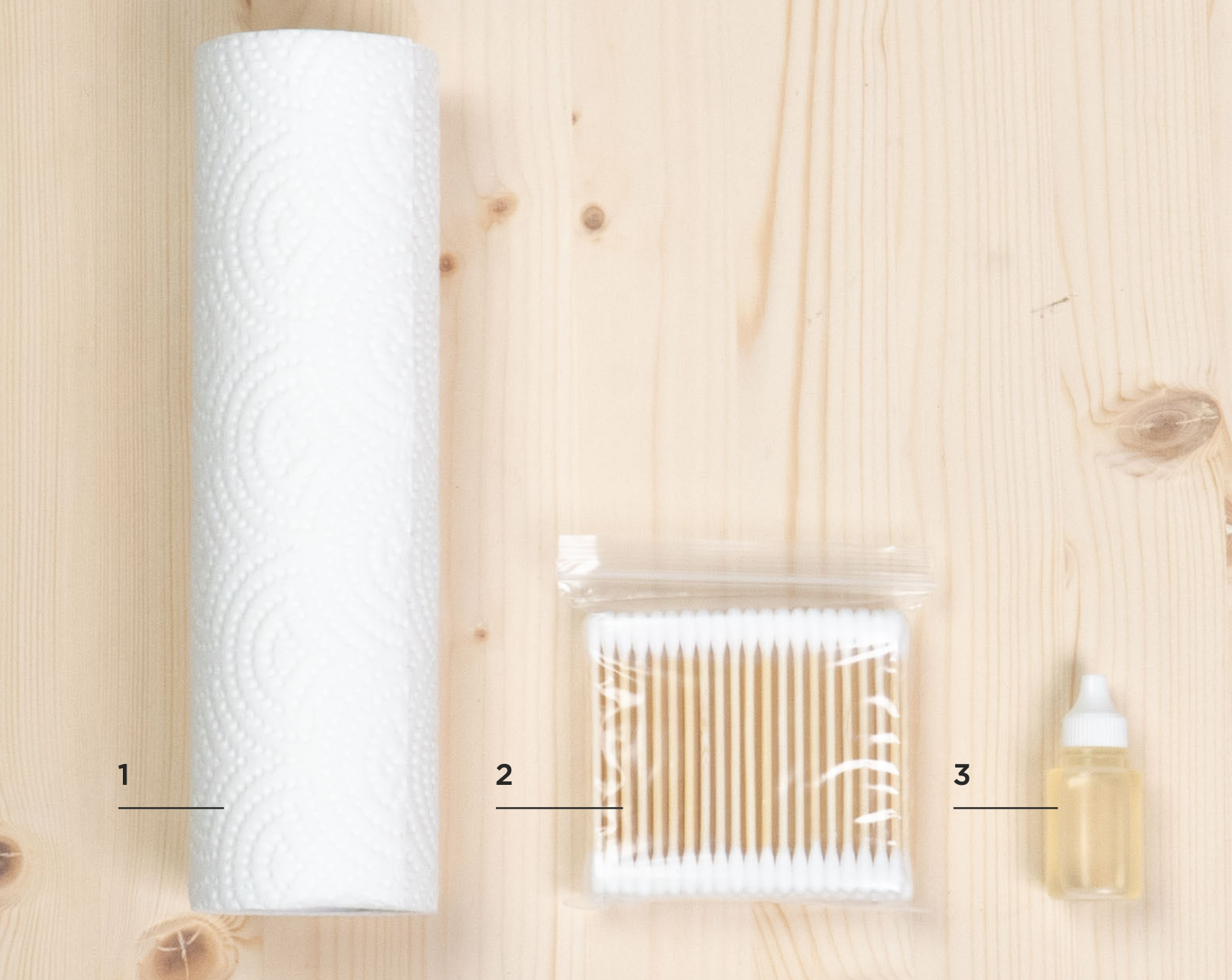

Preparation Items：
Self-Preparation：

1｜Paper towel or tissue paper
2｜Cotton swab
Included in the accessory box：
3｜Lubricating oil



a. Cleaning

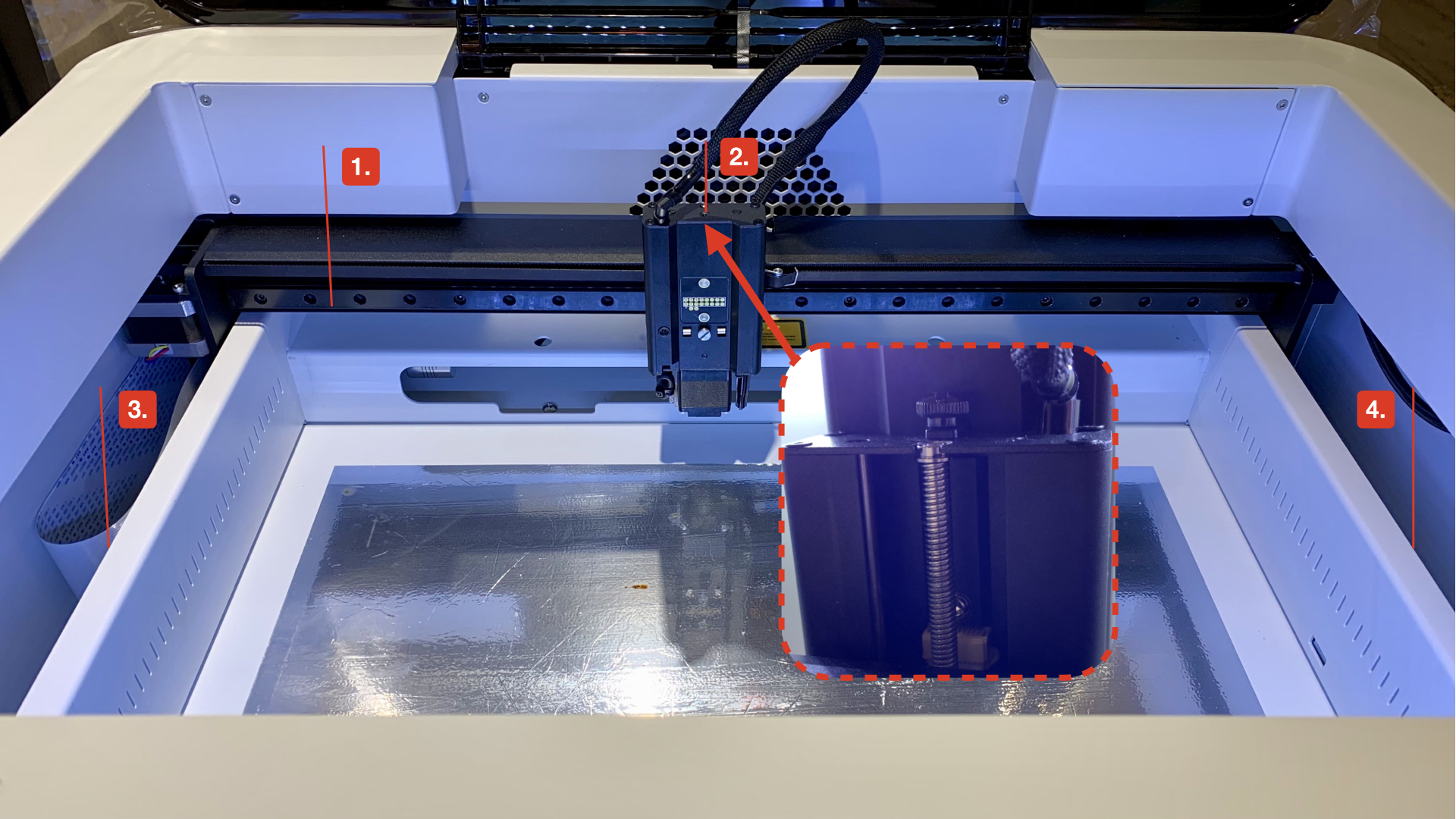

Use a paper towel or tissue paper to wipe the oil and dust in the four positions of the picture.

  1. X-axis linear rail
  2. Z-axis lead screws (You can see it on the back after raising the module adapter to the top.)
  3. Left side of Y-axis guiding rods
  4. Right side of Y-axis guiding rods



2. Oiling

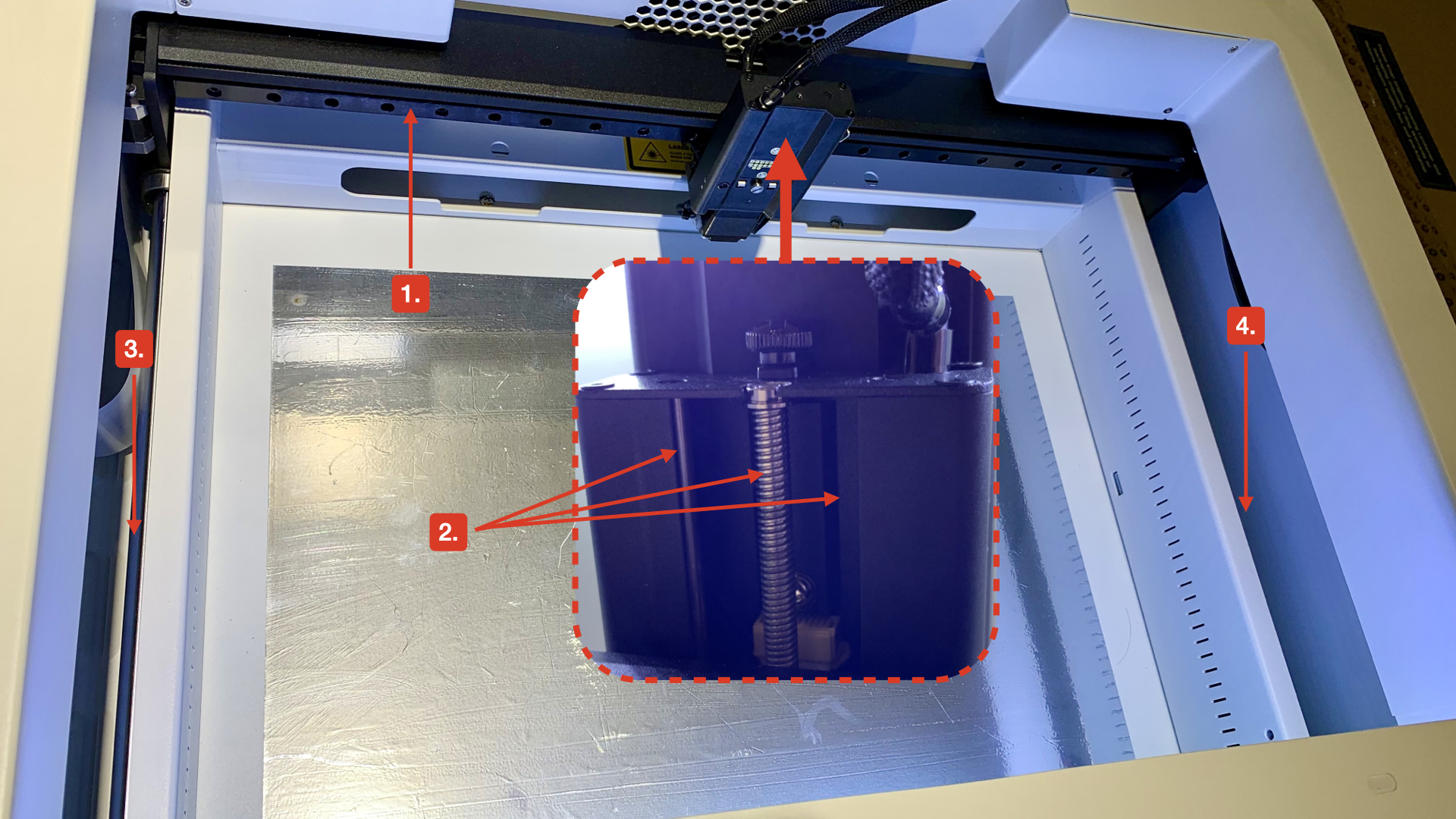

Dip a cotton swab in the lubricating oil and apply evenly above the four positions in the picture. Manually move the laser head left, right, forward, and backward 3 - 5 times to evenly distribute the lubricating oil.
  1. X-axis linear rail
  2. Z-axis lead screws (You can see it on the back after raising the module adapter to the top.)
  3. Left side of Y-axis guiding rods
  4. Right side of Y-axis guiding rods
