4-6 Firmware Update

How to Update Ador's Firmware

There are three methods to update the firmware:

1. Update the firmware on Ador's panel.
2. Update the firmware with Beam Studio.
3. Update the firmware with the USB Drive.

1. Update the firmware on Ador's panel.

Please select the "MACHINE→Settings→Update the Latest Firmware" on the Ador's panel.

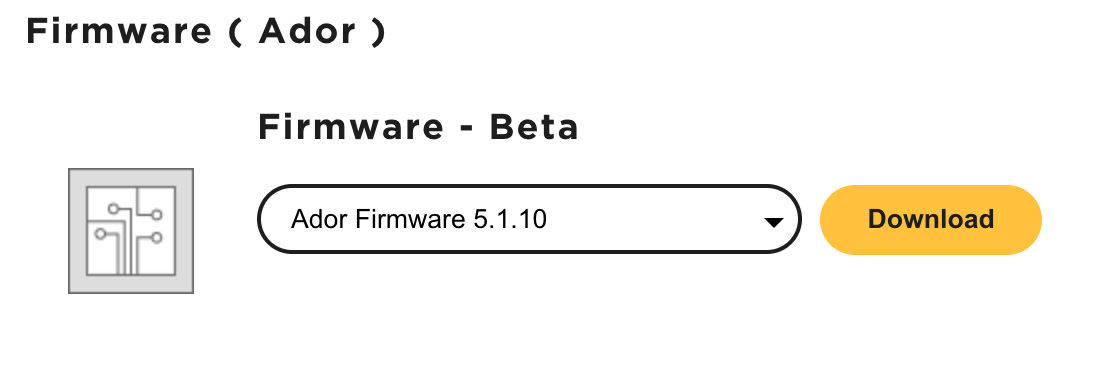

⚠︎ Suppose you would like to update by the methods below. Please go to the official FLUX website > "Support"> "Downloads" and select the latest firmware ( Ador ) to download.

2. Update the firmware with Beam Studio.

Please follow the video to process the update.

3. Update the firmware with the USB Drive.

1. Rename it into "autoupdate.fxfw" and copy it to your USB Drive.
2. Plug the USB drive into the machine and reboot it. The update process will take around three to five minutes.

Check the Status

The light on the top button will change to blue when updating.
It takes some time; do not shut down the machine when updating.

After updating, the light will change to white.

⚠︎ Please reboot the machine when the "Updating Firmware" pop-out message disappears to finish the update.
