Ador - Z-Axis Control Board Replacement

Preparation Items :

Self-preparation :
Phillips screwdriver

Step 1

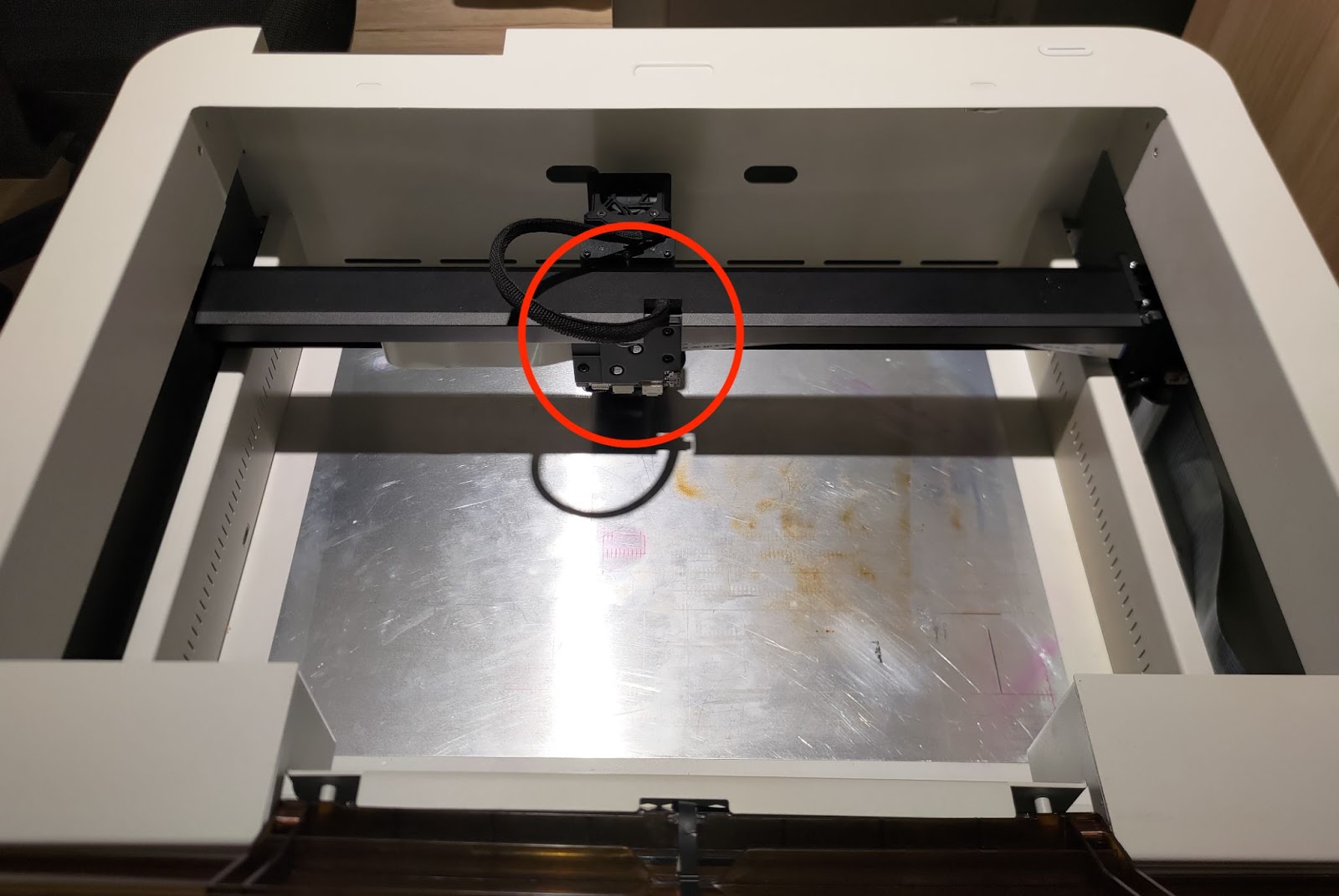

Find the board at the back of the module adapter.

Step 2

Unplug the three cables indicated in the picture below.

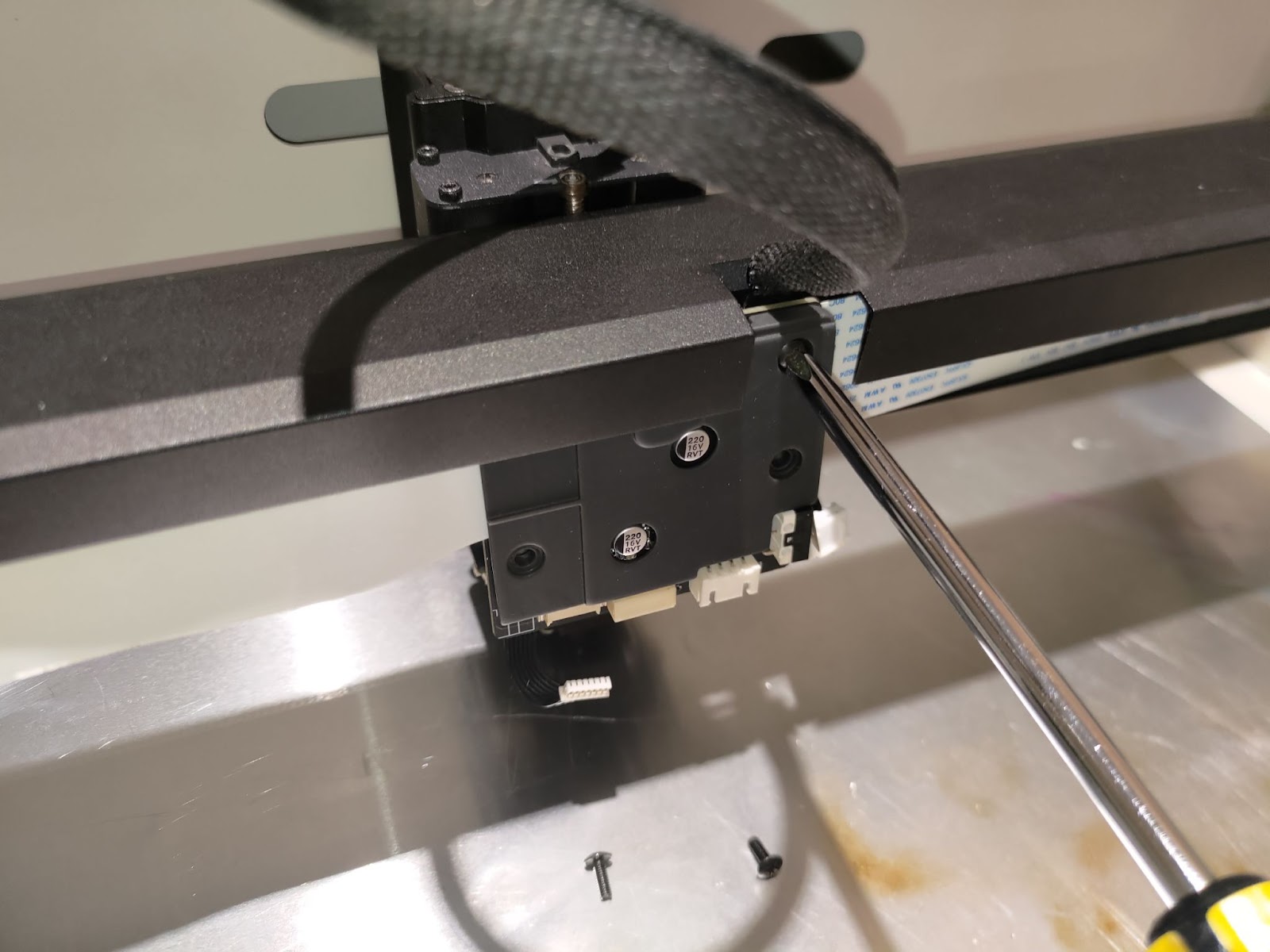

Step 3

Unscrew the three screws with a Phillips screwdriver. The cover in black will then be able to be removed.

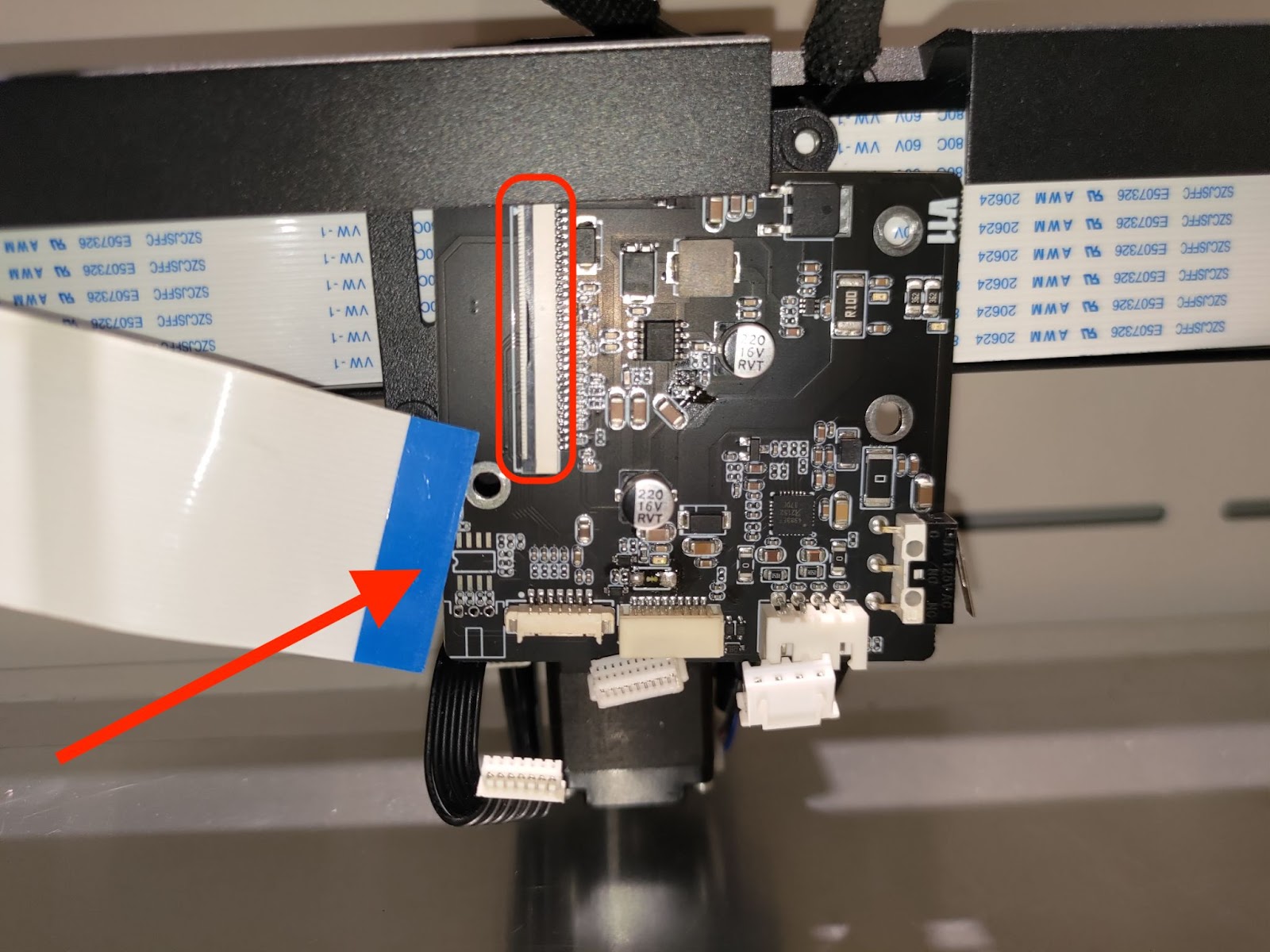

Step 4

Remove this cable by opening the circled connector and extracting the flat cable as pointed.

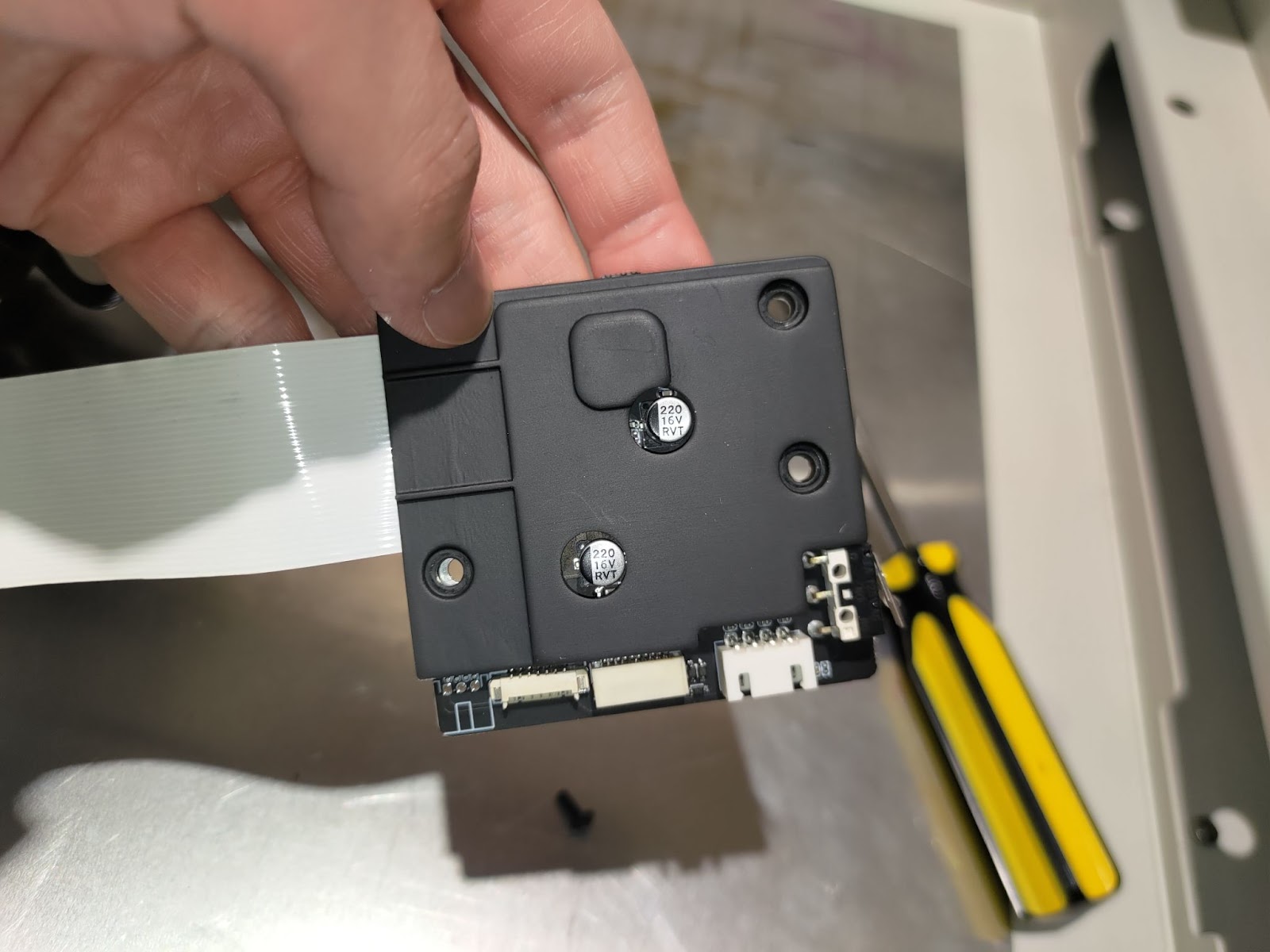

Step 5

The old board is now completely removed.

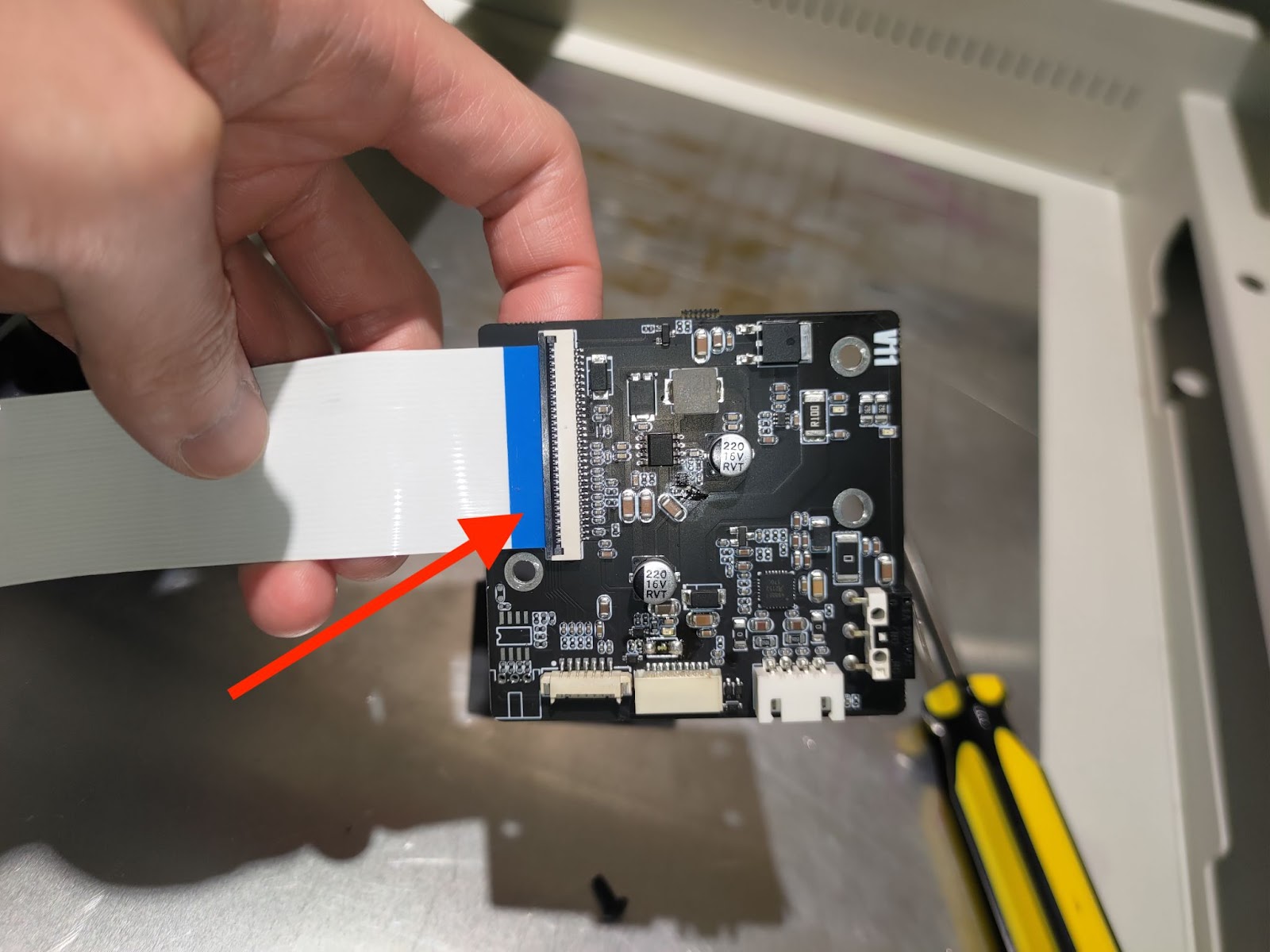

Step 6

Connect the flat cable with the new board.

Step 7

Place the cover in position.

Step 8

Screw back the three screws along with the board and the cover.

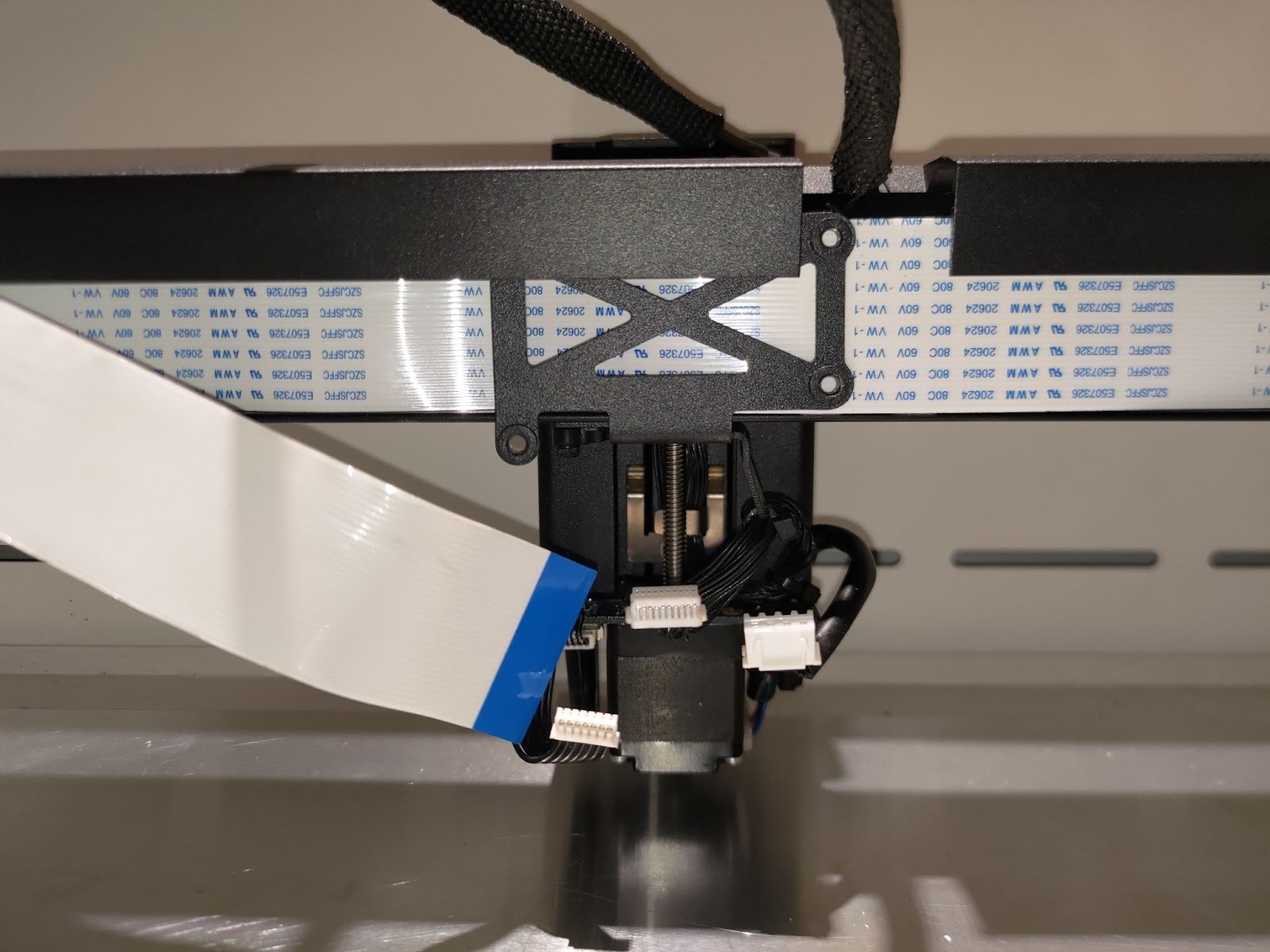

Step 9

Re-plug these cables.
