Ador - Y-axis Washer Installation Guide

Tools:

• Phillips screwdriver (Thin and long in size)
• Strong double-sided tape
• Normal tape

Step1:

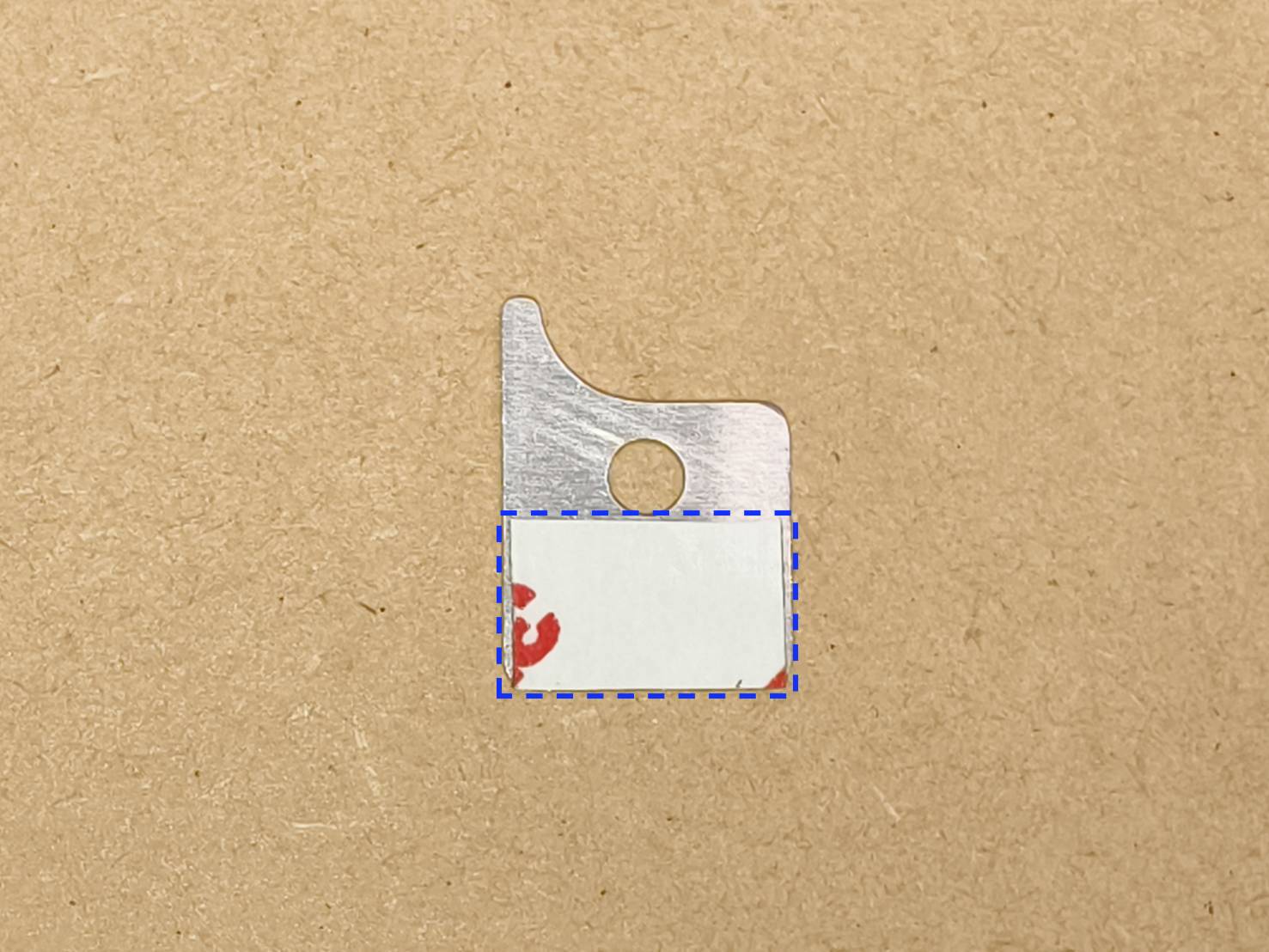

Apply the double-sided tape on the washer. Please make sure that the tape is applied on the same side as in the photo.

Step 2:

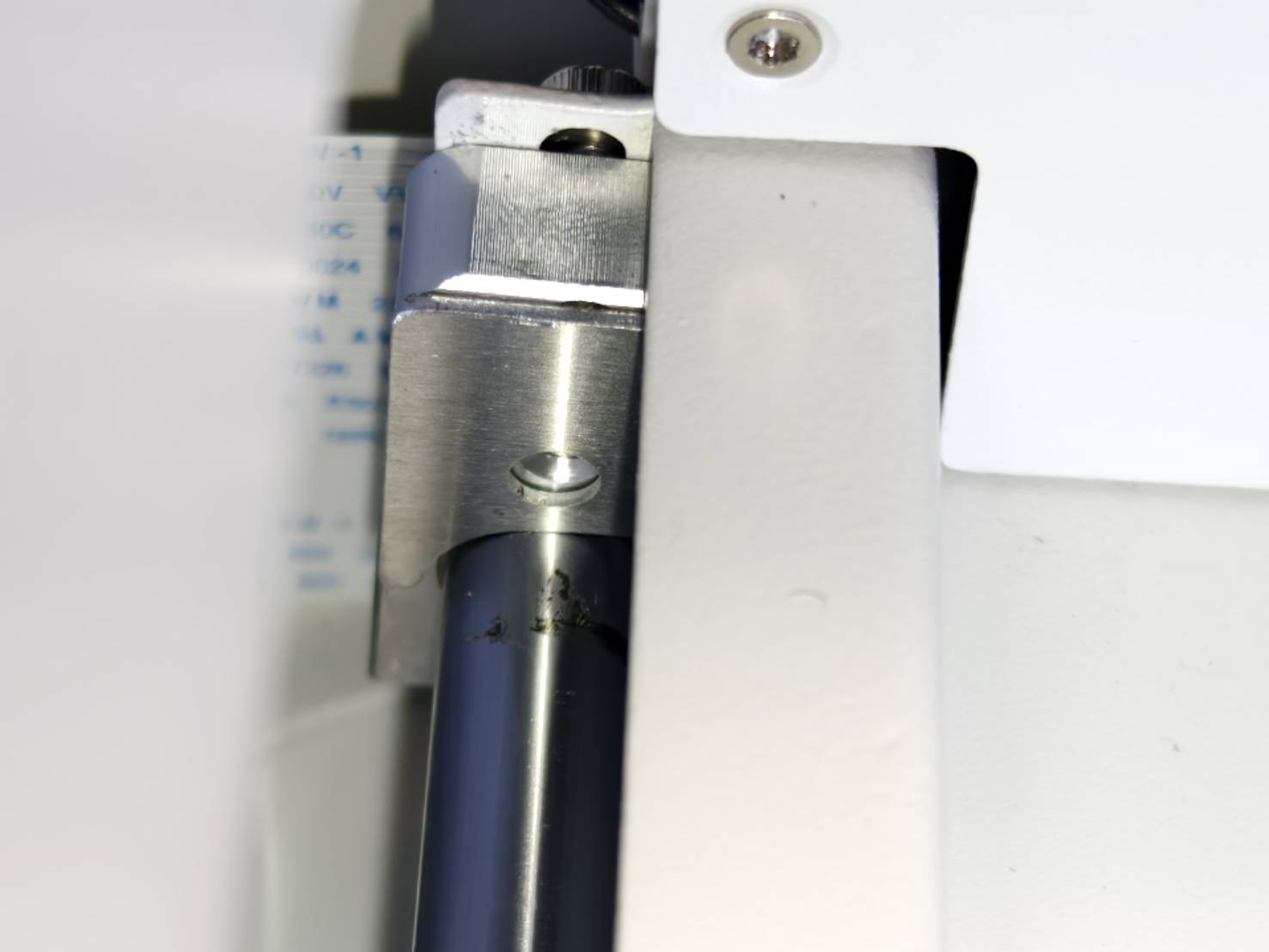

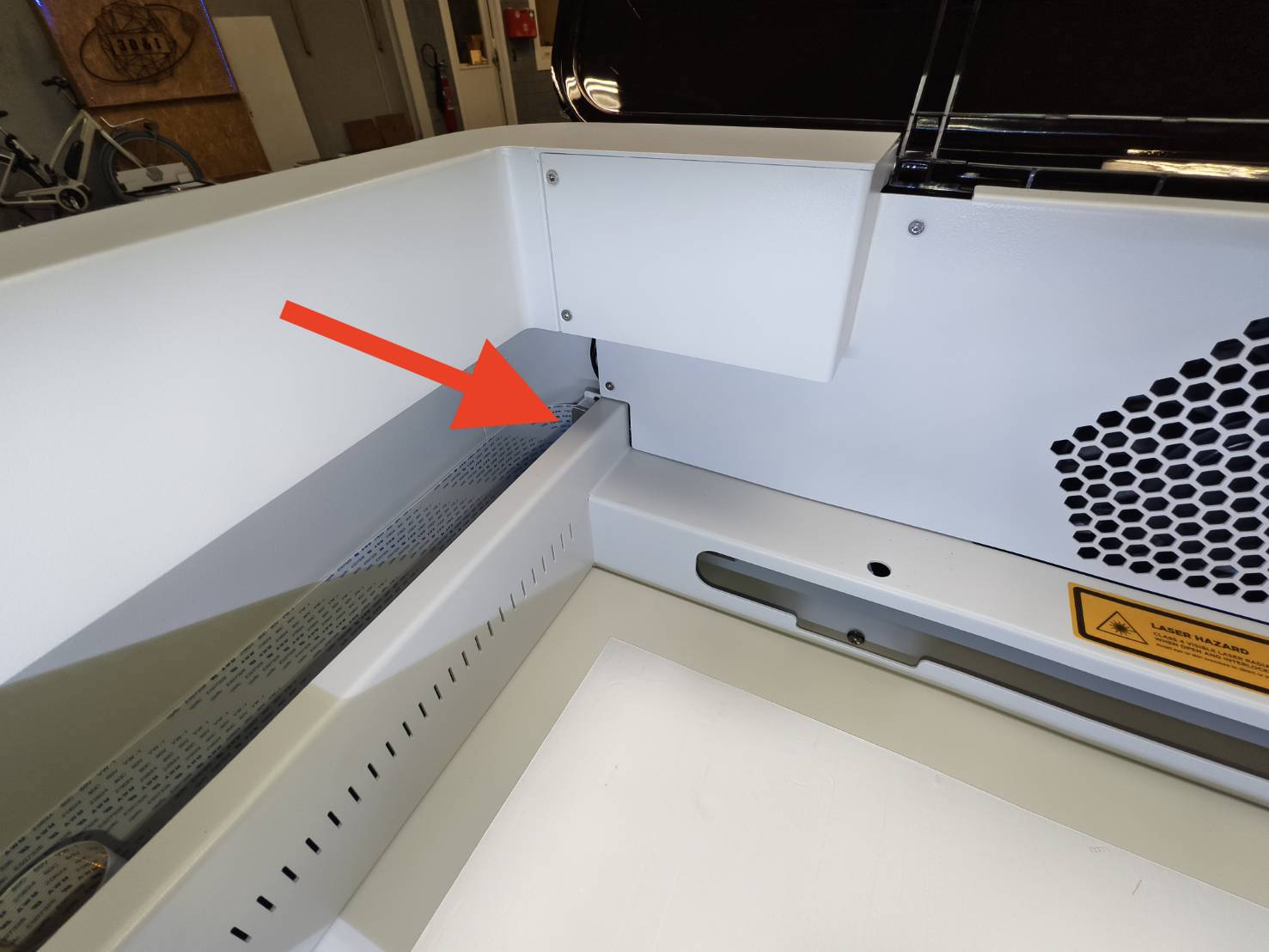

Remove the film of the double-sided tape and put it on the Y-axis limit switch’s contacting location. (On the top-left side of the machine.)

Step 3:

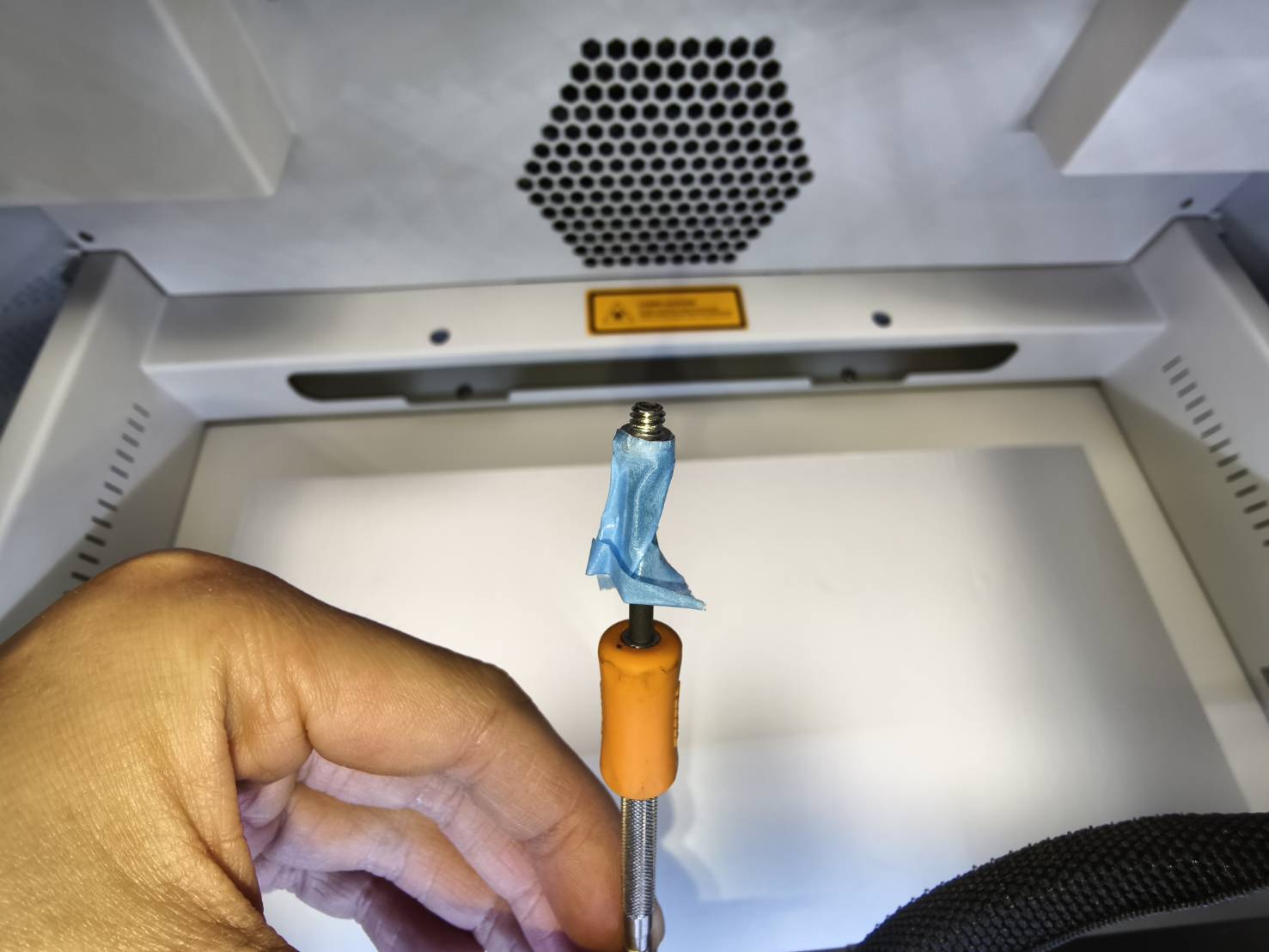

Fix the screw on the driver by using a normal tape.
(The purpose is to make it easier to tighten the screw.)

Step 4:

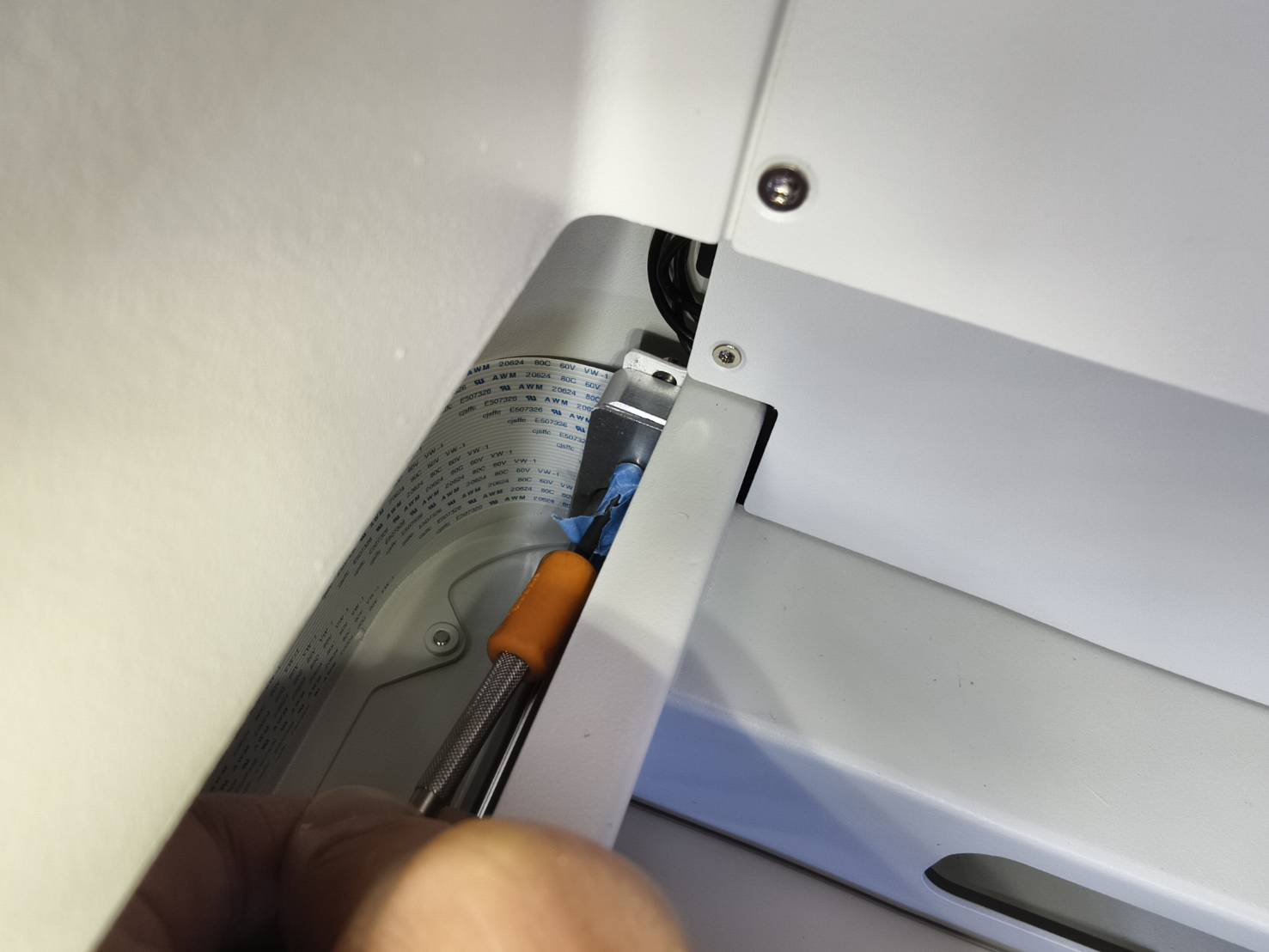

Tighten the screw.

Step 5:

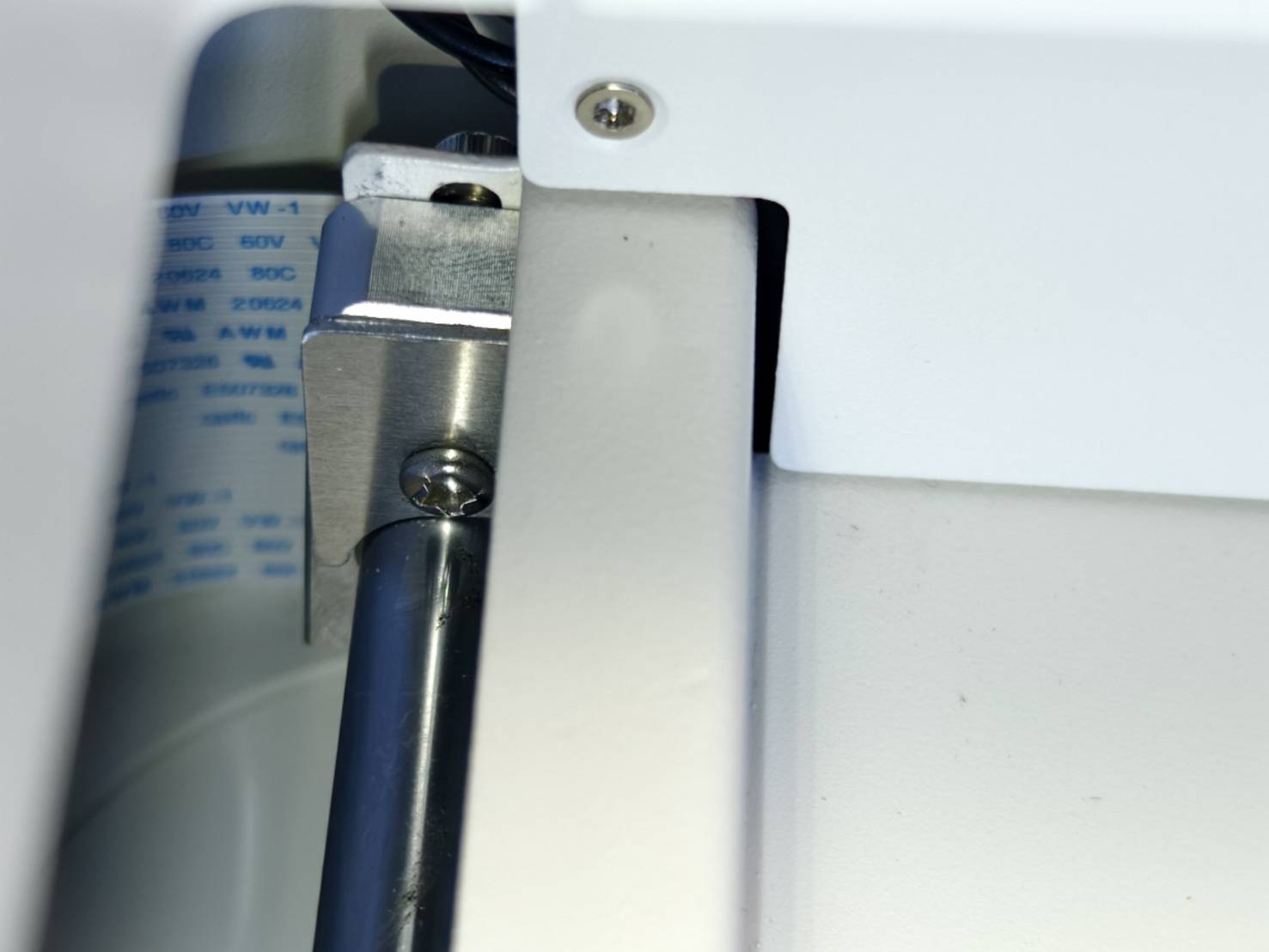

Finished.
