Ador US - Camera Module Replacement

Note

This article is only applicable to the US region as the camera design is different from other regions.
If your Ador is not the US version, please refer to this article:
Ador - Camera Cable & Camera Module Replacement

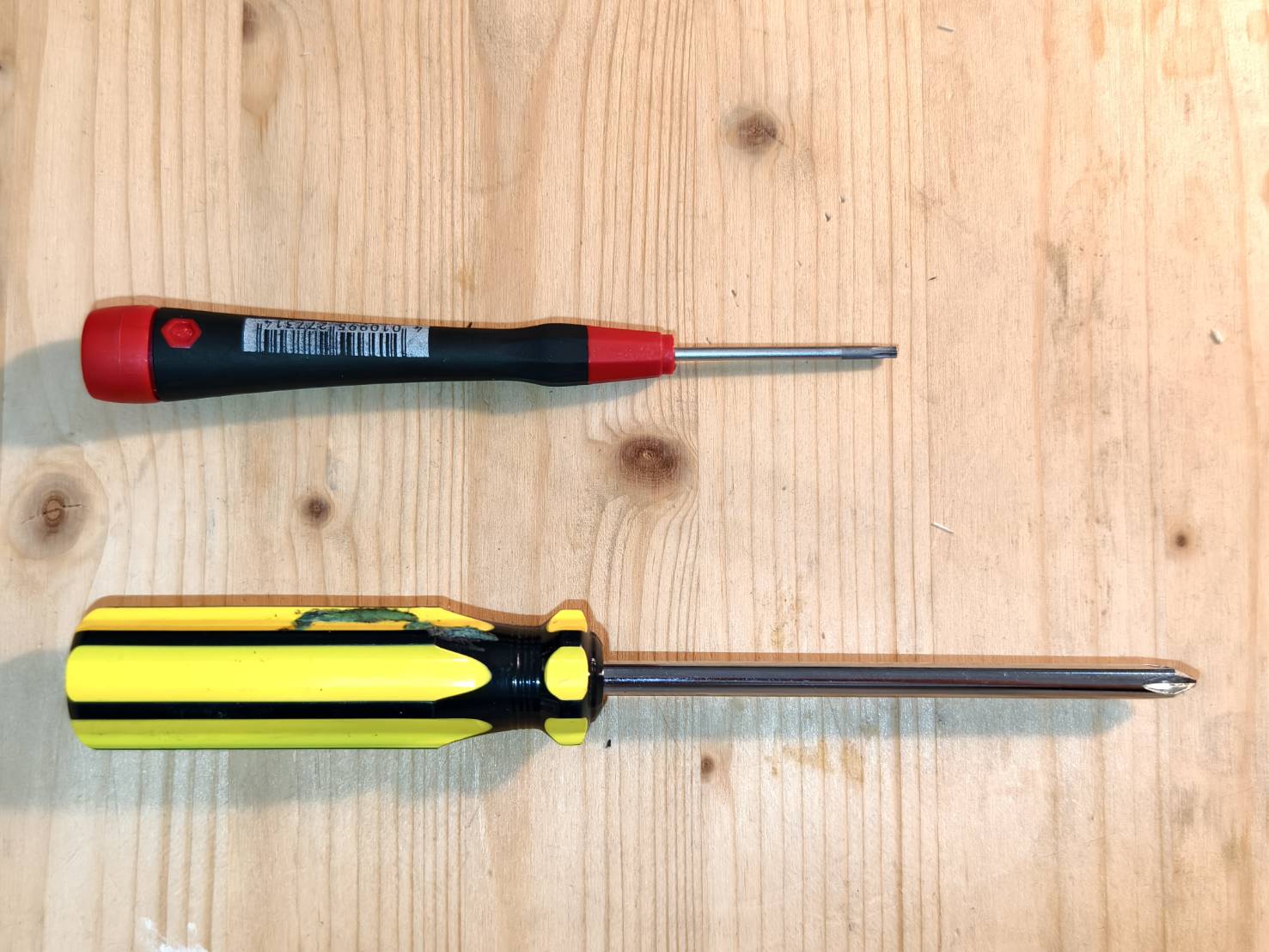

Tools

1｜Torx T8 driver
2｜Phillips driver

Step 1

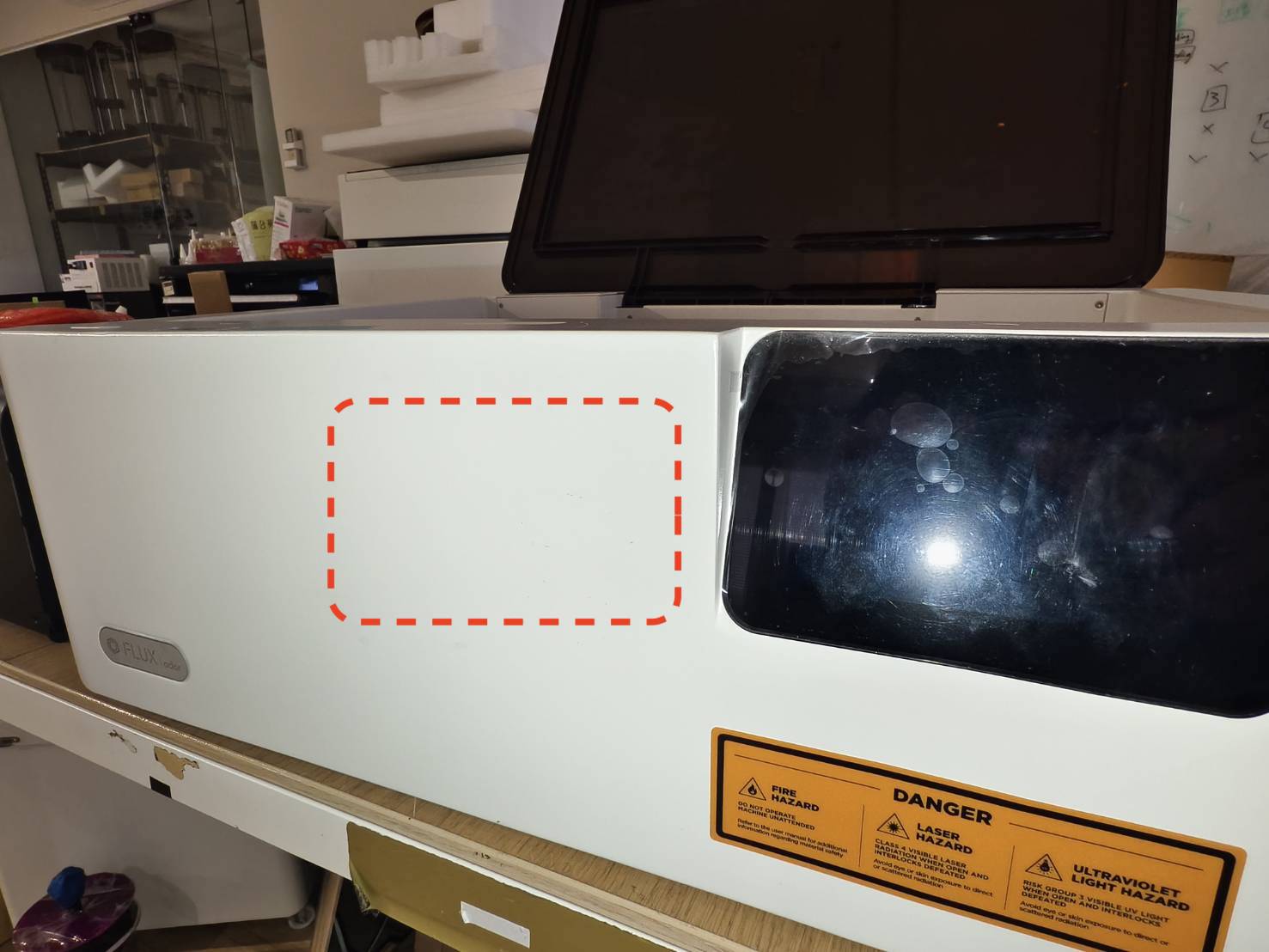

Turn off the machine and remove the power cord.

Step 2

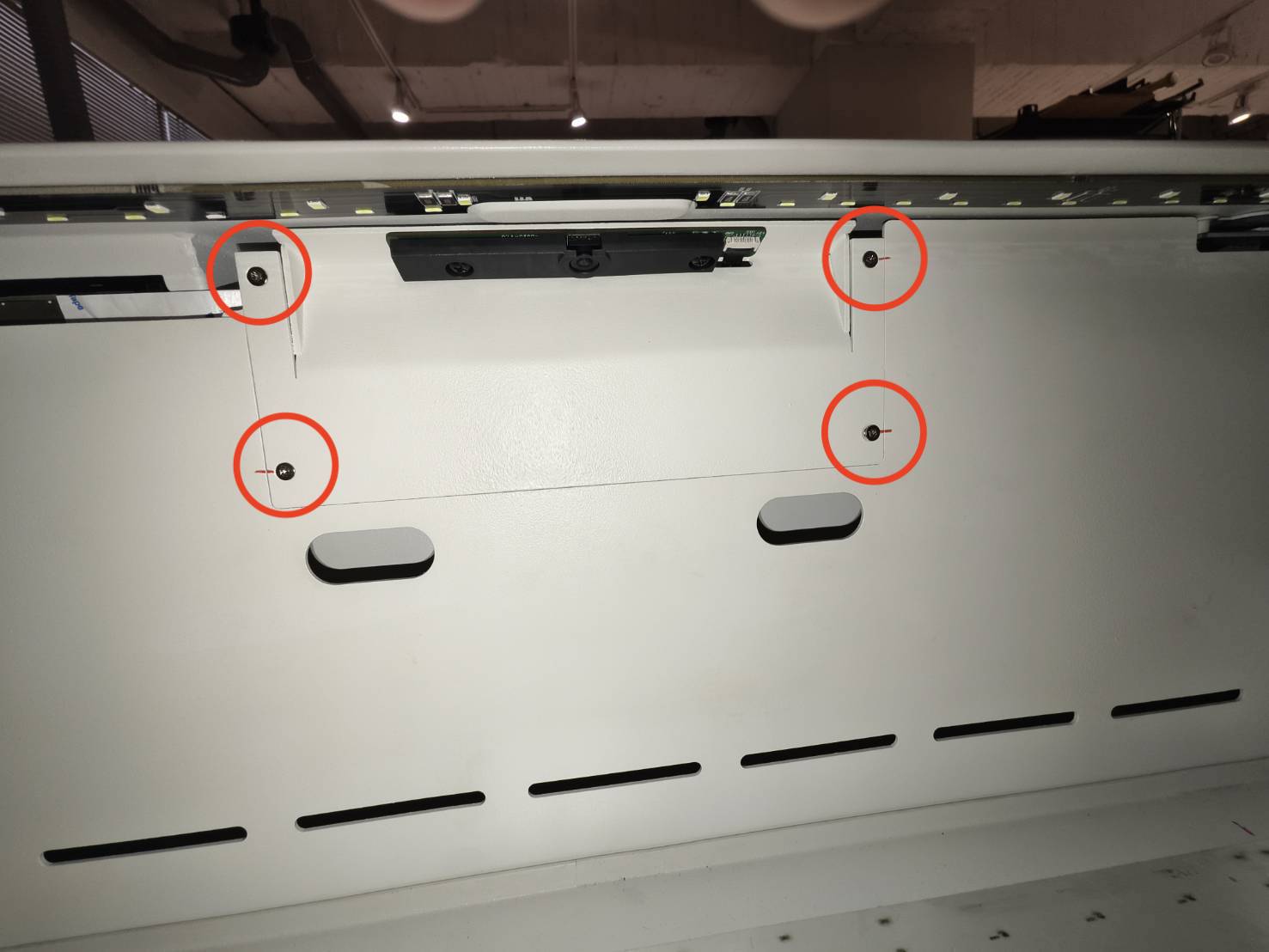

Remove the four T8 screws. The screws will be located behind the front frame.

Step 3

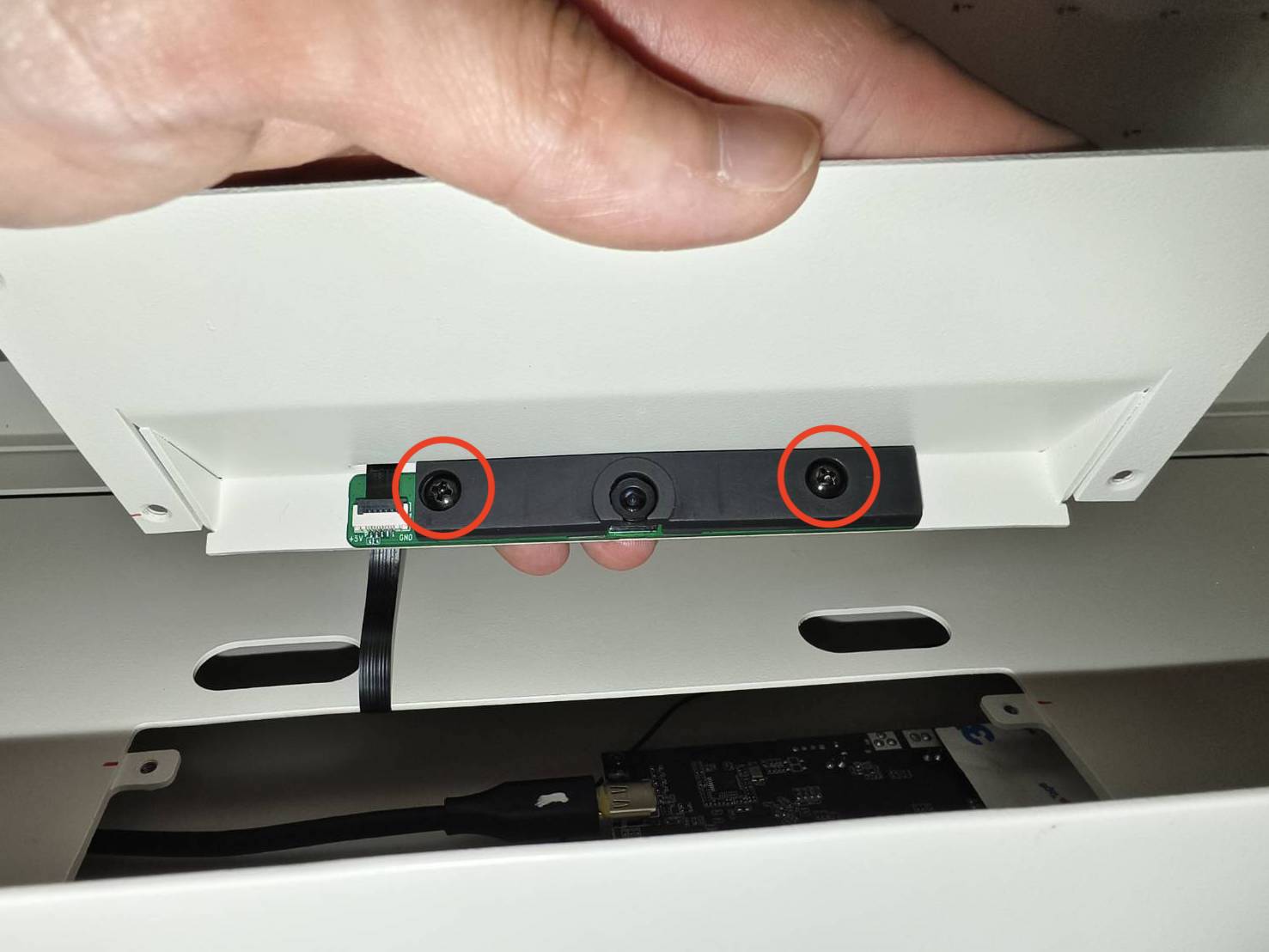

Remove the two Phillips screws, and the black cover can be removed.

Step 3

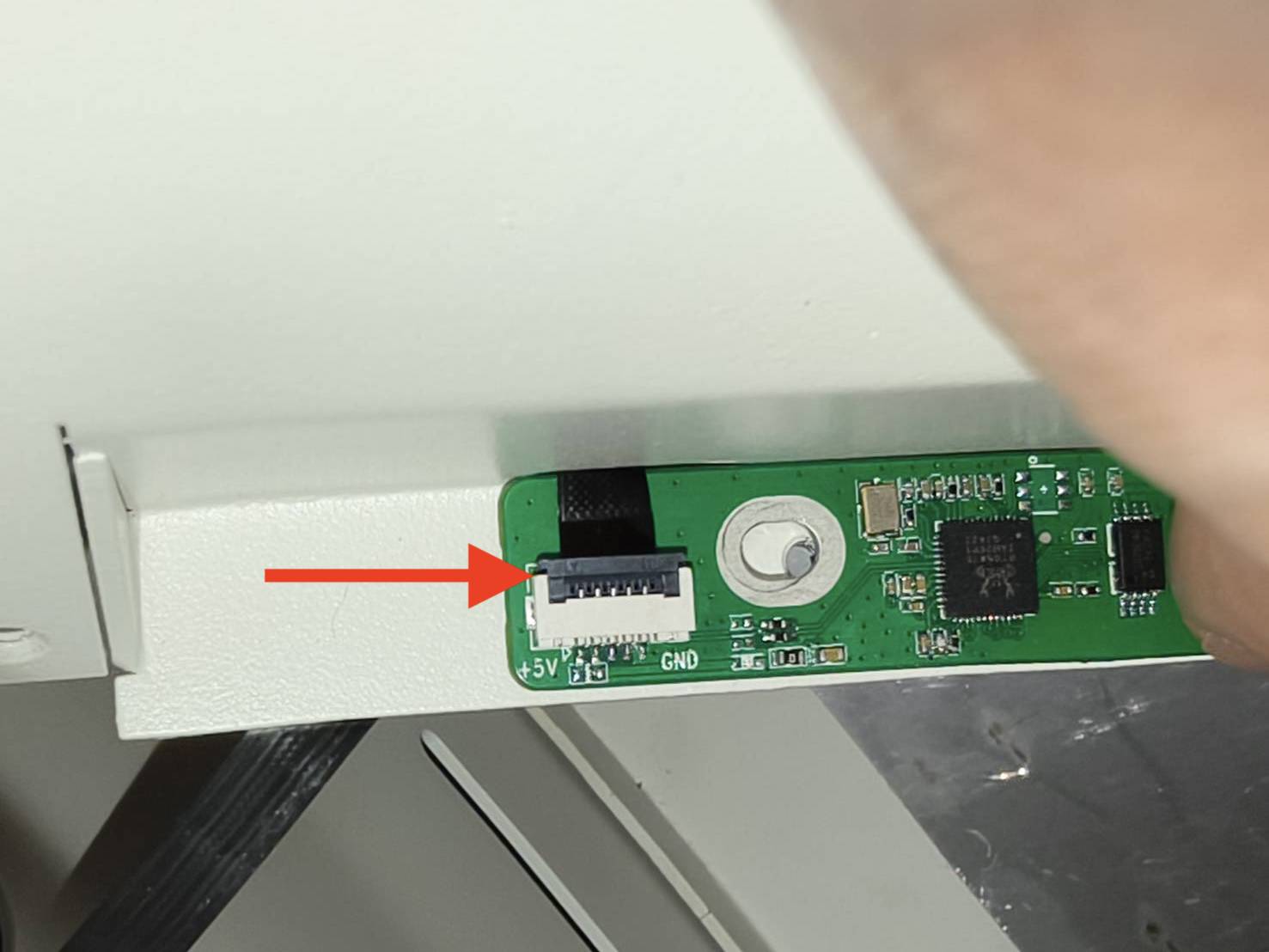

Open the clip and remove the camera cable from the camera module.

Step 3.1

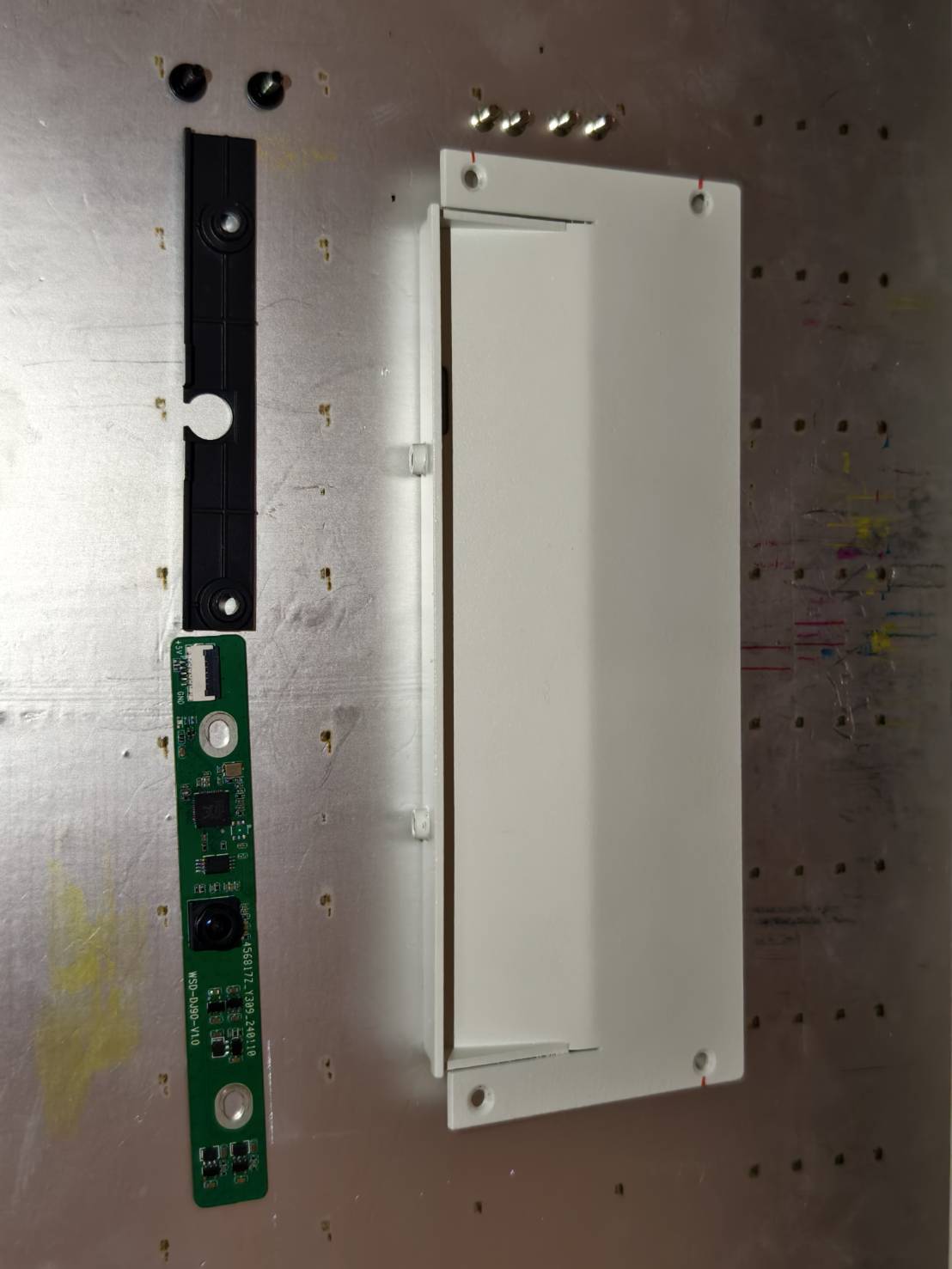

All the parts can now be removed.

Step 4

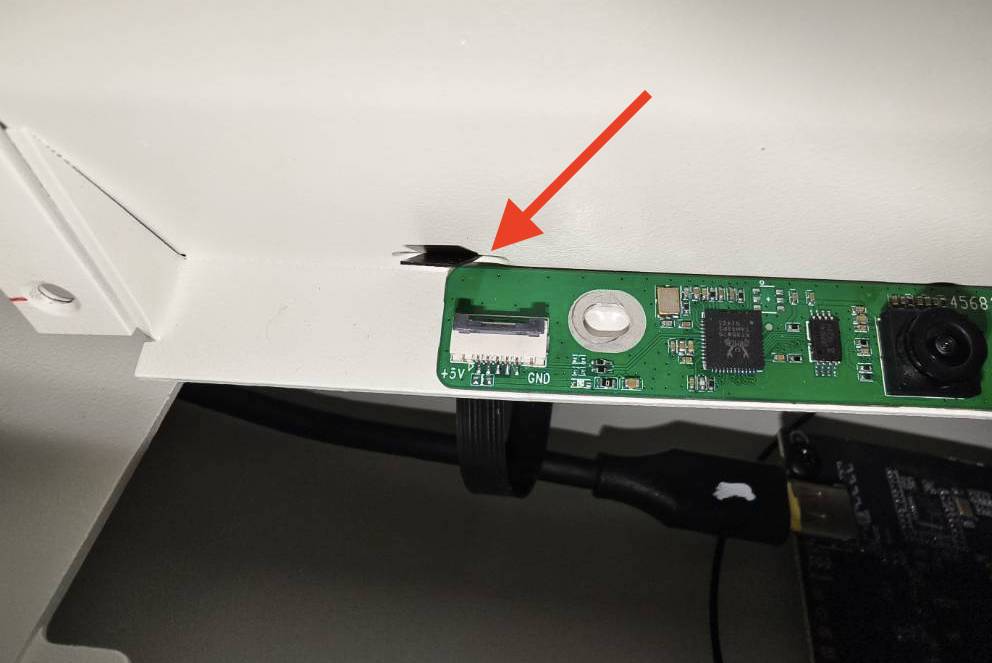

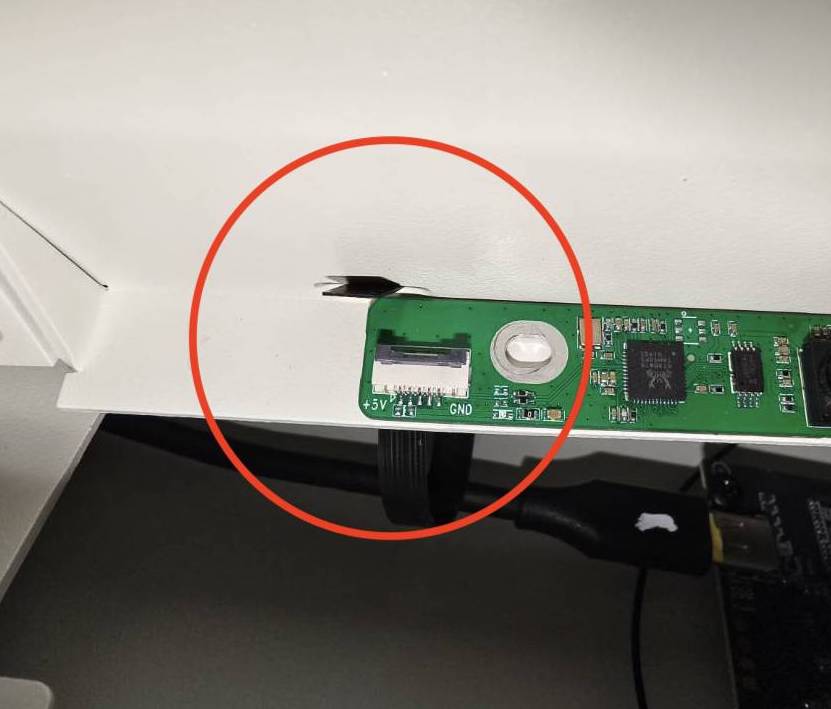

Insert the camera cable into the new camera module with the cable going through the opening on the frame.

Step 5

Re-install the black camera cover by screwing the two Phillips screws.

Step 6

Re-install the camera and frame assembly back in the machine by screwing the T8 screws.

Step 7

Once you've completed the above steps, the camera module has been successfully replaced. However, since the steps involved moving the camera, please perform the camera calibration as the final step before resuming the use of the machine.
You can refer to this page: Camera Calibration.
