Maintenance Panel Functional Test

Recommended Frequency

Once every 1 month

None

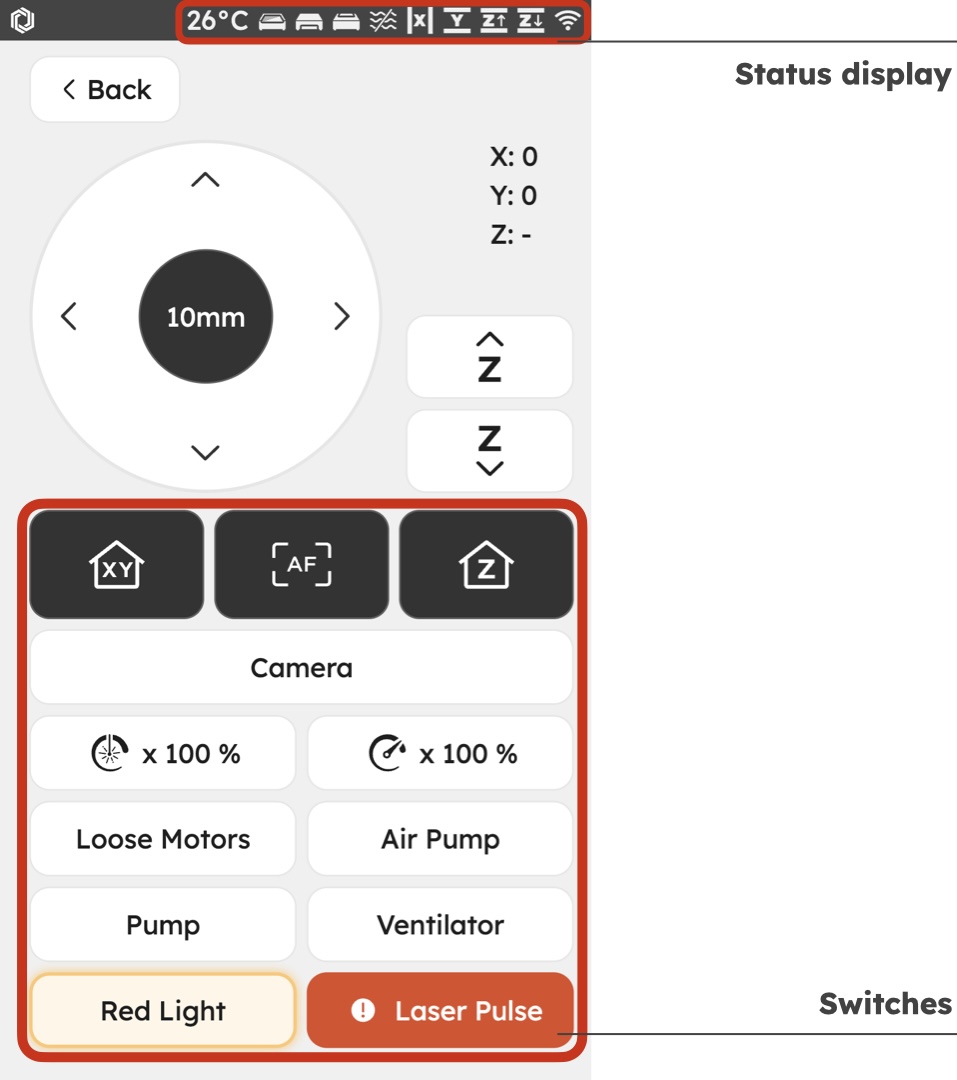

After homing successfully, check the status display and switches except for the “Laser Pulse”, and the standards are as follows

Maintenance Steps .001.jpeg

Status display	Test method	Icon
Door cover	Open and close the door cover	Opened Closed
Drawer	Open and close the drawer	Opened Closed
Back cover	Open and close the back cover	Opened Closed
Water pump	Press the “Pump” switch (start pump)	On Off
X-axis limit switch	After pressing “Motors” to release the motors, move the laser head to the left-most side of the machine until hearing a clicking sound. (Trigger switch)	Triggered Not Triggered
Y-axis limit switch	After pressing “Motors” to release the motors, move the laser head to the back-most side of the machine until hearing a clicking sound. (Trigger switch)	Triggered Not triggered
Z-axis top limit switch	Manually press the top limit switch in the lower right corner until hearing a clicking sound. (Trigger switch)	Triggered Not triggered
Z-axis bottom limit switch	Manually press the bottom limit switch in the lower right corner until hearing a clicking sound. (Trigger switch)	Triggered Not triggered

Switches :

Homing: Check whether the laser head can be homing correctly.
Auto-focus: Check whether the auto-focus feature functions correctly.
Z-axis Homing: Check whether the platform can go down to the bottom correctly.
Camera: Check whether the camera view appears on the screen and move the laser head to observe whether the screen keeps changing with the camera movement. (Camera view is updated every 3 seconds)
Loose Motors: Check whether the laser head can move smoothly along the X-axis linear rail and Y-axis guiding rods.
Air Pump: Check if the air is coming out of the laser outlet using a piece of paper, as shown above.
Pump: Open the door cover to check whether the blue light of the water pump is on (as shown below) and whether the water pump icon on the screen is .
Ventilator: After clicking, there will be a sound of acceleration and rotation, like the sound of an aircraft taking off.
Red light: Assist in adjusting the optical path and confirming the work area of the task.

If any abnormalities are detected, please visit the [Troubleshooting Section] for solutions.

Once every 2 weeks

If the screen is dirty, spray a small amount of alcohol on a cleaning cloth and wipe the screen lightly.

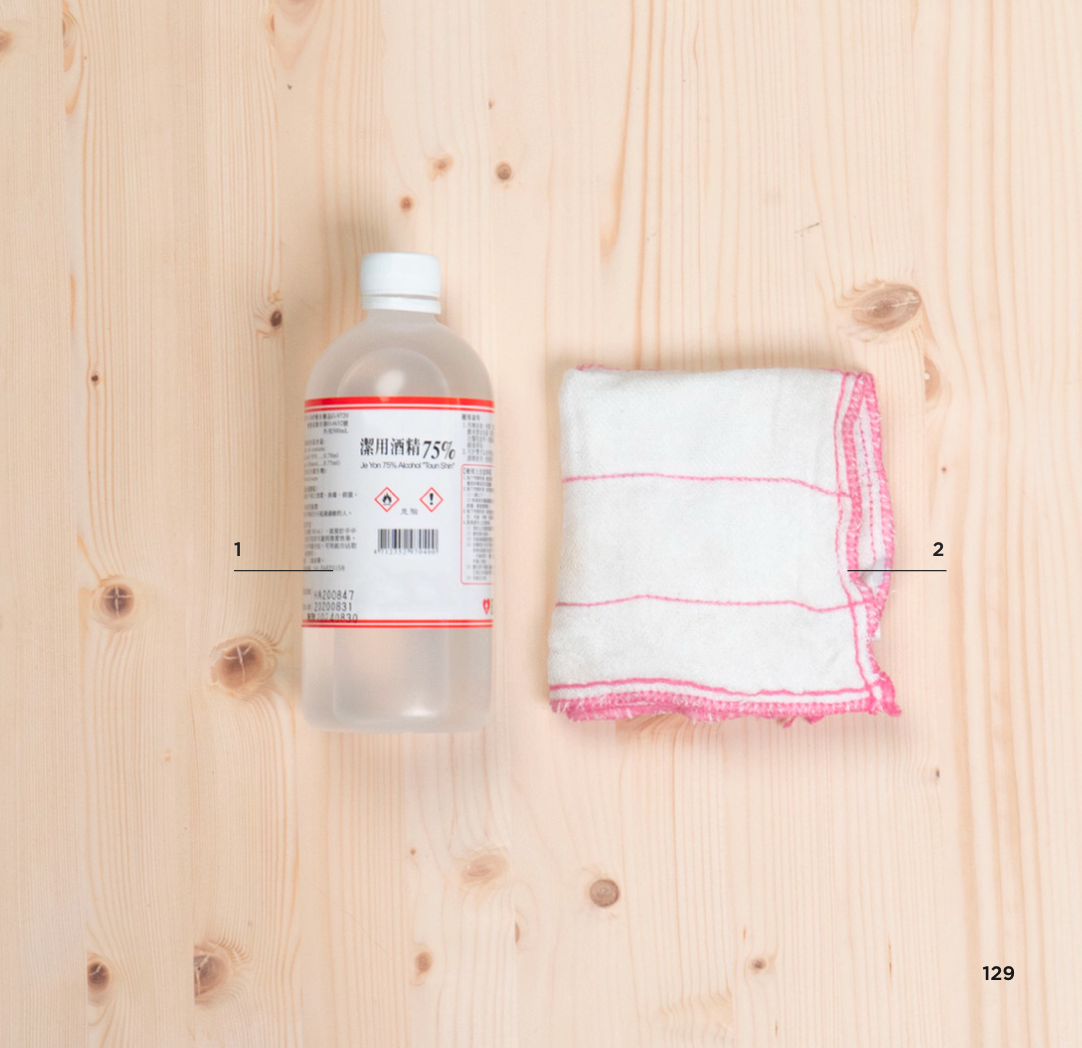

Self-preparation： 75%~99% alcohol, cleaning cloth
