Beambox II - FLUX Chuck Rotary Start Engraving

• Beambox II + Extension Pocket + Chuck

• Beambox II + Chuck

Step 1

Install the BB2 Extension Pocket Add-on, referring to the guide below.
Extension Pocket Installation Guide

Step 2

Please make sure you have the following software and firmware versions to use the rotary function.

Step 3

Re-install the platform bracket.

Step 4

Measure your material's diameter or circumference and record it for later use.
(It's recommended to use the material used for practicing and testing purposes for the first time.)

Step 5

Please see the table below to install the correct rotary stands and choose the proper focus lens distance according to your object's diameter.

Size & Stands Chart

Focus Mode Explanation

By default, the focus lens will be at the top, and the focus lens will be 4mm, meaning the distance between the nozzle tip and the surface of the material will have a distance of 4mm. For smaller materials, the nozzle tip might not reach the default 4mm. Therefore, increasing the distance can be applied by changing the lens's position to the bottom of the nozzle. When the lens is at the bottom, the distance between the tip and the surface can be increased to 16mm. How do you change the position of the lens? 1. Disassemble the Lens   2. Determine the Order of the Focus Mode Focus Mode: 4mm (Default) Focus Mode: 16mm Lens Block Block Lens Ring Ring Nozzle Nozzle   3. Re-assemble the Lens The red side of the block has to be facing down. The curved side of the lens has to be facing up. (A tip to quickly determine the curved side is that it should reflect your whole face when you look at it.) Rotate the ring counterclockwise to tighten it up.

Short & Long Stands Explanation

The stands are used to place on the platform bracket. The rotary will be on the stands to be raised or lowered manually or using the automatic platform. Rotary-off Demonstration Rotary-on Demonstration   Difference Short Stands Long Stands It is shorter in height and used for smaller objects. (Diameter: 1mm - 54mm) It is longer in height and used for larger objects. (Diameter: 54mm - 145mm)   How do you install the stands? There will be holes on the platform bracket designed for the stands. The stands have shafts that can be inserted into the holes. Change the distance between the shafts if necessary.

Step 6

After installing the stands, ensure the machine is powered off.
Please find the connection cable from the box and insert the cable on the machine's rear-left side.

Step 7

Install the jaws on the rotary based on the material you will be using.
Please refer to the manual for the jaws installation instructions.
FLUX Chuck Rotary Manual
(*It's recommended to use unwanted material for practicing and testing purposes for the first time.)

Step 8

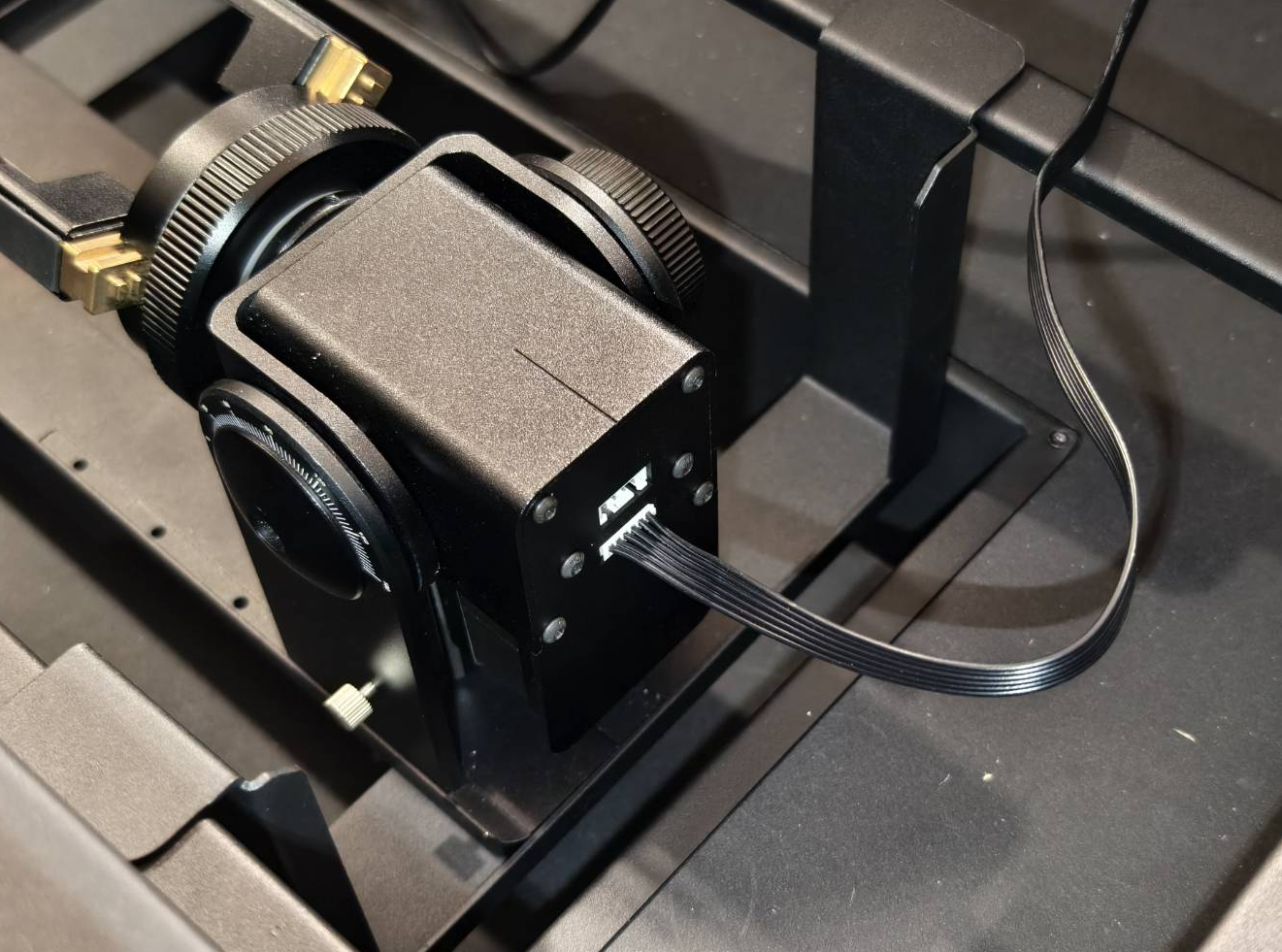

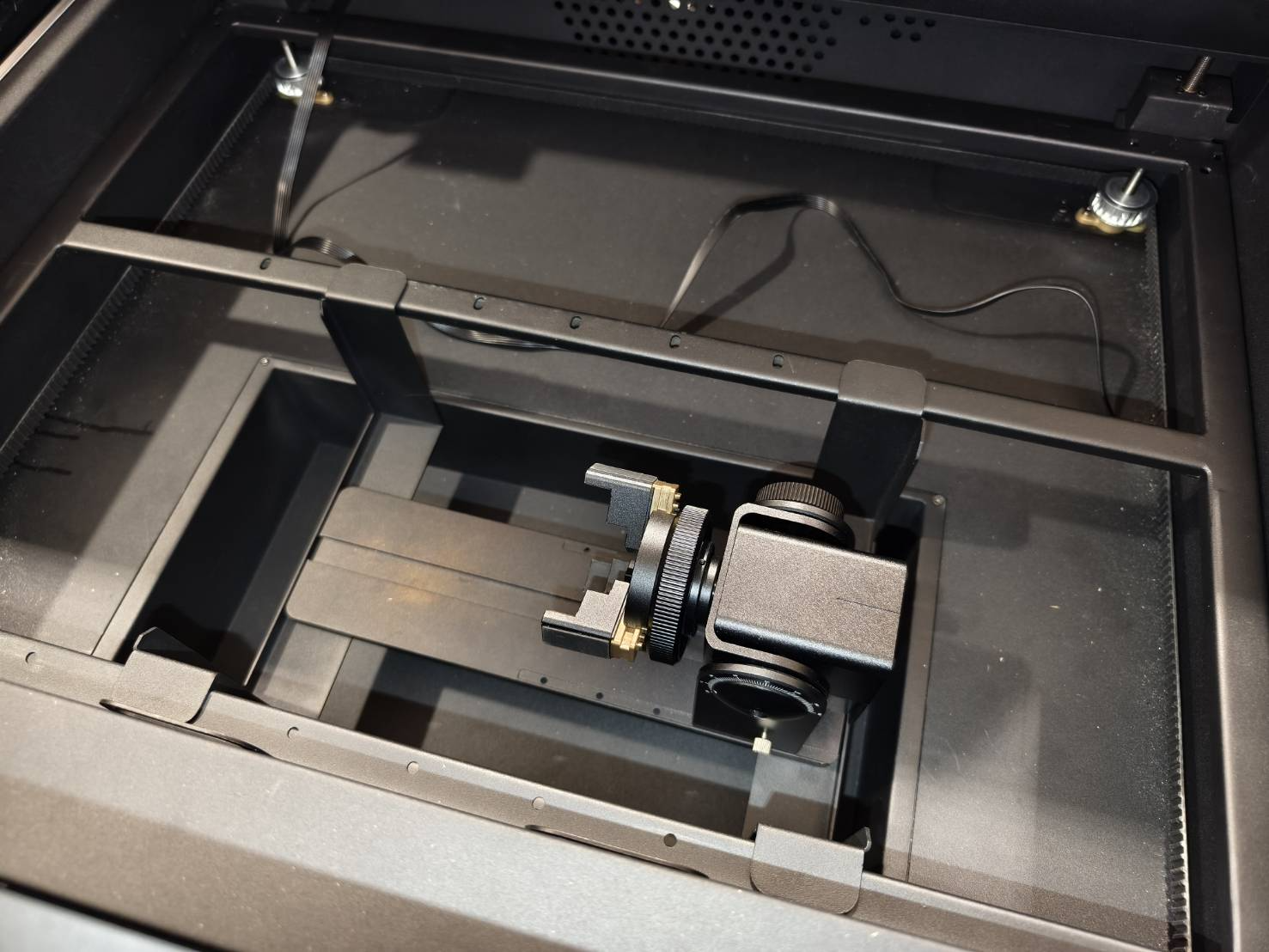

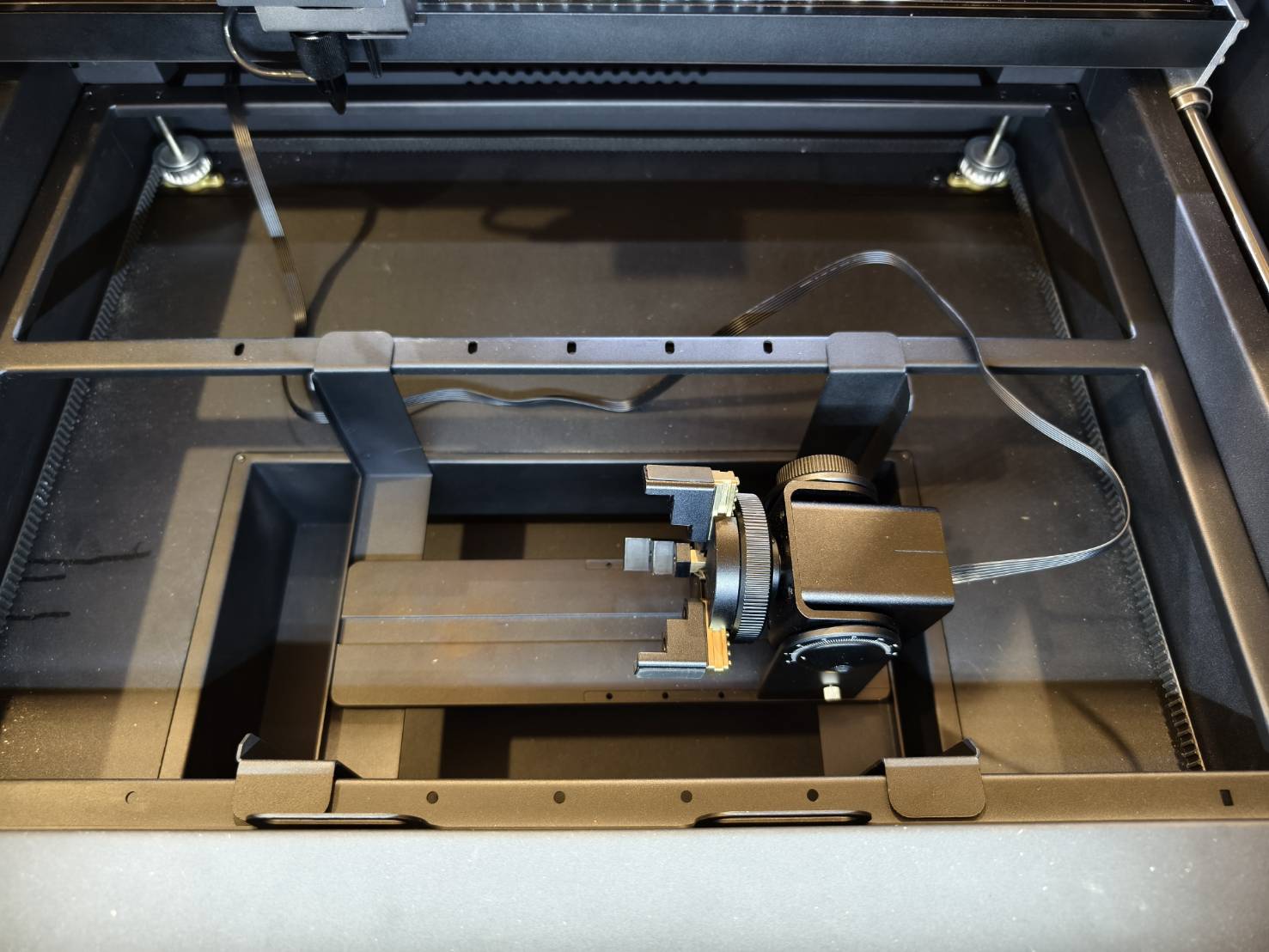

Place the Chuck Rotary with jaws installed on the stands and insert the cable into the device.
*Please ensure the power is off. Plugging the cable while the machine is on may damage the rotary.

Step 9

Power up the machine and go to "Hardware Settings" to choose the correct focus mode.

Machine >> Hardware Settings >> Next page >> Focus Mode >> Choose the correct one

Step 10

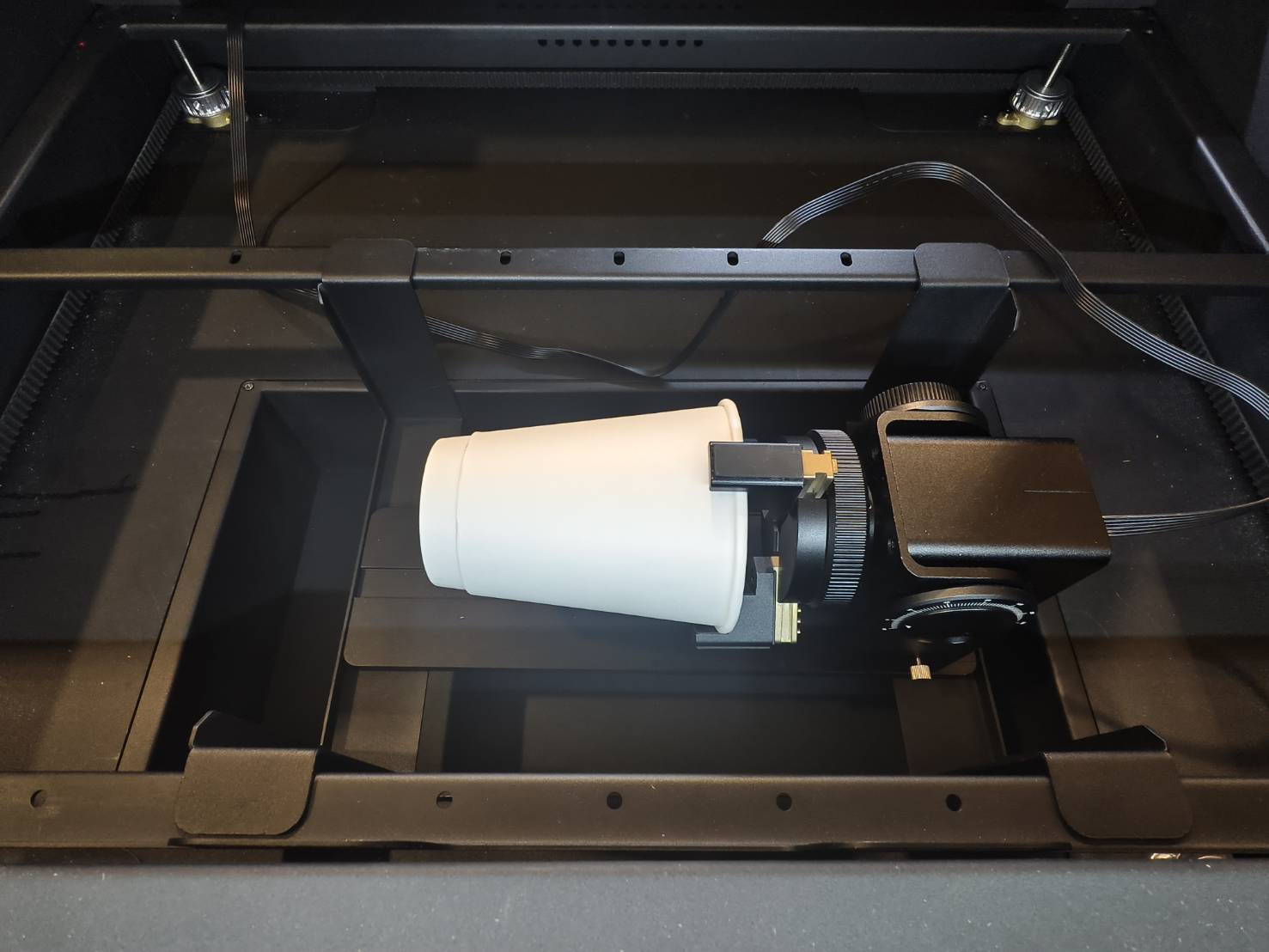

Grip the material with the rotary and level it.
(Please refer to the Rotary Chuck guide for gripping different shapes.)

Step 11

Perform auto-focus.
*If your auto-focus does not work, please refer to the article for the manual focus method.

Step 12

• Enable the red laser light that will come out from the nozzle tip.
  If your red laser is enabled already, please skip this step.



• Machine >> Hardware Settings >> Next page >> Red Light Steady >> ON


Step 13

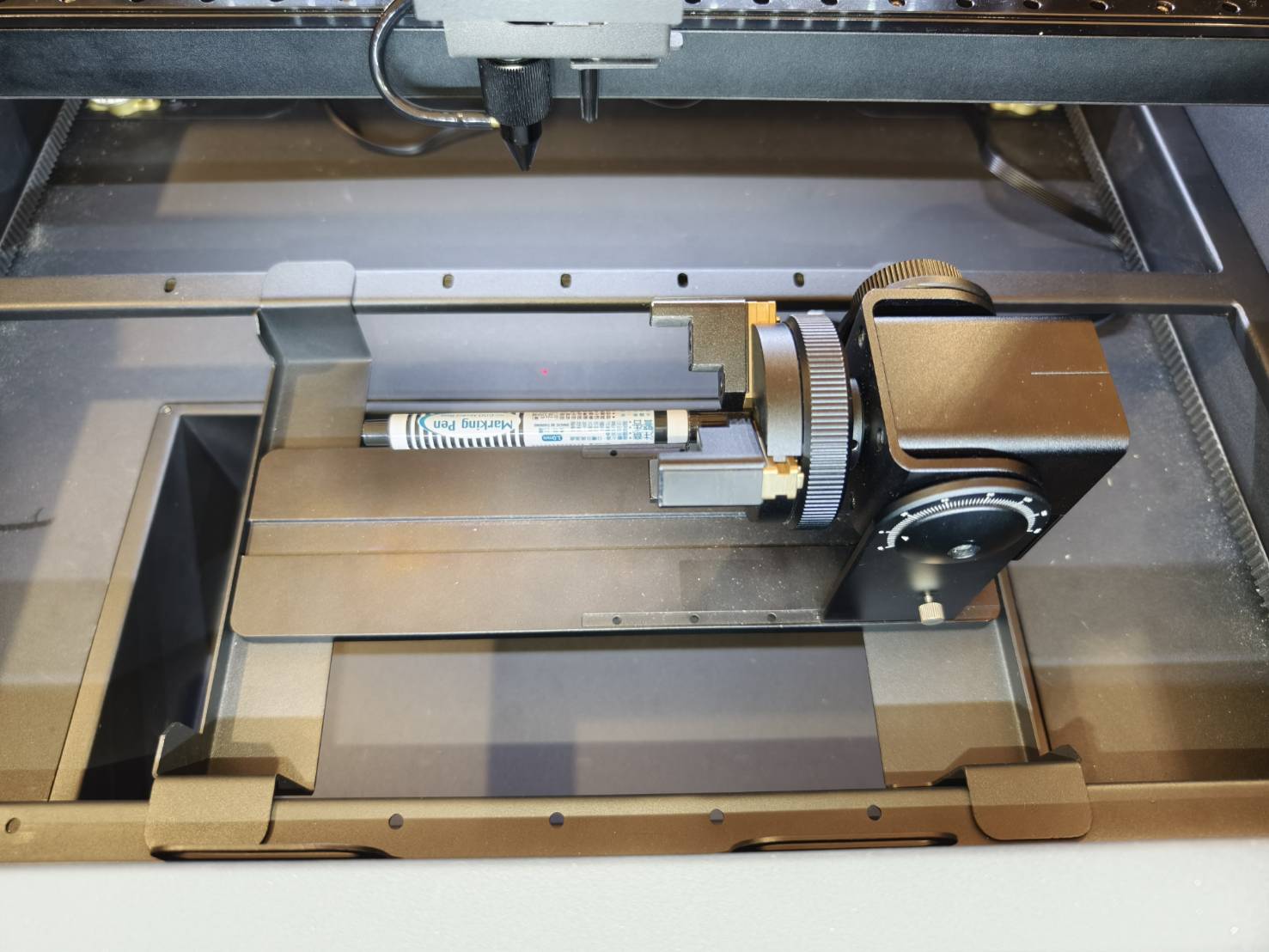

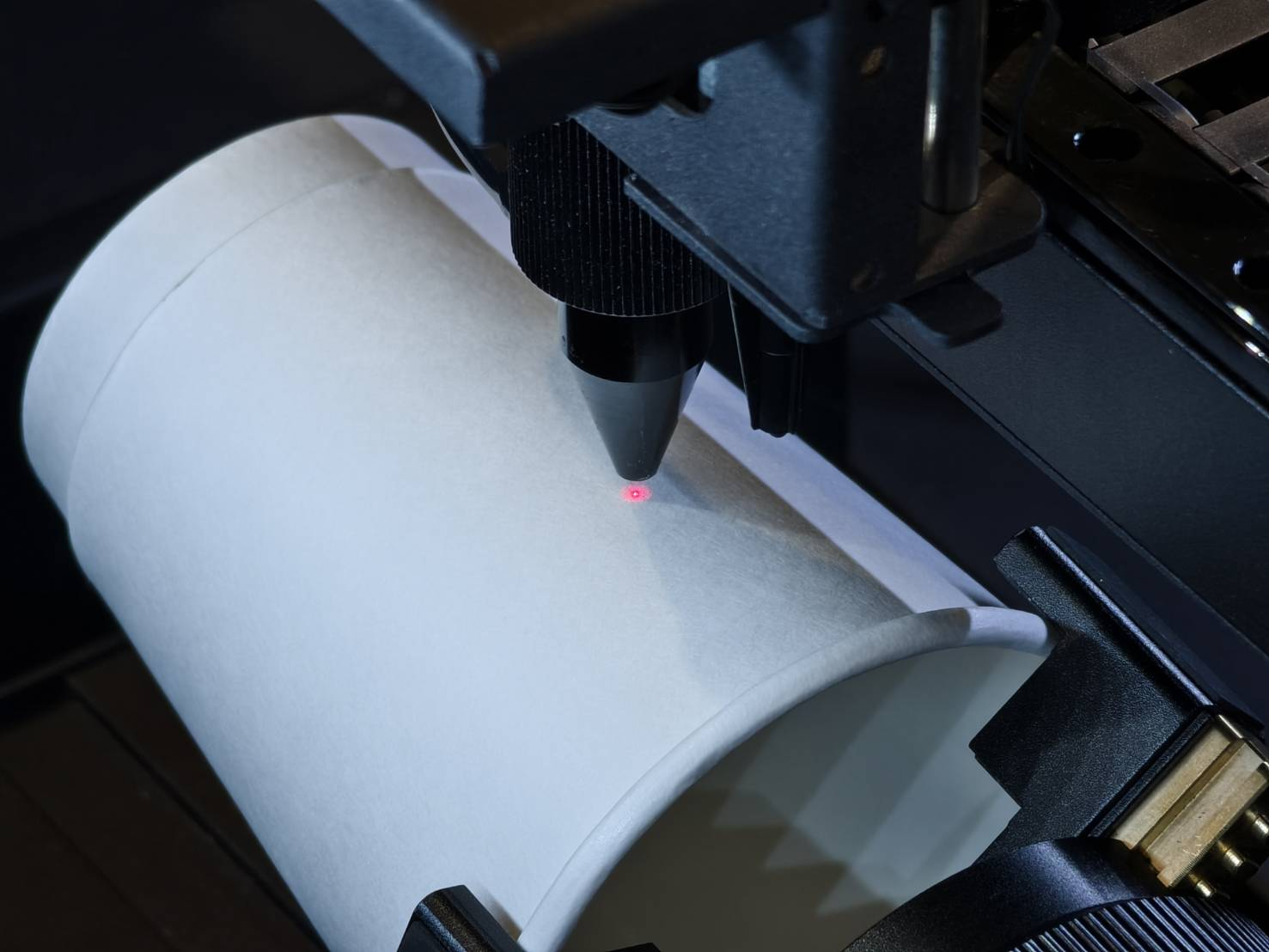

Move the nozzle tip to the center of the area you wish to engrave.
The red light dot indicates and determines the starting position.

Step 14

Launch Beam Studio.

Step 15

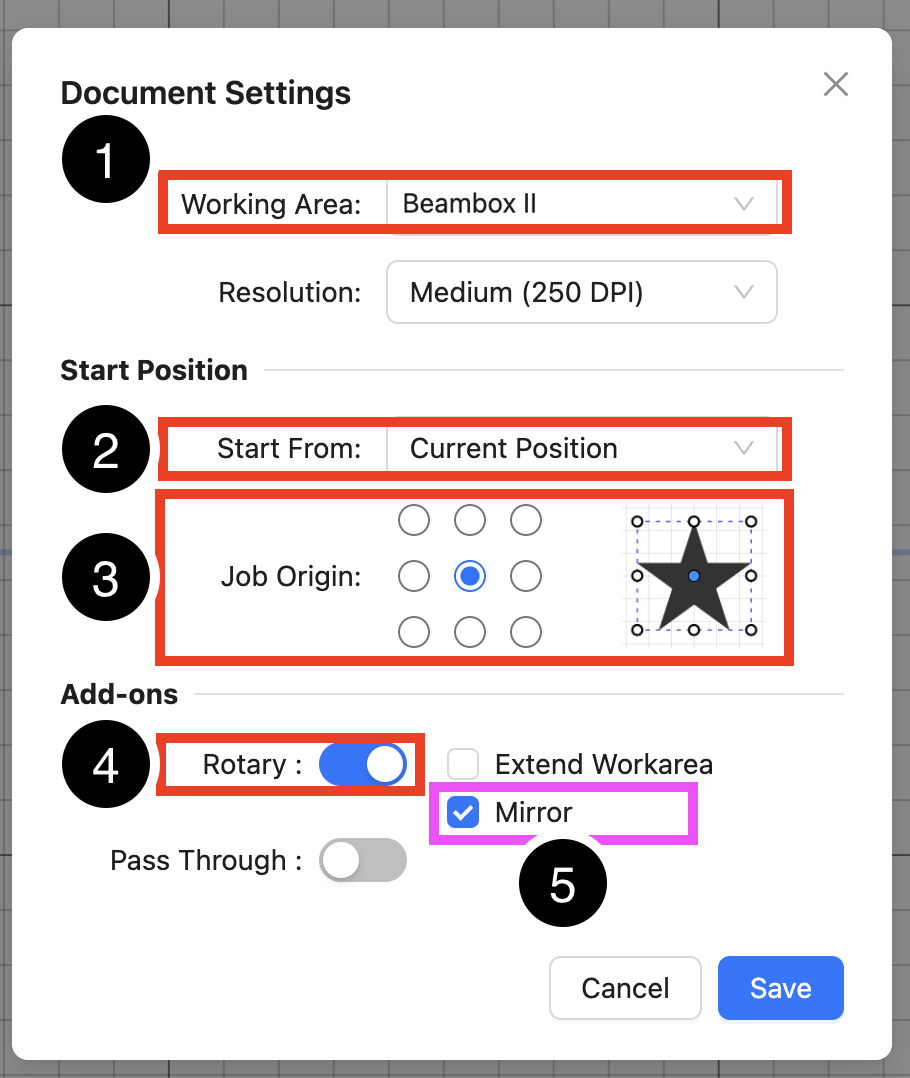

Go to "Document Settings" and make the changes.

1. Change the Working Area to "Beambox II". 2. Change the Start From option to "Current Position". 3. For Job Origin, choose the "Center."  4. Enable the Rotary function. 5. For the Mirror, you must enable the mirror function if your rotary is flipped. If not flipped, leave it disabled. (Only available for Ador.)

Default Position (The top is flat.)	Flipped Position (The motor is up.)

Step 16

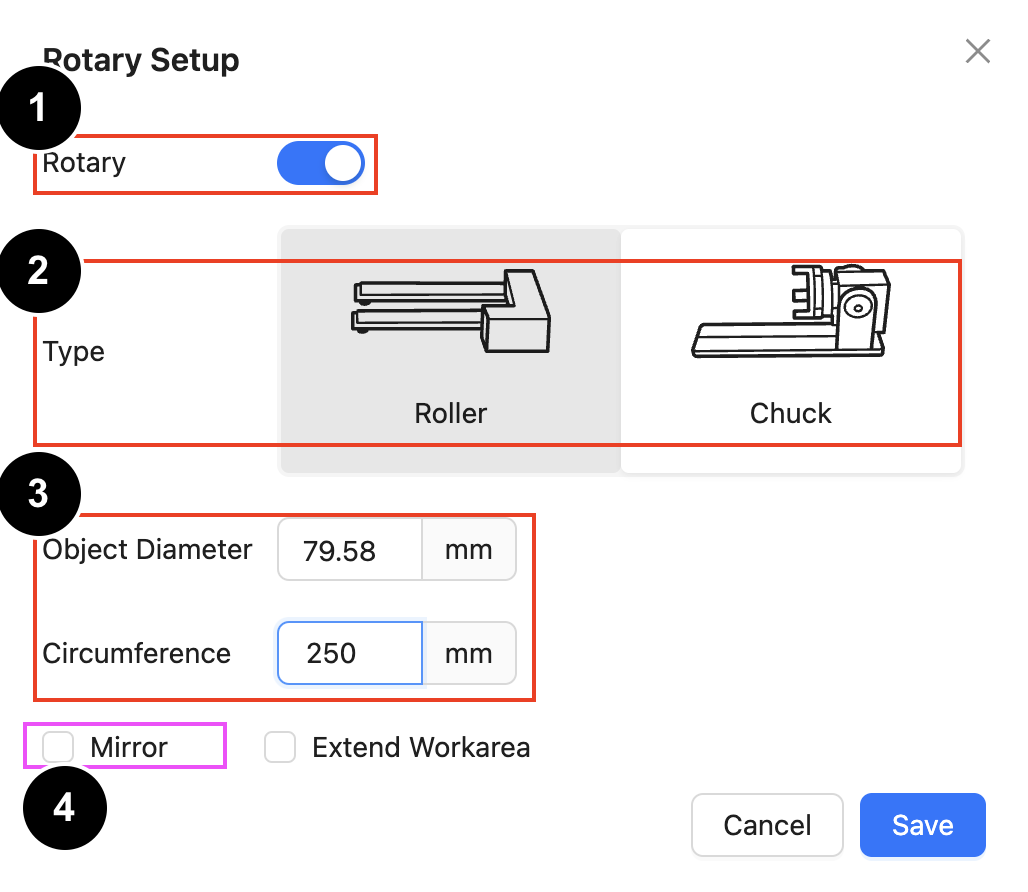

Go to "Rotary Setup" and make the changes.

1. Make sure the Rotary function is enabled. 2. Choose Chuck for the type. 3. Input the size of your material measured in the Step. (You can input either of the values, and the software will auto-calculate the other.) 4. You must enable the mirror function for the Mirror if your rotary is flipped. If not flipped, leave it disabled. (Only available for Ador.)

Default Position (The top is flat.)	Flipped Position (The motor is up.)

Step 17

Create an engraving object or import your own.

Depending on your design, it will usually be rotated 90 degrees to match the same orientation of the material.

Step 18

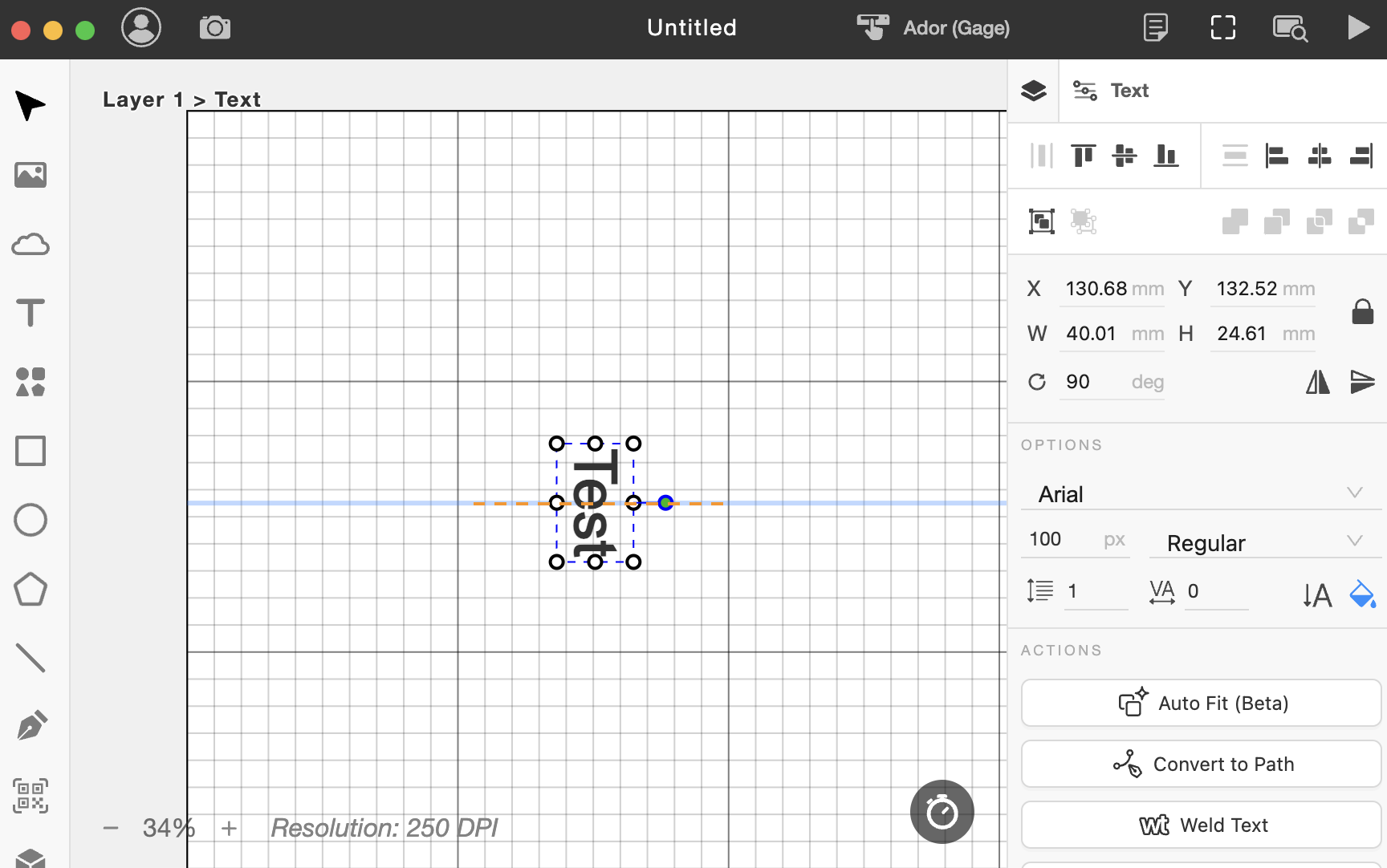

After setting up your design, move the center of the design to the blue line.

Step 19

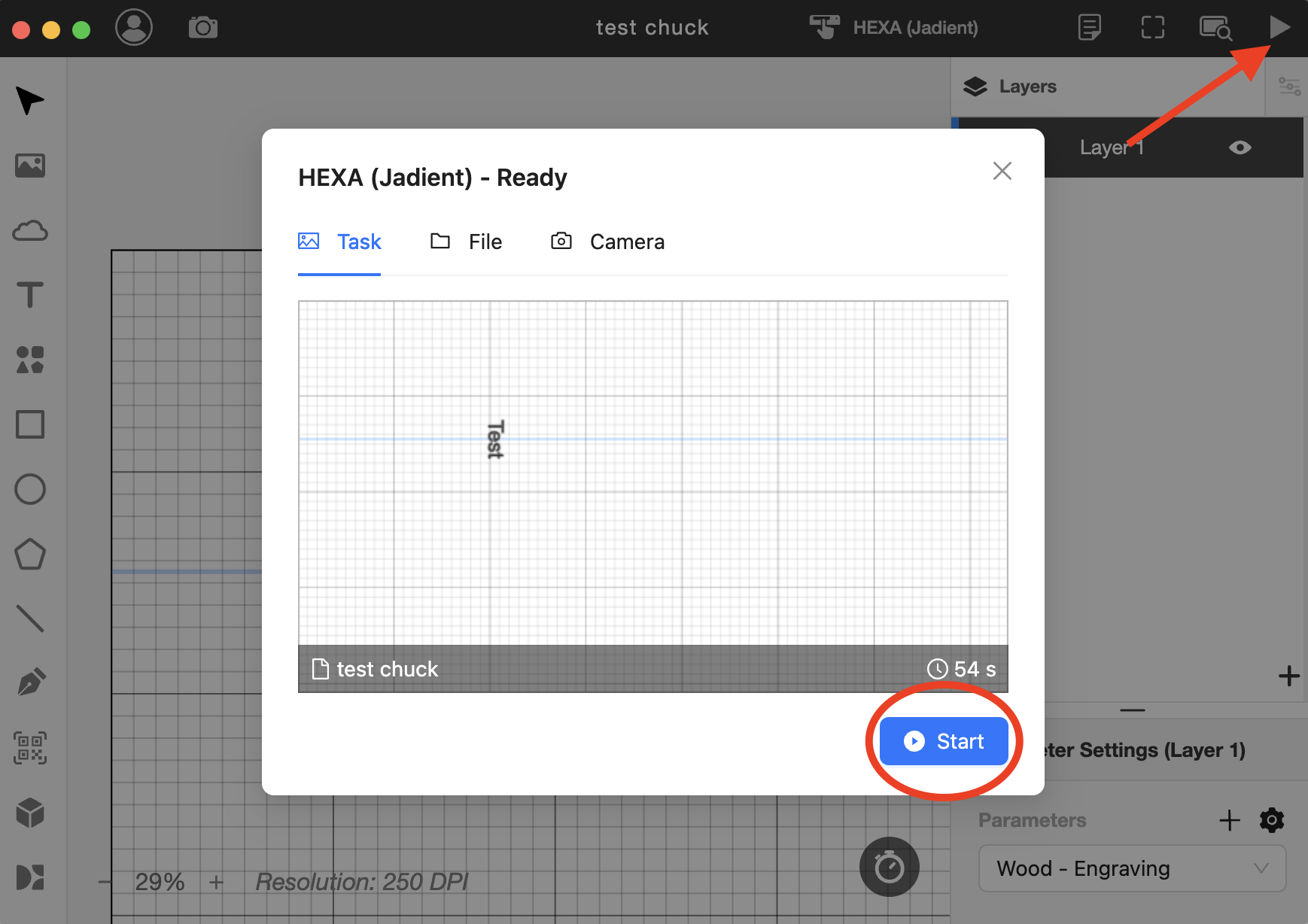

Use the "Running Frame" function to see the path of the engraving.

Choose "Framing"  to see the bounding box of the design or file. After clicking "Start",  the laser head will start moving, and the moving path will indicate the engraving area for this task. The starting point is where your laser nozzle's current position. Its path will depend on the "Job Origin" selected in the Step. When the center is selected, the starting point will be set at the design's center. The center is usually used for rotary jobs. You can move the laser head to change the engraving area until the position is accepted.

⚠︎ If you notice any abnormality in your engraving range or size (shortened or elongated), please refer to the video below to adjust the rotation scale settings.

Step 20

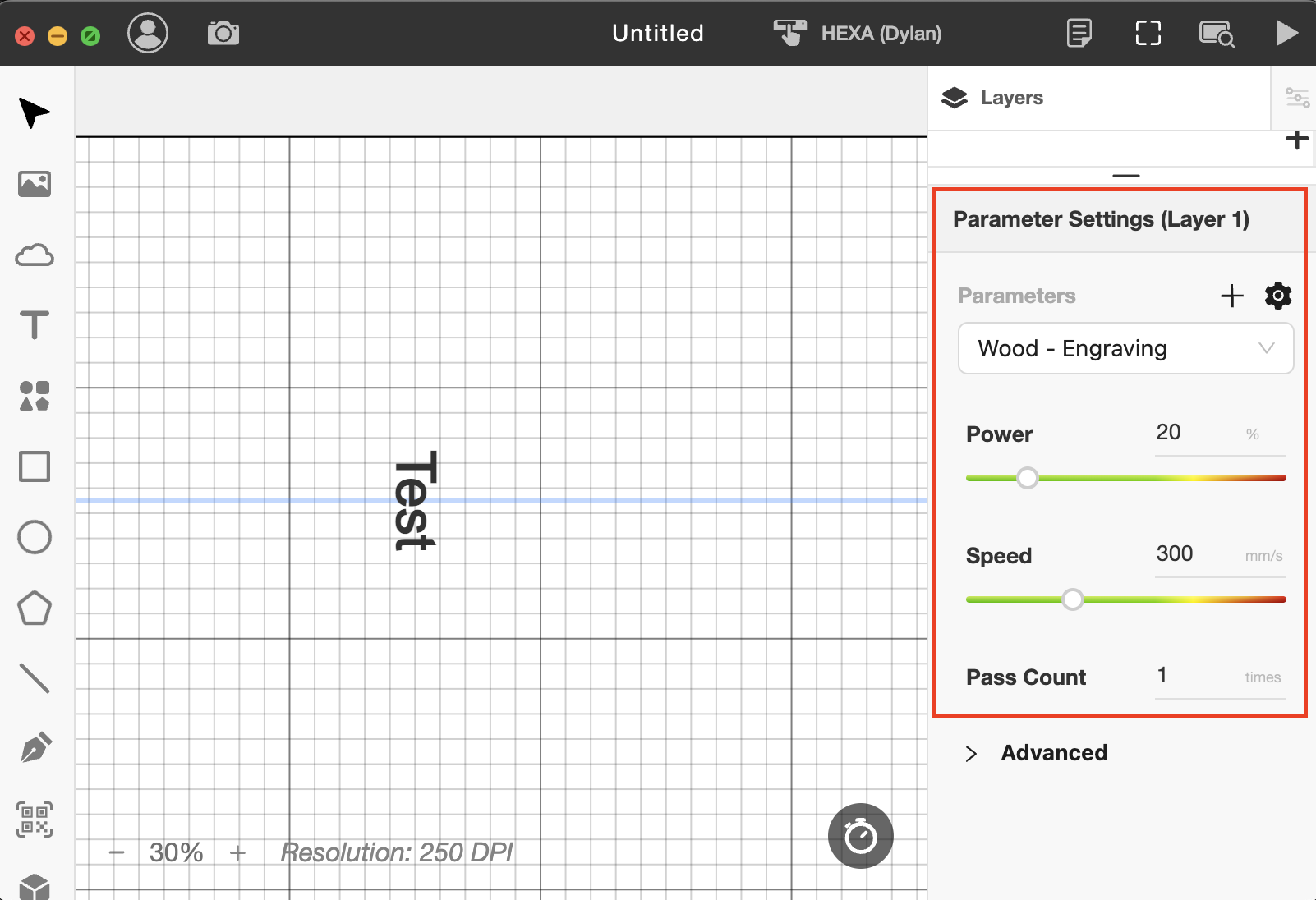

Once you've confirmed the engraving position, set the correct speed and power rate parameters based on your material.

Step 21

Close the door and start the task.

Step 22

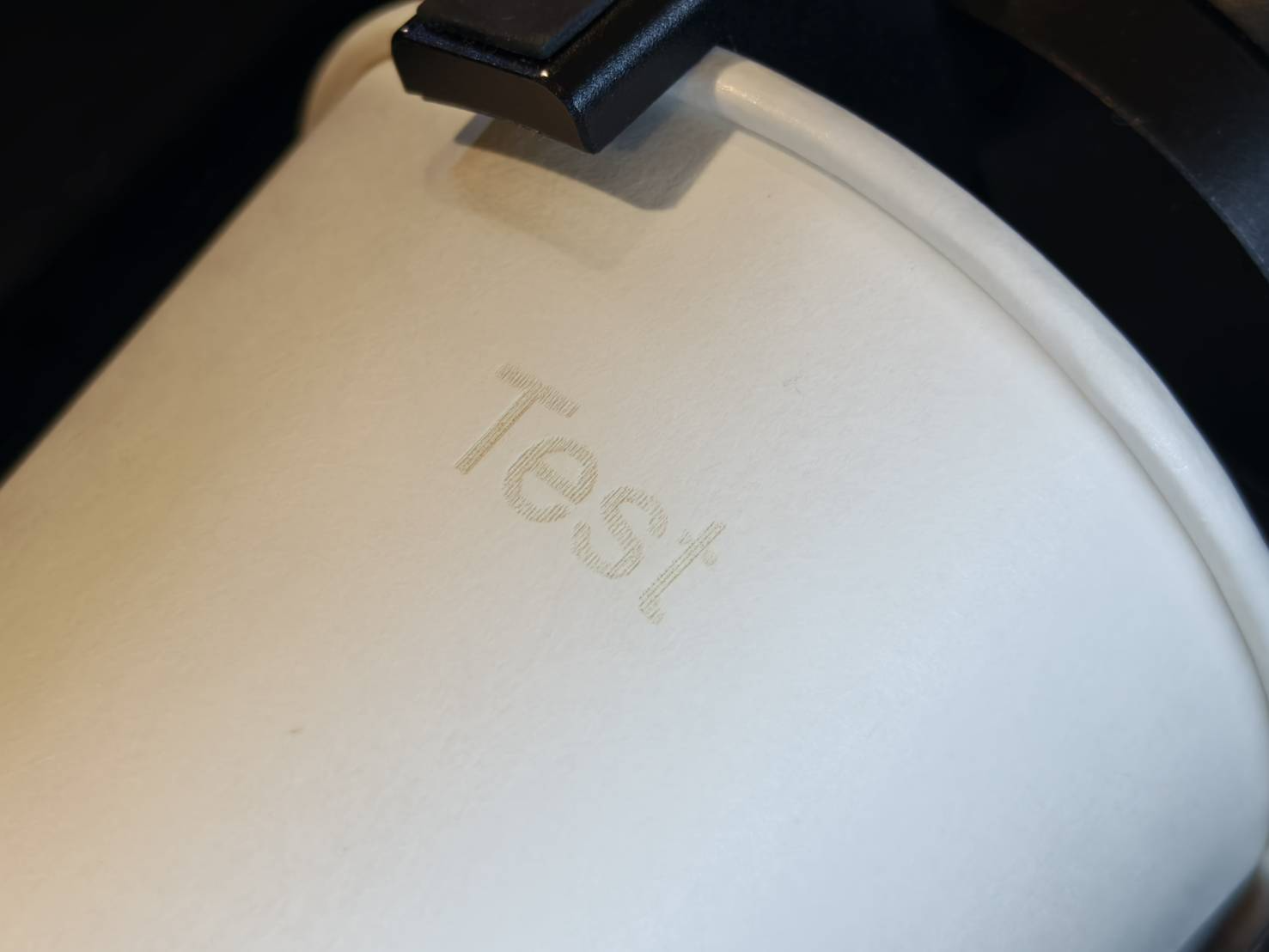

Check the result.

#END

Step 1

Please make sure you have the following software and firmware versions to use the rotary function.

Step 2

Remove the honeycomb and the platform bracket.

Step 3

Re-install the platform bracket.

Step 4

Measure your material's diameter or circumference and record it for later use.
(It's recommended to use the material used for practicing and testing purposes for the first time.)

Step 5

Please see the table below to install the correct rotary stands and choose the proper focus lens distance according to your object's diameter.

Size & Stands Chart

Focus Mode Explanation

By default, the focus lens will be at the top, and the focus lens will be 4mm, meaning the distance between the nozzle tip and the surface of the material will have a distance of 4mm. For smaller materials, the nozzle tip might not reach the default 4mm. Therefore, increasing the distance can be applied by changing the lens's position to the bottom of the nozzle. When the lens is at the bottom, the distance between the tip and the surface can be increased to 16mm. How do you change the position of the lens? 1. Disassemble the Lens   2. Determine the Order of the Focus Mode Focus Mode: 4mm (Default) Focus Mode: 16mm Lens Block Block Lens Ring Ring Nozzle Nozzle   3. Re-assemble the Lens The red side of the block has to be facing down. The curved side of the lens has to be facing up. (A tip to quickly determine the curved side is that it should reflect your whole face when you look at it.) Rotate the ring counterclockwise to tighten it up.

Stands Explanation

The stands are used to place on the platform bracket. The rotary will be on the stands to be raised or lowered manually or using the automatic platform. Short Stands It is shorter in height and used for smaller objects. (Diameter: 1mm - 54mm)   How do you install the stands? There will be holes on the platform bracket designed for the stands. The stands have shafts that can be inserted into the holes. Change the distance between the shafts if necessary.

Step 6

After installing the stands, ensure the machine is powered off.
Please find the connection cable from the box and insert the cable on the machine's rear-left side.

Step 7

Install the jaws on the rotary based on the material you will be using.
Please refer to the manual for the jaws installation instructions.
FLUX Chuck Rotary Manual
(*It's recommended to use unwanted material for practicing and testing purposes for the first time.)

Step 8

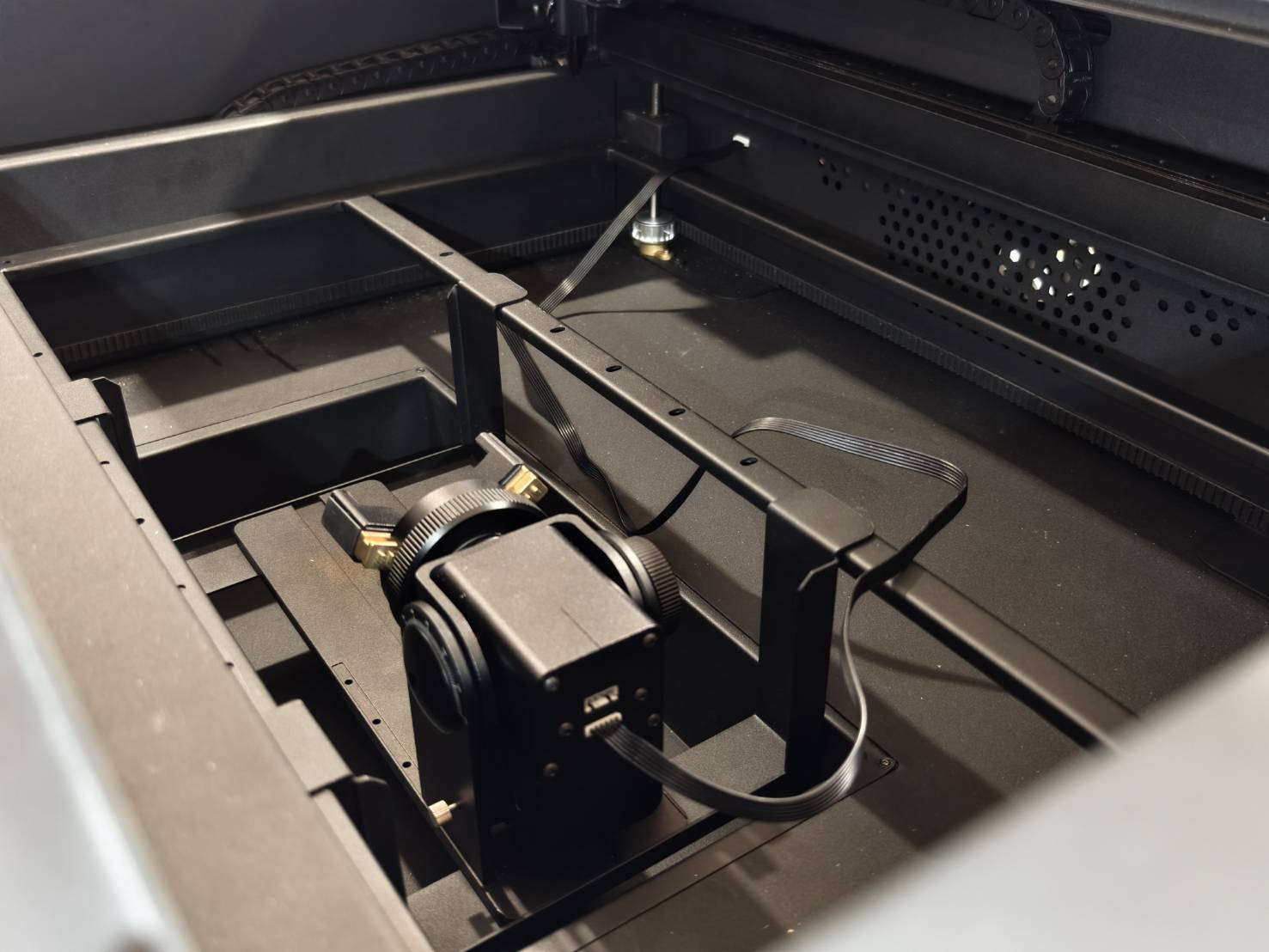

Place the Chuck Rotary with jaws installed on the stands and insert the cable into the device.
*Please ensure the power is off. Plugging the cable while the machine is on may damage the rotary.

Step 9

Power up the machine and go to "Hardware Settings" to choose the correct focus mode.

Machine >> Hardware Settings >> Next page >> Focus Mode >> Choose the correct one

Step 10

Grip the material with the rotary and level it.
(Please refer to the Rotary Chuck guide for gripping different shapes.)

Step 11

Perform auto-focus.
*If your auto-focus does not work, please refer to the article for the manual focus method.

Step 12

• Enable the red laser light that will come out from the nozzle tip.
  If your red laser is enabled already, please skip this step.



• Machine >> Hardware Settings >> Next page >> Red Light Steady >> ON


Step 13

Move the nozzle tip to the center of the area you wish to engrave.
The red light dot indicates and determines the starting position.

Step 14

Launch Beam Studio.

Step 15

Go to "Document Settings" and make the changes.

1. Change the Working Area to "Beambox II". 2. Change the Start From option to "Current Position". 3. For Job Origin, choose the "Center."  4. Enable the Rotary function. 5. For the Mirror, you must enable the mirror function if your rotary is flipped. If not flipped, leave it disabled. (Only available for Ador.)

Default Position (The top is flat.)	Flipped Position (The motor is up.)

Step 16

Go to "Rotary Setup" and make the changes.

1. Make sure the Rotary function is enabled. 2. Choose Chuck for the type. 3. Input the size of your material measured in the Step. (You can input either of the values, and the software will auto-calculate the other.) 4. You must enable the mirror function for the Mirror if your rotary is flipped. If not flipped, leave it disabled. (Only available for Ador.)

Default Position (The top is flat.)	Flipped Position (The motor is up.)

Step 17

Create an engraving object or import your own.

Depending on your design, it will usually be rotated 90 degrees to match the same orientation of the material.

Step 18

After setting up your design, move the center of the design to the blue line.

Step 19

Use the "Running Frame" function to see the path of the engraving.

Choose "Framing"  to see the bounding box of the design or file. After clicking "Start",  the laser head will start moving, and the moving path will indicate the engraving area for this task. The starting point is where your laser nozzle's current position. Its path will depend on the "Job Origin" selected in the Step. When the center is selected, the starting point will be set at the design's center. The center is usually used for rotary jobs. You can move the laser head to change the engraving area until the position is accepted.

⚠︎ If you notice any abnormality in your engraving range or size (shortened or elongated), please refer to the video below to adjust the rotation scale settings.

Step 20

Once you've confirmed the engraving position, set the correct speed and power rate parameters based on your material.

Step 21

Close the door and start the task.

Step 22

Check the result.

#END
