4-15 Red Light Calibration

When performing Red Light Calibration, please proceed with red light calibration if the message "No Red Light Calibration Data" appears.

1. Click on "Red Light Calibration" in the "Hardware Settings" on the machine panel.

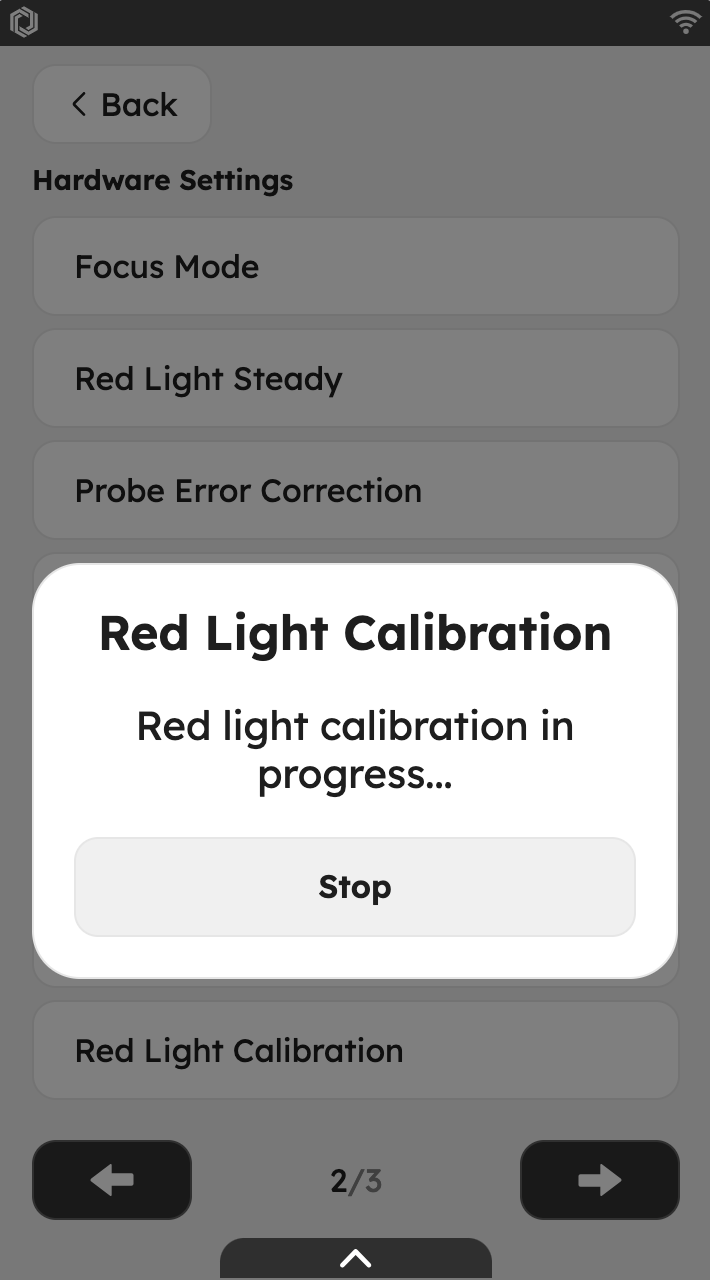

2. Place black paper, position the laser head directly above the paper, and click "Start."

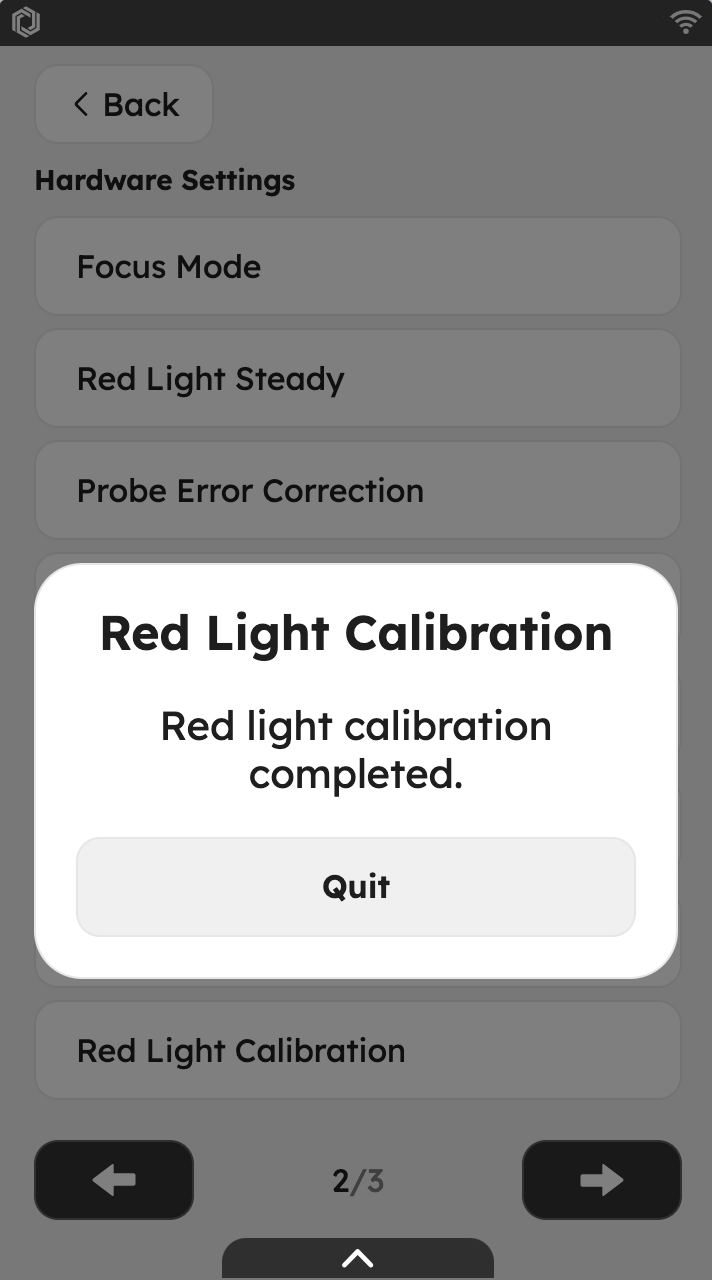

The entire calibration process takes approximately 7-10 minutes. Once the calibration is successful, a message indicating "Red light calibration completed." will be displayed.

If red light calibration fails, please refer to article #922 Red Light Measurement Failed for troubleshooting.
