UV Print Files

This feature is only available on machines that support UV printing (Epson V1030).

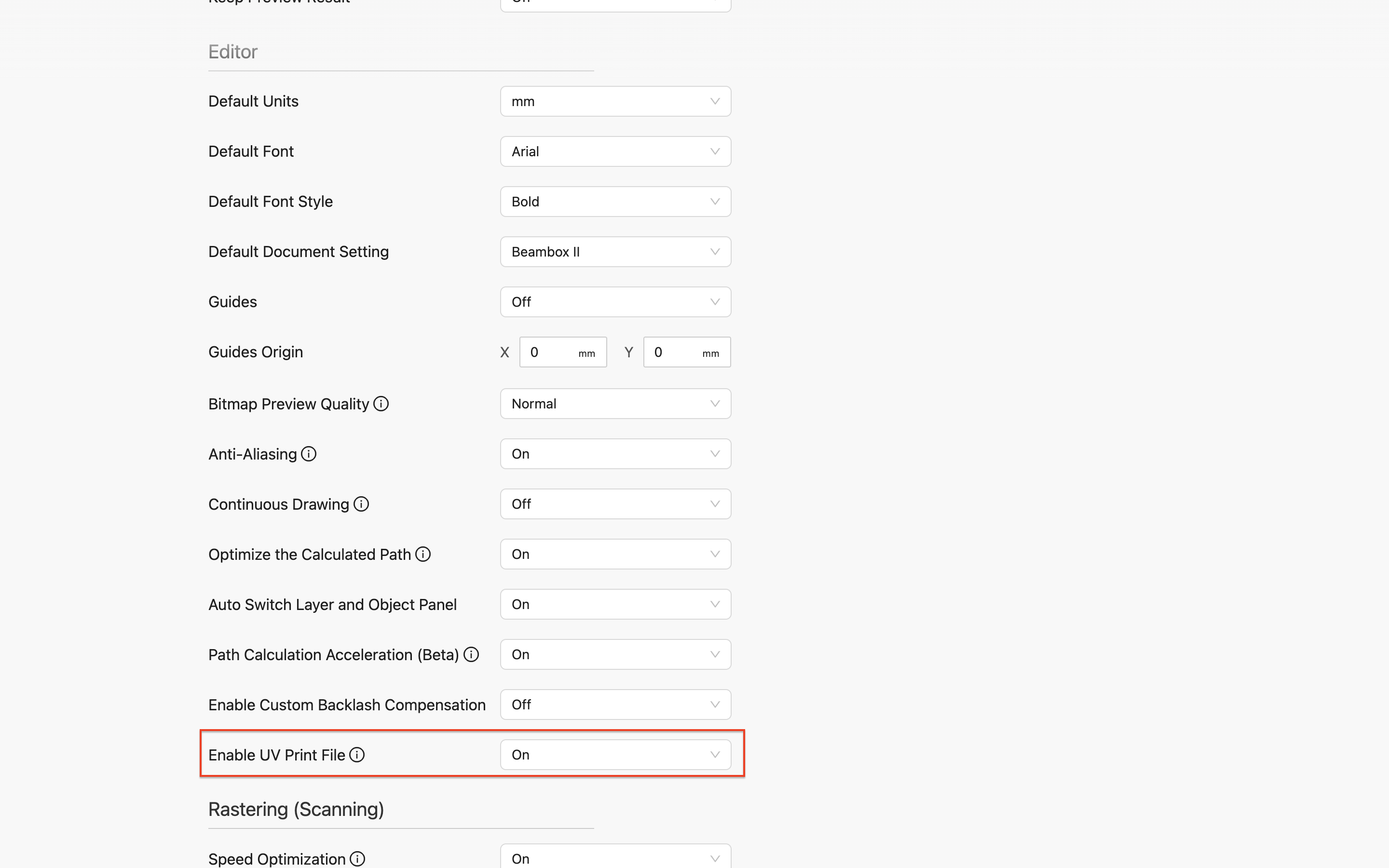

First, turn on "Enable UV Print File“ in Preferences.

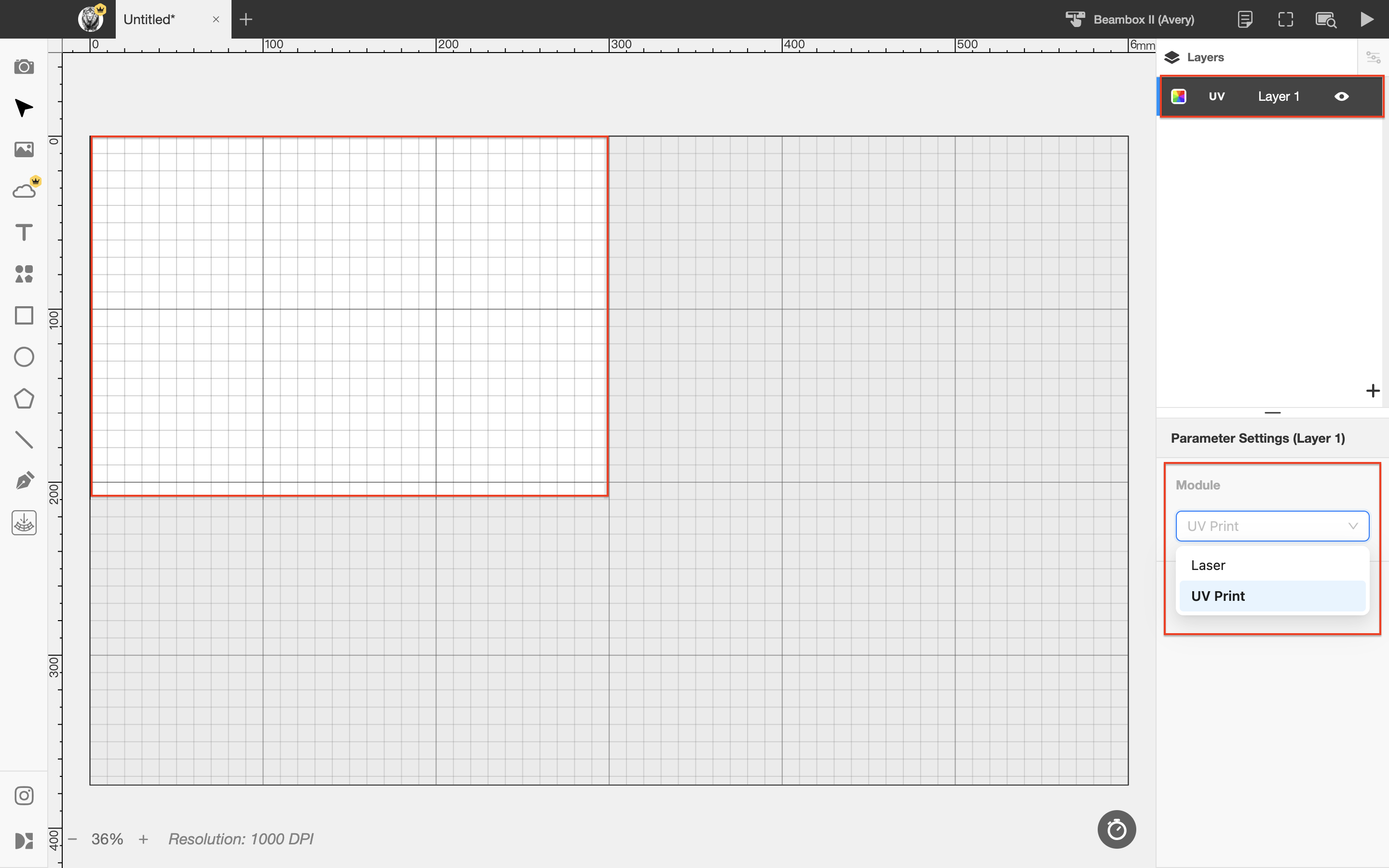

Once the UV print option is enabled, the laser machine will display module options:
"Laser" and "UV Print".

After selecting the UV printing module, the icon of the layer will change to 'UV', and the available canvas size will be A4.

The UV layer supports color printing features such as fill and stroke settings, but it does not support standard laser engraving parameters or path preview.

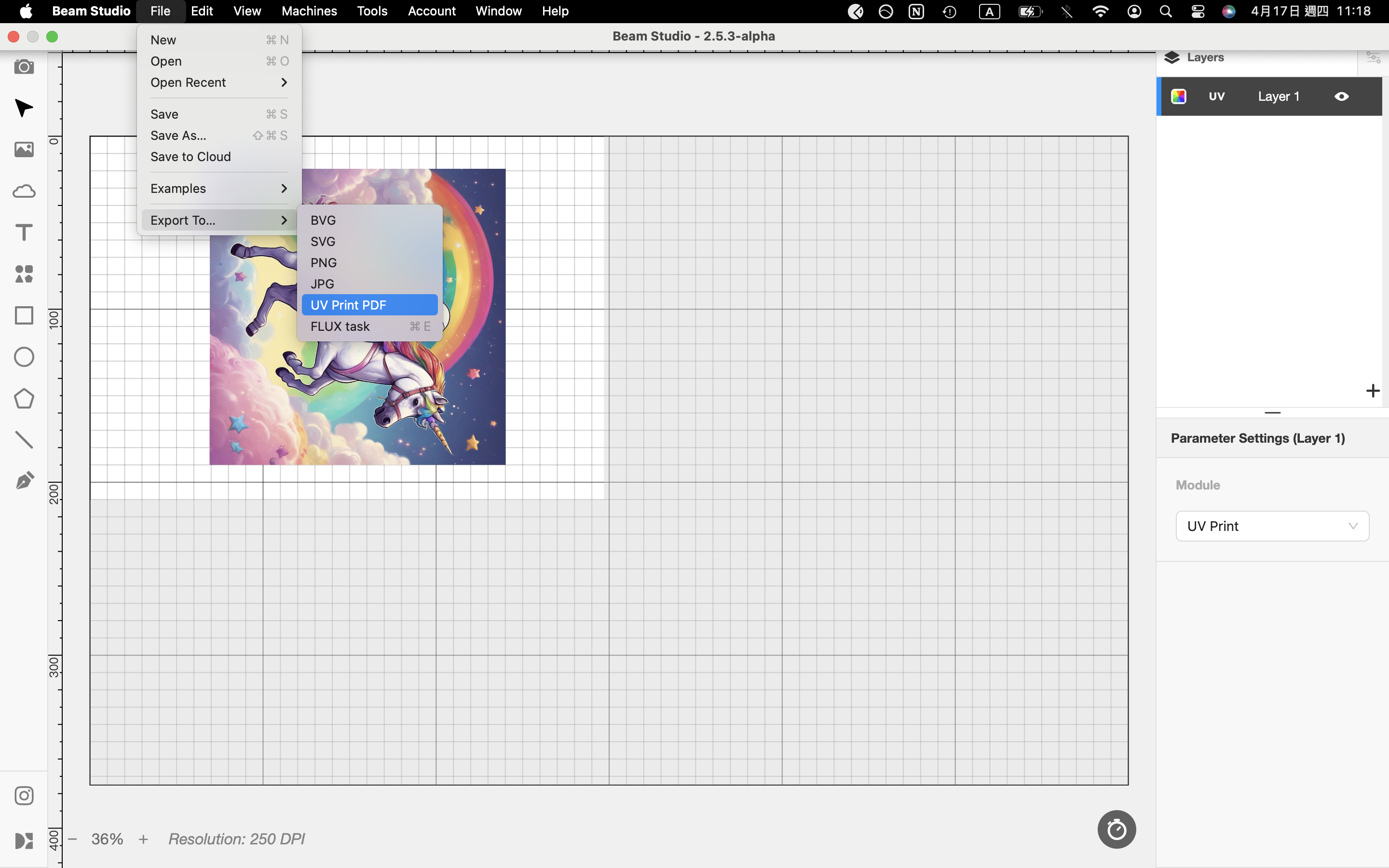

After completing your edits on the UV layer, go to File > Export UV Print PDF. The system will export all UV layers into a dedicated PDF file that can be used by a UV printer.
