4-3 Lubricating

FLUX Support Team

Recommended Frequency

Once every 1-2 weeks.

Clean the Y-axis guiding rods, X-axis linear rail, and four lead screws regularly to extend the service life of the parts.

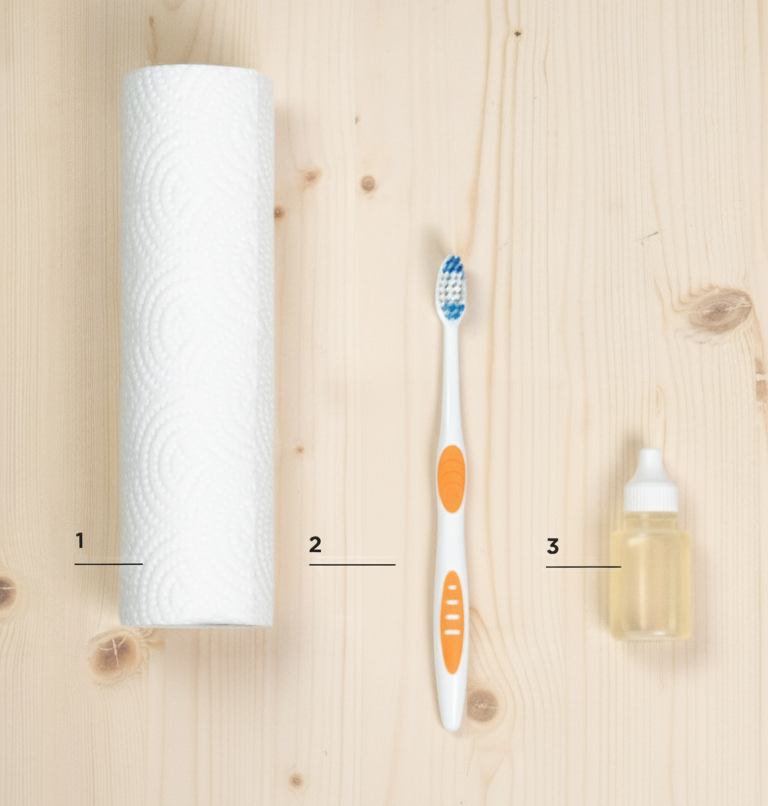

Self-Preparation:

1｜Paper towel or tissue paper

2｜Brush

Included in the Accessory Box:

3｜Lubricating oil

Use a paper towel or tissue paper to wipe the oil and dust on:

Dip a brush in the lubricating oil.

Y-axis guiding rods and X-axis linear rail

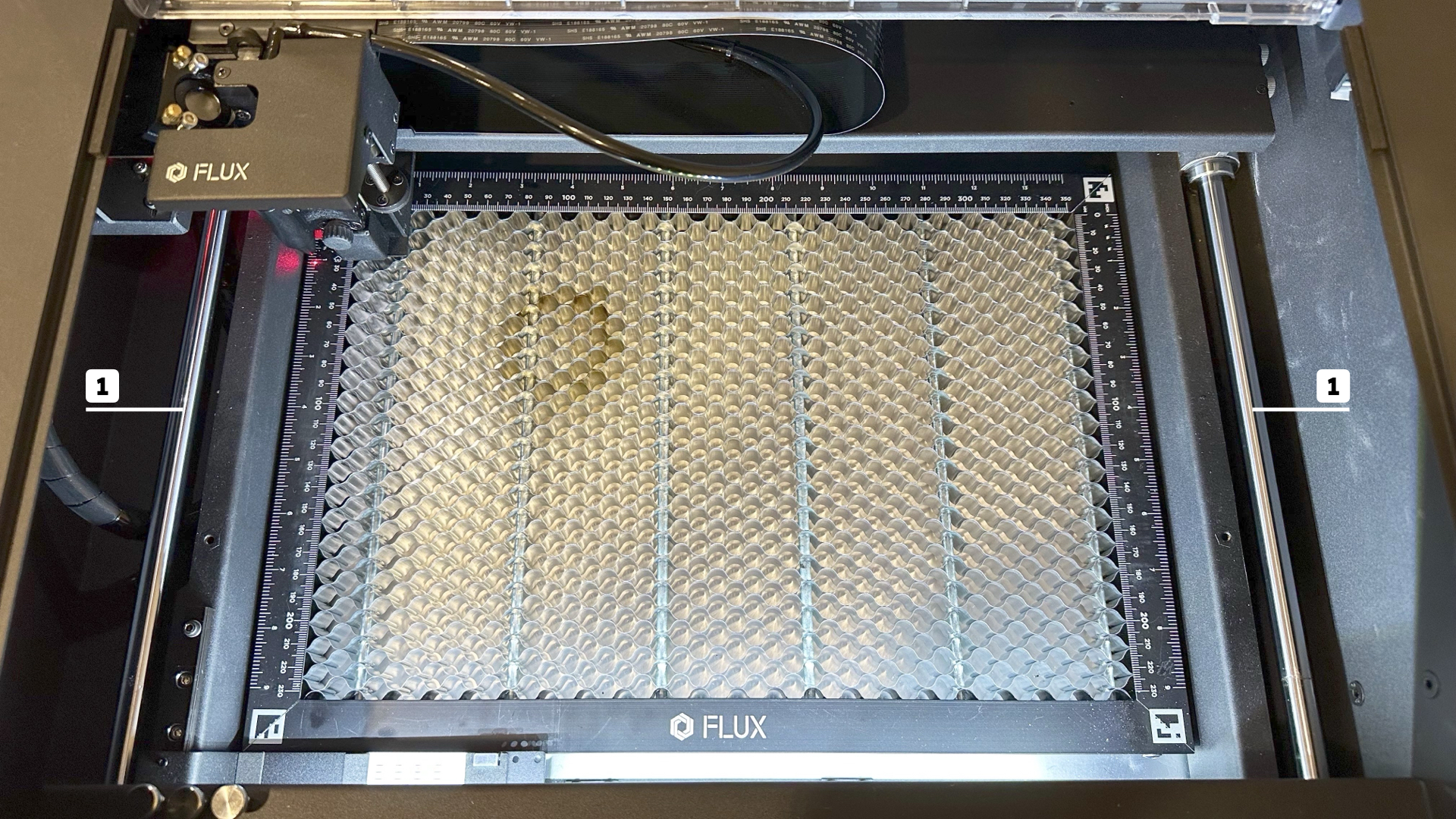

Lubricating the Y-axis guiding rods on both sides of the working range

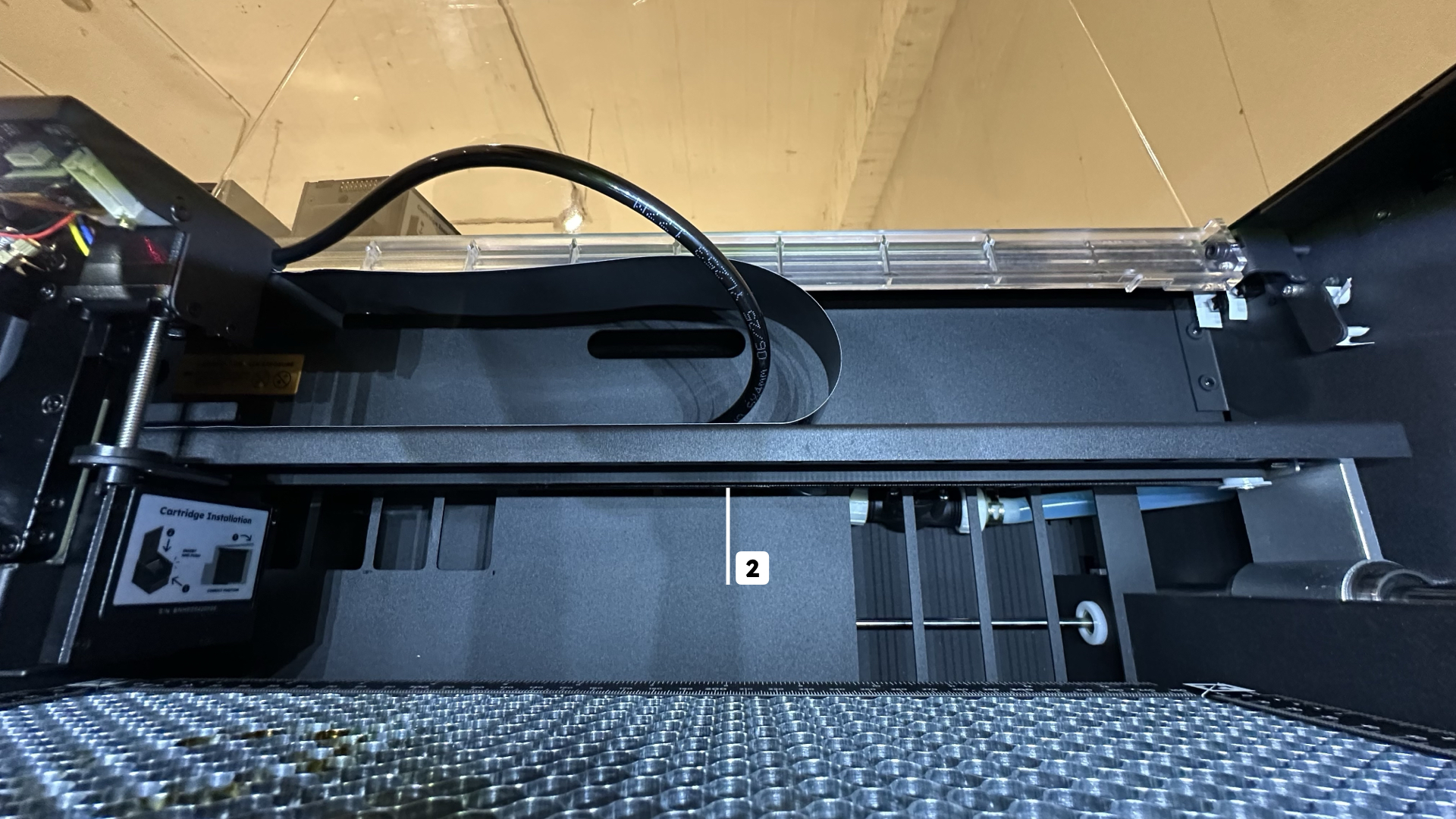

Apply evenly above and on both sides of the X-axis linear rail
Manually move the laser head left and right and forward and backward 3 - 5 times to distribute the lubricating oil evenly.
