⚠︎ Please ensure your Beam Studio and beamo II firmware were updated to the latest version.

Description

This article will guide you through the process of performing a 2W IR Infraed Laser add-on calibration.

When Camera Calibration is Needed
1. When using the module for the first time.
2. When the machine has been relocated.
3. When there is a discrepancy between the camera preview and the actual engraving position.

Note：
Camera calibration is required for the initial use of the camera preview function.

Step 1 - Confirm the Version of Beam Studio and Firmware

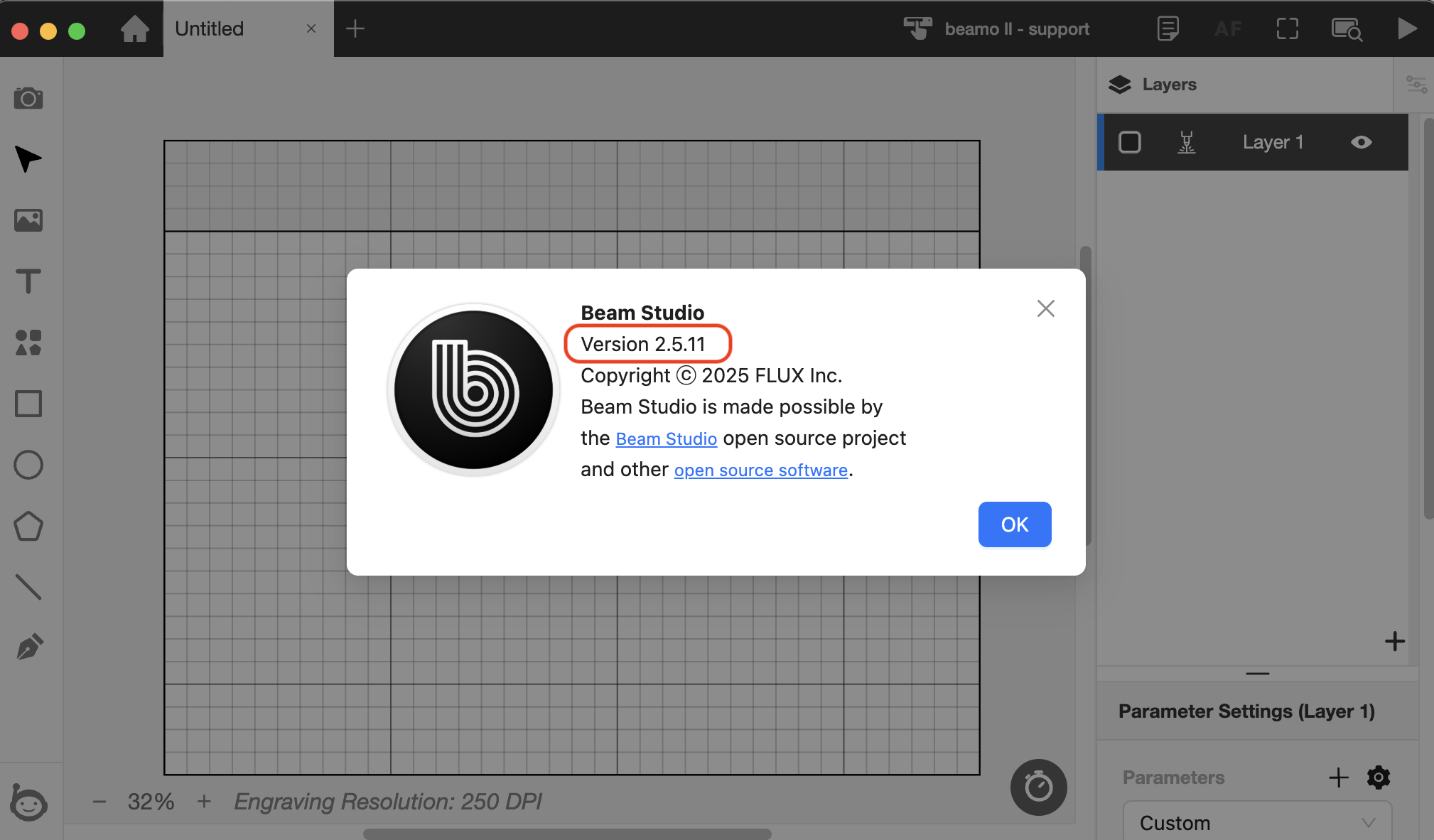

Required software version: Beam Studio 2.5.11 or above. (Download Link)

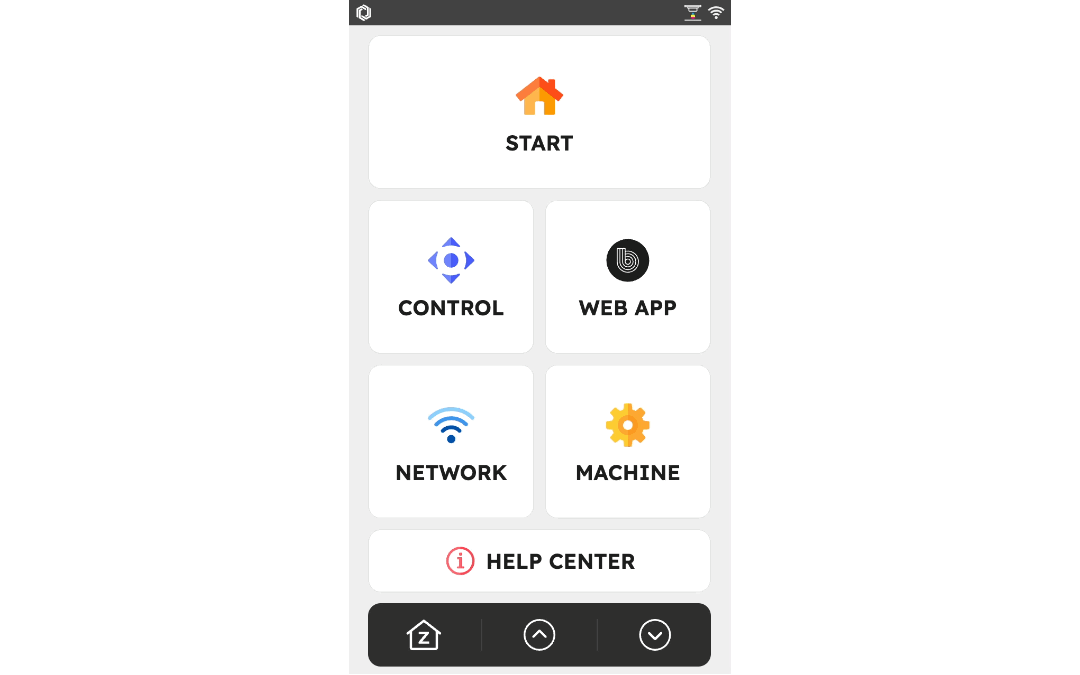

Required firmware Version: 6.1.6 or above. (Download Link)

Step 2 - Preparation

Materials to prepare:

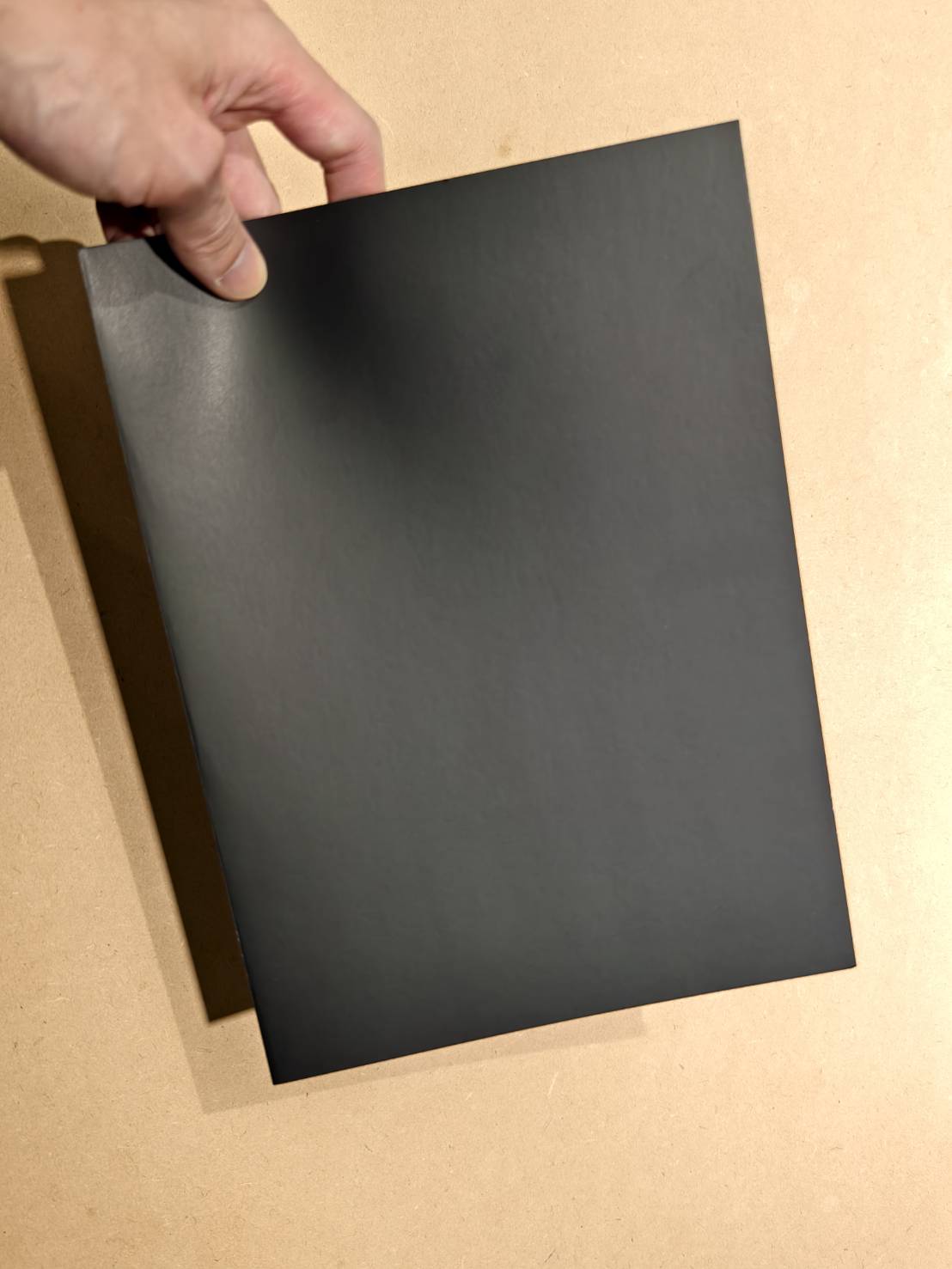

An A4 black Bristol Board/Paper, black paper, or black acrylic.

Step 3 - Place the Black Paper

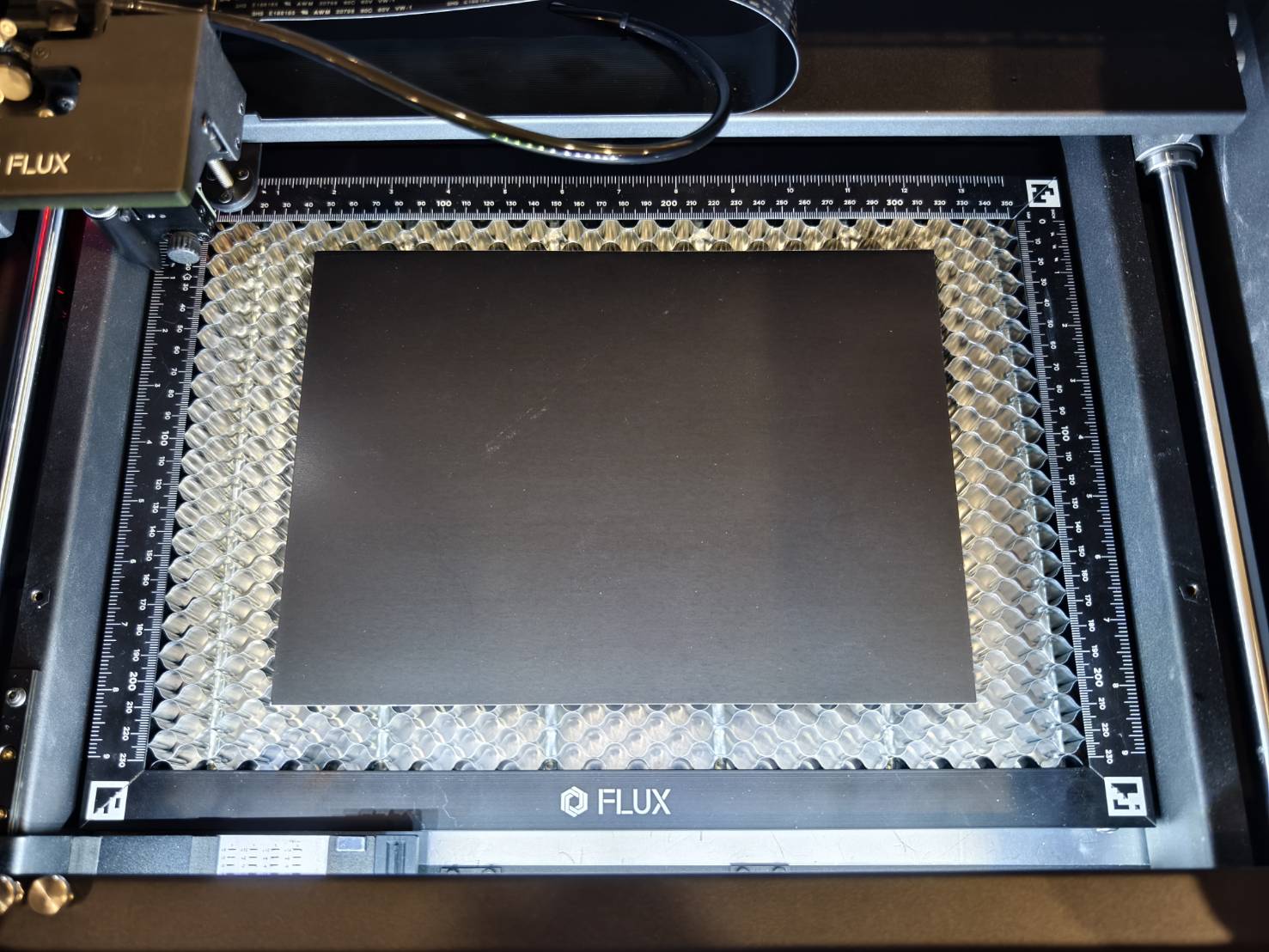

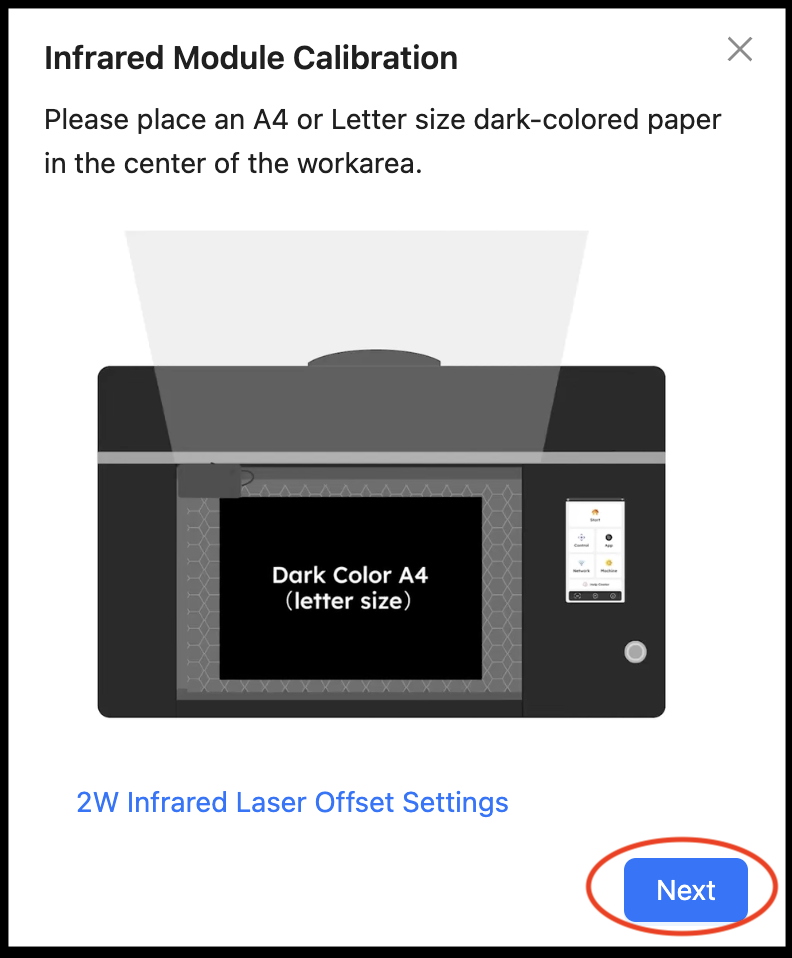

Place the black paper in the center of the workarea.

Step 4 - Perform Auto-focus

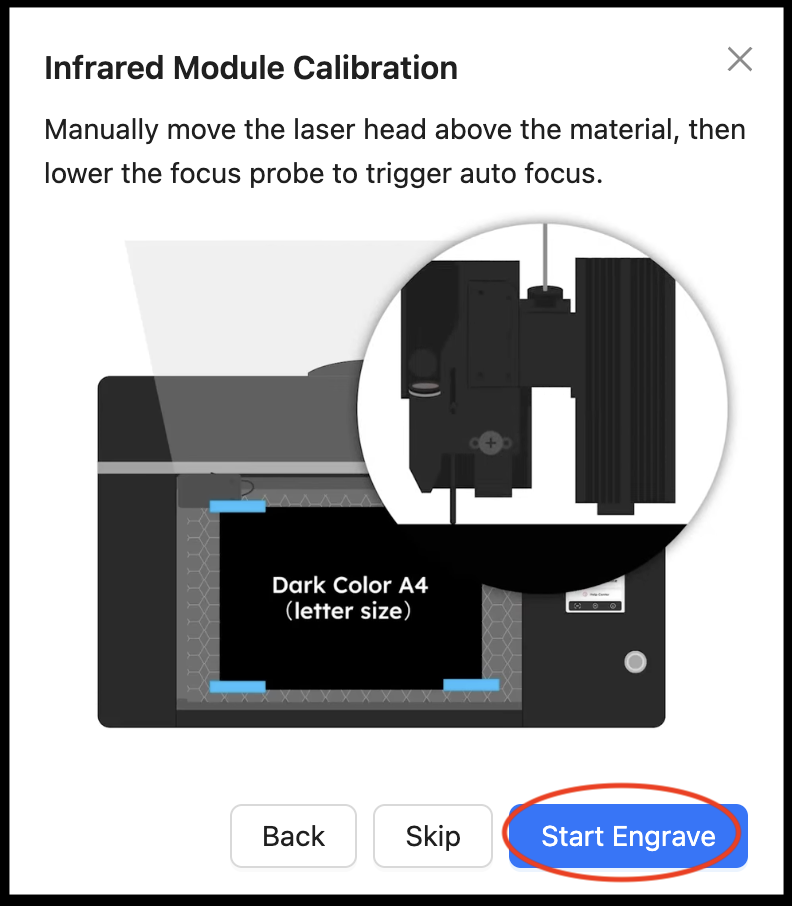

Manually move the laser head above the black paper, then lower the focus probe to trigger auto-focus.
After that, close the cover.

Step 5 - Enable the 2W infrared laser module

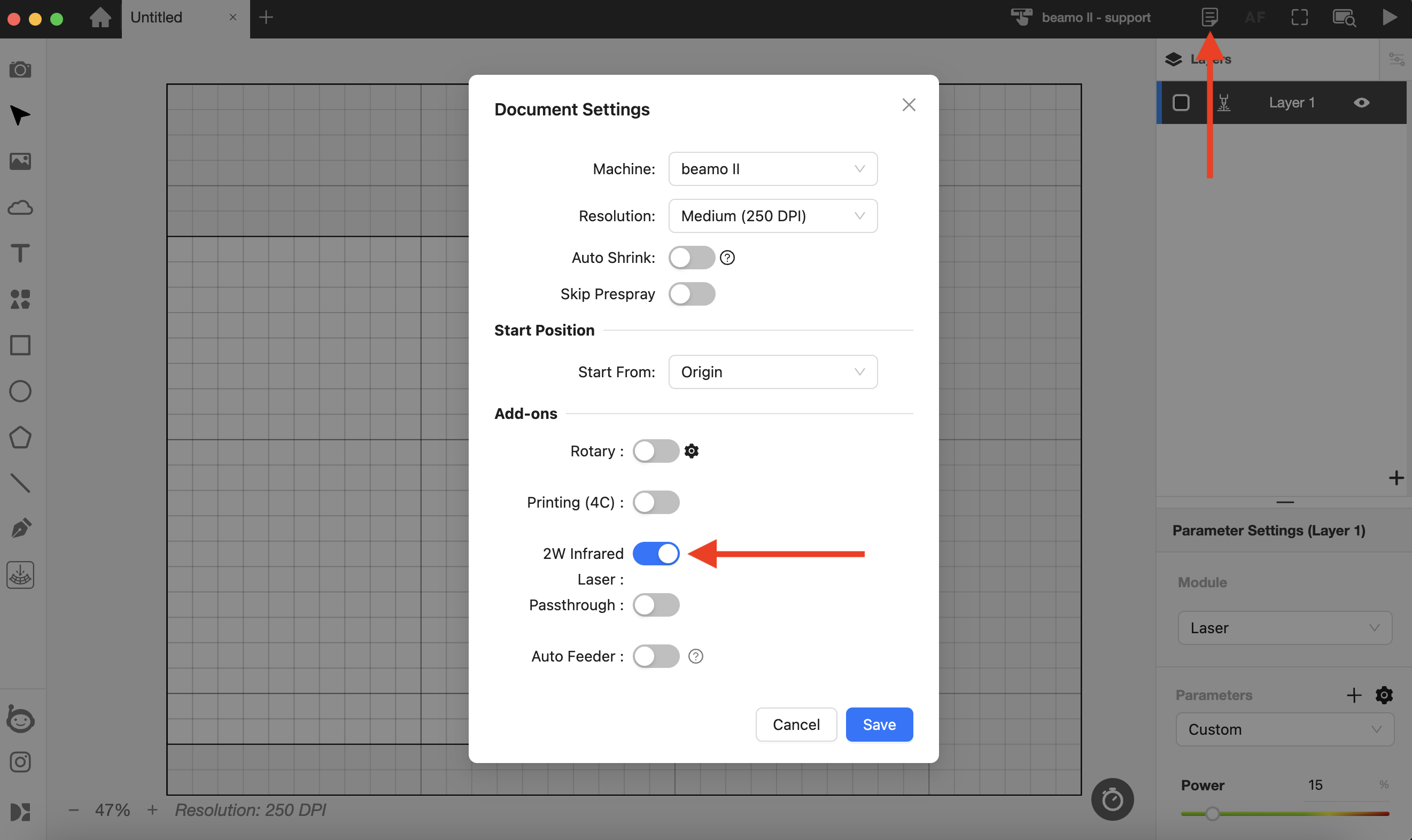

Launch Beam Sutido, connect to your machine, and enable the 2W IR Infrared Laser in Document Settings

Step 6 - Raise the brightness of the camera

Perform a camera preview and adjust the brightness of the camera using the tool at the bottom.

Step 7 - Start Infrared Module Calibration

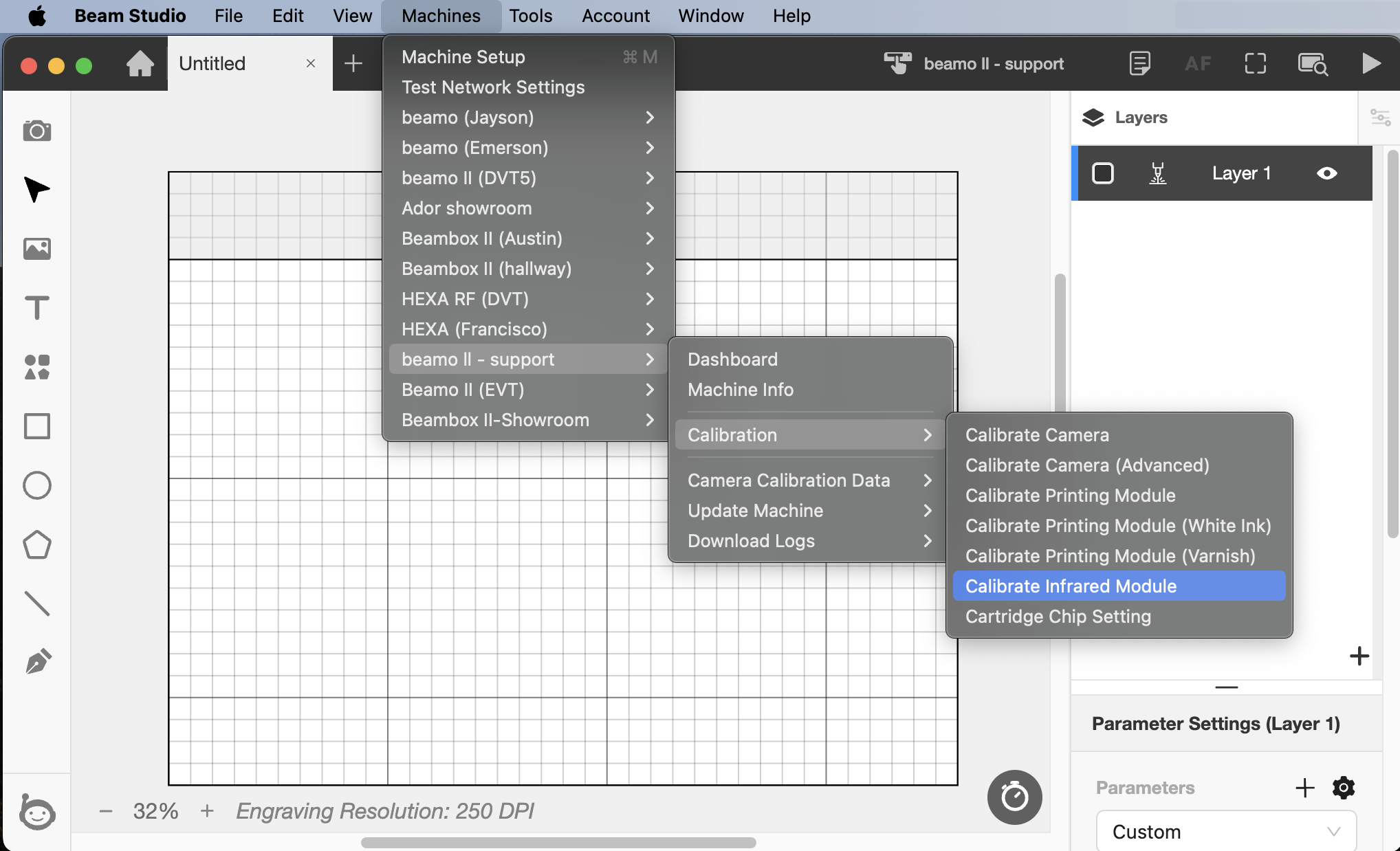

On the top bar, select "Machines" >> "Machine Name" >> "Calibration" >> "Calibrate infrared Module".

Press "Next" and "Start Engraving," and the machine will automatically start the process.

A "+" Sign will be engraved on the black paper. A photo will be taken and shown on the software afterwards.

Step 8 - Align the "+" Sign

Align the red "+" sign with the engraved "+" sign. Drag the photo directly or adjust the X & Y values to move the red sign.
