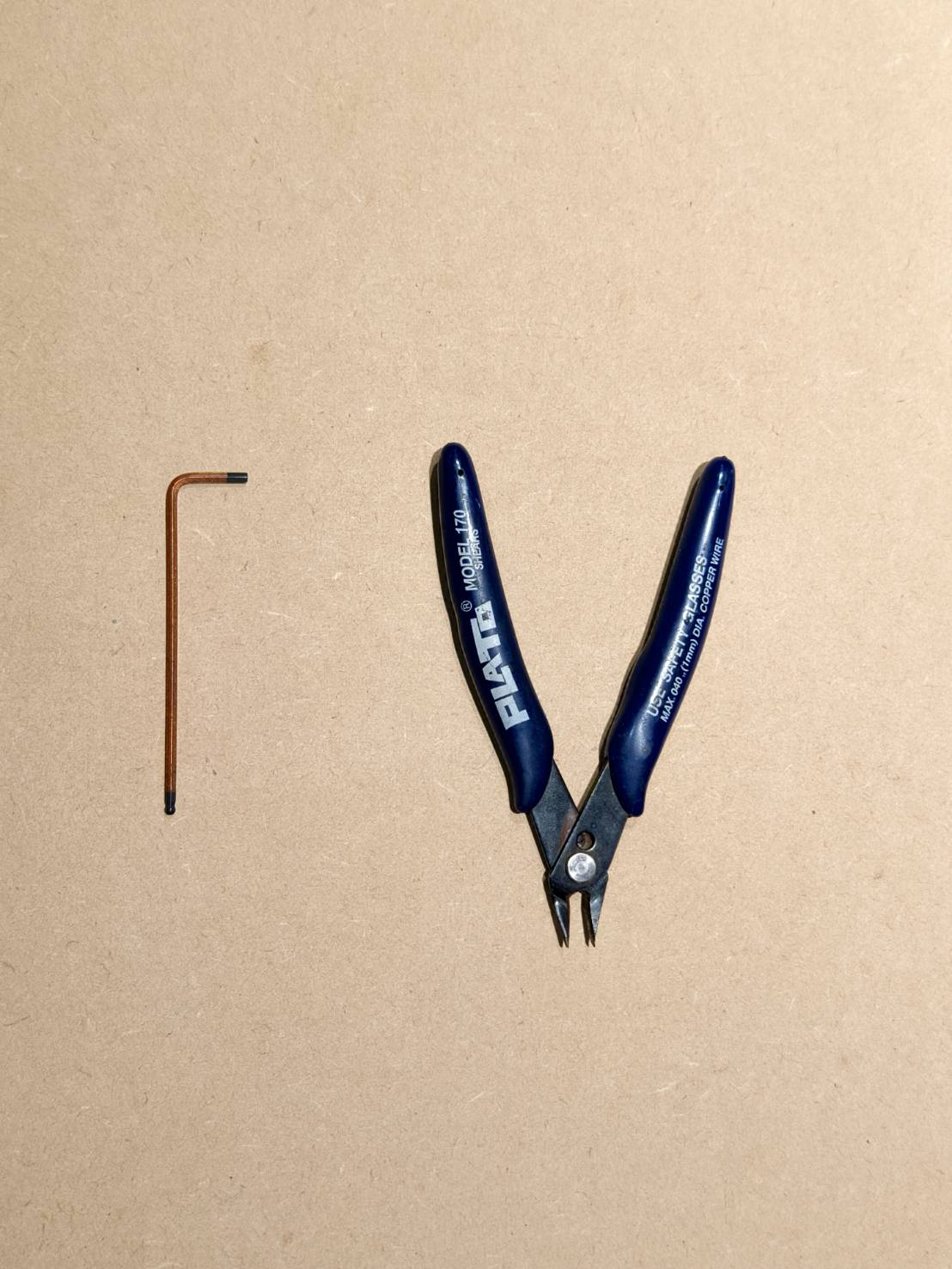

Tools
| 1 | Diagonal Cutting Pliers |
| 2 | 2.5mm Allen key |
Step 1

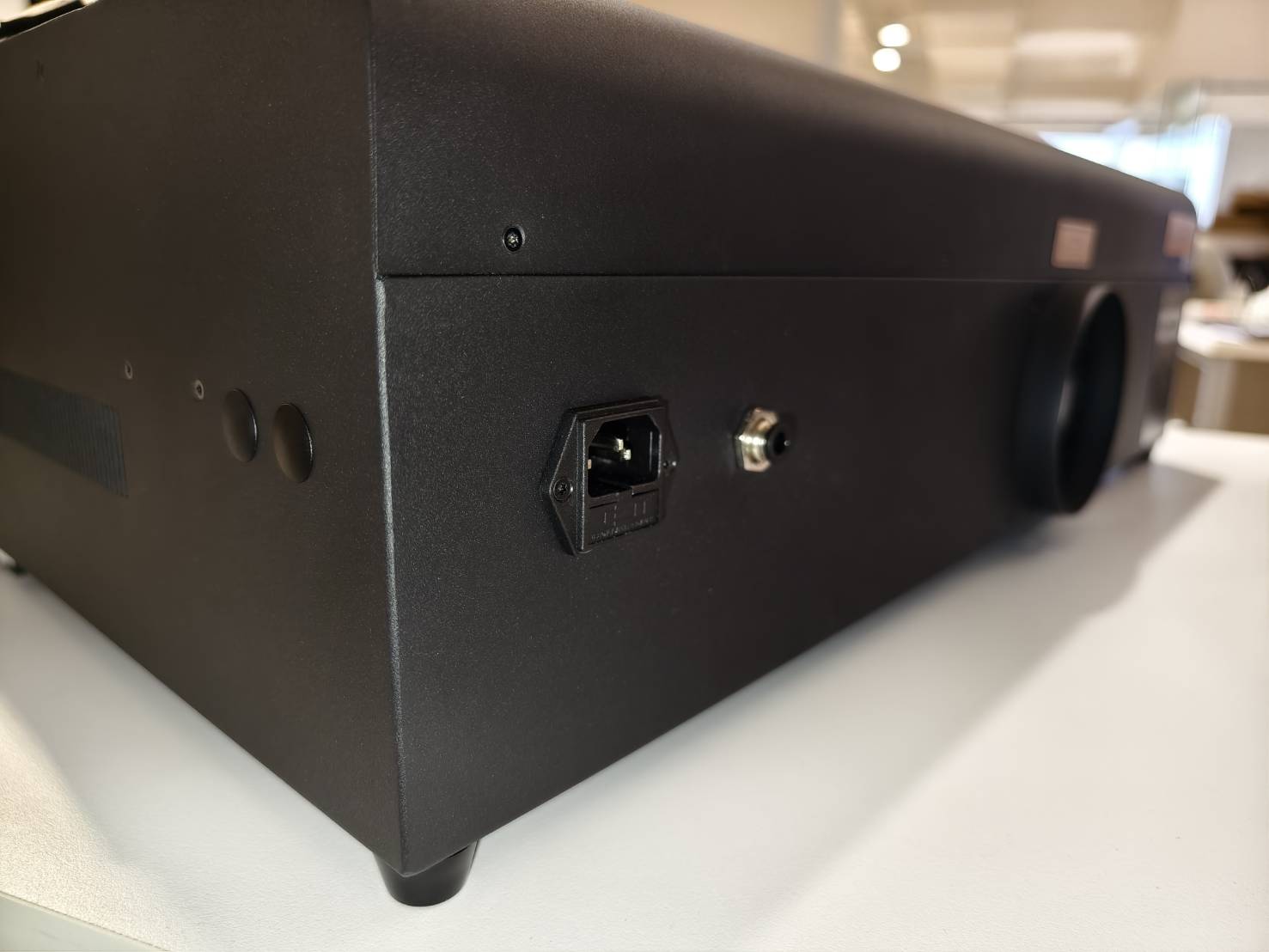

Turn off the machine, and remove the power cord.
Step 2

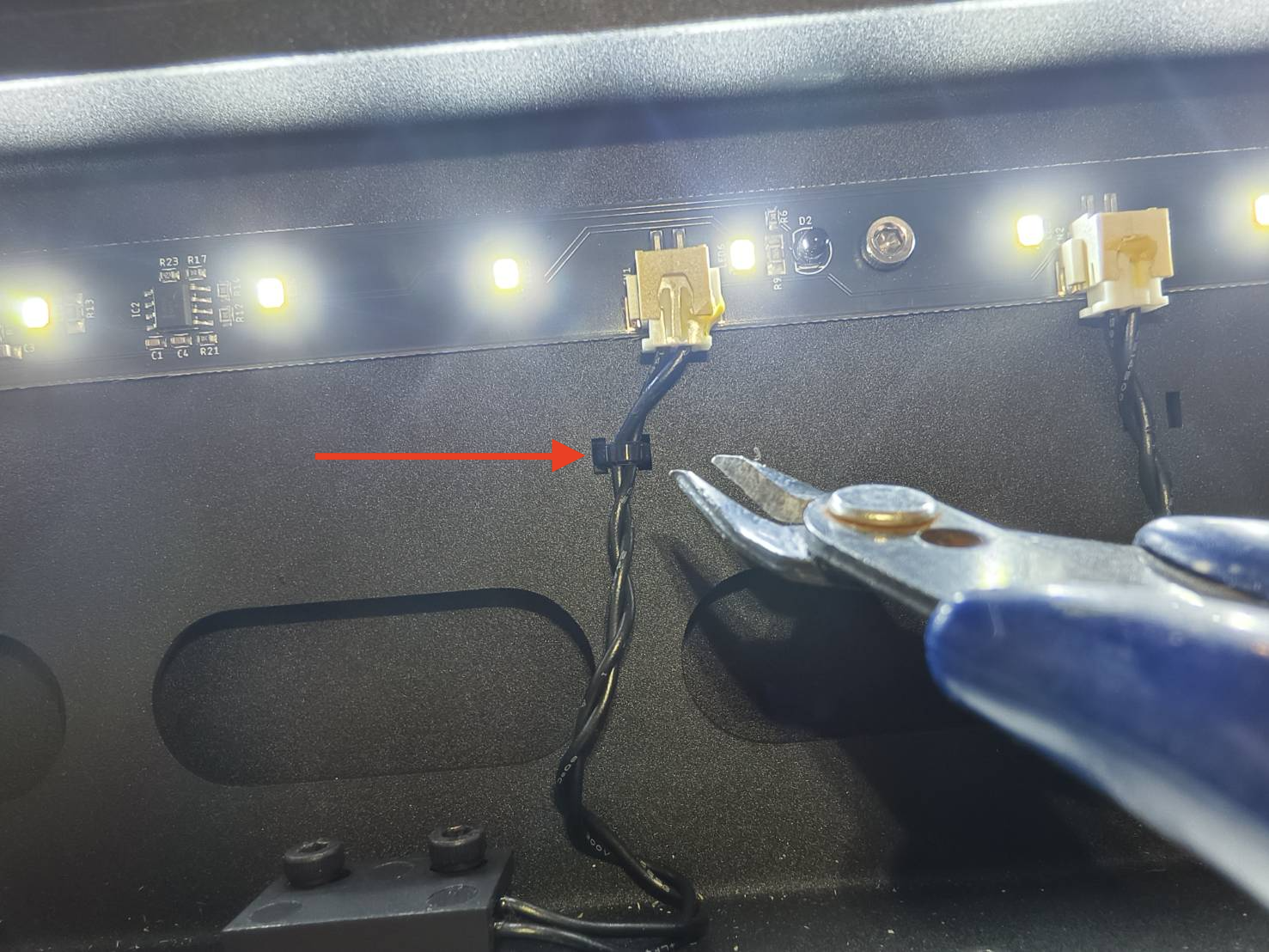

Cut the cable ties that fix the sensor's cable.
(If you don't know the cables are please see the video below for the location.)
Unplug the cables for the bottom sensors.
Step 3

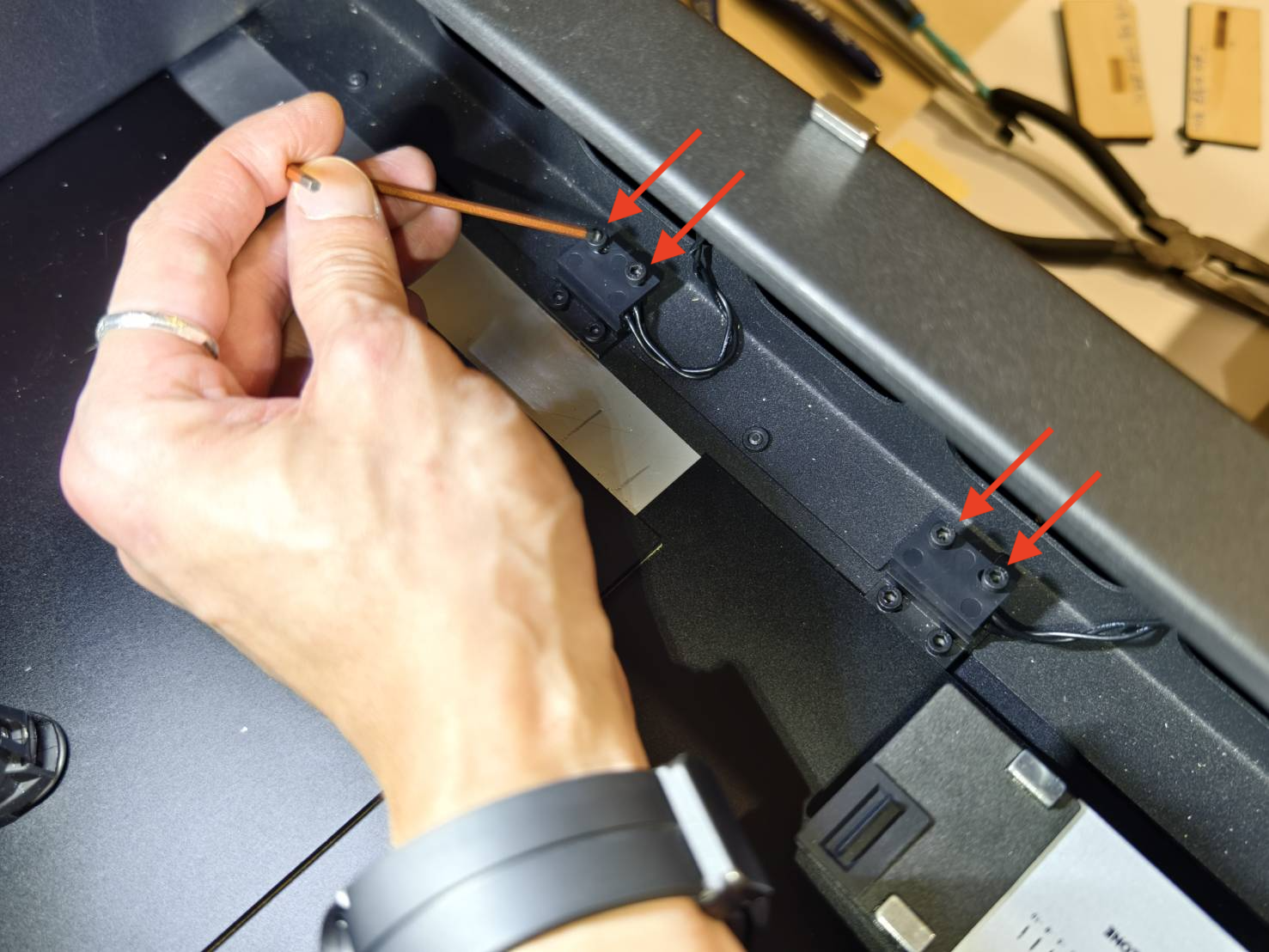

Remove the sensors by unscrewing the four screws.

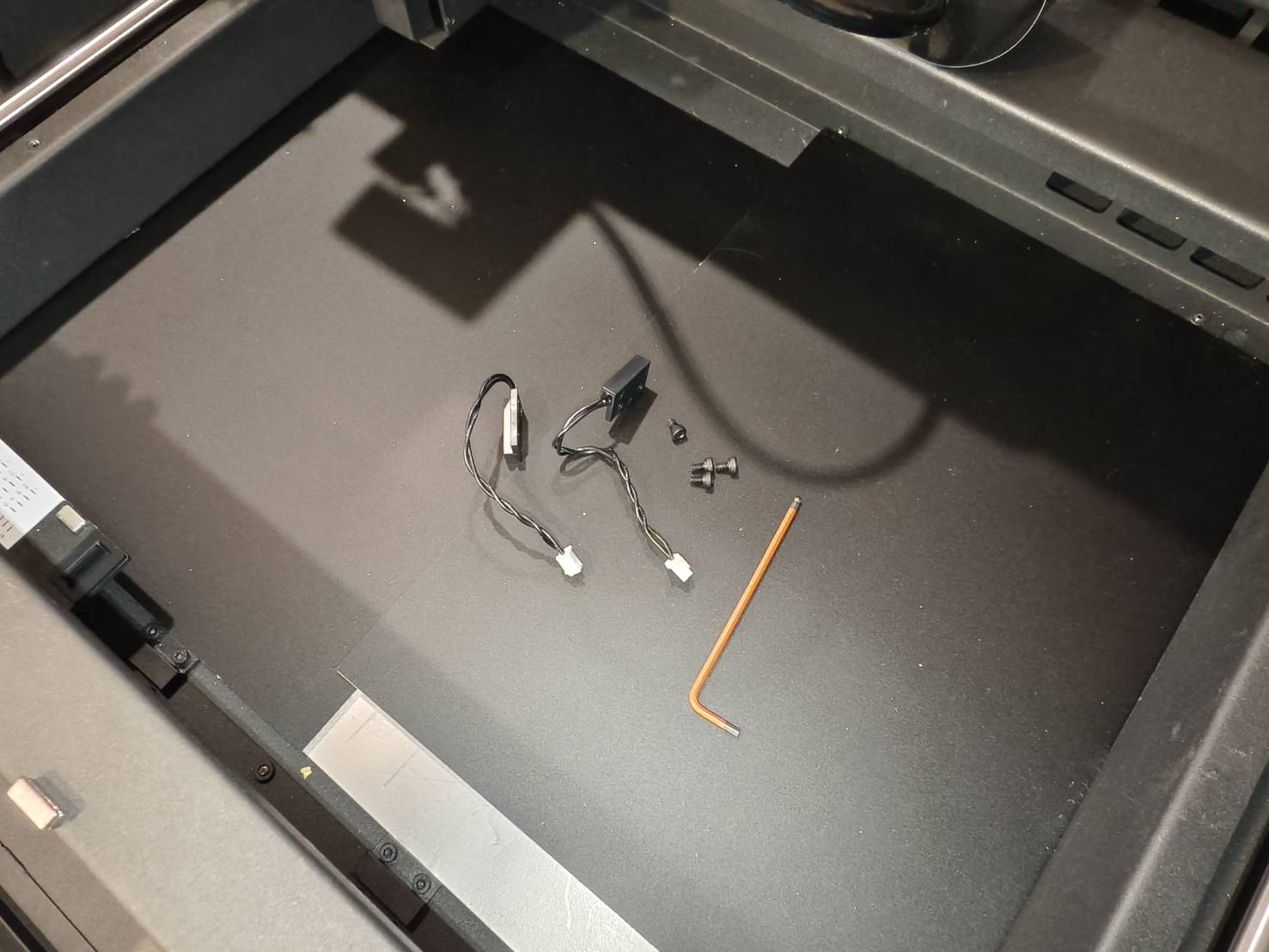

The two sensors can then be removed from the system completely.
Step 4
Prepare the new sensors and the four screws that were removed from the last step.
Install the new sensors.
Step 5
Plug in the cables.
#END
