beamo II - X-axis Board Replacement

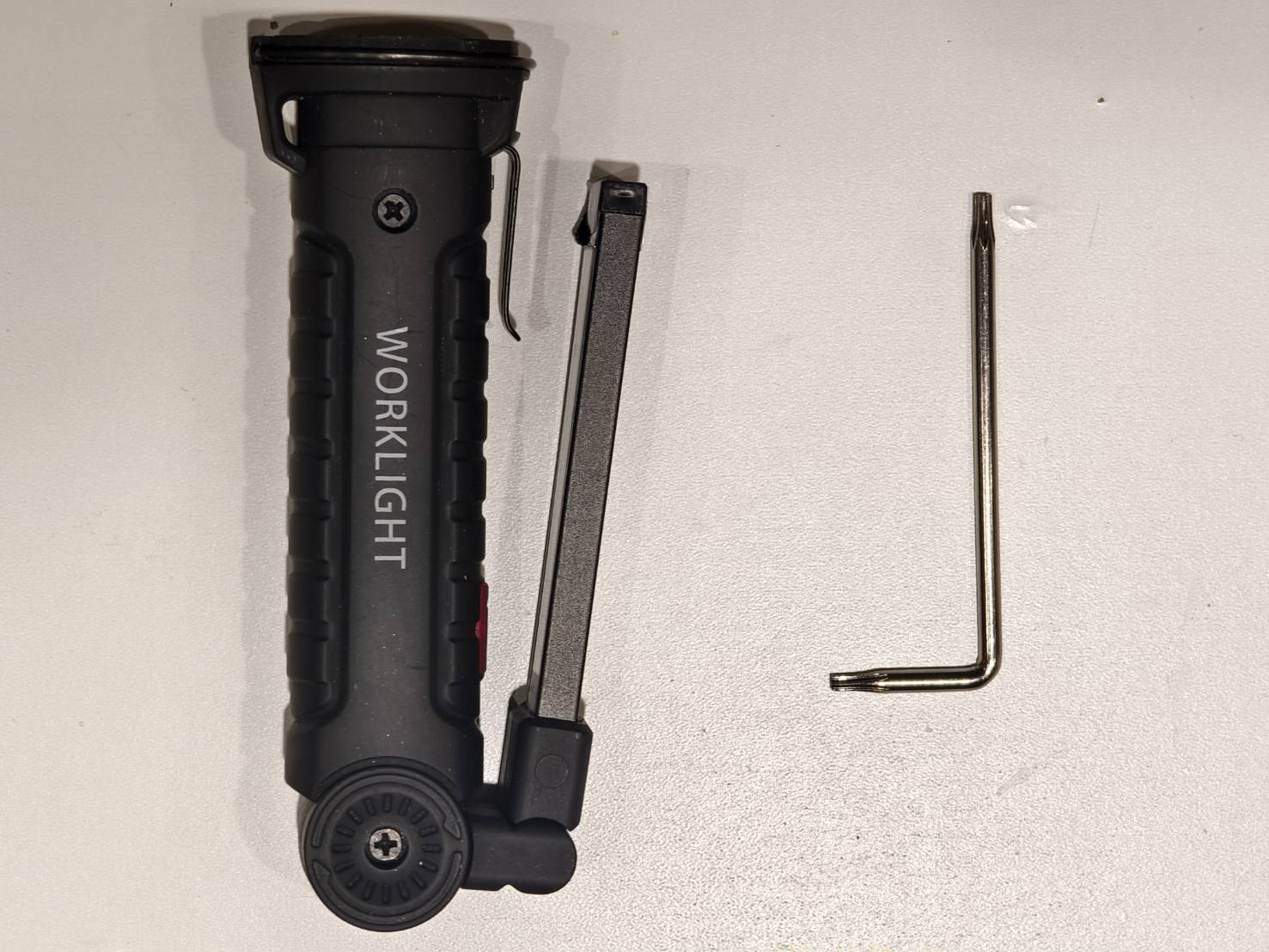

Tools

Step 1

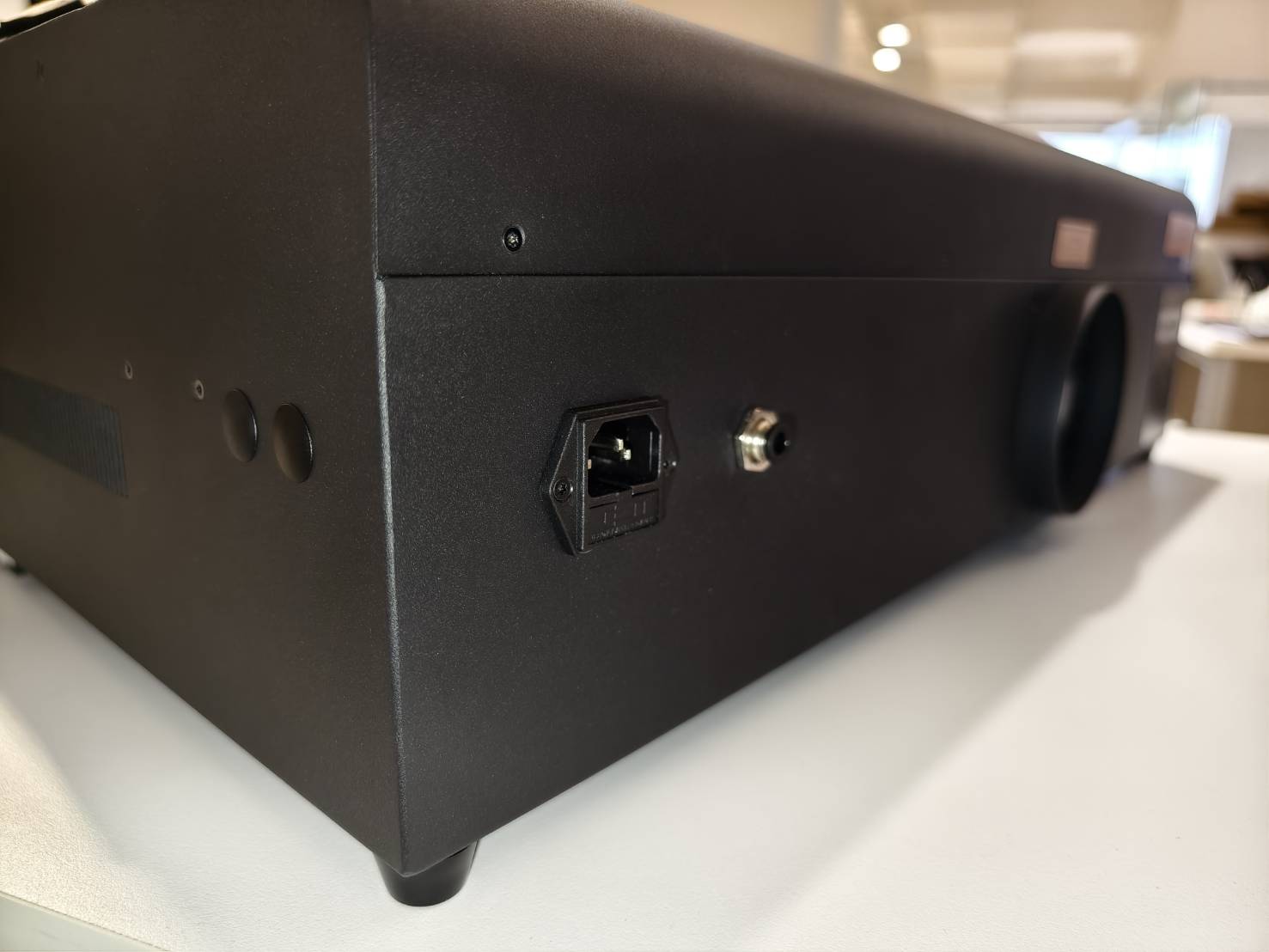

Turn off the machine, and remove the power cord.

Step 2

Remove the front metal cover. (T8 torx screw * 10 pcs.)

Step 3

Remove the screws of the X-axis board. (T8 torx screw * 3 pcs.)

Step 4

Unplug the 28-Pin cable and the camera cable.
(Please note that there are two cables to be unplugged. They might be unplugged at the same time if you apply too much force, but it will be acceptable.)

Step 5

Disconnect the FPC cable from the X-axis board. The X-axis board can then be removed completely.

Step 6

Connect the FPC cable to the new X-axis board.

Step 7

Plug the 28-pin cable and the camera cable into the X-axis board.
(Please ensure that the 28-pin cable is securely plugged into the X-axis board.)

Step 8

Screw the three T8 screws to fix the X-axis board.

Step 9

Reinstall the front metal cover. Ensure the Type-C cable's white dot is facing up, as in the video.

#END
